2007 Toyota Avalon Owners Manual

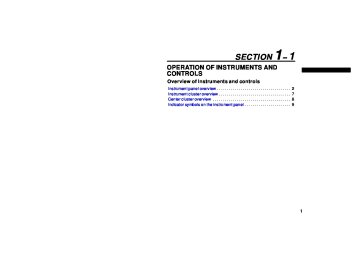

SECTION 1− 1

OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Center cluster overview Indicator symbols on the instrument panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument panel overview (cid:1)View A

1. Side vents 2. Side defroster outlets 3. Instrument cluster 4. Center cluster 5. Garage door opener switches 6. Auxiliary boxes 7. Front personal lights, interior light and/or electric moon roof switches

8. Center vents 9. Glove box 10. Power door lock switches 11. Power window switches 12. Trunk opener main switch 13. Rear console box 14. Rear vents 15. Power outlets 16. Seat ventilator/heater switches 17. Cup holder 18. Automatic transmission selector lever 19. Tire pressure warning reset switch

(On bottom of the instrument panel)

20. Hood lock release lever 21. Parking brake pedal 22. Window lock switch 23. Driving position memory switches

(cid:1)View B (with key cylinder−type ignition switch)

1. Instrument panel light control knob 2. Headlight, turn signal and front fog

light switches

3. Audio remote control switches 4. Speech command switch (See the

separate “Navigation System Owner’s Manual.”)

5. Climate remote control switches 6. Wiper and washer switches 7. Rear window and outside rear view

mirror defogger switch

8. Emergency flasher switch 9. Audio system 10. Air conditioning controls 11. Cigarette lighter and ashtray, auxiliary

box, cassette player or navigation system controller (For the navigation system, see the separate “Navigation System Owner’s Manual.”)

12. Ignition switch 13. Cruise control switch 14. Tilt steering lock release lever 15. Telescopic steering lock release lever

16. Glass breakage sensor 17. Trunk opener switch 18. Fuel filler door opener switch 19. Power rear view mirror control switches

(cid:1)View B (with smart key system)

1. Instrument panel light control knob 2. Headlight, turn signal and front fog

light switches

3. Audio remote control switches 4. Speech command switch (See the

separate “Navigation System Owner’s Manual.”)

5. Climate remote control switches 6. Wiper and washer switches 7. Rear window and outside rear view

mirror defogger switch

8. Emergency flasher switch 9. Audio system 10. Air conditioning controls 11. Cigarette lighter and ashtray, auxiliary

box, cassette player or navigation system controller (For the navigation system, see the separate “Navigation System Owner’s Manual.”)

12. Ignition switch (engine switch) 13. Cruise control switch 14. Distance switch 15. Tilt steering lock release lever

16. Telescopic steering lock release lever 17. Glass breakage sensor 18. Rear electric sunshade switch 19. Trunk opener switch 20. Fuel filler door opener switch 21. Power rear view mirror control switches

Instrument cluster overview

1. Engine coolant temperature gauge 2. Service reminder indicators and

indicator lights

3. Tachometer 4. Speedometer

5. Fuel gauge 6. Low fuel level warning light 7. Trip meter reset knob 8. Odometer and two trip meters

9. Automatic transmission shift range

position display

10. Dynamic laser cruise control display 11. Dynamic laser cruise control master

warning light

Center cluster overview

1. Clock 2. Center display* 1
3. Front passenger’s seat belt reminder

light* 2

4. “AIRBAG ON” and “AIRBAG OFF”

indicator lights

5. Pattern selector knob (for center

display)

* 1: If your vehicle is equipped with navigation system, see the separate “Navigation System Owner’s Manual”. * 2: For details, see “Service reminder indicators and warning buzzers” on page 145 in Section 1−6.

Indicator symbols on the instrument panel

or

Brake system warning light* 1

Open door warning light* 1

SRS warning light* 1

Driver’s seat belt reminder light* 1

Vehicle stability control system and traction control system warning light* 1

Charging system warning light* 1

Low tire pressure warning light* 1

Low engine oil pressure warning light* 1

or

Malfunction indicator lamp* 1

or

Anti−lock brake system warning light* 1

Low windshield washer fluid level warning light* 1

Automatic headlight leveling system warning light* 1

Engine oil replacement reminder light* 1

Smart key system warning light* 1

Engine immobilizer/theft deterrent system indicator light

* 1: For details, see “Service reminder indicators and warning

buzzers” on page 145 in Section 1−6.

* 2: If this light flashes, see “Cruise control” on page 176 in

Section 1−7.

* 3: If this light flashes, see “Dynamic laser cruise control” on

page 179 in Section 1−7.

Headlight indicator light

Tail light indicator light

Headlight high beam indicator light

Turn signal indicator lights

Automatic transmission indicator lights

Slip indicator/traction control system off light

Cruise control indicator light* 2 or dynamic laser cruise control indicator light* 3

Dynamic laser cruise control ready mode indicator light

Conventional cruise control mode indicator light

10

SECTION 1− 2

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Engine immobilizer system Wireless remote control Smart key system Side doors Power windows Trunk lid Hood Theft deterrent system Fuel tank cap Electric moon roof

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12
16
18
27
34
41
44
48
49
51
52

11

A transponder chip for engine immobilizer system has been placed in the head of the master and sub keys. These chips are needed to enable the system to function correctly, so be careful not to lose these keys. If you make your own duplicate key, you will not be able to cancel the system or start the engine. To protect items locked in the trunk or glove box when using valet parking, leave the sub key with the attendant.

Keys (with key cylinder−type ignition switch)

Your vehicle is supplied with two kinds of keys. 1. Master keys (black)—These keys work in every lock. Your Toyota dealer will need one of them to make a new key with a built−in transponder chip.

2. Sub key (gray)—This key will not work in the locks of the glove box and the door located behind the rear seat arm- rest.

12

NOTICE

When using a key containing a trans- ponder chip, observe the following precautions: (cid:1) When starting the engine, do not use the key with a key ring resting on the key grip and do not press the key ring against the key grip. Otherwise the engine may not start, or may stop soon after it starts.

(cid:1) Do not bend the key grip.

(cid:1) When starting the engine, do not use the key with other transponder keys around (including keys of oth- er vehicles) and do not press other key plates against the key grip. Otherwise the engine may not start, or may stop soon after it starts. If this happens, remove the key once and then insert it again after remov- ing other transponder keys (includ- ing keys of other vehicles) from the ring or while gripping or covering them with your hand to start the engine.

(cid:1) Do not cover the key grip with any material that cuts off electromagnet- ic waves.

(cid:1) Do not knock the key hard against

other objects.

(cid:1) Do not leave the key exposed to high temperatures for a long period, such as on the dashboard and hood under direct sunlight.

(cid:1) Do not put the key in water or

wash it in an ultrasonic washer.

(cid:1) Do not use the key with electromag-

netic materials.

13

Keys (with smart key system)

KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.

The key consists of an electronic key and a mechanical key. The mechanical key is for emergency use. If the elec- tronic key does not operate, you can open the driver’s door using the me- chanical key. 1. Electronic keys—These keys can lock or unlock all the doors and can open the trunk by using the wireless remote control function or entry function of the smart key system.

2. Mechanical keys—These keys can lock or unlock the driver’s door, the glove box and the door located behind the rear seat armrest.

14

theft.

(Refer

remain actuated even after

Spare keys should not be left in the cabin. In the event that a spare key is left in the cabin, the smart key system will the doors have been locked. Under these circumstances, the trunk can be opened even after the driver has exited and locked the vehicle, increasing the dan- ger of to “OPENING TRUNK WITH SMART KEY SYSTEM” on page 45 in this Section.) To protect items locked in the trunk or the glove box when using valet parking, lock the the electronic key with the attendant. Keep the mechanical key with you. For details about locking trunk opener switch, see “—Luggage security system” on page 46
in this Section. A transponder chip for engine immobilizer system has been placed in the electronic keys. These chips are needed to enable the system to function correctly, so be careful not to lose these keys.

trunk opener switch and

leave

the

CAUTION

NOTICE

(cid:1) People with implanted pacemakers or cardiac defibrillators should keep away from the smart key system antennas, because the radio waves may affect the operation of such devices. For the antenna locations see “ANTENNA LOCATION” on page 29 in this Section.

(cid:1) Users of any electrical medical de- vice other than implanted pacemak- ers and implanted cardiac defibrilla- tors should consult the manufactur- er of information about its operation under the influ- ence of radio waves. Radio waves could have unexpected effects on the operation of such medical de- vices.

the device

for

(cid:1) If necessary, the entry function can be disabled. See “DISABLING THE SMART KEY SYSTEM” on page 33
in this Section.

When using a electronic key contain- ing a transponder chip, observe the following precautions: (cid:1) Do not affix any material that cuts off electromagnetic waves (such as a metal seal) on the electronic key. (cid:1) Do not knock the electronic key

hard against other objects.

(cid:1) Do not leave the electronic key ex- posed to high temperatures for a long period, such as on the dash- board or hood under direct sun- light.

(cid:1) Do not put the electronic key in water or wash it in an ultrasonic washer.

(cid:1) Do not keep the electronic key to- gether with the products emitting electromagnetic waves such as a cellular phone.

USING A MECHANICAL KEY When you use the mechanical key push the release button and take out the me- chanical key as shown. Be sure to put the mechanical key back when not it use.

15

Engine immobilizer system The engine is a immobilizer system theft prevention system using an elec- tronic code. The transponder chip in the key has an electronic code and transmits the code to the vehicle. Only when the electronic code in the chip corresponds to the register ID code for the vehicle, the engine immobilizer sys- tem will be canceled and the engine will start.

KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.

16

The engine immobilizer system is automat- ically set when: Vehicles with key cylinder−type ignition switch—The key is removed from the igni- tion switch. Vehicles with smart key system—The igni- tion switch is turned off. light will start The show that the system is set.

flashing to

indicator

For your Toyota dealer to make you a new key with built−in transponder chip, your dealer will need your key number and master key (vehicles with key cylin- der−type ignition switch) or electronic key (vehicles with smart key system). Howev- er, there is a limit to the number of addi- tional keys your Toyota dealer can make for you.

NOTICE

Do not modify, remove or disas- semble the engine immobilizer sys- tem. If any unauthorized changes or modifications are made, proper opera- tion of the system cannot be guaran- teed.

For vehicles sold in U.S.A.

FCC ID: MOZRI−21BTY FCC ID: NI4TMIMB−1
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.

CAUTION

Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.

If any of the following indicator conditions occur, contact your Toyota dealer. (cid:1) The indicator light remains on. (cid:1) The indicator light does not start flash-

ing under the following situations. Vehicles with key cylinder−type ignition switch—When the key is removed from the ignition switch. Vehicles with smart key system—When the ignition switch is turned off.

(cid:1) The indicator light flashes inconsistent-

ly.

ignition

The engine immobilizer system is automat- ically canceled when: Vehicles with key cylinder−type switch— You insert the key to the ignition switch. Vehicles with smart key system— You enter the vehicle carrying a key with smart key system and press the “ENGINE START STOP” switch (engine switch). Even if the key battery is discharged, the engine can be started. See “Smart key system” on page 27 in this Section. When the system is canceled, the indica- tor light will go off.

17

For vehicles sold in Canada

Wireless remote control—

This device complies with RSS−210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.

interference,

including

1. Lock switch 2. Unlock switch 3. Alarm switch 4. Trunk opener switch 5. Indicator light (vehicles with smart key

system only)

Vehicles with key cylinder−type switch

ignition

18

Vehicles with smart key system

to

lock or unlock all

The wireless remote control function is designed the doors, open the trunk lid, or activate the alarm from a distance within approximately 1 m (3 ft.) of the vehicle. When you operate any switch, push it slowly and securely. Vehicles with smart key system only— When the switch is operated, the indicator light flashes once. If not, the battery may be discharged. Replace the battery at the earliest opportunity. The wireless remote control transmitter is an electronic component. Observe the fol- lowing instructions in order not to cause damage the key. (cid:1) Do not leave the transmitter in places the temperature becomes high

where such as on the dashboard.

(cid:1) Do not disassemble it. (cid:1) Avoid knocking

it hard against other

objects or dropping it.

(cid:1) Avoid putting it in water.

For vehicles sold in U.S.A.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.

You can use up to 4 wireless remote con- trol transmitters (for vehicles with key cyl- inder−type ignition switch) or 7 wireless remote control transmitters (for vehicles with smart key system) for the same ve- hicle. Contact your Toyota dealer for de- tailed information. If the wireless remote control transmitter does not actuate the doors, or does not operate from a normal distance, or if the indicator on the transmitter is dimmed or does not come on: (cid:1) Check for closeness to a radio trans- mitter such as a radio station or an airport which can interfere with normal operation of the transmitter.

(cid:1) The battery may have been consumed. Check the battery in the transmitter. To replace the battery, see “—Replacing battery” on pages 24 or 25 in this Sec- tion.

If you lose your transmitter, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an acci- dent. (See “If you lose your wireless re- mote control transmitter” on page 332 in Section 4.)

19

interference

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interfer- ence by one or more of the following measures:

to radio or

—Locking and unlocking doors

(cid:1) Reorient or relocate the receiving an-

tenna.

(cid:1) Increase the separation between the

equipment and receiver.

(cid:1) Connect the equipment into an outlet to

on a circuit different which the receiver is connected.

from

that

(cid:1) Consult the dealer or an experienced

radio/TV technician for help.

FCC WARNING: Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.

For vehicles sold in Canada

Locking operation (vehicles with key cyl- inder−type ignition switch)

Operation is subject to the following two conditions: (1) this device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.

interference,

including

20

Unlocking operation cylinder−type ignition switch)

(vehicles with key

the

lock: Push

lock switch. All

To lock or unlock all the doors, push the switches slowly and securely. the To doors are locked simultaneously. At this time one beep will sound and turn signal lights flash once. Vehicles with smart key system—For 3
seconds after the doors have been locked, the doors cannot be re−unlocked via the smart key system. Check to see that the doors are securely locked. If any of the doors is not securely closed, or if the key is in the ignition switch (ve- hicles with key ignition switch) or key left in the vehicle (vehicles with smart key system), locking cannot be performed by the lock switch and a beep will sound continuously for 10 seconds. To stop the beep, take out the key from the vehicle or push the unlock switch.

cylinder−type

Locking operation key system)

(vehicles with smart

Unlocking operation (vehicles with smart key system)

lights

turn signal

To unlock: Push the unlock switch once to unlock the driver’s door alone. Pushing the switch twice within 3 seconds unlocks all the doors simultaneously. Each time the unlock switch is pushed, two beeps will sound and flash twice. This double switch operation to unlock all doors can be changed to a single switch operation. For details, contact your Toyota dealer. If the key is in the ignition (vehicles with key cylinder−type ignition switch) or the ignition switch is set to ACC or ON (ve- hicles with smart key system), the vehicle cannot be unlocked via the unlock switch. When all the doors are unlocked simulta- neously with a key, wireless remote con- trol or entry function of the smart key system, the following lights come on for about 15 seconds and then fade out, even if the door is not opened. Vehicles with key cylinder−type ignition switch—Ignition switch light, interior light, front personal rear personal lights Vehicles with smart key system—Interior light, front personal lights, rear personal lights and exterior foot lights

lights and

21

—Opening trunk lid

The following adjustments can be made in this system. For details, contact your Toyota dealer. (cid:1) Cancelling the wireless door locking or

unlocking function

(cid:1) Cancelling the flash of the turn signal

lights

(cid:1) Cancelling the beep sound

Vehicles with key cylinder−type switch

ignition

(For further information, see “Illuminated entry system” on page 135 in Section 1−5.) You have 30 seconds to open a door after using the wireless remote unlock feature. If a door is not opened by then, all the doors will be automatically locked again. If the wireless remote control is used to lock the doors near the window or door handle, there is a possibility that the door function of may not unlocked by entry smart key system. Under these circum- stances, use the wireless remote control to unlock the doors. The time before automatic door lock func- tion can be changed. For details, contact your Toyota dealer. If is kept pressed in, the locking or unlocking opera- tion is not repeated. Release the switch and then push again.

lock or unlock switch

the

22

Vehicles with smart key system

To open the trunk lid, push the trunk opener switch of the transmitter for 1
second. A long beep will sound. If the key is in the ignition (vehicles with key cylinder−type ignition switch) or the ignition switch is set at ACC or ON (ve- hicles with smart key system), the trunk lid cannot be opened by the trunk opener switch. Opening of the trunk lid with the wireless remote control can be changed as follows. Contact your Toyota dealer for details. (cid:1) Trunk lid opens by pushing the trunk

opener switch twice in succession.

(cid:1) Trunk lid opens by pushing the trunk opener switch once regardless of how long the switch is being pressed.

—Activating alarm

Vehicles with key cylinder−type switch

ignition

(cid:1) Opening of

is disabled using the wireless remote control trans- mitter.

trunk

the

lid

key

with

smart

the horn the headlights,

Pushing the alarm switch for 1 second intermittently and blows flashes turn signal lights, tail lights and interior light. Vehicles system only—When pushing the switch, the indi- cator light flashes. The alarm switch is used to deter vehicle theft when you witness anyone attempting to break into or damage your vehicle. The alarm will last for one minute. To stop the alarm midway, push the switch once again, unlock a door with the transmitter, or set the ignition switch to ON. If the key is in the ignition (vehicles with key cylinder−type ignition switch) or the ignition switch is set at ACC or ON (ve- hicles with smart key system), the alarm does not work. This alarm function can be disabled. For details, contact your Toyota dealer.

Vehicles with smart key system

23

—Replacing battery (with key cylinder−type ignition switch) For replacement, use a CR2016 lithium battery or equivalent.

CAUTION

Special care should be taken to pre- vent small children from swallowing the removed transmitter battery or components.

NOTICE

(cid:1) When replacing the transmitter bat- tery, be careful not to lose the com- ponents.

(cid:1) Replace only with the same or equivalent type recommended by a Toyota dealer.

(cid:1) Dispose of used batteries according

to the local laws.

Replace the transmitter battery by follow- ing these procedures:

24

1. Using a coin or equivalent, open the

2. Remove the circuit board, then remove

transmitter case.

the discharged transmitter battery.

NOTICE

(cid:1) Take care not to damage the circuit

board.

(cid:1) Do not bend the terminals.

(cid:1) Be careful not to bend the electrode when inserting the transmitter bat- tery and that dust or oils do not adhere to the transmitter case.

(cid:1) Close the transmitter case securely.

After replacing the battery, check that the transmitter operates properly. If the trans- mitter still does not operate properly, con- tact your Toyota dealer.

—Replacing battery (with smart key system) The transmitter can easily be damaged when replacing the battery. We recom- mend having the battery replaced by your Toyota dealer. If you have to do it your- self, use a CR1632 lithium battery or equivalent and a flathead screwdriver.

CAUTION

Special care should be taken to pre- vent small children from swallowing the removed transmitter battery or components.

NOTICE

(cid:1) Be careful not to touch the circuit, as this may generate static electric- ity that can damage the transmitter. (cid:1) When replacing the transmitter bat- tery, be careful not to lose the com- ponents.

(cid:1) Replace only with the same or equivalent type recommended by a Toyota dealer.

(cid:1) Dispose of used batteries according

to the local laws.

Replace the transmitter battery by follow- ing these procedures:

25

3. Put in a new transmitter battery with positive (+) side up. Install the circuit board into the transmitter case.

Close the transmitter case securely.

NOTICE

(cid:1) Make sure the positive side and negative side of the transmitter bat- tery are faced correctly.

(cid:1) Do not replace the battery with wet hands. Water may cause unexpected rust.

(cid:1) Do not touch or move any compo- nents inside the transmitter, or it may interfere with proper operation.

1. Push the release button and take out

2. Using a flathead screwdriver or equiva-

the mechanical key.

lent, open the transmitter case.

3. Remove the discharged transmitter bat- tery by flathead screwdriver or equiva- lent. Insert the guide groove and lift as shown in the above illustration.

NOTICE

Do not modify the battery case. It may cause a trouble.

26

NOTICE

(cid:1) Make sure the positive side and negative side of the battery are faced correctly.

(cid:1) Do not replace the battery with wet hands. Water may cause unexpected rust.

(cid:1) Do not touch or move any compo- nents inside the transmitter, or it may interfere with proper operation. (cid:1) Be careful not to bend the electrode when inserting the transmitter bat- tery and that dust or oils do not adhere to the case.

(cid:1) Close the transmitter case securely.

After replacing the battery, check that the transmitter operates properly. If the trans- mitter still does not operate properly, con- tact your Toyota dealer.

4. Put in a new battery with the positive (+) side up. Install the cover and insert the mechanical key into the transmitter.

Close the transmitter case securely.

Smart key system The smart key system consists mainly of the following functions. (cid:1) Engine

(For de- tails, see “Engine immobilizer system” on page 16 in this Section.)

immobilizer

function

(cid:1) Wireless remote control

function (For details, see “Wireless remote control” on page 18 in this Section.)

(cid:1) Push button start function (For details, see “How to start the engine” on page 296 in Section 3.)

(cid:1) Entry function and start function (See FUNCTION AND START

“ENTRY FUNCTION” described below.)

(cid:1) Steering lock function (See “STEERING

LOCK FUNCTION” described below.)

27

AND

START

FUNCTION

ENTRY FUNCTION By carrying the key, you can lock and unlock the doors and start the engine. Entry function—You can lock and unlock the doors and open the trunk without in- serting the key in the keyhole. For further information, see “Side doors” on page 34
and “Trunk lid” on page 44 in this Section. Start function—You can shift the power supply mode and start the engine when the electronic key is in the vehicle. For further information, see “Ignition switch” on page 159 in Section 1−7 and “How to start the engine ”on page 296 in Section 3.

CAUTION

(cid:1) People with implanted pacemakers or cardiac defibrillators should keep away from the smart key system antennas, because the radio waves may affect the operation of such devices. For the antenna locations see “ANTENNA LOCATION” on page 29 in this Section.

(cid:1) Users of any electrical medical de- vice other than implanted pacemak- ers and implanted cardiac defibrilla- tors should consult the manufactur- er of information about its operation under the influ- ence of radio waves. Radio waves could have unexpected effects on the operation of such medical de- vices.

the device

for

Entry function

(cid:1) If necessary, the entry function can be disabled. See “DISABLING THE SMART KEY SYSTEM” on page 33
in this Section.

28

Start function

lock

STEERING LOCK FUNCTION When the driver’s door is opened after turning off the engine, the steering wheel will lock. The steering is automatically un- locked when the “ENGINE START STOP” switch (engine switch) is pressed. If the indicator “ENGINE START STOP” switch flashes green, this indicates that the steering wheel remains locked. If the amber indicator light flashes, this indi- cates that the steering lock is malfunction- ing. For details, see “How to start the engine” on page 296 and “Driving and parking using smart key system” on page 300 in Section 3.

light on

the

ANTENNA LOCATION 1. Antenna inside cabin and trunk 2. Antenna outside cabin and trunk

29

2. Start function actuation area—Inside

of the cabin. The start function may not be activated if the key is on the instrument panel, on the package tray, in the glove box or on the floor, etc.

In the following cases, the smart key sys- tem may not operate properly. (cid:1) When facilities issuing strong electro- magnetic waves such as TV towers, electric power stations, broad casting stations are nearby.

(cid:1) In places where automated payment fa- cilities are installed (such as gas sta- tions).

(cid:1) When you are carrying an electronic key together with a mobile communica- tions system such as a two−way radio or cellular phone.

(cid:1) When the electronic key is in contact

with or covered by a metallic object.

(cid:1) When

the electronic key

is near a

high−voltage or noise−emitting device.

together with a key

(cid:1) When you are carrying an electronic key for another smart key system equipped vehicle or another radio waves.

instrument

emitting

(cid:1) Depending on the position of the key or vehicle body shape the key may not work well even within the actuation area.

(cid:1) When the key surface is covered by a sticker, etc. that may cut off electro- magnetic wave.

If the smart key system does not oper- ate properly and you cannot enter, you can lock and unlock all the doors by using mechanical key attached to the master key or wireless remote control function.

(cid:1) When another person

wireless another vehicle near your vehicle.

remote control

is operating a function on

(cid:1) When the battery is discharged. To re- place the battery, see “—Replacing bat- tery” on page 25 in this Section.

ACTUATION AREA The entry function and start function are available to use when a registered key is in the actuation area. 1. Entry function actuation area—About from each outside door

1 m (3 handle and trunk opener switch. If the key is close to a door handle, a window, the center of the rear bump- er, on the ground or above the roof, the entry function may not operate properly.

ft.)

30

KEY

BATTERY

STARTING THE ENGINE WHEN THE ELECTRONIC IS DISCHARGED If the key indicator does not flash and the engine cannot be started by using the start function, the battery may be discharged. Replace the key battery as soon as possible. (See “—Replacing battery” on page 25 in this Section.)

However the engine can be started in the following procedures. is depressed, 1. While touch the electronic key to the “ENGINE START STOP” switch.

the brake pedal the Toyota

logo side of

indicator

light on

2. Start the engine within 5 seconds after the green the “ENGINE START STOP” switch comes on and a buzzer sounds. BATTERY POWER SAVING Both the vehicle and key transmitters are always sending signals to each other. To prevent from being dis- charged, the smart key system is auto- matically deactivated in the following con- ditions: (cid:1) If the electronic key is left outside of the effective function actuation

the vehicle and within range of area for more than 10 minutes.

the batteries

the entry

if

the

leave the key near

The key and the vehicle are communicat- ing even while the vehicle is not being driven. Do not the vehicle (within 2 m [7 ft.]). The vehicle battery may drain the vehicle is not used for a long period of time. To prevent battery drain, disconnect the battery negative (−) terminal or disable the smart key system. (For details about disable see “DISABLING THE SMART KEY SYSTEM” on page 33 in this Section.) If the battery is disconnected, the power window and moon roof may not operate automatically and the jam protection func- tion will not function correctly after you reconnect. this case, you should normalize each system. To normalize them, see “Power windows” on page 41
and “Electric moon roof” on page 52 in Section 1−2.

system,

smart

key

In

(cid:1) If the door lock or unlock operation is

not performed more than 2 weeks.

31

For vehicles sold in U.S.A.

For vehicles sold in Canada

FCC ID: NI4TMLF−1
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.

CAUTION

Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.

This device complies with RSS−210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.

interference,

including

For vehicles sold in U.S.A.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.

To reactivate the smart key system, per- form any of the following: (a) Press the lock button on the outside front door handle while carrying the electronic key.

(b) Perform a wireless remote control op-

(c)

eration. Insert and turn the mechanical key in the keyhole of the driver’s door.

If the electronic key receives strong elec- tromagnetic waves over a period of time, the battery can be drastically run down. You should always keep the at least 1 m (3 ft.) away from the electronic key follow- ing electrical appliances. (cid:1) TV (cid:1) Personal computer (cid:1) Cellular phone (cid:1) Cordless phone recharger unit (cid:1) Electric light stand (cid:1) Fluorescent desk light

32

interference

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interfer- ence by one or more of the following measures:

to radio or

(cid:1) Reorient or relocate the receiving an-

tenna.

(cid:1) Increase the separation between the

equipment and receiver.

(cid:1) Connect the equipment into an outlet to

on a circuit different which the receiver is connected.

from

that

(cid:1) Consult the dealer or an experienced

radio/TV technician for help.

FCC WARNING: Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.

For vehicles sold in Canada

Operation is subject to the following two conditions: (1) this device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.

interference,

including

DISABLING THE SMART KEY SYSTEM The following functions can be disabled: (cid:1) A function that allows you to lock/un- lock the doors and open the trunk by simply carrying a key

(cid:1) A function that causes the vehicle to beep if keys are forgotten inside the vehicle or trunk and a door is closed (cid:1) A function that recalls the position of the driver’s seat and outside rear view mirrors

(cid:1) A function that shifts the power supply mode and starts the engine when the electronic key is in the vehicle.

(cid:1) Warning lights and buzzers For details, contact your Toyota dealer. If the smart key system does not oper- ate properly because of a system mal- function, consult your Toyota dealer. Make sure to bring all of the keys. They may be necessary to repair the system.

33

—Locking and unlocking with smart key system When you carry the registered key with smart key system into the actuation area, you can lock and unlock the side doors without using the key. For further informa- tion of actuation area, see “Smart key system” on page 27 in this Section.

Side doors— —Locking and unlocking with key

Vehicles with key cylinder−type switch

ignition

Vehicles with smart key system

34

the doors

Insert the key into the keyhole and turn it. To lock: Turn the key forward. To unlock: Turn the key backward. All lock and unlock simulta- neously with the driver’s door. In the driv- er’s door lock, turning the key once will unlock the driver’s door and twice in suc- cession will unlock all the doors simulta- neously. This double key turning operation to un- lock all the doors can be changed to a single key turning operation. For details, contact your Toyota dealer. Vehicles with smart key system—For 3
seconds after the doors have been locked, the doors cannot be re−unlocked via the smart key system. When you unlock the illumi- nated entry system will be activated. (For further information, see “Illuminated entry system” on page 135 in Section 1−5.)

the doors,

(cid:1) When the engine is not turned off. A beep will sound continuously for 2 sec- onds.

(cid:1) When the key is left in the vehicle. A beep will sound continuously for 2 sec- onds.

(cid:1) When attempting to lock the doors with the key near a window or a door han- dle. A beep will sound continuously for 2 seconds.

The beep may not sound if the key is on the instrument panel, on the package tray, in the glove box or on the floor, etc.

Locking operation Push the lock button on the outside door handle slowly and firmly. All the doors lock simultaneously. At this time one beep will be heard and turn signal lights flash once. In following cases, you cannot be locked by pushing the lock button and a beep will sound as an indicator. (cid:1) When any of the doors is not securely closed. A beep will sound continuously for 10 seconds.

the

(cid:1) When the lock switch is pressed while opening or closing the door. A beep will sound continuously for 10 seconds.

Unlocking operation Grasp the outside door handle (sensors are located on the underside of the door handles). Only the driver’s door unlocks when the driver’s door handle is grasped. All the doors unlock when any door handle other than the driver’s door handle is grasped. At this time two beeps will be heard and the turn signal lights flash twice. The doors may not unlock if the handle is grasped too quickly. Be sure to confirm that the doors are unlocked before pulling the door handle. If the doors do not open when the handle is pulled, return the han- dle to its original position.

35

2. All doors—In this mode, all doors (ex- cept the trunk) unlocks when any of the door handles is grasped. When the setting is complete, you will hear two beeps.

After the mode change operation is com- plete, wait 5 seconds before repeating the operation.

SELECTING DOORS TO BE UNLOCKED WITH ENTRY FUNCTION The unlock operation has 2 modes. To change the mode, within 1 m (3 ft.) of the vehicle press the lock switch and the alarm, the trunk opener or unlock switch simultaneously for 5 seconds. In order to change unlock modes, the igni- tion switch must be turned off. Repeating this procedure allows you toggle between the following 2 modes: 1. Driver’s door only

the driver’s door handle

this mode, only the driver’s door unlocks when is grasped. All the doors unlock when any door handle other the driver’s door handle is grasped. When the set- ting two beeps.

is complete, you will hear

(default)—In

than

to

Wearing gloves may slow response time. For 3 seconds after the doors have been locked, the doors cannot be re−unlocked via the smart key system. When you enter the entry function actua- tion area, the interior and exterior lights come on for about 15 seconds. After the lights come on, all the side doors can be unlocked by grasping the outside door handle. You have 30 seconds to open a door after using the unlocking function. If a door is not opened by then, all the doors will be automatically locked again. The doors may unlock if the key is within the entry function actuation area and a large amount of water splashes on the door handle (for example, in the rain or in a car wash). When you unlock the illumi- nated entry system will be activated. (For further information, see “Illuminated entry system” on page 135 in Section 1−5.)

the doors,

36

—Locking and unlocking with inside lock knob

—Locking and unlocking with power door lock switch

Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the ve- hicle. Doors cannot be locked when either front door is open and the key is in the ignition (vehicles with key cylinder−type ignition switch) or key is left in the vehicle (ve- hicles with smart key system).

Driver’s side

Passenger’s side

37

Move the lock knob. To lock: Push the knob forward. To unlock: Pull the knob backward. The front doors can be opened by pulling the inside handle even if the lock knobs are in the locked position.

CAUTION

Do not pull the inside handle of the doors while driving. The doors will open and an accident may occur. Toyota strongly recommends that all children be placed in the rear seat of the vehicle.

lock: Push the switch down on the

Push the switch. To front side. To unlock: Push the switch down on the rear side. All the doors lock or unlock simultaneous- ly. When the front doors are locked from the outside or locked with the wireless remote control lock switch will not work until either front door is unlocked with the key, lock knob, or wireless remote control transmitter. If the vehicle is subjected to a severe frontal, rear or side impact with the igni- tion switch set at ON, all doors will unlock automatically after a few seconds.

the power door

transmitter,

—Automatic door locking and unlocking functions AUTOMATIC DOOR LOCKING You can select the following functions: (cid:1) Locking linked with the shift position All doors are automatically locked when the selector lever is moved out of “P” position.

(cid:1) Locking linked with vehicle speed

All doors are automatically locked when the vehicle speed goes above about 20
km/h (12 mph).

You can set or cancel the automatic door locking functions: Be sure to apply the parking brake when performing the following operations.

To select the locking linked with the shift position: 1. Close all doors and turn the ignition

switch to ON.

2. Shift the selector lever to the “P” posi-

tion.

3. Within 10 seconds of turning the igni- tion switch to ON, press and hold the driver’s side power door lock switch in the lock position for 5 seconds and then release. The doors will be locked and unlocked to indicate that the function is set.

To cancel the function, do the above op- eration again.

38

To select the locking linked with the vehicle speed: 1. Close all doors and turn the ignition

switch to ON.

2. Shift the selector lever from “P” to the

“N” position.

3. Within 10 seconds of turning the igni- tion switch to ON, press and hold the driver’s side power door lock switch in the lock position for 5 seconds and then release. The doors will be locked and unlocked to indicate that the function is set.

To cancel the function, do the above op- eration again.

AUTOMATIC DOOR UNLOCKING You can select the following functions: (cid:1) Unlocking linked with the shift posi-

tion All doors are automatically unlocked when the selector lever is moved to “P” position.

(cid:1) Unlocking

linked with

the

ignition

switch All doors are automatically unlocked when the driver’s door is opened within 10 seconds after the ignition switch is set from ON to ACC or OFF.

You can set or cancel the automatic door unlocking functions: Be sure to apply the parking brake when performing the following operations.

To select the unlocking linked with the shift position: 1. Close all doors and turn the ignition

switch to ON.

2. Shift the selector lever to the “P” posi-

tion.

3. Within 10 seconds of turning the igni- tion switch to ON, press and hold the driver’s side power door lock switch in the unlock position for 5 seconds and then release. The doors will be locked and unlocked to indicate that the function is set.

To cancel the function, do the above op- eration again.

39

—Rear door child−protectors

CAUTION

Before driving, be sure that the doors are closed and locked, especially when small children are in the ve- hicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the ve- hicle in an accident. It also helps pre- vent the doors from being opened unintentionally.

to

the

lock knob

the “LOCK”

Move position as shown on the label. When the child−protector is locked, you cannot open the rear door by the inside door handle. We recommend using this feature whenever small children are in the vehicle.

To select the unlocking linked with the ignition switch: 1. Close all doors and turn the ignition

switch to ON.

2. Shift the selector lever from “P” to the

“N” position.

3. Within 10 seconds of turning the igni- tion switch to ON, press and hold the driver’s side power door lock switch in the unlock position for 5 seconds and then release. The doors will be locked and unlocked to indicate that the function is set.

To cancel the function, do the above op- eration again.

40

Power windows

Window lock switch

Driver’s door switches

The windows can be operated with the switch on each door. The power windows work when the ignition switch is set at ON. Key off operation: If both front doors are closed, it works for 43 seconds even after the ignition switch is turned off. It stops working when either front door is opened. OPERATING THE FRONT WINDOWS Use the switches on the driver’s door and front passenger’s door. Normal operation: The window moves as long as you hold the switch. To open: Lightly push down the switch. To close: Lightly pull up the switch. If you push in the window lock switch on the driver’s door, the passenger’s window cannot be operated. The indicator lights on the switch tell you which of the switches can be operated.

Driver’s door switches

Front passenger’s door switch

Front passenger’s door switch

41

CAUTION

(cid:1) Never try jamming any part of your body to activate the jam protection function intentionally, as it could re- sult in a death or serious injury.

(cid:1) The

jam protection

function may not work if something gets caught just before fully closed.

the window

is

the

Automatic operation: Push the switch completely down or pull it completely up, and then release it. The window will fully open or close. To stop the window part- way, lightly move the switch in the oppo- site direction and then release it. If you push in the window lock switch on the driver’s door, front passenger’s window cannot be operated. The indicator lights on the switch tell you which of the switches can be operated. Jam protection If something gets caught between the window and win- dow frame, during automatic closing op- eration or key off closing operation, the window stops and opens half way. If the window receives a strong impact, this function may work even if nothing is caught.

function:

the

If the power window does not operate automatically or jam protection function does not operate correctly, you should normalize the power window. To normalize the power window: 1. Push down the power window switches of each front door and lower the win- dows halfway.

2. Pull up the switches until the windows close and hold the switches for 1 sec- ond.

that

the windows open and Make sure close automatically. If the power windows cannot be operated properly, have it checked by your Toyota dealer.

42

OPERATING THE REAR WINDOWS Use the switch on each rear doors or the switches on the driver’s door that control rear passengers’ windows. The window moves as long as you hold the switch. To open: Push down the switch. To close: Pull up the switch. If you push in the window lock switch on the driver’s door, the passengers’ windows cannot be operated.

CAUTION

To avoid death or serious personal in- jury, you must do the following. (cid:1) Before you close the power win- dows, always make sure there is nobody around the power windows. You must also make sure the heads, hands and other parts of the bodies of all occupants are kept completely If someone’s neck, head or hands get caught it could result in death or serious in- jury. When anyone closes the power windows, make sure he or she op- erates the windows safely.

in a closing window,

the vehicle.

inside

(cid:1) When small children are in the ve- hicle, never let them use the power window switches without supervi- sion. Use the window lock switch to prevent from making unex- pected use of the switches.

them

(cid:1) Be sure to carry the key when you

leave your vehicle.

43

in

left

(cid:1) Never leave anyone (particularly a small child) alone in your vehicle, with the key the vehicle. Otherwise, he/she could use the power window switches and get trapped in a window. Unattended person (particularly a small child) can be involved in a serious acci- dent.

Trunk lid—

CAUTION

Keep the trunk lid closed while driv- ing. This not only keeps the luggage from being thrown out but also pre- vents exhaust gases from entering the vehicle.

for precautions when

To open the trunk lid from the driver’s seat, push the trunk opener switch. See “Cargo and luggage” on page 290 in Section 2 loading luggage. To close the trunk lid, lower it and press down on it. After closing the trunk lid, try pulling it up to make sure it is securely closed. To deactivate this lock release switch from opening the trunk lid, see “—Trunk opener main switch” described below. The trunk lid can be opened with the wire- less see “—Opening trunk lid” on page 22 in this Section.

transmitter,

remote

control

44

OPENING TRUNK WITH SMART KEY SYSTEM When you carry the registered key into the actuation area, trunk can be opened. For further information of actua- tion area, see “Smart key system” on page 27 in this Section.

the

—Trunk opener main switch

A warning buzzer may sound when: (cid:1) The key is brought into the cabin after the trunk is opened, and the trunk is then closed.

(cid:1) The key is near the trunk when the

trunk is closed.

the

The buzzer may sound even when the key is not in the trunk. This does not indicate a problem. However, under these circum- stances, the trunk cannot be opened using the smart key system. Open trunk using other methods. If you left the key in the trunk and close it when all side doors are locked, a beep will sound continuously for 2 seconds. You can open trunk opener switch without carrying another key. However, the beep may not sound when the trunk is closed depending on the location of the key in the trunk. In addition, when the doors are open or unlocked, the beep may not sound when the trunk is closed. When closing the trunk, make sure that the key is not left in it.

trunk pushing

instances,

in some

the

the

On

Off

If you do not want to activate the trunk lid opener system, turn off the trunk opener main switch in the glove box. To turn it on, push in the trunk opener main switch again.

45

—In case the trunk opener is not actuated

—Luggage security system

1. Pull down the rear armrest and open

the door behind it.

2. Pull the loop of wire to unlock the

trunk lid.

This is used in case the trunk lid cannot be unlocked due to a discharged battery or other trouble.

46

This system helps protect things locked in the trunk by safeguarding the trunk
