This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Avalon.

! A word about safe vehicle operations

This Quick Reference Guide is not a full description of Avalon operations. Every Avalon owner should review the Owner’s Manual that accompanies this vehicle. Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction. All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

09_Avalon_i.qxd 7/22/08 3:28 PM Page 1

INDEX

OVERVIEW

FEATURES/OPERATIONS

Engine maintenance Fuel tank door release and cap Hood release Indicator symbols Instrument cluster Instrument panel Keyless entry1
Light control-Instrument panel Smart Key system2
Trunk release

Air Conditioning/Heating Audio Auto lock functions2
Automatic Transmission Center display Clock Cruise control Cup holders Door locks Dynamic Laser Cruise Control Garage door opener (HomeLink®)3
Lights1 & turn signals Moonroof Parking brake Power outlets Seat adjustments-Front Seat adjustments-Rear Seat ventilators/Heaters Seats-Head restraints Steering lock release Steering wheel switches Sunshade-Rear1
Telephone controls (Bluetooth®) Tilt and telescopic steering wheel Windows-Power Windshield wipers & washers1

4-5
2-3

20
18
10
10
19
22
16
22
21
17
16
13
14
11
22
12
12
21
11
10
19
14
15
11
14
12

SAFETY AND EMERGENCY FEATURES

23
Doors-Child safety locks 24
Seat belt comfort guide 23
Seat belts 23
Seat belts-Shoulder belt anchor Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25

1 Visit your Toyota dealer for information on customizing this feature. 2 Programmable by customer. Refer to the Owner’s Manual for instructions and

more information. 3 HomeLink® is a registered trademark of Johnson Controls, Inc.

09_Avalon_i.qxd 7/22/08 3:28 PM Page 2

OVERVIEW

Instrument panel Steering wheel controls

Steering wheel audio controls Telephone controls1
Steering wheel climate controls Voice command button1,2
Distance button1
Driving position memory switches1
Headlight, turn signal and front fog light1 controls Engine (ignition) switch (standard key)1
Wiper and washer controls “ENGINE START STOP” button (Smart Key)1
Clock Center display1/Navigation system1,2
Emergency flasher button “AIR BAG ON” and “AIR BAG OFF” indicator and front passenger seat belt reminder lights Air Conditioning controls

09_Avalon_i.qxd 7/22/08 3:28 PM Page 3

Trunk opener main switch Audio system Storage compartment1/Navigation system switches1,2
Outside rearview mirror1/Rear window defogger button Cruise control Tilt lock release lever Telescopic lock release Tire Pressure Warning System reset Power rearview mirror control Glass breakage sensor1
Rear sunshade switch1
Trunk opener Fuel filler door opener

1 If equipped 2 For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual.”

09_Avalon_i.qxd 7/22/08 3:28 PM Page 4

OVERVIEW

Instrument cluster

Engine coolant temperature Service indicator and reminder Tachometer Speedometer Fuel gauge Trip meter reset button Odometer and two trip meters Automatic Transmission shift range display Automatic Transmission shift position indicator Dynamic laser cruise control display

Indicator symbols

Brake system warning1,2
Driver seat belt reminder2
(alarm will sound if speed is over 9 mph) Front passenger seat belt reminder2
(alarm will sound if speed is over 9 mph) Charging system warning1,2

SRS airbag on-off indicator1

Low engine oil pressure warning1,2

Malfunction/Check Engine indicator1,2

1 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction. Have vehicle inspected by your Toyota dealer.

09_Avalon_i.qxd 7/22/08 3:29 PM Page 5

Engine oil replacement reminder1,2

Low fuel level warning2

Open door warning2

Airbag SRS warning1,2

Tire Pressure Warning1,2

Low windshield washer fluid level warning1,2

Security indicator

Headlight low/high beam indicator

Turn signal indicator

Automatic headlight leveling system warning1,2

Slip indicator1

Vehicle Stability Control system warning1,2

Cruise control indicator3

Ready mode indicator1

Conventional cruise

Dynamic Laser Cruise Control master warning light1,2

Anti-lock Brake System warning1,2

Smart Key system warning1,2

2 For details, refer to “Indicators and warning lights,” Section 2-2, 2009 Owner’s Manual. 3 If this light flashes, refer to “Cruise control,” Section 2-4, 2009 Owner’s Manual.

09_Avalon_i.qxd 7/22/08 3:29 PM Page 6

OVERVIEW

Keyless entry Locking operation

Without Smart Key system

With Smart Key system

Unlocking operation

Without Smart Key system

With Smart Key system

Push

Push ONCE: Driver door

TWICE: All doors

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety. Trunk lid operation

Without Smart Key system

With Smart Key system

Panic button

Push and hold

Push and hold

09_Avalon_i.qxd 7/22/08 3:29 PM Page 7

Smart Key system* (if equipped) Start function

Green indicator ON

Carrying

Depress brake pedal

Push

NOTE: Gear shift lever must be in Park and brake pedal depressed. Power (without starting engine) Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from:

ACC

ON

Accessories such as the radio will operate.

Power ON; the engine not running.

All systems OFF.

OFF Locking operation

Unlocking operation

Front door lock

Front door unlock*

Push

Grasp

Carry remote to lock/unlock

Carry remote to lock/unlock Trunk access Opening trunk

Carry remote to lock/unlock * Driver door unlocking function can be programmed to unlock driver door

Push

only, or all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

09_Avalon_i.qxd 7/22/08 3:29 PM Page 8

OVERVIEW

Fuel tank door release and cap

Turn

Push

Store

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ indicator may illuminate.

”

Light control-Instrument panel

Brightness control

Trunk release Trunk opener

Main switch

Push

ON

OFF

09_Avalon_i.qxd 7/22/08 3:29 PM Page 9

Hood release

Pull

Engine maintenance

Pull up latch and raise hood

Engine coolant reservoir Power steering fluid reservoir Engine oil filler cap Engine oil level dipstick Windshield washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Owner’s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”

09_Avalon_i.qxd 7/22/08 3:29 PM Page 10

FEATURES/OPERATIONS

Auto lock functions Automatic door locks can be programmed to operate in two different modes, or turned OFF. 1. Doors lock: when shifting from Park.

Doors unlock: when shifting into Park.

2. Doors lock: when the vehicle speed goes above 12 mph.

Doors unlock: when the driver’s door is opened within 10 seconds after turning the “ENGINE START STOP” switch or the engine switch OFF.

Refer to the Owner’s Manual for more details.

Automatic Transmission

“D”

Park* Reverse Neutral Drive “S” mode

“S”

* The “ENGINE START STOP” switch/engine must be “ON” and the brake

pedal depressed to shift from Park. “S” (Sequential) mode Shift the shift lever to “S” position from “D” position.

Floor shift type:

+: Upshift (push and release) -: Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Steering lock release Smart Key system

Turn

Without Smart Key system

Turn

Turn

Push

10

09_Avalon_i.qxd 7/22/08 3:29 PM Page 11

Tilt and telescopic steering wheel

Angle

Length

Lock release lever

Lock release lever

Hold wheel, push lever down, set angle and length, and return lever. Note: Do not attempt to adjust while the vehicle is in motion.

Parking brake

Seats-Head restraints

Set: Depress Release: Depress again

Lock release button

11

09_Avalon_i.qxd 7/22/08 3:29 PM Page 12

FEATURES/OPERATIONS

Seat adjustments-Front Manual seat

Power seat

Seatback angle Seat position (forward/backward) Leg support (if equipped) Lumbar support (if equipped) Position, cushion angle (if equipped) and height (if equipped)

Seat adjustments-Rear

Seatback angle lever

Refer to the Owner’s Manual for more details.

Windshield wipers & washers With interval wiper

Adjust interval*

Single wipe

With AUTO rain-sensing wiper

Adjust sensor sensitivity

Single wipe

Interval wipe Slow

Pull to wash and wipe * Intermittent windshield wiper interval adjustment

Pull to wash and wipe

Fast

Rotate to increase/decrease wipe frequency.

12

Auto wipe

Slow

Fast

09_Avalon_i.qxd 7/22/08 3:29 PM Page 13

Lights & turn signals Headlights

Headlights Parking lights

Auto DRL OFF

Low beam

High beam

High beam flasher

-Daytime Running Light system (DRL) Automatically turns on the headlights at a reduced intensity. -Automatic light cut off system Automatically turns lights off after a delay of 30 seconds, or the lock switch on remote may be pushed after locking.

Front fog lights (if equipped)

Turn

Front fog lights come on only when the headlights are on low beam.

Turn signals

Right turn

Lane change

Lane change

Left turn

13

09_Avalon_i.qxd 7/22/08 3:29 PM Page 14

FEATURES/OPERATIONS

Windows-Power Driver side

Up

Down

Window lock switch

Automatic operation (front windows only) Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction. Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

NOTE: If battery is disconnected, the window needs to be reinitialized. Refer to the Owner’s Manual for more details.

Moonroof (if equipped) Sliding operation

Tilting operation

Push once to open partway; again to open completely.

Open

Close

Recommended driving position to minimize wind noise.

Close

Tilt

NOTE: If battery is disconnected, the moonroof needs to be reinitialized. Refer to the Owner’s Manual for more details.

Sunshade-Rear (if equipped)

When shifting to reverse, sunshade retracts automatically, and then rises again when driving forward.

Push

14

09_Avalon_i.qxd 7/22/08 3:29 PM Page 15

Telephone controls (Bluetooth®) (if equipped)

Audio unit

Steering wheel telephone switches

Microphone

Volume

End call Start call

Voice command button

Bluetooth® technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the compatible telephone and the system. Refer to “Hands-free system (for cellular phone),” Section 3-3 in the Owner’s Manual for more details.

15

09_Avalon_i.qxd 7/22/08 3:29 PM Page 16

FEATURES/OPERATIONS

Garage door opener (HomeLink®)* (if equipped)

Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to “Garage door opener,” Section 3-6 in the Owner’s Manual for more details. For programming assistance, contact the Toyota Customer Experience Center at 1-800-331-4331, or visit http://www.homelink.com. * HomeLink® is a registered trademark of Johnson Controls, Inc.

Cruise control (if equipped) Turning system ON/OFF

System ON/OFF

Resume2

Increase speed

Functions

Cancel1

Set

Decrease speed

1 The set speed may also be cancelled by depressing the brake pedal. 2 The set speed may be resumed once vehicle speed exceeds 25 mph.

16

09_Avalon_i.qxd 7/22/08 3:29 PM Page 17

Dynamic Laser Cruise Control (if equipped) Refer to the Owner’s Manual for more details and complete safety precautions before attempting to use “Dynamic Laser Cruise Control.” Fixed speed mode

(1) To select conventional/fixed speed control Push the ON-OFF button. Push the lever forward and hold until the “NORM.” indicator appears.

(2) To set, cancel and resume a speed Refer to instructions for Cruise

Control on the previous page.

Distance control mode

Distance control mode will cruise at a set speed, decelerate to maintain selected distance from a slower vehicle traveling in front of you, and accelerate back up to the selected speed if the vehicle in front of you changes lanes or speeds up. (1) To select distance control mode Push the ON-OFF button. The

“READY” and “CRUISE” indicator will come on.

(2) To set, cancel and resume a speed Refer to instructions for Cruise

Control on the previous page.

Note: Once vehicle speed is set, pushing lever up toward “+ RES” will increase speed to the nearest 5 mph, and then in 5 mph increments. Pushing lever down toward “- SET” will reduce speed in the same way.

LONG

MIDDLE

SHORT

(3) To change the vehicle-to-vehicle distance

Push the distance button to cycle through the settings, which will change progressively from LONG to MIDDLE to SHORT.

17

09_Avalon_i.qxd 7/22/08 3:29 PM Page 18

FEATURES/OPERATIONS

Audio

Eject CD

Seek station/ CD track select

Preset buttons - functions in other modes indicated above number

Push to skip up/down folder and radio category type

Load CD(s)

Push to adjust tone & balance

Push to turn ON/OFF

Select CD

Mode

AM/Satellite Radio

Station/CD track scan

View CD text

CD PLAYER To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection. CD changer -To load one disc Push “LOAD” and insert one disc. -To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one disc. Shutter will close and then re-open for next disc. To select a CD Push “DISC ” or “DISC .” To select a file (MP3/WMA only) Turn “TUNE.FILE.” To select a folder (MP3/WMA only) Push either side of “FOLDER.” RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold selection. AUX audio jack

By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode.

18

09_Avalon_i.qxd 7/22/08 3:29 PM Page 19

Steering wheel switches

Audio control

Climate control

Volume control

Temperature selector Auto A/C ON System OFF

v v “ ” -In radio mode Push to select a preset station; push and hold to seek the next strong station. -In CD mode Push to skip up or down to next/previous track; push and hold to select a disc. “MODE” Push to turn audio ON and select an audio mode. Push and hold to turn audio system OFF.

Center display Without navigation system

Audio display Air Conditioning display Outside temperature Trip information display Pattern selector knob Display item can be switched by pushing the knob: (1) Entire display (2) Audio display and Air Conditioning display (3) OFF.

With navigation system Refer to the “Navigation System Owner’s Manual.”

19

09_Avalon_i.qxd 7/22/08 3:29 PM Page 20

FEATURES/OPERATIONS

Air Conditioning/Heating

Without navigation system

With navigation system

Display

Control

” mode, use fresh air (“

Temperature selector (driver side) Temperature selector (passenger side) Climate control OFF Air Conditioning ON/OFF Fresh or recirculated cabin air Automatic climate control ON Outside rearview mirror*/Rear defogger Airflow vent In “ window fogging. Fan speed “DUAL” button Indicator ON: Separate temperature settings for driver and passenger. Indicator OFF: Synchronize temperature settings for driver and passenger. Windshield defogger (fresh air only) * If equipped

” indicator OFF) to reduce

20

09_Avalon_i.qxd 7/22/08 3:29 PM Page 21

Seat ventilators/Heaters (if equipped)

With ventilator

Push

Turn

OFF

Heater

Heater only

Ventilator

Push

Turn

Push knob to pop the controller out. Turn clockwise for heater, counter-clockwise for ventilator.

Door locks

Lock

Unlock

21

412714M2_r1.qxd 7/23/08 5:12 PM Page 22

FEATURES/OPERATIONS

Power outlets Auxiliary box

Console box

The “ENGINE START STOP” switch/engine switch must be in the “ACC” or “ON” position to be used.

Cup holders Front

Rear (type A)

Rear (type B)

Clock Without navigation system

H-Hour set M-Minute set :00-Round off minutes

With navigation system Refer to the “Navigation System Owner’s Manual.”

22

09_Avalon_i.qxd 7/22/08 3:29 PM Page 23

SAFETY AND EMERGENCY FEATURES

Doors-Child safety locks Rear door

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

Seat belts

Take up slack

Too high

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner's Manual.

Seat belts-Shoulder belt anchor

Push up, or squeeze lock release to lower

23

412714M2_r1.qxd 7/23/08 5:13 PM Page 24

SAFETY AND EMERGENCY FEATURES

Seat belt comfort guide

Rear seat outside position guides provide added comfort for children who have outgrown child restraints.

Tire Pressure Monitoring (warning) System

System reset initialization 1. Push and hold “

until the indicator blinks three times.

SET” button

2. Wait a few minutes to allow

initialization to complete.

SET” button until indicator blinks three times. Let the vehicle sit for a

After adjusting tire pressures, or after tires have been rotated or replaced, turn the ignition switch to “ON” and press and hold the “ few minutes to allow initialization to complete. Refer to the load label on the door jamb or the Owner’s Manual for tire inflation specifications. If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer. Note: The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the system has not been initialized recently, setting the tire pressures to factory specifications should turn off the light.

24

412714M1.qxd 7/22/08 3:33 PM Page 3

Trunk-Internal release

Spare tire & tools Tool location

Spare tire cover

Jack handle

Spare tire

Removing the spare tire (1) (2)

Pull

Luggage floor cover

Wheel nut wrench

Jack

(3)

(1) Remove the luggage cover. (2) Loosen and remove the center fastener. (3) Remove the spare tire cover. Refer to the Owner’s Manual for tire changing and jack positioning procedures.

25

412714M1.qxd 7/22/08 3:33 PM Page 4

MN 00505-QRG09-AVA Printed in the USA 7/08

TABLE OF CONTENTS

Index

1 Before driving

1-1. Key information.................. 22
Keys ..................................... 22

1-2. Opening, closing and

locking the doors and trunk .................................. 24
Smart key system................. 24
Wireless remote control ....... 35
Doors.................................... 39
Trunk .................................... 44

1-3. Adjustable components (seats, steering wheel, mirrors) ............................. 46
Front seats ........................... 46
Rear seats............................ 49
Driving position memory system................................ 51
Head restraints..................... 55
Seat belts ............................. 57
Steering wheel ..................... 64
Inside rear view mirror.......... 65
Outside rear view mirrors ..... 67

1-4. Opening and closing the

windows and moon roof ......................... 69
Power windows .................... 69
Moon roof ............................. 72

1-5. Refueling............................. 75
Opening the fuel tank cap .... 75

1-6. Theft deterrent system....... 78
Engine immobilizer system... 78
Alarm .................................... 80
Theft prevention labels (U.S.A.)............................... 82

1-7. Safety information .............. 83
Correct driving posture ......... 83
SRS airbags ......................... 85
Front passenger occupant classification system........... 97
Child restraint systems ....... 103
Installing child restraints ..... 107

2 When driving

2-1. Driving procedures........... 118
Driving the vehicle .............. 118
Engine (ignition) switch (with smart key system).... 127
Engine (ignition) switch (without smart key system)............................. 131
Automatic transmission ...... 134
Turn signal lever ................. 138
Parking brake ..................... 139
Horn.................................... 140

2-2.

Instrument cluster ............ 141
Gauges and meters ............ 141
Indicators and warning lights ................................. 144
Center display..................... 147

AVALON_U_OM41430U

2-3. Operating the lights and

windshield wipers........... 149
Headlight switch.................. 149
Fog light switch ................... 152
Windshield wipers and washer .............................. 153

2-4. Using other driving

systems ........................... 158
Cruise control...................... 158
Dynamic laser cruise control ............................... 161
Driving assist systems ........ 174

2-5. Driving information........... 177
Cargo and luggage ............. 177
Vehicle load limits ............... 180
Winter driving tips ............... 181
Trailer towing ...................... 186
Dinghy towing ..................... 187

3 Interior features

3-1. Using the air conditioning

system and defogger...... 190
Automatic air conditioning system .............................. 190
Using the steering wheel climate control switches.... 198
Rear window and outside rear view mirror defoggers.......................... 200

3-2. Using the audio system... 202
Audio system type.............. 202
Audio cover ........................ 204
Using the radio ................... 205
Using the CD player ........... 212
Playing MP3 and WMA discs................................. 220
Optimal use of the audio system.............................. 228
Using the AUX adapter....... 230
Using the steering wheel audio switches.................. 231

3-3. Using the hands-free system (for cellular phone) ............................. 234
Hands-free system (for cellular phone) ........... 234
Using the hands-free system.............................. 237
Making a phone call ........... 245
Setting a cellular phone...... 250
Security and system setup ................................ 255
Using the phone book ........ 258

3-4. Using the interior lights... 266
Interior lights list ................. 266

3-5. Using the storage

features ........................... 269
List of storage features....... 269

AVALON_U_OM41430U

TABLE OF CONTENTS

Index

3-6. Other interior features ..... 277
Sun visors .......................... 277
Vanity mirrors ..................... 278
Clock .................................. 279
Outside temperature display.............................. 280
Ashtrays ............................. 281
Power outlets ..................... 282
Seat heaters/ventilators ..... 284
Armrest............................... 286
Rear sunshade................... 287
Floor mats .......................... 289
Trunk features .................... 290
Garage door opener........... 292
Compass ............................ 297

4 Maintenance and care

4-1. Maintenance and care...... 302

Cleaning and protecting the vehicle exterior................. 302
Cleaning and protecting the vehicle interior.................. 305

4-2. Maintenance ..................... 308

Maintenance requirements .................... 308
General maintenance......... 310
Emission inspection and maintenance (I/M) programs.......................... 313

4-3. Do-it-yourself

maintenance ................... 314
Do-it-yourself service precautions....................... 314
Hood ................................... 317
Positioning a floor jack........ 318
Engine compartment .......... 320
Tires.................................... 336
Tire inflation pressure ......... 345
Wheels................................ 349
Air conditioning filter ........... 351
Key battery ......................... 354
Checking and replacing fuses................................. 358
Headlight aim (with discharge headlights) ....... 367
Light bulbs .......................... 369

5 When trouble arises

5-1. Essential information ....... 376
Emergency flashers............ 376
If your vehicle needs to be towed................................ 377
If you think something is wrong................................ 381
Fuel pump shut off system .............................. 382
Event data recorder ............ 383

5-2. Steps to take in an

emergency ...................... 385
If a warning light turns on or a warning buzzer sounds.............................. 385

AVALON_U_OM41430U

Index

Abbreviation list ............... 458

Alphabetical index............ 459

What to do if...................... 466

If you have a flat tire............ 397
If the engine will not start .... 406
If the shift lever cannot be shifted from P.................... 408
If you lose your keys ........... 409
If the electronic key does not operate properly (with smart key system) .... 410
If the vehicle battery is discharged ........................ 412
If your vehicle overheats..... 416
If the vehicle becomes stuck ................................. 419

6 Vehicle specifications

6-1. Specifications.................... 422

Maintenance data (fuel, oil level, etc.)..................... 422
Fuel information .................. 430
Tire information................... 433

6-2. Customization ................... 445
Customizable features ........ 445

6-3.

Initialization ....................... 449
Items to initialize ................. 449

7 For owners

Reporting safety defects for U.S. owners ...................... 452
Seat belt instructions for Canadian owners (in French) ........................ 453

AVALON_U_OM41430U

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equip- ment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustration may differ from your vehicle in terms of equipment.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehi- cles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Mod- ification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addi- tion, damage or performance problems resulting from the modification may not be covered under warranty.

16

AVALON_U_OM41430U

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequen- tial multiport fuel injection system, electronic throttle control system, cruise control system, dynamic laser cruise control system, vehicle stability control system, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instruc- tions regarding installation.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbag, seat belt pretensioners, and wireless remote con- trol batteries.

17

AVALON_U_OM41430U

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that will hurt or kill you, your occupants or others. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

n General precautions regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

18

AVALON_U_OM41430U

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Symbols used in illustrations

Safety symbol The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turn- ing, etc.) used to operate switches and other devices. Indicates the outcome of an opera- tion (e.g. a lid opens).

19

AVALON_U_OM41430U

20

AVALON_U_OM41430U

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

2 When driving

Driving, stopping and safe-driving information.

3 Interior features

Air conditioning and audio systems, as well as other interior features for a comfortable driving experience.

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

6 Vehicle

specifications

Detailed vehicle information.

7 For owners

Reporting safety defects for U.S. owners and seat belt instructions for Canadian owners.

Index

Alphabetical listing of information contained in this manual.

AVALON_U_OM41430U

Pictorial index

Exterior

Windshield wiper P. 153

Moon roof∗ P. 72

Outside rear view

mirror P. 67

Hood P. 317

Side marker light P. 149

Headlight (low beam) P. 149

Turn signal light P. 138

Fog light∗ P. 152

Headlight (high beam) P. 149

AVALON_U_OM41430U

Rear window defogger P. 200

Tail/stop light P. 149

Fuel filler door P. 75

Door P. 39

Tail lights P. 149

Trunk P. 44

Tire l Rotation l Replacement l Inflation pressure l Information

P. 336
P. 397
P. 428
P. 433

Back-up light

Turn signal light P. 138

Side marker light P. 149

∗: If equipped

AVALON_U_OM41430U

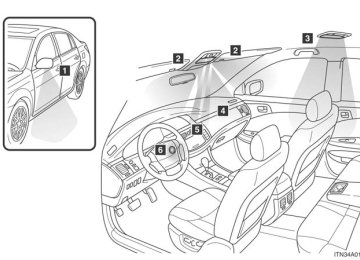

Pictorial index

Interior

Head restraint P. 55

Seat belt P. 57
