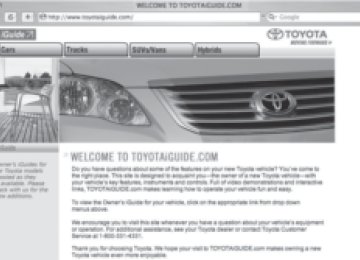

Have a question about the main features of your new Toyota? Find the answers quickly and easily in this Quick Reference Guide, which includes highlights from the Owner’s Manual. For more detailed information, and helpful interactive demonstrations and tips, visit www.Toyotaiguide.com. This user-friendly website makes learning all about your new vehicle fun and easy.

www.ToyotaiGuide.com

This iGuide is not intended as a substitute for the Owner’s Manual located in the vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of the vehicle’s capabilities and limitations. Important Cautions, to help you avoid injuries, and Notices, to help you avoid equipment damage or malfunction, can also be found in the Owner’s Manual.

2008 Avalon Quick Reference Guide

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Engine maintenance Fuel tank door release and cap Hood release Indicator symbols Instrument cluster Instrument panel Keyless entry1
Light control-Instrument panel Smart Key system2
Trunk release

Air Conditioning/Heating Audio Auto lock functions2
Automatic Transmission Center display Clock Cruise control Cup holders Door locks Dynamic Laser Cruise Control Garage door opener (HomeLink®)3
Lights1 & turn signals Moonroof Parking brake Power outlets Seat adjustments-Front Seat adjustments-Rear Seat ventilators/Heaters Seats-Head restraints Steering lock release Steering wheel switches Sunshade-Rear1
Telephone controls (Bluetooth®) Tilt and telescopic steering wheel Windows-Power Windshield wipers & washers1

Doors-Child safety locks Seat belt comfort guide Seat belts Seat belts-Shoulder belt anchor Spare tire & tools Tire Pressure Warning System reset Trunk-Internal release

4-5
2-3

20
18
10
10
19
22
16
22
21
17
16
13
14
11
22
12
12
21
11
10
19
14
15
11
14
12

23
24
23
23
25
24
25

1 Visit your Toyota dealer for information on customizing this feature. 2 Programmable by customer. Refer to the Owner’s Manual for instructions and

more information. 3 HomeLink® is a registered trademark of Johnson Controls, Inc.

OVERVIEW

Instrument panel Steering wheel controls

Steering wheel audio controls Telephone controls1
Steering wheel climate controls Voice command button1,2
Distance button1
Driving position memory switches1
Headlight and turn signal controls/Headlight, turn signal and front fog light controls1
Engine (ignition) switch (standard key) Wiper and washer controls “ENGINE START STOP” button (Smart Key)1
Clock Center display/Navigation system2
Emergency flasher button “AIR BAG ON” and “AIR BAG OFF” indicator and front passenger seat belt reminder lights Air Conditioning controls

O

Trunk opener main switch Audio system Storage compartment1/Navigation system switches1,2
Outside rearview mirror1/Rear window defogger button Cruise control Tilt lock release lever Telescopic lock release Tire Pressure Warning System reset Power rearview mirror control Glass breakage sensor1
Rear sunshade switch1
Trunk opener Fuel filler door opener

1 If equipped 2 For details, refer to the “Navigation System Owner’s Manual.”

OVERVIEW

Instrument cluster

Engine coolant temperature Service indicator and reminder Tachometer Speedometer Fuel gauge Trip meter reset button Odometer and two trip meters Automatic Transmission shift range display Automatic Transmission shift position indicator Dynamic laser cruise control display

Indicator symbols

Brake system warning1
Driver seat belt reminder1
(alarm will sound if speed is over 9 mph) Front passenger seat belt reminder1
(alarm will sound if speed is over 9 mph) Charging system warning1

SRS airbag on-off indicator

Low engine oil pressure warning1

Malfunction/Check Engine indicator1

1 For details, refer to “Indicators and warning lights,” Section 2-2, 2008 Owner’s Manual.

Engine oil replacement reminder1

Low fuel level warning1

Open door warning1

Airbag SRS warning1

Low Tire Pressure Warning1

Low windshield washer fluid level warning1

Security indicator

Headlight low/high beam indicator

Turn signal indicator

Automatic headlight leveling system warning1

Front fog light indicator

Slip indicator

Vehicle Stability Control system warning1

Cruise control indicator2

Ready mode indicator

Conventional cruise

Dynamic Laser Cruise Control master warning light1

Anti-lock Brake System warning1

Smart Key system warning1

2 If this light flashes, refer to “Cruise control,” Section 2-4, 2008 Owner’s Manual.

OVERVIEW

Keyless entry Locking operation

Without Smart Key system

With Smart Key system

Unlocking operation

Without Smart Key system

With Smart Key system

Push

Push ONCE: Driver door

TWICE: All doors

NOTE: If a door is not opened within 30 seconds of unlocking, all doors will relock for safety. Trunk lid operation

Without Smart Key system

With Smart Key system

Panic button

Push and hold

Push and hold

Smart Key system* (if equipped) Start function

Green indicator ON

Carrying

Depress brake pedal

Push

NOTE: Gear shift lever must be in Park and brake pedal depressed. Power (without starting engine) Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from:

ACC

ON

Accessories such as the radio will operate.

Power ON; the engine not running.

OFF

All systems OFF.

Locking/Unlocking operation Carry remote to lock/unlock

Unlocking front door*

Locking front door

Push

Opening trunk

Grasp

Push

* Driver door unlocking function can be programmed to unlock driver door

only, or all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

OVERVIEW

Fuel tank door release and cap

Turn

Push

Store

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate.

Light control-Instrument panel

Brightness control

Trunk release Trunk opener

Main switch

Push

ON

OFF

Hood release

Pull

Engine maintenance

Pull up latch and raise hood

Engine coolant reservoir Power steering fluid reservoir Engine oil filler cap Engine oil level dipstick Windshield washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Owner’s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”

FEATURES/OPERATIONS

Auto lock functions Automatic door locks can be programmed to operate in two different modes, or turned OFF. 1. Doors lock: when shifting from “Park.”

Doors unlock: when shifting into “Park.”

2. Doors lock: when the vehicle speed goes above 12 mph.

Doors unlock: when the driver’s door is opened within 10 seconds after turning the “ENGINE START STOP” switch or the engine switch OFF.

Refer to the Owner’s Manual for more details.

Automatic Transmission

“D”

Park* Reverse Neutral Drive “S” mode

“S”

* The “ENGINE START STOP” switch/engine must be ON and the brake

pedal depressed to shift from “Park.” “S” (Sequential) mode Shift the shift lever to “S” position from “D” position.

Floor shift type:

+: Upshift (push and release) -: Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Steering lock release Smart Key system

Turn

Without Smart Key system

Turn

Turn

Push

10

Tilt and telescopic steering wheel

Angle

Length

Lock release lever

Lock release lever

Hold wheel, push lever down, set angle and length and return lever. Note: Do not attempt to adjust while the vehicle is in motion.

Parking brake

Seats-Head restraints

Set: Depress Release: Depress again

Lock release button

11

FEATURES/OPERATIONS

Seat adjustments-Front Manual seat

Power seat

Seatback angle Position Leg support (if equipped) Lumbar support (if equipped) Position, cushion angle and height

Seat adjustments-Rear

Seatback angle lever

Refer to the Owner’s Manual for more details.

Windshield wipers & washers With interval wiper

With AUTO rain-sensing wiper

Adjust interval

Single wipe

Adjust sensor sensitivity

Single wipe

Pull to wash and wipe

Interval wipe Slow Fast

12

Auto wipe Slow Fast

Pull to wash and wipe

Lights & turn signals Headlights

Headlights Parking lights

Auto DRL OFF

High beam

Low beam

High beam flasher

-Daytime Running Light system (DRL) Automatically turns on the headlights at a reduced intensity. -Automatic light cut off system Automatically turns lights off after a delay of 30 seconds, or the lock switch on remote may be pushed.

Front fog lights (if equipped)

Front fog lights come on only when the headlights are on low beam.

Turn

Turn signals

Right turn

Lane change

Left turn

Lane change

13

FEATURES/OPERATIONS

Windows-Power Driver side

Up

Down

Window lock switch

Automatic operation (front windows only) Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction. Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

NOTE: If battery is disconnected, the window needs to be reinitialized. Refer to the Owner’s Manual for more details.

Moonroof (if equipped) Sliding operation

Tilting operation

Open

Close

Close

Recommended driving position to minimize wind noise.

Tilt

NOTE: If battery is disconnected, the moonroof needs to be reinitialized. Refer to the Owner’s Manual for more details.

Sunshade-Rear (if equipped)

When shifting to reverse, sunshade retracts automatically, and then rises again when driving forward.

Push

14

Telephone controls (Bluetooth®) (if equipped)

Audio unit

Steering wheel telephone switches

Microphone

Volume

End call Start call

Voice command button

Bluetooth® technology allows you to place or receive calls without taking your hands from the steering wheel or using a cable to connect the compatible telephone and the system. Refer to “Hands-free system (for cellular phone),” Section 3-3 in the Owner’s Manual for more details.

15

FEATURES/OPERATIONS

Garage door opener (HomeLink®)* (if equipped)

Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to “Garage door opener,” Section 3-6 in the Owner’s Manual for more details. For programming assistance, contact the Toyota Customer Experience Center at 1-800-331-4331, or visit http://www.homelink.com. *HomeLink® is a registered trademark of Johnson Controls, Inc.

Cruise control (if equipped) Turning system ON/OFF

System ON/OFF

Resume2

Increase speed

Functions

Cancel1

Set

Decrease speed

1 The set speed may also be cancelled by depressing the brake pedal. 2 The set speed may be resumed once vehicle speed exceeds 25 mph.

16

Dynamic Laser Cruise Control (if equipped) Refer to the Owner’s Manual for more details and complete safety precautions before attempting to use “Dynamic Laser Cruise Control.” Fixed speed mode

(1) To select conventional/fixed speed control Push the ON-OFF button. Push the lever forward and hold until the “NORM.” indicator appears.

(2) To set, cancel and resume a speed Refer to instructions for Cruise

Control on the previous page.

Distance control mode

Distance control mode will cruise at a set speed, decelerate to maintain selected distance from a slower vehicle in front of you, and accelerate back up to the selected speed if the vehicle in front of you changes lanes or speeds up. (1) To select distance control mode Push the ON-OFF button. The

“READY” and “CRUISE” indicator will come on.

(2) To set, cancel and resume a speed Refer to instructions for Cruise

Control on the previous page.

Note: Once vehicle speed is set, pushing lever up toward “+ RES” will increase speed to the nearest 5 mph, and then in 5 mph increments. Pushing lever down toward “- SET” will reduce speed in the same way.

LONG

MIDDLE

SHORT

(3) To change the vehicle-to-vehicle distance

Push the distance button to cycle through the settings, which will change progressively from LONG to MIDDLE to SHORT.

17

Load CD(s)

Push to adjust tone & balance

FEATURES/OPERATIONS

Audio

Eject CD

Seek station/ CD track select

Preset buttons - functions in other modes indicated above number

Push to skip up/down folder and radio category type

Push to turn ON/OFF

Select CD

Mode

AM/Satellite Radio

Station/CD track scan

View CD text

CD PLAYER To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection. CD changer -To load one disc Push “LOAD” and insert one disc. -To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one disc. Shutter will close and then re-open for next disc. To select a CD Push “DISC ” or “DISC .” To select a file (MP3/WMA only) Turn “TUNE.FILE.” To select a folder (MP3/WMA only) Push either side of “FOLDER.” RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold selection. AUX audio jack

By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system.

18

Steering wheel switches (if equipped)

Audio control

Climate control

Volume control

Temperature selector Auto A/C ON System OFF

v v “ ” -In radio mode Push to select a preset station; push and hold to seek the next strong station. -In CD mode Push to skip up or down to next/previous track; push and hold to select a disc. “MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio system OFF.

Center display Without navigation system

Audio display Air Conditioning display Outside temperature Trip information display Pattern selector knob Display item can be switched by pushing the knob: (1) Entire display (2) Audio display and Air Conditioning display (3) OFF.

With navigation system Refer to the “Navigation System Owner’s Manual.”

19

FEATURES/OPERATIONS

Air Conditioning/Heating

Without navigation system

With navigation system

Display

Control

Temperature (driver side) Temperature (passenger side) Climate control OFF Air Conditioning ON/OFF Fresh or recirculated cabin air Automatic climate control ON Outside rearview mirror*/Rear defogger Airflow vent In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. Fan speed “DUAL” button Indicator ON: Separate temperature settings for driver and passenger. Indicator OFF: Synchronize temperature settings for driver and passenger. Windshield defogger * If equipped

20

Seat ventilators/Heaters (if equipped)

With ventilator

Heater only

Push

Turn

Push

Turn

Push knob to pop the controller out. Turn clockwise for heater, counter- clockwise for ventilator.

Door locks

Lock

Unlock

21

FEATURES/OPERATIONS

Power outlets

Auxiliary box

Console box

Engine switch/“ENGINE START STOP” switch must be in the “ACC” or “ON” position to be used.

Cup holders Front

Rear

Rear with console box

Clock Without navigation system

H-Hour set M-Minute set :00-Round OFF minutes

With navigation system Refer to the “Navigation System Owner’s Manual.”

22

SAFETY AND EMERGENCY FEATURES

Doors-Child safety locks Rear door

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

Seat belts

Take up slack

Too high

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re- extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner's Manual.

Seat belts-Shoulder belt anchor

Push up, or squeeze lock release to lower

23

SAFETY AND EMERGENCY FEATURES

Seat belt comfort guide

Rear seat outside position guides provide added comfort for children who have outgrown child restraints.

Tire Pressure Warning System reset

System reset initialization 1. Push and hold “ SET” button

until the indicator blinks three times.

2. Wait a few minutes to allow

initialization to complete.

If tire pressure becomes critically low on any of the tires (including spare), indicator comes on. Pushing “ SET” button should not turn off the light. Correctly adjusting tire inflation will turn off the light after a few minutes. After replacing/rotating tire or wheels, the system must be initialized. Refer to the Owner’s Manual for more details.

24

Trunk-Internal release

Spare tire & tools Tool location

Spare tire cover

Jack handle

Spare tire

Removing the spare tire

Pull

Luggage floor cover

Wheel nut wrench

Jack

Remove the luggage cover. Loosen and remove the center fastener. Remove the spare tire cover.

Refer to the Owner’s Manual for tire changing and jack positioning procedures.

25

Customer Experience Center

1-800-331-4331

MN 00505-QRG08-AVA Printed in the USA 7/07

TABLE OF CONTENTS

Index

1 Before driving

1-1. Key information.................. 22
Keys ..................................... 22

1-2. Opening, closing and

locking the doors and trunk .................................. 24
Smart key system................. 24
Wireless remote control ....... 35
Doors.................................... 39
Trunk .................................... 44

1-3. Adjustable components (seats, steering wheel, mirrors) ............................. 46
Front seats ........................... 46
Rear seats............................ 48
Driving position memory system................................ 50
Head restraints..................... 53
Seat belts ............................. 54
Steering wheel ..................... 61
Inside rear view mirror.......... 62
Outside rear view mirrors ..... 64

1-4. Opening and closing the

windows and moon roof.. 66
Power windows .................... 66
Moon roof ............................. 69

1-5. Refueling............................. 72
Opening the fuel tank cap .... 72

1-6. Theft deterrent system....... 75
Engine immobilizer system... 75
Alarm .................................... 77
Theft prevention labels (U.S.A.)............................... 79

1-7. Safety information .............. 80
Correct driving posture ......... 80
SRS airbags ......................... 82
Front passenger occupant classification system........... 93
Child restraint systems ......... 99
Installing child restraints ..... 102

2 When driving

2-1. Driving procedures........... 114
Driving the vehicle .............. 114
Engine (ignition) switch (with smart key system).... 122
Engine (ignition) switch (without smart key system)............................. 126
Automatic transmission ...... 129
Turn signal lever ................. 133
Parking brake ..................... 134

2-2.

Instrument cluster ............ 135
Gauges and meters ............ 135
Indicators and warning lights ................................. 138
Center display..................... 141

AVALON_U_(L/O_0802)

2-3. Operating the lights and

windshield wipers........... 143
Headlight switch.................. 143
Fog light switch ................... 145
Windshield wipers and washer .............................. 146

2-4. Using other driving

systems ........................... 149
Cruise control...................... 149
Dynamic laser cruise control ............................... 152
Driving assist systems ........ 163

2-5. Driving information........... 166
Cargo and luggage ............. 166
Vehicle load limits ............... 169
Winter driving tips ............... 170
Trailer towing ...................... 175
Dinghy towing ..................... 176

3 Interior features

3-1. Using the air conditioning

system and defogger...... 178
Automatic air conditioning system .............................. 178
Using the steering wheel climate control switches.... 185
Rear window and outside rear view mirror defoggers.......................... 187

3-2. Using the audio system... 188
Audio system type.............. 188
Audio cover ........................ 190
Using the radio ................... 191
Using the CD player ........... 198
Playing MP3 and WMA discs................................. 206
Optimal use of the audio system.............................. 214
Using the AUX adapter....... 216
Using the steering wheel audio switches.................. 217

3-3. Using the hands-free

system............................. 220
Hands-free system (for cellular phone) ........... 220
Using the hands-free system.............................. 223
Making a phone call ........... 231
Setting a cellular phone...... 236
Security and system setup ................................ 241
Using the phone book ........ 244

3-4. Using the interior lights... 252
Interior lights list ................. 252

3-5. Using the storage

features ........................... 255
List of storage features....... 255

AVALON_U_(L/O_0802)

TABLE OF CONTENTS

Index

3-6. Other interior features ..... 263
Sun visors .......................... 263
Vanity mirrors ..................... 264
Clock .................................. 265
Outside temperature display.............................. 266
Ashtrays ............................. 267
Power outlets ..................... 268
Climate control seats/seat heaters ............................. 270
Armrest............................... 272
Rear sunshade................... 273
Floor mats .......................... 275
Trunk features .................... 276
Garage door opener........... 278
Compass ............................ 283

4 Maintenance and care

4-1. Maintenance and care...... 288

Cleaning and protecting the vehicle exterior................. 288
Cleaning and protecting the vehicle interior.................. 291

4-2. Maintenance ..................... 294

Maintenance requirements .................... 294
General maintenance......... 296
Emission inspection and maintenance (I/M) programs.......................... 299

4-3. Do-it-yourself

maintenance ................... 300
Do-it-yourself service precautions....................... 300
Hood ................................... 303
Positioning a floor jack........ 304
Engine compartment .......... 306
Tires.................................... 322
Tire inflation pressure ......... 331
Wheels................................ 335
Air conditioning filter ........... 337
Key battery ......................... 340
Checking and replacing fuses................................. 344
Headlight aim (with discharge headlights) ....... 353
Light bulbs .......................... 355

5 When trouble arises

5-1. Essential information ....... 362

If your vehicle needs to be towed................................ 362
If you think something is wrong................................ 366
Fuel pump shut off system .............................. 367
Event data recorder ............ 368

AVALON_U_(L/O_0802)

5-2. Steps to take in an

emergency....................... 370
If a warning light turns on or a warning buzzer sounds... ........................... 370
If you have a flat tire............ 382
If the engine will not start .... 391
If the shift lever cannot be shifted from P.................... 393
If you lose your keys ........... 394
If the electronic key does not operate properly (with smart key system) .... 395
If the vehicle battery is discharged ........................ 397
If your vehicle overheats..... 401
If the vehicle becomes stuck ................................. 404

6 Vehicle specifications

6-1. Specifications.................... 406

Maintenance data (fuel, oil level, etc.)..................... 406
Fuel information .................. 414
Tire information................... 417

6-2. Customization ................... 429
Customizable features ........ 429

6-3.

Initialization ....................... 433
Items to initialize ................. 433

7 For owners

Reporting safety defects for U.S. owners...................... 436
Seat belt instructions for Canadian owners (in French)........................ 437

Index

Abbreviation list ............... 442

Alphabetical index............ 443

What to do if...................... 450

AVALON_U_(L/O_0802)

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equip- ment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustration may differ from your vehicle in terms of equipment.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehi- cles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Mod- ification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addi- tion, damage or performance problems resulting from the modification may not be covered under warranty.

16

AVALON_U_(L/O_0802)

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequen- tial multiport fuel injection system, electronic throttle control system, cruise control system, dynamic laser cruise control system, vehicle stability control system, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instruc- tions regarding installation.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbag, seat belt pretensioners, and wireless remote con- trol batteries.

17

AVALON_U_(L/O_0802)

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that will hurt or kill you, your occupants or others. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

n General precautions regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. When left unattended, children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure them- selves by playing with the cigarette lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

18

AVALON_U_(L/O_0802)

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Safety symbol

Throughout this manual, you will also see the symbol of a circle with a slash through it. This means “Do not”, “Do not do this”, or “Do not let this happen”.

19

AVALON_U_(L/O_0802)

20

AVALON_U_(L/O_0802)

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

2 When driving

Driving, stopping and safe-driving information.

3 Interior features

Air conditioning and audio systems, as well as other interior features for a comfortable driving experience.

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

6 Vehicle

specifications

Detailed vehicle information.

7 For owners

Reporting safety defects for U.S. owners and seat belt instructions for Canadian owners.

Index

Alphabetical listing of information contained in this manual.

AVALON_U_(L/O_0802)

Pictorial index

Exterior

Windshield wiper P. 146

Moon roof∗ P. 69

Outside rear view

mirror P. 64

Hood P. 303

Side marker light P. 143

Headlight (low beam) P. 143

Turn signal light P. 133

Fog light∗ P. 145

Headlight (high beam) P. 143

AVALON_U_(L/O_0802)

Rear window defogger P. 187

Tail/stop light P. 143

Fuel filler door P. 72

Door P. 39

Tail lights P. 143

Trunk P. 44

Tire l Rotation l Replacement l Inflation pressure l Information

P. 322
P. 382
P. 412
P. 417

Back-up light

Turn signal light P. 133

Side marker light P. 143

∗: If equipped

AVALON_U_(L/O_0802)

Pictorial index

Interior

Head restraint P. 53

Seat belt P. 54

Power window switch P. 66

Door pocket P. 262

Console box P. 257

SRS driver airbag P. 82

SRS knee airbag

P. 82

Front passenger airbag P. 82

Floor mat P. 275
Front seat P. 46
Ashtray∗ P. 267
SRS side airbag P. 82

Storage compartment ∗ P. 260
Armrest P. 272

Cup holders P. 261

AUX adapter P. 216

Power outlets P. 268

AVALON_U_(L/O_0802)

A

Inside rear view mirror P. 62

Interior light P. 254

Personal light P. 254

Personal light P. 254

SRS curtain shield airbag P. 82

Moon roof switch∗ P. 69
Vanity mirror P. 264

Sun visor P. 263
Garage door opener switches∗ P. 278
Compass∗ P. 283

∗: If equipped

AVALON_U_(L/O_0802)

Pictorial index

Interior

Door lock switch P. 39

Window lock switch P. 66

Power window switches P. 66

10

AVALON_U_(L/O_0802)

C

Storage compartment∗ P. 260
Navigation system switches*

Cup holders P. 261
Ashtray∗ P. 267

Shift lever P. 129

Shift lock override button P. 393

Seat heater/ventilator switch∗ P. 270

∗: If equipped *: Refer to “Navigation System Owner’s Manual”. 11

AVALON_U_(L/O_0802)

Pictorial index

Instrument panel

Gauges and meters P. 135

Headlight switch Turn signal lever Fog light switch

P. 143
P. 133
P. 145

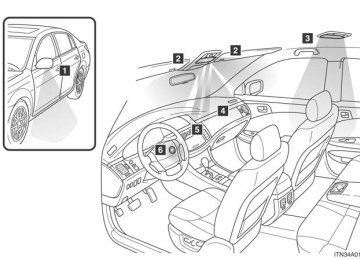

Driving position memory switches∗

P. 50

Windshield wipers and washer switch P. 146

Glove box P. 256

Trunk opener main switch P. 44

Tire pressure warning

system P. 323

Parking brake pedal

P. 134

Telescopic lock release lever P. 61
Tilt lock release lever

P. 61

12
