YDM USA FOREWORD.QXP 5/1/2016 12:36 PM Page 1
Kia,THE COMPANY
Thank you for becoming the owner of a new Kia vehicle.
As a global car manufacturer focused on building high-quality vehi- cles with exceptional value, Kia Motors is dedicated to providing you with a customer service experience that exceeds your expectations.
All information contained in this Owner’s Manual was accurate at the time of publication. However, Kia reserves the right to make changes at any time so that our policy of continual product improvement can be carried out.
This manual applies to all models of this vehicle and includes descrip- tions and explanations of optional as well as standard equipment. As a result, you may encounter material in this manual that is not applica- ble to your specific Kia vehicle.
Drive safely and enjoy your Kia!
YDM USA FOREWORD.QXP 5/1/2016 12:36 PM Page 2
F o r e w o r d
Thank you for choosing a Kia vehicle.
When you require service, remember that your Kia dealer knows your vehicle best. Your dealer has factory-trained tech- nicians, recommended special tools and genuine Kia replace- ment parts. It is dedicated to your complete customer satisfac- tion.
Because subsequent owners require this important information as well, this publication should remain with the vehicle if it is sold.
This manual will familiarize you with operational, mainte- nance and safety information about your new vehicle. It is sup- plemented by a Warranty and Consumer Information manual that provides important information on all warranties regarding your vehicle.
We urge you to read these publications carefully and follow the recommendations to help assure enjoyable and safe operation of your new vehicle.
Kia offers a great variety of options, components and features for its various models. Therefore, some of the equipment described in this manual, along with the various illustrations, may not be applicable to your particular vehicle.
The information and specifications provided in this manual were accurate at the time of printing. Kia reserves the right to discontinue or change specifications or design at any time without notice and without incurring any obligation. If you have questions, always check with your Kia dealer.
We assure you of our continuing interest in your motoring pleasure and satisfaction in your Kia vehicle.
© 2016 Kia MOTORS AMERICA, Inc.
All rights reserved. May not be reproduced or translated in whole or in part without the written consent of Kia MOTORS AMERICA, Inc.
Printed in Korea
YDM USA FOREWORD.QXP 5/1/2016 12:36 PM Page 3
table of contents
Introduction
Your vehicle at a glance
Safety features of your vehicle
Features of your vehicle
Driving your vehicle
What to do in an emergency
Maintenance
Specifications, Consumer information and Reporting safety defects
Index
ii
YDM USA 1.QXP 5/1/2016 12:37 PM Page 1
Introduction
How to use this manual . . . . . . . . . . . . . . . . . . . . . . 1-2
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
• Gasoline containing alcohol and methanol . . . . . . . . . 1-3
• Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
• Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle data collection and event data recorders. . 1-6YDM USA 1.QXP 5/1/2016 12:37 PM Page 2
Introduction
HOW TO USE THIS MANUAL We want to help you get the greatest possible driving pleasure from your vehicle. Your Owner’s Manual can assist you in many ways. We strong- ly recommend that you read the entire manual. In order to minimize the chance of death or injury, you must read the WARNING and CAU- TION sections in the manual. Illustrations complement the words in this manual to best explain how to enjoy your vehicle. By reading your manual, you will learn about fea- tures, important safety information, and driving tips under various road conditions.
The general layout of the manual is provided in the Table of Contents. Use the index when looking for a specific area or subject; it has an alphabetical listing of all located in the back of this manual. Sections: This manual has eight sec- tions plus an index. Each section begins with a brief list of contents so you can tell at a glance if that section has the information you want.
You will find various types of safety instructions in this manual. These instructions were prepared to enhance your personal safety. Carefully read and follow ALL proce- dures and recommendations provid- ed in these instructions.
WARNING
A WARNING indicates a situation in which harm, serious bodily injury or death could result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in which damage to your vehicle could result if the caution is ignored.
✽✽ NOTICE A NOTICE indicates interesting or helpful information is being provided.
21
YDM USA 1.QXP 5/1/2016 12:37 PM Page 3
FUEL REQUIREMENTS Your new vehicle is designed to use only unleaded fuel having a pump octane number ((R+M)/2) of 87
(Research Octane Number 91) or higher. (Do not use methanol blend- ed fuels.)Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as well as mini- mize exhaust emissions and spark plug fouling. Never add any fuel system cleaning agents to the fuel tank other than what has been specified. (Consult an authorized Kia dealer for details.) (cid:129) Tighten the cap until it clicks one time, otherwise the Check Engine
light will illuminate.
WARNING - Refueling
• Do not "top off" after the noz- zle automatically shuts off. Attempts to force more fuel into the tank can cause fuel overflow onto you and the ground causing a risk of fire. (cid:129) Always check that the fuel cap is installed securely to pre- vent fuel spillage, especially in the event of an accident.
Gasoline containing alcohol and methanol Gasohol, a mixture of gasoline and ethanol (also known as grain alco- hol), and gasoline or gasohol con- taining methanol (also known as wood alcohol) are being marketed along with or instead of leaded or unleaded gasoline.
Introduction
Pursuant to EPA regulations, ethanol may be used in your vehicle. Do not use gasohol containing more than 15% ethanol, and do not use gasoline or gasohol containing any methanol. Ethanol provides less energy than gasoline and it attracts water, and it is thus likely to reduce your fuel efficiency and could lower your MPG results. Methanol may cause drivability prob- lems and damage to the fuel system, engine control system and emission control system. Discontinue using gasohol of any kind if drivability problems occur. Vehicle damage or drivability prob- lems may not be covered by the manufacturer’s warranty if they result from the use of: 1. Gasoline or gasohol containing
methanol.
2. Leaded fuel or leaded gasohol. 3. Gasohol containing more than 15
percent ethanol
1 3
YDM USA 1.QXP 5/1/2016 12:37 PM Page 4
Introduction
"E85" fuel is an alternative fuel com- prised of 85 percent ethanol and 15
percent gasoline, and is manufac- tured exclusively for use in Flexible Fuel Vehicles. “E85” is not compati- ble with your vehicle. Use of “E85” may result in poor engine perform- ance and damage to your vehicle's engine and fuel system. Kia recom- mends that customers do not use fuel with an ethanol content exceed- ing 15 percent.✽✽ NOTICE Your New Vehicle Limited Warranty does not cover damage to the fuel sys- tem or any performance problems caused by the use of “E85” fuel.
✽✽ NOTICE fuel containing Never use any methanol. Discontinue use of any methanol containing product which may inhibit proper drivability.
41
Other fuels Using fuels that contain Silicone (Si), MMT (Manganese, Mn), Ferrocene (Fe), and Other metalic additives, may cause vehicle and engine dam- age or cause misfiring, poor acceler- ation, engine stalling, catalyst melt- ing, clogging, abnormal corrosion, life cycle reduction, etc. Also, the Malfunction Indicator Lamp (MIL) may illuminate.
Gasoline containing MMT Some gasoline contains harmful man- ganese-based fuel additives Such as M M T ( M e t hy l c y c l o p e n t a d i e n y l Manganese Tricarbonyl). Kia does not recommend the use of gasoline con- taining MMT. This type of fuel can reduce vehicle performance and affect your emission control system. The Malfunction Indicator Lamp on the cluster may come on.
✽✽ NOTICE Damage to the fuel system or per- formance problem caused by the use of these fuels may not be covered by your Limited Warranty.
New Vehicle
Do not use methanol Fuels containing methanol (wood alco- hol) should not be used in your vehicle. This type of fuel can reduce vehicle performance and damage components of the fuel system, engine control sys- tem and emission control system.
Operation in foreign countries If you are going to drive your vehicle in another country, be sure to: (cid:129) Observe all regulations regarding
registration and insurance.
(cid:129) Determine that acceptable fuel is
available.
YDM USA 1.QXP 5/1/2016 12:37 PM Page 5
Fuel Additives Kia recommends that you use good quality gasolines treated with deter- gent additives such as TOP TIER Detergent Gasoline, which help pre- vent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance performance of the Emission Control System. For more information on TOP TIER Detergent Gasoline, please go to the website (www.toptiergas.com) For customers who do not use TOP TIER Detergent Gasoline regularly, and have problems starting or the engine does not run smoothly, addi- tives that you can buy separately may be added to the gasoline. If TOP TIER Detergent Gasoline is not available, one bottle of additive should be added to the fuel tank at every 7,500miles or every engine oil change is recommended. Additives are avail- able from your authorized Kia dealer along with information on how to use them. Do not mix other additives.
Introduction
VEHICLE BREAK-IN PROCESS No special break-in period is need- ed. By following a few simple precau- tions for the first 600 miles (1,000
km) you may add to the perform- ance, economy and life of your vehi- cle. (cid:129) Do not race the engine. (cid:129) While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.(cid:129) Do not maintain a single speed for long periods of time, either fast or slow. Varying engine speed is needed to properly break-in the engine.
(cid:129) Avoid hard stops, except in emer- gencies, to allow the brakes to seat properly.
(cid:129) Don't tow a trailer during the first 1,200 miles (2,000 km) of opera- tion.
1 5
YDM USA 1.QXP 5/1/2016 12:37 PM Page 6
Introduction
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle's systems performed. The EDR is designed to record data related to vehicle dynamics and safety sys- tems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: * How various systems in your
These data can help provide a bet- ter understanding of the circum- stances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving con- ditions and no personal data (e.g., name, gender, age, and crash loca- tion) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.
vehicle were operating;
* Whether or not the driver and passenger safety belts were buckled/ fastened;
* How far (if at all) the driver was accelerator
depressing and/or brake pedal; and,
the
* How fast the vehicle was travel-
ing.
61
YDM USA 2.QXP 2016-05-02 13:59 Page 1
Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6YDM USA 2.QXP 5/1/2016 12:39 PM Page 2
Your vehicle at a glance
EXTERIOR OVERVIEW ■ Front view
1. Hood...................................................4-35
2. Head lamp ................................4-91, 7-77
3. Fog lamp...................................4-94, 7-77
4. Wheel and tire.............................7-47, 8-5
5. Outside rearview mirror......................4-50
6. Front windshield wiper blades .....4-96, 7-41
7. Windows.............................................4-30
8. Front removable towing hook .............6-28❈ The actual shape may differ from the illustration.
22
OYDM016005
YDM USA 2.QXP 5/1/2016 12:39 PM Page 3
■ Rear view
❈ The actual shape may differ from the illustration.
Your vehicle at a glance
1. Door locks ..........................................4-17
2. Fuel filler lid........................................4-37
3. Rear combination lamp ......................7-81
4. High mounted stop lamp....................7-86
5. Trunk ................................4-21, 4-23, 4-27
6. Antenna............................................4-143OYDM016006
2 3
YDM USA 2.QXP 5/1/2016 12:39 PM Page 4
Your vehicle at a glance
INTERIOR OVERVIEW
❈ The actual shape may differ from the illustration.
42
1. Inside door handle ................................4-17
2. Driver position memory system button ...3-8
3. Outside rearview mirror control ............4-51
4. Central door lock switch .......................4-18
5. Power window lock switch ....................4-33
6. Power window switch............................4-30
7. Hood release lever................................4-35
8. Instrument panel illuminationcontrol switch ........................................4-55
9. LKAS On/Off button..............................5-65
10. ESC off button ....................................5-37
11. Steering wheel warmer On/OffButton .................................................4-46
12. BSD On/Off button..............................5-73
13. Steering wheel....................................4-44
14. Tilt and telescopic steering controllever ....................................................4-45
15. Trunk lid release lever.........................4-21
16. Fuel filler lid release lever...................4-37
17. Fuse box .............................................7-61OYDM016001N
YDM USA 2.QXP 5/1/2016 12:39 PM Page 5
INSTRUMENT PANEL OVERVIEW
❈ The actual shape may differ from the illustration.
Your vehicle at a glance
1. Instrument cluster................................4-54
2. Lighting control lever ...........................4-91
3. Audio remote control buttons ............4-144
4. Horn.....................................................4-45
5. Driver's front air bag ............................3-46
6. Cruise control button ...........................5-56
7. Wiper and washer control lever...........4-96
8. Ignition switch orEngine start/stop button .................5-6, 5-8
9. Digital clock .......................................4-138
10. Hazard warning flasher .......................6-2
11. Audio ....................................4-158, 4-206
12. Climate control system.........4-105, 4-115
13. Shift lever ........................5-14, 5-17, 5-23
14. Passenger's front air bag ..................3-46
15. Glove box ........................................4-130
16. Parking brake ....................................5-33
17. Cup holder.......................................4-133
18. LCD display control button ................4-56OYD016002L
2 5
YDM USA 2.QXP 5/1/2016 12:40 PM Page 6
Your vehicle at a glance
ENGINE COMPARTMENT ■■ Gasoline Nu 2.0 MPI Engine
■■ Gasoline Nu 2.0 GDI Engine
1. Engine oil dipstick ..............................7-30
2. Engine oil filler cap.............................7-31
3. Engine coolant reservoir ....................7-32
4. Radiator cap.......................................7-33
5. Brake/clutch fluid reservoir.................7-35
6. Windshield washer fluid reservoir ......7-36
7. Air cleaner..........................................7-37
8. Positive battery terminal.....................7-44
9. Negative battery terminal...................7-44
10. Fuse box ..........................................7-61
❈ The actual engine room in the vehicle may differ from the illustration.
OYDM076017/OYDM076078
62
YDM USA 2.QXP 5/1/2016 12:40 PM Page 7
■■ Gasoline Gamma 1.6T-GDI Engine
Your vehicle at a glance
1. Engine coolant reservoir ....................7-32
2. Engine oil filler cap.............................7-31
3. Brake/clutch fluid reservoir.................7-35
4. Air cleaner..........................................7-37
5. Fuse box ............................................7-61
6. Negative battery terminal...................7-44
7. Positive battery terminal.....................7-44
8. Engine oil dipstick ..............................7-30
9. Radiator cap.......................................7-33
10.Windshield washer fluid reservoir .....7-36
❈ The actual engine room in the vehicle may differ from the illustration.
OYDM076078
2 7
YDM USA 3.QXP 5/1/2016 12:41 PM Page 1
Safety features of your vehicle

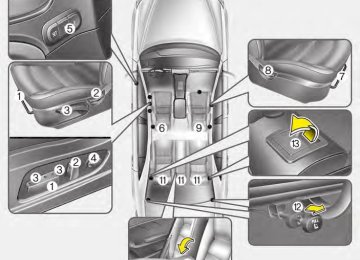

Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-4
• Front seat adjustment - power. . . . . . . . . . . . . . . . . . . 3-6
• Driver position memory system (for power seat). . . . 3-8
• Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . . . 3-9
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-17
• Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . 3-21
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-27
• Using a child restraint system . . . . . . . . . . . . . . . . . . 3-28
Air bag-supplemental restraint system . . . . . . . . 3-34
• How does the air bag system operate . . . . . . . . . . . . 3-35
• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
• SRS components and functions . . . . . . . . . . . . . . . . . 3-38
• Occupant detection system . . . . . . . . . . . . . . . . . . . . . 3-41
• Driver's and passenger's front air bag . . . . . . . . . . . 3-46
• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-50
• Why didn’t my air bag go off in a collision? (Inflationand non-inflation conditions of the air bag) . . . . . . 3-51
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-56
• Adding equipment to or modifying your air bag-equipped vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-56
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-57YDM USA 3.QXP 5/1/2016 12:41 PM Page 2
Safety features of your vehicle
SEAT
Manual seat
Power seat
23
Driver’s seat (1) Seat adjustment, forward /
backward
(2) Seatback recliner (3) Seat adjustment, height
(for driver’s seat) (4) Lumbar support (for driver’s seat)
(5) Driver position memory system* (6) Headrest Front passenger’s seat (7) Seat adjustment, forward /
backward
(8) Seatback recliner (9) Headrest Rear seat (10) Armrest (11) Headrest (12) Seatback folding lever
(trunk, for 4 Door)*
(13) Seatback folding lever
(for 5 Door)
OYDM036001N
* : if equipped
(cid:129) 5 Door
(cid:129) 4 Door
YDM USA 3.QXP 5/1/2016 12:41 PM Page 3
WARNING - Loose objects Do not place anything in the dri- ver's foot well or under the front seats. Loose objects in the dri- ver's foot area could interfere with the operation of the foot pedals.
WARNING - Uprighting
seat
Do not press the release lever on a manual seatback without holding and controlling the seatback. The seatback will spring upright possibly impact- ing you or other passengers.
WARNING - Seat cushion Occupants should never sit on aftermarket seat cushions or sit- ting cushions. The passenger's hips may slide under the lap por- tion of the seat belt during an accident or a sudden stop.
WARNING - Driver responsibility for
passengers
1KMN3661
The driver must advise the pas- senger to keep the seatback in an upright position whenever the vehicle is in motion. If a seat is reclined during an accident, the restraint system's ability to restrain will be greatly reduced.
Safety features of your vehicle
WARNING - Driver’s seat
(cid:129) Never attempt to adjust the seat while the vehicle is mov- ing. This could result in loss of control of your vehicle.
(cid:129) Do not allow anything to inter- fere with the normal position of the seatback and seatback adjustment.
(cid:129) Sit as far back as possible from the steering wheel while still maintaining comfortable control of your vehicle. A dis- tance of at least 10" from your chest to the steering wheel is recommended. Failure to do so could result in air bag infla- tion injuries to the driver.
3 3
YDM USA 3.QXP 5/1/2016 12:41 PM Page 4
Safety features of your vehicle
WARNING - Seat
adjustment
(cid:129) Do not adjust the seat while wearing seat belts. Moving the seat forward will cause strong pressure on the abdomen.
(cid:129) Do not place your hand near the seat bottom or seat track while adjusting the seat. Your hand could get caught in the seat mechanism.
WARNING - Small Objects Use extreme caution when pick- ing small objects trapped under the seats or between the seat and the center console. Your hands might be cut or injured by the sharp edges of the seats mechanism.
43
Front seat adjustment - manual Forward and backward
WARNING - Unexpected seat movement
After adjusting a manual seat, always check that it is locked by shifting your weight to the front and back. Sudden or unexpect- ed movement of the driver's seat could cause you to lose control of the vehicle.
OYDDSA2002
To move the seat forward or backward: 1. Pull the seat slide adjustment
lever up and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place.
Adjust the seat before driving, and make sure the seat is locked securely by trying to move forward and back- ward without using the lever. If the seat moves, it is not locked properly.
YDM USA 3.QXP 5/1/2016 12:41 PM Page 5
Seatback angle
Seat Cushion height (for driver's seat)
Lumbar support (for driver`s seat,if equipped)
Safety features of your vehicle
OYDDSA2003
To recline the seatback: 1. Lean forward slightly and lift up the
seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its orig- inal position for the seatback to lock.)
OYDDSA2004
OYDDSA2008
To change the height of the seat cushion push the lever upwards or downwards. (cid:129) To lower the seat cushion, push the
lever down several times.
(cid:129) To raise the seat cushion, push the
lever up several times.
Press the front portion of the switch to increase support, or the rear portion of the switch to decrease support.
3 5
YDM USA 3.QXP 5/1/2016 12:41 PM Page 6
Safety features of your vehicle
Front seat adjustment - power (if equipped) The front seat can be adjusted by using the control switch located on the outside of the seat cushion. Before driving, adjust the seat to the proper position so as to easily con- trol the steering wheel, pedals and switches on the instrument panel.
Forward and backward
CAUTION - Power seat adjustments
The power seating controls function by electronic motor. Excessive operation may cause damage to the electrical equip- ment.
WARNING - Unattended
children
Do not leave children unattend- ed in the vehicle. Children might operate features of the vehicle that could injure them.
CAUTION - Power Seating Do not operate two or more power seat control switches at the same time. Doing so may damage the power seat motor or electrical components.
OYDDSA2005
Push the control switch forward or backward to move the seat to the desired position. Release the switch once the seat reaches the desired position.When in operation, the power seat- consumes a large amount of electri- cal power. To prevent unnecessary charging system drain, don’t adjust the power seat longer than neces- sary while the engine is not running.
63
YDM USA 3.QXP 5/1/2016 12:42 PM Page 7
Seatback angle
Seat cushion height (for driver's side)
Lumbar support (for driver’s seat,if equipped)
Safety features of your vehicle
OYDDSA2006
Push the control switch forward or backward to move the seatback to the desired angle. Release the switch once the seat reaches the desired position.OYDDSA2007
OYDDSA2008
Pull the front portion of the control switch up to raise or down to lower the front part of the seat cushion. Pull the rear portion of the control switch up to raise or down to lower the rear part of the seat cushion. Release the switch once the seat reaches the desired position.
The lumbar support can be adjusted by pressing the lumbar support switch on the side of the driver's seat. Press the front portion of the switch to increase support, or the rear portion of the switch to decrease support.
3 7
WARNING - Driver posi- tion memory system
Never attempt to operate the driver position memory system while the vehicle is moving. This could result in loss of control of your vehicle, and an accident causing death, or serious injury.
Storing positions into memory using the buttons on the door Storing driver’s seat positions 1. Vehicle speed is below 3 mph (3
km/h) and the engine start/stop button is ON or ignition switch ON. 2. Adjust the driver seat to positioncomfortable for the driver.
3. Press SET button on the control panel. The system will beep once. 4. Press one of the memory buttons (1 or 2) within 5 seconds after pressing the SET button. The sys- tem will beep twice when memory has been successfully stored.
YDM USA 3.QXP 5/1/2016 12:42 PM Page 8
Safety features of your vehicle
Driver position memory system (if equipped, for power seat)
OYDDSA2014
A driver position memory system is provided to store and recall the driver seat position with a simple button operation. By saving the desired posi- tion into the system memory, different drivers can reposition the driver seat based upon their driving preference. If the battery is disconnected, the desired seat position memory will need to be re-saved.83
YDM USA 3.QXP 5/1/2016 12:42 PM Page 9
Recalling positions from memory 1. Vehicle speed is below 3 mph (3
km/h).
2. To recall the position in memory, press the desired memory button (1 or 2). The system will beep once, then the driver seat will automatically adjust to the stored positions.
Adjusting the control switch for the driver seat while the system is recall- ing the stored position will cause the movement to stop and move in the direction that the control switch is moved.
Easy access function (if equipped) With the shift lever in the P position, the system will move the driver's seat automatically as follows: (cid:129) Without smart key system
- It will move the driver’s seat rear- ward when the ignition key is removed and front driver’s door is opened.
- It will move the driver’s seat for- ward when the ignition key is inserted.
(cid:129) With smart key system
- It will move the driver’s seat rear- ward when the engine start/stop button is turned to the OFF posi- tion and front driver’s door is opened.
- It will move the driver’s seat for- ward when the engine start/stop button is turned to the ACC or START position.
You can activate or deactivate this feature. Refer to "User settings" in chapter 4.
Safety features of your vehicle
Headrest (for front seat)
OMG038400
The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and comfort. The headrest not only provides com- fort for the driver and front passen- ger, but also helps protect the head and neck in the event of a collision.3 9
YDM USA 3.QXP 5/1/2016 12:42 PM Page 10
Safety features of your vehicle
For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height of the center of gravity of an occupant's head. Generally, the center of gravity of most people's head is similar with the height of the top of their eyes. Also, adjust the headrest as close to your head as possible. For this reason, the use of a cushion that holds the body away from the seatback is not recommended.
WARNING - Headrest removal/adjustment
(cid:129) Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in a crash.
(cid:129) Do not adjust the headrest height while the vehicle is in motion. Driver may lose con- trol of the vehicle.
Adjusting the height up and down
OYDDSA2009
To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).10
YDM USA 3.QXP 5/1/2016 12:42 PM Page 11
Safety features of your vehicle
Removal and installation
■ Type A
3. Press the headrest release button (3) while pulling the headrest up (4).
WARNING - Headrest Removal
NEVER allow anyone to ride in a seat with the headrest removed. Headrests can provide critical neck and head support in a crash.
OYFH034205
✽✽ NOTICE If you recline the seatback towards the front with the headrest and seat cushion raised, the headrest may come in contact with the sunvisor or other parts of the vehicle.
■ Type B
OYD034100
OYD034102
To remove the headrest: 1. Recline the seatback (2) with the
recline switch (1).
2. Raise headrest as far as it can go.
3 11
YDM USA 3.QXP 5/1/2016 12:42 PM Page 12
Safety features of your vehicle
■ Type A
3. Adjust the headrest to the appro-
priate height.
Seatback pocket
WARNING - Headrest
Reinstallation To reduce the risk of injury to the head or neck, always make sure the head rest is locked into posi- tion and adjusted properly after reinstalling.
■ Type B
OYD034101
OYDDCO2051
The seatback pocket is provided on the back of the front passenger’s seatback.WARNING - Seatback
pocket
Do not put heavy or sharp objects in the seatback pocket. An occupant could contact such objects in a crash. Heavy objects in the front passenger seatback could also interfere with the air bag sensing system.
OYD034103
To reinstall the headrest : 1. Put the headrest poles (2) into the holes while pressing the release button (1).
2. Recline the seatback (4) with the
recline switch or lever (3).
12
YDM USA 3.QXP 5/1/2016 12:42 PM Page 13
Rear seat adjustment Headrest (for rear seat)
ONF03940I The rear seat is equipped with head- rests in all the seating positions for the occupant's safety and comfort. The headrest not only provides com- fort for passengers, but also helps protect the head and neck in the event of a collision.
For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height of the center of gravity of an occupant's head. Generally, the center of gravity of most people's head is similar with the height as the top of their eyes. Also adjust the headrest as close to your head as possible. For this rea- son, the use of a cushion that holds the body away from the seatback is not recommended.
Safety features of your vehicle
OYDDSA2012
Adjusting the height up and down (if equipped) To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).
3 13
YDM USA 3.QXP 5/1/2016 12:42 PM Page 14
Safety features of your vehicle
Armrest
OYDDSA2019
To use the armrest, pull it forward from the seatback.OYDDSA2013
Removal and installation To remove the headrest, raise it as far as it can go then press the release button (1) while pulling the headrest upward (2). To reinstall the headrest, put the headrest poles (3) into the holes while pressing the release button (1). Then adjust it to the appropriate height and ensure that it locks in position.
14
Folding the rear seat The rear seatbacks may be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.
WARNING - Folded
Seatback
Never allow passengers to sit on top of the folded down seat- back while the vehicle is mov- ing. This is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sud- den stop.
YDM USA 3.QXP 5/1/2016 12:42 PM Page 15
WARNING - Objects
Objects carried on the folded down seatback should not extend higher than the top of the front seatbacks. This could allow cargo to slide forward and cause injury or damage during sudden stops.
Safety features of your vehicle
OYDDSA2017
To fold the rear seatback : (cid:129) 4 door 1. Make sure the rear seat belt web- bing is in the guide to prevent the seat belt from being damaged.
2. Set the front seatback to the upright position and if necessary, slide the front seat forward.
3. Lower the rear headrests to the
lowest position. 4. Open the trunk.
OYDDSA2016
OYDDSA2018
5.Pull the lock release lever (1) and fold the rear seatback forward and down firmly. If the seat belt locks after unfolding the rear seatback, pull out the locked seat belt, release it then pull it out again.3 15
YDM USA 3.QXP 5/1/2016 12:42 PM Page 16
Safety features of your vehicle
OYDDSA3042
(cid:129) 5 door 1. Set the front seatback to the upright position and if necessary, slide the front seat forward.
2. Lower the rear headrests to lowest
position.
3. Pull the lock release lever (1) and fold the rear seatback forward and down firmly.
4. To use the rear seat, lift and pull the seatback backward. Pull the seat- back firmly until it clicks into place. Make sure the seatback is locked in place. When you return the seat- back to its upright position, always be sure it has locked into position by pushing on the top of the seatback.
16
If you can not see the red line at the folding lever, it means the seat- back is locked completely.
To unfold the rear seat 1. To use the rear seat, lift and pull the seatback rearward. Pull the seatback firmly until it clicks into place. Make sure the seatback is locked in place. When you return the seatback to its upright posi- tion, always be sure it has locked into position by pushing on the top of the seatback.
2. Return the rear seat belt to the
proper position.
3. When the seatback is completely installed, check the seatback fold- ing lever again.
When returning the rear seatbacks to the upright position, remember to return the rear shoulder belts to their proper position.
WARNING - Rear seatback When returning the rear seat- back from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seat- back. In an accident or sudden stop, the unlocked seatback could allow cargo to move for- ward with great force and enter the passenger compartment.
WARNING - Cargo
Do not place heavy objects in the rear seats, since they can- not be properly secured and may hit vehicle occupants in a frontal collision.
YDM USA 3.QXP 5/1/2016 12:42 PM Page 17
SEAT BELTS Seat belt restraint system Seat belts are designed to bear upon the bony structure of the body, and should be worn low across the front of the pelvis, chest and shoulders, as applicable; wearing the lap section of the belt across the abdominal area must be avoided. Seat belts should be adjusted as firmly as possible, consistent with comfort, to provide the protection for which they have been designed. A slack belt will greatly reduce the protection afforded to the wearer. Care should be taken to avoid con- tamination of the webbing with pol- ishes, oils and chemicals, and partic- ularly battery acid. Cleaning may safely be carried out using mild soap and water. The belt should be replaced if webbing becomes frayed, contaminated or damaged.
(cid:129) For maximum restraint system pro- tection, the seat belts must always be used whenever the vehicle is moving. A properly positioned shoulder belt should be positioned midway over your shoulder across your collarbone.
(cid:129) Never allow children to ride in the front passenger seat. See child restraint system section for further discussion.
WARNING - Shoulder belt Never wear the shoulder belt under your arm or behind your back. An improperly positioned shoulder belt cannot protect the occupant in a crash.
Safety features of your vehicle
WARNING - Damaged seat belt
Replace the entire seat belt assembly if any part of the web- bing or hardware is damaged as you can no longer be sure that a damaged seat belt will provide protection in a crash.
WARNING - Twisted seat
belt
Make sure your seat belt is not twisted when worn. A twisted seat belt may not properly pro- tect you in an accident and could even cut into your body.
WARNING - Seat belt
buckle
Do not allow foreign material (gum, crumbs, coins, etc.) to obstruct the seat belt buckle. This may prevent the seat belt from fastening securely.
3 17
YDM USA 3.QXP 5/1/2016 12:42 PM Page 18
Safety features of your vehicle
Seat belt warning (if equipped)
OYDESA2035CN As a reminder to the driver, the dri- ver’s seat belt warning lights will illu- minate for approximately 6 seconds each time you turn the ignition switch ON regardless of belt fastening.
18
If the driver’s seat belt is not fastened when the ignition switch is turned ON or if it is disconnected after the igni- tion switch is turned ON, the seat belt warning light will illuminate until the belt is fastened. If you continue not to fasten the seat belt and you drive over 9 mph (9
km/h), the illuminated warning light will start to blink until you drive under 6 mph (6 km/h). If you continue not to fasten the seat belt and you drive over 12 mph (20
km/h) the seat belt warning chime will sound for approximately 100 sec- onds and the corresponding warning light will blink.Seat belt - Driver's 3-point system with emergency locking retractor
B180A01NF-1
To fasten your seat belt: To fasten your seat belt, pull it out of the retractor and insert the metal tab (1) into the buckle (2). There will be an audible "click" when the tab locks into the buckle.
YDM USA 3.QXP 5/1/2016 12:42 PM Page 19
The seat belt automatically adjusts to the proper length only after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sud- den stop or impact, however, the belt will lock into position. It will also lock if you try to lean forward too quickly. If you are unable to pull out the seat belt from the retractor, firmly pull the belt out and release it. Then you will be able to pull the belt out smoothly.
Safety features of your vehicle
To raise the height adjuster, pull it up (1). To lower it, push it down (3) while pressing the height adjuster button (2). Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position. Never position the shoulder belt across your neck or face.
WARNING - Seat belt
replacement
Replace your seat belts after being in an accident. Failure to replace seat belts after an acci- dent could leave you with dam- aged seat belts that will not pro- vide protection in the event of another collision.
WARNING - Shoulder belt
positioning
Never position the shoulder belt across your neck or face.
3 19
OMG035038
Height adjustment You can adjust the height of the shoul- der belt anchor to one of the 4 posi- tions for maximum comfort and safety. The height of the adjusting seat belt should not be too close to your neck. The shoulder portion should be adjusted so that it lies across your chest and midway over your shoulder nearest the door and not your neck. To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position.
YDM USA 3.QXP 5/1/2016 12:42 PM Page 20
Safety features of your vehicle
B200A01NF You should place the lap belt portion as low as possible and snugly across your hips. If the lap belt is located too high on your waist, it may increase the chance of injury in the event of a collision. The arm closest to the seat belt buckle should be over the belt while the other arm should be under the belt as shown in the illustration.
20
It automatically adjusts to the proper length only after the lap belt portion of the seat belt is adjusted manually so that it fits snugly around your hips. When the seat belt is fully extended from the retractor to allow the instal- lation of a child restraint system, the seat belt operation changes to allow the belt to retract, but not to extend (Automatic Locking Retractor Type). Refer to “Using a child restraint sys- tem” in this section. To convert from the automatic lock- ing feature to the emergency locking operation mode, allow the unbuckled seat belt to fully retract.
Seat belts - Front passenger and rear seat 3-point system with combination locking retractor To fasten your seat belt Combination retractor type seat belts are installed in the rear seat posi- tions to help accommodate the installation of child restraint systems. Although a combination retractor is also installed in the front passenger seat position, it is strongly recom- mended that children always be seated in the rear seat. NEVER place an infant restraint system in the front seat of the vehicle. This type of seat belt combines the features of both an emergency lock- ing retractor seat belt and an auto- matic locking retractor seat belt. To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. When not securing a child restraint, the seat belt operates in the same way as the driver's seat belt (Emergency Locking Retractor Type).
YDM USA 3.QXP 5/1/2016 12:43 PM Page 21
Safety features of your vehicle
Pre-tensioner seat belt
OYDDSA2021
When using the rear center seat belt, the buckle with the “CENTER” mark must be used.B210A01NF-1
To release the seat belt The seat belt is released by pressing the release button (1) of the locking buckle. When it is released, the belt should automatically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again.
OXMA033101
Your vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. 1. Retractor pre-tensioner The retractor pre-tensioner, which is a supplement system of the seat belts. The purpose of the retractor pre-tensioner is to tighten the shoul- der belt against the occupant's upper body in certain frontal collisions.3 21
YDM USA 3.QXP 5/1/2016 12:43 PM Page 22
Safety features of your vehicle
2. Emergency Fastening Device
(EFD)
The Emergency Fastening Device (EFD) is a supplemental system of the seat belts. The purpose of the EFD is to tighten the lap belt against the occupant's pelvis in certain frontal collisions.
The pre-tensioner seat belts may be activated, when a frontal collision is severe enough, together with the air bags. When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor may lock into position. In certain frontal collisions (or side collisions), the pre-tensioner may activate and pull the seat belt into tighter contact against the occupant's body. If the system senses excessive ten- sion on the driver or passenger's seat belt when the pre-tensioner activates, the load limiter inside the retractor pre-tensioner will release some of the pressure on the affected seat belt.
22
To obtain maximum benefit from a pre-tensioner seat belt: 1. The seat belt must be worn cor- rectly and adjusted to the proper position. Please read and follow all of the important information and precautions about your vehicle's occupant safety features - includ- ing seat belts and air bags - that are provided in this manual.
2. Be sure you and your passengers
always wear seat belts properly.
✽✽ NOTICE When the pre-tensioner seat belts are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger compartment. These are normal operating condi- tions and are not hazardous.
ODMESA2024
The seat belt pre-tensioner system consists mainly of the following com- ponents. Their locations are shown in the illustration: 1. SRS air bag warning light 2. Retractor pre-tensioner assembly 3. SRS control module 4. Emergency fastening device (EFD)YDM USA 3.QXP 2016-05-03 19:37 Page 23
WARNING - Skin irritation Wash all exposed skin areas thoroughly after an accident in which the pre-tensioner seat belts were activated. The fine dust from the pre-tensioner activation may cause skin irrita- tion and should not be breathed for prolonged periods.
Because the sensor that activates the SRS air bag is connected with the pre-tensioner seat belt, the SRS air bag warning light ( ) on the instru- ment panel will illuminate for approxi- mately 6 seconds after the ignition switch has been turned to the ON position, and then it should turn off. If the pre-tensioner seat belt does not work properly, this warning light will illuminate even if the SRS air bag has not malfunctioned. If the SRS air bag warning light does not illuminate when the ignition switch is turned ON, or if it remains illuminated after illuminating for approximately 6 sec- onds, or if it illuminates while the vehicle is being driven, please have an authorized Kia dealer inspect the pre-tensioner seat belt or SRS air bag system as soon as possible.
✽✽ NOTICE Do not attempt to service or repair the pre-tensioner seat belt system in any manner. Do not attempt to inspect or replace the pre-tensioner seat belts yourself. This must be done by an authorized Kia dealer.
Safety features of your vehicle
WARNING - Hot pre- tensioner
Do not touch the pre-tensioner seat belt assemblies for several minutes after they have been activated. When the pre-ten- sioner seat belt mechanism fires during a collision the pre- tensioner becomes hot and can burn you.
Pre-tensioners are designed to oper- ate only one time. After activation, pre-tensioner seat belts must be replaced. If the pre-tensioner must be replaced, contact an authorized Kia dealer.
3 23
YDM USA 3.QXP 5/1/2016 12:43 PM Page 24
Safety features of your vehicle
Seat belt precautions Infant or small child All 50 states have child restraint laws. You should be aware of the specific requirements in your state. Child and/or infant seats must be properly placed and installed in the rear seat. For more information about the use of these restraints, refer to “Child restraint system” in this section.
24
WARNING - Small chil-
dren
Do not allow small children to ride in the vehicle without an appropriate child restraint sys- tem. If the shoulder belt comes in contact with your child's neck or face your child is too small to ride in the vehicle. In a crash the seat belt will inflict injury to your child's neck, throat and face.
Larger children Children who are too large for child restraint systems should always occu- py the rear seat and use the available lap/shoulder belts. The lap portion should be fastened snug on the hips and as low as possible. Periodically check belt fit. A child's squirming could put the belt out of position. Children are given the most safety in the event of an accident when they are restrained by a proper restraint system in the rear seat. If a larger child (over age 12) must be seated in the front seat, the child should be securely restrained by the available lap/shoul- der belt and the seat should be placed in the rearmost position. Children age 12 and under should be restrained securely in the rear seat. NEVER place a child age 12 and under in the front seat. NEVER place a rear facing child seat in the front seat of a vehicle. If the shoulder belt portion slightly touches the child’s neck or face, try placing the child closer to the center of the vehicle. If the shoulder belt still touches their face or neck they need to be returned to a child restraint system.
YDM USA 3.QXP 5/1/2016 12:43 PM Page 25
Restraint of pregnant women Pregnant women should wear lap/shoulder belt assemblies when- ever possible according to specific recommendations by their doctors. The lap portion of the belt should be worn AS SNUGLY AND LOW AS POSSIBLE on the hips, not across the abdomen.
WARNING - Pregnant
women
Pregnant women must never place the lap portion of the seat belt above or on the abdomen where the fetus is located. The force of the seat belt during a collision will crush the fetus.
Injured person A seat belt should be used when an injured person is being transported. When this is necessary, you should consult a physician for recommenda- tions.
One person per belt Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an acci- dent.
Safety features of your vehicle
Do not lie down To reduce the chance of injuries in the event of an accident and to achieve maximum effectiveness of the restraint system, all passengers should be sitting up and the front seats should be in an upright position when the vehicle is moving. A seat belt cannot provide proper protection if the person is lying down in the rear seat or if the front seat is in a reclined position.
3 25
YDM USA 3.QXP 5/1/2016 12:43 PM Page 26
Safety features of your vehicle
Care of seat belts Seat belt systems should never be disassembled or modified. In addi- tion, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse.
Periodic inspection All seat belts should be inspected periodically for wear or damage of any kind. Any damaged parts should be replaced as soon as possible.
26
Keep belts clean and dry Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned by using a mild soap solu- tion and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabric.
When to replace seat belts The entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an accident. This should be done even if no damage is visible. Additional questions concerning seat belt oper- ation should be directed to an authorized Kia dealer.
WARNING - Pinched Seat
belts
Make sure that the webbing and/or buckle does not get caught or pinched in the rear seat when returning the rear seatback to its upright position. pinched webbing/buckle may become damaged and could fail during a collision or sudden stop.
caught
or
YDM USA 3.QXP 5/1/2016 12:43 PM Page 27
CHILD RESTRAINT SYSTEM Children riding in the car should sit in the rear seat and must always be properly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to accident statis- tics, children are safer when properly restrained in the rear seats than in the front seat. Larger children who are not in a child restraint should use one of the seat belts provided. You should be aware of the specific requirements in your state. Child and/or infant safety seats must be properly placed and installed in the rear seat. You must use a commer- cially available child restraint system that meets the requirements of the Federal Motor Vehicle Safety Standards (FMVSS). Child restraint systems are designed to be secured in vehicle seats by seat belt, or by a tether anchor and/or LATCH anchors.
Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies, a child seat or infant seat must be used. Before buying a par- ticular child restraint system, make sure it fits your car seat and seat belts, and fits your child. Follow all the instructions provided by the man- ufacturer when installing the child restraint system.
WARNING - Restraint
location
Never install a child or infant seat on the front passenger's seat. A child riding in the front pas- senger seat can be forcefully struck by an inflating air bag.
Safety features of your vehicle
WARNING - Hot child restraint
A child restraint system can become very hot if it is left in a closed vehicle on a sunny day. Be sure to check the seat cover, buckles and latches before placing a child in the restraint system.
When the child restraint system is not in use, store it in the luggage area or fasten it with a seat belt so that it will not be thrown forward in case of a sudden stop or an accident.
3 27
YDM USA 3.QXP 5/1/2016 12:43 PM Page 28
Safety features of your vehicle
WARNING - Holding children
Never hold a child in your arms or lap when riding in a vehicle. The violent forces created dur- ing a crash will tear the child from your arms and throw the child against the car’s interior. Always use a child restraint system which is appropriate for your child's height and weight.
WARNING - Seat belt use Do not use one seat belt for two occupants at the same time. This will eliminate any safety benefit provided by the seat belt to the occupants.
28
For safety reasons, we recommend that the child restraint system be used in the rear seats. Since all passenger seat belts move freely under normal conditions and only lock under extreme or emer- gency conditions (emergency lock mode), you must manually change these seat belts to the auto lock mode to secure a child restraint. If the seat belt does not operate as described in this section, have the system checked immediately by your authorized Kia dealer.
WARNING - Unattended
Children
Never leave children unattended in a vehicle. The vehicle can heat up very quickly, resulting in injuries to the child in the vehicle.
Using a child restraint system Rear- facing child restraint system
Forward-facing child restraint system
CRS09
OTQ037038
For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child and should be installed in accordance with the manufacturer's instructions.YDM USA 3.QXP 5/1/2016 12:43 PM Page 29
WARNING - Child seat installation
(cid:129) Always follow the instructions provided by the child restraint system manufacturer. Child restraint system manufactur- ers know their products best. (cid:129) Failure to observe this manu- al's instructions regarding child restraint system and the instructions provided with the child restraint system could result in the improper installa- tion of the child restraint sys- tem which may reduce the protection to your child in a crash or a sudden stop.
✽✽ NOTICE If the vehicle headrest prevents proper installation of a child seat (as described in the child seat system manual), the headrest of the respec- tive seating position shall be read- justed or entirely removed.
Safety features of your vehicle
Placing a passenger seat belt into the auto lock mode
E2MS103005
The auto lock mode will help prevent the normal movement of the child in the vehicle from causing the seat belt to loosen and compromise the child restraint system. To secure a child restraint system, use the following procedure.OEN036101
To install a child restraint system on the outboard or center rear seats, do the following: 1. Place the child restraint system in the seat and route the lap/shoulder belt around or through the restraint, following the restraint manufactur- er’s instructions. Be sure the seat belt webbing is not twisted.2. Fasten the lap/shoulder belt latch into the buckle. Listen for the dis- tinct “click” sound.
Position the release button so that it is easy to access in case of an emer- gency.
3 29
YDM USA 3.QXP 5/1/2016 12:43 PM Page 30
Safety features of your vehicle
OEN036102
3. Pull the shoulder portion of the seat belt all the way out. When the shoulder portion of the seat belt is fully extended, it will shift the retractor to the “Auto Lock” (child restraint) mode.OEN036103
4. Slowly allow the shoulder portion of the seat belt to retract and listen for an audible “clicking” or “ratchet- ing” sound. This indicates that the retractor is in the “Auto Lock” mode. If no distinct sound is heard, repeat steps 3 and 4.OEN036104
5. Remove as much slack from the belt as possible by pushing down on the child restraint system while feeding the shoulder belt back into the retractor.6. Push and pull on the child restraint system to confirm that the seat belt is holding it firmly in place. If it is not, release the seat belt and repeat steps 2 through 6.
7. Double check that the retractor is in the “Auto Lock” mode by attempting to pull more of the seat belt out of the retractor. If you cannot, the retractor is in the “Auto Lock” mode.
30
YDM USA 3.QXP 5/1/2016 12:43 PM Page 31
The lap/shoulder belt automatically returns to the “emergency lock mode” whenever the belt is allowed to retract fully. Therefore, the preceding seven steps must be followed each time a child restraint is installed. To remove the child restraint, press the release button on the buckle and then pull the lap/shoulder belt out of the restraint and allow the seat belt to retract fully.
WARNING - Auto lock
mode
Set the retractor to Automatic Lock mode when installing any child restraint system. If the retractor is not in the Auto Lock mode, the child restraint can move when your vehicle turns or stops suddenly.
Safety features of your vehicle
Securing a child restraint seat with tether anchorage system
(cid:129) 4 Door
This symbol indicates the position of tether anchor.
the
(cid:129) 5 Door
OYDESA4022
OYDDSA3043
Child restraint hook holders are locat- ed on the package tray (4 Door) or the floor behind the rear seat (5 Door).3 31
YDM USA 3.QXP 5/1/2016 12:43 PM Page 32
Safety features of your vehicle
OTF030030N 1.Route the child restraint seat teth-
er strap over the seatback. For vehicles with adjustable head- rests, route the tether strap under the headrest (remove the headrest and the re-install it) and between the headrest posts, otherwise route the tether strap over the top of the seatback.
32
2. Connect the tether strap hook to the appropriate child restraint hook holder and tighten to secure the child restraint seat.
WARNING - Tether strap
Never mount more than one child restraint to a single tether or to a single lower anchorage point. The load caused by multiple seats may cause the tethers or anchorage points to break.
increased
Check that the child restraint system is secure by pushing and pulling it in different directions. Incorrectly fitted child restraints may swing, twist, tip or separate causing death or serious injury.
Securing a child restraint seat with child seat lower anchor system
