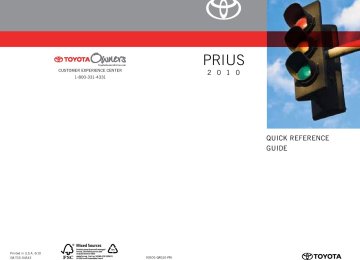

2010 Toyota Prius Owners Manual

CUSTOMER EXPERIENCE CENTER

1-800-331-4331

PRIUS

2 0 1 0

QUICK REFERENCE GUIDE

Printed in U.S.A. 6/10
08-TCS-04342

00505-QRG10-PRI

2010
Prius

Doors-Child safety locks Rear door

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Prius.

! A word about safe vehicle operations

This Quick Reference Guide is not a full description of Prius operations. Every Prius owner should review the Owner’s Manual that accompanies this vehicle. Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction. All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

Spare tire & tools Tool location

Center auxiliary box

Wheel nut wrench Jack handle

Spare tire

Removing the spare tire

Jack

Towing eyelet

Refer to the Owner’s Manual for tire changing and jack positioning procedures.

25

INDEX

OVERVIEW

FEATURES/OPERATIONS

Engine maintenance Fuel tank door release and cap Hood release Indicator symbols Instrument cluster Instrument panel Keyless entry1
Light control-Instrument panel Smart Key system1,2

Air Conditioning/Heating Audio Auto lock functions1
Clock Cruise control Dynamic Radar Cruise Control EV-Drive Mode Garage door opener (HomeLink®)3
Hill start Assist Control (HAC) Hybrid Synergy Drive System Lights1 & turn signals LKA (Lane Keep Assist) Moonroof Multi-information display2
Parking brake Power outlets Seat adjustments-Front Seat heaters Seats-Folding down second row seats Seats-Head restraints Solar ventilation system Steering wheel switches Telephone controls (Bluetooth®) Tilt and telescopic steering wheel Transmission Windows-Power Windshield wipers & washers

4-5
2-3

18-19

20-21

16

10
23
20

12
23
23
10
15
21
17
22
12
19
13
16
13
13
17
19
22
12
11
14
14

SAFETY AND EMERGENCY FEATURES

Doors-Child safety locks Door locks Seatbelts Seatbelts-Shoulder belt anchor Spare tire & tools Tire Pressure Monitoring (warning) System

25
24
24
24
25
24

1 Visit your Toyota dealer for information on customizing this feature. 2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information. 3 HomeLink® is a registered trademark of Johnson Controls, Inc.

OVERVIEW

Instrument panel Steering wheel controls

Steering wheel audio controls Voice command button1,2
“TRIP” button Multi-information display button Steering wheel climate controls Cruise control1
“LKA” switch1
Distance switch1
Telephone controls1,2
Headlight and turn signal controls/Headlight, turn signal and front fog light controls1
Wiper and washer controls1
Mph or km/h button Advance Parking Guide System/Intelligent Parking Assist pre-support switch1,2
Power button Multi-information display Audio system or navigation system-integrated audio system1,2

Automatic Air Conditioning

Air Conditioning controls Outside rearview mirror1/Back window defogger button “EV” switch1
“ECO MODE” switch “PWR MODE” switch Emergency flasher button Shift lever “P” position switch Tilt and telescopic steering lock release lever Fuel filler door opener Power rearview mirror control Headlight cleaner switch1
Solar ventilation switch1
Instrument panel light control

1 If equipped 2 For vehicles with a navigation system, refer to the “Navigation System

Owner’s Manual.”

OVERVIEW

Instrument cluster

Service indicator and reminder Fuel gauge Transmission shift position indicator Multi-information display Instantaneous fuel consumption Speedometer

Indicator symbols For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.

Brake system warning1

Brake system warning light (yellow indicator)1
Driver seatbelt reminder (alarm will sound if speed is over 12 mph)

Front passenger seatbelt reminder (alarm will sound if speed is over 12 mph)

Charging system warning1

Front passenger occupant classification or front passenger airbag ON/OFF indicator1

Malfunction/Check Engine indicator1

Low fuel level warning

Open door warning

Airbag SRS warning1

1 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction. Have vehicle inspected by your Toyota dealer.

Master warning

Low Tire Pressure Warning1

Electric power steering system warning1

Theft deterrent/Engine immobilizer system indicator

Headlight low/high beam indicator

Turn signal indicator

READY indicator

EV Drive Mode indicator

Eco Mode indicator

Power Mode indicator

Front fog light indicator

Slip indicator/Hill start Assist Control indicator1

Cruise control indicator2

Lane Keep Assist indicator

Anti-lock Brake System warning1

Automatic headlight leveling system warning1

Pre-Collision System warning light1

High coolant temperature warning light1

2 If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.

OVERVIEW

Keyless entry Locking operation

Unlocking operation

Push

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety. Remote Air Conditioning system operation (if equipped)

Push ONCE: Driver door

TWICE: All doors

Will automatically shut off after three minutes, or if a door is opened. Panic button

Push and hold

Push and hold

Smart Key system (if equipped) Start function

Green indicator ON

Carrying

Depress brake pedal

Push

Power (without starting Hybrid System) Without depressing the brake pedal, pressing the “POWER” switch will change the operation mode in succession from:

ACCESSORY

Accessories such as the radio will operate.

ON

Power ON; Hybrid System is not engaged.

All systems OFF.

OFF Locking operation (if equipped) Unlocking operation

(if equipped)

Front door lock

Front door unlock*

Touch

Carry remote to lock/unlock

Carry remote to lock/unlock

Back door lock/unlock (if equipped)

Grasp

Push

Push

Carry remote to lock/unlock * Driver door unlocking function can be programmed to unlock driver door only, or all doors. Grasping passenger door handle will unlock all doors.

Unlock

Lock

NOTE: Doors may also be locked/unlocked using remote.

OVERVIEW

Fuel tank door release and cap

Turn

Pull

Store

Hood release

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ indicator may illuminate.

”

Pull

Pull up latch and raise hood

Engage support rod

Light control-Instrument panel

Brightness control

Engine maintenance

Engine coolant reservoir Engine oil level dipstick Engine oil filler cap Windshield washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Warranty Maintenance Guide.”

FEATURES/OPERATIONS

Hybrid Synergy Drive System The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine and electric motor to provide the most efficient combination of power for the vehicle. To conserve energy, when the brakes are applied the braking force generates electricity which is then sent to the traction battery. In addition, the engine shuts off when the vehicle is stopped. The benefits are better fuel economy, reduced vehicle emissions and improved performance. Note: Fuel consumption and energy information of the Hybrid System

are shown on the multi-information display.

Tips for improved fuel economy -Ensure tire pressures are maintained at levels specified in the Owner’s Manual. -When possible, link trips to reduce engine cold starts. -Avoid driving at speeds that are higher than necessary, especially on the highway. -When possible, avoid sudden stops to maximize regenerative braking energy. -Minimize use of the Air Conditioning.

Starting the Hybrid System

(1) Depress the brake pedal, and

press the “POWER” switch briefly and firmly.

(2) The “READY” light will blink.

After a few seconds, when the light remains steady and a beep sounds, you may begin driving.

Auto lock functions Automatic door locks can be programmed to operate in two different modes, or turned OFF. -Doors lock when shifting from Park. -Doors lock when the vehicle speed is approximately 12 mph or higher. -Doors unlock when shifting into Park. -Doors unlock when the driver’s door is opened within 10 seconds after turning the “POWER” switch or ignition switch OFF. Refer to the Owner’s Manual for more details.

10

Transmission

Park button

Reverse

Neutral

Drive

Engine brake*

* The engine brake is the equivalent of downshifting. Shift to “B” when

engine braking is desired (i.e. downhill driving, coasting to a stop, etc.). Eco Mode

Push

Eco Mode helps achieve low fuel consumption during trips that involve frequent accelerating and braking.

Refer to the Owner’s Manual for more details. Power Mode

Push

Use when a higher level of response is desired, such as when driving in mountainous regions.

Refer to the Owner’s Manual for more details.

11

FEATURES/OPERATIONS

EV-Drive Mode (if equipped)

EV-Drive Mode allows the electric motor (traction motor), powered by the hybrid battery (traction battery), to be used to drive the vehicle under certain driving conditions.

Push

Refer to the Owner’s Manual for more details.

Tilt and telescopic steering wheel

Lock release lever

Angle

Length

Hold wheel, push lever down, set angle and length, and return lever.

Note: Do not attempt to adjust while the vehicle is in motion.

Parking brake

Set: Depress Release: Depress again

12

Seat adjustments-Front

Seat position (forward/backward) Seatback angle Height crank (driver side; if equipped) Lumbar support (driver side; if equipped)

Seats-Head restraints Front

Rear center

Rear outboard

Lock release button

Lock release button

Lock release button

Seats-Folding down second row seats

(1) Press down

(2) Fold down

13

FEATURES/OPERATIONS

Windows-Power

Up

Window lock switch

Down

Automatic operation Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, push the switch in the opposite direction. Window lock switch Deactivates all passenger windows. Driver’s window remains operable. Windshield wipers & washers Front

Adjust frequency*

Single wipe

Pull to wash and wipe

Interval wipe

Slow

Fast

* Intermittent windshield wiper frequency adjustment

Rotate to increase/decrease wipe frequency.

Rear (if equipped)

Wash and wipe

Wipe Interval wipe

Wash and wipe

14

Lights & turn signals Headlights

Auto* Headlights Parking lights

* If equipped

Low beam

High beam flasher

High beam

-Daytime Running Light system (DRL) (if equipped) Automatically turns on the headlights at a reduced intensity. -Automatic light cutoff system (if equipped) Automatically turns lights off after a delay of 30 seconds. Front fog lights (if equipped)

Turn

Front fog lights come on only when the headlights are on low beam.

Turn signals

Right turn

Lane change

Lane change

Left turn

15

FEATURES/OPERATIONS

Seat heaters (if equipped)

Air Conditioning/Heating Front automatic Air Conditioning

Push

Driver seat

Push Front passenger seat

Temperature selector Temperature setting display Air outlet display Fan speed display Fan speed control Windshield defogger Air Conditioning ON/OFF Micro dust and pollen filter mode (turns off automatically after 3
minutes) Airflow vent In “ ” or “ reduce window fogging. Fresh or recirculated cabin air Automatic climate control ON Adjusting the temperature setting will cause the airflow vents, air intake and fan to adjust automatically. Climate control OFF

” mode, use fresh air (“

” indicator OFF) to

16

Solar ventilation system (if equipped)

With the “POWER” switch in ON mode, turn on the solar ventilation switch.

Off

On

The solar ventilation system allows ventilation of the vehicle interior when the vehicle is parked in direct sunlight.

Refer to the Owner’s Manual for more details.

Moonroof (if equipped) Opening operation Push once to tilt up; again to open partway; again to open completely.

Closing operation

Push

Recommended driving position to minimize wind noise.

Push and hold

17

FEATURES/OPERATIONS

Audio

Type 1

Push to turn ON/OFF Seek station/ CD track select

Station/CD track scan

Preset buttons - functions in other modes indicated above number

Eject CD

Mute

Push to adjust tone & balance

Push to skip up/down folder and radio category type

Mode

View CD text

Type 2 (with JBL speakers and Bluetooth® function)

Load CD(s)

CD PLAYER To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection. CD changer (Type 2 only) -To load one disc Push “LOAD” and insert one disc. -To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one disc. Shutter will close and then re-open for next disc. To select a file (MP3/WMA only) Turn “TUNE.FILE.” To select a folder (MP3/WMA only) Push either side of “FOLDER.” RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold selection.

18

AUX audio jack (if equipped)

By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode. Power outlets

Lower center console

Center console box (if equipped)

Power switch must be set at “ACCESSORY” or “ON” mode to be used.

Steering wheel switches Audio control

Volume control

Climate control

Fresh or recirculated cabin air

Temperature selector

“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio system OFF. v v “ -In radio mode Push to select a preset station; push and hold to seek the next strong station. -In CD mode Push to skip up or down to next/previous track.

”

19

FEATURES/OPERATIONS

Cruise control (if equipped) Turning system ON/OFF

System ON/OFF

Resume2

Increase speed

Functions

Cancel1

Set

Decrease speed

1 The set speed may also be cancelled by depressing the brake pedal. 2 The set speed may be resumed once vehicle speed exceeds 25 mph.

Dynamic Radar Cruise Control (if equipped) Refer to the Owner’s Manual for more details and complete safety precautions before attempting to use “Dynamic Radar Cruise Control.” Fixed speed mode

(1) To select conventional/fixed speed control Push the ON-OFF button.

Push the lever forward and hold until the “

” indicator appears.

(2) To set, cancel and resume a speed Refer to instructions in the Cruise

Control section.

20

Distance control mode

Distance control mode will cruise at a set speed, decelerate to maintain selected distance from a slower vehicle traveling in front of you, and accelerate back up to the selected speed if the vehicle in front of you changes lanes or speeds up. (1) To select distance control mode Push the ON-OFF button. The

“RADAR READY” and “

” will come on.

(2) To set, cancel and resume a speed Refer to instructions for Cruise

Control on the previous page.

LONG

MIDDLE

SHORT

(3) To change the vehicle-to-vehicle distance

Push the distance button to cycle through the settings, which will change progressively from LONG to MIDDLE to SHORT.

LKA (Lane Keep Assist) (if equipped)

When activated, the LKA system camera detects lane markings and alerts the driver when the vehicle strays from its lane. Driver may also experience a slight steering torque. Refer to the Owner’s Manual for more details.

21

FEATURES/OPERATIONS

Multi-information display

Push “DISP” to change information in the following: (1) Energy monitor (2) Hybrid System Indicator (3) 5-minute/1-minute interval fuel consumption display (4) Fuel consumption history display

Push and hold “DISP” to set up the displays.

Telephone controls (Bluetooth®) (if equipped) Microphone (type A)

Microphone (type B)

Audio unit

Steering wheel telephone switches

Volume

Voice command button End call Start call

Bluetooth® technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the telephone and the system. Refer to “Hands-free phone system (for cellular phone),” Section 3-3 in the Owner’s Manual for more details.

22

Clock

H- Hour set M- Minute set :00- Round off

minutes

Refer to the Owner’s Manual for adjusting time. Hill start Assist Control (HAC)

Brake pedal

HAC helps prevent rolling backwards on an incline. To engage, push further down on brake pedal while at a complete stop until a beep sounds and slip indicator illuminates. HAC holds for approximately two seconds after releasing brake pedal. Refer to the Owner’s Manual for more details. Garage door opener (HomeLink®)* (if equipped)

Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to “Garage door opener,” Section 3-6 in the Owner’s Manual for more details. For programming assistance, contact the Toyota Customer Experience Center at 1-800-331-4331, or visit http://www.homelink.com.

* HomeLink® is a registered trademark of Johnson Controls, Inc.

23

SAFETY AND EMERGENCY FEATURES

Seatbelts

Take up slack

Too high

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seatbelts, and how to install a child restraint system, refer to the Owner's Manual.

Seatbelts-Shoulder belt anchor

Push up, or squeeze lock release to lower

Door locks

Unlock

Lock

Tire Pressure Monitoring (warning) System If tire pressure becomes critically low on any of the tires, illuminate. Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer. Refer to the Owner’s Manual for more details.

indicator will

24

Doors-Child safety locks Rear door

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

Spare tire & tools Tool location

Center auxiliary box

Wheel nut wrench Jack handle

Spare tire

Removing the spare tire

Jack

Towing eyelet

Refer to the Owner’s Manual for tire changing and jack positioning procedures.

25

MN 00505-QRG10-PRI

Printed in the USA 4/09

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equip- ment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustration may differ from your vehicle in terms of equipment.

Noise from under vehicle after turning off the hybrid system

Approximately five hours after the hybrid system is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehi- cles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Mod- ification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addi- tion, damage or performance problems resulting from the modification may not be covered under warranty.

22

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequen- tial multiport fuel injection system, cruise control system, anti-lock brake sys- tem, vehicle stability control system, SRS airbag system, seat belt pretensioner system or hybrid system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installa- tion. High voltage parts and cables on the hybrid vehicles emit approximately the same amount of electromagnetic waves as the conventional gasoline pow- ered vehicles or home electronic appliances despite of their electromagnetic shielding. Unwanted noise may occur in the reception of the mobile two-way radio.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbag, seat belt pretensioners, and wireless remote con- trol batteries.

23

CAUTION

■General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

■General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

■Dispose of the hybrid battery (traction battery)

If your vehicle is disposed of without the hybrid battery having been removed, there is a danger of serious electric shock if high voltage parts, cables and their connectors are touched. In the event of that your vehicle must be disposed of, the hybrid battery must be disposed of your Toyota dealer or a qualified service shop. If the hybrid battery is not disposed of properly, they may cause electric shock that can result in death or serious injury.

24

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Symbols used in illustrations

Safety symbol The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning, etc.) used to operate switches and other devices. Indicates the outcome of an operation (e.g. a lid opens).

ITOPP105

25

26

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column

2 When driving

Driving, stopping and safe-driving information

3 Interior features

Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident

6 Vehicle

specifications

Detailed vehicle information

7 For owners

Reporting safety defects for U.S. owners and seat belt instructions for Canadian owners

Index

Alphabetical listing of information contained in this manual

Pictorial index

Exterior

Windshield wipers P. 210

Headlights (low beam) P. 206

Parking lights P. 206

Moonroof with Solar Panel∗ P. 100

Hood P. 420

Outside rear view mirrors P. 96

Headlights (high beam) P. 206

Front side marker lights P. 206

Front turn signal lights P. 178

Fog lights∗ P. 209

Fuel filler door P. 104

Rear window wiper P. 212

Side doors P. 67

Rear window defogger P. 289

Back door P. 72

Tires ●Rotation ●Replacement ●Inflation pressure ●Information

P. 441
P. 524
P. 451
P. 572

License plate lights P. 206

Tail and rear side marker lights

P. 206

Rear turn signal lights P. 178

∗: If equipped

Pictorial index

Interior

Head restraints P. 82

SRS driver airbag P. 113

Seat belts P. 85

Power window switches P. 98

SRS front passenger

airbag P. 113

Floor mat

P. 384

Glove boxes P. 368

Front seat P. 78

SRS side airbag P. 113

Armrest P. 383
Cup holder P. 372

Rear seat P. 80

Console box P. 369

10

A

With moon roof

Anti-glare inside rear view mirror P. 93

Personal/interior lights P. 363

Interior light P. 363

SRS curtain shield airbag P. 113

“SOS” button∗ P. 395

Vanity mirror P. 377

Sun visor P. 376

Moon roof switch P. 100

Garage door opener switches∗ P. 389

∗: If equipped

11

Pictorial index

Interior

Without moon roof

Anti-glare inside rear view mirror P. 93

Overhead console P. 370

Personal/interior lights P. 363

Interior light P. 363

SRS curtain shield airbag P. 113

“SOS” button∗ P. 395

Vanity mirror P. 377

Sun visor P. 376

Garage door opener switches∗ P. 389

12

B

Inside lock button P. 67

Door lock switch P. 67

Power window switches P. 98

ITOPP103

Window lock switch P. 98

∗: If equipped

13

Pictorial index

Instrument panel

Bottle holder P. 374

Windshield wipers and washer switch P. 210
Rear window wiper and washer switch P. 212

Headlight switch P. 206
Turn signal lever P. 178
Fog light switch∗ P. 209

Gauges and meters P. 181
Multi-information display P. 188

Horn P. 180

Audio system

P. 291
Navigation system*

Glove boxes P. 368

Cup holder P. 372
SRS knee airbag P. 113
Tilt and telescopic steering lock release lever

P. 92

Parking brake pedal P. 179
Hood opener P. 420
Fuel filler door opener P. 104

14

A

Ventilation switch∗ P. 282

Headlight cleaner switch∗ P. 213

Outside rear view mirror

switches P. 96

Instrument panel light control dial P. 184

ITOPP120

∗: If equipped *: Refer to “Navigation System Owner’s Manual”. 15

Pictorial index

Instrument panel

Talk switch∗* P. 326

Climate remote control switches P. 280

Audio remote control switches P. 323

“DISP” button P. 188

“TRIP” button

P. 188

ITOPP116

Telephone switch∗* P. 326

Distance switch∗ P. 218

“LKA” switch∗ P. 235

Cruise control switch∗ P. 214, 218

16

C

MPH or km/h button P. 183

APGS pre-support switch*

Power (ignition) switch P. 162

∗: If equipped *: Refer to “Navigation System Owner’s Manual”. 17

Pictorial index

Instrument panel

18

Air conditioning system P. 270

Rear window defogger switch

P. 289

ITO31P101

E

“PWR MODE” switch P. 171

“ECO MODE” switch P. 171

“EV” switch P. 168

Emergency flasher

switch P. 486

Shift lever P. 171

“P” position switch P. 171

19

Pictorial index

Luggage compartment

Luggage cover∗ P. 385

Cargo hooks P. 385

Auxiliary box P. 385

Cargo hooks P. 385

Luggage compartment light P. 72

Auxiliary box P. 385

20

∗: If equipped

21

1-5. Opening and closing

the windows and moon roof Power windows..................... 98
Moonroof with Solar Panel ............... 100

1-6. Refueling

Opening the fuel tank cap... 104

1-7. Theft deterrent system

Immobilizer system............. 108
Theft prevention labels (U.S.A.)............................. 110

1-8. Safety information

Correct driving posture ....... 111
SRS airbags ....................... 113
Front passenger occupant classification system......... 126
Child restraint systems ....... 132
Installing child restraints ..... 137

TABLE OF CONTENTS

Index

1 Before driving

1-1. Hybrid system

Hybrid system ...................... 28

1-2. Key information

Keys ..................................... 41
Smart key system (with entry function)............ 43
Smart key system (without entry function)....... 57

1-3. Opening, closing and locking

the doors and back door Wireless remote control ....... 63
Side doors ............................ 67
Back door ............................. 72

1-4. Adjustable components (seats, mirrors, steering wheel) Front seats ........................... 78
Rear seats............................ 80
Head restraints..................... 82
Seat belts ............................. 85
Steering wheel ..................... 92
Inside rear view mirror.......... 93
Outside rear view mirrors ..... 96

2-4. Using other driving systems

Cruise control ..................... 214
