2009 Prius

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in the vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of the vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Prius.

! A word about safe vehicle operations

This Quick Reference Guide is not a full description of Prius operations. Every Prius owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

09-Prius-revised.qxd 7/30/08 5:30 AM Page 1

INDEX

BASIC HYBRID VEHICLE OPERATION

OVERVIEW

FEATURES/OPERATIONS

Hybrid Synergy Drive System Keyless entry1
Key fob Parking & turning OFF the Hybrid System 9
Shifting Smart Key system 4-5
Smart Key unlock functions1
Turning the Hybrid System ON

Engine maintenance Fuel tank door opener and cap Hood release Indicator symbols Instrument cluster Instrument panel Light control-Instrument panel Rear hatch

Air Conditioning/Heating Audio Clock Cruise control Cup and bottle holders Garage door opener (HomeLink®)2
Lights & turn signals Luggage storage box Parking brake Power outlets Seat adjustments-Front Seat adjustments-Rear Seats-Head restraints Telephone controls (Bluetooth®) Tilt steering wheel Windows Windshield wipers & washers

SAFETY AND EMERGENCY FEATURES

Door locks Doors-Child safety locks Emergency flashers Jump starting Rear air vent Seat belts Seat belts-Shoulder belt anchor Spare tire & tools Tire Pressure Monitoring (warning) System

1 Programmable by customer. For dealer-programmable features, please visit your Toyota dealer.

2 HomeLink® is a registered trademark of Johnson Controls, Inc.

15
14
15

12

14
14

12-13

10-11

20-21
22-23

25
21
25
17
16
24
25
25
18
18
18
24
19
19
17

26
26
27
28
27
26
26
29
27

M2.qxd 7/28/08 3:49 PM Page 2

BASIC HYBRID VEHICLE OPERATION

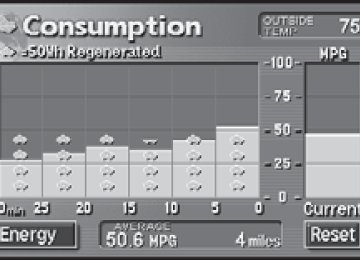

Hybrid Synergy Drive System The Hybrid Synergy Drive System utilizes a computer controlled gasoline engine and electric motor to provide the most efficient combination of power for the vehicle. To conserve energy, when the brakes are applied, braking force generates electricity which is then sent to the traction battery. In addition, the engine shuts off when the vehicle is stopped. The benefits are better fuel economy, reduced vehicle emissions and improved performance. Note: Fuel consumption and energy information of the Hybrid System are shown on the multi-information display. Refer to this screen for important driving information and feedback to maximize energy use/creation and conserve fuel.

Tips for improved fuel economy -Ensure tire pressures are maintained at levels specified in the Owner's Manual. -If possible, link trips to reduce engine cold starts. -Avoid driving at speeds that are higher than necessary, especially on the highway. -When possible, avoid sudden stops to maximize regenerative braking energy. -Minimize use of the Air Conditioning.

Refer to the Owner’s Manual for more details.

M2.qxd 7/28/08 3:49 PM Page 3

Key fob

Master key

Mechanical key*

* Lock/Unlock the driver’s door only

Ignition key (key fob) slot

Slide

Pull out

Master key Ignition key & wireless remote. Mechanical key Fits into master key and can be removed to manually lock/unlock driver door only. Ignition key slot When inserting, push completely in. When removing, gently pull; key will be pushed out by a spring. DO NOT FORCE THE KEY. If it cannot be removed, push it all the way in again, then pull it out. To remove or replace mechanical key Slide the lock knob in the direction of the arrow.

M2.qxd 7/28/08 3:50 PM Page 4

BASIC HYBRID VEHICLE OPERATION

Smart Key system (if equipped)

Carrying a Smart Key allows the vehicle to be locked, unlocked and the Hybrid System engaged without handling the key. Locking operation Front door

Rear hatch

Push

Push

Unlocking operation Front door

Rear hatch

NOTE: After unlocking, if a door is not opened within 60 seconds, all doors will relock for safety. Refer to your Owner’s Manual and the following section of this guide for Smart Key unlocking programmable options.

M2.qxd 7/28/08 3:50 PM Page 5

Smart Key system cancel switch

Push

Enabled Disabled

NOTE: To conserve battery power, turn the Smart Key system “OFF” when not using the vehicle for prolonged periods of time. For more battery saving information, refer to the Owner’s Manual for more details. Smart Key unlock functions (if equipped) The Smart Key unlocking function can be programmed to operate in three different modes when Smart Key is activated. In all modes, grasping the front passenger’s door handle will unlock all doors. -To unlock driver’s door only, grasp driver’s door handle. -To unlock all doors, grasp any door handle except rear doors. -To unlock driver’s door or hatch independently, grasp the handle.

Refer to the Owner’s Manual for more information on this feature, and how to change modes.

M2.qxd 7/28/08 3:50 PM Page 6

BASIC HYBRID VEHICLE OPERATION

Keyless entry Locking operation

Unlocking operation

Push

NOTE: After unlocking, if a door is not opened within 60 seconds, all doors will relock for safety. Panic button

Push ONCE: Driver door

TWICE: All doors

Push and hold

M2.qxd 7/28/08 3:50 PM Page 7

Turning the Hybrid System ON Start function

(1)

(2)

(3)

(1) Insert key.* (2) Depress the brake pedal and push the “POWER” button briefly and

firmly.

(3) The “READY” light will blink. After a few seconds, when the light

remains ON and a beep sounds, you may begin driving.

Note: The brake pedal must be depressed to turn the Hybrid System on. * It is not necessary to insert the ignition key (key fob) if Smart Key

system is installed and activated. Changing operation modes Pressing “POWER” without depressing the brake pedal while the Hybrid System is OFF will change the operation mode in succession from:

ACCESSORY

Accessories such as the radio will operate.

ON

OFF

Ignition is on; Hybrid System is not engaged.

All systems OFF.

M2.qxd 7/28/08 3:50 PM Page 8

BASIC HYBRID VEHICLE OPERATION

Shifting

Shift position

Park button

Shift lever

Park button

Reverse (buzzer sounds)

Neutral

Drive

Engine brake

Brake pedal must be depressed when shifting to or from the position. If brake is not applied, a beep will sound and the vehicle cannot be shifted. NOTE: The shift lever will always return to its original position after shifting. ALWAYS CONFIRM SHIFT POSITION BY CHECKING INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER. * The engine brake is the equivalent of downshifting. Shift to “B” when

Park

engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).

M2.qxd 7/28/08 3:50 PM Page 9

Parking & turning OFF the Hybrid System

(1)

(2)

(3)

(4)

(1) When the vehicle is at a complete stop, keep brake pedal depressed

and push

Park button above the shift lever.

(2) Push the “POWER” button to turn off the system. (3) Fully depress the parking brake. (4) Remove the key fob if inserted.*

WARNING: If the “POWER” button is held for longer than three seconds while the vehicle is moving, the Hybrid System will shut off. * It is not necessary to insert the ignition key (key fob) if Smart Key

system is installed and activated. Information In some instances when the engine starts, and/or on a short trip after the engine is stopped, the engine water pump may continue operating for a short time. This is a standard operation of the vehicle to ensure optimum performance and shouldn’t be a concern.

M2.qxd 7/28/08 3:50 PM Page 10

OVERVIEW

Instrument panel

Headlight, turn signal and front fog light1 controls Wiper and washer controls “POWER” button Clock “AUDIO” switch (multi-information display control) “CLIMATE” switch (multi-information display control) Multi-information display “DISPLAY” switch (multi-information display control) “INFO” switch (multi-information display control) Mph or km/h button Trip meter reset Emergency flasher button

10

09-Prius-revised.qxd 7/30/08 5:31 AM Page 3

Without navigation system

With navigation system1,2

Audio system 12V DC Power outlet

Park button

Electronic shift lever Ignition key (key fob) slot Cruise control1
Tire Pressure Monitoring (warning) System Smart Key system cancel1
Steering wheel climate control Instrument panel light control Steering wheel audio control

1 If equipped 2 For details, refer to the Navigation System Owner’s Manual.

11

M2.qxd 7/28/08 3:50 PM Page 12

OVERVIEW

Instrument cluster

Service indicators and reminder Speedometer Fuel gauge Odometer and two trip meters

Indicator symbols

Brake system warning1
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph) Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph) Charging system warning1

Malfunction/Check Engine indicator1

Low engine oil pressure warning1

Low fuel level indicator1

Master warning1

High coolant temperature warning1

Open door warning1

Airbag SRS warning1

Low Tire Pressure Warning1

Vehicle Stability Control warning1

Engine oil replacement reminder1

Traction battery warning1

1 For details, refer to Section 5-2, 2009 Owner’s Manual. 2 If this light flashes, see “Cruise control” Section 2-4, 2009 Owner’s Manual.

12

M2.qxd 7/28/08 3:50 PM Page 13

Electric power steering system warning1

Smart Key system warning1

Turn signal indicator

Headlight high beam indicator

Headlight indicator

Slip indicator

Automatic headlight leveling system warning1

Cruise control indicator2

Hybrid System warning1

Running mode position indicator3

Driving ready light

Automatic Air Conditioner indicator

Recirculate mode indicator

Windshield airflow indicator

Rear window and outside rearview mirror defogger indicator

Hybrid vehicle immobilizer/Theft deterrent system indicator

Front passenger occupant classification indicator

Anti-lock Brake System warning1

Yellow: Brake System warning1

3 For details, refer to “Transmission” Section 2-1, 2009 Owner’s Manual.

13

M2.qxd 7/28/08 3:50 PM Page 14

OVERVIEW

Fuel tank door opener and cap

Driver seat

Pull up

Turn

Store

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “

” indicator may illuminate.

NOTE: MAINTAIN GASOLINE IN THE TANK AT ALL TIMES. SERIOUS

DAMAGE TO THE HYBRID SYSTEM CAN OCCUR IF THE VEHICLE RUNS OUT OF GASOLINE.

Rear hatch

Pull

To open the rear hatch, grasp the handle and pull up.

Light control-Instrument panel

Brightness control

14

M2.qxd 7/28/08 3:50 PM Page 15

Hood release

Pull

Pull up latch and raise hood

Engine maintenance

Windshield washer fluid tank Engine oil filler cap Engine coolant reservoir Engine oil level dipstick

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Owner’s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”

15

M2.qxd 7/28/08 3:50 PM Page 16

FEATURES/OPERATIONS

Lights & turn signals Headlights

AUTO* Head lights Parking light

Low beam

High beam

High beam flasher

* If equipped

Automatic light cutoff system Automatically turns off lights when the driver’s door is opened with the Hybrid System “OFF.” Front fog lights (if equipped)

Turn

Front fog lights come on only when the headlights are on low beam. Turn signals

Right turn

Lane change

Lane change

Left turn

16

M2.qxd 7/28/08 3:50 PM Page 17

Windshield wipers & washers Front

Adjust interval*

Single wipe

Interval wipe

Slow

Fast

Pull to wash and wipe

* Intermittent windshield wiper interval adjustment

Rotate to increase/decrease wipe frequency.

Rear

Wash and wipe

Wipe

Interval wipe

Wash and wipe

Garage door opener (HomeLink®) (if equipped)

Indicator

Buttons

Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc. Refer to the Owner’s Manual for more details. For programming assistance, contact the Toyota Customer Experience Center at 1-800-331-4331, or visit http://www.homelink.com. * HomeLink® is a registered trademark of Johnson Controls, Inc.

17

M2.qxd 7/28/08 3:50 PM Page 18

FEATURES/OPERATIONS

Seat adjustments-Front

Position

Seatback angle

Seat adjustments-Rear

(1) Remove the seat belt

(2) Push down

(3) Fold down

Seats-Head restraints

Lock release button

18

M2.qxd 7/28/08 3:50 PM Page 19

Tilt steering wheel

Lock release lever

Angle

Hold wheel, push lever down, set angle and return lever. Note: Do not attempt to adjust while the vehicle is in motion.

Windows Driver side

Down

Up

Window lock switch

Down

Up

Window operation Automatic operation (driver side only) Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction. Window lock switch Deactivates all passenger windows. Driver’s window remains operable. NOTE: If 12V battery is disconnected, the driver’s window will need to be reinitialized. Refer to the Owner’s Manual for more details.

19

M2.qxd 7/28/08 3:50 PM Page 20

FEATURES/OPERATIONS

Air Conditioning/Heating Type 1 functions

Type 2 functions

With navigation system*

Passenger compartment temperature Outside temperature Temperature selector Airflow vent Fan speed Automatic climate control ON Fresh or recirculated cabin air Rear window and outside rearview mirror defogger Windshield airflow Air Conditioning ON/OFF Climate control OFF Display the operation screen

* For details, refer to the “Navigation System Owner’s Manual.”

20

M2.qxd 7/28/08 3:50 PM Page 21

Steering wheel switches

Auto A/C ON/OFF Temperature selector Air intake selector Windshield vent Rear window and outside rearview mirror defogger

Cruise control (if equipped) Turning system ON/OFF

System ON/OFF

Setting a speed

Cancel1

Resume2/Increase speed

1 The set speed may also be cancelled by depressing the brake pedal. 2 If vehicle speed falls below 25 mph, the set speed will not be resumed.

Set/Decrease speed

21

M2.qxd 7/28/08 3:50 PM Page 22

FEATURES/OPERATIONS

Audio Type 1

Audio

Push to turn ON/OFF

Eject CD

Seek station/CD track select

Station/CD track scan

Mode

Type 2 additional functions

With navigation system*

Load CD(s)

Push to turn ON/OFF

Audio file search

Seek station/CD track or audio file select

CD/AUX mode select

* For details, refer to the “Navigation System Owner’s Manual.” Audio operation screen

Audio operation screen

Push

RADIO To preset a station Tune in the desired station and touch a station selector icon (1-6) until you hear a beep. To scan for stations Push “SCAN.” Push again to hold selection.

22

M2.qxd 7/28/08 3:50 PM Page 23

CD PLAYER To scan tracks on a disc Touch “SCAN” icon on the display. Push again to hold selection.

CD changer (Type 2 only) -To load one disc Push “LOAD” and insert one disc. -To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one disc. Shutter will close and then re-open for next disc. To select a file (MP3/WMA only) Turn “TUNE•FILE.” Steering wheel switches

Volume control

“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio system OFF. “ ” switch >> In radio mode Push to select a preset station; push and hold to seek the next strong station. In CD mode Push to skip up or down to next/previous track.

AUX audio jack (if equipped)

Center console

By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode.

23

M2.qxd 7/28/08 3:50 PM Page 24

FEATURES/OPERATIONS

Luggage storage box

Unlock

Unlock

Telephone controls (Bluetooth®) (if equipped) Display

Microphone

Steering wheel telephone switches

Volume

Voice command button

End call

Start call

Bluetooth® technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the telephone and the system. Refer to “Hands-free system (for cellular phone),” Section 3-4 in the Owner’s Manual for more details.

24

M2.qxd 7/28/08 3:50 PM Page 25

Cup and bottle holders Cup holder-Front

Cup holder-Rear

Bottle holder Front door

Power outlets Instrument panel (12V)

Center console box (12V)

The Hybrid System must be in “ACC” or “IG-ON.”

Parking brake

Clock

Set: Depress Release: Depress again

H-Hour set M-Minute set

25

M2.qxd 7/28/08 3:50 PM Page 26

SAFETY AND EMERGENCY FEATURES Door locks

Lock

Unlock

Doors-Child safety locks Rear door

Moving the lever to “LOCK” will allow the door to be opened only from the outside. Seat belts

Take up slack

Too high

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely. To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.

Seat belts-Shoulder belt anchor

Push up, or squeeze lock release to lower

26

M2.qxd 7/28/08 3:50 PM Page 27

Emergency flashers

Rear air vent

Push

Note: The air vent on the right side of the rear seatback is designed to assist in cooling the Hybrid vehicle battery. DO NOT BLOCK OR COVER THIS VENT, as it may cause overheating, resulting in reduced vehicle performance.

Tire Pressure Monitoring (warning) System

System reset initialization 1. Push and hold “

until the indicator blinks three times.

SET” button

2. Wait a few minutes to allow

initialization to complete.

After adjusting tire pressures, or after tires have been rotated or replaced, turn the ignition switch to “ON” and press and hold the “ few minutes to allow initialization to complete.

SET” button until indicator blinks three times. Let the vehicle sit for a

Refer to the load label on the door jamb or the Owner’s Manual for tire inflation specifications.

If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer. Note: The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the system has not been initialized recently, setting the tire pressures to factory specifications should turn off the light.

27

M2.qxd 7/28/08 3:50 PM Page 28

SAFETY AND EMERGENCY FEATURES

Jump starting Jump start terminal

Exclusive jump start terminal cover

The jump start terminal is in the fuse box. To access the terminal, open the fuse block cover and the jump start terminal cover. Connecting jumper cables

(4) Recommended connecting point

(1)

(4)

(2)

(3)

(1) Connect positive (red) jumper cable to the jump start terminal. (2) Connect positive (red) jumper cable to the positive (+) terminal on the

booster battery.

(3) Connect negative (black) jumper cable to the negative (-) terminal on

the booster battery.

(4) Connect negative (black) jumper cable to the recommended connecting point of the vehicle with the discharged battery.

(5) Depress brake pedal, and press “POWER” button to start the vehicle.

Refer to the “Owner’s Manual” for more details.

28

412737M1.qxd 7/28/08 4:12 PM Page 4

Spare tire & tools Tool location

Wheel nut wrench

Jack handle

Jack

Spare tire

Removing the spare tire

(1)

(2)

(3)

(1) Remove the luggage storage box. (2) Loosen the bolt and remove it. (3) Remove the jack box.

Refer to the “Owner’s Manual” for tire changing and jack positioning procedures.
