2005 Toyota Prius Owners Manual

SECTION 1– 1

FEATURES ON NEW TOYOTA VEHICLE Overview of instruments and controls Instrument panel overvieww Instrument cluster and multi−information display overview Indicator symbols on the instrument panel and multi−information display

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument panel overview

11p003d

1. Side vents

. . . . . . . . . . . . . . . . . . . . . . .

187

2. Side defroster outlets

3. Instrument cluster

. . . . . . . . . . . . . . . . . .

4. Center vents

. . . . . . . . . . . . . . . . . . . . .

187

5. Glove boxes

. . . . . . . . . . . . . . . . . . . . .

193

6. Power door lock switches 7. Power window switches

. . . . . . . . . . . . . . . . . . . .

39
42

8. Auxiliary boxes

. . . . . . . . . . . . . . . . . . .

197

9. Cup holders

. . . . . . . . . . . . . . . . . . . . .

198

10. Tilt steering lock release lever

. . . . .

96

11. Hood lock release lever

. . . . . . . . . . .

44

12. Parking brake pedal

. . . . . . . . . . . . . .

142

13. Power rear view mirror

control switch

. . . . . . . . . . . . . . . . . . . . .

97

14. Window lock switch

. . . . . . . . . . . . . . .

43

1. Headlight and turn signal

switches

. . . . . . . . . . . . . . . . . . . . . . . . .

102

11p001h

2. Wiper and washer switches

. . . . . . .

109

3. “POWER” switch

. . . . . . . . . . . . . . . . .

131

4. Clock

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

192

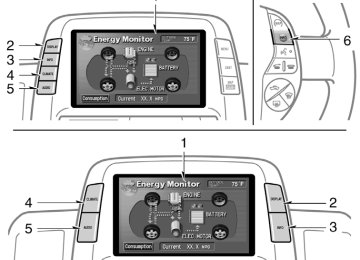

5. Multi−information display or navigation system including multi−information display (For the navigation system, see the separate “Navigation System Owner’s Manual”.)

. . . . . . . .

146

6. Emergency flasher switch

. . . . . . . . .

106

7. Trip meter reset button

. . . . . . . . . . .

115

8. Km/h or MPH button

. . . . . . . . . . . . .

116

9. Audio system

. . . . . . . . . . . . . . . . . . . .

156

10. Power outlet

. . . . . . . . . . . . . . . . . . . . .

192

11. “P” position switch

. . . . . . . . . . . . . . .

136

12. Electronic shift lever

(R, N, D, B)

. . . . . . . . . . . . . . . . . . . . .

136

13. Key slot

. . . . . . . . . . . . . . . . . . . . . . . . .

130

14. Cruise control switch

. . . . . . . . . . . . .

142

15. Smart entry and start system

cancel switch

. . . . . . . . . . . . . . . . . . . . .

33

16. Climate remote control

switches

. . . . . . . . . . . . . . . . . . . . . . . . .

186

17. Instrument panel light control

dial

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18. Audio remote control switches

107
173

Instrument cluster and multi−information display overview

11p002i

1. Service reminder indicators

and indicator lights

. . . . . . . . . .

117, 124

2. Fuel gauge

. . . . . . . . . . . . . . . . . . . . . .

114

3. Speedometer

4. Odometer and trip meter

. . . . . . . . .

115

Indicator symbols on the instrument cluster and Multi−information display

and

(U.S.A)

(Canada)

Brake system warning lights∗1

Driver’s seat belt reminder light∗1

or

Anti−lock brake system warning light∗1

SRS warning light∗1

Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)

Front passenger’s seat belt reminder light∗1

Vehicle stability control system warning light∗1

Low fuel level indicator light∗1

Discharge warning light∗2

or

Malfunction indicator lamp∗1

Master warning light∗1

Open door warning light∗1

High coolant temperature warning light∗2

Low engine oil pressure warning light∗2

Hybrid vehicle battery warning light∗2

Electric power steering system warning light∗2

Automatic head warning light∗2

light

leveling system

Automatic air conditioner indicator light

Hybrid system warning light∗2

Cruise control indicator light∗3

Shift position indicator light∗4

Recirculate mode indicator light

Windshield air flow indicator light

Rear window and outside rear view mirror defog- gers indicator light

Smart entry and start system warning light∗5

Low temperature indicator light

Turn signal indicator lights

Hybrid vehicle immobilizer / Theft deterrent sys- tem indicator light

Headlight high beam indicator light

Slip indicator light

Headlight indicator light

Tail light indicator light

Driving ready light

∗1: For details, see “Service reminder indicators and warning

buzzers— —Instrument cluster” on page 117.

∗2: For details, see “Service reminder indicators and warning

buzzers— —Multi−information display” on page 124. If this light flashes, see “Cruise control” on page 142.

∗3: ∗4: For details, see “Hybrid transaxle” on page 136. ∗5: For details, see “Smart entry and start system” on page 24.

8

SECTION 1– 2

FEATURES ON NEW TOYOTA VEHICLE Toyota hybrid system Toyota hybrid systemm Toyota hybrid system operating condition Starting your vehicle For efficient use of your vehicle Precautions for use

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10
10
13
13
14

Toyota hybrid system operating condition Basic operations are described below. Be- sides, Toyota hybrid system performs vari- ous controls depending on the operating condition: The “Energy Monitor” screen tells you which power is used currently.

If you do not use the vehicle for a long time (2 weeks or more), the hy- brid vehicle battery and auxiliary battery will discharge and their condition is li- able to decline. Therefore, in order to make up for discharging, charge them once in every 2 weeks for about 30
minutes by starting the hybrid system with all electrical components turned off.

Toyota hybrid system Toyota hybrid system combines a gaso- line engine and electric motor power to improve the fuel economy and minimize the emissions as well as to provide better power performance than the ordi- nary gasoline−powered vehicles. Depending on the driving condition, the vehicle runs on the best combination of; D Gasoline engine power D Electric motor power generated by

the gasoline engine

D Electric motor power of the hybrid

vehicle battery

Furthermore, the energy is efficiently used in the following ways: D When stopping the vehicle, the gaso-

line engine is automatically stopped.

D When applying the brakes or decelerat- ing, electricity the turning force of the wheels and stored in the hybrid vehicle battery. (This is called regenerative brake.)

is converted

from

Since the battery is charged by the gasoline engine as needed, it does not require an outside source like an electric vehicle.

charging

from

10

12p016c

12p017c

12p018c

Electric power in use

Gasoline power in use

Electric and gasoline power in use

When starting or backing up, etc., the vehicle runs on electric power from hybrid vehicle battery, because the gasoline en- gine efficiency is low.

During normal driving, the vehicle runs mainly on gasoline power. However, the electric motor, using electric power gener- ated by the gasoline engine, can supple- ment the gasoline engine power. The vehicle controls the optimum ratio of the gasoline and electric power to help use energy more efficiently.

When driving at full throttle, additional electric power is applied from the hybrid vehicle battery. Vehicle performance impro- ves.

11

12p019c

12p020c

12p030b

Storing electric power

Not in use

When decreasing speed or applying the brakes, the turning force of the wheels the electric motor operate as a makes generator and additional electricity is stored in the hybrid vehicle battery (regen- erative brake).

When stopping, the gasoline engine auto- matically shuts off.

Charging hybrid vehicle battery When the hybrid vehicle battery power is insufficient, the gasoline engine charges the hybrid vehicle battery. The system al- ways supplies electricity at a constant lev- el.

12

For efficient use of your vehicle Drive your vehicle with a smooth accel- eration and deceleration. D While driving, energy

recovered through the regenerative brake as the vehicle decelerates. However, for more efficient use, do not accelerate or de- celerate your vehicle more than neces- sary.

is

D Avoid abrupt acceleration and decelera-

tion.

D The remaining capacity of the hybrid vehicle battery can be confirmed on the energy monitor screen of the multi− information display. See “Information” on page 150 for details. Gradual or non−abrupt acceleration or deceleration will more effectively use the benefits of an electric motor without having to use gasoline engine power.

Starting your vehicle Your vehicle is equipped with push but- ton start system. The hybrid system will start automatically by pressing the “POWER” switch briefly with the brake pedal depressed. With smart function 1. Carry the key with you. 2. Press the “POWER” switch briefly with

the brake pedal depressed.

Without smart function 1. Insert the key. 2. Press the “POWER” switch briefly with

the brake pedal depressed.

The “READY” light flashes and stays on. Two beeps sound after a few seconds, and the hybrid system will start. (If the ambient temperature is low such as during winter, it may take time until the “READY” light comes on.) You cannot start your vehicle when the brake pedal is not de- pressed. (For details, see “How to start the hybrid system—” on page 234.) The engine may not start even with the “READY” light on.

When parking, be sure to put the hy- brid transaxle in “P”. While driving, use the hybrid transaxle in “D”. D In “N”,

the gasoline engine operates but electricity cannot be generated. The battery will be discharged requiring un- necessary engine power to recharge.

D The hybrid system automatically

re- charges the hybrid vehicle battery when the remaining battery power is reduced. However, the charging is not available if the hybrid transaxle is “N”.

13

INFORMATION: The gasoline engine starts and stops automatically. (It stops during a low load driving, deceleration or when the vehicle is stopped.) If the “READY” light remains on, you can start your vehicle using the electric motor even with the gasoline engine stopped. The gasoline engine may not stop auto- matically in the following conditions:

z During gasoline engine warm−up z During hybrid vehicle battery charg-

ing

z During

low or high hybrid vehicle

battery temperature

14

Precautions for use The vehicle runs in combination with the gasoline and electric power. Pay special attention to the following items. Be careful of high voltage and high temperature. Your vehicle is equipped with the orange colored cables connected the hybrid vehicle battery (about 200 V) and to other components that are all high voltage.

to

CAUTION

Do not touch or come in contact with orange cables or battery terminals. Electric shock may cause serious in- jury or death. Read all caution labels.

An electric motor, coolant radiator and some other parts reach high temperature while driving. Caution labels are applied to these parts. Carefully observe the instruc- tions on these caution labels.

CAUTION

Never remove or disassemble any high voltage part, high voltage cables (orange color) and their connectors. It may cause death or serious injury.

Hybrid vehicle battery

Service plug High voltage cables

12p007d

Air conditioning compressor

High volt- age cables

Inverter unit

Do not touch the service plug. The service plug is installed in the left side trim of the luggage compartment. It is provided to disable high voltage current from the hybrid vehicle battery when the vehicle repairs at your Toyota dealer.

in need of

is

CAUTION

D The shaded parts in the illustration

are subjected to high voltage.

D Inappropriate handling may cause an electric shock resulting in seri- ous injury or death. Never touch any item in shaded area.

as

an

These high voltage parts or cables consisting of electromagnetic shielding structure produce relatively the same amount of electromagnetic waves conventional gasoline− fueled vehicles or home electric ap- pliances. As unwanted noise may occur in the reception of mobile radios, contact your Toyota dealer for installation or removal.

Always keep your hybrid vehicle’s driv- ing characteristics in mind.

CAUTION

The driver should pay full attention around the vehicle especially when it is driven only by the electric motor (with the gasoline engine stopped). People in the immediate area might misjudge the hybrid vehicle move- ment based on the absence of the regular engine noise.

D As the vehicle runs with both the gaso- line engine and electric motor, you may hear a motor sound coming from the engine compartment.

D When the hybrid system is started or stopped, you may hear a sound coming from the hybrid vehicle battery in the luggage compartment. However, this does not indicate any trouble.

D If the “READY” light is on, you can start even though the gasoline engine may be off.

D When you shift the shift lever to “B” and release it to its original position and your foot from the accelerator ped- al, engine braking will be applied. How- ever, during high speed driving you may feel that deceleration by engine braking is less than that of ordinary vehicle.

Be sure to put the hybrid transaxle in “P” when parking. In “N”, the hybrid vehicle battery assembly is not charged, even if the gasoline en- gine is operating. You cannot run your vehicle if the hybrid transaxle is left in “N” for a long time because the hybrid vehicle battery assembly will be discharged.

When you leave your vehicle, apply the parking brake to put the hybrid trans- axle in “P” and be sure to carry the key with you and lock all the doors. If you leave the hybrid system in “ACC” or “IG−ON”, the hybrid system may not start because the auxiliary battery will be discharged.

CAUTION

D When you

leave your vehicle, be

sure to shut off the hybrid system.

D Be sure to put the hybrid transaxle in “P” because the vehicle can start with the “READY” light on and the engine stopped (no engine sound and vibration). When the “READY” light is on, if you leave your ve- hicle in shift position other than “P” and “N”, the vehicle will creep and start abruptly with the accelera- tor pedal being depressed by mis- take. This may cause death or seri- ous injury.

15

D Do not wet or put foreign objects over the air vent. Otherwise, the hybrid ve- hicle battery may be adversely affected and be damaged.

D You may hear a cooling fan noise from

the air vent.

For vehicle repairs or maintenance, be sure to consult your Toyota dealer. If your vehicle is beyond repair because of accident or something, be sure to consult your Toyota dealer. As sealed Nickel−Metal hydride batteries are used, be sure to consult your Toyota dealer when disposing of your vehicle.

12p008d

12P009c

When the multi−information display shows this message, the master warn- ing light ( ) comes on in the instru- ment cluster. Read the message and follow the instruction. D When you leave your vehicle, or stop the hybrid

for a while, put

or park transaxle in “P”.

D Charging is necessary. In “N”, charging will not be applied. The electric genera- tor operates in “P”, “D” or “B”. If you continue driving, put the hybrid trans- axle the accelerator pedal. Do not leave the hy- brid transaxle in “N”. When driving in traffic jam, operate in “D”.

in “D” or “B” and depress

16

Do not allow anyone to lean against the side of the rear right seatback, nor put any luggage or other obstructions on it. D An air vent is provided on the side of the rear right seatback to cool the hy- brid vehicle battery. If this vent is cov- ered, the hybrid vehicle battery will overheat resulting in a reduction of the output performance of the hybrid sys- tem.

D The seat belt not properly set in the guide on the top of the rear seat may block the air vent. Be sure to pass the seat belt through the guide properly.

CAUTION

If you are involved in an accident, follow these precautions. D Move the vehicle to a safe place and perform the followings to re- duce the risk of high voltage elec- tricity leakage. D Depress the brake pedal and apply

the parking brake.

D Press the “P” position switch and

stop the hybrid system.

D If the key is inserted into key slot,

remove it.

D If your vehicle has experienced ma- jor damage, you may get an electric shock. To prevent this, never touch the high voltage parts (hybrid ve- hicle battery assembly, etc.) or cables (orange color) connecting these parts. If some exposed elec- tric wires are protruding inside or outside of the vehicle, an electric shock may also occur. Never touch them.

D If the fluid leaks or gets in some part of the vehicle, never touch it because it may be electrolyte (strong alkali) from the hybrid ve- hicle battery. If it gets on your skin or eyes, wash off immediately with a large amount of water, if possible, with boric acid solution, and get immediate medical attention in or- der to help avoid serious injury.

D If a vehicle fire occurs, extinguish it using a fire extinguisher for the exclusive use on electric fires. As a small amount of water may be dangerous, use a large amount of water, for example from a fire hy- drant, or wait fire−fighting team arrival.

for a

If

the

raised.

D If your vehicle needs to be towed, do it with the front wheels or all four wheels front wheels are on the ground when towing, the electric motor may con- tinue to generate electricity which could leak electricity. A fire could occur depending on the degree of damage. See “If your vehicle needs to be towed” on page 258.

17

18

SECTION 2– 1

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Hybrid vehicle immobilizer system Smart entry and start system Wireless remote control Side doors Back door Power windows Hood Theft deterrent system Fuel tank cap

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20
21
24
34
39
41
42
44
45
47

19

Keys

21p001a

21P112

NOTICE

When using a key containing a trans- ponder chip, observe following precautions: z Do not affix any material that cuts off electromagnetic waves (such as a metal seal) on the key.

the

z Do not knock the key hard against

other objects.

z Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or hood under direct sunlight. z Do not put the key

in water or

wash it in an ultrasonic washer.

z Do not keep the key together with the products emitting electromag- netic waves such as a cellular phone.

the mechanical key

USING A MECHANICAL KEY When you use in- cluded on the side of the key, slide the lock knob in the arrow direction and take out the key as shown. To put the key back, slide the lock knob in the arrow direction and replace the key. Be sure to put the key back when not in use. Since the doors can be locked without a key, you should always carry a spare master key in case you accidentally lock your keys inside the vehicle.

1. Master keys with silver ornament (Ve- hicles equipped with smart entry and start system)—These keys work in ev- ery lock. Your Toyota dealer will need one of them to make a new key with a built−in transponder chip. Before you use these keys, be sure to read “Smart entry and start system” on page 24.

2. Master keys without silver ornament (Vehicles not equipped with smart entry and start system)—These keys work in every lock. Your Toyota dealer will need one of them to make a new key with a built−in transponder chip.

3. Mechanical keys (attached to the mas- ter key)—These key work for the driv- er’s door only.

20

Hybrid vehicle immobilizer system

21p005a

21p113

21p007b

KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.

DEACTIVATION USING THE SMART FUNCTION The hybrid vehicle immobilizer system is a shift prevention system. When you enter the vehicle carrying a smart key and press the “POWER” switch, the electronic code in the key is automati- cally checked to determine whether it corresponds to the registered ID code for the vehicle. If the ID code is veri- fied, you can start the hybrid system.

The system is automatically set when the hybrid system is off and driver’s door is opened. The indicator light will start flash- ing to show the system is set. If any of the following indicator conditions occurs, contact your Toyota dealer. D The

light stays on except when the theft deterrent system is set- ting or activating. (See “Theft deterrent system” on page 45.)

indicator

D The indicator light does not start flash- ing when the hybrid system is off and driver’s door is opened.

D The indicator light flashes inconsistent-

ly.

21

Carrying a smart key and pressing the “POWER” switch automatically cancels the system, which enables the hybrid system to start. The indicator light will go off. For your Toyota dealer to make you a new key with built−in transponder chip, your dealer will need your key number and master key. However, there is a limit to the number of additional keys your Toyota dealer can make for you.

NOTICE

Do not modify, remove or disas- semble the hybrid vehicle immobilizer system. If any unauthorized changes or modifications are made, proper op- eration of the system cannot be guar- anteed.

22

21p006a

21p007b

DEACTIVATION USING THE KEY The hybrid vehicle immobilizer system is a theft prevention system. When you insert the key in the key slot, the trans- ponder chip in the key transmits an electronic code to the vehicle. The hy- brid system will start only when the electronic code in the chip corresponds to the registered ID code for the ve- hicle.

The system is automatically set when the key is removed from the key slot. The indicator light will start flashing to show the system is set. If any of the following indicator conditions occurs, contact your Toyota dealer. D The

light stays on except when the theft deterrent system is set- ting or activating. (See “Theft deterrent system” on page 45.)

indicator

D The indicator light does not start flash- ing when the key is removed from the key slot.

D The indicator light flashes inconsistent-

ly.

Inserting the registered key in the key slot automatically cancels the system, which enables the hybrid system to start. The indicator light will go off. For your Toyota dealer to make you a new key with built−in transponder chip, your dealer will need your key number and master key. However, there is a limit to the number of additional keys your Toyota dealer can make for you.

NOTICE

Do not modify, remove or disas- semble the hybrid vehicle immobilizer system. If any unauthorized changes or modifications are made, proper op- eration of the system cannot be guar- anteed.

For vehicles sold in U.S.A.

For vehicles sold in Canada

This device complies with RSS−210 of industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.

interference,

including

FCC ID: MOZRI−24KTY MADE IN JAPAN

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.

CAUTION

Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.

23

By carrying a smart key, you can lock and unlock the doors and start the hy- brid system. For locking the doors, see “Locking the doors with smart function” on page 29. For unlocking the doors, see “Unlocking the door(s) with smart function” on page 30. For starting the hybrid system, see “Push button start system” on page 130. If the smart key battery is discharged, the smart function cannot be used. Use the mechanical key attached to the smart key by inserting it in the driver’s door keyhole to lock or unlock door. To start the hybrid system, insert the smart key into the key slot. In order to activate the smart func- tion, the battery should be replaced. For details, see “—Replacing battery” on page 37. You can deactivate the smart function by using the cancel switch. In this case, all the smart function will be deactivated. For details, see “Deactivating the smart func- tion” on page 33.

Smart entry and start system

21p120

1. Locking and unlocking 2. Starting the hybrid system

24

INFORMATION

D Be sure to take the smart key with

you.

D In the following cases, the smart function or wireless remote control feature may not operate properly. (If this happens, use a mechanical key to lock or unlock the driver’s door and a smart key to start the hybrid system.) z When

issuing strong electromagnetic waves such as TV towers, electric power sta- tions, broadcasting stations are nearby.

facilities

z When you are carrying a smart key together with a mobile com- munications system such as a two−way radio or cellular phone.

z When the smart key is in contact with or covered by a metallic ob- ject.

z When another person is operating a wireless remote control func- tion on another vehicle near your vehicle.

D If you do not drive your vehicle, store the smart key, keeping it at least 5 m (16 ft.) away from the ve- hicle.

(a) The hybrid system was not turned off and the transaxle was in a posi- tion other than “P”.

When the driver’s door is opened with the hybrid system in “ACC” or “IG−ON” and with the transaxle in a position other than “P”. Inside alarm: Beeps continuously Multi−information display: Warning mes- sage Alarms will be turned off by any of the following operations: D Closing the driver’s door D Pressing the “P” position switch D Turning on the hybrid system D Turning off the hybrid system

25

ALARMS AND WARNING LIGHT Your vehicle is equipped with alarms inside and outside, as well as warning light in the instrument cluster, that re- mind you if there is a problem involv- ing the smart entry and start system. This warning light will come on when the “IG−ON” mode is enabled and will go off after a few seconds. If an alarm sounds or the warning light comes on, be sure to check your ve- hicle and smart key.

(d) The smart key was brought outside

the vehicle.

the driver’s door

is opened or When closed with the hybrid system not to be turned off (and with the transaxle in “P”), it is determined that the smart key is not in the vehicle. Inside alarm: One beep Outside alarm: 3 beeps Warning light: On (e) Locking with smart function was at- tempted with the hybrid system not to be turned off.

(f) The smart key was brought outside

the vehicle.

When a door other than the driver’s door is opened or closed with the hybrid sys- tem not to be turned off, it is determined that the smart key is not in the vehicle. Inside alarm: One beep Outside alarm: 3 beeps Warning light: On

When you attempt to lock all the doors using smart locking function with the hy- brid system not to be turned off and with the transaxle in a position other than “P”. Outside alarm: One beep (sounds for 2
seconds.) Warning light: On At locked.

the doors cannot be

time,

this

(b) The smart key was brought outside the vehicle with the transaxle in a position other than “P”.

the

transaxle

the driver’s door

When is opened or closed with the hybrid system not to be turned off and with in a position other than “P”, it is determined that the smart key is not in the vehicle. Inside alarm: Beeps continuously Outside alarm: Beeps continuously Warning light: On Alarms will be turned off by any of the following operations: D Pressing the “P” position switch D Bringing the smart key inside the ve-

hicle

D Turning off the hybrid system (c) The hybrid system was not turned

off with the transaxle in “P”.

in

“ACC” and with

When the driver’s door is opened with the hybrid system the transaxle in “P”. Inside alarm: 3 Beeps In the “IG−ON” mode, an alarm will not sound.

26

(g) Preventing

the key

from being

locked inside the vehicle

When you close the door with the hybrid system off but with the smart key left in the vehicle, and attempt to lock all the doors using smart locking function, it is determined that the smart key is in the vehicle. Outside alarm: One beep (sounds for 2
seconds)

INFORMATION

z This function may not operate when the smart key is left on the instru- ment panel, luggage cover, floor or in the glove box.

z The

function may operate

the smart key is brought outside but it is very close to the door window or door handle.

if

is

(h) Low smart key battery When to the hybrid system “ACC” or “OFF” about 20 minutes after the hybrid system is turned on or to “IG− ON”, it is determined that the smart key battery voltage is low. Inside alarm: One beep

turned

(i) Outside of effective range When the “POWER” switch is pressed, it is determined that the smart key is not in the vehicle. Inside alarm: One beep Warning light: On (for 5 seconds) (j) Open door warning When you attempt to lock all the doors using smart locking function with the hy- brid system turned off but with any door open. Outside alarm: One beep (sounds for 10
seconds) Alarms will be turned off by either of the following operations: D Closing all the doors D Pressing smart key

the unlock button on

the

27

Warning and its meaning

Inside warning alarm

Outside warning alarm

Warning light

Causes

One beep

(sounds continuously)

—

One beep

(sounds continuously)

One beep

(sounds continuously)

Beeps

(sound intermittently)

—

One beep

3 beeps

—

One beep

(sounds for 2 seconds)

One beep

3 beeps

One beep

(sounds for 2 seconds)

—

—

—

On

—

On

On

On

—

—

The driver’s door was opened when the hybrid system was in “ACC” or “IG−ON” and when the transaxle was in a position other than “P”.

The driver brought out the smart key from the vehicle with the hybrid system not to be turned off and with the transaxle in a position other than “P”.

The driver’s door was opened when the hybrid system was in “ACC” and when the transaxle was in “P”.

The driver brought out the smart key from the vehicle with the hybrid system not to be turned off and with the transaxle in “P”.

The lock switch was pressed with the hybrid system not to be turned off and with the transaxle in “P”.

The passenger brought out the smart key from the vehicle with the hybrid system not to be turned off.

The lock switch was pressed when the hybrid system was off but with the smart key left in the vehicle.

The key battery voltage become about 2 V. (3 V for normal operation)

On

(for 5 seconds)

The “POWER” switch was pressed when the smart key was not in the effective range of the system.

One beep

(sounds for 10 seconds)

—

The lock switch was pressed when the hybrid system was off but any door was opened.

—

One beep

One beep

—

28

21p128

Side door

21p139

Back door

LOCKING THE DOORS WITH SMART FUNCTION The smart entry and start system will lock the doors without being inserted into the door keyhole. When you exit the vehicle carrying the smart key and push the lock button on the outside front door handle or back door with all the doors closed, all the doors will be the electronic code in the key corresponds to the regis- tered ID code for the vehicle. At this time, you will hear one beep and the turn signal lights flash once. However, when you push the lock button on the outside front door handle or back door with any door not closed securely, a beep sounds for 10 seconds.

locked provided

that

NOTICE

If the key is in the vehicle, do not perform door locking operation, or you might lock your keys inside the vehicle.

INFORMATION

D The rear doors are not equipped

with smart function.

D When locking the doors, be sure to push the lock button on the outside front door handle or back door slowly and surely. If you push the button quickly, the doors may not lock.

D When opening or closing a door, do not touch the lock button on the outside door handle or back door. If you push the button, an alarm sounds 10 seconds.

D When a wireless remote control is used to lock the doors and a smart key is left in the effective range of the smart function in the vehicle, the doors cannot be unlocked using the smart function. In this case, use the wireless remote function to un- lock the doors.

D You cannot activate smart unlocking functions within 3 seconds after the smart locking function is activated.

29

INFORMATION

D The rear doors are not equipped

with smart function.

D When unlocking the door(s), be sure to take hold of the back side of the outside door handle firmly as shown illustration. Taking hold of the handle with a gloved hand might cause a delay in unlock- ing.

the

in

the

lights

turn signal

When you push and hold down the back door opener switch, carrying the smart key, the ID code is checked in the same way as in the front door case. And all the doors will unlock. At this time, two beeps sound and flash twice. When you get close to your vehicle (about 1 m or 3 ft. from either front door), carry- ing the smart key or unlock the back door using smart key function, the interior light comes on for 15 seconds if the interior light switch the “DOOR” position. However, the interior lights go out when you push the power door lock switch in the lock position or press the “POWER” switch once or twice from the off setting to select the “ACC” or “IG−ON” mode without depressing the brake pedal. For further information, see “Interior lights” on page 107. You have 30 seconds to open a door after operating the smart unlocking function. If a door then, all the doors will be automatically locked again.

is not opened by

in

is

21p136

THE

DOOR(S) WITH

UNLOCKING SMART FUNCTION The smart entry and start system can be used to unlock the door(s) without being inserted into the door keyhole. When you get close to your vehicle (about 1 m (3 ft.) from each outside front door handle), and are carrying the smart key, the electronic code emitted from the key is automatically checked to determine if it corresponds to the registered ID code for the vehicle. When you take hold of the side back of the outside door handle sur- face, two beeps sound and the turn signal lights flash twice.

it will unlock. At

time,

this

30

D When you take hold of the handle or push the back door opener to unlock the door(s), be sure to con- firm that the door(s) have been un- If the two beeps and the locked. turn signal lights flash twice, the doors are unlocked. At this time, you can pull the outside door han- dle or push the back door opener to open the door. If you quickly move closer to the vehicle or pull the out- side door handle or push the back door opener quickly, the doors might not unlock. If you cannot open the door by pulling the out- side door handle or pushing the back door at this time, push back the outside door handle to the origi- nal position or release your hand from the back door and then try again.

D If you bring

the smart key very close to the outside door handle or the back door opener, the doors might not lock.

D If another person who is not carry- ing a smart key takes hold of an outside door handle or push the back door opener when you are within the smart function, the door(s) may not unlock.

the effective range of

D If a large amount of water is ap- plied to the outside door handle or the back door during heavy rain or a car wash, and someone carrying a smart key is near the vehicle, the door(s) might be unlocked. However, if the outside front door handle is not pulled out or back door opener not pushed, the doors will lock au- tomatically after about 30 seconds.

D To ensure

the unlocking door(s), perform unlocking operation within 3 seconds after getting close to the vehicle (about 1 m or 3 ft. from the front doors or back door). it takes that, unlocking function may not be enabled.

longer

than

If

CHANGING THE DOORS TO BE UN- LOCKED lock button Each time you push the together with the panic button on the smart key for about 5 seconds with the hybrid system off, the setting for door unlocking will change as follows: 1. Driver’s door unlocking mode: If you perform smart unlocking operation on the driver’s door, it will unlock. Per- forming unlocking operation on the front passenger’s door or back door will unlock all the system switches this mode, one beep sounds inside the vehicle and two beeps sound three times.

the doors. When

to

2. All doors unlocking mode: Performing smart unlocking operation on either front door or back door will unlock all the doors. When the system switches to this mode, one beep sounds inside the vehicle and two beeps sound twice. 3. Single door unlocking mode: The driver’s door or back door on which you perform smart unlocking operation will unlock. However, performing un- locking operation on the front passen- the doors. ger’s door will unlock all When this mode, one beep sounds inside the ve- hicle and two beeps sound once.

the system switches

to

31

To reactivate the smart function, perform any of the following: (a) Press the lock button on the outside front door handle or back door while carrying the smart key.

(b) Perform a wireless remote control op-

eration.

(c) Insert and turn the mechanical key in

the keyhole of the driver’s door.

BATTERY POWER SAVING When doors are locked, the smart entry and start system transmits electromagnetic waves to the outside of the vehicle at regular intervals. For this reason, the ve- hicle battery will be discharged if the ve- hicle is left for a long time. If the key is left within the effective range of the smart function outside of the vehicle, the key and the vehicle transmit electromagnetic waves periodically. If these conditions con- tinue for a long time, the battery in the key and vehicle will be discharged. To prevent the batteries from being dis- charged, the smart function is automatical- ly deactivated in the following conditions: D If there is no response from the key

for more than 14 days

D If the key is left within the effective range of the smart function outside of the vehicle for more than 10 minutes

INFORMATION

z When changing the mode, be sure to push both lock and panic but- tons firmly, or panic alarm may be activated.

z This operation will not change the wireless remote control unlocking function.

z In the single or driver’s door un- locking mode, if you get into the vehicle from the driver’s door carry- ing the smart key, all the smart un- locking controls activated by the smart key will be stopped for secu- rity. If you get out of the vehicle from the driver’s door carrying the smart key and get out of the effec- tive range of the smart function, unlocking control by the smart key will be possible. However, unlocking control may not be carried out for 5 seconds after you get out from the vehicle. In this case, operate unlock control again after 5 sec- onds.

32

INFORMATION

D To maintain communication with the vehicle, smart keys use built−in bat- tery power. The battery service life is about 1 to 3 years on average. If battery power becomes insufficient, replace the battery with a new one.

is a

D The smart key continually receives electromagnetic waves, and if it re- ceives strong electromagnetic waves over a period of time, the battery can be drastically run down. There- fore, avoid storing smart keys near any electrical appliances. Here list of electrical ap- pliances which may have adverse effects on the smart key perfor- mance: TVs, personal computers, cellular phone or cordless phone recharger units, electric light stands and fluorescent desk lights Note that you should always keep such electrical appliances at least 1
m (3 ft.) away from the smart key.

21p138a

1. Smart function is on. 2. Smart function is off.

DEACTIVATING THE SMART FUNCTION The cancel switch for this function is located at the bottom of the instrument panel on the driver side. When you push the switch, the smart function will be deactivated. Pushing the switch again will reactivate the function. When the smart function is deactivated, use a mechanical key or wireless remote control function key to lock and unlock the doors. To start the hybrid system, insert a smart key into the key slot.

If you do not intend to drive your vehicle for a long time, push the cancel switch to deactivate the smart function.

INFORMATION

The smart function will be deactivated in the following cases: D The cancel switch is turned on. D The smart key is inserted into the

key slot.

D The battery of the smart key is dis-

charged.

33

For vehicles sold in U.S.A.

FCC ID: MOZB31EG MADE IN JAPAN

FCC ID: MOZB31UG MADE IN JAPAN

FCC ID: MOZRO−2TY−1
MADE IN JAPAN

FCC ID: PENASAT2
MADE IN JAPAN

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.

34

Wireless remote control—

CAUTION

Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.

For vehicles sold in Canada

21p147

This device complies with RSS−210 of industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.

interference,

including

1. Lock switch 2. Indicator light 3. Unlock switch 4. Panic switch

The wireless remote control system is designed to lock or unlock all the side doors and back door, or activate the theft deterrent system from a distance within approximately 1 m (3 ft.) of the vehicle. When you operate any switch, push it slowly and securely. At this time, the indi- cator light flashes once.

D The battery may have been consumed. Check the battery in the key. To re- place the battery, see “—Replacing bat- tery” on page 37.

If you lose your key, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an accident. (See “If you lose your keys” on page 261.)

The wireless remote control key is an electronic component. Observe the follow- ing instructions in order not to cause dam- age to the key. D Do not leave the key in places where the temperature becomes high such as on the dashboard.

D Do not disassemble it. D Avoid knocking

it hard against other

objects or dropping it.

D Avoid putting it in water. If your vehicle is equipped with smart entry and start system, you can use up to 5 master keys for the same vehicle. In case of the vehicle not equipped with smart entry and start system, up to 4
master keys are available. Contact your Toyota dealer for detailed information. If the wireless remote control key does not actuate the doors or alarm or operate from a normal distance, or indicator light on the key is dimmed or does not come on: D Check for closeness to a radio trans- mitter such as a radio station or an airport which can interfere with normal operation of the key.

—Locking and unlocking doors

21p013f

Locking operation

21p014f

Unlocking operation

35

To lock and unlock all the doors, push the switches slowly and securely. To lock: Push the lock switch. All the side doors and back door are locked simulta- neously. At this time, the turn signal lights will flash once. Check to see that the doors are securely locked. If any of the doors is not securely closed or if the key is in the key slot, locking cannot be performed by the lock switch. At this time, a beep will sound for 10
seconds on the vehicle with smart entry and smart system. However, if the key is in the key slot, a beep will not sound. To stop the beep, close all the side doors and back door securely or push the un- lock switch. The buzzer can be disabled. For details, contact your Toyota dealer. To unlock: Push the unlock switch once to unlock the driver’s door alone. Pushing the switch twice within 3 seconds unlocks all the doors simultaneously. Each time the unlock switch is pushed, the turn sig- nal lights will flash twice.

36

This double switch operation to unlock all the side doors and back door can be changed to a single switch operation. For details, contact your Toyota dealer. When the unlock switch is pressed the interior light comes on. The light remains on for about 15 seconds unless any of the doors is opened and then closed. (For further information, see “Interior lights” on page 107.) You have 30 seconds to open a door after using the wireless remote unlock feature. If a door is not opened by then, all the doors will be automatically locked again. The lock function can be changed. For details, con- tact your Toyota dealer. If is kept pressed in, the locking or unlocking opera- tion is not repeated. Release the switch and then push it again. The following adjustments can be made in this system. For details, contact your Toyota dealer: D Cancelling the wireless door locking or

lock or unlock switch

the automatic door

timing

the

for

unlocking function

D Cancelling the flash of the turn signal

lights

—Activating panic mode

21p015a

the horn

Pushing the panic switch for 1 second blows intermittently and flashes the headlights, tail lights and emergency flashers and turns on the interior light. The panic switch is used to deter vehicle theft when you witness anyone attempting to break into or damage your vehicle. The alarm will last for one minute. To stop the alarm midway, do the follows: D Push any switch on the key. D Put the hybrid system in the “IG−ON”

mode.

The panic mode does not work in “IG−ON” mode. The alarm function can be activated or deactivated. For details, contact your Toyota dealer. For vehicles sold in U.S.A.

FCC ID: MOZB21TG MADE IN JAPAN

FCC ID: MOZB21RG MADE IN JAPAN

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.

CAUTION

Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.

For vehicles sold in Canada

This device complies with RSS−210 of industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.

interference,

including

—Replacing battery For replacement, use a CR2032 lithium battery or equivalent and a special screw- driver.

CAUTION

Special care should be that small children do not swallow the re- moved battery or components.

taken

NOTICE

z When replacing the battery, be care-

ful not to lose the components.

z Replace only with

the same or equivalent type recommended by a Toyota dealer.

z Dispose of used batteries according

to the local laws.

Replace dures.

the battery by

following proce-

37

NOTICE

z Make sure

negative side of faced correctly.

the positive side and the battery are

21p016d

21p017c

1. Remove the mechanical key and cover with slide the lock knob in the arrow direction.

2. Remove the 4 screws to take out the

lid of the module.

NOTICE

Do not bend the terminals.

z Do not replace the battery with wet hands. Water may cause unexpected rust.

z Do not touch or move any compo- nents inside the transmitter, or it may interfere with proper operation. z Be careful not to bend the electrode when inserting the battery and that dust or oils do not adhere to the case.

4. Install the lid with the 4 screws.

NOTICE

3. Remove the discharged battery and put in a new battery with positive (+) side up.

Take care not to damage or bend the O−ring when installing.

5. Replace the mechanical key and cover

with slide the lock knob.

After replacing the battery, check that the key operates properly. If the key still does not operate properly, contact your Toyota dealer.

38

Side doors

21p008a

21p009a

21p010a

LOCKING AND UNLOCKING THE DRIV- ER’S DOOR WITH MECHANICAL KEY Insert the mechanical key into the key- hole and turn it. To lock: Turn the knob forward. To unlock: Turn the knob backward. The alarm sounds when you unlock the door using a key with the theft deterrent system set. For details, see “Theft deter- rent system” on page 45.

IN-

LOCKING AND UNLOCKING WITH SIDE LOCK KNOB Move the lock knob. To lock: Push the knob forward. To unlock: Pull the knob backward. The driver’s door can be opened by pull- ing the inside door handle even if the lock knob is depressed. Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the ve- hicle. The driver’s door cannot be locked if you leave the key in the key slot.

Driver’s side
