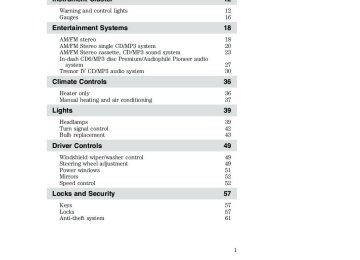

Table of Contents
12
12
16
18
18
20
23
27
30
36
36
37
39
39
42
43
49
49
49
51
52
52
57
57
57
61
Introduction
Instrument Cluster
Warning and control lights Gauges
Entertainment Systems
AM/FM stereo AM/FM Stereo single CD/MP3 system AM/FM Stereo cassette, CD/MP3 sound system In-dash CD6/MP3 disc Premium/Audiophile Pioneer audio
system
Tremor IV CD/MP3 audio system
Climate Controls
Heater only Manual heating and air conditioning
Lights
Headlamps Turn signal control Bulb replacement Driver Controls
Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control
Locks and Security
Keys Locks Anti-theft system
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
64
64
67
78
88
101
103
105
117
124
133
135
135
139
142
157
157
159
159
160
170
178
178
184
185
191
192
Table of Contents
Seating and Safety Restraints
Seating Safety restraints Airbags Child restraints
Tires, Wheels and Loading
Tire Information Tire Inflation Vehicle loading Trailer towing Recreational towing
Driving
Starting Brakes Transmission operation
Roadside Emergencies
Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug Nut Torque Jump starting Wrecker towing
Customer Assistance
Reporting safety defects (U.S. only)
Cleaning
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Maintenance and Specifications
Engine compartment Engine oil Battery Engine Coolant Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications
Accessories
Index
Table of Contents
199
201
205
211
213
218
236
236
237
240
248
251
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2005 Ford Motor Company
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Introduction
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.
Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the
engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Introduction
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
Warning symbols on your vehicle
When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.
Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Introduction
BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.
SPECIAL NOTICES
New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
brake pedal;
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.
Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.
Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.
Notice to owners of pickup trucks and utility type vehicles
Utility vehicles have a significantly higher rollover rate than other types of vehicles.
Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off road in the Driving chapter.
Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package.
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package.
Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.
A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to
avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.
Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety Belt
Airbag - Front
Airbag - Side
Child Seat
Child Seat Installation Warning
Child Seat Tether Anchor
Anti-Lock Brake System
Child Seat Lower Anchor
Brake System
Brake Fluid - Non-Petroleum Based
Powertrain Malfunction
Speed Control
Master Lighting Switch
Hazard Warning Flasher
Fog Lamps-Front
Fuse Compartment
Fuel Pump Reset
Windshield Wash/Wipe
Windshield Defrost/Demist
Rear Window Defrost/Demist
10
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Vehicle Symbol Glossary
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release Symbol
Panic Alarm
Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot
Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas
Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
MAX MIN
Emission System
Engine Air Filter
Passenger Compartment Air Filter
Jack
Check Fuel Cap
Low Tire Pressure Warning
11
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.
Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check Engine warning light to come on.
12
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
It may take a long period of time for the system to detect an improperly installed or properly re-installed fuel filler cap depending on driving and fuel tank level conditions. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Brake system warning light: To confirm the brake system warning light is functional, it will BRAKE momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a failure to brake proportioning and the brake system should be inspected immediately by your authorized dealer.
Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer.
ABS
Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected; have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.
13
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.
Charging system: Illuminates when the battery is not charging properly.
Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant temperature (if equipped): Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible , switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.
Never remove the coolant reservoir cap while the engine is running or hot.
Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).
Door ajar: Illuminates when the ignition is in the ON position and any door is open.
Overdrive off (if equipped): Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light flashes steadily or does not illuminate, have the transmission serviced soon, or damage may occur.
O/D OFF
14
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Four wheel drive low (if equipped): Illuminates when four-wheel drive low is engaged.
4x4
LOW
Four wheel drive high (if equipped): Illuminates when four-wheel drive high is engaged. It may also illuminate when the 4WD LOW is engaged, refer to the Driving chapter for more information. Anti-theft system: Flashes when the Securilock娂 Passive Anti-theft System has been activated.
4x4
Speed control (if equipped): Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.
Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.
Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Door ajar warning chime: Sounds when any door is opened (or not fully closed).
15
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
GAUGES
Speedometer: Indicates the current vehicle speed.
Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
Never remove the coolant reservoir cap while the engine is running or hot.
Odometer: Registers the total miles (kilometers) of the vehicle.
16
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Trip odometer: Registers the miles (kilometers) of individual journeys. Press the button once until “TRIP” appears in the display (this represents the trip mode). To reset the trip, press and hold the control again for approximately 2 seconds, until the trip reading is 0.0 miles (kilometers). To toggle between trip and odometer, press and release the control. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Proper gauge indication requires the ignition to be in the OFF or ACCESSORY position during refueling, otherwise correct fuel indication after refueling can be slow to update. Also, a minimum of 3 gallons is needed for correct indication after refueling. The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.
17
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
AUDIO SYSTEMS
AM/FM stereo (if equipped)
Display preference: You can select Clock mode, which displays the time, or Frequency mode, which displays the current radio frequency, to appear in the radio display. Press CLK repeatedly to toggle between Clock and Frequency modes. If clock mode is selected and a radio function is pressed (i.e, SEEK, TUNE, Memory Presets), the radio information will display momentarily and then again display the time. 1. AM/FM: Press to select AM/FM1/FM2 frequency bands.
2. CLK —To set the time: Ensure that your audio system is turned off. Press and hold CLK until the hours flash in the display. Press AUDIO Press and hold CLK again until the minutes flash. Press to adjust the minutes.
to adjust the hours.
AUDIO
18
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
To set the display mode: Press repeatedly to toggle between Clock mode and frequency mode. 3. AUDIO: Press AUDIO repeatedly to toggle through the following modes and use adjustments in those modes.
to make
Bass: Press
AUDIO
to decrease/increase the bass setting.
Treble: Press
AUDIO
to decrease/increase the treble setting.
Balance: Press right speakers.
AUDIO
to adjust the audio between the left and
Hours: Press
AUDIO
to decrease/increase the hours.
Minute: Press
AUDIO
to decrease/increase the minutes.
) the radio frequency
4. Tune: Press to manually go down/up (
and in audio mode to select various settings.
5. Memory presets: To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns. To tune a preset station, press
the desired memory preset.
6. SEEK: Press
to
SEEK
access the previous or next radio
station. If pressed for less than .5
seconds, the system will seek to the next or previous station.
7. ON/OFF/Volume: Press to turn
the system ON/OFF. Turn to adjust
the volume levels.
If the volume is set above a certain
level, and the ignition is turned off,
the volume will come back to a
“nominal” listening level when the ignition is turned back on.
19
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
AM/FM stereo single CD/MP3 system (if equipped)
1. CD eject: Press to eject the CD.
2. CLK (Clock):Press CLK until SELECT HOUR or SELECT MINS is displayed. Press
MENU
to adjust the
hours/minutes. Press CLK to display the time when the ignition is off. 3. MUTE:Press to mute the playing media. Press again to return to the playing media.
4. MENU: Press MENU repeatedly to toggle through the following modes and use adjustment in those modes. Autoset: Press MENU set the strongest local radio stations for AM/FM1/FM2 without losing
to make
to
20
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
your original manually set preset stations.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass: Press
to decrease/increase the bass setting.
MENU
Treble: Press
MENU
to decrease/increase the treble setting.
to adjust the audio between the left and
to adjust the audio between the front and
MENU
MENU
) the radio
Balance: Press right speakers. Fade: Press rear speakers. 5. TUNE: Press to manually go down/up ( frequency and also to select various settings in menu mode. 6. SHUFF (Shuffle): Press to play the tracks on the current CD in random order. 7. REPEAT: Press to repeat the current CD track. The selection will repeat continuously until deactivated. Press REPEAT again to deactivate. 8. FF (Fast forward): Press to manually advance in a CD track.
9. REW (Rewind): Press to manually reverse in a CD track.
REW
10. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. To recall a previously set station, press the desired memory preset button briefly. 11. SEEK/TRACK: Press to access the previous/next ( station. In CD mode, press to advance to the previous/next ( track.
) strong
21
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
12. SCAN: Press to toggle between SCAN ON and SCAN OFF. When activated, the system scans up through and plays a brief sampling of available radio stations or CD tracks. Press again to stop. 13. AM/FM:Press to select AM/FM1/FM2 frequency band.
14. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 15. CD: Press to enter CD mode. If a CD is already present in the system, the disc will begin to play. 16. CD slot: Insert a CD label side up.
CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Irregular
shaped CDs, CDs with a scratch protection film attached, and CDs
with homemade paper (adhesive) labels should not be inserted
into the CD player. The label may peel and cause the CD to
become jammed. It is recommended that homemade CDs be
identified with permanent felt tip marker rather than adhesive
labels. Ballpoint pens may damage CDs. Please contact your
dealer for further information.
22
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
AM/FM stereo cassette, CD/MP3 sound system (if equipped)
Entertainment Systems
1. CD eject: Press to eject the CD.
MENU
2. CLK (Clock): Press CLK until SELECT HOUR or SELECT MINS is displayed. Press adjust the hours/minutes. Press CLK to display the time of day when the ignition is off. 3. MUTE: Press to mute the playing media. Press again to return to the playing media.
to
4. MENU: Press MENU repeatedly to toggle through the following modes and use adjustment in those modes.
to make
23
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Autoset: Press MENU to access the
autoset setting. Allows you to set
the strongest local radio stations
without losing your original
manually set preset stations for AM/FM1/FM2 . Use
set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets. Press again to disengage.
MENU
to
Bass: Press
MENU
to decrease/increase the level of bass.
Treble: Press
MENU
to decrease/increase the level of treble.
Balance: Press right speakers.
Fade: Press rear speakers.
MENU
to adjust the audio between the left and
MENU
to adjust the audio between the front and
Next/previous directory: In MP3 mode, press the previous or next MP3 directory.
MENU
to go to
Flat file/directory mode: Press or Directory mode. Track number/music name/file name: In MP3 mode, press to view by track number, music name or file name. MENU
MENU
to select Flat file mode
to cycle Dolby ON/OFF. The Dolby威 noise
Dolby威 noise reduction: Reduces tape noise and hiss. MENU
Dolby: Press reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby威 Laboratories Licensing Corporation. 5. TUNE: Press to manually go down/up ( frequency and also to select various settings in menu mode. 6. Tape eject: Press to eject the tape.
) the radio
24
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
7. Tape 1–2: Press to change playing sides of the tape.
8. TEXT: In MP3 mode, press to
view the next 12 characters in the
MP3 Music name/file name of the
current MP3 track and directory.
9. SHUFF (Shuffle): In CD or MP3
mode, press to play the tracks on
the current CD/MP3 in random
order. In MP3 directory mode, press to play the tracks within the current
directory in random order.
10. REPEAT: Press to repeat the
current CD/MP3 track. The selection
will repeat continuously until
deactivated. Press REPEAT again to deactivate.
11. FF (Fast forward): In tape
mode, press to fast forward the
tape. In CD mode, press to manually
advance in a CD track.
12. REW (Rewind): In tape mode,
press to rewind the tape. In CD
mode, press to manually reverse in a
CD track.
13. Memory presets: To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns. To select a preset station, press
the desired memory preset button.
14. AM/FM: Press to select
AM/FM1/FM2 frequency band.
15. SEEK/TRACK: In radio mode, press previous/next strong station. In CD and MP3 flat file mode, press to access the next track. In MP3 directory mode, press to select the next/previous track in the current directory.
to access the
25
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
16. Scan: In radio mode, scan through the available stations. In tape mode, you may set SCAN on or off. If activated, the player will scan the tape and plays a short Introduction of each song. In CD and MP3 flat file mode, you may set the scan on or off. If activated, the system will scan through each track. In MP3 directory mode, you may set scan on or off. If activated, the system will scan in the current directory. 17. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 18. CD: Press to enter CD mode. If a CD is already in the system, the disc will begin play. 19. CD slot: Insert a CD, label side up.
CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Irregular
shaped CDs, CDs with a scratch protection film attached, and CDs
with homemade paper (adhesive) labels should not be inserted
into the CD player. The label may peel and cause the CD to
become jammed. It is recommended that homemade CDs be
identified with permanent felt tip marker rather than adhesive
labels. Ballpoint pens may damage CDs. Please contact your
dealer for further information.
20. Cassette slot: Insert a cassette, facing to the right.
26
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Premium/Audiophile In-dash CD6/MP3 disc Pioneer audio system (if equipped)
19
18
17
16
15
14
COMP
13
12
11
10
1. AM/FM: Press to select AM/FM1/FM2 frequency bands.
2. CD: Press to enter CD mode. If a CD is already in the system, the disc will start playing. 3. EJ (CD eject): Press to eject the CD. Press and hold to eject all CDs.
MENU
4. CLK (Clock): Press CLK until SELECT HOUR or SELECT MINS is displayed. Press adjust the hours/minutes. Press CLK to display the time when the ignition is off. 5. MUTE: Press to mute the playing media. Press again to return to the playing media.
to
27
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
to make
6. MENU: Press MENU repeatedly
to toggle through the following
modes and use
adjustment in those modes.
Autoset: Allows you to set the
strongest local radio stations
without losing your original
manually set preset stations for
AM/FM1/FM2 . Press MENU to access. Use
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass: Press
to decrease/increase the bass setting.
MENU
MENU
to set.
Treble: Press
MENU
to decrease/increase the treble setting.
MENU
MENU
MENU
to go to
to adjust the audio between the left and
to adjust the audio between the front and
to scroll through MP3 display options (track #, normal music
Balance: Press
right speakers.
Fade: Press
rear speakers.
Next/previous directory: In MP3 mode, press MENU
the previous/next directory.
Flat file/directory mode: In MP3 mode, press MENU to access this
feature. Use
to select flat file mode or directory mode.
Track #/normal music name/file name: Press MENU to access and
use
name or file name).
7. TUNE/DISC: Press to manually go down/up (
frequency, select the previous/next CD or to select various settings in
menu mode.
8. TEXT: In MP3 music name/file name mode, press to view the next 12
characters in the MP3 music name/filename of the current MP3 track and
directory.
9. SHUFF (Shuffle): Press to play
the tracks on the current CD/MP3 in
random order. In MP3 directory
mode, press to play the tracks within the current directory in random
order.
) the radio
28
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
10. Compression (Audiophile audios only): In CD/MP3 modes, press to bring loud and soft passages together for a more consistent listening level. 11. REPEAT: Press to repeat the current CD/MP3 track. The selection will repeat continuously until deactivated. Press REPEAT again to deactivate. 12. FF (Fast forward): Press to manually advance in a CD track.
13. REW (Rewind): Press to manually reverse in a CD track.
REW
14. Memory presets: To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns. To select a preset station, press
the desired memory preset.
15. SEEK/TRACK: In radio, CD and MP3 flat file mode, press
to access the previous/next strong station or track. In MP3 directory
mode, press to select the next/previous track in the current directory.
16. SCAN: In radio, CD and MP3
flat file mode, press for a brief
sampling of radio stations or
CD/MP3 tracks. In MP3 directory mode, press to hear a brief sampling of
all tracks in the current directory. Press again to stop.
17. ON/OFF/Volume: Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
18. LOAD: Press to load a CD. To load a CD/MP3 disc to a specific slot,
press LOAD and select the slot number by pressing the memory preset
buttons. Press and hold LOAD to autoload up to six discs.
19. CD slot: Insert a CD, label side up.
29
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Irregular
shaped CDs, CDs with a scratch protection film attached, and CDs
with homemade paper (adhesive) labels should not be inserted
into the CD player. The label may peel and cause the CD to
become jammed. It is recommended that homemade CDs be
identified with permanent felt tip marker rather than adhesive
labels. Ballpoint pens may damage CDs. Please contact your
dealer for further information.
Tremor IV CD/MP3 audio system (if equipped)
1. EJ (CD eject): To eject an individual CD, press CD and select the correct slot number by pressing the Memory Preset buttons. Press and hold EJ (eject) to eject all loaded CDs.
30
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
2. CD: Press to enter CD mode. If a CD is already present in the system, the disc will begin play.
3. CLK (Clock): Press CLK until SELECT HOUR/SELECT MINUTE is ) to displayed. Press TUNE ( adjust the hours/minutes. Press CLK to display the time when the ignition is off. 4. TUNE: In radio mode, press to manually go up or down the radio frequency, or to access another CD. Also use in menu mode to select various settings. 5. TEXT: In MP3 music name/file name mode, press to view the next 12 characters in the MP3 music name/file name of the current MP3 track and directory. 6. SHUF (Shuffle): Press to play the tracks on the current CD/MP3 in random order. In MP3 directory mode, press to play the tracks within the current directory in random order. 7. COMP (Compression): In CD/MP3 modes, press to bring soft and loud passages together for a more consistent listening level. 8. MENU: Press MENU to toggle through the following modes to make and adjustments in these modes. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU to access, use stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press
to set. When the six strongest
again to disengage.
TUNE
TUNE
TUNE
BASS: Press
TUNE
to decrease/increase the bass levels.
31
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
TREB (treble): Press levels.
BAL (Balance):Press left and right speakers.
TUNE
to decrease/increase the treble
TUNE
to adjust the audio between the
FADE: Press rear speakers.
TUNE
to adjust the audio between the front and
Flat file/directory mode: In MP3 mode, press Flat file mode or Directory mode.
TUNE
to select
to
TUNE
Track number/normal music name/file name: Press
view by track number, music name or file name.
9. ON/OFF/VOL (Volume): Press
to turn the system ON/OFF. Turn to
adjust the volume levels.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a “nominal” listening level when the
ignition is turned back on.
10. SCAN: In radio, CD and MP3
flat file mode, press for a brief
sampling of radio stations or
CD/MP3 tracks. In MP3 directory
mode, press to hear a brief sampling of all tracks in the current
directory. Press again to stop.
11. REPEAT: Press to repeat the
current CD/MP3 track. The selection
will repeat continuously until
deactivated. Press REPEAT again to deactivate.
12. FF (fast forward): Press to
manually advance in a CD track.
13. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. To select a preset station, press the desired memory preset button.
32
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
14. MUTE: Press to mute the playing media. Press again to return to the playing media. 15. REW (rewind): Press to manually reverse a CD track.
16. SEEK: In radio, CD and MP3
to
flat file mode, press
access the previous/next strong
station or track. In MP3 directory mode, press to select the next/previous
track in the current directory.
17. AM/FM: Press to select
AM/FM1/FM2 frequency band.
18. LOAD: To load a CD/MP3 disc to a specific slot, press LOAD and select the slot number by pressing the Memory Preset buttons. Press and hold LOAD to autoload up to six discs. 19. CD slot: Insert a CD, label side up.
GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz
33
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
the signal and the weaker the reception.
Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from a station, the weaker • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
Cassette/player care: Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after
cold to reach a moderate temperature before playing.
and turning the hub.
10–12 hours of play to maintain good sound/operation.
Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being
played.
CD/CD player care: Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
34
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
of time.
Don’t:
• Expose discs to direct sunlight or heat sources for extended periods
• Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Dirty, warped
or damaged CDs, irregular shaped CDs, CDs with a scratch
protection film attached, and CDs with homemade paper
(adhesive) labels should not be inserted into the CD player. The
label may peel and cause the CD to become jammed. It is
recommended that homemade CDs be identified with permanent
felt tip marker rather than adhesive labels. Ballpoint pens may
damage CDs. Please contact your authorized dealer for further
information.
Audio system warranty and service: Refer to the Warranty Guide
for audio system warranty information. If service is necessary, see your
dealer or qualified technician.
35
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
HEATER ONLY SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. : Distributes outside air through the instrument panel vents.
OFF: Outside air is shut out and the fan will not operate.
: Distributes outside air through the instrument panel vents and the
floor vents.
: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and
floor vents.
: Distributes outside air through the windshield defroster vents.
position.
the air flow selector in the
Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle during cold or warm weather, do not drive with the air flow selector in the OFF position. • Under normal weather conditions, do not leave the air flow selector in OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the air • Remove any snow, ice or leaves from the air intake area at the base of
flow to the back seats.
the windshield.
36
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.
MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. Temperature of airflow not adjustable. A/C: Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.
: Distributes outside air through the instrument panel vents.
OFF: Outside air is shut out and the fan will not operate.
: Distributes outside air through the instrument panel vents and the
floor vents.
: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and
floor vents.
: Distributes outside air through the windshield defroster vents.
37
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
position.
the air flow selector in the
air flow selector in the OFF position.
Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of
airflow to the back seats.
the windshield.
To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the highest fan speed. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.
38
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Lights
OFF
HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps, license plate lamps and tail lamps.
Turns the headlamps on.
High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.
Flash to pass Pull toward you slightly to activate and release to deactivate.
39
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Lights
Daytime running lamps (DRL) (if equipped) The daytime running light system turns the headlamps on, with a reduced light output. To activate: • the ignition must be in the ON position and • the headlamp system is in the OFF position or parking lamp position. Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Light (DRL) System
does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.
Foglamp control (if equipped) The foglamps can be turned on when the ignition is in the ON position and the headlamp control is in either of the following positions: • Parking lamps • Low beams Press the foglamp control to activate the foglamps. Press the foglamp control again to deactivate the foglamps. When the highbeams are activated, the foglamps will not operate.
PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation. Move the control up or down to adjust the intensity of the panel lighting. Move the control to the full upright position, past detent, to turn on the interior lamps.
DIM
40
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Lights
AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed before leaving the assembly plant. If your vehicle is involved in an accident or if you have problems fixing the alignment of your headlamps, have them checked by a qualified service technician.
ground
Headlamp aim adjustment The headlamps are designed to be mechanically aimed, but can also be aimed visually by doing the following: 1. Park your vehicle on a level surface about 25 feet (7.6 meters) away from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line • (5) Center of headlamps • (6) Center line of the vehicle 2. The center of the headlamp is marked either on the lens (a circle or cross marker) or on the bulb shield, internal to the lamp (mark or feature). Measure the height from the center of your headlamp to the ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the wall or screen (1) at this height (masking tape works well). 3. Turn on the low beam headlamps and open the hood. 4. Locate the high intensity area of the beam pattern and place the top edge of the intensity zone even with the horizontal reference line (4). If the top edge of the high intensity area is not even with the horizontal line, follow the next step to adjust it.
41
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Lights
5. Locate the vertical adjuster for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up). 6. In addition to the horizontal line marked in step 2, a pair of vertical lines (5) must be marked at the center line of the headlamps on the wall or screen. 7. On the wall or screen, locate the high intensity area of the beam pattern. The left edge of the high intensity area should be even with the vertical line corresponding to the headlamp under adjustment. If the left edge of the high intensity area is not even with the vertical line, follow the next step to adjust it. 8. Locate the horizontal adjuster for each headlamp. Turn it clockwise or counterclockwise, to place the left edge of the high intensity area even with the vertical line corresponding to the headlamp under adjustment.
TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn
turn signal.
signal.
42
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
INTERIOR LAMPS
Lights
Courtesy/reading lamps (if equipped) The courtesy lamp lights when: • any door is opened. • the instrument panel dimmer
switch is held up until the courtesy lamps come on.
• the remote entry controls are
pressed and the ignition is OFF.
BULB REPLACEMENT
Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.
Replacing exterior bulbs Check the operation of all the bulbs frequently.
Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time. Function Park/turn (front) Side marker lamps Headlamps Fog lamps (if equipped) Hi-mount brake lamp
Trade number 3457 AK (amber)
9145 or H11 (STX)
Number of bulbs
194 NA
9007
922
43
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Lights
4157K or 3157K
Trade number
3156
Number of bulbs
Function Rear stop/turn/tail lamps Rear turn (STX only) Rear license plate lamps Backup lamps Dome lamp Map/dome-SuperCab (if equipped) Map/dome-Regular Cab (if equipped) All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.
194
904
904
912
3155 or 3156 (STX)
Replacing the interior bulbs Check the operation of all bulbs frequently.
Replacing headlamp bulbs/front park bulbs/turn signal bulbs To remove the bulb(s): 1. Make sure the headlamp switch is in the OFF position, then open the hood. 2. At the back of the headlamp, pry up the two retainer pins to release the headlamp assembly from the vehicle and pull headlamp forward.
3. Disconnect the electrical connector from the bulb by pulling rearward.
44
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Lights
4. Remove the bulb retaining ring by rotating it counterclockwise and slide the ring off the plastic base.
5. Remove the old bulb by pulling it straight out of the lamp.
Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Install the new bulb(s) in reverse order. Replacing front sidemarker bulbs 1. Turn the headlamp switch to the OFF position and then open the hood. 2. At the back of the headlamp, pry up the two retainer pins to release the headlamp assembly from the vehicle and pull headlamp forward.
45
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Lights
3. Remove screw(s) from lamp assembly and disengage lamp assembly (it has a snap fit).
4. Rotate bulb socket counterclockwise and remove from lamp assembly. 5. Carefully pull bulb straight out of socket and push in the new bulb. 6. Install the bulb socket in lamp assembly by turning clockwise.
Install the new bulb in reverse order.
46
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Lights
Replacing tail lamp/backup lamp bulbs 1. Make sure the headlamp switch is in the OFF position and the open the tailgate to expose the lamp assemblies. 2. Remove the four screws and the lamp assembly from vehicle.
3. Rotate bulb socket counterclockwise turn and remove from lamp assembly. 4. Carefully pull the bulb straight out of the socket
Install the new bulb(s) in reverse order.
47
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Lights
Replacing foglamp bulbs (if equipped) 1. Make sure the headlamp switch is in the OFF position and remove the bulb socket from the foglamp by turning counterclockwise. 2. Disconnect the electrical connector.
Install the new bulb in reverse order. Replacing high-mount brakelamp bulb 1. Make sure the headlamp switch is in the OFF position and remove the two screws and lamp assembly from vehicle. 2. Remove the bulb socket from lamp assembly by rotating it counterclockwise. 3. Carefully pull bulb straight out of socket. Install the new bulb in reverse order. Replacing license plate lamp bulbs 1. Make sure the headlamp switch is in the OFF position and reach behind the rear bumper to locate the bulb socket. 2. Twist the socket counterclockwise and remove. 3. Carefully pull the bulb straight out of the socket.
Install the new bulb(s) in reverse order.
48
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers (from desired interval to low or high speed position); rotate towards you to decrease the speed of the wipers.
Windshield washer: Push the end of the stalk: • briefly: causes a single swipe of the wipers without washer fluid. • a quick push and hold: the wipers
will swipe three times with washer fluid.
• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.
TILT STEERING WHEEL (IF EQUIPPED) To adjust the steering wheel: 1. Pull and hold the steering wheel release control toward you. 2. Move the steering wheel up or down until you find the desired location. 3. Release the steering wheel release control. This will lock the steering wheel in position.
Never adjust the steering wheel when the vehicle is moving.
49
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
CENTER CONSOLE (IF EQUIPPED) Your vehicle may be equipped with a variety of console features. These include: • Utility compartment with • Cupholders • Coin holder slots • Flip up armrest • Passenger airbag on/off switch (if
cassette/compact disc storage
equipped)
Use only soft cups in the cupholder. Hard objects can injure you in a collision.
AUXILIARY POWER POINT (12VDC) Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty. The auxiliary power points are located on the instrument panel. Do not use the power point for operating the cigarette lighter element (if equipped). To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. Refer to Passenger Compartment Fuse Panel in the Roadside Emergencies chapter for fuse ratings in your vehicle. To prevent the battery from being discharged, do not use the power point longer than necessary when the engine is not running. Always keep the power point caps closed when not being used.
50
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Cigar/Cigarette lighter (if equipped) Do not plug optional electrical accessories into the cigarette lighter socket. Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used. Improper use of the lighter can cause damage not covered by your warranty.
POWER WINDOWS (IF EQUIPPED)
Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure
themselves.
When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.
Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.
One touch down Allows the driver’s window to open fully without holding the control down. Press completely down on AUTO and release quickly. Press again to stop.
2006 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)
51
Driver Controls
EXTERIOR MIRRORS
to adjust the left to adjust the right
Power side view mirrors (if equipped) To adjust your mirrors: 1. Select mirror or mirror. 2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to lock mirrors in place.
Fold-away mirrors Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.
SPEED CONTROL (IF EQUIPPED) With speed control set, you can maintain a speed of 30 mph (48 km/h) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 30 mph (48 km/h).
Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.
Setting speed control The controls for using your speed control are located on the steering wheel for your convenience. 1. Press the ON control and release it. 2. Accelerate to the desired speed.
52
