2011 Ford Ranger Owners Manual

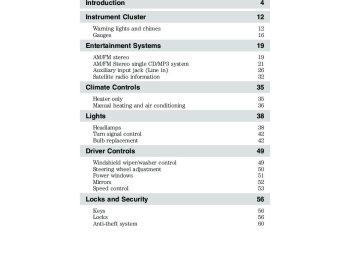

Table of Contents

12

12
16
19

19
21
26
32
35

35
36
38

38
42
42
49

49
50
51
52
53
56

56
56
60

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

AM/FM stereo AM/FM Stereo single CD/MP3 system Auxiliary input jack (Line in) Satellite radio information

Climate Controls

Heater only Manual heating and air conditioning

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control

Locks and Security

Keys Locks Anti-theft system

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

63

63
69
84
95
112

114
117
129
134
141
149
151

151
156
159
167
181

181
182
183
183
193
203
203
207
209

216
216
217

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes AdvanceTrac威 Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher control Fuel pump shut-off switch Fuses and relays Changing tires Wheel lug nut torque Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only) Reporting safety defects (Canada only)

Cleaning

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Table of Contents

Maintenance and Specifications

Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories

Ford Extended Service Plan

Scheduled Maintenance

Normal scheduled maintenance and log

Index

225

227
230
234
237
242
258
262
263
267
271

273

277

282
298

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2010 Ford Motor Company

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Introduction

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

WARNING: Fuel pump shut-off: In the event of an accident this feature will automatically cut off the fuel supply to the

engine. It can also be activated through sudden vibration (e.g. collision when parking). To restart your vehicle, refer to Fuel pump shut-off in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Introduction

Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Notice to owners of pickup trucks and utility type vehicles

WARNING: Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package.

Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package.

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Introduction

DATA RECORDING

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

Event Data Recording This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: • How various systems in your vehicle were operating; • Whether or not the driver and passenger seatbelts were • How far (if at all) the driver was depressing the accelerator • How fast the vehicle was travelling; and • Where the driver was positioning the steering wheel. This data can help provide a better understanding of the circumstances in which crashes and injuries occur. Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see

and/or the brake pedal; and

buckled/fastened;

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Introduction

limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911
Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911
operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC威 supplement for more information. Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only) the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”) only to help provide you with the directions, traffic reports, or business searches your request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Introduction

CELL PHONE USE The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you

use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings.

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Child Seat Lower Anchor

Brake System

Anti-Lock Brake System

Parking Brake System

Brake Fluid - Non-Petroleum Based

Parking Aid System

Stability Control System

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

10

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Service Engine Soon

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

11

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Service engine soon: The service engine soon indicator illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon indicator will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon indicator blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the on-board diagnostics system (OBD-II) has detected a malfunction. Refer to On-board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the indicator is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and contact your authorized dealer as soon as possible.

WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel

system, interior floor coverings or other vehicle components, possibly causing a fire.

12

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the service to come engine soon indicator on. It may take a long period of time for the system to detect an improperly installed or properly re-installed fuel filler cap depending on driving and fuel tank level conditions. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Brake system warning light: To confirm the brake system warning light is functional, it will BRAKE momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, contact your authorized dealer as soon as possible. Illumination after releasing the parking brake indicates low brake fluid level or a failure to brake proportioning. Contact your authorized dealer as soon as possible.

WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking

performance may occur. It will take you longer to stop the vehicle. Contact your authorized dealer as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected; contact your authorized dealer as soon as possible. Normal braking is still functional unless the brake warning light also is illuminated.

ABS

13

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, contact your authorized dealer as soon as possible. A chime will sound when there is a malfunction in the indicator light. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature. Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on, contact your authorized dealer as soon as possible. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter. Charging system: Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component. Engine oil pressure: Illuminates when the oil pressure falls below the normal range. Refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant temperature (if equipped): Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter. 14

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

AdvanceTrac威/traction control: Illuminates when the AdvanceTrac威/traction control is active. If the light remains on, contact your authorized dealer as soon as possible. Refer to the Driving chapter for more information. AdvanceTrac威/traction control off light: Illuminates when AdvanceTrac威/traction control has been disabled by the driver. Refer to the Driving chapter for more information. Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty. Refer to Fuel gauge in this chapter.

OFF

Door ajar: Illuminates when the ignition is in the on position and any door is not completely closed.

Overdrive off (if equipped): Illuminates when the overdrive function of the transmission has been turned off; refer to the Driving chapter. If the light flashes steadily or does not illuminate, contact your authorized dealer as soon as possible. Four-wheel drive low (if equipped): Illuminates when four-wheel drive low is engaged.

4x4
LOW

O/D OFF

Four-wheel drive high (if equipped): Illuminates when four-wheel drive high is engaged. It may also illuminate when the 4WD LOW is engaged. Refer to the Driving chapter for more information.

4x4

15

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Anti-theft system: Flashes when the SecuriLock威 passive anti-theft system has been activated.

Speed control (if equipped): Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Door ajar warning chime: Sounds when any door is opened (or not fully closed). Parking brake on warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h).

GAUGES

16

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Speedometer: Indicates the current vehicle speed.

Instrument Cluster

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle.

Trip odometer: Registers the miles (kilometers) of individual journeys. Press the button once until TRIP appears in the display (this represents the trip mode). To reset the trip, press and hold the control again for approximately two seconds, until the trip reading is 0.0 miles (kilometers). To switch between trip and odometer, press and release the control.

17

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Proper gauge indication requires the ignition to be in the off or accessory position during refueling, otherwise correct fuel indication after refueling can be slow to update. Also, a minimum of 3 gallons (11 liters) is needed for correct indication after refueling. The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

18

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM stereo (if equipped)

VOL PUSH ON

TONE

CLK

TONE VOL

ST DX FM

12

SEEK

TUNE

AM/FM

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving, encourage the use of voice-operated systems when possible and that you become aware of applicable state and local laws that may affect the use of electronic devices while driving.

to find the

1. Seek: Press next strong station down/up the frequency band. 2. Tune: Press change radio frequency down/up.

to manually

19

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

3. AM/FM: Press to choose a frequency band in radio mode.

4. Memory preset buttons: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. 5. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

AM/FM

6. Tone: Press TONE until the desired level — Bass, Treble, Bal appears on the display. Turn the volume control to raise/lower the levels, or to move the audio sound from the right to left.

7. CLK (Clock): To set the hours, press and hold CLK until CLOCK SET appears in the display. Continue to hold CLK as you press SEEK to decrease increase To set the minutes, press and hold CLK until CLOCK SET appears in the display. Continue to hold CLK as you press TUNE to decrease

the hours.

or

TONE

CLK

or increase

the minutes.

20

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

AM/FM stereo single CD/MP3 satellite compatible system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving, encourage the use of voice-operated systems when possible and that you become aware of applicable state and local laws that may affect the use of electronic devices while driving.

1. CD eject: Press to eject the CD.

2. CLK (Clock): Press CLK until SELECT HOUR or SELECT MINS is displayed. Press

21

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

MENU

to adjust the hours/minutes. Press CLK to display the

time when the ignition is off. 3. MUTE: Press to mute the playing media. Press again to return to the playing media.

to

MENU

4. MENU: Press MENU repeatedly to scroll through the following modes and use make an adjustment in those modes. SATELLITE RADIO MENU (if equipped): Press MENU repeatedly when satellite radio mode is active until SAT MENU is displayed. Press SEEK • CATEGORY: Press SEEK

MENU

or preset #6 to enter into the satellite radio menu. Press

to cycle through the following options:

• SAVE SONG: Press SEEK

MENU

or preset #6 to enter category mode. to scroll through the list of available SIRIUS威

Press channel Categories (Pop, Rock, News, etc.) Press SEEK or preset #6 when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS威 categories and channels.

or preset #6 to save the currently

playing song title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press SEEK preset #6 while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save a song when the system is full, the display will read REPLACE SONG? Press SEEK or preset #6
to access the saved songs and press to cycle through the saved songs. When the song appears in the display that you would like to replace, press SEEK appear in the display.

or preset #6. SONG REPLACED will

MENU

or

or preset #6 to delete a song title to cycle through the

MENU

• DELETE SONG: Press SEEK

from the system’s memory. Press

22

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

saved songs. When the song title appears in the display that you would like to delete, press SEEK or preset #6. The song will appear in the display for confirmation. Press SEEK or preset #6
again and the display will read SONG DELETED. If you do not want to delete the currently listed song, press either RETURN or CANCEL. Note: If there are no songs presently saved, the display will read NO SONGS.

to select

MENU

• DELETE ALL SONGS: Press SEEK

or preset #6 to delete all

song titles from the system’s memory. The display will read ARE YOU or preset #6 to confirm deletion of all saved SURE ? Press SEEK songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.

• ENABLE ALERTS / DISABLE ALERTS: Press SEEK

or preset

#6 to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

MENU

Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability. Autoset: Press for AM/FM1/FM2 without losing your original manually set preset stations. When the six strongest stations are filled, the station stored in preset #1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Bass: Press

to set the strongest local radio stations

to decrease/increase the bass setting.

MENU

Treble: Press

MENU

to decrease/increase the treble setting.

Balance: Press right speakers. Fade: Press rear speakers.

MENU

to adjust the audio between the left and

MENU

to adjust the audio between the front and

23

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

to go to

to select

to scroll through MP3

MENU

MENU

) the radio

Next/previous directory: In MP3 mode, press the previous/next directory. Flat file/directory mode: In MP3 mode, use flat file mode or directory mode. Normal / Track title / File name: Use display options (track #, normal music name or file name). 5. TUNE: Press to manually go down/up ( frequency and also to select various settings in menu mode. 6. SHUFF (Shuffle): Press to play the current CD/MP3 tracks in random order. In MP3 directory mode, press to play the tracks within the current directory in random order. 7. REPEAT: Press to repeat the current CD/MP3 track. The selection will repeat continuously until deactivated. Press REPEAT again to deactivate. 8. FF (Fast forward): Press to manually advance in a CD/MP3
track. 9. REW (Rewind): Press to manually reverse in a CD/MP3 track.

REW

10. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. To recall a previously set station, press the desired memory preset button briefly. You can save up to 18 stations, six in AM, six in FM1 and FM2. In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only with a valid SIRIUS威 subscription. Check with your authorized dealer for availability. 24

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

11. SEEK/TRACK: Press to access ) strong the previous/next ( station. In CD/MP3 mode, press to advance to the previous/next

) track.

to select a channel within

SEEK

SEEK

SEEK

SEEK

to seek

to fast seek through the

to view the previous/additional

In satellite radio mode (if equipped), press to the previous/next channel. In CATEGORY MODE, press that category. Press and hold previous /next channels. In TEXT MODE, press display text. Satellite radio is available only with a valid SIRIUS威 subscription. Check with your authorized dealer for availability. 12. TEXT/SCAN: In radio and CD mode, press for a brief sampling of radio stations or CD tracks. Press again to stop. In MP3 mode, press and release to view the next 12 characters in the MP3 music name/file name of the current MP3 track and directory. Press and hold to hear a brief sampling of MP3 tracks. In MP3 directory mode, press and hold to hear a brief sampling of all tracks in the current directory. Press and hold again to stop. In satellite radio mode (if equipped), press and release to view the Satellite text message. Press and hold to hear a brief sampling of the next channels. Press and hold again to stop 13. AM/FM: Press to select AM/FM1/FM2 frequency band.

14. AUX: Press repeatedly to scroll through SAT1, SAT2, SAT3 (Satellite Radio modes, if equipped) and LINE IN (Auxiliary audio mode, if equipped). For further information on Auxiliary audio mode, refer to Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS威 subscription. Check with your authorized dealer for availability.

25

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

15. ON/OFF/Volume: Press to turn on/off. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 16. CD: Press to enter CD/MP3
mode. If a CD is already present in the system, the disc will begin to play. 17. CD slot: Insert a CD label side up.

Auxiliary input jack (Line in)-(if equipped)

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving, encourage the use of voice-operated systems when possible and that you become aware of applicable state and local laws that may affect use of electronic devices while driving.

Your vehicle may be equipped with an auxiliary input jack (AIJ). The auxiliary input jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system.

26

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Required equipment: 1. Any portable music player designed to be used with headphones 2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end To play your portable music player using the auxiliary input jack: 1. Begin with the vehicle parked and the radio turned off. 2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off. 3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle. 4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level. 5. Turn the portable music player on and adjust the volume to 1/2 the volume. 6. Press AUX on the vehicle radio repeatedly until LINE IN appears in the display. You should hear audio from your portable music player although it may be low. 7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls. Troubleshooting: 1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control. 2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume. 3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player. 4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.

27

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

weaker the signal and the weaker the reception.

CD/CD player care Do: • Handle discs by their edges only.

(Never touch the playing surface).

• Inspect discs before playing. • Clean only with an approved CD

cleaner.

28

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

• Wipe discs from the center out.

Entertainment Systems

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached.

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

29

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Operating your audio system with MP3-formatted discs Your MP3 system recognizes MP3 discs upon insertion and provides you with two ways to listen to these discs: • Flat file mode– This mode ignores any folders on the discs and plays

all MP3 files found in any folder on the disc exactly as if there were no folders on the disc. When in flat file mode press track.

to access the previous/next

• Directory mode– This mode finds all of the folders on the disc and then allows you to pick any folder on the disc and play only the MP3
files in that folder. When in directory mode press MP3 file in the current folder only. To change directories (folders), press MENU and then press to select the desired directory (folder).

to access the previous/next

Changing between flat file mode and directory mode Your radio MP3 system will default to directory mode when an MP3 disc is first inserted. When the MP3 system is in directory mode, the DIR icon will be illuminated on the radio display. • To change from directory mode to flat file mode while playing an MP3

CD: Press MENU until the radio display reads Directory. Then press system is now in flat file mode.

. The display will change from DIR to Flat File. The MP3

• To change from flat file mode to directory mode while playing an MP3

. The display will change from Flat File to DIR. The MP3

CD: Press MENU until the radio display reads Flat File. Then press system is now in directory mode. MP3 track and folder structure Your MP3 system recognizes MP3 individual tracks and folder structure as follows: • There are two different modes for MP3 disc playback: MP3 directory mode (system default) and MP3 flat file mode. For more information on directory and flat file mode, refer to Sample MP3 structure following.

30

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems • MP3 flat file mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present.

• MP3 directory mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255. • Creating discs with only one level of folders will help with navigation

through the disc files. Sample MP3 structure If you are burning your own MP3
discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.

.mp3 .mp3

.mp3

.mp3

.mp3

.mp3 .mp3

.doc .ppt .xls

In flat file mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder. In directory mode, the system will only play the .mp3 files in the current folder.

31

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Satellite radio information (if equipped) Satellite radio channels: SIRIUS威 broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS威 satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS威 at 1–888–539–7474. Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway

overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference. SIRIUS威 satellite radio service: SIRIUS威 satellite radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS威 service. Vehicles that are equipped with a factory installed SIRIUS威 satellite radio system include hardware and a limited subscription term, which begins on the date of sale or lease of the vehicle. For information on extended subscription terms, the online media player and other SIRIUS威 features, please contact SIRIUS威 at 1–888–539–7474. Note: SIRIUS威 reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.

32

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Satellite radio electronic serial number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS威. While in satellite radio mode, you can view this number on the radio display by pressing the AUX and preset 1 controls simultaneously.

Radio Display

Condition

ACQUIRING

SAT FAULT

Radio requires more than two seconds to produce audio for the

selected channel. Internal module or

system failure

present.

Action Required No action required. This message should

disappear shortly.

If this message does

not clear within a short period of time, or with an ignition key cycle, your receiver may have

a fault. See your

authorized dealer for

service.

INVALID CHNL

Channel no longer

This previously

available.

UNSUBSCRIBED

Subscription not available for this

channel.

available channel is no longer available. Tune to another channel. If the channel was one of your presets, you may choose another channel for that preset button.

Contact SIRIUS威 at 1–888–539–7474 to

subscribe to the channel or tune to another channel.

33

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Radio Display

Condition

NO TEXT

Artist information not

available.

NO TEXT

Song title information

not available.

NO TEXT

Category information

not available.

NO SIGNAL

Loss of signal from the SIRIUS威 satellite or SIRIUS威 tower to the vehicle antenna.

Action Required

Artist information not available at this time on

this channel. The system is working

properly.

Song title information not available at this time on this channel. The system is working

properly.

Category information not available at this time on this channel. The system is working

properly.

You are in a location that is blocking the SIRIUS威 signal (i.e.,

tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When you move into an open area, the signal should

return.

UPDATING

CALL SIRIUS威 1–888–539–7474

Update of channel programming in

No action required. The process may take up to

progress.

Satellite service has been deactivated by

SIRIUS威 satellite

radio.

three minutes. Call SIRIUS威 at

1–888–539–7474 to re-activate or resolve subscription issues.

34

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. : Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

position.

the air flow selector in the

Operating tips • To reduce fog build-up on the windshield during humid weather, place • To reduce humidity build-up inside the vehicle during cold or warm weather, do not drive with the air flow selector in the OFF position. • Under normal weather conditions, do not leave the air flow selector in OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the air • Remove any snow, ice or leaves from the air intake area at the base of • A small amount of air may be felt from the floor vent regardless of the

flow to the back seats.

the windshield.

air distribution setting that is selected.

35

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Climate Controls

To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. Temperature of airflow not adjustable. A/C: Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.

: Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

Operating tips • To reduce fog build-up on the windshield during humid weather, place • To reduce humidity build-up inside the vehicle: do not drive with the

the air flow selector in the

position.

air flow selector in the OFF position.

36

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Climate Controls • Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • A small amount of air may be felt from the floor vent regardless of the

airflow to the back seats.

the windshield.

air distribution setting that is selected.

During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, reduce blower fan speed from the highest setting and put the vehicle’s transmission into the P (Park) gear position (automatic transmission only) to continue to receive cool air from your A/C system. To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the highest fan speed. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

37

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Lights

HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the low beam headlamps

on.

Fog lamp control (if equipped) The fog lamps can be turned on when the headlamp control is in position and the the high beams are not turned on. Pull the headlamp control towards you to turn fog lamps on.

or

High beams • Push the lever toward the instrument panel to activate. • Pull the lever toward you to

deactivate.

38

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Flash-to-pass Pull toward you slightly to activate and release to deactivate.

Lights

Daytime running lamps (DRL) (if equipped) The daytime running light system turns the headlamps on with a reduced light output. To activate: • the ignition must be in the on position and • the headlamp system is in the off position or parking lamp position.

WARNING: Always remember to turn on your headlamps at dusk or during inclement weather. The daytime running light

(DRL) system does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parking lamp operation. • Move the control up or down to adjust the intensity of the panel lighting.

• Move the control to the full upright position, past detent, to turn on the interior lamps.

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

39

Lights

Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full dome/on position to reset. This will ensure that your displays are visible under all lighting conditions.

AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed before leaving the assembly plant. If your vehicle is involved in an accident or if you have problems fixing the alignment of your headlamps, have them checked by a qualified service technician.

ground

Headlamp aim adjustment The headlamps are designed to be mechanically aimed, but can also be aimed visually by doing the following: 1. Park your vehicle on a level surface about 25 feet (7.6 meters) away from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line • (5) Center of headlamps • (6) Center line of the vehicle 2. The center of the headlamp is marked either on the lens (a circle or cross marker) or on the bulb shield, internal to the lamp (mark or feature). Measure the height from the center of your headlamp to the ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the wall or screen (1) at this height (masking tape works well).

40

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Lights

3. Turn on the low beam headlamps and open the hood. 4. Locate the high intensity area of the beam pattern and place the top edge of the intensity zone even with the horizontal reference line (4). If the top edge of the high intensity area is not even with the horizontal line, follow the next step to adjust it. 5. Locate the vertical adjuster for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up). 6. In addition to the horizontal line marked in step 2, a pair of vertical lines (5) must be marked at the center line of the headlamps on the wall or screen. 7. On the wall or screen, locate the high intensity area of the beam pattern. The left edge of the high intensity area should be even with the vertical line corresponding to the headlamp under adjustment. If the left edge of the high intensity area is not even with the vertical line, follow the next step to adjust it. 8. Locate the horizontal adjuster for each headlamp. Turn it clockwise or counterclockwise, to place the left edge of the high intensity area even with the vertical line corresponding to the headlamp under adjustment.

41

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Lights

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

INTERIOR LAMPS

Courtesy/reading lamps (if equipped) The courtesy lamp lights when: • any door is opened. • the instrument panel dimmer

switch is held up until the courtesy lamps come on.

• the remote entry controls are pressed and the ignition is off.

BULB REPLACEMENT

Lamp assembly condensation Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions. Examples of acceptable condensation are: • Presence of thin mist (no streaks, drip marks or droplets) • Fine mist covers less than 50% of the lens

42

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Lights

Examples of unacceptable moisture (usually caused by a lamp water leak) are: • Water puddle inside the lamp • Large water droplets, drip marks or streaks present on the interior of

the lens

Take your vehicle to a dealer for service if any of the above conditions of unacceptable moisture are present.

194 NA

Number of bulbs

Trade number 3157 A (amber)

Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time. Function Park/turn (front) Sidemarker lamps Headlamps Fog lamps (if equipped) Hi-mount brake lamp Rear stop/turn/tail lamps Rear license plate lamps Backup lamps Dome lamp Map/dome-SuperCab (if equipped) Map/dome-Regular Cab (if equipped) All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.

4157K or 3157K

3155
912

9145

9007

904

922

194

904

Replacing interior bulbs Check the operation of all bulbs frequently.

43

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Lights

Replacing exterior bulbs Check the operation of all the bulbs frequently. Replacing headlamp bulbs/front park bulbs/turn signal bulbs To remove the bulb(s): 1. Make sure the headlamp switch is in the off position, then open the hood. 2. At the back of the headlamp, pry up the two retainer pins to release the headlamp assembly from the vehicle and pull headlamp forward.

3. Disconnect the electrical connector from the bulb by pulling rearward.

4. Remove the bulb retaining ring by rotating it counterclockwise and slide the ring off the plastic base.

5. Remove the old bulb by pulling it straight out of the lamp.

44

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

WARNING: Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Lights

Install the new bulb(s) in reverse order. Replacing front sidemarker bulbs 1. Turn the headlamp switch to the off position, then open the hood. 2. At the back of the headlamp, pry up the two retainer pins to release the headlamp assembly from the vehicle and pull headlamp forward.

3. Remove bolt(s) from lamp assembly and disengage lamp assembly.

45

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Lights

4. Rotate bulb socket counterclockwise and remove from lamp assembly. 5. Carefully pull bulb straight out of socket and push in the new bulb. 6. Install the bulb socket in lamp assembly by turning clockwise. Install the new bulb in reverse order.

Replacing tail lamp/backup lamp bulbs 1. Make sure the headlamp switch is in the off position, then open the tailgate to expose the lamp assemblies. 2. Remove the four screws and the lamp assembly from vehicle.

46

2011 Ranger (ran) Owners Guide, 2nd Printing USA (fus)

Lights

47

3. Rotate bulb socket counterclockwise turn and remove from lamp assembly. 4. Carefully pull the bulb straight out of the socket. Install the new bulb(s) in reverse order.

Replacing fog lamp bulbs (if equipped) 1. Make sure the headlamp switch is in the off position and remove the
