2008 Ford Ranger Owners Manual

Table of Contents

12

12
16
19

19
21
27
33
36
40

40
41
43

43
47
47
53

53
54
56
56
57
62

62
62
66

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

AM/FM stereo AM/FM Stereo single CD/MP3 system CDX6/MP3 Premium/Audiophile Pioneer system Auxiliary input jack (Line in) Satellite radio information

Climate Controls

Heater only Manual heating and air conditioning

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control

Locks and Security

Keys Locks Anti-theft system

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

69

69
72
87
95
106

108
111
123
128
134
145
147

147
152
156
171

171
173
173
174
184
193
194
199
201

207
208
209

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

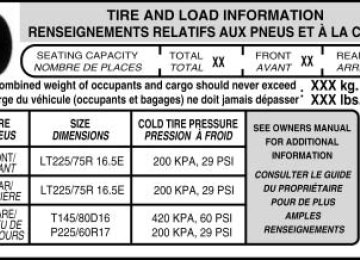

Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug nut torque Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only) Reporting safety defects (Canada only)

Cleaning

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Maintenance and Specifications

Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories

Index

217

219
223
229
231
237
253
255
256
261
265

267

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2007 Ford Motor Company

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate. CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Airbag supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to

follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

brake pedal;

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package.

Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Export unique (Non–United States/Canada) vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings.

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Child Seat Lower Anchor

Brake System

Anti-Lock Brake System

Parking Brake System

Brake Fluid - Non-Petroleum Based

Parking Aid System

Stability Control System

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

10

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Service Engine Soon

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

11

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Service engine soon⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Service engine soon⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

12

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. It may take a long period of time for the system to detect an improperly installed or properly re-installed fuel filler cap depending on driving and fuel tank level conditions. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Brake system warning light: To confirm the brake system warning light is functional, it will BRAKE momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a failure to brake proportioning and the brake system should be inspected immediately by your authorized dealer.

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected; have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

ABS

13

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Airbag readiness: If this light fails to illuminate when the ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature, Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to ON, the light will illuminate for 3 seconds to ensure the bulb is working. If the light does not turn ON, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system in the Tires, Wheels and Loading chapter. Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range. Refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant temperature (if equipped): Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible , switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

14

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Never remove the coolant reservoir cap while the engine is running or hot.

Foglamps: Illuminates when the foglamps are turned on. Refer to Foglamp control in the Lights chapter. Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty. Refer to Fuel gauge in this chapter.

Door ajar: Illuminates when the ignition is in the ON position and any door is open.

Overdrive off (if equipped): Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light flashes steadily or does not illuminate, have the transmission serviced soon, or damage may occur. Four wheel drive low (if equipped): Illuminates when four-wheel drive low is engaged.

4x4
LOW

O/D OFF

Four wheel drive high (if equipped): Illuminates when four-wheel drive high is engaged. It may also illuminate when the 4WD LOW is engaged. Refer to the Driving chapter for more information. Anti-theft system: Flashes when the SecuriLock™ Passive Anti-theft System has been activated.

4x4

15

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Speed control (if equipped): Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Door ajar warning chime: Sounds when any door is opened (or not fully closed). Parking brake ON warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h).

GAUGES

16

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Speedometer: Indicates the current vehicle speed.

Instrument Cluster

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle.

Trip odometer: Registers the miles (kilometers) of individual journeys. Press the button once until “TRIP” appears in the display (this represents the trip mode). To reset the trip, press and hold the control again for approximately 2 seconds, until the trip reading is 0.0 miles (kilometers). To toggle between trip and odometer, press and release the control.

17

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Proper gauge indication requires the ignition to be in the OFF or ACCESSORY position during refueling, otherwise correct fuel indication after refueling can be slow to update. Also, a minimum of 3 gallons (11
liters) is needed for correct indication after refueling. The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

18

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM stereo (if equipped)

Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Display preference: You can select Clock mode, which displays the time, or Frequency mode, which displays the current radio frequency, to appear in the radio display. Press CLK repeatedly to toggle between Clock and Frequency modes. If clock mode is selected and a radio function is pressed (i.e. SEEK, TUNE, Memory Presets), the radio information will display momentarily and then again display the time. 1. AM/FM: Press to select AM/FM1/FM2 frequency bands.

19

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

2. CLK —To set the time: Ensure that your audio system is turned off. Press and hold CLK until the hours flash in the display. Press

AUDIO

to adjust the hours.

Press and hold CLK again until the minutes flash. Press to adjust the minutes. To set the display mode: Press repeatedly to toggle between Clock mode and frequency mode. 3. AUDIO: Press AUDIO repeatedly to toggle through the following modes and use adjustments in those modes.

to make

AUDIO

Bass: Press

AUDIO

to decrease/increase the bass setting.

Treble: Press

AUDIO

to decrease/increase the treble setting.

Balance: Press right speakers.

AUDIO

to adjust the audio between the left and

Hours: Press

AUDIO

to decrease/increase the hours.

Minute: Press

AUDIO

to decrease/increase the minutes.

) the radio frequency

4. Tune: Press to manually go down/up ( and in audio mode to select various settings. 5. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. To tune a preset station, press the desired memory preset. 6. SEEK: Press to SEEK access the previous or next radio station.

20

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

7. ON/OFF/Volume: Press to turn the system ON/OFF. Turn to adjust the volume levels. If the volume is set above a certain level, and the ignition is turned off, the volume will come back to a “nominal” listening level when the ignition is turned back on.

AM/FM stereo single CD/MP3 Satellite Compatible system (if equipped)

Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

21

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

1. CD eject: Press to eject the CD/MP3.

2. CLK (Clock): Press CLK until SELECT HOUR or SELECT MINS is displayed. Press

MENU

to adjust the

hours/minutes. Press CLK to display the time when the ignition is off. 3. MUTE: Press to mute the playing media. Press again to return to the playing media.

to

MENU

4. MENU: Press MENU repeatedly to scroll through the following modes and use make an adjustment in those modes. SATELLITE RADIO MENU (if equipped): Press MENU repeatedly when satellite radio mode is active until SAT MENU is displayed. Press SEEK • CATEGORY: Press SEEK

MENU

or preset #6 to enter into the satellite radio menu. Press

to cycle through the following options:

or preset #6 to enter category mode.

MENU

to scroll through the list of available SIRIUS

Press channel Categories (Pop, Rock, News, etc.) Press SEEK or preset #6 when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels.

• SAVE SONG: Press SEEK

or preset #6 to save the currently

playing song in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will or preset #6 while alert you with an audible prompt. Press SEEK SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 songs. If you attempt to save a song when the system is full, the display will read or preset #6 to access the saved REPLACE SONG? Press SEEK

22

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

MENU

songs and press When the song appears in the display that you would like to replace, press SEEK display.

or preset #6. SONG REPLACED will appear in the

to cycle through the saved songs.

• DELETE SONG: Press SEEK

or preset #6 to delete a song from to cycle through the saved

MENU

or preset #6. The song will appear in the

the system’s memory. Press songs. When the song appears in the display that you would like to delete, press SEEK or preset #6 again and the display for confirmation. Press SEEK display will read SONG DELETED. If you do not want to delete the to select either RETURN currently listed song, press or CANCEL. Note: If there are no songs presently saved, the display will read NO SONGS.

MENU

• DELETE ALL SONGS: Press SEEK

or preset #6 to delete all

songs from the system’s memory. The display will read ARE YOU SURE ? Press SEEK songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.

or preset #6 to confirm deletion of all saved

• ENABLE ALERTS / DISABLE ALERTS: Press SEEK

or preset

#6 to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

MENU

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. Autoset: Press for AM/FM1/FM2 without losing your original manually set preset stations. When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Bass: Press

to set the strongest local radio stations

to decrease/increase the bass setting.

MENU

23

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Treble: Press

MENU

to decrease/increase the treble setting.

to go to

to scroll through MP3

to adjust the audio between the left and

to select

MENU

MENU

MENU

MENU

) the radio

to adjust the audio between the front and

Balance: Press right speakers. Fade: Press rear speakers. Next/previous directory: In MP3 mode, press the previous/next directory. Flat file/directory mode: In MP3 mode, use flat file mode or directory mode. Normal / Track title / File name: Use display options (track #, normal music name or file name). 5. TUNE: Press to manually go down/up ( frequency and also to select various settings in menu mode. 6. SHUFF (Shuffle): Press to play the current CD/MP3 tracks in random order. In MP3 directory mode, press to play the tracks within the current directory in random order. 7. REPEAT: Press to repeat the current CD/MP3 track. The selection will repeat continuously until deactivated. Press REPEAT again to deactivate. 8. FF (Fast forward): Press to manually advance in a CD/MP3
track. 9. REW (Rewind): Press to manually reverse in a CD/MP3 track.

REW

10. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. To recall a previously set station, press the desired memory preset button briefly. You can save up to 18 stations, six in AM, six in FM1 and FM2.

24

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 11. SEEK/TRACK: Press to access ) strong the previous/next ( station. In CD/MP3 mode, press to advance to the previous/next

) track.

to seek to

SEEK

SEEK

SEEK

SEEK

to select a channel within

to fast seek through the

to view the previous/additional

In satellite radio mode (if equipped), press the previous/next channel. In CATEGORY MODE, press that category. Press and hold previous /next channels. In TEXT MODE, press display text. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 12. TEXT/SCAN:In radio and CD mode, press for a brief sampling of radio stations or CD tracks. Press again to stop. In MP3 mode, press and release to view the next 12 characters in the MP3 music name/file name of the current MP3 track and directory. Press and hold to hear a brief sampling of MP3 tracks. In MP3 directory mode, press and hold to hear a brief sampling of all tracks in the current directory. Press and hold again to stop. In satellite radio mode (if equipped), press and release to view the Satellite text message. Press and hold to hear a brief sampling of the next channels. Press and hold again to stop 13. AM/FM: Press to select AM/FM1/FM2 frequency band.

25

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

14. AUX: Press repeatedly to scroll through SAT1, SAT2, SAT3 (Satellite Radio modes, if equipped) and LINE IN (Auxiliary audio mode, if equipped). For further information on Auxiliary audio mode, refer to Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 16. CD: Press to enter CD/MP3
mode. If a CD/MP3 is already present in the system, the disc will begin to play. 17. CD slot: Insert a CD/MP3 label side up.

26

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Premium and Audiophile In-dash CD6/MP3 disc satellite compatible audio systems (if equipped)

Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

1. AM/FM: Press to select AM/FM1/FM2 frequency bands.

2. CD: Press to enter CD/MP3
mode. If a CD/MP3 is already in the system, the disc will start playing.

27

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

3. AUX: Press AUX repeatedly to cycle through SAT1, SAT2, SAT3
(Satellite radio modes, if equipped) and LINE IN (Auxiliary audio mode, if equipped). For more information on Auxiliary audio mode, refer to Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 4. EJ (CD eject): To eject an individual CD/MP3, press the eject control and select the correct slot number by pressing the corresponding memory preset. Press and hold to eject all loaded CDs. 5. CLK (Clock): Press CLK until SELECT HOUR or SELECT MINS is displayed. Press adjust the hours/minutes. Press CLK to display the time when the ignition is off. 6. MUTE: Press to mute the playing media. Press again to return to the playing media.

MENU

to

to make

7. MENU: Press MENU repeatedly to cycle through the following modes and use adjustment in those modes. SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press SEEK into the satellite radio menu. Press following options: • CATEGORY: Press SEEK

to enter

to cycle through the

or preset #6 to enter category mode.

MENU

to scroll through the list of available SIRIUS

Press or preset channel Categories (Pop, Rock, News, etc.) Press SEEK #6 when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of

28

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels.

• SAVE SONG: Press SEEK

or preset #6 to save the currently

playing song in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press SEEK or preset #6 while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 songs. If you attempt to save a song when the system is full, the display will read REPLACE SONG? Press SEEK or preset #6 to access the saved songs and press When the song appears in the display that you would like to replace, press SEEK display.

or preset #6. SONG REPLACED will appear in the

to cycle through the saved songs.

MENU

• DELETE SONG: Press SEEK

or preset #6 to delete a song from to cycle through the saved

MENU

or preset #6. The song will appear in the

the system’s memory. Press songs. When the song appears in the display that you would like to delete, press SEEK display for confirmation. Press SEEK or preset #6 again and the display will read SONG DELETED. If you do not want to delete the currently listed song, press CANCEL. Note: If there are no songs presently saved, the display will read NO SONGS.

to select either RETURN or

MENU

• DELETE ALL SONGS: Press SEEK

or preset #6 to delete all

songs from the system’s memory. The display will read ARE YOU SURE ? Press SEEK songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.

or preset #6 to confirm deletion of all saved

• ENABLE ALERTS / DISABLE ALERTS: Press SEEK

or preset

#6 to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

29

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. AUTOSET: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. BASS: Press

to decrease/increase the bass setting.

MENU

MENU

to set.

TREBLE: Press

MENU

to decrease/increase the treble setting.

to go to

to adjust the audio between the front and

MENU

MENU

MENU

to adjust the audio between the left

to scroll through MP3 display options (track #, normal

BALANCE: Press and right speakers. FADE: Press rear speakers. Next/previous directory: In MP3 mode, press MENU the previous/next directory. Flat file/directory mode: In MP3 mode, press MENU to access this to select flat file mode or directory mode. feature. Use Track #/ normal music name/file name: Press MENU to access and use music name or file name). 8. TUNE/DISC: Press to manually go down/up ( frequency, or to access another CD. Also use in menu mode to select various settings. In CATEGORY ALL, press available SIRIUS channel categories (Pop, Rock, News, etc.). Refer to Category under Menu for further information. 9. SHUFF (Shuffle): Press to play the tracks on the current CD/MP3 in random order. In MP3 directory mode, press to play the tracks within the current directory in random order.

to scroll through the list of

) the radio

30

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

10. COMP (Compression): In CD/MP3 modes, press to bring loud and soft passages together for a more consistent listening level. 11. REPEAT: Press to repeat the current CD/MP3 track. The selection will repeat continuously until deactivated. Press REPEAT again to deactivate. 12. FF (Fast forward): Press to manually advance in a CD/MP3
track. 13. REW (Rewind): Press to manually reverse in a CD/MP3 track.

REW

FF

REW

COMP

SHUFF

REPEAT

14. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. To select a preset station, press the desired memory preset. You can save up to 18 stations, six in AM, six in FM1 and FM2. In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 15. SEEK/TRACK: In radio, CD and MP3 flat file mode, press previous/next strong station or track. In MP3 directory mode, press to select the next/previous track in the current directory. In satellite radio mode (if equipped), press SEEK the previous/next channel. In CATEGORY MODE, press to select a channel within the chosen category. Press and hold

to seek to SEEK

to access the

SEEK

to fast seek through the previous /next channels.

In TEXT MODE, press display text.

SEEK

to view the previous/additional

31

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 16. TEXT/SCAN: In radio and CD mode, press for a brief sampling of radio stations or CD tracks. Press again to stop. In MP3 mode, Press and release to view the next 12 characters in the MP3 music name/file name of the current MP3 track and directory. Press and hold to hear a brief sampling of MP3 tracks. In MP3 directory mode, press and hold to hear a brief sampling of all tracks in the current directory. Press and hold again to stop. In satellite radio mode (if equipped), press and release to view the Satellite text message. Press and hold to hear a brief sampling of the next channels. Press and hold again to stop. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 17. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 18. LOAD: Press to load a CD/MP3. To load a CD/MP3 disc to a specific slot, press LOAD and select the slot number by pressing the memory preset buttons. Press and hold LOAD to autoload up to six discs. 19. CD slot: Insert a CD/MP3, label side up.

32

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Auxiliary input jack (Line in) Your vehicle may be equipped with an Auxiliary Input Jack (AIJ). The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. Required equipment: 1. Any portable music player designed to be used with headphones 2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end To play your portable music player using the auxiliary input jack: 1. Begin with the vehicle parked and the radio turned off. 2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off. 3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle. 4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level. 5. Turn the portable music player on and adjust the volume to 1/2 the volume. 6. Press AUX on the vehicle radio repeatedly until LINE IN appears in the display. You should hear audio from your portable music player although it may be low. 7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.

33

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Troubleshooting: 1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control. 2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume. 3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player. 4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player. 5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

weaker the signal and the weaker the reception.

34

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD/CD player care Do: • Handle discs by their edges only.

(Never touch the playing surface).

• Inspect discs before playing. • Clean only with an approved CD

cleaner.

• Wipe discs from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached.

35

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

Satellite radio information (if equipped) Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474. Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway

overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.

36

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include: • Hardware and limited subscription term, which begins on the date of • Online media player providing access to all 65 SIRIUS music channels

sale or lease of the vehicle.

over the internet (U.S. customers only).

For information on extended subscription terms, contact SIRIUS at 1–888–539–7474. Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes. Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously. Action Required No action required. This message should

Radio Display

ACQUIRING

Condition

Radio requires more than two seconds to produce audio for the

disappear shortly.

If this message does

not clear within a short period of time, or with an ignition key cycle, your receiver may have

a fault. See your

authorized dealer for

service.

37

SAT FAULT

selected channel. Internal module or

system failure

present.

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Radio Display

INVALID CHNL

Condition

Channel no longer

available.

UNSUBSCRIBED

Subscription not available for this

channel.

Action Required

This previously

available channel is no longer available. Tune to another channel. If the channel was one of your presets, you may choose another channel for that preset button.

Contact SIRIUS at 1–888–539–7474 to

subscribe to the channel or tune to another channel.

NO TEXT

Artist information not

available.

Artist information not available at this time on

NO TEXT

Song title information

not available.

NO TEXT

Category information

not available.

this channel. The system is working

properly.

Song title information not available at this time on this channel. The system is working

properly.

Category information not available at this time on this channel. The system is working

properly.

38

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Radio Display

Condition

NO SIGNAL

Loss of signal from

the SIRIUS satellite or SIRIUS tower to the

vehicle antenna.

Action Required You are in a location that is blocking the SIRIUS signal (i.e., tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When you move into an open area, the signal should

return.

UPDATING

CALL SIRIUS 1–888–539–7474

Update of channel programming in

No action required. The process may take up to

progress.

Satellite service has been deactivated by

SIRIUS Satellite

Radio.

three minutes. Call SIRIUS at

1–888–539–7474 to re-activate or resolve subscription issues.

39

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. : Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

position.

the air flow selector in the

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle during cold or warm weather, do not drive with the air flow selector in the OFF position. • Under normal weather conditions, do not leave the air flow selector in OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the air • Remove any snow, ice or leaves from the air intake area at the base of

flow to the back seats.

the windshield.

40

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. Temperature of airflow not adjustable. A/C: Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.

: Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

41

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

position.

the air flow selector in the

air flow selector in the OFF position.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of

airflow to the back seats.

the windshield.

To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the highest fan speed. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

42

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Lights

43

HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

or

Fog lamp control (if equipped) The fog lamps can be turned on when the headlamp control is in position and the the high beams are not turned on. Pull headlamp control towards you to turn fog lamps on. The fog lamp in the instrument indicator light cluster will illuminate.

High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Lights

Flash to pass Pull toward you slightly to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped) The daytime running light system turns the headlamps on, with a reduced light output. To activate: • the ignition must be in the ON position and • the headlamp system is in the OFF position or parking lamp position. Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Light (DRL) System

does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parking lamp operation. Move the control up or down to adjust the intensity of the panel lighting. Move the control to the full upright position, past detent, to turn on the interior lamps.

44

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Lights

Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full Dome/ON position to reset. This will ensure that your displays are visible under all lighting conditions.

AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed before leaving the assembly plant. If your vehicle is involved in an accident or if you have problems fixing the alignment of your headlamps, have them checked by a qualified service technician.

ground

Headlamp aim adjustment The headlamps are designed to be mechanically aimed, but can also be aimed visually by doing the following: 1. Park your vehicle on a level surface about 25 feet (7.6 meters) away from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line • (5) Center of headlamps • (6) Center line of the vehicle 2. The center of the headlamp is marked either on the lens (a circle or cross marker) or on the bulb shield, internal to the lamp (mark or feature). Measure the height from the center of your headlamp to the ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the wall or screen (1) at this height (masking tape works well).

45

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Lights

3. Turn on the low beam headlamps and open the hood. 4. Locate the high intensity area of the beam pattern and place the top edge of the intensity zone even with the horizontal reference line (4). If the top edge of the high intensity area is not even with the horizontal line, follow the next step to adjust it. 5. Locate the vertical adjuster for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up). 6. In addition to the horizontal line marked in step 2, a pair of vertical lines (5) must be marked at the center line of the headlamps on the wall or screen. 7. On the wall or screen, locate the high intensity area of the beam pattern. The left edge of the high intensity area should be even with the vertical line corresponding to the headlamp under adjustment. If the left edge of the high intensity area is not even with the vertical line, follow the next step to adjust it. 8. Locate the horizontal adjuster for each headlamp. Turn it clockwise or counterclockwise, to place the left edge of the high intensity area even with the vertical line corresponding to the headlamp under adjustment.

46

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Lights

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

INTERIOR LAMPS

Courtesy/reading lamps (if equipped) The courtesy lamp lights when: • any door is opened. • the instrument panel dimmer

switch is held up until the courtesy lamps come on.

• the remote entry controls are

pressed and the ignition is OFF.

BULB REPLACEMENT

Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

47

2008 Ranger (ran) Owners Guide (post-2002-fmt) USA (fus)

Lights

Trade number 3157 A (amber)

9007

9145

194 NA

Number of bulbs

Function Park/turn (front) Sidemarker lamps Headlamps Fog lamps (if equipped) Hi-mount brake lamp Rear stop/turn/tail lamps Rear license plate lamps Backup lamps Dome lamp Map/dome-SuperCab (if equipped) Map/dome-Regular Cab (if equipped) All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.

3155
912
