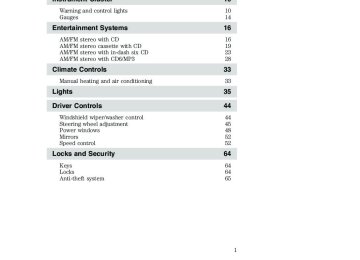

Table of Contents
Table of Contents
10
10
14
16
16
19
23
28
33
33
35
44
44
45
48
52
52
64
64
64
65
Introduction
Instrument Cluster
Warning and control lights Gauges
Entertainment Systems
AM/FM stereo with CD
AM/FM stereo cassette with CD
AM/FM stereo with in-dash six CD
AM/FM stereo with CD6/MP3
Climate Controls
Manual heating and air conditioning
Lights
Driver Controls
Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control
Locks and Security
Keys Locks Anti-theft system
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
75
75
81
92
100
113
113
117
121
133
143
145
145
146
146
147
154
162
167
168
176
177
Table of Contents
Seating and Safety Restraints
Seating Safety restraints Air bags Child restraints
Driving
Starting Brakes Transmission operation Vehicle loading Recreational towing
Roadside Emergencies
Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Jump starting Wrecker towing
Customer Assistance
Reporting safety defects (U.S. only)
Cleaning
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Maintenance and Specifications
Hood Engine compartment Engine oil Battery Fuel information Tire Information Part numbers Refill capacities Lubricant specifications
Accessories
Index
Table of Contents
183
184
184
185
188
195
209
220
221
223
230
233
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2004 Ford Motor Company
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Introduction
Introduction
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.
Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the
engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Introduction
Warning symbols on your vehicle
When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage. SPECIAL NOTICES
Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide. Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Introduction
Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.
Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger air bag.
Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
brake pedal;
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Introduction
Notice to owners of pickup trucks and utility type vehicles
Utility vehicles have a significantly higher rollover rate than other types of vehicles.
Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off road in the Driving chapter.
MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety Belt
Air Bag-Front
Air Bag-Side
Child Seat
Child Seat Installation Warning
Child Seat Tether Anchor
Anti-Lock Brake System
Child Seat Lower Anchor
Brake System
Brake Fluid - Non-Petroleum Based
Traction Control
AdvanceTrac娂
Master Lighting Switch
Hazard Warning Flasher
Fog Lamps-Front
Fuse Compartment
Fuel Pump Reset
Windshield Wash/Wipe
Windshield Defrost/Demist
Rear Window Defrost/Demist
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Introduction
Vehicle Symbol Glossary
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release Symbol
Panic Alarm
Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot
Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas
Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
MAX MIN
Emission System
Engine Air Filter
Passenger Compartment Air Filter
Jack
Check fuel cap
Low tire warning
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Instrument Cluster
Instrument Cluster
WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately. Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.
Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
10
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Instrument Cluster
Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.
BRAKE
Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.
ABS
Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated. Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.
Charging system: Illuminates when the battery is not charging properly.
11
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Instrument Cluster
Door ajar: Illuminates when the ignition is in the ON position and any door is open.
Four wheel drive low (if equipped): Illuminates when four-wheel drive low is engaged.
Four wheel drive high (if equipped): Illuminates when four-wheel drive high is engaged. Anti-theft system: Flashes when the Securilock娂 Passive Anti-theft System has been activated. Speed control (if equipped): Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.
4x4
LOW
4x4
Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.
DIGITAL DISPLAY WARNINGS Overdrive off: Displays when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the display stays on, have the transmission serviced soon, or damage may occur. Press the Trip Odometer reset button to display Odometer or Trip Odometer.
12
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Instrument Cluster
is high.
Check fuel cap: Displays when the fuel cap may not be properly installed. Continued driving with this display on may cause the Check Engine warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Press the Trip Odometer reset button to display Odometer or Trip Odometer. Check gauge: Displays when any of the following conditions has occurred: • The engine coolant temperature • The engine oil pressure is low. Press the Trip Odometer reset button to display Odometer or Trip Odometer. Low fuel: Displays when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter). Press the Trip Odometer reset button to display Odometer or Trip Odometer. Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.
13
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Instrument Cluster
GAUGES
Speedometer: Indicates the current vehicle speed.
Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
Never remove the coolant reservoir cap while the engine is running or hot.
Odometer: Registers the total miles (kilometers) of the vehicle.
14
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Instrument Cluster
Trip odometer: Registers the miles (kilometers) of individual journeys. To reset, depress and hold the control.
Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by arrows), have the vehicle’s electrical system checked as soon as possible. Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.
15
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
Entertainment Systems
AM/FM STEREO / SINGLE CD RADIO (IF EQUIPPED)
13
14 15 16 17 18
VOL - PUSH ON
12
11
SEEK
TUNE
AM FM
CD
BASS
TREB
FM1
ST
BAL
FADE
DISC
SCN
CLK
EJ
COMP
CD
CD
SHUFFLE
10
1. Balance: Press sound to the left/right speakers.
to shift
2. Fade: Press sound to the front/rear speakers.
to shift
3. SCN (Scan): Press to hear a brief sampling of all listenable stations or CD tracks. Press again to stop. 4. CLK: To set the hour, press and hold CLK and press SEEK to decrease hours.
or increase
the
CLK
16
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
To set the minute, press and hold CLK and press TUNE to decrease or increase 5. EJ (eject): Press to eject a CD.
the minutes.
SHUFFLE
SHUFFLE
CD
CD
Press and hold until
6. COMP (Compression): In CD mode, press to bring louder and softer levels into more comfortable listening level. The compression icon (c) will appear in the display. 7. Shuffle: Press to listen to the tracks on the CD in random order. Press again to turn off. 8. Memory presets: To set a station: Select frequency band AM/FM; tune to a station. Press and hold a preset button until sound returns. This radio is equipped with six station memory preset controls which allow you to set up to six AM stations and 12 FM stations (six in FM1 and six in FM2). 9. CD: desired point of a selection is reached. 10. desired point of a selection is reached. 11. Tune: In radio mode, press to move up or down the frequency band in individual increments. 12. Seek: Press and release for previous/next SEEK strong station, selection or track. 13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.
CD: Press and hold until
17
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
14. CD: Press to enter CD mode or to play a CD already loaded into the system. 15. AM/FM: Press to choose a frequency band in radio mode.
16. Bass: Press increase/decrease the bass output.
to
17. Treble: Press increase/decrease the treble output.
to
DISC
18. CD slot: Insert a CD printed side up. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.
18
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD (IF EQUIPPED)
Entertainment Systems
1. Power/volume: Press to turn ON/OFF; turn to increase/decrease volume.
SCAN
2. Scan: Press to hear a brief
sampling of all listenable stations,
tape selections or CD tracks. Press
again to stop.
3. CD slot: Insert a CD with the
label side up.
CD units are designed to play
commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Irregular
shaped CDs, CDs with a scratch protection film attached, and CDs
with homemade paper (adhesive) labels should not be inserted
19
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information. 4. Cassette door: Insert the cassette with the opening to the right.
5. Eject: Press to eject the cassette/CD. The radio will resume playing.
6. Tape: Press to start tape play. Press to stop tape during rewind/fast forward. CD: Press to start CD play. With the dual media audio, press CD to toggle between single CD and CD changer play (if equipped). 7. Mute: Press to MUTE playing media; press again to return to the playing media.
8. Auto: Press to set first six strongest stations (if available) into AM, FM1 or FM2 memory buttons; press again to return to normal stations.
9. Clock: Press to toggle between station mode and clock mode. Press and hold to set the clock. Press the SEEK
SEEK to decrease hours or to increase hours. Press
20
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
TUNE to decrease minutes or TUNE
the your vehicle has a stand alone clock this control will not function. 10. Balance: Press BAL; then press SEL left/right speakers.
to shift sound to the
to increase minutes. If
Fade: Press FADE; then press SEL rear/front speakers.
to shift sound to the
11. Memory preset buttons: To set a station: Select frequency band AM/FM, tune to a station, press and hold a preset button until sound returns. 12. Shuffle (CD): Press to play tracks in random order. Press again to disable.
13. Compression (CD): Press to bring soft and loud passages together for a more consistent listening level. A small “c” will appear in the display to indicate that compression is enabled. Press again to disable. Dolby威 noise reduction: 14. Works in tape mode only. Reduces tape noise and hiss; press to activate/deactivate. The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.
21
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
15. Side 1–2: Works in tape mode only. Press to play reverse side of the tape.
FF
16. Fast Forward (FF): In CD mode, press for a slow advance, press and hold for a fast advance. In TAPE mode, press FF to enable Fast Forward feature. Press FF or TAPE to resume tape play. 17. Rewind (REW): In CD mode, press for a slow reverse, press and hold for a fast reverse. In TAPE mode, press REW to enable the rewind feature. Press REW or TAPE to resume tape play. 18. Select (SEL): Use with Bass, Treble, Balance and Fade controls.
REW
SEL
19. Bass: Press BASS; then press to decrease/increase SEL the bass output.
Treble: Press TREB; then press SEL the treble output.
to decrease/increase
20. Tune: Works in radio mode only. Press TUNE frequency down/up.
to change
SEEK
TUNE
22
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
SEEK
TUNE
21. Seek: Press and release for previous/next SEEK strong station, selection or track.
22. AM/FM: Press to select AM/FM1/FM2 frequency band.
AUDIOPHILE SATELLITE READY AM/FM STEREO IN-DASH SIX CD RADIO (IF EQUIPPED)
for previous/next
1. Seek: Press and release SEEK strong station or track. 2. Rewind: In CD mode, press until the desired point on the current selection is reached. Fast forward: In CD mode, press until the desired point on the current selection is reached. TEXT: TEXT is only available when equipped with Satellite radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your Ford dealer.
23
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
Detailed Satellite instructions are included with the dealer installed kit.Dealer installed satellite kit only available in the continental United States. 3. DSP (Digital Signal Processing): Press DSP to access the Ambiance menu. Ambiance gives the feeling of “being there” to your music, creating increased clarity as well as an open and spacious feel to the music. Press SEL to engage/disengage. Turn the volume control to increase/decrease the level of ambiance. Occupancy: Press DSP again to change the occupancy mode to optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. Press SEL to scroll through settings. 4. Mute: Press to MUTE playing media; press again to return to playing media 5. Eject: Press to eject a CD. Press EJ and a memory preset to eject a specific disc. Press and hold to eject all loaded discs. 6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.
to decrease/increase
to decrease/increase
7. Select: Use with Bass, Treble, Balance, Fade and other menu selections.
8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers. Fade: Press FADE; then press SEL rear/front speakers.
to shift sound to the
24
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
9. Menu: Press MENU to access clock mode, RDS on/off, Traffic announcement mode, Program type mode, and Shuffle mode. The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data). Traffic information is not available in most U.S. markets. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Press MENU until FIND appears in the display. Use SEL to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Displays the station’s call letters and format. Press MENU until SHOW appears on display. Use SEL to select NONE, NAME or TYPE. Shuffle: Press to play tracks in a random order. Press MENU until SHUFFLE appears in the display. Use SEL to select SHUFFLE DISC, SHUFFLE TRAC or SHUFFLE OFF. Compression: Brings soft and loud CD passages together for a more consistent listening level. Press MENU until COMPRESS is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS ) the is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode.
) or decrease (
25
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
10. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.
11. SAT (if equipped): Your Audiophile radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your Ford dealer. Detailed satellite instructions are included with the dealer installed kit.Dealer installed satellite kit only available in the continental United States.
12. AM/FM: Press to select AM/FM frequency band. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM. AUTOSET will be shown. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press and hold again to disengage.
13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.
14. Load: Press to load a CD. Press LOAD and a memory preset to load to a specific slot. Press and hold to load up to six discs.
15. CD AUX: Press to access CD or
AUX mode.
CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Irregular
shaped CDs, CDs with a scratch protection film attached, and CDs
with homemade paper (adhesive) labels should not be inserted
into the CD player. The label may peel and cause the CD to
26
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
or
become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information. 16. Scan: Press SCAN to hear a brief sampling of radio stations or CD tracks. Press again to stop. 17. Disc/Tune: Press manually tune down/up the radio frequency band. CAT: CAT is only available when equipped with Satellite Radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your Ford dealer. Detailed Satellite instructions are included with the dealer installed kit.Dealer installed satellite kit only available in the continental United States. For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com
to
27
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
ADRENALIN CD/MP3 AUDIO SYSTEM — (IF EQUIPPED)
1. EJ (Eject): Press to eject a CD. Press EJECT and a memory preset to eject a specific disc. Press and hold to eject all loaded discs. 2. CD: Press to enter CD mode. If there is no disc in the system, insert a CD label side up. If a CD is already inserted, press CD to begin CD play. 3. CLK (Clock): Press CLK until SELECT HOUR /SELECT MINUTE is displayed. Press TUNE to decrease hours/minutes. 4. TUNE: Press to manually go up or down the radio frequency, or to access another CD. Also use in menu mode to select various settings.
or increase
the
28
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
5. TEXT: In MP3 track title/file name mode, press to view the next 12
characters in the MP3 music name/file name of the current MP3 track
and directory.
6. SHUF (Shuffle): Press to play
the tracks on the current CD/MP3 in
random order. In MP3 directory
mode, press to play the tracks within the current directory in random
order.
7. COMP (Compression): In
CD/MP3 modes, press to bring soft
and loud passages together for a
more consistent listening level.
8. MENU:Press TUNE to toggle
through the following modes
to make
and
adjustments in these modes.
Autoset: Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2. Press
to set. When the six strongest
MENU to access, use
stations are filled, the station stored in preset 1 will begin playing. If
there are less than six strong stations, the system will store the last one
in the remaining presets. Press again to disengage.
MENU
TUNE
BASS: Press
TUNE
to decrease/increase the bass levels.
TUNE
TUNE
to decrease/increase the treble
to adjust the audio between the
TREB (treble): Press levels. BAL (Balance):Press left and right speakers. FADE: Press TUNE rear speakers. Flat file/directory mode:Press or Directory mode. Normal/Track Title/File Name: In directory mode, press MENU until to access the DIR NO XXX appears in the display. Press previous/next directory.
to adjust the audio between the front and
to select Flat file mode
TUNE
TUNE
29
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
9. ON/OFF/VOL (Volume): Press
to turn the system ON/OFF. Turn to
adjust the volume levels.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a “nominal” listening level when the
ignition is turned back on.
10. SCAN: In radio, CD and MP3
flat file mode, press for a brief
sampling of radio stations or
CD/MP3 tracks. In MP3 directory
mode, press to hear a brief sampling of all tracks in the current
directory. Press again to stop.
11. REPEAT: Press to repeat the
current CD/MP3 track.
12. FF (fast forward): Press to manually advance in a CD track.
13. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. To select a preset station, press the desired memory preset button. 14. MUTE: Press to mute the playing media. Press again to return to the playing media. 15. REW (rewind): Press to manually reverse a CD track.
16. SEEK: In radio, CD and MP3
to
flat file mode, press
access the next/previous strong
station or track. In MP3 directory mode, press to select the next/previous
track in the current directory.
30
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems
17. AM/FM: Press to select AM/FM frequency band.
18. LOAD: Press to load a CD/MP3
disc. Press LOAD and a memory
preset to load a specific slot. Press
and hold to autoload up to six discs.
19. CD slot: Insert a CD, label side up.
RADIO FREQUENCIES AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz
weaker the signal and the weaker the reception.
RADIO RECEPTION FACTORS There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
CASSETTE/PLAYER CARE
Do:• Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or
and turning the hub.
cold to reach a moderate temperature before playing.
31
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Entertainment Systems • Clean the cassette player head with a cassette cleaning cartridge after
10–12 hours of play to maintain good sound/operation.
Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being
played.
CD/CD PLAYER CARE Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
of time.
Don’t:
• Expose discs to direct sunlight or heat sources for extended periods
• Insert more than one disc into each slot of the CD changer magazine.
• Clean using a circular motion.
CD units are designed to play commercially pressed 12 cm (4.75
in) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Irregular
shaped CDs, CDs with a scratch protection film attached, and CDs
with homemade paper (adhesive) labels should not be inserted
into the CD player. The label may peel and cause the CD to
become jammed. It is recommended that homemade CDs be
identified with permanent felt tip marker rather than adhesive
labels. Ball point pens may damage CDs. Please contact your
dealer for further information.
AUDIO SYSTEM WARRANTY AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.
32
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Climate Controls
Climate Controls
MANUAL HEATING AND AIR CONDITIONING SYSTEM 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. Temperature of airflow not adjustable. A/C : Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.
: Distributes outside air through the instrument panel vents.
O (OFF): Outside air is shut out and the fan will not operate.
: Distributes outside air through the instrument panel vents and the
floor vents.
: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and
floor vents.
: Distributes outside air through the windshield defroster vents.
position.
the air flow selector in the
air flow selector in the OFF or MAX A/C position.
Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of
airflow to the back seats.
the windshield.
33
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Climate Controls
To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Modulate the temperature control to maintain comfort. 4. Set the highest fan speed. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.
34
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Lights
Lights
HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.
Turns the headlamps on.
Autolamp system The autolamp system sets the headlamps to turn on and off automatically. The autolamp control, located on the headlamp control, may be set to: • turn on the lamps automatically at night • turn off the lamps automatically during the daylight • keep the lamps on for up to three minutes after the key is turned to
OFF.
To turn the autolamps on, rotate the control counterclockwise to Autolamp exit time delay, manual sequence The autolamp delay time is preset to 20 seconds. To change the delay time (up to a maximum of 3 minutes), perform the following procedure: 1. Start with the ignition in the RUN position and the headlamp switch in the autolamp position. Turn the ignition OFF. 2. Turn the headlamp switch OFF. 3. Turn the ignition to the RUN position. 4. Turn the ignition OFF. 5. Turn the headlamp switch to the autolamp position. • Note: Steps 2 through 5 must be performed within a 10 second • At this point, the headlamps will turn on. 6. Wait until the desired autolamp delay time has passed (maximum three minutes), then turn the headlamp switch off. • At this point, the headlamps will turn off and the autolamp delay time
period.
will be set.
35
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Lights
and
Foglamp control (if equipped) The foglamps can be turned on only when the headlamp control is in position and the the high beams are not turned on. Pull headlamp control towards you to turn foglamps on. The foglamp will illuminate indicator light when foglamp is activated. Push the headlamp control towards the instrument panel to deactivate the foglamps.
High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.
Flash to pass Pull the lever toward you to activate. Release the lever to deactivate.
36
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Lights
PANEL DIMMER CONTROL Move the control up and down to adjust the intensity of the panel lighting. Operates only when the exterior lights are switched on. Move the control to the full upright position (past detent) to turn on the interior lamps. Move the control to the full down position (past detent) to prevent interior lamps from illuminating when the doors are opened (if equipped). Note: On some models, when the instrument panel dimmer switch is rotated all the way up (past the detent), turning on the interior dome lamp, the exterior rear cargo lamp is also turned on.
AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed before leaving the assembly plant. If your vehicle is involved in an accident or if you have problems fixing the alignment of your headlamps, have them checked by a qualified service technician.
Headlamp aim adjustment The headlamps on your vehicle can only be vertically adjusted. Your vehicle does not require horizontal aim adjustments. To adjust the headlamps: 1. Park your vehicle on a level surface about 7.6 meters (25 feet) away from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern. • (1) Eight feet • (2) Center height of lamp to • (3) Twenty-five feet • (4) Horizontal reference line
ground
37
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Lights
2. The center of the headlamp has a 3.0 mm circle on the lens. Measure the height from the center of your headlamp to the ground (2) and mark a 2.4 meter (8 foot) long horizontal line on the plain surface (1) at this height (masking tape works well). 3. Turn on the low beam headlamps. The brightest part of the light should be below the horizontal line (4). If it is above the line the headlamp will need to be adjusted. 4. Open the hood.
5. Locate the vertical adjuster for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up). Note: Use a 4 mm socket or box wrench to turn the vertical adjuster control. 6. Horizontal aiming is not required for this vehicle and is non-adjustable.
TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn
turn signal.
signal.
38
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
INTERIOR LAMPS
Lights
Courtesy/reading lamps The courtesy lamp lights when: • any door is opened. • the instrument panel dimmer • the UNLOCK control of the
switch is rotated past the detent.
remote entry controls is pressed and the ignition is OFF.
The reading lamps can be turned on by pressing the rocker controls next to each lamp. If equipped with Remote Keyless Entry, the courtesy lamp will illuminate whenever any door is opened and will remain on for 25 seconds after the door is shut or when the ignition is turned to the ON position.
BULBS
Replacing the interior bulbs Check the operation of the bulbs frequently. To replace any of the interior bulbs, see a dealer or qualified technician.
Replacing exterior bulbs Check the operation of all the bulbs frequently.
Replacement bulbs Function
Headlamps Park/turn/side marker lamps Rear stop/tail/turn lamps Backup lamps Hi-mount brake lamp Foglamps Rear license plate lamps
Number of
Trade number
bulbs
9007
3157 AK (Amber)
3157K 3156K
922
9145
168
39
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Lights
Function
Overhead map lamps
Number of
Trade number
bulbs
PC579
(XU5B-13466–AA)
Cargo lamp Map lamps Dome lamp Front door courtesy lamp (if equipped) Ashtray lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights – see your dealer.
906
168
161
211–2
168 (T10)
Replacing headlamp bulbs To remove the headlamp bulb: 1. Make sure headlamp switch is in OFF position, then lift hood and remove the plastic headlamp cover. 2. At the back of the headlamp, remove the two retainer pins then pull headlamp forward.
3. Disconnect the electrical connector.
40
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Lights
4. Remove the bulb retaining ring.
5. Carefully pull the old bulb out of the lamp assembly.
Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Reverse steps to reinstall the bulb(s). Replacing front parking lamp/turn signal bulbs 1. Make sure the headlamp switch is in the OFF position and open the hood. 2. Remove screw from the lamp assembly. 3. Disengage lamp assembly.
4. Remove the bulb socket. 5. Carefully pull bulb straight out of socket and push in the new bulb.
Reverse steps to reinstall the bulb(s).
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
41
Lights
Replacing tail lamp/turn/backup lamp bulbs 1. Make sure the headlamp switch is in the OFF position and lower the tailgate to expose the lamp assembly. 2. Remove the three rubber plugs, screws and the lamp assembly from vehicle. 3. Rotate bulb socket counterclockwise and remove from lamp assembly. 4. Carefully pull the bulb straight out of the socket.
Reverse steps to reinstall the bulb(s). Replacing foglamp bulbs 1. Make sure the headlamp switch is in the OFF position and then remove the splash shield, by removing the two screws on the front of the fenderwell. 2. Remove the bulb socket from the foglamp by turning counterclockwise. 3. Disconnect the electrical connector from the foglamp bulb. Reverse steps to reinstall the bulb(s).
42
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Lights
Replacing high-mount brakelamp and cargo lamp bulbs To remove the brakelamp assembly: 1. Remove the two screws and lamp assembly from vehicle. 2. Remove the bulb socket from lamp assembly by turning it counterclockwise and pull the bulb straight out.
Reverse steps to reinstall the bulb(s). Replacing license plate lamp bulbs 1. Make sure the headlamp switch is in the OFF position, then remove the license plate assembly. 2. Remove the bulb socket from the lamp assembly by turning it counterclockwise and pulling the bulb straight out.
Reverse steps to reinstall the bulb(s).
43
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Driver Controls
Driver Controls
MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers. Speed dependent wipers: When the wiper control is on, the speed of the wipers will automatically adjust with the vehicle speed. The faster your vehicle is travelling the faster the wipers will go. Windshield washer: Push the end of the stalk: • briefly: causes a single swipe of the wipers without washer fluid. • a quick push and hold: the wipers
will swipe three times with washer fluid.
• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.
Changing the wiper blades 1. Pull the wiper arm away from the vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm. 2. Attach the new wiper to the wiper arm and press it into place until a click is heard. 3. Replace wiper blades every 6 months for optimum performance.
44
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Driver Controls
TILT STEERING WHEEL (IF EQUIPPED) To adjust the steering wheel: 1. Pull and hold the steering wheel release control toward you. 2. Move the steering wheel up or down until you find the desired location. 3. Release the steering wheel release control. This will lock the steering wheel in position.
Never adjust the steering wheel when the vehicle is moving.
CENTER CONSOLE Your vehicle may be equipped with a variety of console features. These include: • Utility compartment with compact disc storage • Auxiliary power point • Cupholders • Ashcup • Removable utility bag • Writing surface with note pad • Coin holder • Armrest
Use only soft cups in the cupholder. Hard objects can injure you in a collision.
Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety
45
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Driver Controls
and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in vehicle communications systems, telematics devices and portable two-way radios.
A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to
avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.
OVERHEAD CONSOLE (IF EQUIPPED) The appearance of your vehicle’s overhead console will vary depending on your option package.
Storage compartment (if equipped) Press the OPEN control to open the door slightly. Pull the door down to open. The storage compartment may be used to secure sunglasses or a similar object.
Install a garage door opener (if equipped) The storage compartment can be used to hold a variety of aftermarket garage door openers. To install your garage door opener: 1. Open the storage compartment door. 2. Remove the storage clip and stow it away.
46
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Driver Controls
3. Place the Velcro娂 strip onto the back of the garage door opener control. 4. Adhere the back of garage door opener control to the Velcro娂 strip found inside the storage compartment. Make sure that the controls for the garage door opener face outward. 5. Place the height adjusters onto the back of the storage compartment door. Add as many adjusters as needed to activate the garage door opener. 6. Close the storage compartment door and press the garage door opener control to verify that it works. If not, you may need to add more adjusters.
AUXILIARY POWER POINT The power point is an additional power source for electrical accessories. NOTE: Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty. • With a full console:
47
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Driver Controls • Without a full console:
Do not plug optional electrical accessories into the cigarette lighter. Use the power point. Do not use the power point for operating the cigarette lighter element. The Maximum power each power point can supply depends on the fuse rating. For example: a 20A fuse should supply a maximum of 240 Watts. Exceeding these limits will result in a blown fuse. Always keep the power point caps closed when not being used.
Truck bed auxiliary power point An additional auxiliary power point is located in the bed of the truck. Lift the cover to access the auxiliary power point.
POWER WINDOWS
Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure
themselves.
48
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Driver Controls
When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.
Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.
One touch down Allows the driver’s window to open fully without holding the control down. Press completely down on AUTO and release quickly. Press again to stop.
Window lock The window lock feature allows only the driver to operate the power windows. To lock out all the window controls except for the driver’s press the left side of the control. Press the right side to restore the window controls.
Accessory delay With accessory delay, the radio, windows, and moonroof operate for up to ten minutes after the ignition switch is turned from the ON to the OFF position or until any door is opened.
Power Down Back Window To operate the Power Down Back window, the ignition switch must be in the ON or ACC position (or with accessory delay power enabled).
49
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Driver Controls
The power down back window has three window position selections: • Fully open • Vent • Fully closed Turn control counter-clockwise and release to lower window all the way to the full open position.
All rear seat occupants and/or cargo must be properly restrained and clear of the back window opening before operating the
power down rear window.
Turn control clockwise and release to raise the window all the way to the full closed position. Push control once to move window (up or down) to the vent position (opens approximately 2.00 inches for cab ventilation). If the window is already in the vent position and the control is pressed, no movement will occur.
Normal Operation If an “up” command is selected and the ignition is switched to OFF or START during window travel, the window will (or with accessory delay power enabled): • stop if it is between the vent position and fully closed or • continue to move up to the vent position if it is between vent and fully
open.
If a “down” or “vent” command is selected and the ignition is switched to OFF or START during window travel (or with accessory delay power enabled), the window will move to the fully open or vent position and then stop. The “down” command is the only one allowed after the ignition has been switched to OFF or START (or with accessory delay power enabled) while the window is moving.
50
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Driver Controls
Bounce-Back When the back window is moving upward and an obstacle interferes with the window’s movement, the back window will reverse direction and move toward the fully open position. This is known as “bounce-back”. Security Override If, during a bounce-back condition, the control is held in the clockwise (“up”) direction for at least two seconds, the back window will travel up with no bounce-back protection. If the control is released before the window reaches fully closed or the ignition is switched to OFF or START (or with accessory delay power enabled), the back window will reverse direction with bounce-back re-enabled. The following are possible reasons for using the security override: • Ice on the window causing a restriction. • Window unexpectedly reverses. Position recovery mode If the window fails to operate in “normal” operation mode, the control can be turned and held in the active position (up or down window direction) which will move the window in increments of approximately 15mm (0.6 inches) in the selected direction. (The “vent” feature is inoperable in this mode.) This feature allows the window to be closed. Once the window has reached the full closed position, the window should again operate in the “normal” operation mode. If the window still does not operate correctly, see your dealer for service.
AUTOMATIC DIMMING REAR VIEW MIRROR Your vehicle may be equipped with an inside rear view mirror with an auto-dimming feature. When the auto-dimming mirror is turned on, as indicated by an illuminated green LED to the left of the button on mirror, it will detect bright lights(glare) from behind the vehicle, and will change from the normal, high reflective state, to the darkened state to minimize glare. When the auto-dimming mirror is turned on, it will automatically return to the normal, high reflective, state whenever the vehicle is placed in R(reverse) to ensure a clear view while backing up. Do not block the sensor located to the right of the mirror button or the sensor located on the back side of the mirror as this may impair mirror performance.
51
2004 P207 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA English (fus)
Driver Controls
to adjust the left to adjust the right
Power side view mirrors (if equipped) To adjust your mirrors: 1. Select mirror or mirror. 2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to disable the adjust function.
Fold-away mirrors Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can
maintain a speed of 30 mph (48
km/h) or more without keeping your
foot on the accelerator pedal. Speed
control does not work at speeds
below 30 mph (48 km/h).
Do not use the speed control in heavy traffic or
on roads that are winding, slippery
