2010 Ford Explorer Sport TRAC Owners Manual

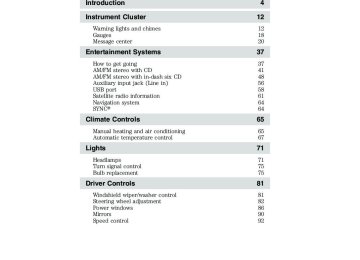

Table of Contents

12

12
18
20
37

37
41
48
56
58
61
64
64
65

65
67
71

71
75
75
81

81
82
86
90
92

Introduction

Instrument Cluster

Warning lights and chimes Gauges Message center

Entertainment Systems

How to get going AM/FM stereo with CD AM/FM stereo with in-dash six CD Auxiliary input jack (Line in) USB port Satellite radio information Navigation system SYNC威

Climate Controls

Manual heating and air conditioning Automatic temperature control

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

107

107
107
118
122

122
132
147
162
180

182
185
197
202
210
216
217

217
222
225
233
238
251

251
252
253
254
261
269
270
275

Table of Contents

Locks and Security

Keys Locks Anti-theft system

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes AdvanceTrac威 Transmission operation Reverse sensing system

Roadside Emergencies

Getting roadside assistance Hazard flasher control Fuel pump shut-off switch Fuses and relays Changing tires Wheel lug nut torque Jump starting Wrecker towing

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Table of Contents

Customer Assistance

Reporting safety defects (U.S. only) Reporting safety defects (Canada only)

Cleaning

Maintenance and Specifications

Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories

Ford Extended Service Plan

Index

277

283
283
284

292

294
297
302
304
310
324
325
326
331
334

336

339

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2009 Ford Motor Company

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Introduction

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

WARNING: Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel

supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Introduction

Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Notice to owners of pickup trucks and utility type vehicles

WARNING: Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package.

Using your vehicle as an ambulance Do not use this vehicle as an ambulance.

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Introduction

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

NOTICE TO OWNERS WITH 20 INCH WHEELS AND TIRES When equipped with 20 inch wheels and tires the vehicle is designed for on-road use only and not off-road use. Note: When first driving the vehicle after it has been parked for a period of time, you may experience a temporary ride disturbance. This is a characteristic of the tires and should be no reason for concern. The condition should correct itself within 5-15 miles (8-25 km) of driving. If the disturbance persists, have the tires serviced by an authorized dealer. Correct tire pressure is important to payload and proper ride and handling attributes. Check your vehicle’s Safety Compliance Certification Label or Tire Label for the proper tire pressure levels.

DATA RECORDING

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were

buckled;

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

and/or the brake pedal;

Introduction • how far (if at all) the driver was depressing the accelerator • how fast the vehicle was traveling; • where the driver was positioning the steering wheel; and • longitude and latitude of vehicle at last location, using GPS

technology and advanced vehicle sensors.

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. To the extent that any law pertaining to Event Data Recording applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of electronically or verbally disclosing to 911 operators the vehicle location, and/or other details about the vehicle or crash to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the feature. See your SYNC威 supplement for more information. Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”) only to help provide you with the directions, traffic reports, or business searches you request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Introduction

CELL PHONE USE The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings.

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Child Seat Lower Anchor

Brake System

Anti-Lock Brake System

Parking Brake System

Brake Fluid - Non-Petroleum Based

Parking Aid System

Stability Control System

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

10

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Service Engine Soon

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

11

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES Standard instrument cluster

Optional instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Note: Some warning lights will display in the message center as words and function the same as the warning light. Note: Depending on which options your vehicle has, some indicators may not be present in your vehicle. 12

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and contact your authorized dealer as soon as possible. If the light remains on while driving, the temperature of the engine may be too high; refer to Engine coolant in the Maintenance and Specifications chapter.

WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel

system, interior floor coverings or other vehicle components, possibly causing a fire.

Powertrain malfunction indicator: Illuminates when a powertrain, a 4x4 or an AWD fault has been detected. Contact your authorized dealer as soon as possible. • Standard instrument cluster

• Optional instrument cluster

13

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, contact your authorized dealer as soon as possible. Illumination after releasing the parking brake indicates low brake fluid level. Contact your authorized dealer as soon as possible.

BRAKE

WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking

performance may occur. It will take you longer to stop the vehicle. Contact your authorized dealer as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

ABS

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected. Contact your authorized dealer as soon as possible. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, contact your authorized dealer as soon as possible. A chime will sound if there is a malfunction in the indicator light. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature,

14

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

Charging system: Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component. • Standard instrument cluster

• Optional instrument cluster

Engine oil pressure: Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant temperature: Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter. • Standard instrument cluster

• Optional instrument cluster

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

15

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on, contact your authorized dealer as soon as possible. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter. Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

O/D OFF

O/D off: Illuminates when the overdrive function of the transmission has been turned off; refer to the Driving chapter. AdvanceTrac威: Flashes when the AdvanceTrac威 with RSC威 system is active. Illuminates solid when the system has been disabled (by the driver or as a result of a system failure); refer to the Driving chapter for more information. Four wheel drive low (if equipped): Illuminates when four-wheel drive low is engaged. If the light fails to illuminate when the ignition is turned on, or remains on, contact your authorized dealer as soon as possible. Four wheel drive high (if equipped): Illuminates when four-wheel drive is engaged. If the light fails to illuminate when the ignition is turned on, or remains on, contact your authorized dealer as soon as possible.

4x4
LOW

4x4

16

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

Door ajar: Illuminates when the ignition is in the on position and any door is open.

Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

Low washer fluid (if equipped): Illuminates when the windshield washer fluid is low.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Turn signal warning chime: Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 2 miles (3.2 km). Parking brake on warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). Message center activation chime: Sounds when the following warnings; DOOR AJAR, LOW FUEL LEVEL or LOW TIRE PRESSURE appear in the message center display for the first time.

17

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating; refer to Engine coolant in the Maintenance and Specifications chapter. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

18

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Odometer: Registers the total miles (kilometers) of the vehicle. • Standard instrument cluster

Instrument Cluster

• Optional instrument cluster Refer to Message center in this chapter on how to switch the display from English to Metric.

Trip odometer: Registers the miles (kilometers) of individual journeys. • Standard instrument cluster Press the SELECT/RESET control once to switch from the odometer to the TRIP A feature. Press the control again to select the TRIP B feature. To reset the trip, press and hold the control again until the trip reading is 0.0 miles. • Optional instrument cluster: see TRIP A/B under Message center in this chapter. Note: Outside air temperature will only be displayed in the instrument cluster message center on vehicles with manual climate control.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

19

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. The FUEL icon and arrow indicates which side of the vehicle the fuel door is located. STANDARD MESSAGE CENTER (IF EQUIPPED) Your vehicle’s message center allows you to configure/personalize certain vehicle options to suit your needs. The message center is also capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime. The message center display is located in the instrument cluster. Selectable features (information menu) Press and release the SELECT/RESET stem to scroll and reset the following functions. Select or reset the function by holding the SELECT/RESET stem for more than two seconds: TRIP A/B Registers the distance of individual journeys. Press the SELECT/RESET stem once to switch from the odometer to the TRIP A feature. Press the control again to select the TRIP B feature. To reset the trip, press and hold the stem until it resets. Refer to UNITS later in this section to switch the display from Metric to English. MILES (km) TO EMPTY This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. 20

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel. The DTE function will display FUEL LEVEL LOW and sound a tone for one second when you have approximately 50 miles (80 km) to empty. If you reset this warning message, this display and tone will return within 10 minutes. DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected. AVERAGE FUEL XX.X MPG / (L/100km) Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km. If you calculate your average fuel economy by dividing miles traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons: • Your vehicle was not perfectly level during fill-up • Differences in the automatic shut-off points on the fuel pumps at • Variations in top-off procedure from one fill-up to another • Rounding of the displayed values to the nearest 0.1 gallon (liter) 1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average. 2. Record the highway fuel economy for future reference. It is important to press the SELECT/RESET stem (press and hold for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings. SETUP MENU HOLD RESET When this appears, press and hold the SELECT/RESET stem to reach the setup menu. Briefly press the SELECT/RESET stem to scroll through the setup menu items. If the SELECT/RESET stem is not pressed within four seconds, the message center returns to the info menu.

service stations

21

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

The following setup features are available: SYSTEM CHECK HOLD RESET Press and hold the SELECT/RESET stem to select system check when this is displayed in the message center. The message center will cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for two seconds. Pressing the SELECT/RESET stem cycles the message center through each of the systems being monitored. The sequence of the system check report and how it appears in the message center is as follows: 1. OIL LIFE 2. CHARGING SYSTEM 3. WASHER FLUID 4. DOOR AJAR 5. EXTERIOR LAMP 6. BRAKE FLUID LEVEL 7. PARK BRAKE 8. MILES TO EMPTY 9. FUEL LEVEL LOW (will only display if 50 miles [80 km] or less to empty) AWD AUTO / LOCKED (4.6L engine vehicles only) This displays the AWD locked function. 1. Press and hold the SELECT/RESET stem within four seconds to turn the AWD system to the auto / locked mode. 2. Press the SELECT/RESET stem for the next setup menu item or wait for more than four seconds to return to the info menu. Note: When the AWD system is in the LOCKED mode, the 4X4 indicator will be illuminated. UNITS Displays the current units in English or Metric. 1. Press and hold the SELECT/RESET stem to change from English to Metric. 2. Press the SELECT/RESET stem for the next setup menu item or wait for more than four seconds to return to the info menu. 22

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

ENGLISH / SPANISH / FRENCH / JAPANESE Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, French, or Japanese. 1. Press and hold the SELECT/RESET stem to select a new language. 2. Press the SELECT/RESET stem for the next setup menu item or wait for more than four seconds to return to the info menu. AUTOLAMP This feature keeps your headlights on for up to three minutes after the ignition is switched off. 1. Press and hold the SELECT/RESET stem to select the new autolamp delay time (in seconds) values of 0, 10, 20, 30, 60, 90, 120 or 180. 2. Press the SELECT/RESET stem for the next setup menu item or wait for more than four seconds to return to the info menu. AUTOLOCK This feature automatically locks all vehicle doors when the vehicle is shifted into any gear and when the vehicle is in motion over 13 mph (20 km/h) or higher. 1. Press and hold the SELECT/RESET stem to to turn autolock on or off. 2. Press the SELECT/RESET stem for the next setup menu item or wait for more than four seconds to return to the info menu. AUTOUNLOCK This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off. 1. Press and hold the SELECT/RESET stem to to turn autounlock on or off. 2. Press the SELECT/RESET stem switch for the next setup menu item or wait for more than four seconds to return to the info menu. PARK AID (if equipped) This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected. 1. To disable/enable the reverse sensing system feature with the vehicle in P (Park), select this function from the setup menu or put the vehicle in R (Reverse). 2. Press and hold the SELECT/RESET stem to turn park aid on or off. 3. Press the SELECT/RESET stem for the next setup menu item or wait for more than four seconds to return to the info menu.

23

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

TRAILER SWAY This feature uses the electronic stability control to mitigate trailer sway, 1. Press and hold the SELECT/RESET stem to turn trailer sway on or off. 2. Press the SELECT/RESET stem for the next setup menu item or wait for more than four seconds to return to the info menu. HOLD RESET IF NEW OIL To reset the oil monitoring system to 100% after each oil change (approximately 7,500 miles [12,000 km] or six months) perform the following: 1. Press and hold the SELECT/RESET stem for more than two seconds. Oil life is set to 100% and OIL LIFE SET TO 100% is displayed. Note: To change oil life 100% miles value from 7,500 miles (12,000 km) or six months to another value, proceed to Step 3. 2. Once OIL LIFE SET TO 100% is displayed, release, press and hold the SELECT/RESET stem for more than two seconds to change the oil life start value. Each release, press and hold will reduce the value by 10%. 3. After setting the oil life start value, press the SELECT/RESET stem for the next setup menu item or wait for more than four seconds to return to the info menu. Note: Oil Life Start Value of 100% equals 7,500 miles (12,000 km) or six months. For example, setting oil life start value to 60% sets the oil life start value to 3,000 miles (4,800 km) and 120 days. COMPASS (if equipped) The compass heading is displayed as one of N, NE, E, SE, S, SW, W and NW in the message center display. The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy. Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone/calibration adjustment. Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four 24

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Do the following to set the proper zone: Compass zone adjustment (if equipped) 1. Determine which magnetic zone you are in for your geographic location by referring to the zone map. 2. Turn ignition to the on position.

23

15

14
13
12

7 8 9 1011

3. Press and hold the SELECT/RESET stem to scroll through the information displays until the message center displays HOLD RESET FOR SETUP MENU. 4. Press and hold the SELECT/RESET stem until the message center displays HOLD RESET FOR SYSTEM CHECK. Do not hold the stem down at this point as you do not want to enter the system check. Instead, quickly release the stem and repeatedly press it again to scroll through the setup menu until the message center displays COMPASS ZONE XX. 5. Press and hold the SELECT/RESET stem for approximately two seconds to enter the compass zone adjustment mode. 6. Press and release the SELECT/RESET stem until the desired zone number appears. 7. Release the SELECT/RESET stem and allow the setup timer to expire to exit the procedure. Compass calibration adjustment Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut. 1. Start the vehicle. 2. Press and release the SELECT/RESET stem to scroll through the information displays until the message center displays HOLD RESET FOR SETUP MENU.

25

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

3. Press and hold the SELECT/RESET stem until the message center displays HOLD RESET FOR SYSTEM CHECK. Do not hold the stem down at this point as you do not want to enter the system check. Instead, quickly release the stem and repeatedly press it again to scroll through the setup menu until the message center displays COMPASS ZONE XX. 4. Press and hold the SELECT/RESET stem for approximately two seconds until the message center to enter the compass zone adjustment mode. 5. Press and hold the SELECT/RESET stem until the message center displays CIRCLE SLOWLY TO CALIBRATE. This step may require up to five circles to complete the calibration. NOTE: : If the SELECT/RESET stem is pressed during the calibration or three minutes has elapsed since the beginning of the calibration without driving the vehicle, the message center reverts back to normal operation and the CAL will display until a successful calibration is carried out. 6. Slowly drive the vehicle in a circle less than 3 mph (5 km/h ) until the CIRCLE SLOWLY TO CALIBRATE message changes to CALIBRATION COMPLETED. System warnings System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems. In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds. The message center will display the last selected feature if there are no more warning messages. Types of messages and warnings: • Some messages will appear briefly to inform you of something you • Some messages will appear once and then again when the vehicle is • Some messages will reappear after clearing or being reset if a problem • Some messages can be acknowledged and reset by pressing the

or condition is still present and needs your attention.

may need to take action on or be informed of.

restarted.

SELECT/RESET stem. This allows you to use the full message center functionality by clearing the message.

26

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

DOOR AJAR — Displayed when a door is not completely closed. REMOVE OBJECTS NEAR PASS SEAT — Displayed when objects are by the passenger seat. After the objects are moved away from the seat, if the warning stays on or continues to come on contact your authorized dealer. SERVICE RSC NOW — Displayed when the system is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage when the engine is running. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, have the electrical system checked as soon as possible. FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition. PARK BRAKE ENGAGED — Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible. CHECK BRAKE SYSTEM — Displayed when the braking system is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. CHECK PARK AID (if equipped) — Displayed when the transmission is in R (Reverse) and the reverse sensing system (park aid) is disabled. LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. TIRE PRESSURE MONITOR FAULT — Displayed when the Tire Pressure Monitoring System is malfunctioning. If the warning stays on or continues to come on, have the system inspected by your authorized dealer. TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on, have the system inspected by your authorized dealer.

27

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake Fluid in the Maintenance and Specifications chapter. WASHER FLUID LEVEL LOW — Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and Specifications chapter. OIL LIFE CHANGE SOON — Displayed when the engine oil life remaining is 10% or less. OIL CHANGE REQUIRED — Displayed when the oil life left reaches 0%. TRAILER SWAY REDUCE SPEED — Displayed when your trailer starts to sway when towing. Refer to Trailer sway control in the Driving chapter for more information. FOR 4X4 LOW STOP VEHICLE (if equipped) — Displayed when 4X4 LOW is selected while the vehicle is moving. For more information, refer to Using the Control Trac 4WD system in the Driving chapter. FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer to Using the Control Trac 4WD system in the Driving chapter. TO EXIT 4X4 LOW STOP VEHICLE (if equipped) — Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. For more information, refer to Using the Control Trac 4WD system in the Driving chapter. TO EXIT 4X4 LOW SHIFT TO N (if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Using the Control Trac 4WD system in the Driving chapter.

OPTIONAL MESSAGE CENTER (IF EQUIPPED) Your vehicle’s message center allows you to configure/personalize certain vehicle options to suit your needs. The message center is also capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime. 28

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

The message center display is located in the instrument cluster.

Instrument Cluster

Your display can show up to six reconfigurable telltales at one time. Whatever is displayed in the top left corner has the highest priority.

Info Press the INFO button repeatedly to cycle through the following features:

TRIP A/B Registers the distance of individual journeys. Press and release INFO button until the A or B trip appears in the display (this represents the trip mode). Press and hold the RESET button to reset. Refer to UNITS later in this section to switch the display from Metric to English. MILES (km) TO E This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.

29

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

service stations

The DTE function will display LOW FUEL LEVEL when you have approximately 50 miles (80 km), to empty. Press RESET to clear this warning message. It will return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles (0 km) miles to empty. DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is re-initialized to a factory default value if the battery is disconnected. AVERAGE FUEL XX.X MPG (L/100km) Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km. If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons: • Your vehicle was not perfectly level during fill-up • Differences in the automatic shut-off points on the fuel pumps at • Variations in top-off procedure from one fill-up to another • Rounding of the displayed values to the nearest 0.1 gallon (liter) 1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average. 2. Record the highway fuel economy for future reference. It is important to press the RESET button (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings. For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter. FUEL ECONOMY MPG (L/km) This displays instantaneous fuel economy as a bar graph ranging from ↓ poor economy to ↑ excellent economy. Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows ↓, one or no bars illuminated. Instantaneous fuel economy cannot be reset. FUEL USED XX.X GAL (L) This displays the fuel used since last reset. The information displayed will be in gallons or liters, depending on English/Metric mode state. 30

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

DRIVE TIME Timer displays the trip elapsed drive time. To operate, do the following: 1. Press and release RESET in order to start the timer. 2. Press and release RESET to pause the timer. 3. Press and hold RESET until the timer resets. Blank display Select this function from the info menu to turn the upper two lines of the message center display off. System check and vehicle feature customization Press the SETUP button repeatedly to cycle the message center through the following features:

INFO

SETUP

RESET

PRESS RESET TO BEGIN SYSTEM CHECK When this message appears, press the RESET button and the message center will begin to cycle through the following systems and provide a status of the item if needed. Note: Some systems show a message only if a condition is present. 1. OIL LIFE 2. CHARGING SYSTEM 3. WASHER FLUID 4. DOOR AJAR 5. EXTERIOR LAMP 6. BRAKE FLUID LEVEL 7. PARK BRAKE 8. FUEL LEVEL AND DISTANCE TO EMPTY AWD AUTO / LOCKED (if equipped) This feature disables/enables the AWD feature. Press the RESET button to select the AUTO or LOCKED mode. Note: When the AWD system is in the locked mode, the 4X4 indicator will be illuminated.

31

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

UNITS Displays the current units in English or Metric. Press the RESET button to change from English to Metric. LANGUAGE ENGLISH / SPANISH / FRENCH / JAPANESE / ARABIC Note: When entering the SETUP MENU and a non-English language has been selected, PRESS RESET FOR ENGLISH will be displayed to change back to English. Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, French, Japanese, or Arabic Waiting four seconds or pressing the RESET button cycles the message center through each of the language choices. Press the RESET button to set the language choice. AUTOLAMP This feature keeps your headlights on for up to three minutes after the ignition is switched off. Press the RESET button to select the new Autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds. AUTOLOCK This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion. Press the RESET button to turn autolock on or off. AUTOUNLOCK This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off. Press the RESET button to turn autounlock on or off. PARK AID (if equipped) This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected. Press the RESET button to turn the rear park assist on or off. This function choice will also appear when putting the transmission in reverse and can be turned on/off at that time.

32

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

TRAILER SWAY This feature uses the electronic stability control to mitigate trailer sway, Press the RESET button to turn trailer sway on or off. COMPASS (if equipped) The compass heading is displayed as one of N, NE, E, SE, S, SW, W and NW in the message center display. The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy. Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to RESET FOR ZONE SETTING / PRESS RESET FOR CALIBRATION following. Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to RESET FOR ZONE SETTING / PRESS RESET FOR CALIBRATION following. RESET FOR ZONE SETTING 1. Determine your magnetic zone by referring to the zone map. 2. Start the engine. 3. Press the SETUP button to select RESET FOR ZONE SETTING. 4. Press the RESET button until the message center display changes to show the current zone setting (XX). 5. Press the RESET button repeatedly until the correct zone setting for your geographic location is displayed on the message center. The range of zone values are from 01 to 15 and “wraps” back to 01. 6. Wait four seconds when correct zone is chosen.

7 8 9 1011

23

14
13
12

15

33

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

PRESS RESET FOR CALIBRATION Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut. 1. Press the SETUP button to select PRESS RESET FOR CALIBRATION. 2. Press RESET to calibrate. 3. Slowly drive the vehicle in a circle (less than 3 mph [5 km/h]) until the CIRCLE SLOWLY TO CALIBRATE display changes to CALIBRATION COMPLETED. It will take up to five circles to complete calibration. 4. The compass is now calibrated. HOLD RESET IF NEW OIL To reset the oil monitoring system to 100% after each oil change (approximately 7,500 miles [12,000 km] or six months) perform the following: 1. Press RESET button to display HOLD RESET IF NEW OIL. 2. Press and hold the RESET button for more than two seconds. Oil life is set to 100% and OIL CHANGE SET TO 100% is displayed. Note: To change oil life 100% miles value from 7,500 miles (12,000 km) or six months to another value, proceed to Step 3. 3. Once OIL LIFE SET TO XXX% is displayed, release and press the RESET button to change the Oil Life Start Value. Each release and press will reduce the value by 10%. Note: Oil Life Start Value of 100% equals 7,500 miles (12,000 km) or six months. For example, setting Oil Life Start Value to 60% sets the Oil Life Start Value to 3,000 miles (4,800 km) and 120 days. System warnings System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems. In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds. The message center will display the last selected feature if there are no more warning messages. Types of messages and warnings: • Some messages will appear briefly to inform you of something you

may need to take action on or be informed of.

34

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster • Some messages will appear once and then again when the vehicle is • Some messages will reappear after clearing or being reset if a problem • Some messages can be acknowledged and reset by pressing RESET.

or condition is still present and needs your attention.

restarted.

This allows you to use the full message center functionality by clearing the message.

DOOR AJAR — Displayed when a door is not completely closed. REMOVE OBJECTS NEAR PASS SEAT — Displayed when objects are by the passenger seat. After the objects are moved away from the seat, if the warning stays on or continues to come on contact your authorized dealer. SERVICE RSC NOW — Displayed when the system is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, have the electrical system checked as soon as possible. FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition. PARK BRAKE ENGAGED — Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible. CHECK BRAKE SYSTEM — Displayed when the braking system is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. CHECK PARK AID (if equipped) — Displayed when the transmission is in R (Reverse) and the reverse sensing system (park aid) is disabled. LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. TIRE PRESSURE MONITOR FAULT — Displayed when the Tire Pressure Monitoring System is malfunctioning. If the warning stays on or continues to come on, have the system inspected by your authorized dealer.

35

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Instrument Cluster

TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on, have the system inspected by your authorized dealer. BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter. WASHER FLUID LEVEL LOW — Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and Specifications chapter. OIL LIFE CHANGE SOON — Displayed when the engine oil life remaining is 10% or less. OIL CHANGE REQUIRED — Displayed when the oil life left reaches 0%. TRAILER SWAY REDUCE SPEED — Displayed when your trailer starts to sway when towing. Refer to Trailer Sway Control in the Driving chapter for more information. FOR 4X4 LOW STOP VEHICLE (if equipped) — Displayed when 4X4 LOW is selected while the vehicle is moving. For more information, refer to Using the Control Trac 4WD system in the Driving chapter. FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer to Using the Control Trac 4WD system in the Driving chapter. TO EXIT 4X4 LOW STOP VEHICLE (if equipped) — Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. For more information, refer to Using the Control Trac 4WD system in the Driving chapter. TO EXIT 4X4 LOW SHIFT TO N (if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Using the Control Trac 4WD system in the Driving chapter.

36

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

AUDIO SYSTEMS Quick start — How to get going

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Listening to the radio 1. If the audio system is off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2. Press AM/FM repeatedly to choose between AM/FM1/FM2
frequency bands. 3. Press up/down the frequency band.

to manually go

SEEK

to search

Press down/up the chosen frequency band for the next strongest station. To disengage SEEK mode, press

4. Once you are tuned to the desired station, press and hold a memory preset (1–6) to save the station. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six stations in each frequency band — six in AM, six in FM1 and six in FM2. To access your saved stations, press the corresponding memory preset. The memory preset # and the station frequency will appear on the display.

37

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

to

SEEK, SEEK

Listening to satellite radio (if equipped) 1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2. Press AUX repeatedly to cycle through auxiliary audio sources. Select SAT1, SAT2 or SAT3 to listen to satellite radio. 3. Press access the previous or next satellite channel. You may also seek by music category. For further information, refer to CATEGORY listing under the MENU control on your specific audio system. 4. Once you are tuned to the desired channel, press and hold a memory preset (1–6) to save the channel. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six channels in each — six in SAT1, six in SAT2, and six in SAT3. To access your saved channels, press the corresponding memory preset. The memory preset # and the channel name will appear on the display. Listening to a CD/MP3 (if equipped) 1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2. Press CD to enter CD mode. If a disc is already loaded into the system, CD play will begin where it ended last.

38

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

For a single CD system, if a disc is not already loaded, insert only one, label side up into the CD slot. LOADING CD and READING DISC will appear in the display. The first track on the disc will begin playing. For an in-dash six CD system, if a disc is not already loaded, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to six discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the last loaded disc will begin to play. Note: An MP3 disc with folders will show F001 (folder #) T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 track and folder structure later in this chapter for further information. 3. In CD/MP3 mode, you can access the following features: to Press access the previous/next tracks.

SEEK, SEEK

Press and hold REW to manually reverse in a CD/MP3 track.

Press and hold FF to manually advance in a CD/MP3 track.

While in folder mode, press FOLDER to access the previous folder on MP3 discs, if available.

39

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

While in folder mode, press FOLDER to access the next folder on MP3 discs, if available. Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display. Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder. (play/pause) when a Press CD/MP3 is playing to pause the disc. CD PAUSE will appear in the display. Press again to resume play. 4. For a single CD system, press The display will read CD EJECT. For an in-dash six CD system, press correct slot number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to six discs, press and hold begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs.

to eject the current disc.

and then select the

until the system

40

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

AM/FM Single CD/MP3 satellite compatible sound system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened. 1. manually go up or down the radio frequency. Also use in menu mode to select various settings. In satellite radio mode (if equipped), press next/previous channel.

(Tuner): Press to

to tune to the

41

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

to scroll through the list of

(Phone): If your vehicle is

In CATEGORY MODE, press available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 2. equipped with SYNC威, press to access SYNC PHONE features. Refer to the SYNC威 supplement for further information. If your vehicle is not equipped with SYNC威, the display will read NO PHONE. 3. MENU: Press repeatedly to access the following settings:

to cycle through the following options:

SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu. Press • CATEGORY: Press OK to enter category mode. Press

to scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.

• SAVE SONG: Press OK to save the currently playing song’s title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20
titles, the display will read REPLACE SONG? Press OK to access the saved titles and press the song appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display.

to cycle through the saved titles. When

42

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

• DELETE SONG: Press OK to delete a song from the system’s

Entertainment Systems

memory. Press to cycle through the saved songs. When the song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to delete the currently listed song, press RETURN or CANCEL. Note: If there are no songs presently saved, the display will read NO SONGS.

to select either

• DELETE ALL SONGS: Press OK to delete all songs from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS. • ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

to manually increase/decrease. Press MENU

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. Setting the clock: Press MENU until SET HOURS or SET MINUTES is displayed. Use again to disengage clock mode. Press OK to close and return to the main menu. AUTOSET: Press MENU until the display reads AUTOSET. Autoset allows you to set the strongest local radio stations without losing your to original manually set preset stations for AM/FM1/FM2. Use turn on/off. When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press OK to close and return to the main menu. RBDS: Available only in FM mode. This feature allows you to search RBDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc.

43

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

SEEK

to adjust.

SEEK, SEEK

to find the desired type, or press and hold SCAN to

To activate, press MENU repeatedly until RBDS (ON/OFF) appears in to toggle RBDS ON/OFF. When the display. Use RBDS is OFF, you will not be able to search for RBDS equipped stations or view the station name or type. Press OK to close and return to the main menu. To search for specific RBDS music categories: When the desired category appears in the display, press then press and release begin the search. To view the station name or type: When the desired category appears in the display, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYT, etc.). BASS: Press MENU to reach the bass setting. Use Press OK to close and return to the main menu. TREB (Treble): Press MENU to reach the treble setting. Use to adjust. Press OK to close and return to the main menu. Press OK to close and return to the main menu. BAL (Balance): Press MENU to reach the balance setting. Use to adjust the audio between the left (L) and right (R) speakers. Press OK to close and return to the main menu. FADE: Press MENU to reach the fade setting. Use audio between the back (B) and front (F) speakers. Press OK to close and return to the main menu. SPEED VOL (Speed sensitive volume, if equipped): Press MENU to reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise. to adjust. Press OK to close and return to the main menu. Use The default setting is off; increasing your vehicle speed will not change the volume level. Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3; SPEED OFF turns the feature off and level 7
is the maximum setting.

to adjust the

44

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

SEEK, SEEK

SEEK, SEEK

SEEK, SEEK

FOLDER, FOLDER

to scroll through tracks

to scroll through all tracks on

to access the previous/next folder (if

for DUAL PLAY. For further information on Single

TRACK/FOLDER MODE: Available only on MP3 discs in CD mode. In track mode, press the disc In folder mode, press within the selected folder. Press available). Press OK to close and return to the main menu. COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display. Use to toggle ON/OFF. When COMPRESS is ON, the system will bring the soft and loud CD passages together for a more consistent listening level. Press OK to close and return to the main menu. SINGLE PLAY/DUAL PLAY (if equipped): If SINGLE PLAY is ON, press Play/Dual Play, please refer to the Family Entertainment DVD system later in this chapter. 4. AUX: Press repeatedly to cycle through FES/DVD (if equipped), LINE IN (auxiliary audio mode), SYNC威 (if equipped) and SAT1, SAT2 and SAT3 modes (satellite radio, if equipped). For location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family Entertainment DVD system later in this chapter. If your vehicle is equipped with SYNC威, please refer to the SYNC威 supplement for further information. 5. SEEK: In radio mode, to access the press previous/next strong station. In CD mode, press access the previous/next CD track.

to

45

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

(Play/Pause): This 6. control is operational in CD and DVD mode (if equipped). When a CD or DVD is playing in the FES system, press this control to play or pause the current CD or DVD. The CD/DVD status will display in the radio display. OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. For further information, refer to the SYNC威 supplement. If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family Entertainment DVD system later in this chapter. 7. SHUFFLE: Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE. SHUFFLE OFF will appear in the display. Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder. 8. FOLDER press FOLDER folder on MP3 discs, if available. FOLDER: In folder mode, 9. FOLDER to access the press previous folder on MP3 discs, if available. 10. FF (Fast forward): Press FF to manually advance in a CD/MP3
track. 11. REW (Rewind): Press REW to manually reverse in a CD/MP3 track.

: In folder mode, to access next

12. Memory presets: To set a station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and 46

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

PRESET # SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2. In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. 13. TEXT/SCAN: In radio and CD/MP3 mode, press and hold for a brief sampling of radio stations or CD tracks. Press again to stop. In MP3 mode, press and release to display track title, artist name, and disc title. In satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. In TEXT MODE, sometimes the display requires additional text to be to view the displayed. When the “>” indicator is active, press SEEK additional display text. When the “<” indicator is active, press to view the previous display text. In satellite radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. 14. AM/FM: Press to select AM/FM1/FM2 frequency band.

SEEK

15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. Note:If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

47

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

16. CD: Press to enter CD/MP3
mode. If a CD/MP3 is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display. 17. CD.

(CD eject): Press to eject a

18. CD slot: Insert a CD label side up in the CD slot.

Premium AM/FM in-dash six CD/MP3 satellite compatible sound system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

48

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems

or down

the radio

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened. (Tune/Disc selector): 1. In radio mode, press to manually go up frequency. Press and hold for a fast advance through radio frequencies. In menu mode, use to select various settings. In CD/MP3 mode, press to select the desired disc. In satellite radio mode (if equipped), press next/previous channel. In CATEGORY MODE, press available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. 2. equipped with SYNC威, press to access SYNC PHONE features. For further information, please refer to the SYNC威 supplement. If your vehicle is not equipped with SYNC威, the display will read NO PHONE. 3. MENU: Press repeatedly to access the following settings:

(Phone): If your vehicle is

to scroll through the list of

to tune to the

to cycle through the following options:

SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu. Press • CATEGORY: Press OK to enter category mode. Press

to scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.

49

2010 07+ Explorer Sport Trac (esp) Owners Guide (own2002), 1st Printing USA (fus)

Entertainment Systems • SAVE SONG: Press OK to save the currently playing song’s title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20
titles, the display will read REPLACE SONG? Press OK to access the saved titles and press the song title appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display.

to cycle through the saved titles. When

• DELETE SONG: Press OK to delete a song from the system’s

to cycle through the saved songs. When the memory. Press song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again
