2001 Ford Explorer Sport TRAC Owners Manual

Before driving

Introduction

Instrumentation

Controls and features

Seating and safety restraints

Starting and driving

Starting

Driving

Roadside emergencies

Servicing

Maintenance and care

Capacities and specifications

Customer assistance

Reporting safety defects

Index

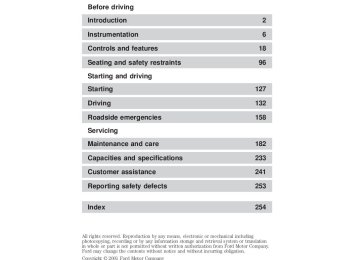

Contents

18

96

127

132

158

182

233

241

253

254

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 2001 Ford Motor Company

Introduction

The following warning may be required by California law: CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

ICONS Indicates a safety alert. Read the following section on Warnings.

Indicates vehicle information related to recycling and other environmental concerns will follow. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment. Indicates a message regarding child safety restraints. Refer to Seating and safety restraints for more information.

Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.

WARNINGS Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.

Introduction

BREAKING-IN YOUR VEHICLE There are no particular guidelines for breaking-in your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in. INFORMATION ABOUT THIS GUIDE The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation. EMISSION WARRANTY The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide. SPECIAL NOTICES Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package. Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident. Be sure to read Driving off road in the Driving chapter as well as the “Four Wheeling” supplement included with 4WD and utility type vehicles.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchorage

Brake System

Anti-Lock Brake System

Brake Fluid - Non-Petroleum Based

Traction Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Rear Window Defrost/Demist

Power Window Lockout

Windshield Defrost/Demist

Power Windows Front/Rear

Introduction

Vehicle Symbol Glossary

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Low tire warning

Instrumentation

Instrument cluster

(pg. 8)

Panel dimmer control

(pg. 19)

Speed controls*

(pg. 56)

Headlamp

control (pg. 18)

Gearshift (includes overdrive button)

(pg. 137)

RPMx1000

40

60 70
0 0 0

50

80

100

120

0 0 0 0 0 0

60

30

40

20

20

10 MPH

80

140

160

90
001

180

101

km/h

201

CHECK GAGE

CHECK ENGINE

FUEL DOOR

CHECK FUEL CAP

ABS

OFF

ON

OFF

O / D O N / O F F

4X4
HIGH

2WD

4X4
LOW

CHECK SUSP

SPEED CONT

4WD HIGH

4WD LOW

O/D OFF

RSM

SET

ACCEL

COAST

Tilt steering wheel lever*

(pg. 61)

Driver air bag

(pg. 112)

Parking brake release

(pg. 133)

Turn signal control

(pg. 55)

(pg. 61)

Windshield wiper/washer control

Hood release

(pg. 183)

* if equipped

Instrumentation

Audio system

(pg. 27)

4wd control*

(pg. 143)

Power down rear window

(pg. 24)

SHUF

SCAN

TUNE

SEEK

REW

FF

DSP

MUTE

EJ

LOAD

PUSH ON

CD

BASS

BAL

SEL

TREB

FADE

MENU

A/C

MAX A/C

Foglamp control*

(pg. 18)

Climate controls

(pg. 20)

Instrumentation

WARNING LIGHTS AND CHIMES

CHECK GAGE

RPMx1000

DOOR AJAR

40

60

20

20

60

100

80

140

001

180

MPH

km/h

201

R N D 2 1

THEFT

SPEED CONT

4WD HIGH

4WD LOW

O/D OFF

CHECK ENGINE

CHECK FUEL CAP

ABS

BRAKE

CHECK ENGINE

Check engine Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). This OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle. The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing. Whatyoushoulddoifthecheckenginelightilluminates Light turns on solid: This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your Check Engine light to illuminate. Examples are: 1. The vehicle has run out of fuel. (The engine may misfire or run poorly.) 2. Poor fuel quality or water in the fuel.

Instrumentation

3. The fuel cap may not have been properly installed and securely tightened. These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Check Engine light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required. If the Check Engine light remains on, have your vehicle serviced at the first available opportunity. Light is blinking: Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

CHECK FUEL CAP

Check fuel cap Momentarily illuminates when the ignition is turned to the ON position to ensure your bulb is working. When this light turns on, check the fuel filler cap. Continuing to operate the vehicle with the check fuel cap light on, can activate the Service Engine Soon/Check Engine warning light. When the fuel filler cap is properly re-installed, the light(s) will turn off after a period of normal driving. This period will vary depending on driving conditions. It may take a long period of time for the system to detect an improperly installed fuel filler cap. For more information, refer to Fuel filler cap in the Maintenance and care chapter.

Instrumentation

Air bag readiness Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Safety belt Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Brake system warning Momentarily illuminates when the ignition is turned to the ON position to indicate a system check. Also illuminates if the parking brake is engaged. If the brake warning lamp does not illuminate at these times, seek service immediately. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately.

BRAKE

Anti-lock brake system (ABS) Momentarily illuminates when the ignition is turned to the ON position to indicate a system check. If the light remains on, continues to flash or fails to illuminate, have the system serviced immediately. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with the parking brake released.

ABS

10

Instrumentation

Turn signal Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously or flash faster, check for a burned-out turn signal bulb. Refer to Bulbs in the Maintenance and care chapter.

High beams Illuminates when the high beam headlamps are turned on.

Anti-theft system (if equipped) Refer to SecuriLock娂 passive anti-theft system in the Controls and features chapter.

Charging system Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.

THEFT

Check gage Illuminates when the engine coolant temperature is high, the engine oil pressure is low or the fuel gauge is at or near empty. The ignition must be in the ON position for this lamp to illuminate. The lamp will also stay illuminated after the ignition is turned to the ON position. Refer to Engine coolant temperature gauge, Engine oil pressure gauge or Fuel gauge in this chapter for more information.

CHECK GAGE

11

Instrumentation

Four wheel drive low (if equipped) Momentarily illuminates after the engine is STARTED. Illuminates when four-wheel drive low is engaged. If the light continues to flash have the system serviced.

Four wheel drive high (if equipped) Momentarily illuminates after the vehicle has been STARTED. Illuminates when four-wheel drive high is engaged. If the light continues to flash have the system serviced.

Door ajar Illuminates when the ignition is in the ON position and any door is open.

4WD LOW

4WD HIGH

DOOR AJAR

O/D off (if equipped) Illuminates when the Transmission Control Switch (TCS), refer to Overdrive control in the Controls and Features chapter, has been pushed turning the transmission overdrive function OFF. When the light is on, the transmission does not operate in the overdrive mode, refer to the Driving chapter for transmission function and operation. The light may also flash steadily if a transmission malfunction is detected. If the light does not come on when the Transmission Control Switch is depressed or if the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.

O/D OFF

12

Instrumentation

Speed control This light comes on when either the SET/ACCEL or RESUME controls are pressed. It turns off when the speed control OFF control is pressed, the brake or clutch (if equipped) is applied or the ignition is turned to the OFF position.

SPEED CONT

Safety belt warning chime Sounds to remind you to fasten your safety belts. For information on the safety belt warning chime, refer to the Seating and safety restraints chapter.

Belt minder chime Sounds intermittently to remind you to fasten your safety belts. For information on the safety belt minder chime, refer to the Seating and safety restraints chapter.

Supplemental restraint system (SRS) warning chime For information on the SRS warning chime, refer to the Seating and safety restraints chapter.

Key-in-ignition warning chime Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.

Headlamps on warning chime Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.

13

Instrumentation

GAUGES

CHECK GAGE

RPMx1000

CHECK ENGINE

CHECK FUEL CAP

ABS

BRAKE

DOOR AJAR

40

60

20

20

60

100

80

140

001

180

MPH

km/h

201

R N D 2 1

THEFT

SPEED CONT

4WD HIGH

4WD LOW

O/D OFF

Speedometer Indicates the current vehicle speed.

60

100

80

140

001

180

40

60

20

20

MPH

km/h

201

14

Instrumentation

Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter. Never remove the coolant reservoir cap while the engine is running or hot. This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate.

Odometer Registers the total kilometers (miles) of the vehicle.

Trip odometer Registers the kilometers (miles) of individual journeys. To reset, depress the control.

60

100

80

140

001

180

40

60

20

20

MPH

km/h

201

60

100

80

140

001

180

40

60

20

20

MPH

km/h

201

15

Instrumentation

Tachometer Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Battery voltage gauge This shows the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by arrows), have the vehicle’s electrical system checked as soon as possible.

RPMx1000

Engine oil pressure gauge This shows the engine oil pressure in the system. Sufficient pressure exists as long as the needle remains in the normal range (the area between the “L” and “H”). If the gauge indicates low pressure, stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level. Add oil if needed (refer to Engine oil in the Maintenance and care chapter). If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

16

Instrumentation

Fuel gauge Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion. The ignition should be in the OFF position while the vehicle is being refueled. When the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel. The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located.

17

Controls and features

HEADLAMP CONTROL Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.

OFF

Foglamp control (if equipped) The foglamps can be turned on when the headlamp control is in either of the following positions: • Parking lamps • Low beams Press the foglamp control to activate the foglamps. The foglamp indicator light will illuminate. When the highbeams are activated, the foglamps will not operate. Press the foglamp control again to deactivate the foglamps.

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the ON position and • the headlamp control is in the OFF or Parking lamps position.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate with your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

18

Controls and features

High beams • Push forward to activate. • Pull toward you to deactivate.

Flash to pass Pull toward you to activate and release to deactivate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlamp and parklamp operation. • Rotate up to brighten. • Rotate down to dim. • Rotate to full up position (past detent) to turn on interior lamps. • Rotate to full down position (past

detent) to prevent interior lamps from illuminating when the doors are opened.

DIM

19

Controls and features

CLIMATE CONTROL SYSTEM

Manual heating and air conditioning system (if equipped)

Fanspeedcontrol Controls the volume of air circulated in the vehicle.

Temperaturecontrolknob Controls the temperature of the airflow inside the vehicle.

Modeselectorcontrol Controls the direction of the airflow to the inside of the vehicle.

A/C

MAX A/C

. However, the air conditioning will only function if the outside

The air conditioning compressor can operate in all modes except and temperature is about 6°C (43°F) or higher. Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle. • MAX A/C- Uses recirculated air to cool the vehicle. MAX A/C is noisier than A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle. When placed in MAX A/C, the air conditioning will operate at a full cool temperature. Therefore, the temperature control becomes non-functional.

20

Controls and features • A/C-Uses outside air to cool the vehicle. It is quieter than MAX A/C

but not as economical. Airflow will be from the instrument panel registers.

(Panel)-Distributes outside air through the instrument panel registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode. • OFF-Outside air is shut out and the fan will not operate. For short

periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

(Panel and floor)-Distributes outside air through the instrument

panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.

(Floor)-Allows for maximum heating by distributing outside air

through the floor ducts. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

(Floor and defrost)-Distributes outside air through the windshield

defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defrost ducts. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

(Defrost)-Distributes outside air through the windshield defroster

ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

•

•

•

•

•

Operatingtips • In humid weather conditions, place the climate control system in DEF before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, operate the climate control system as desired.

21

Controls and features • To reduce humidity buildup inside the vehicle in cold weather

conditions, don’t drive with the climate control system in the OFF or MAX A/C position.

• To reduce humidity buildup inside the vehicle in warm weather

conditions, don’t drive with the climate control system in the OFF position.

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct. • Under snowy or dirty weather conditions, your vehicle’s climate control system should be left in the OFF position when the vehicle is parked. This allows the climate control system to be free from contamination of outside pollutants.

• If your vehicle has been parked with the windows closed during warm weather conditions, the air conditioner will perform more efficiently in cooling the vehicle if driven for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Once the vehicle has been “aired out”, operate the climate control system as desired. • Do not put objects under the front seat that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of the windshield.

airflow to the back seats.

• Do not place objects over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Avoid placing small objects on top of the instrument panel. These objects may fall down into the defroster outlets and block airflow, in addition to damaging the climate control system.

22

Controls and features

To aid in side defogging/demisting in cold weather. 1. Select 2. Set the temperature control to full heat 3. Set the fan speed to HI 4. Direct the outer panel vents towards to side windows To increase airflow to the outer panel vents, close the central panel vents.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

Rear console climate controls (if equipped) Depending on the equipment package of your vehicle, the rear console may be equipped with rear console audio/climate controls.

- VOLUME +

MODE

SEEK

MEMORY

The instrument panel climate controls must be on in order for the rear console climate controls to work. Turn the air distribution control to the desired airflow position. Turn the fan speed control to the desired position.

- VOLUME +

MODE

SEEK

MEMORY

23

Controls and features

Select these vents:

for air to flow through

Select these vents:

for air to flow through

– VOLUME +

BAND

SEEK

MEMORY

– VOLUME +

BAND

SEEK

MEMORY

POWER DOWN BACK WINDOW To operate the power down back window, the ignition switch must be in the Run or Accessory position. The power down back window only has three window position selections: • Fully open • Vent • Fully closed

24

Controls and features

All rear seat occupants and/or cargo must be properly restrained and clear of the back window opening before operating the

power down rear window.

Turn control counter-clockwise and release to lower window all the way to the full open position.

Turn control clockwise and release to raise the window all the way to the full closed position.

Push control once to move window (up or down) to the vent position (open approximately 2.00 inches for cab ventilation). If the window is already in the vent position and the control is pressed, no movement will occur.

25

Controls and features

Normal Operation If an “up” command is selected and the ignition is switched to OFF or START during window travel, the window will: 1. stop if it is between the vent position and fully closed or 2. continue to move up to the vent position if it is between vent and fully open. If a “down” or “vent” command is selected and the ignition is switched to OFF or START during window travel, the window will move to the fully open or vent position, respectively, and then stop. The “down” command is the only one allowed after the ignition has been switched to OFF or START while the window is moving. Bounce-Back When the back window is moving upward and an obstacle interferes with the window’s movement, the back window will reverse direction and move toward the fully open position. This is known as “bounce-back”. Security Override If, during a bounce-back condition, the control is held in the clockwise (“up”) direction for at least two seconds, the back window will travel up with no bounce-back protection. If the control is released before the window reaches fully closed or the ignition is switched to OFF or START, the back window will reverse direction with bounce-back re-enabled. The following are possible reasons for using the security override: • Ice on the window causing a restriction. • Window unexpectedly reverses. Position recovery mode If the window fails to operate in “normal” operation mode, the control can be turned and held in the active position (up or down window direction) which will move the window in increments of approximately 15mm (0.6 inches) in the selected direction. (The “vent” feature is inoperable in this mode.) This feature allows the window to be closed. Once the window has reached the full closed, the window should again operate in “normal” operation mode. If the window still does not operate correctly, see your dealer for service.

26

Controls and features

4WD CONTROL (IF EQUIPPED) This control operates the 4WD. Refer to the Driving chapter for more information.

4X4
HIGH

4X4
LOW

2WD

USING YOUR AUDIO SYSTEM

Premium AM/FM Stereo/Cassette/Single CD

VOL PUSH ON

DISC

FM 1
AMC

BL

ST

RF

DOLBY B NR

EJ

TAPE

CD

AM

FM

SEEK

TUNE

REW

SCAN

BASS

TREB

FF

SIDE 1-2

SEL

EJ

MUTE

AUTO

CLK

BAL

FADE

COMP

SHUFFLE

27

Controls and features

Volume/powercontrol Press the control to turn the audio system on or off. Audio power can also be turned on by pressing the AM/FM select control or the tape/CD select control. Audio power is turned off by using the volume/power control.

VOL - PUSH ON

Turn control to raise or lower volume.

VOL - PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. AM/FMselect The AM/FM select control works in radio, tape and CD modes.

AM

FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectintapemode Press this control to stop tape play and begin radio play. AM/FMselectinCDorCDchangermode(ifequipped) Press this control to stop CD play and begin radio play. Tuneadjust The tune control works in radio mode.

28

Controls and features

Tuneadjustinradiomode • Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next

frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

Seekfunction The seek function control works in radio, tape or CD mode. Seekfunctioninradiomode • Press

to find the next listenable station down the frequency band.

to find the next

listenable station up the frequency band.

• Press

Seekfunctionintapemode • Press to listen to the previous selection on the tape. • Press to listen to the next selection on the tape. SeekfunctionforCDorCDchanger(ifequipped) • Press

to seek to the previous

track of the current disc. If a selection has been playing for three seconds or more and you press , the CD changer will replay that selection from the beginning.

• Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

29

Controls and features

Scanfunction The scan function works in radio, tape or CD mode.

SCAN

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode. Scanfunctionintapemode Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again. ScanfunctioninCDorCDchangermode(ifequipped) Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again. Radiostationmemorypreset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station.

AM

FM

REW

FF

SIDE 1-2

COMP

SHUFFLE

3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

30

Controls and features

AUTO

Autosetmemorypreset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations. Startingautosetmemorypreset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. These stations are temporarily stored in the memory preset controls (until deactivated) and are accessed in the same manner as your original presets. To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again. Bassadjust The bass adjust control allows you to increase or decrease the audio system’s bass output. Press the BASS control then press: • to decrease the bass output •

to increase the bass output.

CLK

BASS

TREB

and

SEL

31

Controls and features

Trebleadjust The treble adjust control allows you to increase or decrease the audio system’s treble output. Press the TREB control then press: • to decrease the treble output •

to increase the treble output.

and

BASS

TREB

SEL

Speakerbalanceadjust Speaker sound distribution can be adjusted between the right and left speakers. Press the BAL control then press: • •

to shift sound to the left and to shift sound to the right.

BAL

FADE

SEL

32

Speakerfadeadjust Speaker sound can be adjusted between the front and rear speakers. Press the FADE control then press: • •

to shift the sound to the

to shift the sound to the rear.

front and

Controls and features

BAL

FADE

SEL

Tape/CDselect • To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

• To begin CD play (if CD(s) are loaded), press the CD control. The first track of the disc will begin playing. If returning from radio or tape mode, CD play will begin where it stopped last.

TAPE

TAPE

CD

CD

With the dual media audio system, press the CD control to toggle between single CD and CD changer play (if equipped). Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur. Rewind The rewind control works in tape and CD modes. • In tape mode, radio play will

REW

continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached. • In CD mode, pressing the REW control rewinds the CD within the

current track.

33

Controls and features

Fastforward The fast forward control works in tape and CD modes. • In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

FF

• In CD mode, pressing the control fast forwards the CD within the

current track.

Tapedirectionselect Press SIDE 1–2 to play the alternate side of a tape.

Ejectfunction Press the EJ control to stop and eject a tape.

Press the EJ control to stop and eject a CD.

SIDE 1-2

EJ

EJ

Dolby姞 noisereduction Dolby威 noise reduction operates in tape mode. Dolby威 noise reduction reduces the amount of hiss and static during tape playback. Press the reduction. Dolby威 noise reduction is manufactured under license from Dolby威 Laboratories Licensing Corporation. “Dolby威” and the double-D symbol Corporation.

control to activate (and deactivate) the Dolby威 noise

are registered trademarks of Dolby威 Laboratories Licensing

34

Controls and features

COMP

Compressionadjust Compression adjust brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust. Shufflefeature The shuffle feature operates in CD mode (if equipped) and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks on the current disc are played. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again. Settingtheclock To set the hour, press and hold the CLK control and press SEEK:

SHUFFLE

AUTO

• •

to decrease hours and to increase hours.

To set the minute, press and hold the CLK control and press TUNE:

CLK

AUTO

CLK

35

Controls and features

to decrease minutes and to increase minutes.

• • If your vehicle has a separate clock, (other than the digital radio display), the CLK control will not function in the above manner. The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for 10
seconds, when the radio is turned on, and then revert to clock information. Any time that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed. Mutemode Press the MUTE control to mute the playing media. Press the MUTE control again to return to the playing media.

AUTO

CLK

EJ

MUTE

36

AM/FM Stereo In Dash Six CD Radio for Pioneer 姞 Sound System

Controls and features

SHUF

SCAN

DISC TUNE

SEEK

REW

FF

DSP

LOAD

PUSH ON

MUTE

EJ

BASS

BAL

SEL

TREB

FADE

AM FM

CD

MENU

Volume/powercontrol Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

37

Controls and features

AM/FMselect The AM/FM select control works in radio and CD modes.

AM FM

CD

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectinCDmode Press this control to stop CD play and begin radio play. Tuneadjust The tune control works in radio or CD mode. Tuneadjustinradiomode • Press

to move to the next

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

TuneadjustforCDmode • Press

to select the previous disc. (Play will begin on the first track of the disc unless shuffle mode is engaged.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

• Press

38

to select the next disc. Hold the control to fast-forward

through the remaining discs.

Controls and features

Seekfunction The seek function works in radio or CD mode. Seekfunctioninradiomode • Press

to find the next listenable station down the frequency band. SEEK DOWN will display.

• Press

SEEK UP will display.

to find the next listenable station up the frequency band.

SeekfunctioninCDmode • Press

to seek to the previous

track of the current disc. If the beginning of the disc is reached, the CD player seeks to the beginning of the last track on the current disc and begins playing.

• Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scanfunction The scan function works in radio or CD mode.

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode. ScanfunctioninCDmode Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

39

Controls and features

Radiostationmemorypreset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. Press the AM/FM control to toggle between AM, FM1, or FM2. 2. Press the SEEK control to access the next listenable station up or down the frequency band. Press the TUNE control to go up or down the listening band in individual increments. 3. Select a station. Refer to Seek function for more information on selecting a station. 4. Press and hold a memory preset control. The playing media will mute momentarily. When the sound returns, the station is held in memory on the control you selected. The display will read SAVED.

Autostore Autostore allows you to set the strongest local radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

40

Controls and features

Startingautostore 1. Press and momentarily hold the AM/FM control. 2. AUTOSET will flash in the display as the frequency band is scrolled through. 3. When the six strongest stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. To deactivate autoset and return to your audio system’s manually set memory stations, press the AM/FM control again. CDselect CD mode may be entered by pressing the CD control and the LOAD control. Load the CD into the audio system. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. If an alternative CD is desired, press the corresponding preset control (1–6) of a loaded CD, or press the TUNE control to access the other loaded CDs. NO CD will display if the CD control is activated when there is not a CD present in the audio system. NO CD will illuminate in the display if the CD control and a present number (that is currently empty) are pressed. The system will play the next available disc. If your vehicle is equipped with a CD changer, pressing the CD control again will allow you to toggle between accessing the multi disc system and the CD changer. The display will read CD or CDDJ. Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

41

Controls and features

Displaydescription Six circles are always lit in the digital display. These signify the six CD slots in the audio system. When a disc is loaded into a particular slot (1–6), the number inside that specific circle lights. If the circle is empty, there is no CD in that particular slot. Load The load feature allows you to load single CDs into the player internal to the radio.

This six disc CD player is equipped with a CD door. Compact discs should only be inserted into the player after the door has been opened by the player. Do not attempt to force the door open. Compact discs should only be loaded by pressing the LOAD control. Press the LOAD control. (You can choose which slot will be loaded by pressing the desired preset number. If you do not choose a slot, the system will choose the next available one.) Wait until the CD door opens. Load the CD into the player. LOADING CD# is displayed. When the CD has been loaded, the door will close and the CD will begin to play. For example, to load a CD into slot 2, press the LOAD control and then press preset 2. Autoload This feature allows you to autoload up to 6 discs into the multi disc CD player internal to the radio.

Press and hold the LOAD control until AUTOLOAD # is displayed. The CD door will open. Load the desired disc, one at a time. The CD is loaded into position and the audio system will display CD#. Each time the CD door opens, INSERT CD# is displayed. The door will close and the player will move to the next slot after each disc has been loaded. The process is repeated until all 6 slots are full. The audio system plays the last CD loaded and the display is updated. If some slots are already full and autoload is activated, the system will fill all empty slots.

42

Controls and features

Eject Press the EJ control to stop and eject a CD. You can choose which CD will be ejected by pressing the EJ control and the desired preset number (1–6). For example, to eject CD 2, press the EJ control and then press the preset 2 control. If you do not choose a specific CD, the player will eject the current CD. If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF. Autoeject Press and momentarily hold the EJ control to engage auto eject. All CDs which are present in the player will be ejected one at a time. If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF. Rewind The rewind control works in CD modes. Press and hold the REW control until the desired selection is reached. If the beginning of the disc is reached, the CD will begin play at the first track. Release the control to disengage rewind mode. When in rewind mode, your audio system will automatically lower the volume level of the playing media.

43

Controls and features

Fastforward The fast forward control works in CD modes. Press and hold the FF control until the desired selection is reached. If the end of the disc is reached, the CD will return to the first track on the first disc. Release the control to disengage fast forward mode. When in fast forward mode, your audio system will automatically lower the volume level of the playing media. Shufflefeature Press the SHUF control until the desired shuffle mode is displayed. The audio system will then engage the desired shuffle mode. When engaged, the shuffle feature has two different modes: SHUFFLE DISC and SHUFFLE TRK. SHUFFLE DISC randomly plays tracks from all the discs presently in the audio system. SHUFFLE TRK plays all the tracks on the current disc in random order. Compressionfeature The compression feature operates in CD mode and brings soft and loud CD passages together for a more consistent listening level.

MENU

SEL

Press the MENU control until compression status is displayed. Press the SEL control to enable the compression feature when COMP OFF is displayed. Press the SEL control again to disable the feature when COMP ON is displayed.

44

Controls and features

Bassadjust The bass adjust control allows you to increase or decrease the audio system’s bass output. Press the BASS control. Use the SEL control to increase or decrease the amount of bass. Trebleadjust The treble adjust control allows you to increase or decrease the audio system’s treble output. Press the TREB control. Use the SEL control to increase or decrease the amount of treble. Speakerbalanceadjust Speaker sound distribution can be adjusted between the right and left speakers. Press the BAL control. Use the SEL control to adjust the sound between the speakers. Speakerfadeadjust Speaker sound can be adjusted between the front and rear speakers. Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers.

BASS

TREB

BASS

TREB

BAL

FADE

BAL

FADE

SEL

SEL
