2005 Ford Explorer Sport TRAC Owners Manual

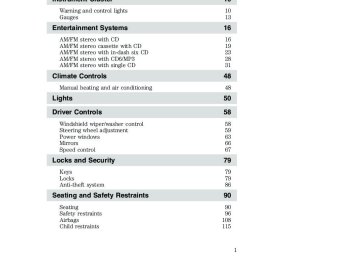

Table of Contents

10

10
13
16

16
19
23
28
31
48

48
50

58

58
59
63
66
67
79

79
79
86
90

90
96
108
115

Introduction

Instrument Cluster

Warning and control lights Gauges

Entertainment Systems

AM/FM stereo with CD AM/FM stereo cassette with CD AM/FM stereo with in-dash six CD AM/FM stereo with CD6/MP3
AM/FM stereo with single CD

Climate Controls

Manual heating and air conditioning

Lights

Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control

Locks and Security

Keys Locks Anti-theft system

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

129

131
133
136
144
154
161
165
167

167
171
174
186

186
187
187
188
195
200
201

209
210

216

217
217
218
222
229
242
243
244
246

Table of Contents

Tires, Wheels and Loading

Tire Information Tire Inflation Changing tires Lug Nut Torque Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only)

Cleaning

Maintenance and Specifications

Hood Engine compartment Engine oil Battery Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Accessories

Index

Table of Contents

252

255

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2005 Ford Motor Company

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage. SPECIAL NOTICES

Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide. Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger air bag.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

brake pedal;

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off road in the Driving chapter.

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Powertrain Malfunction

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Low tire warning

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately. Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START,

BRAKE

10

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.

ABS

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated. Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

Charging system: Illuminates when the battery is not charging properly.

Door ajar: Illuminates when the ignition is in the ON position and any door is open.

11

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Four wheel drive low (if equipped): Illuminates when four-wheel drive low is engaged.

Four wheel drive high (if equipped): Illuminates when four-wheel drive high is engaged. Anti-theft system: Flashes when the Securilock娂 Passive Anti-theft System has been activated. Speed control (if equipped): Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

4x4
LOW

4x4

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

DIGITAL DISPLAY WARNINGS Overdrive off: Displays when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the display stays on, have the transmission serviced soon, or damage may occur. Press the Trip Odometer reset button to display Odometer or Trip Odometer. Check fuel cap: Displays when the fuel cap may not be properly installed. Continued driving with this display on may cause the Check Engine warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Press the Trip Odometer reset button to display Odometer or Trip Odometer.

12

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

is high.

Check gauge: Displays when any of the following conditions has occurred: • The engine coolant temperature • The engine oil pressure is low. Press the Trip Odometer reset button to display Odometer or Trip Odometer. Low fuel: Displays when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter). Press the Trip Odometer reset button to display Odometer or Trip Odometer. Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

GAUGES

13

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle.

Trip odometer: Registers the miles (kilometers) of individual journeys. To reset, depress and hold the control.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

14

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by arrows), have the vehicle’s electrical system checked as soon as possible. Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

15

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AM/FM STEREO / SINGLE CD RADIO (IF EQUIPPED)

13

14 15 16 17 18

VOL - PUSH ON

12

11

SEEK

TUNE

AM FM

CD

BASS

TREB

FM1

ST

BAL

FADE

DISC

SCN

CLK

EJ

COMP

CD

CD

SHUFFLE

10

1. BAL (Balance): Press to shift sound to the left/right speakers.

2. FADE: Press to shift sound to the front/rear speakers.

3. SCN (Scan): Press to hear a brief sampling of all listenable stations or CD tracks. Press again to stop. 4. CLK (Clock): To set the hour, press and hold CLK and press SEEK the to decrease hours.

or increase

16

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

CLK

Entertainment Systems

To set the minute, press and hold CLK and press TUNE to decrease or increase 5. EJ (Eject): Press to eject a CD.

the minutes.

SHUFFLE

SHUFFLE

CD

CD

: Press and hold until

6. COMP (Compression): In CD mode, press to bring louder and softer levels into more comfortable listening level. The compression icon (c) will appear in the display. 7. SHUFFLE: Press to listen to the tracks on the CD in random order. Press again to turn off. 8. Memory presets: To set a station: Select frequency band AM/FM; tune to a station. Press and hold a preset button until sound returns. This radio is equipped with six station memory preset controls which allow you to set up to six AM stations and 12 FM stations (six in FM1 and six in FM2). 9. CD desired point of a selection is reached. 10. desired point of a selection is reached. 11. TUNE: In radio mode, press to move up or down the frequency band in individual increments. 12. SEEK: Press and release for previous/next SEEK strong station, selection or track. 13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

CD: Press and hold until

17

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

14. CD: Press to enter CD mode or to play a CD already loaded into the system. 15. AM/FM: Press to choose a frequency band in radio mode.

16. BASS: Press increase/decrease the bass output.

to

17. TREB (Treble): Press to increase/decrease the treble output.

DISC

18. CD slot: Insert a CD printed side up. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.

18

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD (IF EQUIPPED)

Entertainment Systems

1. Power/volume: Press to turn ON/OFF; turn to increase/decrease volume.

SCAN

2. SCAN: Press to hear a brief sampling of all listenable stations, tape selections or CD tracks. Press again to stop. 3. CD slot: Insert a CD with the label side up. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted

19

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information. 4. Cassette door: Insert the cassette with the opening to the right.

5. EJ (Eject): Press to eject the cassette/CD. The radio will resume playing.

6. TAPE: Press to start tape play. Press to stop tape during rewind/fast forward. CD: Press to start CD play. With the dual media audio, press CD to toggle between single CD and CD changer play (if equipped). 7. MUTE: Press to MUTE playing media; press again to return to the playing media.

8. AUTO: Press to set first six strongest stations (if available) into AM, FM1 or FM2 memory buttons; press again to return to normal stations.

9. CLK (Clock): Press to toggle between station mode and clock mode. Press and hold to set the clock. Press the decrease hours or SEEK increase hours. Press the

SEEK to

to TUNE

20

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to increase minutes. If your vehicle

to decrease minutes or TUNE has a stand alone clock this control will not function. 10. BAL (Balance): Press BAL; to shift then press SEL sound to the left/right speakers.

FADE: Press FADE; then press SEL rear/front speakers.

to shift sound to the

11. Memory preset buttons: To set a station: Select frequency band AM/FM, tune to a station, press and hold a preset button until sound returns. 12. SHUFFLE: Works in CD mode. Press to play tracks in random order. Press again to disable.

13. COMP (Compression): Works in CD mode. Press to bring soft and loud passages together for a more consistent listening level. A small “c” will appear in the display to indicate that compression is enabled. Press again to disable. Dolby威 noise reduction: 14. Works in tape mode only. Reduces tape noise and hiss; press to activate/deactivate. The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

21

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

15. SIDE 1–2: Works in tape mode only. Press to play reverse side of the tape.

FF

16. FF (Fast Forward): In CD mode, press for a slow advance, press and hold for a fast advance. In TAPE mode, press FF to enable Fast Forward feature. Press FF or TAPE to resume tape play. 17. REW (Rewind): In CD mode, press for a slow reverse, press and hold for a fast reverse. In TAPE mode, press REW to enable the rewind feature. Press REW or TAPE to resume tape play. 18. SEL (Select): Use with Bass, Treble, Balance and Fade controls.

REW

SEL

19. BASS: Press BASS; then press to decrease/increase SEL the bass output.

TREB (Treble): Press TREB; then press SEL decrease/increase the treble output.

to

20. TUNE: Works in radio mode only. Press TUNE change frequency down/up.

to

SEEK

TUNE

22

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK

TUNE

21. SEEK: Press and release for previous/next SEEK strong station, selection or track.

22. AM/FM: Press to select AM/FM1/FM2 frequency band.

AUDIOPHILE SATELLITE READY AM/FM STEREO IN-DASH SIX CD RADIO (IF EQUIPPED)

for previous/next

1. Seek: Press and release SEEK strong station or track. 2. Rewind: In CD mode, press until the desired point on the current selection is reached. Fast forward: In CD mode, press until the desired point on the current selection is reached.

23

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

TEXT: TEXT is only available when equipped with Satellite radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your Ford dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. 3. DSP (Digital Signal Processing): Press DSP to access the Ambiance menu. Ambiance gives the feeling of “being there” to your music, creating increased clarity as well as an open and spacious feel to the music. Press SEL to engage/disengage. Turn the volume control to increase/decrease the level of ambiance. Occupancy: Press DSP again to change the occupancy mode to optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. Press SEL to scroll through settings. 4. Mute: Press to MUTE playing media; press again to return to playing media 5. Eject: Press to eject a CD. Press EJ and a memory preset to eject a specific disc. Press and hold to eject all loaded discs. 6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.

to decrease/increase

to decrease/increase

7. Select: Use with Bass, Treble, Balance, Fade and other menu selections.

8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers.

24

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to shift sound to the

Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press MENU to access clock mode, RDS on/off, Traffic announcement mode, Program type mode, Shuffle mode and Compression Mode. The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data). Traffic information is not available in most U.S. markets. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Press MENU until FIND appears in the display. Use SEL to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Displays the station’s call letters and format. Press MENU until SHOW appears on display. Use SEL to select NONE, NAME or TYPE. Shuffle: Press to play tracks in a random order. Press MENU until SHUFFLE appears in the display. Use SEL to select SHUFFLE DISC, SHUFFLE TRK or SHUFFLE OFF. Compression: Brings soft and loud CD passages together for a more consistent listening level. Press MENU until COMPRESS is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS ) the is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode.

) or decrease (

25

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

10. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 11. SAT (if equipped): Your Audiophile radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your Ford dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. 12. AM/FM: Press to select AM/FM frequency band. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM. AUTOSET will be shown. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press and hold again to disengage. 13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

14. Load: Press to load a CD. Press LOAD and a memory preset to load to a specific slot. Press and hold to load up to six discs. 15. CD AUX: Press to access CD or AUX mode.

26

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information. 16. Scan: Press SCAN to hear a brief sampling of radio stations or CD tracks. Press again to stop. 17. Disc/Tune: Press manually tune down/up the radio frequency band, or change to the previous/next CD. CAT: CAT is only available when equipped with Satellite Radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your Ford dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com

or

to

27

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

ADRENALIN CD/MP3 AUDIO SYSTEM — (IF EQUIPPED)

1. EJ (Eject): Press to eject a CD. Press EJECT and a memory preset to eject a specific disc. Press and hold to eject all loaded discs. 2. CD: Press to enter CD mode. If there is no disc in the system, insert a CD label side up. If a CD is already inserted, press CD to begin CD play. 3. CLK (Clock): Press CLK until SELECT HOUR /SELECT MINUTE is displayed. Press TUNE to decrease hours/minutes. 4. TUNE: Press to manually go up or down the radio frequency, or to access another CD. Also use in menu mode to select various settings.

or increase

the

28

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

5. TEXT: In MP3 track title/file name mode, press to view the next 12
characters in the MP3 music name/file name of the current MP3 track and directory. 6. SHUF (Shuffle): Press to play the tracks on the current CD/MP3 in random order. In MP3 directory mode, press to play the tracks within the current directory in random order. 7. COMP (Compression): In CD/MP3 modes, press to bring soft and loud passages together for a more consistent listening level. 8. MENU:Press TUNE to toggle through the following modes to make and adjustments in these modes. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU to access, use stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press again to disengage. BASS: Press

to decrease/increase the bass levels.

to set. When the six strongest

TUNE

TUNE

TUNE

TUNE

TUNE

to adjust the audio between the

to decrease/increase the treble

TREB (treble): Press levels. BAL (Balance):Press left and right speakers. FADE: Press TUNE rear speakers. Flat file/directory mode: Press or Directory mode. Normal/Track Title/File Name: Press number, track title or file name. In directory mode, press MENU until DIR NO XXX appears in the display. Press previous/next directory.

to adjust the audio between the front and

to access the

to view by track

to select Flat file mode

TUNE

TUNE

TUNE

29

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

9. ON/OFF/VOL (Volume): Press to turn the system ON/OFF. Turn to adjust the volume levels. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition is turned back on. 10. SCAN: In radio, CD and MP3
flat file mode, press for a brief sampling of radio stations or CD/MP3 tracks. In MP3 directory mode, press to hear a brief sampling of all tracks in the current directory. Press again to stop. 11. REPEAT: Press to repeat the current CD/MP3 track.

12. FF (fast forward): Press to manually advance in a CD track.

13. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. To select a preset station, press the desired memory preset button. 14. MUTE: Press to mute the playing media. Press again to return to the playing media. 15. REW (rewind): Press to manually reverse a CD track.

16. SEEK: In radio, CD and MP3
to flat file mode, press access the next/previous strong station or track. In MP3 directory mode, press to select the next/previous track in the current directory.

30

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

17. AM/FM: Press to select AM/FM frequency band.

18. LOAD: Press to load a CD/MP3
disc. Press LOAD and a memory preset to load a specific slot. Press and hold to autoload up to six discs. 19. CD slot: Insert a CD, label side up.

SATELLITE COMPATIBLE AM/FM STEREO IN-DASH SINGLE CD/MP3 RADIO — LATE AVAILABILITY (IF EQUIPPED)

1. SEEK: Press and release SEEK strong station or track.

for previous/next

31

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display, its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll through all of the text in the current field before changing to the next field. (TEXT must be pressed within 3
seconds of the previous press to proceed to the next/last text display. The last text field shown on the display will become the new display message default. TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. 3. AUX: This function is not operational.

4. MUTE: Press to MUTE playing media; press again to return to playing media. 5. EJ: Press to eject a CD.

to decrease/increase

6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.

to decrease/increase

7. Select: Use with Bass, Treble, Balance, Fade and other menu selections.

32

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers. Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press MENU and SEL to access AUTOSET, Speed sensitive volume and Setting the clock.

to shift sound to the

) or decrease ) the hours/minutes. Press MENU again to disengage clock mode.

Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase ( Folder/Track mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE. 10. REPEAT: Repeats the current CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status. 11. SHUFFLE: Plays CD/MP3
tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status. 12. FOLDER the next MP3 directory.

: Press to access

13. FOLDER the previous MP3 directory.

: Press to access

33

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

14. FF(Fast forward): In CD/MP3
mode, press until desired selection is reached. 15. REW(Rewind): In CD/MP3
mode, press until desired selection is reached. 16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. 17. BAND: Press to toggle between AM/FM1/FM2 frequency band.

18. Memory presets: To set a station: Select frequency band; tune to a station, press and hold a preset button until sound returns. 19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

20. CD: Press to enter CD mode.

CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.

34

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

21. COMP(Compression): Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press COMP to turn the feature ON/OFF. 22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop. 23. CAT/Tune: Press to

or

manually tune down/up the radio frequency band. CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com 24. CD slot: Insert a CD with the label side up.

35

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

PREMIUM SATELLITE COMPATIBLE AM/FM STEREO/CASSETTE/SINGLE CD/MP3 — LATE AVAILABILITY (IF EQUIPPED)

23

22
21
20
19
18

VOL-PUSH ON

DISC

BAND

SEEK TUNE CAT

REW

DOLBY B NR

SCAN

BASS

TREB

FF

FOLDER

TEXT SEL

FOLDER

EJ

TAPE 1-2

CD

BAL

FADE

EJ

MUTE

AUX

MENU

SHUFFLE

REPEAT

17

16

15

14

13

12

11

10

1. CD slot: Insert a CD with the label side up. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.

36

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

2. CD Eject: Press to eject a CD. The radio will resume playing.

3. Mute: Press to MUTE playing media; press again to return to the playing media.

4. Tape Eject: Press to eject the cassette. The radio will resume playing. 5. Tape 1–2/CD: Press to begin tape play. If a cassette is already playing, press to change playing sides. CD: If a CD is loaded in the radio, pressing CD will cause the CD to begin playing. 6. AUX: This control is not operational.

7. MENU: Press to access the following functions:

to decrease/ increase hours or minutes.

Clock: Press MENU until HOURS or MINUTES is displayed. Press SEL Compression: In CD mode, compression brings soft and loud passages together for a more consistent listening level. Press MENU until COMPRESS is displayed. Use SEL to toggle on/off. Dolby: In tape mode, press MENU until DOLBY B XX appears in the display. Press SEL to toggle ON/OFF. The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

37

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Folder/Track Mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disk are accessible) MODE. Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle on/off. Allows you to set the strongest local stations without losing your original memory preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. 8. REPEAT: Repeats current CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status. 9. Balance: Press BAL; then press SEL to shift sound to the left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

to shift sound to the

10. SHUFFLE: Plays CD/MP3
tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status. 11. TEXT/SEL: The filename, song title, artist text or album text may be viewed while playing an MP3
selection. Press TEXT to scroll through the text fields. The display will scroll through all of the text in the current field before changing to the next field. (TEXT must be pressed within three seconds of the previous button press to proceed to the next/last text display. ) The last text field shown on the display will become the new display message default. TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States.

38

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Select: Use with Bass, Treble, Balance, Fade and other menu selections. 12. FOLDER the next MP3 directory folder.

: Press to access

13. FOLDER : Press to access the previous MP3 directory folder.

14. Bass: Press BASS; then press to decrease/increase SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

to decrease/increase

FF

REW

15. Fast Forward (FF): In CD mode, press and hold to fast forward. In tape mode, press to activate fast forward. Press FF again to return to play. 16. Rewind (REW): In CD mode, press and hold to reverse CD. In tape mode, press to rewind. Press REW again to return to play. 17. Memory preset buttons: To set a station: Press BAND to select the frequency band (AM/FM1/FM2), tune to a station, press and hold a preset button until sound returns. 18. Scan: Press to hear a brief sampling of all listenable stations, tape selections or CD tracks. Press again to stop. 19. Tune/CAT: TUNE: Works in radio mode only. Press TUNE down/up.

to change frequency

39

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. For information regarding SIRIUS Satellite Radio, please call toll-free 888–539–SIRIUS (888–539–7474) or visit SIRIUS website at www.siriusradio.com. 20. Seek: Press and release SEEK strong station, tape selection or CD track. 21. BAND: Press to toggle through AM/FM1/FM2 frequency bands.

for previous/next

22. Cassette door: Insert the cassette with the opening to the right. 23. Power/volume: Press to turn ON/OFF; turn to increase/decrease volume.

40

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIOPHILE SATELLITE COMPATIBLE AM/FM STEREO IN-DASH SIX CD/MP3 RADIO — LATE AVAILABILITY (IF EQUIPPED)

for previous/next

1. SEEK: Press and release SEEK strong station or track. 2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll all of the text in the current field before changing to the next field. (TEXT must be pressed within 3 seconds of the previous button press to proceed to the next/last text display.) TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States.

41

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

3. AUX: This function is not operational.

4. MUTE: Press to MUTE playing media; press again to return to playing media 5. EJ: Press to eject a CD. Press EJ and a memory preset to eject a specific disc. Press and hold to eject all loaded discs. 6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.

to decrease/increase

to decrease/increase

7. Select: Use with Bass, Treble, Balance, Fade and other menu functions.

to shift sound to the

8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers. Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press and hold MENU to access RDS on/off. Use SEL to toggle RDS on/off. Press MENU again to access Traffic mode, Program type mode or Show Type mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode.) The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired.

42

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data). Traffic information is not available in most U.S. markets. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Press and hold MENU until RDS XX is shown in the display. Press MENU until FIND appears in the display. Use SEL to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Displays the station’s call letters or music format. Press and hold MENU until RDS XX is shown in the display. Press MENU until SHOW appears in the display. Use SEL to select NAME or TYPE. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed. Occupancy mode: Press MENU until occupancy mode appears in the display. Press SEL to select ALL, DRIVER or REAR SEAT occupancy mode. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS ) the is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode. Folder/Track Mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE. 10. REPEAT: Repeats the current CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status.

) or decrease (

43

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

11. SHUFFLE: Plays CD/MP3
tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status. 12. FOLDER the next MP3 directory.

: Press to access

13. FOLDER the previous MP3 directory

: Press to access

14. FF(Fast forward): In CD mode, press until desired selection is reached. 15. REW(Rewind): In CD mode, press until desired selection is reached. 16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. 17. BAND: Press to toggle between AM/FM1/FM2 frequency band.

18. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns. 19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

20. Load: Press to load a CD. Press LOAD and a memory preset to load to a specific disc slot. Press and hold to load up to six discs.

44

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

21. CD: Press to enter CD mode.

Entertainment Systems

CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information. 22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop. 23. Disc/Tune: Press to

or

manually tune down/up the radio frequency band, or to listen to the previous/next CD. CAT: CAT is only available when equipped with Satellite Radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com 24. CD slot: Insert a CD, label side up.

RADIO FREQUENCIES AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz

45

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

weaker the signal and the weaker the reception.

RADIO RECEPTION FACTORS There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CASSETTE/PLAYER CARE Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after

cold to reach a moderate temperature before playing.

and turning the hub.

10–12 hours of play to maintain good sound/operation.

Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being

played.

CD/CD PLAYER CARE Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion. 46

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.

AUDIO SYSTEM WARRANTY AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

47

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. Temperature of airflow not adjustable. A/C : Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.

: Distributes outside air through the instrument panel vents.

O (OFF): Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

the air flow selector in the

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Under normal weather conditions, do not leave the air flow selector in

air flow selector in the O (OFF) or MAX A/C position.

position.

MAX A/C or O (OFF) when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of

airflow to the back seats.

the windshield.

48

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Adjust the temperature control to maintain comfort. 4. Set the highest fan speed. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

49

2005 Explorer Sport Trac (p27) Owners Guide (post-2002-fmt)
