2006 Ford Crown Victoria Owners Manual

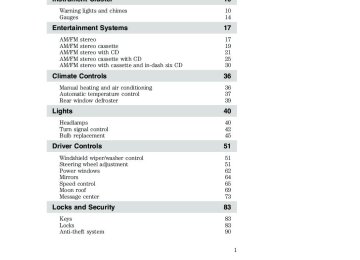

Table of Contents

10

10
14
17

17
19
21
25
30
36

36
37
39
40

40
42
45
51

51
51
62
64
65
69
73
83

83
83
90

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

AM/FM stereo AM/FM stereo cassette AM/FM stereo with CD AM/FM stereo cassette with CD AM/FM stereo with cassette and in-dash six CD

Climate Controls

Manual heating and air conditioning Automatic temperature control Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Moon roof Message center

Locks and Security

Keys Locks Anti-theft system

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

98

98
103
117
130
142

142
156
162
165
167

167
171
174
176
177
183

183
184
185
186
195
200
201
206
207

213
214

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire Information Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Traction control Air suspension Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug Nut Torque Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only)

Cleaning

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Maintenance and Specifications

Engine compartment Engine oil Battery Engine Coolant Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications Engine data Accessories

Index

Table of Contents

221

223
225
228
230
236
251
252
253
255
257
261

263

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2006 Ford Motor Company

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Notice to owners of Severe Duty vehicles Before you drive your vehicle, be sure to read the Severe Duty Owner’s Guide supplement. This book contains important operation and maintenance information.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

brake pedal;

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to

avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Powertrain Malfunction

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster

Optional instrument cluster Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

10

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Check engine: The Check engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Powertrain malfunction indicator (if equipped): Illuminates when a powertrain fault has been detected. Contact your authorized dealer as soon as possible. Check fuel cap (if equipped): Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check engine warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

BRAKE

11

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer.

ABS

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt, refer to the Seating and Safety Restraints chapter. Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant temperature (if equipped): Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

12

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Never remove the coolant reservoir cap while the engine is running or hot.

Traction control娂 AdvanceTrac威 active (if equipped): Illuminates when the Traction control娂 system is active. It will be lit for a minimum of four seconds or for the duration of the Traction Control娂 event, refer to the Driving chapter for more information. Air suspension (if equipped): Illuminates when the air suspension is turned OFF, the load limit is exceeded or the air suspension system requires servicing. Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter for more information). O/D off: Illuminates when the overdrive function of the transmission has been turned OFF, refer to the Driving chapter. If the light does not illuminate, have the transmission serviced soon, or damage may occur. Speed control (if equipped): Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

O/D OFF

Door ajar (if equipped): Illuminates when one of the doors is not completely shut and the ignition is turned to ON. With the ignition in RUN position, a tone will sound for one second (if a door is open).

13

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

GAUGES

Speedometer: Indicates the current vehicle speed.

14

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle. • Without Message Center To switch the display from Metric to English, press and hold the button on the cluster for three seconds. • With Message Center Refer to Message Center in the Driver Controls chapter on how to switch the display from Metric to English and the odometer to the speedometer.

Trip odometer: Registers the miles (kilometers) of individual journeys. • Without Message Center Press and release the button on the cluster to toggle between odometer and trip odometer display. To reset, press the button again until the trip reading is 000000.0 miles.

15

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster • With Message Center Press and release the message center INFO button until “TRIP” appears in the display (this represents the trip mode). Press the control again to select Trip A and Trip B features. Press and hold the RESET button for two seconds to reset. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

16

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM stereo (if equipped)

VOL PUSH ON

TONE

CLK

TONE VOL

ST DX FM

12

SEEK

TUNE

AM/FM

to find the

1. Seek: Press next strong station down/up the frequency band. 2. Tune: Press change radio frequency down/up.

to manually

3. AM/FM: Press to choose a frequency band in radio mode.

AM/FM

4. Memory preset buttons: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.

17

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

5. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

6. Tone: Press TONE until the desired level — Bass, Treble, Fade appears on the display. Turn the volume control to raise/lower the levels, or to move the audio sound from the right to left or the front to back (if equipped). 7. CLK (Clock): To set the hour, press and hold CLK until CLOCK SET appears in the display. Press SEEK to decrease increase To set the minute, press and hold CLK until CLOCK set appears in the display. Press TUNE to decrease

the minutes.

or increase

the hours.

or

TONE

CLK

18

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AM/FM stereo cassette (if equipped)

12

13

14 15 16 17

VOL - PUSH ON

AM

FM

BASS

TREB

FM1

ST

BAL

FADE

CLK

TAPE AMS

SIDE REW

1 - 2
FF

11

10

SEEK

TUNE

SCAN

EJ

1. Balance: Press to shift sound to the left/right speakers.

2. Fade: Press to shift sound to the rear/front speakers.

CLK

the

or increase

3. CLK: To set the hour, press and hold CLK. Then press SEEK to decrease hours. To set the minute, press and hold CLK and press TUNE to decrease or increase 4. Tape AMS: In tape mode, press and hold to activate Automatic Music Search (allows you to quickly locate the beginning of the tape selection being played or to skip to the

the minutes.

TAPE AMS

19

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

next selection). Then, press REW (for the beginning of the current selection) or FF (to advance to the next selection). The tape MUST have a blank section of at least four seconds duration between programs. 5. Side 1–2: Press to change tape direction.

SIDE

1 - 2

6. REW (rewind): Press to rewind the tape.

FF (fast forward): Press to advance the tape.

REW

FF

Dolby威 noise reduction: Works in tape mode only. Reduces tape

7. Memory preset buttons: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. 8. noise and hiss; press to activate/deactivate. 9. Scan: Press SCAN to hear a brief sampling of all listenable radio stations or all tape selections. Press again to stop. 10. Tune: Works in radio mode only. Press TUNE frequency down/up 11. Seek: Press and for previous/next release strong station, selection or track. 12. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

to change

20

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

13. AM/FM: Press to choose a frequency band in radio mode.

14. Bass: Press decrease/increase the bass output.

to

15. Treble: Press decrease/increase the treble output.

to

16. EJ (Eject): Press to eject a tape.

EJ

17. Cassette door: Insert a cassette into the cassette door.

AM/FM Stereo Single CD Premium audio system (if equipped)

21

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

) radio

) the radio

) or down (

) or previous (

1. CD slot: Insert a CD, label side up. With the ignition on, the radio will begin play when a CD is inserted. If the ignition is off, press CD prior to inserting a disc. Do not force a disc into the system as damage could result. 2. SEEK: Press to access the next station or CD track. Press and hold to advance/reverse in the current CD track. 3. TUNE: Press to manually go up frequency. 4. MUTE: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume. 5. Eject: Press to eject the CD. If the disc is not removed within the allotted time, the system will automatically reload the CD and begin play. Note: The eject function will work when the ignition is turned off. 6. BASS: Press BASS; then press decrease/increase the level of bass output. TREB (Treble): Press TREB; then press decrease/increase the level of treble output. 7. BAL (Balance): Press BAL; then to shift sound to press the left/right speakers.

SEL

SEL

SEL

to

to

FADE: Press FADE; then press rear/front speakers.

SEL

to shift sound to the

22

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

8. SEL: Use with Bass, Treble, Balance, Fade and other menu functions. 9. MENU: Press MENU to access the following functions:

SEL

SEL

to enable the

Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press compression feature when COMPRESS OFF is displayed. Press SEL again to disable the feature when COMPRESS ON is displayed. When activated, the compression icon will appear in the display. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press to MENU until AUTOSET appears in the display. Press toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. When activated, AUTOSET will momentarily appear in the display when any of the preset controls are pressed. Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU to access and use The level will appear in the display. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Press hours/minutes. Press MENU again to disengage clock mode. Note: The menu selections will remain in the display for approximately 10 seconds, at which time the display will return to the previous mode. You may also exit the menu options by pressing any other audio control. 10. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns.

to manually decrease/increase the

SEL

SEL

to adjust the volume setting.

23

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

11. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels. Note: With the ignition turned off, you may press the volume control to momentarily view the clock. 12. CD: Press to enter CD mode if a CD is already present in the system. In radio mode, the CD icon will appear in the display if a CD is loaded into the system. 13. AM: Press to select the AM frequency.

14. FM: Press to select the FM frequency. Press repeatedly to toggle between FM1 and FM2. 15. SHUF (Shuffle): Press to play all tracks on the current CD in random order. Press again to stop. 16. SCAN: Press SCAN to hear a brief sampling of radio stations or CD tracks. Press again to stop.

24

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Premium/Audiophile Satellite Compatible AM/FM Stereo Single CD/Cassette system (if equipped)

1. CD slot: Insert a CD, label side up. With the ignition on, the radio will begin to play a CD once inserted. With the ignition off, the CD control must be pressed before inserting the disc. Failure may result in damage to the CD and/or audio system. 2. CD eject: Press to eject a CD. If the disc is not removed within the allotted time, the system will automatically reload the CD and begin play. Note: The eject function will work when the ignition is turned off. 3. BASS: Press BASS; then to press decrease/increase the level of bass output.

SEL-TEXT

25

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to

SEL-TEXT

TREB (Treble): Press TREB; then press decrease/increase the level of treble output. 4. BAL (Balance): Press BAL; then to shift press sound to the left/right speakers.

SEL-TEXT

FADE: Press FADE; then to shift press sound to the rear/front speakers.

SEL-TEXT

5. Phone/mute: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume. 6. SEL/TEXT: Use with Bass, Treble, Balance, Fade and other menu functions. TEXT: TEXT is only available when equipped with Satellite radio. Your Audiophile radio may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit available only in the continental United States. 7. MENU: Press MENU repeatedly to access RDS on/off. Press

SEL-TEXT

to toggle RDS

on/off. Press MENU again to access Program type mode or Show Type/Name mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode.) The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40.

26

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEL-TEXT

With RDS ON, press MENU until the program type menu is displayed. One of the various program types will appear. Press SEL-TEXT to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Selects between displaying the station’s call letters or music format when RDS is enabled. Press and hold MENU until SHOW to select NAME or XX appears in the display. Press TYPE. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU repeatedly until control to compression status is displayed. Press enable the compression feature when COMPRESS OFF is displayed. Press COMPRESS ON is displayed. When activated, the compression icon will appear in the display. Occupancy mode (Available only on Audiophile audios): Press MENU repeatedly until occupancy mode appears in the display. Press occupancy mode. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU repeatedly until AUTOSET appears in the display. Press

control again to disable the feature when

to select ALL, DRIVER or REAR SEAT

SEL-TEXT

SEL-TEXT

SEL-TEXT

SEL-TEXT

to toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. When activated, AUTOSET will momentarily appear in the display when any of the preset controls are pressed. Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU repeatedly to access and use the volume setting. The level will appear in the display. Dolby: Works in tape mode to reduces tape noise and hiss. Press MENU until DOLBY XX appears in the display. Press toggle ON/OFF. The Dolby威 noise reduction system is manufactured under license from

SEL-TEXT

SEL/TEXT

to adjust

to

27

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Setting the clock: Press MENU repeatedly until SELECT HOUR or SELECT MINS is displayed. Press decrease/increase the hours/minutes. Press MENU again to disengage clock mode. Note: The menu selections will remain in the display for approximately 10 seconds, at which time the display will return to the previous mode. You may also exit the menu options by pressing any other audio control. 8. Cassette: Insert a cassette facing to the right. 9. TUNE: Press to manually go up or down the radio frequency.

to manually

SEL-TEXT

CAT: CAT is only available when equipped with Satellite Radio. Your system may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit not available in Canada. 10. Side 1–2: Press to access the next side of the cassette tape. The display will indicate whether TAPE 1 or TAPE 2 is playing. 11. SEEK: Press to access the next/previous radio station, tape selection or CD track. 12. REW (Rewind): Press to rewind in tape or CD mode.

REW

FF

FF (Fast forward): Press to fast forward in tape or CD mode.

13. SCAN: Press SCAN to hear a brief sampling of radio stations, selections or CD tracks. Press again to stop.

28

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

14. SHUF (Shuffle): Press to play the tracks on the current CD in random order. Press again to stop. 15. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns. 16. AM/FM: Press to toggle between AM/FM1/FM2 modes.

17. Tape eject: Press to eject the tape.

18. CD/TAPE: Press to toggle between CD and TAPE mode. In radio and tape mode, the CD icon will appear in the display if a CD is loaded into the system. 19. SAT: Your system may be equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed satellite kit not available in Canada. 20. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels. Note: With the ignition turned off, you may press the volume control to momentarily view the clock.

29

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Audiophile AM/FM Satellite Compatible Stereo In-dash Six CD sound system (if equipped)

1. CD slot: To insert a CD, press LOAD. When the system is ready, insert a CD, label side up. 2. SEEK: Press to access the next/previous radio station or CD track. Press and hold to advance/reverse in the current CD track. 3. TUNE/CAT: Press to manually go up or down the radio frequency. TEXT is only available when equipped with Satellite radio. Your system may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit available only in the continental United States.

30

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

4. MUTE: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume. 5. Eject: Press to eject CD(s) when the ignition is on or off. Numbers will illuminate in the display indicating which CD slots are loaded with CDs. To eject a specific CD, press eject and the corresponding preset number. If no preset is selected, the system will eject the currently selected CD. Press and hold to eject all loaded discs. Note: If the CD is not removed within 15 seconds, the system will reload the disc and begin play if the system is on. 6. BASS: Press BASS; then to press decrease/increase the level of bass output. TREB (Treble): Press TREB; then press decrease/increase the level of treble output. 7. BAL (Balance): Press BAL; then to shift press sound to the left/right speakers.

SEL-TEXT

SEL-TEXT

SEL-TEXT

to

FADE: Press FADE; then press

SEL-TEXT

to shift sound to

the rear/front speakers.

8. SEL-TEXT: Use with Bass, Treble, Balance, Fade and other menu functions. TEXT: TEXT is only available when equipped with Satellite radio. Your system may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit available only in the continental United States.

31

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to toggle

SEL-TEXT

9. MENU: Press MENU repeatedly to access RDS on/off. Use RDS on/off. Press MENU again to access Program type mode or Show Type mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode.) The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. With RDS ON, press MENU until the program type menu is displayed. SEL-TEXT One of the various program types will appear. Press to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Selects between displaying the station’s call letters or music format when RDS is enabled. Press MENU until SHOW XX appears in the display. Press to select NAME or TYPE. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until to enable the compression status is displayed. Press compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed. When activated, the compression icon will illuminate in the display. Occupancy mode (Available on Audiophile audios only): Press MENU until occupancy mode appears in the display. Press select ALL, DRIVER or REAR SEAT occupancy mode. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU until AUTOSET appears in the display. Press to toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. When activated, AUTOSET will appear in the display when any of the preset controls are pressed.

SEL-TEXT

SEL-TEXT

SEL-TEXT

to

32

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEL-TEXT

SEL-TEXT

to adjust the volume

to increase/decrease the

Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU to access and use setting. The level will appear in the display. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Press hours/minutes. Press MENU again to disengage clock mode. 10. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns. In CD mode, press to select a specific CD to play. 11. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels. Note: With the ignition off, you may press the volume control to momentarily view the clock. 12. LOAD: Press to load a CD. Press LOAD and a specific preset to load in that particular slot. Available slots are indicated by small flashing indicators in the display. When the system is ready to accept a disc, LOAD CD X will appear in the display. Load the CD. Press and hold to autoload up to 6 discs. Note: Ensure that the system is ready to accept the CD. Do not force the disc into the CD slot as damage could result. 13. AM/FM: Press repeatedly to toggle between AM/FM1/FM2 mode.

14. CD: Press to enter CD mode. Press CD and a preset to select a specific CD to play. 15. SAT: Your system may be equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your authorized dealer. Detailed satellite instructions are included with the

33

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

dealer installed kit. Dealer installed satellite kit available only in the continental United States. 16. SHUF (Shuffle) /SCAN: Press SCAN to hear a brief sampling of radio stations or CD tracks on the current CD. Press again to stop. SHUF (Shuffle): Press and hold to play the CD tracks in random order for the CD currently being played. Press again to stop.

GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from a station, the weaker • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

the signal and the weaker the reception.

Cassette/player care: Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after

cold to reach a moderate temperature before playing.

and turning the hub.

10–12 hours of play to maintain good sound/operation.

Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being

played.

34

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD/CD player care: Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service: Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

35

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

HI

LO

A/C

MIX

OFF

VENT

NORM

FLOOR

MAX A/C

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. This mode will help prevent unpleasant odors from entering the vehicle. NORM A/C: Uses outside air to cool the vehicle. Air flows from the instrument panel vents only. VENT: Distributes outside air through the instrument panel vents. OFF: Outside air is shut out and the fan will not operate. FLOOR: Distributes outside air through the floor vents. MIX: Distributes outside air through the windshield defroster vents, floor vents and side window demisters.

: Distributes outside air through the windshield defroster vents and

the side window demisters.

position.

the air flow selector in the

air flow selector in the OFF or MAX A/C position.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of

airflow to the back seats.

the windshield.

36

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

To aid in side window defogging/demisting in cold weather: 1. Select NORM A/C. 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to HI. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) SYSTEM (IF EQUIPPED)

10

11

OUTSIDE TEMP

AUTO

OFF

AUTOMATIC

MAX A/C

NORM A/C

VENT

FLOOR

FLR • DEF

DEF

HI

LO

1. OFF: Outside air is shut out and the fan will not operate.

2. AUTOMATIC: Press AUTOMATIC and select the desired temperature using the temperature controls. The system will automatically determine fan speed, airflow location, and outside or recirculated air to heat or cool the vehicle to the selected temperature. The fan speed will remain automatic unless the thumbwheel is turned.

37

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

3. Fan speed: Turn to manually increase or decrease fan speed.

Distributes outside air through the windshield defroster

4. Defrost: vents and the side window demisters. 5. Floor/defrost: Distributes outside air through the windshield defroster vents, floor vents and the side window demisters. 6. Floor: Distributes outside air through the floor vents. 7. Vent: Distributes outside air through the instrument panel vents. 8. Norm A/C: Uses outside air to cool the vehicle . Air flows from the instrument panel vents only. 9. Max A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. This mode will help prevent unpleasant odors from entering the vehicle. 10. Outside Temp: Press to display the outside temperature. It will remain in the display until pressed again. The temperature will be most accurate when the vehicle is in motion. 11. Temperature control: Press this control to select the temperature. The display window indicates the selected temperature. Fahrenheit/Celsius temperature: Press MAX A/C and DEF simultaneously to toggle between Fahrenheit and Celsius temperature. The set point temperatures in Celsius will be displayed in half-degree increments.

the air flow selector in the

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the

air flow selector in the OFF or MAX A/C position.

position.

airflow to the back seats.

38

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls • Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

To aid in side window defogging/demisting in cold weather: 1. Select NORM A/C. 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to HI. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER The rear defroster control is located on the instrument panel. Press the rear defroster control to clear the rear window of thin ice and fog. A small LED will illuminate when the rear defroster is activated.

The ignition must be in the ON position to operate the rear window defroster. The defroster turns off automatically after a predetermined amount of time or when the ignition is turned to the OFF position. To manually turn off the defroster, press the control again. Activating the rear window defroster will also activate the heated mirrors (if equipped). For more information refer to Heated outside mirrors in the Driver Controls chapter. Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

39

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

HEADLAMP CONTROL Turns the lamps off.

Turns on the parking

lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. The autolamp system also keeps the lights on for a predetermined period of time after the ignition switch is turned to OFF. • To turn autolamps on, rotate the control counterclockwise to the next position from OFF.

• To turn autolamps off, rotate the control clockwise past OFF to the

parking lamp position

, then back to OFF.

The headlamps will turn on under the following conditions: 1. Headlamp switch is turned to the “headlamps on position”. 2. With the ignition in ON or START, wipers turned on and the headlamp switch in the autolamp position.

40

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass Pull toward you slightly to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped) Turns the lowbeam headlamps on with a reduced output. To activate: • the key must be in the ON position, • the parking brake released, and • the headlamp control is in the OFF or parking lamps position.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Light (DRL) System

does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

41

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlamp and parklamp operation. • Rotate the thumbwheel from left

to right to brighten the instrument panel.

• Rotate the thumbwheel from right

to left to dim the instrument panel.

Domelamp Control The panel dimmer control also controls the domelamp operation. • Rotate the thumbwheel fully to the right, past detent to activate the • In order to turn off the domelamp, rotate the thumbwheel to the left.

domelamp.

AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by your authorized dealer.

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

The flash rate of the turn signal will speed up considerably if the left or right turn lamp bulb (front or rear) is burned out.

42

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

INTERIOR LAMPS

Lights

Map/Courtesy lamps The courtesy lamps light when: • any door is opened. • the instrument panel dimmer • the UNLOCK control of the

switch is rotated past the detent.

remote entry controls is pressed and the ignition is OFF.

The reading lamps can be turned on by pressing the rocker controls next to each lamp. If equipped with Remote Keyless Entry, the courtesy lamp will illuminate whenever any door is opened and will remain on for 25 seconds after the door is shut or when the ignition is turned to the ON position. With overhead console

With overhead console and moon roof To turn on the map lamps, press the map lamp control.

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

43

Lights

Map/Courtesy lamps The courtesy lamps light when: • any door is opened. • the instrument panel dimmer • the UNLOCK control of the

switch is rotated past the detent.

remote entry controls is pressed and the ignition is OFF.

The reading lamps can be turned on by pressing the rocker controls next to each lamp. If equipped with Remote Keyless Entry, the courtesy lamp will illuminate whenever any door is opened and will remain on for 25 seconds after the door is shut or when the ignition is turned to the ON position. With overhead console

With overhead console and moon roof To turn on the map lamps, press the map lamp control.

44

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

Rear courtesy/reading lamps Rotate the lens to illuminate the lamp. With the lens in the flat position, the courtesy lamp lights when: • Any door is opened. • The panel dimmer thumbwheel is

rotated fully to the right past detent.

BULB REPLACEMENT

Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Replacing exterior bulbs Check the operation of all the bulbs frequently.

Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time. Function Headlamp Park lamp and turn lamp (front) Side marker (front) Tail, stop, turn (rear) Side marker (rear) Backup lamp

Trade Number 9007
3457 AK (amber) 194 AK (amber) 3157K 194
3156K

45

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

Function License plate lamp High-mount brakelamp Luggage compartment lamp Rear reading lamp Map lamp Dual floorwell lamp Glove compartment Visor vanity lamp - Slide on Rail system (SOR) All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.

Trade Number 168
912
212-2
578
906
906
168

37

Replacing the interior bulbs Check the operation of all bulbs frequently. Overhead console lamps To remove and replace the lamps in the overhead console: 1. Make sure the headlamp switch is in the OFF position and remove the overhead console from the headliner by pulling it straight down. 2. Remove the bulb socket from the back of the lamp housing by pulling it straight out. 3. Remove the bulb from the socket by pulling straight out.

Install the new bulb in reverse order.

Replacing headlamp bulbs To remove the headlamp bulb: 1. Make sure headlamp switch is in OFF position, then open the hood. 2. Remove the radiator cover by turning the three knobs to the unlock position. 3. Remove two retainers and pull headlamp assembly forward to expose bulb.

46

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

4. Disconnect the electrical connector from the bulb by pulling rearward.

5. Remove the bulb retaining ring by rotating it counterclockwise (when viewed from the rear) to free it from the bulb socket, and slide the ring off the plastic base. Keep the ring to retain the new bulb. 6. Without turning, remove the old bulb from the lamp assembly by gently pulling it straight back out of the lamp assembly.

To install the new bulb:

Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Note: If the bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used. 1. With the flat side of the new bulb’s plastic base facing upward, insert the glass end of the bulb into the lamp assembly. Turn the bulb left or right to align the grooves in the plastic base with the tabs in the lamp assembly. When the grooves are aligned, push the bulb into the lamp assembly until the plastic base contacts the rear of the lamp assembly. 2. Install the bulb retaining ring over the plastic base until it contacts the rear of the socket by rotating it clockwise until you feel a “stop.” 3. Connect the electrical connector into the rear of the plastic base until it snaps, locking it into position. 4. Install the headlamp assembly with two retainers. 5. Install the radiator cover locking it in place with three knobs.

47

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

6. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again. Replacing front parking lamp/turn signal bulbs The park/turn lamp bulbs can be replaced without removing the headlamp assembly. 1. Make sure headlamp switch is in the OFF position, then open the hood. 2. Remove the radiator cover by turning the three knobs to the unlock position. 3. Remove the screw from the outside of the lamp. 4. Remove the nut from inside the lamp and pull the lamp assembly forward. 5. Disconnect the electrical connector from the bulb by pulling rearward. 6. Rotate the bulb socket counterclockwise and remove from lamp assembly. 7. Carefully pull bulb straight out of the socket and push in the new bulb until it snaps, locking it into position. 8. To complete installation, follow the removal procedure in reverse order. Replacing tail lamp/brake/turn lamp bulbs The tail lamp, the brake lamp and the turn signal lamp bulbs are located in the tail lamp assembly. Follow the same steps to replace either bulb.

48

2006 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

1. Make sure headlamp switch is in OFF position, then open the trunk and remove the pin-type retainer and carefully pull the carpet away to expose the lamp assembly hardware. 2. Remove three nuts and the lamp assembly from the vehicle. 3. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

4. Pull the bulb from the socket and push in the new bulb. 5. Install the bulb socket into the lamp assembly by rotating it clockwise. 6. Install the lamp assembly on the vehicle with three nuts ensuring the nuts are flush with the body to prevent water from entering the trunk. 7. Carefully push the carpet back in to place and install the pin-type retainer. Replacing license plate lamp bulbs 1. Make sure headlamp switch is in OFF position, then remove two screws, grommets and the license plate lamp assembly from the trunk lid. 2. Carefully pull the bulb from the socket and push in the new bulb.
