2008 Ford Crown Victoria Owners Manual

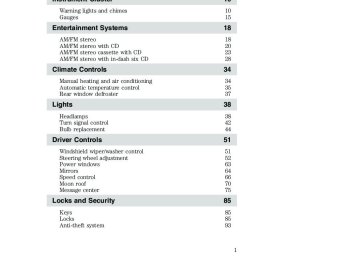

Table of Contents

10

10
15
18

18
20
23
28
34

34
35
37
38

38
42
44
51

51
52
63
64
66
70
75
85

85
85
93

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

AM/FM stereo AM/FM stereo with CD AM/FM stereo cassette with CD AM/FM stereo with in-dash six CD

Climate Controls

Manual heating and air conditioning Automatic temperature control Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Moon roof Message center

Locks and Security

Keys Locks Anti-theft system

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

101

101
106
121
133
145

145
147
160
165
171
174
175

175
180
183
186
187
192

192
193
194
195
203
210
211
216
217

223
224
225

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Traction Control™ Air suspension Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug nut torque Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only) Reporting safety defects (Canada only)

Cleaning

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Maintenance and Specifications

Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories

Index

232

234
236
239
241
247
263
264
266
269
272

274

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2007 Ford Motor Company

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate. CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage. SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Notice to owners of Severe Duty vehicles Before you drive your vehicle, be sure to read the Severe Duty Owner’s Guide supplement. This book contains important operation and maintenance information.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Airbag supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to

follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel.

brake pedal;

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Export unique (Non–United States/Canada) vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings.

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Child Seat Lower Anchor

Brake System

Anti-Lock Brake System

Parking Brake System

Brake Fluid - Non-Petroleum Based

Parking Aid System

Stability Control System

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Service Engine Soon

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster

Optional instrument cluster Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

10

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Service Engine Soon: The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Service engine soon⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Service engine soon⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Powertrain malfunction indicator (if equipped): Illuminates when a powertrain fault has been detected. Contact your authorized dealer as soon as possible. Check fuel cap (if equipped): Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter.

11

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

BRAKE

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

ABS

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when the ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and safety restraints chapter to activate/deactivate the Belt-Minder威 chime feature.

12

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant temperature (if equipped): Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

Never remove the coolant reservoir cap while the engine is running or hot.

Traction control™ AdvanceTrac威 active (if equipped): Illuminates when the Traction control™ system is active. It will be lit for a minimum of four seconds or for the duration of the Traction Control™ event, refer to the Driving chapter for more information. Severity indicator (if equipped): Displays the indicated severity color when any of the following warning conditions has occurred: • Red: Low Oil Pressure, Charge • Amber: Low Fuel Refer to Message Center in the Driver Controls chapter. Low tire pressure warning (if equipped): Illuminates when your tire pressure is low. If the light remains ON at start up or while driving, the tire pressure should be checked. Refer to Inflating Your Tires in the Tires, Wheels and

System, Engine Coolant Over Temperature, Door Ajar

13

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Loading chapter. When the ignition is first turned to ON, the light will illuminate for 3 seconds to ensure the bulb is working. If the light does not turn ON, have the system inspected by your authorized dealer. For more information on this system, refer to Tire Pressure Monitoring System in the Tires, Wheels and Loading chapter. Air suspension (if equipped): Illuminates when the air suspension is turned OFF, the load limit is exceeded or the air suspension system requires servicing. Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter for more information). O/D off: Illuminates when the overdrive function of the transmission has been turned OFF, refer to the Driving chapter. If the light does not illuminate, have the transmission serviced soon, or damage may occur. Speed control (if equipped): Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

O/D OFF

Door ajar (if equipped): Illuminates when one of the doors is not completely shut and the ignition is turned to ON. With the ignition in RUN position, a tone will sound for one second (if a door is open). Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

14

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

High beams: Illuminates when the high beam headlamps are turned on.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. GAUGES

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

15

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle. • Without Message Center To switch the display from Metric to English, press and hold the button on the cluster for three seconds. • With Message Center Refer to Message Center in the Driver Controls chapter on how to switch the display from Metric to English and the odometer to the speedometer.

Trip odometer: Registers the miles (kilometers) of individual journeys. • Without Message Center Press and release the button on the cluster to toggle between odometer and trip odometer display. To reset, press the button again until the trip reading is 000000.0 miles. • With Message Center Press and release the message center INFO button until “TRIP” appears in the display (this represents the trip mode). Press the control again to select Trip A and Trip B features. Press and hold the RESET button for two seconds to reset.

16

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

17

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM stereo (if equipped)

VOL PUSH ON

TONE

CLK

TONE VOL

ST DX FM

12

SEEK

TUNE

AM/FM

to find the

1. Seek: Press next strong station down/up the frequency band. 2. Tune: Press change radio frequency down/up.

to manually

3. AM/FM: Press to choose a frequency band in radio mode.

AM/FM

4. Memory preset buttons: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.

18

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

5. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

6. Tone: Press TONE until the desired level — Bass, Treble, Fade appears on the display. Turn the volume control to raise/lower the levels, or to move the audio sound from the right to left or the front to back (if equipped). 7. CLK (Clock): To set the hour, press and hold CLK until CLOCK SET appears in the display. Continue to hold CLK as you press SEEK to decrease increase To set the minute, press and hold CLK until CLOCK set appears in the display. Continue to hold CLK as you press TUNE to decrease increase

the minutes.

the hours.

or

or

TONE

CLK

19

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AM/FM Stereo Single CD Premium audio system (if equipped)

) radio

) or previous (

1. CD slot: Insert a CD, label side up. With the ignition on, the radio will begin play when a CD is inserted. If the ignition is off, press CD prior to inserting a disc. Do not force a disc into the system as damage could result. 2. SEEK: Press to access the next station or CD track. Press and hold to advance/reverse in the current CD track. 3. TUNE: Press to manually go up frequency. 4. MUTE: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume.

) or down (

) the radio

20

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to

SEL

5. Eject: Press to eject the CD. If the disc is not removed within the allotted time, the system will automatically reload the CD and begin play. Note: The eject function will work when the ignition is turned off. 6. BASS: Press BASS; then press decrease/increase the level of bass output. TREB (Treble): Press TREB; then press decrease/increase the level of treble output. 7. BAL (Balance): Press BAL; then to shift sound to press the left/right speakers.

SEL

SEL

to

BASS

FADE

TREB

BAL

SEL

SEL

SEL

to shift sound to the

FADE: Press FADE; then press rear/front speakers. 8. SEL: Use with Bass, Treble, Balance, Fade and other menu functions. 9. MENU: Press MENU to access the following functions:

SEL

to enable the

Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press compression feature when COMPRESS OFF is displayed. Press SEL again to disable the feature when COMPRESS ON is displayed. When activated, the compression icon will appear in the display. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press to MENU until AUTOSET appears in the display. Press toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

SEL

21

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEL

SEL

to adjust the volume setting.

to manually decrease/increase the

When activated, AUTOSET will momentarily appear in the display when any of the preset controls are pressed. Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU to access and use The level will appear in the display. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Press hours/minutes. Press MENU again to disengage clock mode. Note: The menu selections will remain in the display for approximately 10 seconds, at which time the display will return to the previous mode. You may also exit the menu options by pressing any other audio control. 10. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns. 11. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels. Note: With the ignition turned off, you may press the volume control to momentarily view the clock. 12. CD: Press to enter CD mode if a CD is already present in the system. In radio mode, the CD icon will appear in the display if a CD is loaded into the system. 13. AM: Press to select the AM frequency.

14. FM: Press to select the FM frequency. Press repeatedly to toggle between FM1 and FM2. 15. SHUF (Shuffle): Press to play all tracks on the current CD in random order. Press again to stop.

22

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

16. SCAN: Press SCAN to hear a brief sampling of radio stations or CD tracks. Press again to stop.

Premium/Audiophile Satellite Compatible AM/FM Stereo Single CD/Cassette system (if equipped)

1. CD slot: Insert a CD, label side up. With the ignition on, the radio will begin to play a CD once inserted. With the ignition off, the CD control must be pressed before inserting the disc. Failure may result in damage to the CD and/or audio system. 2. CD eject: Press to eject a CD. If the disc is not removed within the allotted time, the system will automatically reload the CD and begin play. Note: The eject function will work when the ignition is turned off.

23

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEL-TEXT

3. BASS: Press BASS; then to press decrease/increase the level of bass output. TREB (Treble): Press TREB; then press decrease/increase the level of treble output. 4. BAL (Balance): Press BAL; then to shift press sound to the left/right speakers.

SEL-TEXT

SEL-TEXT

to

FADE: Press FADE; then to shift press sound to the rear/front speakers.

SEL-TEXT

BASS

TREB

SEL-TEXT

BASS

TREB

SEL-TEXT

BAL

FADE

BAL

FADE

SEL-TEXT

SEL-TEXT

5. Phone/mute: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume. 6. SEL/TEXT: Use with Bass, Treble, Balance, Fade and other menu functions. TEXT: TEXT is only available when equipped with Satellite radio. Your Audiophile radio may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability. 7. MENU: Press MENU repeatedly to access RDS on/off. Press

SEL-TEXT

to toggle RDS

on/off. Press MENU again to access Program type mode or Show Type/Name mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode.) The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio

24

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEL-TEXT

SEL-TEXT

SEL-TEXT

control again to disable the feature when

stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. With RDS ON, press MENU until the program type menu is displayed. One of the various program types will appear. Press SEL-TEXT to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Selects between displaying the station’s call letters or music format when RDS is enabled. Press and hold MENU until SHOW XX appears in the display. Press to select NAME or TYPE. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU repeatedly until control to compression status is displayed. Press enable the compression feature when COMPRESS OFF is displayed. Press COMPRESS ON is displayed. When activated, the compression icon will appear in the display. Occupancy mode (Available only on Audiophile audios): Press MENU repeatedly until occupancy mode appears in the display. Press occupancy mode. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU repeatedly until AUTOSET appears in the display. to toggle ON/OFF. When the six strongest Press stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. When activated, AUTOSET will momentarily appear in the display when any of the preset controls are pressed. Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU repeatedly to access and use the volume setting. The level will appear in the display.

to select ALL, DRIVER or REAR SEAT

SEL-TEXT

SEL-TEXT

SEL/TEXT

to adjust

25

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to

SEL-TEXT

Dolby: Works in tape mode to reduces tape noise and hiss. Press MENU until DOLBY XX appears in the display. Press toggle ON/OFF. The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Setting the clock: Press MENU repeatedly until SELECT HOUR or SELECT MINS is displayed. Press decrease/increase the hours/minutes. Press MENU again to disengage clock mode. Note: The menu selections will remain in the display for approximately 10 seconds, at which time the display will return to the previous mode. You may also exit the menu options by pressing any other audio control. 8. Cassette: Insert a cassette facing to the right. 9. TUNE: Press to manually go up or down the radio frequency.

to manually

SEL-TEXT

CAT: CAT is only available when equipped with Satellite Radio. Your system may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability. 10. Side 1–2: Press to access the next side of the cassette tape. The display will indicate whether TAPE 1 or TAPE 2 is playing. 11. SEEK: Press to access the next/previous radio station, tape selection or CD track. 12. REW (Rewind): Press to rewind in tape or CD mode.

REW

FF

FF (Fast forward): Press to fast forward in tape or CD mode.

26

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

13. SCAN: Press SCAN to hear a brief sampling of radio stations, selections or CD tracks. Press again to stop. 14. SHUF (Shuffle): Press to play the tracks on the current CD in random order. Press again to stop. 15. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns. 16. AM/FM: Press to toggle between AM/FM1/FM2 modes.

17. Tape eject: Press to eject the tape.

18. CD/TAPE: Press to toggle between CD and TAPE mode. In radio and tape mode, the CD icon will appear in the display if a CD is loaded into the system. 19. SAT: Your system may be equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability. 20. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels. Note: With the ignition turned off, you may press the volume control to momentarily view the clock.

27

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Audiophile AM/FM Satellite Compatible Stereo In-dash Six CD sound system (if equipped)

1. CD slot: To insert a CD, press LOAD. When the system is ready, insert a CD, label side up. 2. SEEK: Press to access the next/previous radio station or CD track. Press and hold to advance/reverse in the current CD track. 3. TUNE/CAT: Press to manually go up or down the radio frequency. TEXT is only available when equipped with Satellite radio. Your system may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability.

28

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

4. MUTE: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume. 5. Eject: Press to eject CD(s) when the ignition is on or off. Numbers will illuminate in the display indicating which CD slots are loaded with CDs. To eject a specific CD, press eject and the corresponding preset number. If no preset is selected, the system will eject the currently selected CD. Press and hold to eject all loaded discs. Note: If the CD is not removed within 15 seconds, the system will reload the disc and begin play if the system is on. 6. BASS: Press BASS; then to press decrease/increase the level of bass output. TREB (Treble): Press TREB; then press decrease/increase the level of treble output. 7. BAL (Balance): Press BAL; then to shift press sound to the left/right speakers.

SEL-TEXT

SEL-TEXT

SEL-TEXT

to

SEL-TEXT

SEL-TEXT

SEL-TEXT

BASS

BASS

FADE

TREB

TREB

BAL

FADE: Press FADE; then press

SEL-TEXT

to shift sound to

the rear/front speakers.

BAL

FADE

SEL-TEXT

8. SEL-TEXT: Use with Bass, Treble, Balance, Fade and other menu functions. TEXT: TEXT is only available when equipped with Satellite radio. Your system may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability.

29

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to toggle

SEL-TEXT

9. MENU: Press MENU repeatedly to access RDS on/off. Use RDS on/off. Press MENU again to access Program type mode or Show Type mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode.) The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. With RDS ON, press MENU until the program type menu is displayed. SEL-TEXT One of the various program types will appear. Press to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Selects between displaying the station’s call letters or music format when RDS is enabled. Press MENU until SHOW XX appears in the display. Press to select NAME or TYPE. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until to enable the compression status is displayed. Press compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed. When activated, the compression icon will illuminate in the display. Occupancy mode (Available on Audiophile audios only): Press MENU until occupancy mode appears in the display. Press select ALL, DRIVER or REAR SEAT occupancy mode. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU until AUTOSET appears in the display. Press to toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. When activated, AUTOSET will appear in the display when any of the preset controls are pressed.

SEL-TEXT

SEL-TEXT

SEL-TEXT

to

30

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEL-TEXT

SEL-TEXT

to adjust the volume

to increase/decrease the

Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU to access and use setting. The level will appear in the display. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Press hours/minutes. Press MENU again to disengage clock mode. 10. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns. In CD mode, press to select a specific CD to play. 11. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels. Note: With the ignition off, you may press the volume control to momentarily view the clock. 12. LOAD: Press to load a CD. Press LOAD and a specific preset to load in that particular slot. Available slots are indicated by small flashing indicators in the display. When the system is ready to accept a disc, LOAD CD X will appear in the display. Load the CD. Press and hold to autoload up to 6 discs. Note: Ensure that the system is ready to accept the CD. Do not force the disc into the CD slot as damage could result. 13. AM/FM: Press repeatedly to toggle between AM/FM1/FM2 mode.

14. CD: Press to enter CD mode. Press CD and a preset to select a specific CD to play. 15. SAT: Your system may be equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your authorized dealer. Detailed satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability.

31

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

16. SHUF (Shuffle) /SCAN: Press SCAN to hear a brief sampling of radio stations or CD tracks on the current CD. Press again to stop. SHUF (Shuffle): Press and hold to play the CD tracks in random order for the CD currently being played. Press again to stop.

GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from a station, the weaker • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

the signal and the weaker the reception.

Cassette/player care: Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after

cold to reach a moderate temperature before playing.

and turning the hub.

10–12 hours of play to maintain good sound/operation.

Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being

played.

32

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD/CD player care: Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service: Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

33

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

MIX

HI

LO

OFF

VENT

FLOOR

MAX A/C

NORM A/C

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. This mode will help prevent unpleasant odors from entering the vehicle. NORM A/C: Uses outside air to cool the vehicle. Air flows from the instrument panel vents only. VENT: Distributes outside air through the instrument panel vents. OFF: Outside air is shut out and the fan will not operate. FLOOR: Distributes outside air through the floor vents. MIX: Distributes outside air through the windshield defroster vents, floor vents and side window demisters.

: Distributes outside air through the windshield defroster vents and

the side window demisters.

position.

the air flow selector in the

air flow selector in the OFF or MAX A/C position.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of

airflow to the back seats.

the windshield.

34

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

To aid in side window defogging/demisting in cold weather: 1. Select NORM A/C. 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to HI. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) SYSTEM (IF EQUIPPED)

10

11

OUTSIDE TEMP

AUTO

OFF

AUTOMATIC

MAX A/C

NORM A/C

VENT

FLOOR

FLR • DEF

DEF

HI

LO

1. OFF: Outside air is shut out and the fan will not operate.

2. AUTOMATIC: Press AUTOMATIC and select the desired temperature using the temperature controls. The system will automatically determine fan speed, airflow location, and outside or recirculated air to heat or cool the vehicle to the selected temperature. The fan speed will remain automatic unless the thumbwheel is turned all the way to LO.

35

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

3. Fan speed: Turn to manually increase or decrease fan speed.

Distributes outside air through the windshield defroster

4. Defrost: vents and the side window demisters. 5. Floor/defrost: Distributes outside air through the windshield defroster vents, floor vents and the side window demisters. 6. Floor: Distributes outside air through the floor vents. 7. Vent: Distributes outside air through the instrument panel vents. 8. Norm A/C: Uses outside air to cool the vehicle . Air flows from the instrument panel vents only. 9. Max A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. This mode will help prevent unpleasant odors from entering the vehicle. 10. Outside Temp: Press to display the outside temperature. It will remain in the display until pressed again. The temperature will be most accurate when the vehicle is in motion. 11. Temperature control: Press this control to select the temperature. The display window indicates the selected temperature. Fahrenheit/Celsius temperature: Press MAX A/C and DEF simultaneously to toggle between Fahrenheit and Celsius temperature. The set point temperatures in Celsius will be displayed in half-degree increments.

the air flow selector in the

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the

air flow selector in the OFF or MAX A/C position.

position.

airflow to the back seats.

36

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls • Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

To aid in side window defogging/demisting in cold weather: 1. Select NORM A/C. 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to HI. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER The rear defroster control is located on the instrument panel. Press the rear defroster control to clear the rear window of thin ice and fog. A small LED will illuminate when the rear defroster is activated.

The ignition must be in the ON position to operate the rear window defroster. The defroster turns off automatically after a predetermined amount of time or when the ignition is turned to the OFF position. To manually turn off the defroster, press the control again. Activating the rear window defroster will also activate the heated mirrors (if equipped). For more information refer to Heated outside mirrors in the Driver Controls chapter. Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

37

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

HEADLAMP CONTROL Turns the lamps off.

Turns on the parking

lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. The autolamp system also keeps the lights on for a predetermined period of time after the ignition switch is turned to OFF. The delay period can be adjusted up to a maximum of approximately 3 minutes in duration. • To turn autolamps on, rotate the control counterclockwise to the next • To turn autolamps off, rotate the control clockwise The headlamps will also turn on when the wipers are turned on. To change the duration of the autolamp delay, carry out the following sequence: Note: Steps 2 through 5 must be carried out within a 10 second period. 1. Start with the ignition switch in the OFF position and the headlamp switch in the AUTOLAMP position. 2. Place the headlamp switch in the OFF position. 3. Place the ignition switch in the RUN position and then back to OFF. 4. Place the headlamp switch in the AUTOLAMP position. • At this point, the exterior lamps turn on.

position from OFF.

38

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

5. At the desired autolamp time delay, place the headlamp switch in the OFF position. • At this point, the exterior lamps turn off and the time delay is set.

Lights

High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass Pull toward you slightly to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the key must be in the ON position, • the headlamp control is in the OFF or Parking lamps position. • the vehicle is not in Park

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Light (DRL) System

does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

39

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlamp and parklamp operation. • Rotate the thumbwheel from left

to right to brighten the instrument panel.

• Rotate the thumbwheel from right

to left to dim the instrument panel.

Domelamp Control The panel dimmer control also controls the domelamp operation. • Rotate the thumbwheel fully to the right, past detent to activate the • In order to turn off the domelamp, rotate the thumbwheel to the left.

domelamp.

AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by your authorized dealer.

Headlamp aim adjustment The headlamps are designed to be mechanically aimed, but can also be aimed visually by doing the following: 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern.

40

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

ground

• (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line • (5) Center of headlamps • (6) Center line of the vehicle 2. The center of the headlamp is marked either on the lens (a circle or cross marker) or on the bulb shield, internal to the lamp (mark or feature). Measure the height from the center of your headlamp to the ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the wall or screen (1) at this height (masking tape works well). 3. Turn on the low beam headlamps and open the hood. 4. Locate the high intensity area of the beam pattern and place the top edge of the intensity zone even with the horizontal reference line (4). If the top edge of the high intensity area is not even with the horizontal line, follow the next step to adjust it. 5. Locate the vertical adjuster for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up). 6. In addition to the horizontal line marked in step 2, a pair of vertical lines (5) must be marked at the center line of the headlamps on the wall or screen. 7. On the wall or screen, locate the high intensity area of the beam pattern. The left edge of the high intensity area should be even with the vertical line corresponding to the headlamp under adjustment. If the left edge of the high intensity area is not even with the vertical line, follow the next step to adjust it.

41

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

8. Locate the horizontal adjuster for each headlamp. Turn it clockwise or counterclockwise, to place the left edge of the high intensity area even with the vertical line corresponding to the headlamp under adjustment.

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

The flash rate of the turn signal will speed up considerably if the left or right turn lamp bulb (front or rear) is burned out.

INTERIOR LAMPS

Map/Courtesy lamps The courtesy lamps light when: • any door is opened. • the instrument panel dimmer • the UNLOCK control of the

switch is rotated past the detent.

remote entry controls is pressed and the ignition is OFF.

The reading lamps can be turned on by pressing the rocker controls next to each lamp. If equipped with Remote Keyless Entry, the courtesy lamp will illuminate whenever any door is opened and will remain on for 25 seconds after the door is shut or when the ignition is turned to the ON position.

42

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

With overhead console

Lights

With overhead console and moon roof To turn on the map lamps, press the map lamp control.

Rear courtesy/reading lamps Rotate the lens to illuminate the lamp. With the lens in the flat position, the courtesy lamp lights when: • Any door is opened. • The panel dimmer thumbwheel is

rotated fully to the right past detent.

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

43

Lights

BULB REPLACEMENT

Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time. Function Headlamp Park lamp and turn lamp (front) Side marker (front) Tail, stop, turn (rear) Side marker (rear) Backup lamp License plate lamp High-mount brakelamp Luggage compartment lamp Rear reading lamp Map lamp Dual floorwell lamp Glove compartment Visor vanity lamp - Slide on Rail system (SOR) All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.

Trade Number 9007
3457 AK (amber) 194 AK (amber) 3157K 194
3156K 168
912
212-2
578
906
906
168

37

Replacing the interior bulbs Check the operation of all bulbs frequently.

44

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

Overhead console lamps To remove and replace the lamps in the overhead console: 1. Make sure the headlamp switch is in the OFF position and remove the overhead console from the headliner by pulling it straight down. 2. Remove the bulb socket from the back of the lamp housing by pulling it straight out. 3. Remove the bulb from the socket by pulling straight out.

Install the new bulb in reverse order.

Replacing exterior bulbs Check the operation of all the bulbs frequently.

Replacing headlamp bulbs To remove the headlamp bulb: 1. Make sure headlamp switch is in OFF position, then open the hood. 2. Remove the radiator cover by turning the three knobs to the unlock position. 3. Remove two retainers and pull headlamp assembly forward to expose bulb.

4. Disconnect the electrical connector from the bulb by pulling rearward.

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

45

Lights

5. Remove the bulb retaining ring by rotating it counterclockwise (when viewed from the rear) to free it from the bulb socket, and slide the ring off the plastic base. Keep the ring to retain the new bulb. 6. Without turning, remove the old bulb from the lamp assembly by gently pulling it straight back out of the lamp assembly.

To install the new bulb:

Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Note: If the bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used. 1. With the flat side of the new bulb’s plastic base facing upward, insert the glass end of the bulb into the lamp assembly. Turn the bulb left or right to align the grooves in the plastic base with the tabs in the lamp assembly. When the grooves are aligned, push the bulb into the lamp assembly until the plastic base contacts the rear of the lamp assembly. 2. Install the bulb retaining ring over the plastic base until it contacts the rear of the socket by rotating it clockwise until you feel a “stop.” 3. Connect the electrical connector into the rear of the plastic base until it snaps, locking it into position. 4. Install the headlamp assembly with two retainers. 5. Install the radiator cover locking it in place with three knobs. 6. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again. Replacing front parking lamp/turn signal bulb To remove the front parking lamp/turn signal bulb: 1. Make sure headlamp switch is in OFF position, then open the hood.

46

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

2. Remove the radiator cover by turning the three knobs to the unlock position. 3. Remove two retainers and pull headlamp assembly forward to expose bulb. 4. Disconnect the electrical connector from the bulb.

5. Remove the bulb retaining ring by rotating it counterclockwise (when viewed from the rear) to free it from the bulb socket, and slide the ring off the plastic base. Keep the ring to retain the new bulb. 6. Remove the old bulb from the lamp assembly by gently pulling it straight back out of the lamp assembly. To complete installation, follow the removal procedure in reverse order. Replacing front side marker bulb To remove the front side marker bulb: 1. Make sure headlamp switch is in the OFF position, then open the hood. 2. Remove the radiator cover by turning the three knobs to the unlock position. 3. Remove the screw from the outside of the lamp. 4. Remove the nut from inside the lamp and pull the lamp assembly away from the vehicle.

47

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

5. Rotate the bulb socket counterclockwise and remove from lamp assembly. 6. Carefully pull bulb straight out of the socket and push in the new bulb until it snaps, locking it into position. 7. To complete installation, follow the removal procedure in reverse order. Replacing tail lamp/brake/turn signal lamp bulbs The tail lamp and brake/turn signal lamp bulbs are located in the tail lamp assembly. Follow the same steps to replace either bulb. 1. Make sure headlamp switch is in OFF position, then open the trunk and remove the pin-type retainer and carefully pull the carpet away to expose the lamp assembly hardware. 2. Remove three nuts and the lamp assembly from the vehicle. 3. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

4. Pull the bulb from the socket and push in the new bulb. 5. Install the bulb socket into the lamp assembly by rotating it clockwise. 6. Install the lamp assembly on the vehicle with three nuts ensuring the nuts are flush with the body to prevent water from entering the trunk.

48

2008 Crown Victoria (cro) Owners Guide (post-2002-fmt) USA (fus)

Lights

7. Carefully push the carpet back in to place and install the pin-type retainer. Replacing license plate lamp bulbs 1. Make sure headlamp switch is in OFF position, then remove two screws, grommets and the license plate lamp assembly from the trunk lid. 2. Carefully pull the bulb from the socket and push in the new bulb. 3. Install the lamp assembly on
