2 0 0 8 VOLVO


C70

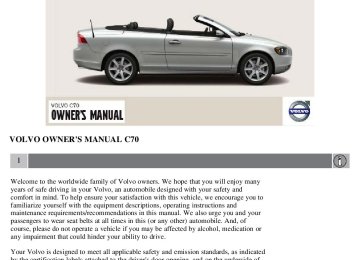

VOLVO OWNER'S MANUAL C70


Welcome to the worldwide family of Volvo owners. We hope that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual. We also urge you and your passengers to wear seat belts at all times in this (or any other) automobile. And, of course, please do not operate a vehicle if you may be affected by alcohol, medication or any impairment that could hinder your ability to drive.


Your Volvo is designed to meet all applicable safety and emission standards, as indicated by the certification labels attached to the driver's door opening, and on the underside of the hood.


For further information please contact your retailer, or:


In the USA: Volvo Cars of North America, LLC Customer Care Center P.O. Box 914 Rockleigh, New Jersey 07647-0914
1-800-458-1552
www.volvocars.us


In Canada: Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7
1-800-663-8255
www.volvocanada.com


2007 © Volvo Car Corporation. All rights reserved.


2 Contents


00 Introduction General information Volvo and the environment 7
Important warnings


01 Safety Occupant safety Seat belts Supplemental Restraint System Front airbags Occupant Weight Sensor Side impact protection airbags Door mounted inflatable curtains Whiplash Protection System Roll-over Protection System Crash mode Child safety Child restraint systems Infant seats Convertible seats Booster cushions ISOFIX lower anchors Child restraint registration and recalls


02 Instruments and controls Instrument overview Instrument panel Symbols - instrument panel Information display Lighting panel Left-side steering wheel lever Trip computer Right-side steering wheel lever Cruise control Steering wheel adjustment, Hazard warning flashers Parking brake 12-volt sockets Power windows Mirrors Personal settings HomeLink® Universal Transceiver (option)


44
47
50
53
55
57
58
60
62
64
65
66
67
68
71
73


12
14
17
18
21
24
25
26
28
29
30
33
35
37
39
40
41


05 Locks and alarm 112
Remote control and key blade 117
Valet locking Keyless drive (option as 119
available) 123
Locking and unlocking Glove compartment and trunk 124
Opening the trunk from the inside 125
126
Alarm


08 Car care Washing and cleaning the vehicle 196
200
Paint touch up


3 Contents


03 Climate 80
General information Air vents 81
Electronic Climate Control (ECC) 82
Air distribution 86


04 Interior Front seats 90
Power retractable hard top 94
100
Interior lighting Storage compartments 102
107
Trunk


4 Contents


06 Starting and driving General information Fuel requirements Ignition switch/Steering wheel lock Starting the vehicle Starting the car with keyless drive (option) Manual transmission Automatic transmission Shiftlock override Brake system Stability system Towing Jump starting Towing a trailer Detachable trailer hitch Transporting loads Blind Spot Information System (BLIS)-option Park assist (Option/accessory)


132
136
139
140
142
143
144
146
147
149
151
154
155
157
158
159
163


5 Contents


07 Wheels and tires General information Tire inflation Tire designations Glossary of tire terminology Vehicle loading Uniform tire quality gradings Snow chains, snow tires, studded tires Wheel nuts Tire rotation Temporary spare Changing a wheel Tire sealing system Tire Pressure Monitoring System (TPMS)


168
170
174
176
177
179
180
181
182
183
184
185
192


10 Audio 234
Audio functions 239
Radio functions Sirius satellite radio (option) 241
CD player/CD changer (option) 245
249
Audio menu


11 Specifications 252
Label information 254
Dimensions and weights 256
Fluids 257
Engine oil 259
Engine specifications Electrical system 260
Three-way catalytic converter 262
263
Volvo programs


09 Maintenance and servicing Volvo maintenance 204
Maintaining your vehicle 205
207
Hood Engine compartment 208
209
Engine oil 211
Fluids Wiper blades 213
214
Battery 216
Bulbs Replacing bulbs 217
Fuses 224
5 - cont. Contents


12 Index Index 264


6 Introduction


General information


Shiftlock (automatic transmission) When your car is parked, the gear selector is locked in the Park (P) position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the gear selector and move the selector from Park (P).


Keylock (automatic transmission) When the ignition is switched off, the gear selector must be in the Park (P) position before the key can be removed from the ignition switch.


Anti-lock Brake System (ABS) The ABS system in your car performs a self-diagnostic test when the vehicle first reaches the speed of approximately 12 mph (20 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control module. This is normal.


Fuel filler door Press the button on the light switch panel when the car is at a standstill to open the fuel filler door.


Fuel filler cap After refueling, close the fuel filler cap by turning it clockwise until it clicks into place. If this cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator Lamp ("Check Engine" light) may indicate a fault.


Points to keep in mind


Before you operate your vehicle for the first time, please familiarize yourself with the new-engine oil consumption


information on page 209. You should also be familiar with the information found in the chapters "Instruments and controls," and "Starting and driving."


Information contained in the balance of the manual is extremely useful and should be read after operating the


The manual is structured so that it can be used for reference. For this reason, it should be kept in the vehicle for


vehicle for the first time.


ready access.


Do not export your Volvo to another country before investigating that country's applicable safety and emission


control requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada and other countries.


All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Please note that some vehicles may be equipped differently, depending on special legal requirements. Optional equipment described in this manual may not be available in all markets.


Volvo reserves the right to make model changes at any time, or to change specifications or design without notice


and without incurring obligation.


WARNING


If your vehicle is involved in an accident, unseen damage may affect its drivability and safety.


WARNING


CALIFORNIA proposition 65 Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer, and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.


7 Introduction


Volvo and the environment


Volvo is committed to the well being of its customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact. Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling are all important considerations. In production, Volvo has partly or completely phased out several chemicals including CFCs, lead chromates, asbestos, and cadmium; and reduced the number of chemicals used in our plants 50% since 1991.


Volvo was the first in the world to introduce into production a three-way catalytic converter with a Lambda sond, now called the heated oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95-99% and the search to eliminate the remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air conditioning system of all models as far back as the 1975 model 240. Advanced electronic engine controls and cleaner fuels are bringing us closer to our goal. After Volvo vehicles and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The metal content is about 75% of the total weight of a vehicle, which makes the vehicle among the most recycled industrial products. In order to have efficient and well-controlled recycling, dismantling information is available for all Volvo models. For Volvo, all homogeneous plastic parts weighing more


than 3.4 oz. (100 grams) are marked with international symbols that indicate how the component is to be sorted for recycling. In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles.


When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can:


Maintain proper air pressure in your tires. Tests have shown decreased fuel economy with improperly inflated tires. Follow the recommended maintenance schedule in your Warranty and Service Records Information booklet. Drive at a constant speed whenever possible. See a trained and qualified Volvo service technician as soon as possible for inspection if the check engine (


malfunction indicator) light illuminates, or stays on after the vehicle has started.


Properly dispose of any vehicle-related waste such as used motor oil, used batteries, brake pads, etc. When cleaning your vehicle, please use genuine Volvo car care products. All Volvo car care products are


formulated to be environmentally friendly.


For additional information regarding the environmental activities in which Volvo Cars of North America, LLC and Volvo Car Corporation are involved, visit our Internet home page at: http://www.volvocars.us.


WARNING


Certain components of this vehicle such as air bag modules, seat belt pretensioners, adaptive steering columns, rollover protection system, and button cell batteries may contain Perchlorate material. Special handling may apply for service or vehicle end of life disposal.


See www.dtsc.ca.gov/hazardouswaste/perchlorate.


8 Introduction


Important warnings


Accessory Installation


We strongly recommend that Volvo owners install only genuine, Volvo-approved accessories, and that accessory


installations be performed only by a trained and qualified Volvo service technician.


Genuine Volvo accessories are tested to ensure compatibility with the performance, safety, and emission systems in your car. Additionally, a trained and qualified Volvo service technician knows where accessories may and may not be safely installed in your Volvo. In all cases, please consult a trained and qualified Volvo service technician before installing any accessory in or on your car.


Accessories that have not been approved by Volvo may or may not be specifically tested for compatibility with your


car. Additionally, an inexperienced installer may not be familiar with some of your car's systems.


Any of your car's performance and safety systems could be adversely affected if you install accessories that Volvo


has not tested, or if you allow accessories to be installed by someone unfamiliar with your car.


Damage caused by unapproved or improperly installed accessories may not be covered by your new car warranty.


See your Warranty and Service Records Information booklet for more warranty information. Volvo assumes no responsibility for death, injury, or expenses that may result from the installation of non-genuine accessories.


Driver distraction


Driver distraction results from driver activities that are not directly related to controlling the car in the driving environment. Your new Volvo is, or can be, equipped with many feature-rich entertainment and communication systems. These include hands-free cellular telephones, navigation systems, and multipurpose audio systems. You may also own other portable electronic devices for your own convenience. When used properly and safely, they enrich the


driving experience. Improperly used, any of these could cause a distraction.


For all of these systems, we want to provide the following warning that reflects the strong Volvo concern for your safety:


Never use these devices or any feature of your vehicle in a way that distracts you from the task of driving safely.


Distraction can lead to a serious accident. In addition to this general warning, we offer the following guidance regarding specific newer features that may be found in your vehicle:


Never use a hand-held cellular telephone while driving. Some jurisdictions prohibit cellular telephone use by a


driver while the vehicle is moving.


parked.


If your car is equipped with a navigation system, set and make changes to your travel itinerary only with the vehicle


Never program your audio system while the vehicle is moving. Program radio presets with the vehicle parked, and


use your programmed presets to make radio use quicker and simpler.


Never use portable computers or personal digital assistants while the vehicle is moving.


A driver has a responsibility to do everything possible to ensure his or her own safety and the safety of passengers in the vehicle and others sharing the roadway. Avoiding distractions is part of that responsibility.


9 Introduction


This page left intentionally blank.


Contents | Top of Page


2 0 0 8
VOLVO


C70


10 01 Safety


Occupant safety 12
Seat belts 14
Supplemental Restraint System 17
Front airbags 18
Occupant Weight Sensor 21
Side impact protection airbags 24
Door mounted inflatable curtains 25
Whiplash Protection System 26
Roll-over Protection System 28
Crash mode 29
Child safety 30
Child restraint systems 33
Infant seats 35
Convertible seats 37
Booster cushions 39
ISOFIX lower anchors 40
Child restraint registration and recalls 41


11 01 Safety


12 01 Safety


Occupant safety


Volvo's concern for safety


Safety is Volvo's cornerstone. Our concern dates back to 1927 when the first Volvo rolled off the production line. Three-point seat belts (a Volvo invention), safety cages, and energy-absorbing impact zones were designed into Volvo


cars long before it was fashionable or required by government regulation.


We will not compromise our commitment to safety. We continue to seek out new safety features and to refine those already in our cars. You can help. We would appreciate hearing your suggestions about improving automobile safety. We also want to know if you ever have a safety concern with your car. Call us in the U.S. at: 1-800-458-1552 or in Canada at: 1-800-663-8255.


Occupant safety reminders


How safely you drive doesn't depend on how old you are but rather on:


How well you see. Your ability to concentrate. How quickly you make decisions under stress to avoid an accident.


The following suggestions are intended to help you cope with the ever changing traffic-environment.


Never drink and drive. If you are taking any medication, consult your physician about its potential effects on your driving abilities. Take a driver-retraining course. Have your eyes checked regularly. Keep your windshield and headlights clean. Replace wiper blades when they start to leave streaks. Take into account the traffic, road, and weather conditions, particularly with regard to stopping distance.


Reporting safety defects in the U.S.


If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Volvo Cars of North America, LLC. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your retailer, or Volvo Cars of North America, LLC.


To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153) or write to: NHTSA, U.S. Department of Transportation, Washington D.C. 20590.


You can also obtain other information about motor vehicle safety from:


http://www.safercar.gov


Volvo strongly recommends that if your vehicle is covered under a service campaign, safety or emission recall or similar action, it should be completed as soon as possible. Please check with your local retailer or Volvo Cars of North America, LLC if your vehicle is covered under these conditions.


NHTSA can be reached at:


13 01 Safety


Occupant safety


Internet: http://www.nhtsa.gov


Telephone:


1-888-DASH-2-DOT (1-888-327-4236).


Reporting safety defects in Canada


If you believe your vehicle has a defect that could cause a crash or could cause injury or death, you should immediately inform Transport Canada in addition to notifying Volvo Cars of Canada Corp.


To contact Transport Canada, call (800) 333-0510, or (613) 993-9851 if you are calling from the Ottawa region.


14 01 Safety


Seat belts


Using seat belts


Seat belts should always be worn by all occupants of your vehicle. Children should be properly restrained, using an infant, car, or booster seat determined by age, weight and height.


Volvo also believes no child should sit in the front seat of a vehicle.


Most states and provinces make it mandatory for occupants of a vehicle to use seat belts.


Seat belt pretensioners All seat belts are equipped with pretensioners that reduce slack in the belts. These pretensioners are triggered in situations where the front or side impact airbags deploy, and in certain impacts from the rear. The front seat belts also include a tension reducing device which, in the event of a collision, limits the peak forces exerted by the seat belt on the occupant.


Buckling a seat belt Pull the belt out far enough to insert the latch plate into the receptacle until a distinct click is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far.


The retractor will lock up as follows:


if the belt is pulled out rapidly during braking and acceleration if the vehicle is leaning excessively when driving in turns.


When wearing the seat belt remember:


The belt should not be twisted or turned. The lap section of the belt must be positioned low on the hips (not pressing against the abdomen). Make sure that the shoulder belt is rolled up into its retractor and that the shoulder and lap belts are taut.


Unbuckling the seat belt


To remove the seat belt, press the red section on the seat belt receptacle. Before exiting the vehicle, check that the


seat belt retracts fully after being unbuckled. If necessary, guide the belt back into the retractor slot.


WARNING


Never use a seat belt for more than one occupant. Never wear the shoulder portion of the belt under the arm, behind the back or otherwise out of position. Such use could cause injury in the event of an accident. As seat belts lose much of their strength when exposed to violent stretching, they should be replaced after any collision, even if they appear to be undamaged.


15 01 Safety


Seat belts


Seat belt guides


These guides are designed to help provide easier access to the seat belts. A belt can be taken out of the guide and slid to the rearmost part of the lower seat belt anchorage rod to make it easier for passengers to enter or exit the rear seat.


WARNING


Never repair the belt yourself; have this work done by a trained and qualified Volvo service technician only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a


detrimental effect on the amount of protection available to you in the event of a collision.


The seat back should not be tilted too far back. The shoulder belt must be taut in order to function properly. Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend


that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.


Seat belt use during pregnancy


The seat belt should always be worn during pregnancy. But it is crucial that it be worn in the correct way. The diagonal section should wrap over the shoulder then be routed between the breasts and to the side of the belly. The lap section should lay flat over the thighs and as low as possible under the belly. It must never be allowed to ride upward. Remove all slack from the belt and insure that it fits close to the body without any twists.


As a pregnancy progresses, pregnant drivers should adjust their seats and steering wheel such that they can easily maintain control of the vehicle as they drive (which means they


16 01 Safety


Seat belts


must be able to easily operate the foot pedals and steering wheel). Within this context, they should strive to position the seat with as large a distance as possible between their belly and the steering wheel.


Child seats


Please refer to page 33 for information on securing child seats with the seat belts.


Seat belt reminder


The seat belt reminder consists of an audible signal, an indicator light above the rearview mirror, and a symbol in the instrument panel (see page 51) that alert the driver and front seat passenger if their seat belts are not fastened.


NOTE


The function is active for a total of 6 minutes from the time the ignition is switched on.


During the first minute: The seat belt reminder function only reacts if the driver has not fastened his/her seat belt.


The indicator light above the mirror and the symbol in the instrument panel will light up and stay lit until the seat


belt has been fastened.


A chime will sound for 6 seconds. The frequency of the chiming increases with the speed of the car.


After one minute has elapsed: The seat belt reminder reacts if the driver and/or the front seat passenger have not fastened their seat belts.


The indicator light above the mirror and the symbol in the instrument panel will light up and stay lit until the seat


belt(s) have been fastened, or until the remaining 5 minutes of the 6-minute cycle have elapsed.


The chime will sound for 6 seconds, at 30-second intervals. The frequency of the chiming increases with the speed


of the car.


After 6 minutes, the chime will no longer sound and the indicator lights will go out.


Seat belt maintenance


Check periodically that the seat belts are in good condition. Use water and a mild detergent for cleaning. Check seat belt mechanism function as follows: attach the seat belt and pull rapidly on the strap.


17 01 Safety


Supplemental Restraint System


Supplemental Restraint System (SRS)


As an enhancement to the three-point seat belts, your Volvo is equipped with a Supplemental Restraint System (SRS). Volvo's SRS consists of seat belt pretensioners, front airbags, side impact airbags, the occupant weight sensor, and inflatable curtains. All of these systems are monitored by the SRS control module. An SRS warning light in the instrument panel (see the illustration) illuminates when the ignition key is turned to position I, II, or III, and will normally go out after approximately 7 seconds if no faults are detected in the system.


Where applicable, a text message will also be displayed when the SRS warning light illuminates. If this warning symbol is not functioning properly, the general warning symbol URGENT or SRS AIRBAG SERVICE REQUIRED will be displayed.


illuminates and either SRS AIRBAG SERVICE


WARNING


If the SRS warning light stays on after the engine has started or if it illuminates while you are driving, have the


vehicle inspected by a trained and qualified Volvo service technician as soon as possible.


Never try to repair any component or part of the SRS yourself. Any interference in the system could cause


malfunction and serious injury. All work on these systems should be performed by a trained and qualified Volvo service technician.


WARNING


If your vehicle has been subjected to flood conditions (e.g. soaked carpeting/standing water on the floor of the vehicle) or if your vehicle has become flood-damaged in any way, do not attempt to start the vehicle or put the key in the ignition before disconnecting the battery (see below). This may cause airbag deployment which could result in personal injury. Have the vehicle towed to a trained and qualified Volvo service technician for repairs.


Automatic transmission: Before attempting to tow the vehicle, use the following procedure to override the shiftlock system to move the


gear selector to the neutral position: - Switch off the ignition for at least 10 minutes and disconnect the battery - Wait at least one minute. - Insert the key in the ignition and turn it to position II. - Press firmly on the brake pedal. - Move the gear selector from Park (P) to the Neutral (N) position. See page 146 for information on manually overriding the shiftlock system.


18 01 Safety


Front airbags


The front airbag system


The front airbags supplement the three-point seat belts. For these airbags to provide the protection intended, seat belts must be worn at all times.


The front airbag system includes gas generators surrounded by the airbags, and deceleration sensors that activate the gas generators, causing the airbags to be inflated with nitrogen gas.


As the movement of the seats' occupants compresses the airbags, some of the gas is expelled at a controlled rate to provide better cushioning. Both seat belt pretensioners also deploy, minimizing seat belt slack. The entire process, including inflation and deflation of the airbags, takes approximately one fifth of a second.


The location of the front airbags is indicated by "SRS AIRBAG" embossed on the steering wheel pad and above the glove compartment, and by decals on both sun visors and on the front and far right side of the dash.


The driver's side front airbag is folded and located in the steering wheel hub. The passenger's side front airbag is folded behind a panel located above the glove compartment.


WARNING


housing.


The airbags in the vehicle are designed to be a SUPPLEMENT to-not a replacement for-the three-point seat belts.


For maximum protection, wear seat belts at all times. Be aware that no system can prevent all possible injuries that may occur in an accident.


Never drive a vehicle with a steering wheel-mounted airbag with your hands on the steering wheel pad/airbag


The front airbags are designed to help prevent serious injury. Deployment occurs very quickly and with


considerable force. During normal deployment and depending on variables such as seating position, one may experience abrasions, bruises, swellings, or other injuries as a result from deployment of one or both of the airbags.


When installing any accessory equipment, make sure that the front airbag system is not damaged. Any interference


in the system could cause malfunction.


19 01 Safety


Front airbags


Front airbag deployment


The front airbags are designed to deploy during certain frontal or front-angular collisions, impacts, or decelerations, depending on the crash severity, angle, speed and object impacted. The airbags may also deploy in certain non-frontal collisions where rapid deceleration occurs.


The SRS sensors, which trigger the front airbags, are designed to react to both the impact of the collision and the


inertial forces generated by it, and to determine if the intensity of the collision is sufficient for the seat belt pretensioners and/or airbags to be deployed.


However, not all frontal collisions activate the front airbags.


If the collision involves a nonrigid object (e.g., a snow drift or bush), or a rigid, fixed object at a low speed, the


front airbags will not necessarily deploy.


Front airbags do not normally deploy in a side impact collision, in a collision from the rear or in a rollover situation. The amount of damage to the bodywork does not reliably indicate if the airbags should have deployed or not.


NOTE


Deployment of front airbags occurs only one time during an accident. In a collision where deployment occurs, the airbags and seat belt pretensioners activate. Some noise occurs and a small amount of powder is released. The release of the powder may appear as smoke-like matter. This is a normal characteristic and does not indicate fire.


Volvo's front airbags use special sensors that are integrated with the front seat buckles. The point at which the airbag deploys is determined by whether or not the seat belt is being used, as well as the severity of the collision. Collisions can occur where only one of the airbags deploys. If the impact is less severe, but severe enough to


present a clear injury risk, the airbags are triggered at partial capacity. If the impact is more severe, the airbags are triggered at full capacity.


Should you have questions about any component in the SRS system, please contact a trained and qualified Volvo service technician or Volvo Customer Support:


In the USA:


Volvo Cars of North America, LLC Customer Care Center P.O. Box 914 Rockleigh, New Jersey 07647-0914
1-800-458-1552
www.volvocars.us


In Canada:


Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7
1-800-663-8255
www.volvocanada.com


WARNING


Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend that occupants under 4 feet 7 inches (140 cm) in height who have outgrown these devices sit in the rear seat with the seat belt fastened1.


Never drive with the airbags deployed. The fact that they hang out can impair the steering of your vehicle. Other


The smoke and dust formed when the airbags are deployed can cause skin and eye irritation in the event of


safety systems can also be damaged.


prolonged exposure.


1See also the Occupant Weight Sensor information on page 21.


20 01 Safety


Front airbags


WARNING


Children must never be allowed in the front passenger's seat. Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a passenger-side front airbag. See page 32 for guidelines.


Occupants in the front passenger's seat must never sit on the edge of the seat, sit leaning toward the instrument


The occupant's back must be as upright as comfort allows and be against the seat back with the seat belt properly


panel or otherwise sit out of position.


fastened.


Feet must be on the floor, e.g., not on the dash, seat or out of the window.


WARNING


No objects or accessory equipment, e.g. dashboard covers, may be placed on, attached to, or installed near the air bag hatch (the area above the glove compartment) or the area affected by airbag deployment (see the illustration on


page 18).


There should be no loose articles, e.g. coffee cups, on the floor, seat, or dashboard area. Never try to open the airbag cover on the steering wheel or the passenger's side dashboard. This should only be


done by a trained and qualified Volvo service technician.


Failure to follow these instructions can result in injury to the vehicle occupants.


21 01 Safety


Occupant Weight Sensor


Disabling the passenger's side front airbag


Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the rear seat of any vehicle with a passenger's side front airbag, and be properly restrained. Children should always be seated in child restraints appropriate for their size and weight. See also the child safety recommendations beginning on page 30.


The Occupant Weight Sensor (OWS) is designed to meet the regulatory requirements of Federal Motor Vehicle Safety Standard (FMVSS) 208 and is designed to disable (will not inflate) the passenger's side front airbag under certain conditions.


The OWS works with sensors that are part of the front passenger's seat and seat belt. The sensors are designed to detect the presence of a properly seated occupant and determine if the passenger's side front airbag should be enabled (may inflate) or disabled (will not inflate).


The OWS will disable (will not inflate) the passenger's side front airbag when:


the front passenger's seat is unoccupied, or has small/medium objects in the front seat, the system determines that an infant is present in a rear-facing infant seat that is installed according to the


the system determines that a small child is present in a forward-facing child restraint that is installed according to


manufacturer's instructions,


the manufacturer's instructions,


the system determines that a small child is present in a booster seat, a front passenger takes his/her weight off of the seat for a period of time, a child or a small person occupies the front passenger's seat.


The OWS uses a PASSENGER AIRBAG OFF indicator lamp which will illuminate and stay on to remind you that the passenger's side front airbag is disabled. The PASSENGER AIRBAG OFF indicator lamp is located in the overhead console, near the base of the rearview mirror.


NOTE


When the ignition is switched on, the OWS indicator light will go on for up to 10 seconds while the system performs a self-diagnostic test.


However, if a fault is detected in the system:


The OWS indicator light will stay on The SRS warning light (see page 17) will come on and stay on


The message PASS. AIRBAG OFF SERVICE URGENT will be displayed in the information display.


22 01 Safety


Occupant Weight Sensor


WARNING


If a fault in the system is detected and indicated as explained on the preceding page, be aware that the passenger's


side front airbag will not deploy in the event of a collision. In this case, the SRS system and Occupant Weight Sensor should be inspected by a trained and qualified Volvo service technician as soon as possible.


Never try to open, remove, or repair any components in the OWS system. This could result in system malfunction.


Maintenance or repairs should only be carried out by an a trained and qualified Volvo service technician.


The front passenger's seat should not be modified in any way. This could reduce pressure on the seat cushion,


which might interfere with the OWS system's function.


The OWS is designed to disable (will not inflate) the passenger's side front airbag when a rear facing infant seat, a forward-facing child restraint, or a booster seat is detected. The PASSENGER AIRBAG OFF indicator lamp will illuminate and stay on to remind you that the passenger's side front airbag is disabled (see the following table).


1Volvo recommends that children always be properly restrained in appropriate child restraints in the rear seats. Do not assume that the passenger's side front airbag is disabled unless the PASSENGER AIRBAG OFF indicator lamp is lit. Make sure the child restraint is properly installed. If there is any doubt as to the status of the passenger's side front airbag, move the child restraint to the rear seat.


The OWS is designed to enable (may inflate) the passenger's side front airbag anytime the system senses that a person of adult size is sitting properly in the front passenger's seat. The PASSENGER AIRBAG OFF indicator lamp will be off and remain off.


If a person of adult size is sitting in the front passenger's seat, but the PASSENGER AIRBAG OFF indicator lamp is on, it is possible that the person isn't sitting properly in the seat. If this happens:


Turn the vehicle off and ask the person to place the seatback in an upright position. Have the person sit upright in the seat, centered on the seat cushion, with the person's legs comfortably extended. Restart the vehicle and have the person remain in this position for about two minutes. This will allow the system to


detect that person and enable the passenger's frontal airbag.


If the PASSENGER AIRBAG OFF indicator lamp remains on even after this, the person should be advised to ride


in the rear seat.


This condition reflects limitations of the OWS classification capability. It does not indicate OWS malfunction.


23 01 Safety


Occupant Weight Sensor


Modifications If you are considering modifying your vehicle in any way to accommodate a disability, for example by altering or adapting the driver's or front passenger's seat(s) and/or airbag systems, please contact Volvo at:


In the USA: Volvo Cars of North America, LLC Customer Care Center P.O. Box 914 Rockleigh, New Jersey 07647-0914
1-800-458-1552


In Canada: Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7
1-800-663-8255


WARNING


No objects that add to the total weight on the seat should be placed on the front passenger's seat. If a child is seated in the front passenger's seat with any additional weight, this extra weight could cause the OWS system to enable the airbag, which might cause it to deploy in the event of a collision, thereby injuring the child.


The seat belt should never be wrapped around an object on the front passenger's seat. This could interfere with the


OWS system's function.


The front passenger's seat belt should never be used in a way that exerts more pressure on the passenger than


normal. This could increase the pressure exerted on the weight sensor by a child, and could result in the airbag being enabled, which might cause it to deploy in the event of a collision, thereby injuring the child.


WARNING


Keep the following points in mind with respect to the OWS system. Failure to follow these instructions could adversely affect the system's function and result in serious injury to the occupant of the front passenger's seat:


The full weight of the front seat passenger should always be on the seat cushion. The passenger should never lift him/herself off the seat cushion using the armrest in the door or the center console, by pressing the feet on the floor, by sitting on the edge of the seat cushion, or by pressing against the backrest in a way that reduces pressure on the seat cushion. This could cause OWS to disable the passenger's side front airbag.


Do not place any type of object on the front passenger's seat in such a way that jamming, pressing, or squeezing


occurs between the object and the front seat, other than as a direct result of the correct use of the Automatic Locking Retractor/Emergency Locking Retractor (ALR/ELR) seat belt (see page 32).


No objects should be placed under the front passenger's seat. This could interfere with the OWS system's function. 24 01 Safety


Side impact protection airbags


Side impact airbags (SIPS) - front seats only


As an enhancement to the structural side impact protection built into your car, the car is also equipped with Side Impact Protection System (SIPS) airbags.


The SIPS airbag system is designed to help increase occupant protection in the event of certain side impact collisions. The SIPS airbags are designed to deploy only during certain side-impact collisions, depending on the crash severity, angle, speed and point of impact.


NOTE


SIPS airbag deployment (one airbag) occurs only on the side of the vehicle affected by the impact. The airbags are not designed to deploy in all side impact situations.


Components in the SIPS airbag system This SIPS airbag system consists of gas generators and side airbag modules built into the outboard sides of both front seat backrests.


WARNING


The SIPS airbag system is a supplement to the structural Side Impact Protection System and the three-point seat belt system. It is not designed to deploy during collisions from the front or rear of the car or in rollover situations.


The use of seat covers on the front seats may impede SIPS airbag deployment. No objects, accessory equipment or stickers may be placed on, attached to or installed near the SIPS airbag system


or in the area affected by SIPS airbag deployment.


Never try to open or repair any components of the SIPS airbag system. This should be done only by a trained and


qualified Volvo service technician.


position with the seat belt properly fastened.


In order for the SIPS airbag to provide its best protection, both front seat occupants should sit in an upright


Failure to follow these instructions can result in injury to the occupants of the vehicle in the event of an accident.


25 01 Safety


Door mounted inflatable curtains


Door Mounted Inflatable Curtain system (DMIC)


The DMIC is a supplement to the structural side impact protection. These inflatable curtains are concealed in the upper section of the driver and passenger doors.


The Inflatable Curtain (DMIC) and the Side Impact Airbag System (SIPS-bag) will both deploy in certain side


impacts.


NOTE


DMIC deployment can occur regardless of whether the power retractable hard top is up or down. If the inflatable curtain deploys, it remains inflated for approximately 5 seconds.


WARNING


The DMIC system is a supplement to the Side Impact Protection System. It is not designed to deploy during collisions from the front or rear of the vehicle. It only provides protection for the occupants of the front seats.


There is a risk of injury if the driver or front seat passenger leans on or against the door panel when the DMIC


Never install or mount any equipment on the insides of the doors, door pillars, or side panels. This could impede


deploys.


the function of the DMIC system.


Never try to open or repair any components of the DMIC system. This should be done only by a trained and


qualified Volvo service technician.


WARNING


In order for the DMIC to provide its best protection, both front seat occupants should sit in an upright position with the seat belt properly fastened; adults using the seat belt and children using the proper child restraint system. Only adults should sit in the front seats. Children must never be allowed in the front passenger seat. See page 32 for guidelines. Failure to follow these instructions can result in injury to the vehicle occupants in an accident.


26 01 Safety


Whiplash Protection System


Whiplash Protection System (WHIPS) - front seats only


The WHIPS system consists of specially designed hinges and brackets on the front seat backrests designed to help absorb some of the energy generated in a collision from the rear (when the vehicle is "rear-ended").


In the event of a collision of this type, the hinges and brackets of the front seat backrests are designed to change position slightly to allow the backrest/head restraint to help support the occupant's head before moving slightly rearward. This movement helps absorb some of the forces that could result in whiplash.


WARNING


The WHIPS system is designed to supplement the other safety systems in your car. For this system to function


properly, the three-point seat belt must be worn. Please be aware that no system can prevent all possible injuries that may occur in an accident.


The WHIPS system is designed to function in certain collisions from the rear, depending on the crash severity,


angle and speed.


WARNING


Occupants in the front seats must never sit out of position. The occupant's back must be as upright as comfort allows and be against the seat back with the seat belt properly fastened.


27 01 Safety


Whiplash Protection System


WARNING


If your car has been involved in a rearend collision, the front seat backrests must be inspected by a trained and qualified Volvo service technician, even if the seats appear to be undamaged. Certain components in the WHIPS system may need to be replaced.


Do not attempt to service any component in the WHIPS system yourself.


WARNING


Boxes, suitcases, etc. wedged behind the front seats could impede the function of the WHIPS system. If the rear seat backrests are folded down, cargo must be secured to prevent it from sliding forward against the


front seat backrests in the event of a collision from the rear. This could interfere with the action of the WHIPS system.


28 01 Safety


Roll-over Protection System


Roll-over Protection system (ROPS)


The ROPS system consists of two roll bars located behind the rear seat head restraints, and a sensor that monitors the roll or pitch angle of the vehicle.


If the vehicle rolls or pitches beyond a preset angle, or in the event of a rear-end collision of sufficient force, the roll bars are automatically deployed (raised).


The ROPS system is designed to function regardless of whether the power retractable hard top is up or down. By design, the tops of the roll bars are equipped with a point in order to pierce the rear window if the top is up.


NOTE


If ROPS has deployed, the system should be inspected by a trained and qualified Volvo service technician.


WARNING


The rear seat of the Volvo C70 is intended for two occupants, and only two rear seat belts are provided. The center


section of the seat should never be used to seat a passenger.


No objects should be placed over the roll bars or behind the rear seat head restraints. All repairs or maintenance to the ROPS system should only be performed by a trained Volvo service technician.


29 01 Safety


Crash mode


Driving after a collision


If the vehicle has been involved in a collision, the text CRASH MODE SEE MANUAL may appear in the information display. This indicates that the vehicle's functionality has been reduced.


NOTE


This text can only be shown if the display is undamaged and the vehicle's electrical system is intact.


CRASH MODE is a feature that is triggered if one or more of the safety systems (for example, front or side airbags, an inflatable curtain, or one or more of the seat belt pretensioners) has deployed. The collision may have damaged an important function in the vehicle, such as the fuel lines, sensors for one of the safety systems, the brake system, etc.


WARNING


Never attempt to repair the vehicle yourself or to reset the electrical system after the vehicle has displayed


CRASH MODE SEE MANUAL. This could result in injury or improper system function.


Restoring the vehicle to normal operating mode should only be done by a trained and qualified Volvo service


technician.


After CRASH MODE SEE MANUAL has been displayed, if you detect the odor of fuel vapor, or see any signs of


fuel leakage, do not attempt to start the vehicle. Leave the vehicle immediately.


Attempting to start the vehicle If damage to the vehicle is minor and there is no fuel leakage, you may attempt to start the vehicle. To do so:


1. Remove the ignition key.


2. Reinsert the key in the ignition switch. The vehicle will then attempt to reset CRASH MODE to normal mode.


3. Try to start the vehicle.


Moving the vehicle If the electrical system is able to reset system status to normal (CRASH MODE SEE MANUAL will no longer be displayed), the vehicle may be moved carefully from its present position, if for example, it is blocking traffic. It should, however, not be moved farther than is absolutely necessary.


WARNING


Even if the vehicle appears to be drivable after CRASH MODE has been set, it should not be driven or towed (pulled by another vehicle). There may be concealed damage that could make it difficult or impossible to control. The vehicle should be transported on a flatbed tow truck to a trained and qualified Volvo service technician for inspection/repairs.


30 01 Safety


Child safety


Children should be seated safely


Volvo recommends the proper use of restraint systems for all occupants including children. Remember that, regardless of age and size, a child should always be properly restrained in a car.


Your car is also equipped with ISOFIX/LATCH attachments, which make it more convenient to install child seats.


Some restraint systems for children are designed to be secured in the vehicle by lap belts or the lap portion of a lap- shoulder belt. Such child restraint systems can help protect children in cars in the event of an accident only if they are


used properly. However, children could be endangered in a crash if the child restraints are not properly secured in the vehicle. Failure to follow the installation instructions for your child restraint can result in your child striking the vehicle's interior in a sudden stop.


Holding a child in your arms is NOT a suitable substitute for a child restraint system. In an accident, a child held in a person's arms can be crushed between the vehicle's interior and an unrestrained person. The child could also be injured by striking the interior, or by being ejected from the vehicle during a sudden maneuver or impact. The same can also happen if the infant or child rides unrestrained on the seat. Other occupants should also be properly restrained to help reduce the chance of injuring or increasing the injury of a child.


All states and provinces have legislation governing how and where children should be carried in a car. Find out the regulations existing in your state or province. Recent accident statistics have shown that children are safer in rear seating positions than front seating positions when properly restrained. A child restraint system can help protect a child in a vehicle. Here's what to look for when selecting a child restraint system:


It should have a label certifying that it meets applicable Federal Motor Vehicle Safety Standards (FMVSS 213) - or


in Canada, CMVSS 213.


Make sure the child restraint system is approved for the child's height, weight and development - the label required


by the standard or regulation, or instructions for infant restraints, typically provide this information.


In using any child restraint system, we urge you to carefully look over the instructions that are provided with the restraint. Be sure you understand them and can use the device properly and safely in this vehicle. A misused child restraint system can result in increased injuries for both the infant or child and other occupants in the vehicle.


When a child has outgrown the child safety seat, you should use the rear seat with the standard seat belt fastened. The best way to help protect the child here is to place the child on a cushion so that the seat belt is properly located on the hips (see the illustration on page 39). Legislation in your state or province may mandate the use of a child seat or cushion in combination with the seat belt, depending on the child's age and/or size. Please check local regulations.


A specially designed and tested booster cushion (not available in Canada) can be obtained from your Volvo retailer for children weighing 33 - 80 lb. (15 - 36 kg) and 38-54 inches (97 - 137 cm) in height.


31 01 Safety


Child safety


WARNING


Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend


that children under 4 feet 7 inches (140 cm) in height who have outgrown these devices sit in the rear seat with the seat belt fastened.


Keep vehicle doors and trunk locked and keep keys out of a child's reach. Unsupervised children could lock


themselves in an open trunk and risk injury. Children should be taught not to play in vehicles.


On hot days, the temperature in the trunk or vehicle interior can rise very quickly. Exposure to these high


temperatures for even a short period of time can cause heat-related injury or death. Small children are particularly at risk.


32 01 Safety


Child safety


Automatic Locking Retractor/Emergency Locking Retractor(ALR/ELR)


To make child seat installation easier, each seat belt (except for the driver's belt) is equipped with a locking mechanism to help keep the seat belt taut.


When attaching the seat belt to a child seat:


Attach the seat belt to the child seat according to the child seat manufacturer's instructions. Pull the seat belt out as far as possible. Insert the seat belt latch plate into the buckle (lock) in the usual way. Release the seat belt and pull it taut around the child seat.


A sound from the seat belt retractor will be audible at this time and is normal. The belt will now be locked in place. This function is automatically disabled when the seat belt is unlocked and the belt is fully retracted.


WARNING


Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.


Volvo's recommendations Why does Volvo believe that no child should sit in the front seat of a car? It's quite simple really. A front airbag is a very powerful device designed, by law, to help protect an adult.


Because of the size of the airbag and its speed of inflation, a child should never be placed in the front seat, even if he or she is properly belted or strapped into a child safety seat. Volvo has been an innovator in safety for over seventy- five years, and we'll continue to do our part. But we need your help. Please remember to put your children in the back seat, and buckle them up.


Volvo has some very specific recommendations:


Always wear your seat belt. Airbags are a SUPPLEMENTAL safety device which, when used with a three-point seat belt can help reduce


serious injuries during certain types of accidents. Volvo recommends that you do not disconnect the airbag system in your vehicle.


Volvo strongly recommends that everyone in the vehicle be properly restrained. Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the


back seat of any vehicle with a front passenger side airbag.


Drive safely!


33 01 Safety


Child restraint systems


Child restraints


There are three main types of child restraint systems: infant seats, convertible seats, and booster cushions. They are classified according to the child's age and size.


The following section provides general information on securing a child restraint using a three-point seat belt. Refer to page 40 for information on securing a child restraint using ISOFIX lower anchors.


WARNING


A child seat should never be used in the front passenger seat of any vehicle with a front passenger airbag - not even if the "Passenger airbag off" symbol near the rear-view mirror is illuminated (on vehicles equipped with Occupant Weight Sensor). If the severity of an accident were to cause the airbag to inflate, this could lead to serious injury or death to a child seated in this position.


WARNING


Always refer to the child restraint manufacturer's instructions for detailed information on securing the restraint.


34 01 Safety


Child restraint systems


WARNING


When not in use, keep the child restraint system secured or remove it from the passenger compartment to help


prevent it from injuring passengers in the event of a sudden stop or collision.


A small child's head represents a considerable part of its total weight and its neck is still very weak. Volvo


recommends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that children should ride rearward facing, properly restrained, as long as possible.


35 01 Safety


Infant seats


Securing an infant seat with a seat belt


NOTE


Refer to page 40 for information on securing a child restraint using ISOFIX lower anchors.


1. Place the infant seat in the rear seat of the vehicle.


WARNING


An infant seat must be in the rear-facing position only. The infant seat should not be positioned behind the driver's seat unless there is adequate space for safe installation.


2. Attach the seat belt to the infant seat according to the manufacturer's instructions.


3. Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible.


WARNING


A child seat should never be used in the front passenger seat of any vehicle with a front passenger airbag - not even if the "Passenger airbag off" symbol near the rear-view mirror is illuminated (on vehicles equipped with Occupant Weight Sensor). If the severity of an accident were to cause the airbag to inflate, this could lead to serious injury or death to a child seated in this position.


36 01 Safety


Infant seats


4. Pull the shoulder section of the seat belt out as far as possible to activate the belt's automatic locking function.


5. Press the infant seat firmly in place, let the seat belt retract and pull it taut. A sound from the seat belt retractor's automatic locking function will be audible at this time and is normal. The seat belt should now be locked in place.


NOTE


The locking retractor will automatically release when the seat belt is unbuckled and allowed to retract fully.


6. Push and pull the infant seat to ensure that it is held securely in place by the seat belt.


WARNING


It should not be possible to move the child restraint more than 1 in. (2.5 cm) in any direction.


The infant seat can be removed by unbuckling the seat belt and letting it retract completely.


37 01 Safety


Convertible seats


Securing a convertible seat with a seat belt


NOTE


Refer to page 40 for information on securing a child restraint using ISOFIX lower anchors.


Convertible seats can be used in either a forward or rearward-facing position, depending on the age and size of the child.


WARNING


Always use a convertible seat that is suitable for the child's age and size. See the convertible seat manufacturer's recommendations.


WARNING


A small child's head represents a considerable part of its total weight and its neck is still very weak. Volvo recommends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that children should ride rearward facing, properly restrained, as long as possible.


1. Place the convertible seat in the rear seat of the vehicle.


2. Attach the seat belt to the convertible seat according to the manufacturer's instructions.


WARNING


Convertible child seats should be installed in the rear seat only. A rear-facing convertible seat should not be positioned behind the driver's seat unless there is adequate space for


safe installation.


38 01 Safety


Convertible seats


3. Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible.


4. Pull the shoulder section of the seat belt out as far as possible to activate the belt's automatic locking function.


5. Press the convertible seat firmly in place, let the seat belt retract and pull it taut. A sound from the seat belt retractor's automatic locking function will be audible at this time and is normal. The seat belt should now be locked in place.


6. Push and pull the convertible seat to ensure that it is held securely in place by the seat belt.


NOTE


The locking retractor will automatically release when the seat belt is unbuckled and allowed to retract fully.


WARNING


It should not be possible to move the child restraint more than 1 in. (2.5 cm) in any direction.


The convertible seat can be removed by unbuckling the seat belt and letting it retract completely.


WARNING


A child seat should never be used in the front passenger seat of any vehicle with a front passenger airbag - not even if the "Passenger airbag off" symbol near the rear-view mirror is illuminated (on vehicles equipped with Occupant Weight Sensor). If the severity of an accident were to cause the airbag to inflate, this could lead to serious injury or death to a child seated in this position.


39 01 Safety


Booster cushions


Securing a booster cushion


Booster cushions are recommended for children who have outgrown convertible seats.


1. Place the booster cushion in the rear seat of the vehicle.


2. With the child properly seated on the booster cushion, attach the seat belt to or around the cushion according to the manufacturer's instructions.


3. Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible.


4. Ensure that the seat belt is pulled taut and fits snugly around the child.


WARNING


The hip section of the three-point seat belt must fit snugly across the child's hips, not across the stomach. The shoulder section of the three-point seat belt should be positioned across the chest and shoulder. The shoulder belt must never be placed behind the child's back or under the arm.


40 01 Safety


ISOFIX lower anchors


Using the ISOFIX lower child seat anchors


Lower anchors for ISOFIX-equipped child seats are located in both rear seating positions, hidden below the backrest cushions. Symbols on the seat back upholstery mark the anchor positions (see the illustration).


To access the anchors: 1. Put the child restraint in position.


2. Kneel on the child restraint to press down the seat cushion and locate the anchors by feel.


3. Fasten the attachment on the child restraint's lower straps to the ISOFIX lower anchors.


4. Firmly tension the lower child seat straps according to the manufacturer's instructions.


NOTE


Always follow your child seat manufacturer's installation instructions, and use both ISOFIX lower anchors and top tethers whenever possible.


WARNING


Be sure to fasten the attachment correctly to the anchor (see the illustration). If the attachment is not correctly


fastened, the child restraint may not be properly secured in the event of a collision.


The ISOFIX lower child restraint anchors are only intended for use with child seats positioned in the left or right


Child seats should never be placed in the center of the rear seat. This area is not intended to be seating position


and is not equipped with a seat belt or ISOFIX anchors.


seating positions.


41 01 Safety


Child restraint registration and recalls


Registering a child restraint


Child restraints could be recalled for safety reasons. You must register your child restraint to be reached in a recall. To stay informed about child safety seat recalls, be sure to fill out and return the registration card that comes with new child restraints.


Child restraint recall information is readily available in both the U.S. and Canada. For recall information in the U.S., call the U.S. Government's Auto Safety Hotline at 1-800-424-9393. In Canada, visit Transport Canada's Child Safety website at http://www.tc.gc.ca/roadsafety/childsafety/menu.htm.


Contents | Top of Page


2 0 0 8
VOLVO


C70


42 02 Instruments and controls


44
Instrument overview 47
Instrument panel 50
Symbols - instrument panel 53
Information display 55
Lighting panel 57
Left-side steering wheel lever 58
Trip computer 60
Right-side steering wheel lever Cruise control 62
Steering wheel adjustment, Hazard warning flashers 64
65
Parking brake 66
12-volt sockets Power windows 67
68
Mirrors 71
Personal settings HomeLink® Universal Transceiver (option) 73


43 02 Instruments and controls


44 02 Instruments and controls


Instrument overview


45 02 Instruments and controls


Instrument overview


1. Steering wheel adjustment 2. Hood opener 3. Controls in driver's door 4. Left steering wheel lever 5. Lighting panel, fuel filler door opener 6. Door open handle, and locking button 7. Lock indicator light 8. Climate system air vent 9. Side window air vent 10. Cruise control 11. Horn, airbag 12. Main instrument panel 13. Audio controls 14. Right steering wheel lever 15. Ignition switch 16. Rear-view mirror 17. Seat belt reminder and Occupant Weight Sensor indicator 18. Driver's side reading light 19. Movement detector (option), alarm sensor 20. Courtesy lighting switch 21. Position for accessory switch 22. Passenger's side reading light 23. Display for climate control, personal settings, and audio system 24. Controls for personal settings and audio system


64
207
(see inset illustration on the next page) 57
55
123
123
81


62
18
47
234
60
139
68
16
100
127
100


100


71/234


25. Controls for climate system 26. Hazard warning flashers. 27. Door open handle, and locking button 28. Glove compartment 29. Gear selector, manual Gear selector, automatic 30. Parking brake 31. 12-volt socket 32. Switches for raising/lowering the power retractable hard top


82
64
123
103
143
144
65
66
96


46 02 Instruments and controls


Instrument overview


Control panel in driver's door


67
1. All windows up/down 67
2. Power windows 70
3. Door mirror button, driver's side 4. Door mirror adjustment control 70
5. Door mirror button, passenger's side 70


47 02 Instruments and controls


Instrument panel


Instrument panel


1. Speedometer


2. Turn signal, left


3. Warning symbol See the following pages for additional information.


4. Information display The display presents information and warning messages, the ambient temperature, etc. When the ambient temperature is between 23° and 36°F (-5° and +2°C), a snowflake symbol is shown in the display. This symbol serves as a warning for possible slippery road surfaces. Please note that this symbol does not indicate a fault with your car. At low speeds, or when the car is not moving, the temperature readings may be slightly higher than the actual ambient temperature.


5. Information symbol See the following pages for additional information.


6. Turn signal, right


7. Tachometer The tachometer shows engine speed in thousands of revolutions per minute (rpm). Do not drive continuously with the needle in the red area of the dial, which indicates maximum allowable engine rpm range. Instead, shift to a higher gear or slow the vehicle down. The engine management system will automatically prevent excessively high engines speeds. This will be noticeable as a pronounced unevenness in engine speed.


8. Indicator and warning symbols


9. Fuel gauge (see page 256 for fuel tank volume). When a warning light in the gauge comes on, there are approximately 2.1 US gallons (8 liters) of fuel remaining in the tank. For more information on fuel level and consumption, see "Trip computer" on page 58.


48 02 Instruments and controls


Instrument panel


10. Trip odometer reset button The trip odometers are used to measure short distances. Press the button briefly to switch between the odometer for the car's total mileage and the two trip odometers, T1 and T2. A long press (more than 2 seconds) resets the currently selected trip odometer.


11. Function display


This window displays information on functions such as the odometer, trip odometers, optional rain sensor, and cruise control.


12. High beam indicator


13. Temperature gauge The gauge indicates the temperature of the engine cooling system. If the temperature is abnormally high and the needle enters the red zone, a message is shown in the display. Bear in mind that auxiliary lamps in front of the air intake reduce the cooling capacity at high outside temperatures and high engine loads.


14. Indicator and warning symbols


Function check


The indicator and warning symbols1 light up when you turn the ignition key to the driving position (position II) before starting. This shows that the symbols are functioning.


When the engine starts, all symbols go out. If the engine is not started within 5 seconds, all of the symbols except CHECK ENGINE and will go out. Certain symbols may not have their functions illustrated, depending on the car's equipment.


The PARK BRAKE symbol will not go out until the parking brake has been released.


1On certain engines, the symbol for low oil pressure is not used. Instead, a text warning is provided in the information display, see also page 210.


Symbols in the center of the instrument panel


Warning symbol


The red warning symbol lights up to indicate a fault that could affect the car's drivability.This symbol illuminates when the vehicle is traveling at speeds above 5 mph (7 km/h). A text explaining the nature of the fault will also be shown in the information display. The symbol and accompanying text will remain on until the fault has been corrected. This symbol may also light up in combination with other indicator or warning symbols.


49 02 Instruments and controls


Instrument panel


If the red warning symbol lights up:


1. Stop the car as soon as possible in a suitable location.


2. Read the message in the information display.


3. Follow the instructions provided, or contact a trained and qualified Volvo service technician. Erase the message by pressing READ (see page 53).


Information symbol


The yellow information symbol lights up to alert the driver to a message in the information display. This symbol illuminates when the vehicle is traveling at speeds below 5 mph (7 km/h).


The message can be erased by pressing the READ button (see page 53), or will disappear automatically (the length of time required for the message to disappear varies, depending on the function indicated). This symbol may also light up in combination with other indicator or warning symbols.


NOTE


When the message "TIME FOR REGULAR SERVICE" is displayed, the text can be erased and the information symbol light can be turned off by pressing the READ button (see page 53). The text will disappear and the symbol light will go out automatically after two minutes.


50 02 Instruments and controls


Symbols - instrument panel


Symbols - left side


1. Malfunction indicator light


As you drive, a computer called On-Board Diagnostics II (OBDII) monitors your car's engine, transmission, electrical and emission systems.


The CHECK ENGINE light will light up if the computer senses a condition that potentially may need correcting. When this happens, please have your car checked by a trained and qualified Volvo service technician as soon as possible.


A CHECK ENGINE light may have many causes. Sometimes, you may not notice a change in your car's behavior. Even so, an uncorrected condition could hurt fuel economy, emission controls, and drivability. Extended driving without correcting the cause could even damage other components in your car.


NOTE


Canadian models are equipped with the second symbol.


2. Anti-lock Brake system (ABS)


If the warning light comes on, there is a malfunction of the ABS system (the standard braking system will still function).


The vehicle should be driven to a trained and qualified Volvo service technician for inspection. See page 147 for additional information.


NOTE


Canadian models are equipped with the second symbol.


3. Rear fog light


This symbol indicates that the rear fog light (located in the driver's side taillight cluster) is on.


4. Dynamic Stability and Traction Control system (DSTC)


This indicator symbol flashes when the DSTC is actively working to stabilize the car. See page 149 for more detailed information.


5. Not in use


6. Fuel level warning light


When this light comes on, there are approximately 2.1 US gallons (8 liters) of fuel remaining in the tank.


51 02 Instruments and controls


Symbols - instrument panel


Symbols - right side


1. Turn signal indicator for trailer (certain models)


If you are towing a trailer, this light will flash simultaneously with the turn signals on the trailer. If the light does not flash when signaling, one of the turn signals on the trailer or on the car are not functioning properly.


2. Parking brake applied


This light is on when the parking brake (hand brake) is applied. The parking brake lever is situated between the front seats. Always pull up this lever as far as possible when applying the parking brake.


NOTE


Canadian models are equipped with the second symbol.


3. SRS warning light


If this light comes on while the car is being driven, or remains on for longer than approximately 10 seconds after the car has been started, the SRS system's diagnostic functions have detected a fault in a seat belt lock or pretensioner, a front airbag, side impact airbag, and/or an inflatable curtain. Have the system(s) inspected by a trained and qualified Volvo service technician as soon as possible.


4. Oil pressure warning light1


If the light comes on while driving, stop the car, stop the engine immediately, and check the engine oil level. If the oil level is normal and the light stays on after restart, have the car towed to the nearest trained and qualified Volvo service technician. After hard driving, the light may come on occasionally when the engine is idling. This is normal, provided it goes off when the engine speed is increased.


5. Seat belt reminder


See page 16 for detailed information.


6. Generator warning light


If the light comes on while the engine is running, have the charging system checked by a trained and qualified Volvo service technician.


7. Brake failure warning light


If this light comes on while driving or braking, stop the car as quickly as possible in a safe place, open the hood, and check


1On certain engines, this symbol is not used to indicate low oil pressure. Instead, a text warning is provided in the information display, see also page 210.


52 02 Instruments and controls


Symbols - instrument panel


the brake fluid level in the reservoir. See page 208 for the location of the reservoir.


NOTE


Canadian models are equipped with the second symbol.


WARNING


If the fluid level is below the MIN mark in the reservoir or if a "Brake failure - Service urgent" message is displayed in the information display: DO NOT DRIVE. Have the car towed to a trained and qualified Volvo service technician and have the brake system inspected.


If the fluid level is below the MIN mark in the reservoir or if a "BRAKE FAILURE - SERVICE URGENT" message is displayed in the information display: DO NOT DRIVE. Have the car towed to a trained and qualified Volvo service technician and have the brake system inspected.


If the BRAKE and ABS warning lights come on at the same time, this could indicate a fault in the brake system. In this case:


1. Stop the car in a suitable place and switch off the engine.


2. Restart the engine.


3. If both warning lights go off, no further action is required and the car can be driven.


4. If both lights remain on after the engine has been restarted, switch off the engine again and check the brake fluid level. See page 208 for the location of the reservoir.


Door open warning


The driver will be alerted if either door, the hood, or the trunk lid are open or ajar.


At low speeds


If the car is moving at a speed of less than approximately 3 m.p.h. (5 km/h), the Information symbol in the instrument panel will light up and a message will be shown in the information display indicating which door(s), etc is not completely closed.


At higher speeds


If the car is moving at a speed above approximately 6 m.p.h. (10 km/h), the Warning symbol in the instrument panel will light up and a message will be shown in the information display indicating which door(s), etc is not completely closed.


Hood and trunk


If the hood and/or trunk lid is not completely closed, the Information symbol in the instrument panel will light up and a message will be displayed, regardless of the vehicle's speed.


53 02 Instruments and controls


Information display


Messages


When an indicator or warning light in the instrument panel comes on, a message is also shown in the information display. To read a message:


1. Press the READ button (1).


2. Pressing READ repeatedly enables you to scroll to any other messages that may be stored.


NOTE


If a message is displayed when e.g. you are using the trip computer, this message must be read before you can access the trip computer


54 02 Instruments and controls


Information display


55 02 Instruments and controls


Lighting panel


Parking lights


The front and rear parking lights can be turned on even when the ignition is switched off.


Turn switch (1) to position


The license plate lights also illuminate when the parking lights are switched on.


Headlights


1. Turn the ignition key to position II.


2. The low beam headlights (daytime running lights) illuminate automatically, except when the light switch (1) is in position


1.


NOTE


See page 57 for information on switching between high and low beams.


1On Canadian models, the daytime running lights will remain on with the light switch in this position.


Brake lights


The brake lights come on automatically when the brakes are applied.


Fog lights


Front fog lights The front fog lights can be used in combination with either the headlights or the parking lights.


1. Turn the ignition to position II.


2. Press button (3) to turn on the front fog lights.


An indicator light in the button illuminates when the front fog lights are on.


Rear fog light The single rear fog light is located in the driver's side taillight cluster.


The rear fog light will only function in combination with the high/low beam headlights or the optional front fog lights.


1. Turn the ignition key to position II.


2. Press button (5) to turn on the rear fog light.


56 02 Instruments and controls


Lighting panel


An indicator light in the button illuminates when the rear fog light is on.


NOTE


The rear fog light is considerably brighter than the normal taillights and should be used only when conditions such as fog, rain, snow, smoke or dust reduce visibility for other vehicles to less than 500 ft. (150 meters).


Instrument panel lighting


The instrument panel lighting illuminates when the ignition is in position II and the light switch (1) is in either position


or


NOTE


To make it easier to read the odometer, trip odometer, clock, and ambient temperature, these gauges illuminate when the vehicle is unlocked and when the key has been removed from the ignition switch. The lighting will go out when the vehicle is locked.


Move the thumb wheel (2) up to increase brightness or down to decrease brightness.


Unlocking the fuel filler door


With the ignition switched off, press button (4) to unlock the fuel filler door. Please note that the fuel filler door will remain unlocked until the car begins to move forward.


An audible click will be heard when the fuel filler door re-locks.


Please refer to the following information for instructions on manually opening the fuel filler door.


Manually unlocking the fuel filler door


If it should be necessary to manually unlock the fuel filler door from the trunk, the power retractable hard top should be up.


1. Remove the panel covering the taillight housing on the right side of the trunk.


2. Pull the cord that is attached to a hook to pop open the fuel filler door.


When the fuel filler door has opened, return the cord to the hook and replace the taillight cover panel.


57 02 Instruments and controls


Left-side steering wheel lever


Lever positions


1. Turn signals, lane change position


2. Turn signals, position for normal turns


3. High beam flash


4. Toggle between high and low beams, Home Safe lighting


Turn signals


When turning


Move the lever as far up or down as possible (to position 2) to start the turn signals.


The turn signals will be cancelled automatically by the movement of the steering wheel, or the lever can be returned to its initial position by hand.


When changing lanes The driver can automatically flash the turn signals 3 times by:


Moving the turn signal lever up or down to position 1 and releasing it. Moving the lever up or down to position 2 and immediately back to its original position.


NOTE


This automatic flashing sequence can be interrupted by immediately moving the lever in the opposite direction. If the turn signal indicator flashes faster than normal, check for a burned-out turn signal bulb.


High/low beam headlights


Continuous high beams 1. Turn the ignition key to position II.


2. With the light switch (1) in position 4) to toggle between high and low beams.


High beam flash 1. Turn the ignition key to position II.


, (see page 55) pull the turn signal lever toward the steering wheel (position


2. Pull the turn signal lever to position 3. The high beams will remain on until the lever is released.


Home safe lighting When you leave your car at night, you can make use of the home safe lighting function to illuminate the area in front of the car.


1. Remove the key from the ignition switch.


2. Pull the direction indicator lever as far as possible towards the steering wheel (to position 4) and release it.


3. Exit the car and lock the doors.


The headlights and parking lights will illuminate and remain on for 301, 60 or 90 seconds. The time interval can be changed according to your preferences by using the Personal Settings function, see page 71 for more information.


1Factory setting


58 02 Instruments and controls


Trip computer


The trip computer stores information gathered from several systems in your car and has four menus (five on Canadian models) that can be shown in the information display.


MILES TO EMPTY TANK AVERAGE (average fuel consumption) INSTANTANEOUS (current fuel consumption) AVERAGE SPEED DSTC (see page 149 for detailed information. ACTUAL SPEED (current speed in m.p.h., Canadian models only)


NOTE


Warning messages from the car's monitoring systems will override the trip computer function.


If a warning message is shown in the information display while you are using the trip computer:


1. You must acknowledge the message by pressing the READ button (A).


2. Press button A again to return to the trip computer function.


Controls


The trip computer functions can be accessed by twisting INFO (B) one step at a time in either direction. Twisting a final time returns you to the original function.


Resetting AVERAGE (average fuel consumption) and AVERAGE SPEED can be reset.


1. Select one of these functions. 2. Press RESET (C).


Holding RESET for at least five seconds resets both functions at the same time.


MILES TO EMPTY TANK This function shows the approximate distance that can be driven on the fuel remaining in the tank. This calculation is based on average fuel consumption during the last 20 miles (30 km) of driving and the amount of fuel remaining in the tank when the reading was taken. When the driving distance on current fuel reserve is less than 12 miles (20 km), "---- " will be displayed in the information display.


AVERAGE This value indicates fuel consumption since the last time the trip computer was reset (by pressing RESET, button C). When the engine is switched off, information on fuel consumption is stored and remains in system memory until the


RESET (button C) is pressed again.


INSTANTANEOUS This value indicates the current fuel consumption, based on readings taken once per second. When the car is not moving, "----" will be displayed.


AVERAGE SPEED This value indicates average speed since the last time the trip computer was reset (by pressing RESET, button C). When the engine is switched off, information on average


59 02 Instruments and controls


Trip computer


speed is stored and remains in system memory until the RESET (button C) is pressed again.


ACTUAL SPEED (Canadian models only) This function provides the driver with an instantaneous conversion of the car's current speed from km/h to m.p.h.


NOTE


Trip computer readings may vary slightly depending on the circumference of the tires on the car, tire inflation, or driving style.


60 02 Instruments and controls


Right-side steering wheel lever


Windshield wipers


A. Windshield/headlight washers


B. Rain sensor (option) - on/off


C. Thumb wheel


Windshield wipers off


The windshield wipers are off when the lever is in position 0.


Manual wiper function


From position 0, move the lever upward. The windshield wipers will sweep one stroke at a time for as long as the lever is held up.


Intermittent wiper function


With the lever in this position, you can set the wiper interval by moving the thumb wheel (C) upward to increase wiper speed or downward to decrease the speed.


Continuous wiper function


The wipers operate at "normal" speed.


High speed wiper function.


A -Windshield washers


Pull the lever toward the steering wheel and release it. The wipers will make 2-3 sweeps across the windshield after the lever has been released.


CAUTION


Use ample washer fluid when washing the windshield. The windshield should be thoroughly wet when the wipers


Before using the wipers, ice and snow should be removed from the windshield. Be sure the wiper blades are not


are in operation.


frozen in place.


Headlight washers (certain models)


When the lever has been pulled, high pressure jets mounted in the bumper will spray the headlights.


The following applies to conserve washer fluid (see page 55 for information on the light switch positions):


Low/high beam headlights on


The headlights will be washed the first time the windshield is washed. Thereafter, the headlights will only be washed once for every five times the windshield is washed within a 10-minute period.


Parking lights on


Optional Bi-Xenon® headlights will be washed once for every five times the windshield is washed.


Normal halogen headlights will not be washed.


61 02 Instruments and controls


Right-side steering wheel lever


B - Rain sensor (option)


The rain sensor automatically regulates windshield wiper speed according to the amount of water on the windshield. The sensitivity of the rain sensor is adjusted by moving the thumb wheel (C in the illustration on the previous page) up (the wipers will sweep the windshield more frequently) or down (the wipers will sweep the windshield less frequently).


On/Off


To activate the rain sensor: 1. Switch on the ignition.


2. Put the windshield wiper lever in position 0.


3. Press button B (see the illustration on the previous page). The rain sensor symbol will appear in the lower display.


The rain sensor can be deactivated by:


Pressing button (B) with the ignition on.


or


Moving the windshield wiper lever down. If the lever is moved up, the rain sensor function will remain activated


CAUTION


The rain sensor should be deactivated when washing the car in an automatic car wash, etc. If the rain sensor function is left on, the wipers will start inadvertently in the car wash and could be damaged


The rain sensor is automatically deactivated:


When the key is removed from the ignition. Five minutes after the ignition is switched off if the key is left in the ignition.


C - Thumb wheel


The thumb wheel is used to set the wiper interval when intermittent wiping is selected, or the sensitivity to the amount of rain on the windshield when the rain sensor is selected. Move the wheel upward or downward to increase/decrease wiper speed when the intermittent function is selected, or to increase/decrease the optional rain sensor's sensitivity when the this function is activated


62 02 Instruments and controls


Cruise control


Engaging the cruise control function


The cruise control buttons are located on the left side of the steering wheel hub.


1. Press the CRUISE button. CRUISE will appear in the function display in the center of the instrument panel.


NOTE


This does not set the vehicle's speed.


2. Press + or - to set the current speed. CRUISE ON will be displayed.


Increasing or decreasing speed


Use + or - in the following ways to increase or decrease the vehicle's speed:


1. Press and hold down + or - until the vehicle reaches the desired speed. This will become the set speed when the button is released.


2. Press + or - for approximately a half second and release the button to increase or decrease vehicle speed by approximately 1 mph (1.6 km/h).


NOTE


Cruise control will not function at speeds below 20 mph. (30 km/h).


Momentary acceleration, for less than 1 minute (e.g. when passing another car), does not affect cruise control operation. The car will automatically return to the previously set speed when the accelerator pedal is released.


Temporarily disengaging the cruise control


Press 0 to temporarily disengage cruise control.


CRUISE will appear in the function display. The currently set speed is stored in the system's memory.


Cruise control is also automatically disengaged:


If the speed drops below approximately 20 mph (30 km/h) when driving uphill. When the brake or clutch pedal is depressed. If the gear selector is moved to position N. During wheel spin or wheel lock-up. If the vehicle's speed is increased by using the accelerator pedal for more than 1 minute.


63 02 Instruments and controls


Cruise control


Returning to the set speed


Press the button to resume the previously set speed.


Disengaging cruise control


Cruise control can also be disengaged by:


Pressing the CRUISE button (CRUISE ON will no longer be shown in the function display). Putting the gear selector in Neutral (N).


WARNING


Cruise control should not be used in heavy traffic or when driving on wet or slippery roads. Cruise control may not maintain set speed on steep downgrades.


64 02 Instruments and controls


Steering wheel adjustment, Hazard warning flashers


Steering wheel adjustment


Both the height and the reach of the steering wheel can be adjusted to a comfortable position for the driver.


1. Pull down the lever on the steering column to release the steering wheel.


2. Adjust the steering wheel to a suitable position


3. Press the lever back into place to lock the steering wheel in the new position. If necessary, press the steering wheel slightly while pressing the lever into the locked position.


Check that the steering wheel is locked in the new position.


WARNING


Never adjust the steering wheel while driving.


Hazard warning flashers


The four-way flasher should be used to indicate that the vehicle has become a traffic hazard. To activate the flashers, press the triangular button in the center dash. Press the button again to turn off the flashers.


NOTE


Regulations regarding the use of the hazard warning flasher may vary, depending on where you live. The hazard warning flashers will be activated automatically if an airbag deploys.


65 02 Instruments and controls


Parking brake


Parking brake (hand brake)


The parking brake lever is located between the front seats.

Loading...
x
