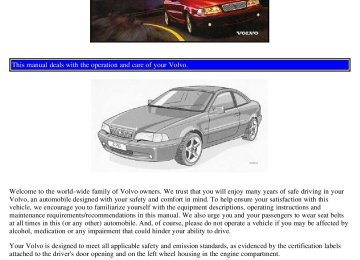

This manual deals with the operation and care of your Volvo.
Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual. We also urge you and your passengers to wear seat belts at all times in this (or any other) automobile. And, of course, please do not operate a vehicle if you may be affected by alcohol, medication or any impairment that could hinder your ability to drive.
Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels attached to the driver's door opening and on the left wheel housing in the engine compartment.
Volvo and the environment
Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.
Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling
are all important considerations.
In production, Volvo has partly or completely phased out several chemicals including freons, lead chromates, naphtanates, asbestos, mercury and cadmium; and reduced the amount of chemicals used in our plants 50% since 1991.
In use, Volvo was the first in the world to introduce into production a three-way catalytic converter with a Lambda sond, now called oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95% and the search to eliminate the remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air conditioning system for all models back to the M/Y 1975 240. Advanced electronic engine controls, refined purification systems and cleaner fuels are bringing us closer to our goal.
After Volvo cars and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The metal content is about 75% of the total weight of the car, which makes the car among the most recycled industrial products. In order to have efficient and well controlled recycling, many Volvo variants have printed dismantling manuals indication the weight and material of individual components. For Volvo, all homogeneous plastic parts weighing more than 1.7 oz. (50 grams)are marked with international symbols that indicate how the component is to be sorted for recycling.
In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles.
When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can:
Maintain proper air pressure in your tires. Tests have shown decreased fuel economy with improperly inflated tires Follow the recommended maintenance schedule Drive at a constant speed See an authorized Volvo retailer as soon as possible for inspection if the check engine (malfunction indicator) lamp illuminates, or stays on after the vehicle has started Properly dispose of any vehicle related waste such as used motor oil, used batteries, brake pads, etc. When cleaning your car, use Volvo's own car care products, all of which have systematically been adapted to the environment.
Contents
Important
Before you operate your car for the first time, please familiarize yourself with the BREAK-IN information on page 56. You should also be familiar with the information in the first three chapters of this manual. Information contained in the balance of the manual is extremely useful and should be studied after operating the vehicle for the first time. This manual is structured so that it can be used for reference. It should thus be kept in the car for ready access. Do not export your Volvo to another country before investigating the country's applicable safety and exhaust emission requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada or other countries.
All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Volvo reserves the right to make model changes at any time, or to change specifications or design, without notice and without incurring obligation.
CAUTION: Certain models have reduced ground clearance due to the design of the front spoiler. Please observe caution when e.g., driving onto garage hoists, through drifted snow or when other road debris is encountered, or when parking near curbs
©1998 Volvo Cars of North America Inc.
Shiftlock (automatic transmission only) When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the gear selector and move the selector from (P)ark. If it is necessary to manually override the shiftlock system:
Turn the starting (ignition) key to position I Press firmly on the "SHIFTLOCK OVERRIDE" button located near the base of the gear selector. While holding the override button down, press the button on the front of the gear selector. Move the gear selector from the (P)ark position.
Keylock (automatic transmission only) This means that when you switch off the ignition, the gear selector must be in the (P)ark position before the starting (ignition) key can be removed from the ignition switch.
Clutch interlock (manual transmission only) The clutch must be fully depressed before you can start you car. If the clutch is not depressed, it will not be possible to start the engine.
Anti-lock Brake System (ABS) The ABS system in your car performs a self-diagnostic test when the vehicle first reaches the speed of approximately 12 mph (20 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control module. This is normal.
Fuel tank cover The fuel tank cover is locked and must be popped open using the control on the driver's door.
Contents
Chapter 1 - Occupant safety Chapter 2 - Instruments, switches and controls Chapter 3 - Body and interior Chapter 4 - Starting and driving Chapter 5 - Wheels and tires Chapter 6 - In case of an emergency Chapter 7 - Car care
15
39
55
75
81
99
Chapter 8 - Volvo Service 105
Chapter 9 - Specifications 123
Chapter 10 - Audio systems 131
Index 188
Top of Page
Chapter 1 - Occupant safety
pg. 1 Occupant safety
Occupant safety Despite our strongest recommendations, and your best intentions, not wearing a seat belt is like believing "It'll never happen to me!". Volvo urges you and all adult occupants of your car to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height. Volvo also believes no child should sit in the front seat of a car. Fact: In every state and province, some type of child-restraint legislation has been passed. Additionally, most states and provinces have already made it mandatory for occupants of a car to use seat belts. So, urging you to "buckle up" is not just our recommendation - legislation in your state or province may mandate seat belt usage. The few seconds it takes to buckle up may one day allow you to say, "It's a good thing I was wearing my seat belt".
Seat belts Volvo SRS Side Impact Protection System - (SIPS) air bag Child safety
Occupant safety 12
Reporting Safety Defects 12
pg. 2 Seat belts
Seat belts Always fasten the seat belts before you drive or ride. Two lights above the rear view mirror will be illuminated for 4-8 seconds after the starting (ignition) key is turned to the driving position. A chime will sound at the same time if the driver has not fastened his seat belt. The rear seats are provided with self-retracting inertia reel belts. The front seats are provided with single roller belts with tensioners.
Adjusting the shoulder belt
Lap portion of the seat belt should sit low
To buckle: Pull the belt out far enough to insert the latch plate into the receptacle (buckle for rear seats) until a distinct snapping sound is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far. The retractor will lock up as follows:
if the belt is pulled out rapidly during braking and acceleration if the vehicle is leaning excessively when driving in turns
For the seat belt to provide maximum protection in the event of an accident, it must be worn correctly. When wearing the seat belt remember:
The belt should not be twisted or turned. The lap belt must be positioned low on the hips (not pressing against the abdomen). The shoulder section of the front seat belts adjusts automatically to the driver's height.
Make sure that the shoulder belt is rolled up into its retractor and that the shoulder and lap belts are taut. Before exiting the car, check that the seat belt retracts fully after being unbuckled. If necessary, guide the belt back into the retractor slot.
NOTE: Legislation in your state or province may mandate seat belt usage.
For information on securing child seats, please refer to page 10.
WARNING!
Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a
detrimental effect on the amount of protection available to you in the event of a collision. The seat back should not be tilted too far back. The shoulder belt must be taut in order to function properly.
Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend
that children who have outgrown these devices sit in the rear with the seat belt properly fastened.
The rear seat of the Volvo C70 is intended for two occupants only. Only two three-point seat belts are provided.
The center position should never be used to seat a passenger.
pg. 3 Seat belts
During pregnancy Pregnant women should always wear seat belts. Remember that the belt should always be positioned in such a way as to avoid any possible pressure on the abdomen. The lap portion of the belt should be located low, as shown in the
above illustration.
WARNING!
The rear seat of the Volvo C70 is intended for two occupants only. Only two three-point seat belts are provided.
The center position should never be used to seat a passenger.
Never use a seat belt for more than one occupant. Never wear the shoulder portion of the belt under the arm, behind the back or otherwise out of position. Such use
could cause injury in event of accident.
As the seat belts lose much of their strength when exposed to violent stretching, they should be replaced after any
collision, even if they may appear to be undamaged.
Never repair the belt on your own; have this done by an authorized Volvo retailer only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a
detrimental effect on the amount of protection available to you in the event of a collision.
The seat back should not be tilted too far back. The shoulder belt must be taut in order to function properly.
Contents | Top of Page
Chapter 2 - Instruments, switches and controls
pg. 14 Instruments, switches and controls
Click on numbered item below for more information
pg. 15 Instruments, switches and controls
The pages in this section provide detailed descriptions of the vehicle's instruments and controls. Note that vehicles may be equipped differently, depending on special legal requirements.
1 Air vents 2 Headlights, parking lights 3 Instrument illumination 4 Rear fog light 5 Front fog lights (optional) 6 Space for additional equipment 7 Space for additional equipment
Page
33
20
22
22
22
14-15
23
26-28
41
23
33
33
4-6
33
51
20
29
32
21
30
31
131
33-35
23
31
8 Instruments
9 Traction control system (optional)
10 Trip computer (optional)
11 Electrically operated sun roof (optional)
12 Rear window demister/heated door mirrors
13 Air mix
14 Air vents
15 Passenger side air bag (SRS) hatch
16 Air vents
17 Hood release
18 Turn signals, high/low beams
Cruise control
19 Adjustable steering wheel
20 Windshield wiper/washer
21 Heated front seats (optional)
22 Auxiliary socket
23 Audio systems
24 Heating and ventilation controls
25 Hazard warning flashers
26 Ashtray
27 Coin holder
28 Shiftlock release button (automatic transmission only) 97
29 Gear selector shift positions
30 Transmission mode selectors
31 Parking brake
32 Horn/SRS
33 Trunk open control
34 Power window controls
35 Power mirror controls
36 Fuel tank open control
37 Central locking button
60-62
62
30
4-6
52
36
48
37
36
Some of the items above are available on certain models only.
pg. 16 Instruments
1 Fuel gauge The fuel tank holds approximately 17.9 US gals. (68 liters). When the warning light comes on there is approximately 1.8 US gals. (8 liters) of fuel remaining. See "Refueling" for further information.
2 Temperature gauge Do not drive the car with the pointer in the red range. The pointer should be approximately midway on the gauge face when driving. If the pointer approaches the red range repeatedly, check coolant level. See page 130.
3 Speedometer
4 Clock, ambient temperature sensor, trip computer (certain models)
5 Odometer
6 Trip odometer Used for measuring shorter distances. The last digit indicates 1/10 mile/kilometer.
7 Trip odometer reset button
8 Tachometer Reads thousands of engine rpm.
Contents | Top of Page
Chapter 3 - Body and interior
pg. 39 Body and interior
Body and interior The seats, sun roof, mirrors, etc. are described on the following pages.
Storage compartments 40
Sun roof 41
Keys, doors and locks 42
Remote keyless entry system 43
Alarm 44
Front seats 46
Rear/side view mirrors 48
Interior lights, Vanity mirrors 49
Long load storage 50
Hood 51
Opening the trunk 52
Trunk light, Spare tire, Jack 53
Securing cargo, Avoiding battery drain 54
pg. 40 Storage compartments
1 Glove compartment 2 Shelf under glove compartment 3 Coin Holder 4 Compartment in door
5 Pocket on rear of front seat 6 Compartment between front seats 7 Cup holder WARNING! Packages on the rear window shelf can obscure vision and may become dangerous projectiles in the event of a sudden stop or an accident.
pg. 41 Sun roof (option)
Sliding sun roof
Electrically-operated sun roof The switch for operating the sun roof is located on the instrument panel. The starting (ignition) key must first be turned to the drive position (position II). The sun roof is also equipped with a one-touch, AUTO-open function.
AUTO-open: Press the lower section of the switch once to automatically open the sun roof. The AUTO-open
function can be stopped at any time by pressing the switch.
To close the sun roof: Depress the upper section of the switch until the sun roof has closed completely.
Sun visor
To open the rear edge of the sun roof (ventilation position): With the sun roof closed, depress the upper section
of the switch. To close, depress the lower section of the switch until the sun roof has closed completely.
To slide open the sun roof: Depress the lower section of the switch until the sun roof has opened to the position
you prefer or hold the switch until the sun roof reaches the "comfort position"*. Depress the lower section of the switch again to open the sun roof completely.
Sun visor: The sun roof also features a sliding sun visor. The visor slides back automatically when the sun roof is opened and also slides back slightly when the sun roof is opened to the ventilation position. The visor must be closed manually.
CAUTION: Do not close the sun visor when the sun roof is in the ventilation position as this could damage the mechanism.
NOTE:
The electrically-operated sun roof has an overload protecting circuit breaker (fuse no. 37) which is activated when an
object blocks the sun roof. Should this occur, remove the object and wait 20 seconds for the circuit breaker to reset. The sun roof should then function normally. Also check fuse no. 35.
WARNING! The sun roof must never be obstructed in any way when in operation.
pg. 42 Keys, doors and locks
Master key This key operates all locks (ignition switch/steering wheel lock, driver's door, trunk and glove compartment).
Service key This key operates the driver's door and the ignition switch/steering wheel lock.
Doors and locks Your car is equipped with a central locking system. The key, used on the driver's door, the remote control, or central locking button, will lock/unlock both doors, and the trunk.
Turn the key once to unlock the driver's door only. Turn the key again (within 10 seconds) to unlock both doors and the trunk. One turn with the key towards lock in the drivers door locks both doors and the trunk. Use the switch on the front door armrests to lock/unlock the car from the inside. Check the action of the buttons on the other door to verify its function (lock/unlock).
WARNING! The doors should not be locked while driving. In case of an accident, this may hinder rapid access to the occupants of the vehicle.
NOTE:
If a door is not closed completely, the courtesy lights will stay on and a chime will sound until the door is closed. As an added anti-theft measure, new keys have been developed which may take slightly longer to copy or replace if the original keys are misplaced. Duplicate keys may be ordered from your Volvo retailer.
Immobilizer (start inhibitor) Each of the keys supplied with your car contains a coded transmitter and receiver (transponder). The code in the key is transmitted to an antenna in the ignition switch when it is compared to the code stored in the start inhibitor module. The car can only be started if a properly coded key is used. If you misplace a key, take the other keys to an authorized Volvo retailer. The existing code in the start inhibitor module and all the keys will be erased as an antitheft measure and a new code will be programmed. NOTE: Not more than one of the keys for you car should be kept on the same key ring. This could cause conflicting signals to be transmitted to the ignition switch, making it imposible to start the car. This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference that may be received, including interference that may cause undesired operation.
The key number codes are stamped on a separate tag supplied with the keys. This tag should be separated from the key ring and kept in a safe place.
Contents | Top of Page
Chapter 4 - Starting and driving
pg. 55 Starting and driving
Starting and driving This section on starting and driving contains items such as starting the engine, operating the gear selector, towing, trailers, etc.
Break-in period
Driving economy Starting the engine Manual transmission Automatic transmission Points to remember Emergency towing Vehicle towing information Jump starting Three-way catalytic converter
56
Fuel requirements, Refueling 56-57
58
59
60
61
64
66
67
68
69
Brake system 70-71
72
Trailer towing
Winter driving
73
74
Long distance trips
pg. 56 Break-in period, Fuel requirements
A new car should be broken-in Refrain from utilizing your car's full driving potential during the first 1,200 miles (2,000 km) including the "kick- down" function (automatic transmission).
NOTE - ENGINE OIL: Although some oil consumption occurs during normal engine operation, more oil is consumed when the engine is new as the internal parts generate higher friction while wearing-in to each other. From the time the engine is new until the first service is performed, the oil consumption could be higher than normal. For this reason, it is especially important to check the oil every time you refuel your car during this period. See page 114. In general, the rate of oil consumption depends on such factors as: engine temperature, length of trip, driving conditions, oil viscosity and quality, engine speed and acceleration/deceleration. Checking your engine oil level each time the car is refueled is one of the most important items you can perform to help keep your car in good running order.
Manual transmission The following speeds should not be exceeded during the break-in period:
600 - 1,200 miles Up to 600 miles (1000 km) (1000 - 2000 km) 1st gear 20 mph (30 km/h) 25 mph (40 km/h) 2nd gear 30 mph (50 km/h) 40 mph (70 km/h) 3rd gear 45 mph (80 km/h) 65 mph (100 km/h) 4th gear 70 mph (110 km/h) 80 mph (130 km/h) 5th gear/overdrive 80 mph (130 km/h) 95 mph (150 km/h)
Posted speed limits should not be exceeded.
Deposit control gasoline (detergent additives) Volvo recommends the use of gasoline containing deposit control additives. These additives have shown to be efficient in keeping injectors and intake valves clean. Consistent use of deposit control gasolines will help ensure good driveability and fuel economy. If you are not sure whether the gasoline contains deposit control additives, check with the service station operator.
Unleaded Fuel Each Volvo has a three-way catalytic converter and must use only unleaded gasoline. U.S. and Canadian regulations require that pumps delivering unleaded gasoline be labeled "UNLEADED". Only these pumps have nozzles which fit your car's filler inlet. It is unlawful to dispense leaded fuel into a vehicle labeled "unleaded gasoline only". Leaded gasoline damages the three-way catalytic converter and the heated oxygen sensor system. Repeated use of leaded gasoline will lessen the effectiveness of the emission control system and could result in loss of emission warranty coverage. State and local vehicle inspection programs will make detection of misfueling easier, possibly resulting in emission test failure for misfueled vehicles.
NOTE: Some U.S. and Canadian gasolines contain an octane enhancing additive called methyl-cyclopentadienyl manganese tricarbonyl (MMT). If such fuels are used, your Emission Control System performance may be affected, and the Malfunction Indicator Lamp located on your instrument panel may light. If this occurs, please return your vehicle to an authorized Volvo retailer for service.
pg. 57 Fuel requirements, Refueling
Octane Rating Volvo engines are designed for optimum performance on unleaded premium gasoline with an octane rating. AKI of 91, or above. AKI (ANTI KNOCK INDEX) is an average of the Research Octane Number, RON, and the Motor Octane Number, MON, (RON + MON/ 2). The minimum octane requirement is AKI 87 (RON 91).
Gasoline containing alcohol and ethers "Oxygenated fuels" Some fuel suppliers sell gasoline containing "oxygenates" which are usually alcohols or ethers. In some areas, state or local laws require that the service pump be marked indicating use of alcohol or ethers. However, there are areas in which the pumps are unmarked. If you are not sure whether there is alcohol or ethers in the gasoline you buy, check with the service station operator. To meet seasonal air quality restrictions, some states require the use of "oxygenated" fuel in certain areas. Volvo allows the use of the following "oxygenated fuels; however, the octane ratings listed on this page must still be met. Alcohol — Ethanol
Fuels containing up to 10% ethanol by volume may be used. Ethanol may also be referred to as Ethyl alcohol, or "Gasohol". Ethers — MTBE Fuels containing up to 15% MTBE may be used.
Refueling The fuel tank is designed to hold approximately 17.9 US gal. (68 liters) with sufficient volume left over to accommodate possible expansion of the fuel in hot weather. Be aware that the "usable" tank will be somewhat less than the specified maximum. When the fuel level is low, such factors as ambient temperature, the fuel's "Reid vapor pressure" characteristics, and terrain can affect the fuel pumps' ability to supply the engine with an adequate supply of fuel. Therefore, it is advisable to refuel as soon as possible when the needle nears the red zone, or when the fuel warning light comes on.
Fuel tank cover The fuel tank cover (on the right rear fender) is locked and must be popped open using the control on the driver's door.
Open fuel filler cap slowly during hot weather conditions. CAUTION:
systems.
Do not refuel with the engine running. Turn the ignition off or to position I. If the ignition is on, an incorrect
reading could occur in the fuel gauge.
After refueling, close the fuel filler cap by turning it clockwise until it clicks into place *. Allow for fuel expansion by not overfilling the tank. Overfilling could also cause damage to the emission control
Avoid spilling gasoline during refueling. Gasolines containing alcohol can cause damage to painted surfaces,
which may not be covered under the New Vehicle Limited Warranty.
Do not use gasoline containing methanol (methyl alcohol, wood alcohol). This practice can result in vehicle
performance deterioration and can damage critical parts in the fuel system. Such damage may not be covered under the New Vehicle Limited Warranty.
* If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator Lamp may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps.
Contents | Top of Page
Chapter 5 - Wheels and tires
pg. 75 Wheels and tires
Wheels and tires The handling and riding comfort of the vehicle is dependent on the inflation pressure and the type of tires fitted. Read the following pages carefully.
General information, Wear indicator, Tire economy, Flat spots 76
Snow chains, Winter tires 77
Inflation pressure 78
Uniform tire quality grading 79
pg. 76 Wheels and tires
General information Your vehicle is equipped with tires according to the tire information label located on the rear facing side of the right front door.
The following is an example of a tire designation code 225/50R16: 225 = tire width in mm. 50 = tire profile. This is the relationship (in percent) between the section height and the width of the tire. R = radial tires. 16 = diameter in inches.
The tires have good road holding characteristics and offer good handling on dry and wet surfaces. It should be noted however that the tires have been developed to give these features on snow/ice-free surfaces. Certain models are equipped with "all-season" tires, which provide a somewhat higher degree of winter roadholding on slippery surfaces than tires without the "all-season" rating. However, for optimum road holding on icy or snow covered roads - we recommend suitable winter tires on all four wheels. When replacing tires, be sure that the new tires are the same size designation, type (radial) and preferably from the same manufacturer, on all four wheels. Otherwise there is a risk of altering the car's road-holding and handling characteristics.
NOTE: When storing wheel/tire assemblies (e.g. winter tires and wheels), either stand the assemblies upright or suspend them off the ground. Laying wheel/tire assemblies on their sides for prolonged periods can cause wheel and/or tire damage.
Wear indicator The tires have a so-called "wear indicator" in the form of a number of narrow strips running across or parallel to the tread. When approx. 1/16" (1.6 mm) is left on the tread, these strips show up and indicate that the tire should be replaced. Tires with less than 1/16" (1.6 mm) tread have a very poor grip in rain or snow. When replacing worn tires, it is recommended that the tire be identical in type (radial) and size as the one being replaced. Using a tire of the same make (manufacturer) will prevent alteration of the driving characteristics of the vehicle.
To improve tire economy:
Maintain correct tire pressure. Drive smoothly: avoid fast starts, hard braking and tire screeching. Tire wear increases with speed. Correct front wheel alignment is very important. Unbalanced wheels impair tire economy and driving comfort. If the wheels are rotated, they should be kept on the same side of the car so that they revolve in the same direction
as prior to rotation.
Hitting curbs or potholes can damage the tires and/or wheels permanently.
Flat spots All tires become warm during use. After cooling, when the vehicle is parked, the tires have a tendency to distort slightly, forming flat spots. These flat spots can cause vibrations similar to the vibrations caused by unbalanced wheels. They do, however, disappear when the tire warms up. The degree to which the flat spots form depends on the type of cord used in the tire. Remember that, in cold weather, it takes longer for the tire to warm up and consequently longer for the flat spot to disappear.
CAUTION: The car must not be driven with wheels of different dimensions. The use of different size wheels can seriously damage your car's transmission.
pg. 77 Wheels and tires (cont.)
Snow chains Snow tire chains can be used on your Volvo with the following restrictions:
Snow chains should be installed on front wheels only. Use only Volvo approved snow chains. Snow chains may be mounted on tire dimension 195/65R15. Tire dimension 205/55R16 requires a special type of
snow chain. Consult your Volvo retailer. If accessory, aftermarket or "custom" tires and wheels are installed and are of a size different than the original tires and wheels, chains in some cases CANNOT be used. Snow chains cannot be used on those turbo-charged models fitted with all-season tires 225/50R16 or 225/45R17 or 225/40R18. Sufficient clearances between chains and brakes, suspension and body components must be maintained.
Some strap-on type chains will interfere with brake components and therefore CANNOT be used.
Consult your Volvo retailer for additional snow chain information.
CAUTION:
Check local regulations regarding the use of snow chains before installing. Always follow the chains manufacturer's installation instructions carefully. Install chains as tightly as possible and
re-tighten periodically.
be higher than 30 mph (45 km/h).
as locked wheel braking.
Never exceed the chain manufacture's specified maximum speed limit. (Under no circumstances should that limit
Avoid bumps, holes or sharp turns when driving with snow chains. The handling of the vehicle can be adversely affected when driving with chains. Avoid fast or sharp turns as well
Snow tires, studded tires * Tires for winter use: Owners who live in or regularly commute through areas with sustained periods of snow or icy driving conditions are strongly advised to fit suitable winter tires to help retain the highest degree of traction. It is important to install winter tires on all four wheels to help retain traction during cornering, braking and accelerating. Failure to do so could reduce traction to an unsafe level or adversely affect handling. Do not mix tires of
different design as this could also negatively affect overall tire road grip. Volvo recommends 195/65 R15 winter tires on 15" steel wheels on all C70 models including those equipped with 16", 17" or 18" wheels.
Winter tires wear more quickly on dry roads in warm weather. They should be removed when the winter driving season has ended.
Studded tires should be run-in 300-600 miles (500-1000 km) during which the car should be driven as smoothly as possible to give the studs the opportunity to seat properly in the tires. The car tires should have the same rotational direction throughout their entire lifetime. In other words, if you wish to rotate the wheels, make sure that the same wheels are always on the same side of the car.
NOTE: Please consult state or local regulations restricting the use of studded winter tires before installing such tires.
* Where permitted
pg. 78 Wheels and tires (cont.)
Checking and correcting tire pressure
Check the tire pressure when refueling. The tire pressure should be corrected only when the tires are cold. With warm tires, correct only when the pressure is too low. The tire temperature rises after driving just a few miles.
Vehicle Loading The tires on your Volvo will perform to specifications at all normal loads when inflated as recommended on the tire information label* located on the rear facing edge of the passenger's door. This label lists both the tire and vehicle design limits. Do not load your car beyond the load limits indicated.
* Please note that the tire information label indicates pressures for both comfort and fuel economy.
pg. 79 Wheels and tires (cont.)
Tire pressure label
Uniform tire quality grading ALL PASSENGER CAR TIRES MUST CONFORM TO FEDERAL SAFETY REQUIREMENTS IN ADDITION TO THESE GRADES
TREADWEAR The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded at 150 would wear one and one half (1 1/2) times as
well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and many depart significantly from the norm due to variation in driving habits, service practices and differences in road characteristics and climate.
TRACTION The traction grades, from highest to lowest, are AA, A, B, and C, as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.
WARNING! The traction grade assigned to this tire is based on braking (straight-ahead) traction tests and does not include cornering (turning) traction.
TEMPERATURE The temperature grades are AA (the highest), A, B, and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.
WARNING! The temperature grade for this tire is established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.
Contents | Top of Page
Chapter 6 - In case of emergency
pg. 81 In case of an emergency
In case of an emergency Even if you maintain your car in good running condition, there is always the possibility that something might go wrong and prevent you from driving, such as a punctured tire, blown fuse or bulb, etc. For additional information, see section "ON CALL Road Assistance".
Spare tire
Wheel changing 82-83
84
Replacing bulbs 85-90
Replacing fuses 91-93
94
Replacing wiper blades 95-96
97
In case of emergency
Installation of accessories
pg. 82 Wheel changing
Loosen wheel bolts
Changing a wheel The spare wheel is located under the carpet on the trunk floor. The jack and crank are secured in the wheel recess.
Engage the parking brake. Put the gear selector in (P)ark (automatic) or in Reverse (manual). With the car still on the ground, use the lug wrench to loosen the wheel bolts 1/2 - 1 turn. Turn the bolts
Fold out the crank handle on the jack by pressing the nob on the handle downward. To attach the jack, refer to the
counterclockwise to loosen.
illustration on the following page.
NOTE: To avoid excessive wear and the necessity of rebalancing, mark and reinstall wheels in same location and position as before removal. To lessen the chance of imbalance, each wheel hub is equipped with a guide stud to ensure
that a removed wheel can be reinstalled in its original position (as when changing over to winter tires/wheels).
CAUTION:
The car must not be driven with wheels of different dimensions or with a spare tire other than the one that came
with the car. The use of different size wheels can seriously damage your car's transmission.
pg. 83 Wheel changing (cont.)
Jack attachment
There is a jack attachment located in the center on each side of the car. Position the jack on the bar in the attachment as shown in illustration A above and crank while simultaneously guiding the base of the jack to the ground. The base of the jack must be flat on a level, firm, non-slippery surface. Before raising the car check that the jack is still correctly positioned in the attachment. Raise the vehicle until both wheels on the side of the car where the jack is attached are lifted off the ground. Unscrew the wheel bolts completely and carefully remove the wheel so as not to damage the thread on the studs.
Installing the wheel
Clean the contact surfaces on the wheel and hub. Lift the wheel and place it on the hub. Make sure that you align the
wheel with the guide stud on the wheel hub prior to installation. Install the wheel bolts crosswise (see illustration) and
tighten by turning lightly clockwise. Lower the vehicle to the ground and alternately tighten the nuts to 81 ft. lbs. (110
Nm). Install the wheel cap (where applicable).
Correct tightening order for wheel bolts
WARNING!
The jack's attachment must engage the bar in the jack attachment (A). The car's weight must not rest on the jack's
attachment (B).
car being worked on.
Be sure the jack is on a firm, level, non-slippery surface. Never allow any part of your body to be extended under a car supported by a jack. Use the jack intended for the car when replacing a wheel. For any other job, use stands to support the end of the
Apply the parking brake, select position P (automatic transmission) or Reverse gear (manual transmission). Block the wheels standing on the ground, use rigid wooden blocks or large stones. The jack should be kept well-greased.
CAUTION: Correct tightening torque on wheel bolts must be observed. The wheel bolts should never be greased or lubricated. The extended, chromed wheel bolts must not be used with steel rims, as they make it impossible to fit the hub caps.
pg. 84 Spare tire
Temporary Spare (certain models) The spare tire of your car is what is called a "Temporary Spare". It has the following designation: T125/90R15. Recommended tire pressure (see decal on fuel filler flap) should be maintained irrespective of which position on the car the Temporary Spare tire is used on. In the event of damage to this tire a new one can be purchased from your Volvo retailer.
CAUTION: The car must not be driven with wheels of different dimensions or with a spare tire other than the one that came with the car. The use of different size wheels can seriously damage your car's transmission.
WARNING! Current legislation prohibits the use of the "Temporary Spare" tire other than as a temporary replacement for a punctured tire. In other words, it must be replaced as soon as possible by a standard tire. Roadholding, etc., may be affected with the "Temporary Spare" in use. Do not, therefore, exceed 50 mph (80 km/h).
Contents | Top of Page
pg. 99 Car care
Car care Car care includes not only maintaining the appearance of the car, but also protecting the car exterior from the effects of air pollution, rain, mud or road salt. The paintwork should also be touched up immediately, if damaged, to prevent rust formation.
Washing Automatic car washing, Polishing and waxing Cleaning the upholstery
Paint touch-up 100-101
102
103
104
pg. 100 Paint touch-up
Paint touch-up Paint damage requires immediate attention to avoid rusting. Make it a habit to check the finish regularly - when washing the car for instance. Touch up if necessary.
Paint repairs require special equipment and skill. Contact your Volvo retailer for any extensive damage.
Minor scratches can be repaired by using Volvo touch-up paint.
NOTE: When ordering touch-up paint from your Volvo retailer, use the paint code indicated on the model plate. The plate is located in the engine compartment, on the inside of the left front fender.
Minor stone chips and scratches Material: Primer - can Paint - touch-up bottle Brush Masking tape
NOTE: When touching up the car, it should be clean and dry. The surface temperature should be above 60° F (15° C).
Scars on the surface If the stone chip has not penetrated down to the metal and undamaged layer of paint remains, the touch-up paint can be applied as soon as the spot has been cleaned.
pg. 101 Paint touch-up (cont.)
Deep scratches
to it.
1. Place a strip of masking tape over the damaged surface. Pull the tape off so that any loose flakes of paint adhere
2. Thoroughly mix the primer and apply it with a small brush.
When the primer surface is dry, the paint can be applied using a brush. Mix the paint thoroughly; apply several thin paint coats and let dry after each application.
3. If there is a longer scratch, you may want to protect surrounding paint by masking it off.
Contents | Top of Page
Chapter 8 - Volvo Service
pg. 105 Volvo Service
Service - an investment An investment which will pay dividends in the form of improved reliability, durability, and resale value.
Label information Maintenance service, Warranty
Fuel/emissions systems Lubrication
106
107
Maintenance schedule 108-109
Servicing 110-111
112
113
Engine oil 114-115
116
117
118
119
120
121
122
Power steering fluid, Brake/clutch system fluid reservoir Automatic transmission fluid Drive belt Windshield washer nozzle, Washer fluid reservoir Coolant Engine compartment Battery maintenance
pg. 106 Label information
1 Vehicle Emission Control Information Your Volvo is designed to meet all applicable emission standards, as evidenced by the certification label on the underside of the hood. For further information regarding these regulations, please consult your Volvo retailer. 2 Vacuum hose routing (underside of hood) 3 Loads and Tire Pressures (on rear edge of passenger's door) 4 Model plate Vehicle Identification Number (VIN). Codes for color and upholstery, etc. The plate is located in the engine compartment, on the inside of left front fender. 5 Vehicle Identification Number (VIN) * The VIN plate is located on the top left surface of the dashboard. The VIN is also stamped on the right hand door pillar. 6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) Standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
* The Vehicle Identification Number (VIN) should always be quoted in all correspondence concerning your vehicle with the retailer and when ordering parts. ** These decals are located on the underside of the hood.
All specifications are subject to change without notice.
pg. 107 Maintenance service, Warranty
Maintenance service Volvo advises you to follow the service program which is outlined in the "Maintenance Records Manual". This maintenance program contains inspections and services necessary for the proper function of your car. The maintenance services contain several checks which require special instruments and tools and therefore must be performed by a qualified technician. To keep your Volvo in top condition, specify time tested and proven Genuine Volvo Parts and Accessories.
The Federal Clean Air Act - U.S. The Clean Air Act requires vehicle manufacturers to furnish written instructions to the ultimate purchaser to assure the proper functioning of those components that control emissions. The maintenance instructions listed in the "Servicing" section of this Manual represent the minimum maintenance required. These services are not covered by the warranty. You will be required to pay for labor and material used. Refer to your Warranty booklet for further details.
Maintenance services Your Volvo has passed several major inspections before being delivered to you, according to Volvo specifications. The maintenance services outlined in this book should be performed as indicated. The extended maintenance service intervals make it even more advisable to follow this program. Inspection and service should also be performed any time a malfunction is observed or suspected. It is recommended that receipts for vehicle emission services be retained in the event that questions arise concerning maintenance. See your "Maintenance Records Manual".
Applicable warranties - U.S. In accordance with U.S. Federal Regulations, the following list of applicable U.S. warranties is provided. For Canadian specification vehicles, see your separate warranty booklet.
New Car Limited Warranty Parts and Accessories Limited Warranty Corrosion Protection Limited Warranty Seatbelt and Supplemental Restraint Systems Limited Warranty Emission Design and Defect Warranty Emission Performance Warranty
These are the Federal warranties; other warranties are provided as required by state law. Refer to your separate Warranty booklet for detailed information concerning each of the warranties.
Contents | Top of Page
Chapter 9 - Specifications
pg. 123 Specifications
Specifications This chapter contains facts and figures pertaining to the technical specifications of your car.
Oil/Fluids specifications 124
Engine specifications 125
Cooling/fuel/distributor ignition systems 126
Front/rear suspensions 126
Transmission, Capacities, Vehicle loading 127
Electrical system/bulbs 128
Dimensions and weights 129
Service manuals, Road assistance 130
pg. 124 Oil/fluid specifications
Oil quality Meeting API specification SG, SG/CD, SH or Energy Conserving (EC) II For best fuel economy and engine protection, consult with your authorized Volvo retailer for recommended oils. Oil with a different quality rating may not provide adequate engine protection. Synthetic oils complying with oil quality requirements are recommended for : driving in areas of sustained temperature extremes (hot or cold), when towing a trailer over long distances or for prolonged driving in mountainous areas. Extra oil additives must not be used unless advised by an authorized Volvo retailer.
NOTE: SAE 15 W-40 oil should only be used in extreme operating conditions such as trailer towing in sustained ambient temperatures over 104° F (40° C). However, SAE 10W-30 synthetic oil would be a better alternative in such conditions. SAE 15W-30 should not be used under normal operating conditions.
Viscosity (stable ambient temperatures):
Engine oil
Automatic transmission fluid
Quality: Meeting API specification SG or SH Quality: ATF Dexron IIE/ III and Mercon Capacity: 8 US qts. (7.6 liters)
Capacity (incl. filter): 6.1 US qts. (5.8
liters)*
Manual transmission fluid Quality: Volvo synthetic gearbox oil
Power steering fluid Brake fluid
1161423
Quality: ATF
Quality: DOT 4+
Capacity: 2.2 US qts (2.1 liters)
Capacity: 0.95 US qts. (0.9 liters) Capacity: 0.64 US qts. (0.6 liters)
* Add 0.95 qts. (0.9 liters) if the oil cooler has been drained
All specifications are subject to change without notice.
pg. 125 Engine
Engine Liquid-cooled gasoline, 5-cylinder, in-line engine. Aluminum alloy cylinder block with cast-iron cylinder liners cast directly into block. Aluminum alloy cylinder head with double overhead camshafts and separate intake and outlet channels. Engine lubrication is provided by an eccentric pump driven from the crankshaft. Full-flow type oil filter. Exhaust emission control accomplished by multiport fuel injection, heated oxygen sensor(s) and three-way catalytic converter.
Designation: Volvo B 5254 T
Output 190 hp at 5100 rpm (142 kw 85 rps)
Max torque 199 ft. lbs. at 1800-4998 rpm (270 Nm/30-83.3 rps)
Number of cylinders 5
Bore 3.27" (83 mm)
Stroke 3.54" (90 mm)
Displacement 2.4 liters
Compression ratio 9.0:1
Number of valves 20
Valve clearance Self-adjusting
Designation: Volvo B 5234 T3
Output 236 hp at 5100 rpm (176 kw/85 rps)
Max torque 243 ft. lbs. at 2700-5100 rpm (330 Nm/45-85 rps)
Number of cylinders 5
Bore 3.19" (81 mm)
Stroke 3.54" (90 mm)
Displacement 2.3 liters
Compression ratio 8.5:1
Number of valves 20
Valve clearance Self-adjusting
All specifications are subject to change without notice.
Contents | Top of Page
Chapter 10 - Audio systems
pg. 131 Audio systems
Audio systems This chapter describes the audio system in your car.
SC-813 132
SC-816 145
SC-900/901 161
General Information 184
pg. 132 Audio system SC-813 (certain models)
The following pages describe the use of your SC-813 Cassette radio and CD remote control
19. Cassette slot 20. Display 21. Waveband selector (AM) 22. Waveband selectors (FM) 23. Anti-theft LED
TP = Applicable only in Tape Mode
CD = Applicable only when in CD mode and connected to a CD changer.
11. Dolby B NR button 12. Cassette eject 13. Not in use 14. Scan 15. Auto seek memory 16. 17. Seek tuning up/down 18. TP-Next/Previous song 19. CD-Next UP/Previous
DOWN track
20. 21. Manual tuning 22. TP-fast forward/Rewind 23. CD-Music search
UP/DOWN 24. RND button
1. On/off (push) 2. 3. Volume (turn) 4. Pause/Mute (push) 5. Balance (pull) 6. Active Sound
Control
7. CD changer selector 8. 9. Tape mode selector 10. Tape direction selector PROG
11. Bass control 12. Treble control 13. Fader control 14. 15. Preset buttons 16. CD-Disc No.
selector
17. PROG - Reversing
the tape
pg. 133 Anti-theft code
Anti-theft code The radio features anti-theft circuitry. If the set is removed from the vehicle or if the battery power is disconnected, a special code must be entered to enable operation of the set. Refer to the radio code card supplied with your vehicle or ask your retailer for the correct code. When the car is parked with the ignition key removed, the anti-theft LED will flash.
To enter the code After installation or when the set has been disconnected from power, the set displays "COdE" when it is switched on. Enter the 4-digit code using the preset buttons. If the correct code is entered, "on" is displayed and the set is ready to use. If you enter an incorrect code you must enter the correct code again from the beginning.
Incorrect code If an incorrect code has been entered "rPt" is displayed. Enter the correct code. After three unsuccessful coding attempts the set will lock and remain locked for two hours. "OFF" is displayed.
During this waiting period:
the battery must be connected the ignition key must be turned to position I the unit must be turned on
Make sure the headlights are turned off to help prevent battery drain (please refer to page 24 for information on turning the headlights off). Enter the code again once this time has elapsed.
Contents | Top of Page
pg. 188 Index
ABS........................................17
Adjusting headligh.........................86
Air conditioning...........................35
Air mix....................................33
Air vents..................................33
Airbag (SIPS)...............................8
Airbag (SRS)................................4
Alarm......................................44
Ambient temperature sensor.................25
Anti-lock Brake System (ABS).........17,19,70
Ashtrays...................................31
Audio systems
General information.....................184
SC-813..................................132
SC-816..................................145
SC-900/901..............................161
Auto-dim (rear-view mirror)................48
Automatic car washing.....................103
Automatic daytime running lights...........24
Automatic transmission........60,61,62,63,127
Driving mode selector....................62
Automatic transmission fluid..........117,124
Battery................................72,128
Battery drain - avoiding...................54
Battery maintenance.......................122
Booster cushion............................11
Brake failure warning light.............17,18
Brake fluid...........................116,124
Brake fluid warning light..................18
Brake system............................70,71
Brake warning light........................17
Break-in period............................56
Bulb failure warning....................17,19
Bulbs.....................................128
Bulbs - replacing..........................85
Capacities................................127
Catalytic converter........................69
Central locking button.....................36
Chains (snow)..............................77
Changing a wheel...........................82
Child booster cushion......................11
Child Restraint Anchorages..................9
Child safety...............................11
Clock......................................16
Clock - resetting..........................25
Clutch fluid..............................116
Coolant - checking/changing...............120
Coolant level sensor.......................19
Coolant level warning light................17
Cooling system.........................64,126
Courtesy lights - front....................49
Cruise control.............................29
Daytime running lights.....................24
Demister - rear window.....................23
Dimensions................................129
Distributor ignition system...............126
Distributor ignition system...............187
Doors and locks............................42
Drive belt................................118
Driving economy............................58
E
EBD (Electroinc Brake-force Distribution)..71
ECC - Electronic Climate Control........34,35
Electrical system......................64,128
Electrically heated front seats............30
Electrically operated front seats.......46,47
Electrically operated sun roof.............41
Electrically-operated windows..............36
Electroinc Brake Distribution..............71
Electroinc Brake-force Distribution........71
Emergency towing...........................66
Emergency warning flashers.................23
Engine....................................125
Engine compartment........................121
Engine oil........................114,115,124
Engine oil - checking/changing............114
Engine oil pressure........................17
Exterior courtesy lights...................20
Fog light - rear........................17,22
Fog lights - front.........................22
Front courtesy lights......................49
Front fog lights...........................22
Front seats................................46
Front seats - heated.......................30
Front seats - memory function..............46
Front suspension..........................126
Fuel gauge.................................16
Fuel level.................................17
Fuel requirements..........................56
Fuel system...............................126
Fuel tank cover - opening...............37,57
opening manually.........................97
Fuses................................91,92,93
Fuses - replacing..........................91
Gas tank cover - opening................37,57
opening manually.........................97
Generator..............................17,128
Generator warning light....................18
Hand brake.................................30
Handling...................................65
Hazard warning flashers....................23
Headlight adjustment.......................86
Headlight wiper blades - replacing.........96
Headlights.................................20
Heated front seats.........................30
Heated side-view mirrors...................23
Heating....................................35
Heating and air conditioning...............33
High beams.................................17
Hoisting the car..........................110
Hood.......................................51
Ignition switch............................21
Immobilizer(start inhibitor)...............42
Instrument illumination....................22
Instruments.............................14,15
Jack.................................53,82,83
Jump starting..............................68
Keyless entry system.......................43
Keylock....................................59
Keys.......................................42
Kick-down..................................61
Label information.........................106
Lifting the car...........................110
Locks......................................42
Long distance trips........................74
Long load storage..........................50
Lubrication...............................113
Maintenance schedule......................108
Maintenance service.......................107
Malfunction indicator lamp..............17,18
Manual transmission....................60,127
Manual transmission fluid.................124
Memory function - front seats..............46
Mirrors - rear/side view...................48
Occupant safety............................12
Octane rating..............................57
Odometer...................................16
Oil (engine)......................114,115,124
Oil pressure warning light.................18
On-call...................................130
Paint touch-up............................100
Parking brake...........................17,30
Parking brake reminder light...............18
Parking lights.............................20
Polishing.................................103
Power seats.............................46,47
Power steering fluid..................116,124
Radio
General information.....................184
SC-813..................................132
SC-816..................................145
SC-900/901..............................161
Radio Data System - RDS...................166
Reading lights.............................49
Rear (side) windows - opening..............37
Rear fog light..........................17,22
Rear suspension...........................126
Rear window demister.......................23
Rear/side-view mirrors....................48
Refueling..................................57
Remote control (central locking system)....43
Remote keyless entry system................43
Replacing bulbs.............85,86,87,88,89,90
Replacing fuses............................91
Reporting Safety Defects...................12
Roadholding................................65
Roof rails/racks...........................65
Safety defects (reporting).................12
Seat belt maintenance......................12
Seat belts.............................2,3,10
Automatic Locking Retractor..............10
Emergency Locking Retractor..............10
Seat belts - cleaning.....................104
Seats......................................46
Seats - heated.............................30
Securing cargo.............................54
Service reminder indicator..............17,19
Servicing.........................110,111,112
Shift lock..............................59,61
Shiftlock release (override)...............97
Side Impact Protection System (SIPS)........8
Side-view mirrors - heated.................23
SIPS........................................8
Snow chains................................77
Snow tires.................................77
Spare tire.................................84
Spare tire (sedan).........................53
Spark plugs...............................126
Spark plugs - replacing...................110
Specifications............................123
SRS.....................................5,6,7
SRS diagnostic system......................19
SRS warning light.....................5,17,19
Stability and Tranction Control(STC).19,23,71
Start Inhibitor (Immobilizer)..............42
Starting the engine........................59
Steering wheel adjustment..................32
Steering wheel lock........................21
Storage compartments.......................40
Studded tires..............................77
Sun roof................................23,41
Tachometer.................................16
Temperature gauge..........................16
Temporary spare tire.......................84
Three-way catalytic converter..............69
Tire pressure..............................78
Tires - changing...........................82
Towing..................................66,67
Towing a trailer...........................72
Trailer towing.............................72
Trip computer.....................23,26,27,28
Trip odometer..............................16
Trunk - opening/locking....................52
Trunk light................................53
Turn signals............................17,20
Uniform tire quality grading...............79
Upholstery - cleaning.....................104
Vanity mirrors.............................49
Vehicle Identification Number (VIN).......106
Vehicle loading...........................127
Volvo On Call.............................130
Warning flashers...........................23
Warning lights..........................18,19
Warranty..................................107
Washer fluid level.........................17
Washer fluid reservoir....................119
Washing...................................102
Waxing....................................103
Weights...................................129
Wheel changing..........................82,83
Wheels and tires...........................76
Windows - electrically-operated............36
Windshield washer nozzles.................119
Windshield washers/wipers..................21
Windshield wiper blades - replacing........95
Winter driving.............................73
Contents | Top of Page
This manual deals with the operation and care of your Volvo.
Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual. We also urge you and your passengers to wear seat belts at all times in this (or any other) automobile. And, of course, please do not operate a vehicle if you may be affected by alcohol, medication or any impairment that could hinder your ability to drive.
Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels attached to the driver's door opening and on the left wheel housing in the engine compartment.
Volvo and the environment
Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.
Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling
are all important considerations.
In production, Volvo has partly or completely phased out several chemicals including freons, lead chromates, naphtanates, asbestos, mercury and cadmium; and reduced the amount of chemicals used in our plants 50% since 1991.
In use, Volvo was the first in the world to introduce into production a three-way catalytic converter with a Lambda sond, now called oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95% and the search to eliminate the remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air conditioning system for all models back to the M/Y 1975 240. Advanced electronic engine controls, refined purification systems and cleaner fuels are bringing us closer to our goal.
After Volvo cars and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The metal content is about 75% of the total weight of the car, which makes the car among the most recycled industrial products. In order to have efficient and well controlled recycling, many Volvo variants have printed dismantling manuals indication the weight and material of individual components. For Volvo, all homogeneous plastic parts weighing more than 1.7 oz. (50 grams)are marked with international symbols that indicate how the component is to be sorted for recycling.
In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles.
When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can:
Maintain proper air pressure in your tires. Tests have shown decreased fuel economy with improperly inflated tires Follow the recommended maintenance schedule Drive at a constant speed See an authorized Volvo retailer as soon as possible for inspection if the check engine (malfunction indicator) lamp illuminates, or stays on after the vehicle has started Properly dispose of any vehicle related waste such as used motor oil, used batteries, brake pads, etc. When cleaning your car, use Volvo's own car care products, all of which have systematically been adapted to the environment.
Contents
Important
Before you operate your car for the first time, please familiarize yourself with the BREAK-IN information on page 56. You should also be familiar with the information in the first three chapters of this manual. Information contained in the balance of the manual is extremely useful and should be studied after operating the vehicle for the first time. This manual is structured so that it can be used for reference. It should thus be kept in the car for ready access. Do not export your Volvo to another country before investigating the country's applicable safety and exhaust emission requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada or other countries.
All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Volvo reserves the right to make model changes at any time, or to change specifications or design, without notice and without incurring obligation.
CAUTION: Certain models have reduced ground clearance due to the design of the front spoiler. Please observe caution when e.g., driving onto garage hoists, through drifted snow or when other road debris is encountered, or when parking near curbs
©1998 Volvo Cars of North America Inc.
Shiftlock (automatic transmission only) When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the gear selector and move the selector from (P)ark. If it is necessary to manually override the shiftlock system:
Turn the starting (ignition) key to position I Press firmly on the "SHIFTLOCK OVERRIDE" button located near the base of the gear selector. While holding the override button down, press the button on the front of the gear selector. Move the gear selector from the (P)ark position.
Keylock (automatic transmission only) This means that when you switch off the ignition, the gear selector must be in the (P)ark position before the starting (ignition) key can be removed from the ignition switch.
Clutch interlock (manual transmission only) The clutch must be fully depressed before you can start you car. If the clutch is not depressed, it will not be possible to start the engine.
Anti-lock Brake System (ABS) The ABS system in your car performs a self-diagnostic test when the vehicle first reaches the speed of approximately 12 mph (20 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control module. This is normal.
Fuel tank cover The fuel tank cover is locked and must be popped open using the control on the driver's door.
Contents
Chapter 1 - Occupant safety Chapter 2 - Instruments, switches and controls Chapter 3 - Body and interior Chapter 4 - Starting and driving Chapter 5 - Wheels and tires Chapter 6 - In case of an emergency Chapter 7 - Car care
15
39
55
75
81
99
Chapter 8 - Volvo Service 105
Chapter 9 - Specifications 123
Chapter 10 - Audio systems 131
Index 188
Top of Page
Chapter 1 - Occupant safety
pg. 1 Occupant safety
Occupant safety Despite our strongest recommendations, and your best intentions, not wearing a seat belt is like believing "It'll never happen to me!". Volvo urges you and all adult occupants of your car to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height. Volvo also believes no child should sit in the front seat of a car. Fact: In every state and province, some type of child-restraint legislation has been passed. Additionally, most states and provinces have already made it mandatory for occupants of a car to use seat belts. So, urging you to "buckle up" is not just our recommendation - legislation in your state or province may mandate seat belt usage. The few seconds it takes to buckle up may one day allow you to say, "It's a good thing I was wearing my seat belt".
Seat belts Volvo SRS Side Impact Protection System - (SIPS) air bag Child safety
Occupant safety 12
Reporting Safety Defects 12
pg. 2 Seat belts
Seat belts Always fasten the seat belts before you drive or ride. Two lights above the rear view mirror will be illuminated for 4-8 seconds after the starting (ignition) key is turned to the driving position. A chime will sound at the same time if the driver has not fastened his seat belt. The rear seats are provided with self-retracting inertia reel belts. The front seats are provided with single roller belts with tensioners.
Adjusting the shoulder belt
Lap portion of the seat belt should sit low
To buckle: Pull the belt out far enough to insert the latch plate into the receptacle (buckle for rear seats) until a distinct snapping sound is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far. The retractor will lock up as follows:
if the belt is pulled out rapidly during braking and acceleration if the vehicle is leaning excessively when driving in turns
For the seat belt to provide maximum protection in the event of an accident, it must be worn correctly. When wearing the seat belt remember:
The belt should not be twisted or turned. The lap belt must be positioned low on the hips (not pressing against the abdomen). The shoulder section of the front seat belts adjusts automatically to the driver's height.
Make sure that the shoulder belt is rolled up into its retractor and that the shoulder and lap belts are taut. Before exiting the car, check that the seat belt retracts fully after being unbuckled. If necessary, guide the belt back into the retractor slot.
NOTE: Legislation in your state or province may mandate seat belt usage.
For information on securing child seats, please refer to page 10.
WARNING!
Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a
detrimental effect on the amount of protection available to you in the event of a collision. The seat back should not be tilted too far back. The shoulder belt must be taut in order to function properly.
Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend
that children who have outgrown these devices sit in the rear with the seat belt properly fastened.
The rear seat of the Volvo C70 is intended for two occupants only. Only two three-point seat belts are provided.
The center position should never be used to seat a passenger.
pg. 3 Seat belts
During pregnancy Pregnant women should always wear seat belts. Remember that the belt should always be positioned in such a way as to avoid any possible pressure on the abdomen. The lap portion of the belt should be located low, as shown in the
above illustration.
WARNING!
The rear seat of the Volvo C70 is intended for two occupants only. Only two three-point seat belts are provided.
The center position should never be used to seat a passenger.
Never use a seat belt for more than one occupant. Never wear the shoulder portion of the belt under the arm, behind the back or otherwise out of position. Such use
could cause injury in event of accident.
As the seat belts lose much of their strength when exposed to violent stretching, they should be replaced after any
collision, even if they may appear to be undamaged.
Never repair the belt on your own; have this done by an authorized Volvo retailer only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a
detrimental effect on the amount of protection available to you in the event of a collision.
The seat back should not be tilted too far back. The shoulder belt must be taut in order to function properly.
Contents | Top of Page
Chapter 2 - Instruments, switches and controls
pg. 14 Instruments, switches and controls
Click on numbered item below for more information
pg. 15 Instruments, switches and controls
The pages in this section provide detailed descriptions of the vehicle's instruments and controls. Note that vehicles may be equipped differently, depending on special legal requirements.
1 Air vents 2 Headlights, parking lights 3 Instrument illumination 4 Rear fog light 5 Front fog lights (optional) 6 Space for additional equipment 7 Space for additional equipment
Page
33
20
22
22
22
14-15
23
26-28
41
23
33
33
4-6
33
51
20
29
32
21
30
31
131
33-35
23
31
8 Instruments
9 Traction control system (optional)
10 Trip computer (optional)
11 Electrically operated sun roof (optional)
12 Rear window demister/heated door mirrors
13 Air mix
14 Air vents
15 Passenger side air bag (SRS) hatch
16 Air vents
17 Hood release
18 Turn signals, high/low beams
Cruise control
19 Adjustable steering wheel
20 Windshield wiper/washer
21 Heated front seats (optional)
22 Auxiliary socket
23 Audio systems
24 Heating and ventilation controls
25 Hazard warning flashers
26 Ashtray
27 Coin holder
28 Shiftlock release button (automatic transmission only) 97
29 Gear selector shift positions
30 Transmission mode selectors
31 Parking brake
32 Horn/SRS
33 Trunk open control
34 Power window controls
35 Power mirror controls
36 Fuel tank open control
37 Central locking button
60-62
62
30
4-6
52
36
48
37
36
Some of the items above are available on certain models only.
pg. 16 Instruments
1 Fuel gauge The fuel tank holds approximately 17.9 US gals. (68 liters). When the warning light comes on there is approximately 1.8 US gals. (8 liters) of fuel remaining. See "Refueling" for further information.
2 Temperature gauge Do not drive the car with the pointer in the red range. The pointer should be approximately midway on the gauge face when driving. If the pointer approaches the red range repeatedly, check coolant level. See page 130.
3 Speedometer
4 Clock, ambient temperature sensor, trip computer (certain models)
5 Odometer
6 Trip odometer Used for measuring shorter distances. The last digit indicates 1/10 mile/kilometer.
7 Trip odometer reset button
8 Tachometer Reads thousands of engine rpm.
Contents | Top of Page
Chapter 3 - Body and interior
pg. 39 Body and interior
Body and interior The seats, sun roof, mirrors, etc. are described on the following pages.
Storage compartments 40
Sun roof 41
Keys, doors and locks 42
Remote keyless entry system 43
Alarm 44
Front seats 46
Rear/side view mirrors 48
Interior lights, Vanity mirrors 49
Long load storage 50
Hood 51
Opening the trunk 52
Trunk light, Spare tire, Jack 53
Securing cargo, Avoiding battery drain 54
pg. 40 Storage compartments
1 Glove compartment 2 Shelf under glove compartment 3 Coin Holder 4 Compartment in door
5 Pocket on rear of front seat 6 Compartment between front seats 7 Cup holder WARNING! Packages on the rear window shelf can obscure vision and may become dangerous projectiles in the event of a sudden stop or an accident.
pg. 41 Sun roof (option)
Sliding sun roof
Electrically-operated sun roof The switch for operating the sun roof is located on the instrument panel. The starting (ignition) key must first be turned to the drive position (position II). The sun roof is also equipped with a one-touch, AUTO-open function.
AUTO-open: Press the lower section of the switch once to automatically open the sun roof. The AUTO-open
function can be stopped at any time by pressing the switch.
To close the sun roof: Depress the upper section of the switch until the sun roof has closed completely.
Sun visor
To open the rear edge of the sun roof (ventilation position): With the sun roof closed, depress the upper section
of the switch. To close, depress the lower section of the switch until the sun roof has closed completely.
To slide open the sun roof: Depress the lower section of the switch until the sun roof has opened to the position
you prefer or hold the switch until the sun roof reaches the "comfort position"*. Depress the lower section of the switch again to open the sun roof completely.
Sun visor: The sun roof also features a sliding sun visor. The visor slides back automatically when the sun roof is opened and also slides back slightly when the sun roof is opened to the ventilation position. The visor must be closed manually.
CAUTION: Do not close the sun visor when the sun roof is in the ventilation position as this could damage the mechanism.
NOTE:
The electrically-operated sun roof has an overload protecting circuit breaker (fuse no. 37) which is activated when an
object blocks the sun roof. Should this occur, remove the object and wait 20 seconds for the circuit breaker to reset. The sun roof should then function normally. Also check fuse no. 35.
WARNING! The sun roof must never be obstructed in any way when in operation.
pg. 42 Keys, doors and locks
Master key This key operates all locks (ignition switch/steering wheel lock, driver's door, trunk and glove compartment).
Service key This key operates the driver's door and the ignition switch/steering wheel lock.
Doors and locks Your car is equipped with a central locking system. The key, used on the driver's door, the remote control, or central locking button, will lock/unlock both doors, and the trunk.
Turn the key once to unlock the driver's door only. Turn the key again (within 10 seconds) to unlock both doors and the trunk. One turn with the key towards lock in the drivers door locks both doors and the trunk. Use the switch on the front door armrests to lock/unlock the car from the inside. Check the action of the buttons on the other door to verify its function (lock/unlock).
WARNING! The doors should not be locked while driving. In case of an accident, this may hinder rapid access to the occupants of the vehicle.
NOTE:
If a door is not closed completely, the courtesy lights will stay on and a chime will sound until the door is closed. As an added anti-theft measure, new keys have been developed which may take slightly longer to copy or replace if the original keys are misplaced. Duplicate keys may be ordered from your Volvo retailer.
Immobilizer (start inhibitor) Each of the keys supplied with your car contains a coded transmitter and receiver (transponder). The code in the key is transmitted to an antenna in the ignition switch when it is compared to the code stored in the start inhibitor module. The car can only be started if a properly coded key is used. If you misplace a key, take the other keys to an authorized Volvo retailer. The existing code in the start inhibitor module and all the keys will be erased as an antitheft measure and a new code will be programmed. NOTE: Not more than one of the keys for you car should be kept on the same key ring. This could cause conflicting signals to be transmitted to the ignition switch, making it imposible to start the car. This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference that may be received, including interference that may cause undesired operation.
The key number codes are stamped on a separate tag supplied with the keys. This tag should be separated from the key ring and kept in a safe place.
Contents | Top of Page
Chapter 4 - Starting and driving
pg. 55 Starting and driving
Starting and driving This section on starting and driving contains items such as starting the engine, operating the gear selector, towing, trailers, etc.
Break-in period
Driving economy Starting the engine Manual transmission Automatic transmission Points to remember Emergency towing Vehicle towing information Jump starting Three-way catalytic converter
56
Fuel requirements, Refueling 56-57
58
59
60
61
64
66
67
68
69
Brake system 70-71
72
Trailer towing
Winter driving
73
74
Long distance trips
pg. 56 Break-in period, Fuel requirements
A new car should be broken-in Refrain from utilizing your car's full driving potential during the first 1,200 miles (2,000 km) including the "kick- down" function (automatic transmission).
NOTE - ENGINE OIL: Although some oil consumption occurs during normal engine operation, more oil is consumed when the engine is new as the internal parts generate higher friction while wearing-in to each other. From the time the engine is new until the first service is performed, the oil consumption could be higher than normal. For this reason, it is especially important to check the oil every time you refuel your car during this period. See page 114. In general, the rate of oil consumption depends on such factors as: engine temperature, length of trip, driving conditions, oil viscosity and quality, engine speed and acceleration/deceleration. Checking your engine oil level each time the car is refueled is one of the most important items you can perform to help keep your car in good running order.
Manual transmission The following speeds should not be exceeded during the break-in period:
600 - 1,200 miles Up to 600 miles (1000 km) (1000 - 2000 km) 1st gear 20 mph (30 km/h) 25 mph (40 km/h) 2nd gear 30 mph (50 km/h) 40 mph (70 km/h) 3rd gear 45 mph (80 km/h) 65 mph (100 km/h) 4th gear 70 mph (110 km/h) 80 mph (130 km/h) 5th gear/overdrive 80 mph (130 km/h) 95 mph (150 km/h)
Posted speed limits should not be exceeded.
Deposit control gasoline (detergent additives) Volvo recommends the use of gasoline containing deposit control additives. These additives have shown to be efficient in keeping injectors and intake valves clean. Consistent use of deposit control gasolines will help ensure good driveability and fuel economy. If you are not sure whether the gasoline contains deposit control additives, check with the service station operator.
Unleaded Fuel Each Volvo has a three-way catalytic converter and must use only unleaded gasoline. U.S. and Canadian regulations require that pumps delivering unleaded gasoline be labeled "UNLEADED". Only these pumps have nozzles which fit your car's filler inlet. It is unlawful to dispense leaded fuel into a vehicle labeled "unleaded gasoline only". Leaded gasoline damages the three-way catalytic converter and the heated oxygen sensor system. Repeated use of leaded gasoline will lessen the effectiveness of the emission control system and could result in loss of emission warranty coverage. State and local vehicle inspection programs will make detection of misfueling easier, possibly resulting in emission test failure for misfueled vehicles.
NOTE: Some U.S. and Canadian gasolines contain an octane enhancing additive called methyl-cyclopentadienyl manganese tricarbonyl (MMT). If such fuels are used, your Emission Control System performance may be affected, and the Malfunction Indicator Lamp located on your instrument panel may light. If this occurs, please return your vehicle to an authorized Volvo retailer for service.
pg. 57 Fuel requirements, Refueling
Octane Rating Volvo engines are designed for optimum performance on unleaded premium gasoline with an octane rating. AKI of 91, or above. AKI (ANTI KNOCK INDEX) is an average of the Research Octane Number, RON, and the Motor Octane Number, MON, (RON + MON/ 2). The minimum octane requirement is AKI 87 (RON 91).
Gasoline containing alcohol and ethers "Oxygenated fuels" Some fuel suppliers sell gasoline containing "oxygenates" which are usually alcohols or ethers. In some areas, state or local laws require that the service pump be marked indicating use of alcohol or ethers. However, there are areas in which the pumps are unmarked. If you are not sure whether there is alcohol or ethers in the gasoline you buy, check with the service station operator. To meet seasonal air quality restrictions, some states require the use of "oxygenated" fuel in certain areas. Volvo allows the use of the following "oxygenated fuels; however, the octane ratings listed on this page must still be met. Alcohol — Ethanol
Fuels containing up to 10% ethanol by volume may be used. Ethanol may also be referred to as Ethyl alcohol, or "Gasohol". Ethers — MTBE Fuels containing up to 15% MTBE may be used.
Refueling The fuel tank is designed to hold approximately 17.9 US gal. (68 liters) with sufficient volume left over to accommodate possible expansion of the fuel in hot weather. Be aware that the "usable" tank will be somewhat less than the specified maximum. When the fuel level is low, such factors as ambient temperature, the fuel's "Reid vapor pressure" characteristics, and terrain can affect the fuel pumps' ability to supply the engine with an adequate supply of fuel. Therefore, it is advisable to refuel as soon as possible when the needle nears the red zone, or when the fuel warning light comes on.
Fuel tank cover The fuel tank cover (on the right rear fender) is locked and must be popped open using the control on the driver's door.
Open fuel filler cap slowly during hot weather conditions. CAUTION:
systems.
Do not refuel with the engine running. Turn the ignition off or to position I. If the ignition is on, an incorrect
reading could occur in the fuel gauge.
After refueling, close the fuel filler cap by turning it clockwise until it clicks into place *. Allow for fuel expansion by not overfilling the tank. Overfilling could also cause damage to the emission control
Avoid spilling gasoline during refueling. Gasolines containing alcohol can cause damage to painted surfaces,
which may not be covered under the New Vehicle Limited Warranty.
Do not use gasoline containing methanol (methyl alcohol, wood alcohol). This practice can result in vehicle
performance deterioration and can damage critical parts in the fuel system. Such damage may not be covered under the New Vehicle Limited Warranty.
* If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator Lamp may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps.
Contents | Top of Page
Chapter 5 - Wheels and tires
pg. 75 Wheels and tires
Wheels and tires The handling and riding comfort of the vehicle is dependent on the inflation pressure and the type of tires fitted. Read the following pages carefully.
General information, Wear indicator, Tire economy, Flat spots 76
Snow chains, Winter tires 77
Inflation pressure 78
Uniform tire quality grading 79
pg. 76 Wheels and tires
General information Your vehicle is equipped with tires according to the tire information label located on the rear facing side of the right front door.
The following is an example of a tire designation code 225/50R16: 225 = tire width in mm. 50 = tire profile. This is the relationship (in percent) between the section height and the width of the tire. R = radial tires. 16 = diameter in inches.
The tires have good road holding characteristics and offer good handling on dry and wet surfaces. It should be noted however that the tires have been developed to give these features on snow/ice-free surfaces. Certain models are equipped with "all-season" tires, which provide a somewhat higher degree of winter roadholding on slippery surfaces than tires without the "all-season" rating. However, for optimum road holding on icy or snow covered roads - we recommend suitable winter tires on all four wheels. When replacing tires, be sure that the new tires are the same size designation, type (radial) and preferably from the same manufacturer, on all four wheels. Otherwise there is a risk of altering the car's road-holding and handling characteristics.
NOTE: When storing wheel/tire assemblies (e.g. winter tires and wheels), either stand the assemblies upright or suspend them off the ground. Laying wheel/tire assemblies on their sides for prolonged periods can cause wheel and/or tire damage.
Wear indicator The tires have a so-called "wear indicator" in the form of a number of narrow strips running across or parallel to the tread. When approx. 1/16" (1.6 mm) is left on the tread, these strips show up and indicate that the tire should be replaced. Tires with less than 1/16" (1.6 mm) tread have a very poor grip in rain or snow. When replacing worn tires, it is recommended that the tire be identical in type (radial) and size as the one being replaced. Using a tire of the same make (manufacturer) will prevent alteration of the driving characteristics of the vehicle.
To improve tire economy:
Maintain correct tire pressure. Drive smoothly: avoid fast starts, hard braking and tire screeching. Tire wear increases with speed. Correct front wheel alignment is very important. Unbalanced wheels impair tire economy and driving comfort. If the wheels are rotated, they should be kept on the same side of the car so that they revolve in the same direction
as prior to rotation.
Hitting curbs or potholes can damage the tires and/or wheels permanently.
Flat spots All tires become warm during use. After cooling, when the vehicle is parked, the tires have a tendency to distort slightly, forming flat spots. These flat spots can cause vibrations similar to the vibrations caused by unbalanced wheels. They do, however, disappear when the tire warms up. The degree to which the flat spots form depends on the type of cord used in the tire. Remember that, in cold weather, it takes longer for the tire to warm up and consequently longer for the flat spot to disappear.
CAUTION: The car must not be driven with wheels of different dimensions. The use of different size wheels can seriously damage your car's transmission.
pg. 77 Wheels and tires (cont.)
Snow chains Snow tire chains can be used on your Volvo with the following restrictions:
Snow chains should be installed on front wheels only. Use only Volvo approved snow chains. Snow chains may be mounted on tire dimension 195/65R15. Tire dimension 205/55R16 requires a special type of
snow chain. Consult your Volvo retailer. If accessory, aftermarket or "custom" tires and wheels are installed and are of a size different than the original tires and wheels, chains in some cases CANNOT be used. Snow chains cannot be used on those turbo-charged models fitted with all-season tires 225/50R16 or 225/45R17 or 225/40R18. Sufficient clearances between chains and brakes, suspension and body components must be maintained.
Some strap-on type chains will interfere with brake components and therefore CANNOT be used.
Consult your Volvo retailer for additional snow chain information.
CAUTION:
Check local regulations regarding the use of snow chains before installing. Always follow the chains manufacturer's installation instructions carefully. Install chains as tightly as possible and
re-tighten periodically.
be higher than 30 mph (45 km/h).
as locked wheel braking.
Never exceed the chain manufacture's specified maximum speed limit. (Under no circumstances should that limit
Avoid bumps, holes or sharp turns when driving with snow chains. The handling of the vehicle can be adversely affected when driving with chains. Avoid fast or sharp turns as well
Snow tires, studded tires * Tires for winter use: Owners who live in or regularly commute through areas with sustained periods of snow or icy driving conditions are strongly advised to fit suitable winter tires to help retain the highest degree of traction. It is important to install winter tires on all four wheels to help retain traction during cornering, braking and accelerating. Failure to do so could reduce traction to an unsafe level or adversely affect handling. Do not mix tires of
different design as this could also negatively affect overall tire road grip. Volvo recommends 195/65 R15 winter tires on 15" steel wheels on all C70 models including those equipped with 16", 17" or 18" wheels.
Winter tires wear more quickly on dry roads in warm weather. They should be removed when the winter driving season has ended.
Studded tires should be run-in 300-600 miles (500-1000 km) during which the car should be driven as smoothly as possible to give the studs the opportunity to seat properly in the tires. The car tires should have the same rotational direction throughout their entire lifetime. In other words, if you wish to rotate the wheels, make sure that the same wheels are always on the same side of the car.
NOTE: Please consult state or local regulations restricting the use of studded winter tires before installing such tires.
* Where permitted
pg. 78 Wheels and tires (cont.)
Checking and correcting tire pressure
Check the tire pressure when refueling. The tire pressure should be corrected only when the tires are cold. With warm tires, correct only when the pressure is too low. The tire temperature rises after driving just a few miles.
Vehicle Loading The tires on your Volvo will perform to specifications at all normal loads when inflated as recommended on the tire information label* located on the rear facing edge of the passenger's door. This label lists both the tire and vehicle design limits. Do not load your car beyond the load limits indicated.
* Please note that the tire information label indicates pressures for both comfort and fuel economy.
pg. 79 Wheels and tires (cont.)
Tire pressure label
Uniform tire quality grading ALL PASSENGER CAR TIRES MUST CONFORM TO FEDERAL SAFETY REQUIREMENTS IN ADDITION TO THESE GRADES
TREADWEAR The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded at 150 would wear one and one half (1 1/2) times as
well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and many depart significantly from the norm due to variation in driving habits, service practices and differences in road characteristics and climate.
TRACTION The traction grades, from highest to lowest, are AA, A, B, and C, as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.
WARNING! The traction grade assigned to this tire is based on braking (straight-ahead) traction tests and does not include cornering (turning) traction.
TEMPERATURE The temperature grades are AA (the highest), A, B, and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.
WARNING! The temperature grade for this tire is established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.
Contents | Top of Page
Chapter 6 - In case of emergency
pg. 81 In case of an emergency
In case of an emergency Even if you maintain your car in good running condition, there is always the possibility that something might go wrong and prevent you from driving, such as a punctured tire, blown fuse or bulb, etc. For additional information, see section "ON CALL Road Assistance".
Spare tire
Wheel changing 82-83
84
Replacing bulbs 85-90
Replacing fuses 91-93
94
Replacing wiper blades 95-96
97
In case of emergency
Installation of accessories
pg. 82 Wheel changing
Loosen wheel bolts
Changing a wheel The spare wheel is located under the carpet on the trunk floor. The jack and crank are secured in the wheel recess.
Engage the parking brake. Put the gear selector in (P)ark (automatic) or in Reverse (manual). With the car still on the ground, use the lug wrench to loosen the wheel bolts 1/2 - 1 turn. Turn the bolts
Fold out the crank handle on the jack by pressing the nob on the handle downward. To attach the jack, refer to the
counterclockwise to loosen.
illustration on the following page.
NOTE: To avoid excessive wear and the necessity of rebalancing, mark and reinstall wheels in same location and position as before removal. To lessen the chance of imbalance, each wheel hub is equipped with a guide stud to ensure
that a removed wheel can be reinstalled in its original position (as when changing over to winter tires/wheels).
CAUTION:
The car must not be driven with wheels of different dimensions or with a spare tire other than the one that came
with the car. The use of different size wheels can seriously damage your car's transmission.
pg. 83 Wheel changing (cont.)
Jack attachment
There is a jack attachment located in the center on each side of the car. Position the jack on the bar in the attachment as shown in illustration A above and crank while simultaneously guiding the base of the jack to the ground. The base of the jack must be flat on a level, firm, non-slippery surface. Before raising the car check that the jack is still correctly positioned in the attachment. Raise the vehicle until both wheels on the side of the car where the jack is attached are lifted off the ground. Unscrew the wheel bolts completely and carefully remove the wheel so as not to damage the thread on the studs.
Installing the wheel
Clean the contact surfaces on the wheel and hub. Lift the wheel and place it on the hub. Make sure that you align the
wheel with the guide stud on the wheel hub prior to installation. Install the wheel bolts crosswise (see illustration) and
tighten by turning lightly clockwise. Lower the vehicle to the ground and alternately tighten the nuts to 81 ft. lbs. (110
Nm). Install the wheel cap (where applicable).
Correct tightening order for wheel bolts
WARNING!
