2004 Toyota Tundra Owners Manual

’04 TUNDRA_U (L/O 0309)

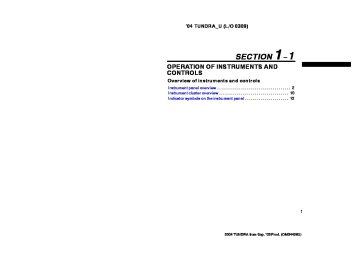

SECTION 1− 1

OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10
12

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

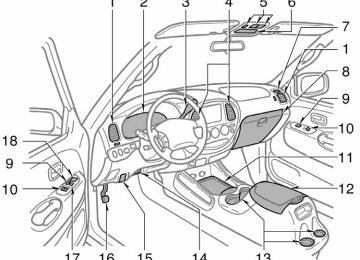

Instrument panel overview (standard and access cab models) "Vehicles with manual transmission

1. Side vents 2. Instrument cluster 3. Center vents 4. Personal lights 5. Garage door opener box or auxiliary

box

6. Side defroster outlet 7. Glove box 8. Power door lock switches 9. Power window switches 10. Manual transmission gear shift lever 11. Front drive control lever 12. Rear console box 13. Cup holders 14. Parking brake lever 15. Lower vent 16. Hood lock release lever 17. Window lock switch 18. Power rear view mirror control switches

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

"Vehicles with automatic transmission (type A)

1. Side vents 2. Instrument cluster 3. Automatic transmission selector lever 4. Center vents 5. Personal lights 6. Garage door opener box or auxiliary

box

7. Side defroster outlet 8. Glove box 9. Power door lock switches 10. Power window switches 11. Auxiliary box 12. Rear console box 13. Cup holders 14. Lower vent 15. Hood lock release lever 16. Parking brake pedal 17. Window lock switch 18. Power rear view mirror control switches

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

"Vehicles with automatic transmission (type B)

1. Side vents 2. Instrument cluster 3. Automatic transmission selector lever 4. Center vents 5. Personal lights 6. Garage door opener box or auxiliary

box

7. Side defroster outlet 8. Glove box 9. Power door lock switches 10. Power window switches 11. Front drive control lever 12. Rear condole box 13. Cup holders 14. Lower vent 15. Hood lock release lever 16. Parking brake pedal 17. Window lock switch 18. Power rear view mirror control switches

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

1. Outside rear view mirror heater switch 2. Clutch start cancel switch or power

rear window switch

3. Headlight, turn signal and front fog

light switches 4. Ignition switch 5. Wiper and washer switches 6. Cargo lamp switch 7. Emergency flasher switch 8. Car audio 9. Air conditioning controls 10. Front passenger’s seat belt reminder

light/passenger airbag off indicator

11. Passenger airbag manual on−off switch 12. Clock 13. “4LO” button

(transfer mode selector button)

14. Cup holder 15. Power outlets 16. Ashtray 17. Cigarette lighter 18. “2WD/4HI” button

(transfer mode selector button)

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

19. “AUTO LSD” switch 20. Cruise control switch 21. Audio remote control switches 22. Tilt steering lock release lever 23. Toyota vehicle intrusion protection

system indicator light

24. Instrument panel light control knob

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Instrument panel overview (double cab models)

1. Side vents 2. Instrument cluster 3. Center vents 4. Multi−information display 5. Personal lights 6. Auxiliary box 7. Electric moon roof switches 8. Side defroster outlet 9. Glove box 10. Power door lock switches 11. Power window switches 12. Power outlets 13. Seat heater switches 14. Rear console box 15. Input terminal adapter 16. Headphone input jacks and headphone

volume control dials

17. Cup holders 18. Lower vent 19. Hood lock release lever 20. Parking brake pedal 21. Window lock switch

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

1. Power rear window switch 2. Power rear view mirror control switches 3. Power outlet main switch 4. Instrument panel light control knob 5. Headlight, turn signal and front fog

light switches

6. Wiper and washer switches 7. Automatic transmission selector lever 8. Emergency flasher switch 9. Car audio 10. Air conditioning controls 11. Front passenger’s seat belt reminder

light and theft deterrent system indicator light

12. Cargo lamp switch 13. Rear window and rear view mirror

defogger switch

14. Clock 15. Cup holder 16. “4LO” button

(transfer mode selector button)

17. “2WD/4HI” button

(transfer mode selector button)

18. “AUTO LSD” switch

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

19. Ashtray 20. Cigarette lighter 21. Cruise control switch 22. Ignition switch 23. Audio remote control switches 24. Tilt steering lock release lever

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Instrument cluster overview "With tachometer

1. Oil pressure gauge 2. Service reminder indicators and

indicator lights

3. Tachometer

4. Speedometer 5. Shift position indicator lights

(automatic transmission)

6. Voltmeter 7. Fuel gauge

8. Trip meter reset knob 9. Odometer and two trip meters 10. Engine coolant temperature gauge

10

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

"Without tachometer

1. Engine coolant temperature gauge 2. Service reminder indicators and

indicator lights

3. Speedometer 4. Fuel gauge

5. Trip meter reset knob 6. Odometer and two trip meters

11

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Indicator symbols on the instrument panel

Brake system warning light∗1

Driver’s seat belt reminder light∗1

D Vehicle stability control system warning

light∗1

D Traction control system warning light∗1
D “AUTO LSD” system warning light∗1

Front passenger’s seat belt reminder light∗1

Open door warning light∗1

Discharge warning light∗1

SRS warning light∗1

Low engine oil pressure warning light∗1

Unengaged “Park” warning light∗1

Malfunction indicator lamp∗1

Low fuel level warning light∗1

or

Anti−lock brake system warning light∗1

Automatic transmission fluid temperature warning light∗1

Low windshield washer fluid level warning light∗1

Passenger airbag off indicator light

Headlight high beam indicator light

12

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

Turn signal indicator lights

Overdrive−off indicator light

Automatic transmission indicator lights

Four−wheel drive indicator light

High speed four−wheel drive indicator light∗2

Low speed four−wheel drive indicator light∗2

Slip indicator light

Vehicle stability control system off indicator light

“AUTO LSD” indicator light

’04 TUNDRA_U (L/O 0309)

Cruise control indicator light∗3

∗1: For details, see “Service reminder indicators and warning

buzzers” in Section 1−6. If this light flashes, see “Four−wheel drive system” in Sec- tion 1−7. If this light flashes, see “Cruise control” in Section 1−7.

∗2:

∗3:

13

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

14

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

SECTION 1− 10

OPERATION OF INSTRUMENTS AND CONTROLS Other equipment Multi−information display Clock Cigarette lighter and ashtrays Power outlets (12 VDC) Power outlet (115 VAC) Glove box Garage door opener box Auxiliary boxes Rear console box Coin holder Compact disc and cassette tape holder Cassette tape holder Cup holders Note pad holder Grocery bag/cargo net hooks Floor mat

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

286
296
296
297
298
299
300
303
305
307
309
311
311
314
314
315

285

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

Multi−information display—

’04 TUNDRA_U (L/O 0309)

1. “E/M” button 2. Garage door opener buttons 3. “MODE” button 4. Garage door opener indicator 5. Outside temperature display 6. Compass

286

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

the

the multi−information display

—Before using the multi−information display Operate with the ignition switch on. to When “ON”, the last previously used mode dis- played just before the ignition switch is turned off will appear. When lights are turned on, the brightness of the display will be reduced.

instrument panel

ignition switch

turned

the

is

’04 TUNDRA_U (L/O 0309)

“E/M” button This button is used to switch between English/U.S. Customary System and metric units of the outside temperature display. Each time you push this button, the dis- play switches. This is also linked to the multi−information display. The display vari- ations are as follows;

Indication

Outside

temperature

English/U.S. System (E)

Customary

Metric (M)

_F

_C

“MODE” button This button is used to select the item. Every time you push the “MODE” button, the display toggles. For more details, see “—Outside tempera- ture display” in this Section.

CAUTION

Do not adjust the display while the vehicle is moving. Be sure to adjust the display only when the vehicle is stopped.

The initial mode will be English/U.S. Cus- tomary System units, however, if the unit is switched ignition switch is off, it will display metric units when the ignition switch is turned to “ON”.

to metric and

the

287

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

—Garage door opener

The garage door opener ( Universal Transceiver) is manufactured under license from HomeLinkR and can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, and security systems, etc. (a) Programming the HomeLinkR The HomeLinkR in your vehicle has 3
buttons and you can store one program for each button. To ensure correct programming into the HomeLinkR, install a new battery in the hand−held to program- ming. The battery side of the hand−held trans- mitter must be pointed away the HomeLinkR during the programming pro- cess. For Canadian users, follow the procedure “Programming an entrance gate/Pro- in gramming all devices the Canadian market”. 1. Decide which of 3 HomeLinkR buttons you want to program. Push and hold down one of the buttons until the indi- cator corresponding the selected to channel begins to flash.

transmitter prior

from

in

2. Place your hand−held garage transmit- ter 25 to 75 mm (1 to 3 in.) away from the surface of the HomeLinkR.

Keep the indicator light on the HomeLinkR in view while programming. 3. Simultaneously press and hold

the hand−held garage transmitter button along with the selected HomeLinkR but- ton.

4. When

the

indicator

the HomeLinkR changes from a slow to a rapid flash after 20 seconds, you can release both buttons.

light on

5. Test the operation of the HomeLinkR by pressing the newly programmed button. If programming a garage door opener, check to see if the garage door opens and closes.

If the garage door does not operate, iden- tify if your garage transmitter is of the “Rolling Code” type. Press and hold the programmed HomeLinkR button. The ga- rage door has the rolling code feature if the HomeLinkR) the flashes rapidly and then remains lit after 2 seconds. If your garage transmitter is the “Rolling Code” type, proceed to the heading “Programming a rolling code sys- tem”.

indicator

light

(on

288

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

6. Repeat steps 2 through 5 for each re- maining HomeLinkR button to program another device.

it

is

to

is necessary

Programming a rolling code system “Rolling Code” If your device equipped, follow steps 1 through 4 under the heading “Programming the HomeLinkR” before proceeding with the steps listed below. 1. Locate the “training” button on the ceil- ing mounted garage door opener motor. The exact the button may vary by brand of garage door opener. Refer the owner’s guide supplied by the garage door opener manufacturer for the location of this “training” button.

location and color of

to

2. Press the “training” button on the ceil- ing mounted garage door opener motor. Following this step, you have 30 seconds in which to initiate step 3 below. 3. Press and release the vehicle’s pro- grammed HomeLinkR button twice. The garage door may open. the door does open, the programming process is complete. If the door does not open, press and release the button a third time. This third press and release will complete the programming process by opening the garage door.

If

now

should

recognize

The ceiling mounted garage door opener motor the HomeLinkR unit and be able activate the garage door up/down. 4. Repeat steps 1 through 3 for each re- maining HomeLinkR button to program another rolling code system.

Programming an entrance gate/Program- ming all devices in the Canadian market 1. Decide which of the 3 HomeLinkR but-

2. Place

your

tons you want to program. hand−held

gate/device transmitter 25 to 75 mm (1 to 3 in.) away the from HomeLinkR.

surface

the

of

Keep the indicator light on the HomeLinkR in view while programming. 3. Press

selected

hold

and

the

HomeLinkR button.

4. Continuously press and release (cycle) transmitter the hand−held gate/device button every two seconds until step 5
is complete. the

the HomeLinkR changes from a slow to a rapid flash after 20 seconds, you can release both buttons.

light on

5. When

indicator

6. Test the operation of the HomeLinkR by pressing the newly programmed button. Check to see if the gate/device oper- ates correctly.

7. Repeat steps 1 through 6 for each re- maining HomeLinkR button to program another device.

Programming other devices To program other devices such as home security systems, home door locks or lighting, contact your authorized Toyota dealer for assistance. Reprogramming a button Individual HomeLinkR buttons cannot be erased, however, to reprogram a single button, follow the procedure “Programming the HomeLinkR”. (b) Operating the HomeLinkR To operate the appropriate HomeLinkR button to activate the programmed device. The HomeLinkR indicator light should come on. The HomeLinkR continues to send the signal for up the button is pressed.

the HomeLinkR, press

to 20 seconds as

long as

289

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

(c) Erasing

the

entire HomeLinkR

memory (all three programs)

To erase all previously programmed codes at one time, press and hold down the 2
outside buttons for 20 seconds until the indicator light flashes. If you sell your vehicle, be sure to erase the HomeLinkR the programs stored memory.

in

’04 TUNDRA_U (L/O 0309)

following

This device complies with Part 15 of the FCC Rules and with RSS−210 of the Industry Canada. Operation is subject to the two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including in- terference that may cause undersired operation. WARNING: This transmitter has been tested and complies with FCC and Industry Canada DOC/MPAC rules. Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the device.

CAUTION

D When programming the HomeLinkR Universal Transceiver, you may be operating a garage door or other device. Make sure people and ob- jects are out of the way of the ga- rage door or other device to pre- vent potential harm or damage.

D Do not use this HomeLinkR Univer- sal Transceiver with any garage door opener that lacks the safety stop and reverse feature as re- quired by federal safety standards. (This includes any garage door opener model manufactured before April 1, 1982.) A garage door open- er which cannot detect an object (signaling the door to stop and re- verse), does not meet current feder- al safety standards. Using a garage door opener without these features increases risk of serious injury or death.

290

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

—Outside temperature display

—Compass

from

temperature

The displayed value is updated every 2
second. ranges The displayed −30_C (−22_F) up to 50_C (122_F). If there is some abnormality in the con- nection of the outside air temperature sen- sor, “−−_C” (“−−_F”) will appear on the display. If “−−_C” (“−−_F”) appears on the display, contact your Toyota dealer. There may be a case that “−−_C” (“−−_F”) appears momentarily when the ignition is quickly turned to “ON”. It is normal if it goes out soon.

indi-

The outside temperature display cates the outside air temperature. Every time you push the “MODE” button, the display toggles through the following information. To use the outside tempera- ture display, push the “MODE” button until the outside air temperature is displayed. 1. Compass and outside temperature 2. Display off (no compass) 3. Compass 4. Outside temperature To set until the desired unit display appears.

the unit, push the “E/M” button

indicates

the vehicle

is heading.

the direction The compass that the above case, it shows that the vehicle is heading south. The direction display is updated every 2
seconds.

In

Displays

NE SE SW NW

Directions

North

Northeast

East

Southeast

South

Southwest

West

Northwest

291

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

The compass may not show the correct direction in the following conditions: D The vehicle is stopped immediately af-

ter turning. The compass does not adjust while the vehicle is stopped.

D The ignition switch is turned off imme-

diately after turning.

D The vehicle is on an inclined surface. D The vehicle is in a place where the earth’s magnetic field is subject to in- terference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a crossing, near a large vehicle, etc.).

D The vehicle is magnetized. (There is a magnet or a metal object on or near the roof.)

D The battery has been disconnected. The compass works to calibrate the direc- tion automatically while the vehicle is in motion, if deviation is small. For additional precision or see calibrating, COMPASS” below.

for complete THE

“CALIBRATING

292

’04 TUNDRA_U (L/O 0309)

the direction

If the system does not operate properly, contact your Toyota dealer.

indicated or

is not

Compass sensor

The compass sensor is on the roof of the vehicle.

NOTICE

Do not put magnets or a metal object on or near the roof of the vehicle. Doing this may cause malfunction of the compass sensor.

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

the

from

CALIBRATING THE COMPASS (deviation calibration) the compass The direction display on deviates true direction deter- mined by the earth’s magnetic field. The angle of deviation varies according to the geographic position of the vehicle. To adjust for this deviation; 1. Stop the vehicle in a level place and switch the display to the outside tem- perature. (To switch to this mode, see “—Outside temperature display” in this Section.)

2. Push and hold both the “MODE” and “E/M” buttons simultaneously for 5 sec- onds until the “VAR” indication appears on the compass display.

3. Push

the “E/M” button several

times until the desired zone number appears on the compass display.

If the button is not pushed for 10 sec- onds, the display returns to the compass/ outside temperature mode and the number that is last set is memorized. To select the zone where the vehicle is currently following map.

located, refer

the

to

’04 TUNDRA_U (L/O 0309)

293

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Hawaii: Samoa: Guam: Saipan:

After calibration, leaving the system for several seconds returns to the compass mode.

CAUTION

Do not adjust the display while the vehicle is moving. Be sure to adjust the display only when the vehicle is stopped.

Zone number

294

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

2. Push and hold both the “MODE” and “E/M” buttons simultaneously for 10
seconds until the “CAL” indication ap- pears on the compass display. (At this time, the compass display is locked in “N”.)

3. Drive the vehicle in a circle at 8 km/h (5 mph) or less. If there is not enough space to drive in a circle, drive around the block.

When the “CAL” indication goes off and the compass returns to the normal mode, calibration is complete. If you want to restart the calibration be- fore the “MODE” and “E/M” buttons simultaneously for 10 seconds again.

is complete, push both of

it

295

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

the direction display on

CALIBRATING THE COMPASS (circling calibration) Sometimes the compass may not change after a turn. In this case, the compass needs to be cali- brated. To calibrate the compass manually, do the following; 1. Stop the vehicle in a level place and switch the display to the outside tem- perature. (To switch to this mode, see “—Outside temperature display” in this Section.)

Perform circling calibration just after you have purchased your Toyota. And then always perform circling calibration after the battery has been removed, re- placed or disconnected. D Do not perform circling calibration of the compass the earth’s magnetic field is subject to in- terference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a crossing, near a large vehicle, etc.).

in a place where

D During calibration, do not operate elec- tric systems (moon roof, power win- dows, etc.) as they may interfere with the calibration.

CAUTION

D When doing the circling calibration, be sure to secure a wide space, and watch out for people and ve- hicles in the neighborhood. Do not violate any local traffic rules while performing circling calibration.

D Do not adjust the display while the vehicle is moving. Be sure to adjust the display only when the vehicle is stopped.

296

’04 TUNDRA_U (L/O 0309)

Clock

Cigarette lighter and ashtrays

The digital clock indicates the time. The key must be in the “ACC” or “ON” position. To reset the hour: Push the “H” button. To reset the minutes: Push the “M” button. If the electrical power source has been disconnected from the clock, the time dis- play will automatically be set to 1:00 (one o’clock). When lights are turned on, the brightness of the time in- dication will be reduced.

instrument panel

the

Cigarette lighter and front ashtray

Rear ashtray

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

CIGARETTE LIGHTER To use the cigarette lighter, press it in. After it finishes heating up, it automati- cally pops out ready for use. If the engine is not running, the key must be in the “ACC” position. Do not hold the cigarette lighter pressed in. Use a Toyota genuine cigarette lighter or equivalent for replacement. ASHTRAYS Front: To use the ashtray, pull it out. Rear: To use the ashtray, raise the lid. When finished with your cigarette, thor- oughly extinguish it in the ashtray to pre- vent other cigarette butts from catching fire. After using the ashtray, push it back in completely. Front—To remove the ashtray, press down on the lock spring plate and pull out. Rear—To remove the ashtray, pull it out.

CAUTION

in To reduce the chance of case of an accident or sudden stop while driving, always completely close the ashtray after use.

injury

’04 TUNDRA_U (L/O 0309)

Power outlets (12 VDC)

Type A

Type C

Type B

Type D

297

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Power outlet (115 VAC)

The power outlets are designed power supply for car accessories. The key must be in the “ACC” or “ON” position for the power outlets to be used.

for

NOTICE

the

fuse

z To prevent

from being blown, do not use the electricity over the total vehicle capacity of 12V/120W.

z To prevent the battery from being discharged, do not use the power outlets longer than necessary when the engine is not running.

z Close the power outlet

lids when the power outlets are not in use. Inserting a foreign object other than the appropriate plug that fits the outlet, or allowing any liquid into the outlet may cause electrical fail- ure or short circuits.

298

This power outlet is designed for use as a power supply for electric ap- pliances in the vehicle. The key must be in the “ON” position for the power outlet to be used. The maximum capacity for this power out- let is 115 VAC/100W. If you attempt to use an appliance that requires more than 115 VAC or 100W, the protection circuit will activate and cut the power supply. The power supply will restart automatically when you use an appliance that operates within the 115 VAC/100W limits.

Main switch

To use the power outlet, push the main switch on the instrument panel. An indicator light will illuminate to indicate that the power outlet is ready for use. Push the main switch once again to turn the power outlet off. When the power out- let is not in use, make sure that the main switch is turned off.

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

NOTICE

Certain electrical appliances may cause radio noise.

Glove box

z To prevent the battery from being discharged, do not use the power outlet longer than necessary when the engine is not running.

z Close the power outlet lid when the power outlet is not in use. Inserting a foreign object other than the ap- propriate plug that fits the outlet may cause electrical failure or short circuits.

The power outlet is not designed for the following electric appliances even though their power consumption is un- der 115 VAC/100W. These appliances may not operate properly. D Appliances with high initial peak watt- age: cathode−ray tube type televisions, compressor−driven refrigerators, electric pumps, electric tools, etc.

D Measuring devices which process pre- cise data: medical equipment, measur- ing instruments, etc.

D Other appliances requiring an extremely stable power supply: microcomputer− controlled electric blankets, touch sen- sor lamps, etc.

To open the glove box door, pull the lever. On some models, the glove box light will come on when the glove box is opened with the headlight switch on.

CAUTION

To reduce the chance of in case of an accident or a sudden stop, always keep the glove box door closed while driving.

injury

299

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Garage door opener box

The box is designed to store a garage door opener transmitter. Open the cover and remove the Velcro square.

Remove the paper strip covering the adhe- sive on back side of square and adhere the square to back side of the transmitter near the center.

Please note if transmitter has wire clip for sun visor, this clip must be removed prior to adhesion of the Velcro.

300

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

Place the transmitter with Velcro square facing inside of box into the box. Make sure located above button pins.

transmitter button

the

is

’04 TUNDRA_U (L/O 0309)

Remove spacers from the center panel. Place the largest spacer on the pin that would be below transmitter button when the cover is closed. Close the cover.

When the garage door opener transmitter is properly installed, you can operate the transmitter by pushing the center panel of the cover.

301

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

CAUTION

D To reduce the chance of injury in case of an accident or a sudden stop, always keep the garage door opener box closed while driving.

D Keep the remaining spacers away

from children.

Standard and access cab models only— The auxiliary box (stored in the glove box) and garage door opener box are interchangeable. Removing the cover— Half open the cover. Pinch each hinge and pull it out of its pivot one at a time as shown above. Do not remove the cover forcibly.

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

If the center panel does not contact your garage door opener transmitter: D Check to see if spacer is on the cor-

rect pin.

D Attach another spacer

top of original spacer. Check operation. If re- quired, continue to add spacers until contact is achieved.

to the

If the transmitter is clattering during driv- ing, fill in a piece of felt or pad to prevent the transmitter from clattering.

302

’04 TUNDRA_U (L/O 0309)

Auxiliary boxes To use the auxiliary boxes, open the lids as shown in the following illustra- tions.

CAUTION

D To reduce the chance of injury in case of an accident or a sudden stop, always keep the auxiliary box closed while driving.

D Type A and B only—As these hold- ers are designed for holding a light object such as an eyeglass, do not place any heavy objects in them. Heavy objects may cause the holder to open and contents to fly out re- sulting in injuries.

NOTICE

Type A and B only—During hot weath- er, the interior of the vehicle becomes very hot. Do not leave anything flam- mable or deformable such as a light- er, glasses, etc. inside.

Type A

Type B

Installing the cover— Align the hinges to the pivots, and press each hinge until you hear a click. Make sure that closes smoothly.

the cover opens and

303

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

To fold down the armrest with the auxiliary box

Front

Type E (under the rear seat of access cab models)

To return the armrest with the auxiliary box to the original position

Front

Type C

304

Type D

Type F (under the rear seat of double cab models)

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Rear console box (type A)

UPPER TRAY To access the upper tray, raise the con- sole box lid.

CAUTION

To reduce the chance of in case of an accident or a sudden stop, always keep the upper tray closed while driving.

injury

CONSOLE BOX To access the rear console box, raise the upper tray by pulling up the lock release lever.

CAUTION

To reduce the chance of in case of an accident or a sudden stop, always keep the console box closed while driving.

injury

305

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Rear console box (type B)

UPPER TRAY To access the upper tray, raise the con- sole box upper lid while pushing the lock release button.

CAUTION

in To reduce the chance of case of an accident or a sudden stop, always keep the upper tray closed while driving.

injury

CONSOLE BOX To access the rear console box, raise the console box lid by pulling up the lock release lever.

CAUTION

To reduce the chance of in case of an accident or a sudden stop, always keep the console box closed while driving.

injury

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

306

’04 TUNDRA_U (L/O 0309)

Coin holder (type A)

Coin holder (type B)

The rear console box is equipped with a coin holder. To use the coin holder: 1. Raise the console box lid. 2. Push coins down into the holder.

307

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

The rear console box is equipped with a coin holder. To use the coin holder: 1. Raise the console box upper lid while

pushing the lock release button. 2. Push coins down into the holder. The coin holder is detachable.

The coin holder can be set in the con- sole box. To set the coin holder in the console box, raise the console box lid by pulling up the lock release lever.

308

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Coin holder (type C)

Compact disc and cassette tape holder (type A)

The auxiliary box is equipped with a coin holder. To use the coin holder: 1. Raise the auxiliary box lid while push-

ing the lock release button.

2. Push coins down into the holder. The coin holder is detachable.

309

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Compact disc and cassette tape holder (type B)

The rear console box is equipped with compact disc and cassette tape holders. To use the holders, raise the console box lid and upper tray by pulling up the lock release lever. The plates for the compact disc and cas- sette tape holders are detachable.

The rear console box is equipped with a compact disc and cassette tape hold- er. To use the holder, raise the console box lid by pulling up the lock release lever. The compact disc and cassette tape hold- er is detachable.

310

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Cassette tape holder

The auxiliary box is equipped with a cassette tape holder. To use the holder, raise the auxiliary box lid while pushing the lock release button. The plate for the cassette tape holder is detachable.

Cup holders The cup holder is designed for holding cups or drink−cans securely. To use them, observe illustra- tions.

following

the

CAUTION

D Do not place anything else other than cups or drink−cans in the cup items may be holder, as such thrown about and possibly injure people in the vehicle during sudden braking or in an accident.

D To reduce the chance of injury in case of an accident or a sudden stop while driving, keep the cup holder closed when it is not in use.

NOTICE

Type A only—As this holder is de- signed for holding soft cups only, do not place too heavy a cup, drink−can or bottle in it.

311

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

To fold down the armrest with the cup holder

To return the armrest with the cup holder to the original position

Type B

Type C

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

Type A

312

’04 TUNDRA_U (L/O 0309)

Type C cup holders are equipped with a detachable adapter for each holder. When you remove the adapter, a bigger cup can be held in the holder.

Type D

Type F

Type E

Type G

313

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

Note pad holder

314

’04 TUNDRA_U (L/O 0309)

Grocery bag/cargo net hooks

Grocery bag hooks

Cargo net hooks

The rear console box is equipped with a note pad holder. This is designed to hold small paper such as note pads. To use the holder, raise the console box upper lid while pushing the lock release button.

CAUTION

D Do not write on the note pad holder

while the vehicle is moving.

D Do not place anything else on the note pad holder. Such items may be in the compartment thrown about and possibly cause injury during sudden braking or an accident.

D To reduce the chance of injury in case of an accident or a sudden stop while driving, keep the console box upper lid closed when it is not in use.

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Floor mat

These hooks are designed to hang things like grocery bags or cargo net. Although the cargo net itself is not in- cluded as an original equipment, these hooks can be used to hang the cargo net.

NOTICE

z To prevent damage to the hooks, avoid hanging heavy loads on them when using them as grocery bag hooks.

z To prevent damage

the hook, avoid hanging things other than a cargo net on it when using them as cargo net hooks.

to

Use a floor mat of the correct size. If the floor carpet and floor mat have a hole, then it is designed for use with a locking clip. Fix the floor mat with locking clip into the hole in the floor carpet.

CAUTION

Make sure the floor mat is properly placed on the floor carpet. If the floor mat slips and the movement of the pedals during driv- ing, it may cause an accident.

interferes with

315

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

316

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

SECTION 1− 2

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Front doors Side doors Access doors Wireless remote control system Power windows Rear side windows Rear window Power rear window Tailgate Hood Toyota vehicle intrusion protection system (TVIP) Theft deterrent system Fuel tank cap Electric moon roof

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16
16
18
20
21
31
34
34
35
36
38
39
40
42
44

15

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Keys

Front doors (standard and access cab models)

These keys work in every lock. Since the doors can be locked without a key, you should always carry a spare key in case you accidentally lock your key inside the vehicle.

KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.

LOCKING AND UNLOCKING WITH KEY Insert the key into the keyhole and turn it. To lock: Turn the key forward. To unlock: Turn the key backward. Vehicles with power door lock system— Both doors lock and unlock simultaneously with either door. In the driver’s door lock, turning the key once will unlock the driv- er’s door and twice in succession will un- lock the driver’s door and passenger’s door simultaneously.

16

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

lock: Push the switch down on the

LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH Push the switch. To front side. To unlock: Push the switch down on the rear side. Both doors lock or unlock simultaneously.

CAUTION

Before driving, be sure that the doors are closed and locked, especially when small children are in the ve- hicle. Along with the proper use of locking the doors helps seat belts, prevent the driver and passengers from being thrown out from the ve- hicle during an accident. It also helps prevent the doors from being opened unintentionally.

17

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

LOCKING AND UNLOCKING WITH INSIDE LOCK KNOB Move the lock knob. To lock: Push the knob forward. To unlock: Pull the knob backward. Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the ve- hicle. Vehicles with power door lock system— The door will not lock if the key is left in the ignition switch when closing the front doors.

Driver’s side

Passenger’s side

’04 TUNDRA_U (L/O 0309)

Side doors (double cab models)

When all the doors are unlocked simulta- neously using a key, the interior light, igni- tion switch light, step light and cargo lamp will come on and remain on for about 15
seconds before fading out. (For details, see “Center interior and personal lights”, “Ignition switch and step lights” and “Car- go lamp” in Section 1−5.)

the doors

LOCKING AND UNLOCKING WITH KEY Insert the key into the keyhole and turn it. To lock: Turn the key forward. To unlock: Turn the key backward. All lock and unlock simulta- neously with either front door. In the driv- er’s door lock, turning the key once will unlock the driver’s door and twice in suc- cession will unlock all the doors simulta- neously. This double key turning operation to un- lock all the doors can be changed to a single key turning operation. For details, contact your Toyota dealer.

18

LOCKING AND UNLOCKING WITH INSIDE LOCK KNOB Move the lock knob. To lock: Push the knob forward. To unlock: Pull the knob backward. The front doors can be opened by pulling the inside handles even if the lock knobs are in the locked position.

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

CAUTION

Do not pull the inside handle of the front doors while driving. The doors will open and an accident may occur. Toyota strongly recommends that all children be placed in the rear seat of the vehicle.

Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the ve- hicle. Doors cannot be locked when either front door is open and the key is in the igni- tion.

Driver’s side

Passenger’s side

’04 TUNDRA_U (L/O 0309)

lock: Push the switch down on the

LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH Push the switch. To front side. To unlock: Push the switch down on the rear side. All the doors lock or unlock simultaneous- ly. When the front doors are locked with the inside lock knob, the key or the wireless remote control transmitter, the power door lock switch will not work until either front door is unlocked with the key, lock knob, or wireless remote control transmitter.

19

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Access doors (access cab models)

CAUTION

Before driving, be sure that the doors are closed and locked, especially when small children are in the ve- hicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the ve- hicle during an accident. It also helps prevent the doors from being opened unintentionally.

to

the

lock

lever

the “LOCK”

REAR DOOR CHILD−PROTECTORS Move position as shown on the label. This feature allows you to lock a rear door so it can be opened from the outside only, not from the inside. We recommend using this feature whenever small children are in the vehicle.

20

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

Wireless remote control (standard and access cab models for U.S.A. only)

For easy access to the rear seat, open the access door (rear door). To open: First, open the front door widely. Then pull the outside handle or inside le- ver of the access door. If you try to open the front and rear doors simultaneously, they will not open. To close: First, close completely. Then close the front door. You can open and close the access door only when the front door is widely opened.

the access door

NOTICE

Locking operation

The front door and access door could be damaged if they hit each other when being opened or closed. Be sure to follow the above instructions.

to

THE

AND

UNLOCKING

lock or unlock all

The wireless remote control system is designed the doors or activate the “PANIC” mode from a distance within approximately 1
m (3 ft.) of the vehicle. LOCKING DOORS To lock and unlock all the doors, push the switches slowly and securely. To lock: Push the “LOCK” switch. All the doors are locked simultaneously. At this time one beep will be heard, and the tail lights and lights will flash once. Check to see that the doors are securely locked. If any door is not securely closed, locking cannot be performed by “LOCK” switch and a beep will sound continuously for 5 seconds. However, if the key is in the ignition, a beep will not sound. To stop the beep, close all the doors se- curely or push the “UNLOCK” switch.

front side marker

the

Unlocking operation

21

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

the

lights will

front side marker

“UNLOCK” switch To unlock: Push once to unlock the driver’s door alone. Pushing the switch twice within 3 seconds unlocks all the doors simultaneously. Each time the “UNLOCK” switch is pushed, two beeps will be heard, and the tail lights and flash twice. When the “UNLOCK” switch is pressed, the interior light, ignition switch light, step light and cargo lamp come on. The lights remain on for about 30 seconds unless any door is opened and closed. You have 30 seconds to open a door after using the wireless remote unlock feature. If a door is not opened by then, all the doors will be automatically locked again. If the “LOCK” or “UNLOCK” switch is kept pressed in, the locking or unlocking opera- tion is not repeated. Release the switch and then push again.

22

flashes

intermittently,

“PANIC” SWITCH Pushing the “PANIC” switch blows the horn the head- lights and tail lights, and turns on the interior light. The “PANIC” switch is used to deter ve- hicle theft when you witness anyone at- tempting into or damage your vehicle. The alarm will last for one minute. To stop alarm midway, push the “PANIC” switch once again, lock or unlock any door with the key or transmitter, or turn the ignition key from the “LOCK” to “ON” position. The “PANIC” mode does not work when the ignition key is in the ignition switch.

to break

WIRELESS REMOTE CONTROL The wireless remote control transmitter is an electronic component. Observe the fol- lowing instructions in order not to cause damage to the transmitter. D Do not leave the transmitter on places the temperature becomes high

where such as on the dashboard.

D Do not disassemble it. D Avoid knocking

it hard against other

objects or dropping it.

D Avoid putting it in water. You can use up to 4 remote keyless entry transmitters for the same vehicle. Contact your Toyota dealer for detailed information. If the wireless remote control transmitter does not actuate the doors or alarm, or operate from a normal distance: D Check for closeness to a radio trans- mitter such as a radio station or an airport which can interfere with normal operation of the transmitter.

D The battery may have been consumed. Check the battery in the transmitter. To replace the battery, see “REPLACING THE BATTERY”.

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

If you lose your transmitter, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an acci- dent. (See “If you lose your wireless re- mote control transmitter” in Section 4.)

MODEL/FCC ID: BAB237131−056
CAN: 2024 102 1519
MADE IN JAPAN This complies with Part 15 of the FCC rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.

REPLACING THE BATTERY For replacement, use a CR2025 lithium battery or equivalent.

CAUTION

Special care should be taken to pre- vent small children from swallowing the removed transmitter battery or components.

NOTICE

z When replacing the transmitter bat- tery, be careful not to lose the com- ponents.

z Replace only with

the same or equivalent type recommended by a Toyota dealer.

z Dispose of used batteries according

to the local laws.

Replace the transmitter battery by follow- ing these procedures:

1. Using a coin or equivalent, open the

transmitter case.

23

2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)

2. Remove the rubber gasket and set it

3. Remove the discharged transmitter bat-

4. Put a new transmitter battery with posi-

aside.

tery.
