’02 TUNDRA_U (L/O 0108)

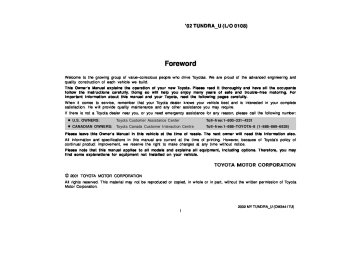

Foreword

Welcome to the growing group of value–conscious people who drive Toyotas. We are proud of the advanced engineering and quality construction of each vehicle we build. This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble–free motoring. For important information about this manual and your Toyota, read the following pages carefully. When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete satisfaction. He will provide quality maintenance and any other assistance you may require. If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:

(cid:1) U.S. OWNERS: (cid:1) CANADIAN OWNERS: Toyota Canada Customer Interaction Centre

Toyota Customer Assistance Center

Toll–free:1–800–331–4331 Toll–free:1–888–TOYOTA–8 (1–888–869–6828)

Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also. All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of continual product improvement, we reserve the right to make changes at any time without notice. Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

 2001 TOYOTA MOTOR CORPORATION All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota Motor Corporation.

i

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

Important information about this manual

Safety and vehicle damage warnings

Safety symbol

Throughout this manual, you will see safety and vehicle dam- age warnings. You must follow these warnings carefully to avoid possible injury or damage. The types of warnings, what they look like, and how they are used in this manual are explained as follows:

CAUTION

This is a warning against something which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk to yourself and other people.

NOTICE

This is a warning against something which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment.

the safety symbol When you see shown above, it means: “Do not...”; “Do not do this”; or “Do not let this happen”.

ii

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

Important information about your Toyota

New vehicle warranty

Your new vehicle limited warranties:

is covered by

the

following Toyota

(cid:1) New vehicle warranty (cid:1) Emission control systems warranty (cid:1) Others further

information, please refer

Information Booklet” or

For Warranty Supplement”.

to the “Owner’s “Owner’s Manual

Your responsibility for

maintenance

It is the owner’s responsibility to make sure that the specified maintenance is performed. Section 6 gives de- tails of these maintenance requirements. Also included in Section 6 is general maintenance. For scheduled maintenance information, please refer to the “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.

Accessories, spare parts and modification of your Toyota

A wide variety of non–genuine spare parts and accesso- ries for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their perfor- mance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non–genuine Toyota products. Modification with non–genuine Toyota products could affect its performance, safety or durabili- ty, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

iii

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

Spark ignition system of your

Scrapping of your Toyota

Toyota

The spark ignition system in your Toyota meets all re- quirements of the Canadian Interference–Causing Equip- ment Standard.

Installation of a mobile two–way radio system

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you dis- pose of your vehicle.

fuel

injection system/sequential multiport

As the installation of a mobile two–way radio system in your vehicle could affect electronic systems such as multiport fuel injection system, cruise control system, anti–lock brake system, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

iv

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

On–pavement and off–road

driving tips

This vehicle will handle and maneuver differently from an ordinary passenger car because it is designed for off–road use also. It has a significantly higher rollover rate than other types of vehicles. In addition, this ve- hicle has a higher ground clearance and center of gravi- ty than that of an ordinary passenger car. This vehicle design feature causes this type of vehicle to be more likely to rollover. Failure to operate this vehicle correctly may result in loss of control, accidents or vehicle rol- lover causing death or serious injury. Be sure to read “Off–road vehicle precautions” in Section 2 and “Off– road driving precautions” in Section 3.

v

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

vi

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

Model code

Check the model code to see what type of model your vehicle is.

Engine type

VCK: 5VZ–FE engine UCK: 2UZ–FE engine

Grade

D: Standard grade S: SR5 grade L: Limited grade

V C K 3 0 – D

Driving system

30: 40:

Two–wheel drive Four–wheel drive

The model code appears on the manufacturer’s plate with the heading “MODEL”. See “Your Toyota’s identification” in Section 2 for the manufacturer’s plate location.

vii

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

SECTION 1– 1

OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 5 7

2002 MY TUNDRA_U (OM34417U)

1

’02 TUNDRA_U (L/O 0108)

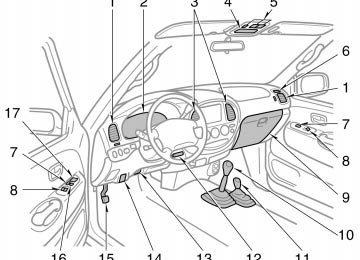

Instrument panel overview

1. Side vents 2. Instrument cluster 3. Center vents 4. Garage door opener box or auxiliary

box

5. Personal lights 6. Side defroster outlet 7. Power door lock switches 8. Power window switches 9. Glove box 10. Manual transmission gear shift lever 11. Front drive control lever 12. Parking brake lever

(vehicles with manual transmission)

13. Lower vent 14. Hood lock release lever 15. Parking brake pedal

(vehicles with automatic transmission)

16. Window lock switch 17. Power rear view mirror control switches

2

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

1. Front fog light switch 2. Headlight and turn signal switch 3. Wiper and washer switches 4. Automatic transmission selector lever 5. Cargo lamp switch 6. Emergency flasher switch 7. Note pad holder 8. Car audio 9. Air conditioning controls 10. Front passenger’s seat belt reminder

light/passenger airbag off indicator

11. Passenger airbag manual on–off switch 12. Clock 13. Cup holder 14. Power outlets 15. “4LO” button

(transfer mode selector button)

16. “2WD/4HI” button

(transfer mode selector button)

17. Ashtray 18. Cigarette lighter 19. Cruise control switch 20. Ignition switch 21. Tilt steering lock release lever

2002 MY TUNDRA_U (OM34417U)

3

’02 TUNDRA_U (L/O 0108)

22. Instrument panel light control knob 23. Clutch start cancel switch

4

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

Instrument cluster overview (cid:1)With tachometer

1. Oil pressure gauge 2. Service reminder indicators and

indicator lights

3. Tachometer

4. Speedometer 5. Automatic transmission indicator lights 6. Voltmeter 7. Fuel gauge

8. Trip meter reset knob 9. Odometer and two trip meters 10. Engine coolant temperature gauge

2002 MY TUNDRA_U (OM34417U)

5

’02 TUNDRA_U (L/O 0108)

(cid:1)Without tachometer

1. Engine coolant temperature gauge 2. Service reminder indicators and

indicator lights

3. Speedometer 4. Fuel gauge

5. Trip meter reset knob 6. Odometer and two trip meters

6

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

Indicator symbols on the instrument panel

Brake system warning light* 1

Open door warning light* 1

Driver’s seat belt reminder light* 1

SRS warning light* 1

Front passenger’s seat belt reminder light* 1

Unengaged “Park” warning light* 1

Discharge warning light* 1

Low engine oil pressure warning light* 1

Malfunction indicator lamp* 1

Low fuel level warning light* 1

or

Anti–lock brake system warning light* 1

Automatic transmission fluid temperature warning light* 1

Low windshield washer light* 1

fluid

level warning

Passenger airbag off indicator light

Turn signal indicator lights

Headlight high beam indicator light

Overdrive–off indicator light

2002 MY TUNDRA_U (OM34417U)

7

’02 TUNDRA_U (L/O 0108)

Automatic transmission indicator lights

Four–wheel drive indicator light

High speed four–wheel drive indicator light* 2

Low speed four–wheel drive indicator light* 2

Cruise control indicator light* 3

* 1: For details, see “Service reminder indicators and warning

buzzers” in Section 1–5. If this light flashes, see “Four–wheel drive system” in Sec- tion 1–6. If this light flashes, see “Cruise control” in Section 1–6.

* 2:

* 3:

8

2002 MY TUNDRA_U (OM34417U)

’02 TUNDRA_U (L/O 0108)

SECTION 1– 2

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Front doorss Access doors Power windows Rear side windows Rear window Tailgate Hood Fuel tank cap

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
