2009 Toyota Matrix Owners Manual

Customer Experience Center

1-800-331-4331

MN 00505-QRG09-MAT

Printed in the USA 12/07

2009
Quick Reference Guide

Interactive Owner’s Guide

Have a question about the main features of your new Toyota? Find the answers quickly and easily in this Quick Reference Guide, which includes highlights from the Owner’s Manual. For more detailed information, and helpful interactive demonstrations and tips, visit www.Toyotaiguide.com. This user-friendly website makes learning all about your new vehicle fun and easy.

Seat belts

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it c re-extended beyond that point, unless fully retracted aga is used to help hold child restraint systems securely. To find more information about seat belts, and how to ins restraint system, refer to the Owner's Manual. Spare tire & tools Tool location

Jack

Spare tire

Wheel nut wrench

Removing the spare tire (1)

(2)

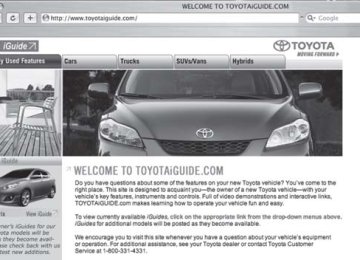

www.ToyotaiGuide.com

This iGuide is not intended as a substitute for the Owner’s Manual located in the vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of the vehicle’s capabilities and limitations. Important Cautions, to help you avoid injuries, and Notices, to help you avoid equipment damage or malfunction, can also be found in the Owner’s Manual.

(1) Turn the knobs to the “UNLOCK” position and remove (2) Loosen the center fastener that secures the spare tire Refer to the Owner’s Manual for tire changing and jack p procedures.

21

2009 Corolla Matrix Quick Reference Guide

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Engine maintenance Fuel tank door release and cap Hood release Indicator symbols Instrument cluster Instrument panel Keyless entry1

Air Conditioning/Heating Audio Auto lock functions2
Automatic Transmission Auxiliary storage Bottle holders Clock Cruise control Cup holders Door-Back Door locks-Power Light control-Instrument panel Lights & turn signals Moonroof Parking brake Power outlet-12V DC Power outlet-115V AC Seat adjustments-Front Seat adjustments-Rear Seats-Head restraints Telephone controls (Bluetooth®) Tilt and telescopic steering wheel Windows-Power Windshield wipers & washers

Doors-Child safety locks Seat belts Seat belts-Shoulder belt anchor Spare tire & tools Tire Pressure Warning System

2-3

14-15

16

17
19
10
17
18
13
13
16
11
13
10
19
19
18
10
12
12

20
21
20
21
20

1 Visit your Toyota dealer for information on customizing this feature. 2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.

OVERVIEW

Instrument panel

Steering wheel controls

Steering wheel audio controls1,2
Voice command button1
Telephone controls1
Engine switch Cruise control1
VSC/TRAC OFF switch1
Auxiliary storage Power outside rearview mirror control Headlight, turn signal and front fog light1 controls Wiper and washer controls “AIR BAG ON” and “AIR BAG OFF” indicator Front passenger seat belt reminder light Engine immobilizer indicator Emergency flasher button

O

Audio system2
Air Conditioning controls Outside rearview mirrors1/Rear window defogger button Tire Pressure Warning System reset Tilt and telescopic steering control Hood lock release lever

1 If equipped 2 Vehicles with navigation system: for details, refer to the “Navigation System Owner’s Manual.”

OVERVIEW

Instrument cluster

Service indicator and reminder Tachometer Speedometer Fuel gauge Trip meter reset/Instrument panel light control Engine coolant temperature Automatic Transmission shift range display (if equipped) Odometer and two trip meters

Indicator symbols For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.

Brake system warning1
Driver seat belt reminder (alarm will sound if speed is over 12 mph) Front passenger seat belt reminder (alarm will sound if speed is over 12 mph) Charging system warning1

“AIR BAG ON” and “AIR BAG OFF” indicator1

Electric power steering warning1

Malfunction/Check Engine indicator1

Low fuel level warning

Open door warning

SRS Airbag warning1

Low Tire Pressure Warning1

Headlight low/high beam indicator

Turn signal indicator

Fog light indicator

Slip indicator1

Cruise control indicator

Anti-lock Brake System warning1

“VSC OFF” indicator1

Low engine oil pressure warning1

Engine oil replacement reminder1

Active torque control 4WD system warning1

1 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction. Have vehicle inspected by your Toyota dealer.

OVERVIEW

Keyless entry (if equipped) Locking operation

Unlocking operation

Push

Push ONCE: Driver door

TWICE: All doors

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety. Panic button

Fuel tank door release and cap

Push and hold

Pull

Turn

Store

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate.

Hood release

Pull

Pull up latch and raise hood

Engine maintenance 4 cylinder (2AZ-FE) engine

4 cylinder (2ZR-FE) engine

Engine coolant reservoir Engine oil filler cap Engine oil level dipstick Windshield washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Owner’s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”

FEATURES/OPERATIONS

Auto lock functions (if equipped) Automatic door locks can be programmed to operate in three different modes, or turned OFF. -Doors lock when shifting from “Park.” -Doors unlock when shifting into “Park.” -Doors unlock when the driver’s door is opened within 10 seconds after setting the engine switch to “ACC” or “LOCK” position.

Refer to the Owner’s Manual for more details.

Automatic Transmission (if equipped) Standard type

Multi-mode type

Park* Reverse

Neutral

Drive

Third gear

Second gear

First gear

Park*

Reverse

Neutral

Drive

“S” mode

* The ignition switch must be ON, and the brake pedal depressed to shift

from “Park.” “S” (Sequential) mode Shift the shift lever to “S” position from “D” position.

“S”

“D”

Floor shift type:

+: Upshift (push and release) -: Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Seat adjustments-Front Manual seat

Position Height crank (driver side only) Seatback angle

Seats-Head restraints Front

Rear

Lock release button

Lock release button

Seat adjustments-Rear

Pull

Fold down

FEATURES/OPERATIONS

Parking brake

Set

Pull

Release

(2) Push

(1) Pull slightly

(3) Lower

Tilt and telescopic steering wheel

Lock release lever

Angle

Length

Hold wheel, push lever down, set angle and length, then return lever.

Note: Do not attempt to adjust while the vehicle is in motion. Clock

Hour set Minute set Round off minutes

10

Lights & turn signals Headlights

Headlights Parking lights

High beam

Low beam

High beam flasher

-Daytime Running Light system (DRL) Headlights turn on automatically upon starting engine. The brightness of the headlights will automatically change depending on the darkness of the surroundings.

Front fog lights (if equipped)

Turn

Front fog lights come on only when the headlights are on low beam. Turn signals

Right turn

Lane change

Lane change

Left turn

11

FEATURES/OPERATIONS

Windshield wipers & washers Front

Adjust interval*

Single wipe

Interval wipe Slow Fast

Pull to wash and wipe

* Intermittent windshield wiper interval adjustment Rotate up to

decrease interval, down to increase interval (if equipped).

Rear (if equipped)

Wash and wipe Wipe Interval wipe

Wash and wipe

Windows-Power (if equipped) Driver side

Window lock switch

Up

Down

Automatic operation (driver side only) Push the switch completely down and release to fully open. To stop window midway, lightly push the switch in the opposite direction. Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

12

Moonroof (if equipped) Sliding operation

Recommended driving position to minimize wind noise.

Tilting operation

Open

Close

Door-Back

Tilt

Close

Unlock

Lock

Open

Door locks-Power (if equipped)

Unlock

Lock

13

FEATURES/OPERATIONS

Audio

Type 1 functions

Eject CD

Push to turn ON/OFF

Seek station/ CD track select

Station/CD track scan

Preset buttons - functions in other modes indicated above number

Push and turn to adjust tone & balance

Push to skip up/down folder and radio category type View CD text

Mode

Type 2 other functions

Load CD(s)

CD PLAYER To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection. CD changer (Type 2) -To load one disc Push “LOAD” and insert one disc. -To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one disc. Shutter will close and then re-open for next disc. To select a file (MP3/WMA only) Turn “TUNE.FILE.”

14

RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold selection. AUX audio jack

By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system.

Steering wheel switches (if equipped)

Volume control

”

v v “ -In radio mode Push to select a preset station; push and hold to seek the next strong station. -In CD mode Push to skip up or down to next/previous track. “MODE” Push to turn audio ON and to select an audio mode. Push and hold to turn the audio system “OFF.”

15

FEATURES/OPERATIONS

Air Conditioning/Heating

Airflow vent In “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce window fogging. Fan speed Temperature Air Conditioning ON/OFF Use for quick cooling. MAX A/C changes air intake to recirculate. It is not possible to change intake to fresh, or to turn A/C OFF in this mode. Outside rearview mirror/Rear window defogger Fresh or recirculated cabin air

Light control-Instrument panel

Brightness control

16

Cruise control (if equipped) Turning system ON/OFF

System ON/OFF

Functions

Increase speed

Resume2

Decrease speed

Cancel1

1 The set speed may also be cancelled by depressing the brake pedal. 2 The set speed may be resumed once vehicle speed exceeds 25 mph.

Auxiliary storage Instrument panel

Overhead console (if equipped)

Pull

Push

17

FEATURES/OPERATIONS

Telephone controls (Bluetooth®) (if equipped) Vehicles with moonroof

Vehicles without moonroof

Steering wheel telephone switches

Volume control

Start call

End call

Voice command button

Bluetooth® technology allows you to place or receive calls without taking your hands from the steering wheel or using a cable to connect the compatible telephone and the system. Refer to the Owner’s Manual for more details. Cup holders Front

Rear

18

Bottle holders Front

Rear

Power Outlet-12V DC

Designed for 12V car accessories. The engine switch must be in the “ACC” or “ON” position. Power Outlet-115V AC (if equipped)

ON/OFF switch

The engine switch must be in the “ON” position. Push the AC115V switch to use outlet.

Push

19

SAFETY AND EMERGENCY FEATURES Doors-Child safety locks Rear door

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

Tire Pressure Warning System

System reset initialization 1. Push and hold “ SET” button

until the indicator blinks three times.

2. Wait a few minutes to allow

initialization to complete.

If tire pressure becomes critically low on any of the tires, indicator comes on. Pushing “ SET” button should not turn off the light. Correctly adjusting tire inflation will turn off the light after a few minutes. After replacing/rotating tire or wheels, the system must be initialized. Refer to the Owner’s Manual for more details.

Seat belts-Shoulder belt anchor

Push up, or squeeze lock release to lower

20

Abbreviation list Abbreviation/Acronym list

ABBREVIATIONS MEANING

A/C ABS ACC ALR CRS ECU EDR ELR GAWR GVWR

I/M LED MMT M + S MTBE OBD SRS TIN TPMS TRAC VIN VSC

Air Conditioner Anti-lock Brake System Accessory Automatic Locking Retractor Child Restraint System Electronic Control Unit Event Data Recorder Emergency Locking Retractor Gross Axle Weight Rating Gross Vehicle Weight Rating Emission inspection and maintenance Light Emitting Diode Methylcyclopentadienyl Manganese Tricarbonyl Mud and Snow Methyl Tertiary Butyl Ether On Board Diagnostics Supplemental Restraint System Tire Identification Number Tire Pressure Warning System Traction Control Vehicle Identification Number Vehicle Stability Control

428

For your information

Main Owner’s Manual

Please note that this manual covers all models and all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available on the market. You should know that these parts are not covered by Toyota warranty and that Toyota is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle may affect electronic systems such as the multi-port fuel injection system/sequen- tial multi-port fuel injection system, cruise control system, anti-lock brake system, SRS airbag system or seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instruc- tions regarding installation.

18

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlor- ate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbags, seat belt pretensioners, and wireless remote con- trol batteries.

19

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that will hurt or kill you, your occupants or others. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

n General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, or other features of the vehicle. In addi- tion, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

20

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause death or injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Safety symbol

Throughout this manual, you will also see the symbol of a circle with a slash through it. This means “Do not”, “Do not do this”, or “Do not let this happen”.

21

22

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

2 When driving

Driving, stopping and safe-driving information.

3 Interior fea-

tures

Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

6 Vehicle

specifications

Detailed vehicle information.

7 For owners

Reporting safety defects for U.S. owners and seat belt instructions for Canadian owners

Index

Alphabetical listing of information contained in this manual.

Pictorial index

Exterior

Headlights (high beam) P. 126

Hood P. 283

Headlights (low beam) P. 125

Moon roof ∗ P. 53

Outside rear view mirrors P. 49

Windshield wipers P. 129

Front turn signal/parking and front

side marker lights P. 117, 125

Front fog lights ∗ P. 128

Fuel filler door P. 56

Rear window defogger P. 168

Rear window wiper ∗ P. 131

Doors P. 29

Back door P. 33

Tires l Rotation l Replacement l Inflation pressure l Information

P. 303
P. 362
P. 400
P. 408

License plate lights P. 125

Stop/tail and rear side marker lights P. 125

Rear turn signal lights P. 117
∗: If equipped

Pictorial index

Interior

Seat belts P. 41

Head restraints P. 40

Power window switches ∗ P. 51

Bottle holders P. 241

SRS driver airbag P. 65

SRS front passenger airbag P. 65

Bottle holders P. 241

Cup holders P. 239

Console box P. 237

SRS side airbags ∗ P. 65

Glove box P. 237
Floor mat P. 254
Grocery bag hook P. 251
Front seats P. 35

A

Vehicles with moon roof

Vanity mirrors P. 245

Sun visors P. 244

Auxiliary box P. 242

Moon roof switches P. 53

SRS curtain shield airbags ∗ P. 65

Interior lights P. 233

Personal/interior lights P. 234

Anti-glare inside rear view mirror P. 47

Compass ∗ P. 262

∗: If equipped

Pictorial index

Interior

Vehicles without moon roof

Vanity mirrors P. 245

Sun visors P. 244

Personal lights P. 235

SRS curtain shield airbags ∗ P. 65

Interior lights P. 233

Anti-glare inside rear view mirror P. 47

10

B

Door lock switch ∗ P. 29

Inside door lock button P. 29

Window lock switch ∗

P. 51

Power window switches ∗ P. 51

∗: If equipped

11

Pictorial index

Interior

Power outlet ∗ P. 249

Cup holders P. 239

Power outlet ∗ Cigarette lighter ∗

P. 249
P. 248

Parking brake lever P. 118

AUX adapter P. 196

12

Pictorial index

Instrument panel

Gauges and meters P. 119

Headlight switch Turn signal lever Fog light switch ∗

P. 125
P. 117
P. 128

Outside rear view mirror switches P. 49

Emergency flasher switch

Security indicator

P. 60

Audio system P. 169
Navigation system *1

Fuel filler door opener

P. 56

P. 129

Windshield wiper and washer switch Rear window wiper and washer switch ∗ P. 131

Tire pressure warning reset switch ∗ P. 303

Tilt and telescopic steering control lever P. 46

∗: If equipped *1: Refer to “Navigation System Owner’s Manual”.

13

Pictorial index

Instrument panel

Air conditioning system P. 162

Rear window and outside rear view mirror defogger switch ∗/rear window defogger switch ∗ P. 168

14

B

Engine (ignition) switch P. 106

Audio remote control switches *2 ∗ P. 197

Telephone switches ∗ P. 204

Cruise control switch ∗ P. 132

Talk switch ∗ P. 204

∗: If equipped *2: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.

15

Pictorial index

Instrument panel

Power outlet main switch ∗ P. 249

Clock P. 246

Shift lock override button ∗ P. 377

Shift lever P. 110, 115

16

D

VSC/TRAC off switch ∗ P. 135

Auxiliary box P. 242

Hood lock release lever P. 283

∗: If equipped

17

TABLE OF CONTENTS

Index

1 Before driving

1-1. Key information.................. 24
Keys ..................................... 24

1-2. Opening, closing and

locking the doors ............. 26
Wireless remote control ....... 26
Doors.................................... 29
Back door ............................. 33

1-3. Adjustable components

(seats, mirrors, steering wheel)................. 35
Front seats ........................... 35
Rear seats............................ 38
Head restraints..................... 40
Seat belts ............................. 41
Steering wheel ..................... 46
Anti-glare inside rear view mirror.................................. 47
Outside rear view mirrors ..... 49

1-4. Opening and closing the

windows............................ 51
Power windows .................... 51
Moon roof ............................. 53

1-5. Refueling............................. 56
Opening the fuel tank cap .... 56

1-6. Theft deterrent system ...... 60

Engine immobilizer system................................ 60
Theft prevention labels (for U.S.A.) ......................... 62

1-7. Safety information .............. 63
Correct driving posture ......... 63
SRS airbags ......................... 65
Front passenger occupant classification system........... 77
Child restraint systems ......... 82
Installing child restraints ....... 86

2 When driving

2-1. Driving procedures............. 96
Driving the vehicle ................ 96
Engine (ignition) switch....... 106
Automatic transmission ...... 110
Manual transmission........... 115
Turn signal lever ................. 117
Parking brake ..................... 118

2-2.

Instrument cluster ............ 119
Gauges and meters ............ 119
Indicators and warning lights ................................. 122

2-3. Operating the lights and

wipers .............................. 125
Headlight switch ................. 125
Fog light switch................... 128
Windshield wipers and washer.............................. 129
Rear window wiper and washer.............................. 131

2-4. Using other driving

systems ........................... 132
Cruise control ..................... 132
Driving assist systems ........ 135

2-5. Driving information........... 140
Cargo and luggage ............. 140
Vehicle load limits ............... 143
Winter driving tips ............... 144
Trailer towing ...................... 148
Dinghy towing (automatic transmission) .................... 156
Dinghy towing (manual transmission) ...... 157

3 Interior features

3-1. Using the air conditioning

system and defogger...... 162
Air conditioning system....... 162
Rear window and outside rear view mirror defoggers.......................... 168

3-2. Using the audio system.... 169
Audio system types............. 169
Using the radio.................... 172
Using the CD player............ 178
Playing MP3 and WMA discs........................ 185
Optimal use of the audio system .............................. 193
Using the AUX adapter ....... 196
Using the steering wheel audio switches .................. 197

3-3. Using the hands-free

phone system (for cellular phone) ......... 200

Hands-free phone system (for cellular phone) features ............................ 200
Using the hands-free phone system (for cellular phone) ........... 203
Making a phone call ........... 212
Setting a cellular phone...... 216
Security and system setup ................................ 221
Using the phone book ........ 225

3-4. Using the interior lights... 232
Interior lights list ................. 232
• Interior light ...................... 233
• Personal/interior lights...... 234
• Personal lights.................. 235

3-5. Using the storage

features ........................... 236
List of storage features....... 236
• Glove box......................... 237
• Console box ..................... 237
• Cup holders...................... 239
• Bottle holders ................... 241
• Auxiliary boxes ................. 242

3-6. Other interior features ..... 244
Sun visors........................... 244
Vanity mirrors ..................... 245
Clock .................................. 246
Ashtrays ............................. 247
Cigarette lighter.................. 248
Power outlet ....................... 249
Grocery bag hook............... 251
Seatback table.................... 253
Floor mat ............................ 254
Luggage compartment feature .............................. 255

TABLE OF CONTENTS

Index

Compass ............................ 262

5 When trouble arises

5-1. Essential information ....... 342

If your vehicle needs to be towed........................... 342
If you think something is wrong ............................ 348
Fuel pump shut off system .............................. 349
Event data recorder ............ 350

5-2. Steps to take in an

emergency ...................... 352
If a warning light turns on or a warning buzzer sounds... .......................... 352
If you have a flat tire ........... 362
If the engine will not start.... 376
If the shift lever cannot be shifted from P (automatic transmission) .................... 377
If you lose your keys........... 378
If the battery is discharged........................ 379
If your vehicle overheats..... 385
If the vehicle becomes stuck ................................. 388

4 Maintenance and care

4-1. Maintenance and care...... 268

Cleaning and protecting the vehicle exterior................. 268
Cleaning and protecting the vehicle interior.................. 270

4-2. Maintenance ..................... 273

Maintenance requirements .................... 273
General maintenance......... 275
Emission inspection and maintenance (I/M) programs.......................... 278

4-3. Do-it-yourself

maintenance ................... 279
Do-it-yourself service precautions ...................... 279
Hood................................... 283
Positioning a floor jack ....... 285
Engine compartment .......... 288
Tires ................................... 303
Tire inflation pressure......... 312
Wheels ............................... 316
Air conditioning filter........... 318
Key battery (vehicles with wireless remote control)... 320
Checking and replacing fuses ................................ 323
Light bulbs.......................... 332

6 Vehicle specifications

6-1. Specifications.................... 390

Maintenance data (fuel, oil level, etc.)............ 390
Fuel information .................. 405
Tire information................... 408

6-2. Customization ................... 420
Customizable features ........ 420

6-3.

Initialization ....................... 422
Items to initialize ................. 422

7 For owners

Reporting safety defects for U.S. owners ................. 424
Seat belt instructions for Canadian owners (in French) ........................ 425

Index

Abbreviation list ........................ 428

Alphabetical index..................... 429

What to do if... ........................... 438

1-1. Key information Keys

The following keys are provided with the vehicle.

Vehicles without wireless remote control Keys Key number plate

Vehicles with wireless remote control

Keys Operating the wireless remote control function (→P. 26) Key number plate

n Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 378)

24

1-1. Key information

NOTICE

n To prevent key damage

l Do not subject the keys to strong shocks, expose them to high tempera-

tures by placing them in direct sunlight, or get them wet.

l Do not expose the keys to electromagnetic materials or attach any mate-

rial that blocks electromagnetic waves to the key surface.

l Do not disassemble the key.

25

1-2. Opening, closing and locking the doors Wireless remote control (if equipped)

The wireless remote control can be used to lock and unlock the vehi- cle from outside the vehicle.

Locks all doors Sounds an alarm (press and hold) Unlocks doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

n Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

n Door lock buzzer

If a door is not fully closed, a buzzer sounds continuously for 10 seconds if an attempt to lock the door is made. Fully close the door to stop the buzzer, and lock the vehicle once more.

n Panic mode

is pressed for longer When than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, press any button on the wireless remote control.

26

1

1-2. Opening, closing and locking the doors

n Key battery depletion

If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 320)

n Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

n Conditions affecting operation

The wireless remote control function may not operate normally in the follow- ing situations. l Near a TV tower, radio station, electric power plant, airport or other facil-

ity that generates strong radio waves

l When carrying a portable radio, cellular phone or other wireless commu-

nication devices

l When multiple wireless keys are in the vicinity l When the wireless key has come into contact with, or is covered by, a

metallic object

l When a wireless key (that emits radio waves) is being used nearby l When the wireless key has been left near an electrical appliance such as

a personal computer

l When the wireless key battery is depleted

If window tint with a metallic content or metallic objects are attached to the rear window

n Customization that can be configured at Toyota dealer

Settings (e.g. operation signal) can be changed. (Customizable features →P. 420)

27

1-2. Opening, closing and locking the doors

n Certification for wireless remote control

For vehicles sold in the U.S.A.

NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For vehicles sold in Canada

NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.

28

1

1-2. Opening, closing and locking the doors Doors

The vehicle can be locked and unlocked using the wireless remote control, key or door lock switch. n Wireless remote control (if equipped)

→P. 26

n Key

n Door lock switch (if equipped)

n Inside lock button

Locks the door Unlocks the door Vehicles with power door lock system: Turning the key locks and unlocks all doors. In the driver’s door lock, turning the key once unlocks the driver’s door. Turning the key again within 3 seconds unlocks the other doors.

Locks all doors Unlocks all doors

Unlocks the door Locks the door The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

29

1-2. Opening, closing and locking the doors

Rear door child-protector lock

The door cannot be opened from inside the vehicle when the locks are set.

These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

Automatic door locking and unlocking systems (vehicles with power door lock system)

The following functions can be set or cancelled:

Function

Shift position linked door locking function* Shift position linked door unlocking func- tion*

Operation

Shifting the shift lever out of P locks all doors.

Shifting the shift lever to P unlocks all doors.

All doors are unlocked when the driver's door is opened within 10 seconds after turning the engine switch to “ACC” or “LOCK”.

Driver's door linked door unlocking function *: Vehicles with an automatic transmission only The shift position linked door locking function works when all doors are closed.

30

1-2. Opening, closing and locking the doors
