2009 Toyota Corolla Owners Manual

Customer Experience Center

1-800-331-4331

MN 00505-QRG09-COR

Printed in the USA 12/07

2009
Quick Reference Guide

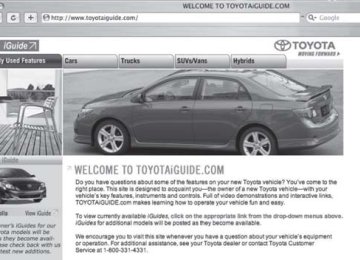

Interactive Owner’s Guide

Have a question about the main features of your new Toyota? Find the answers quickly and easily in this Quick Reference Guide, which includes highlights from the Owner’s Manual. For more detailed information, and helpful interactive demonstrations and tips, visit www.Toyotaiguide.com. This user-friendly website makes learning all about your new vehicle fun and easy.

Spare tire & tools Tool location

Tool box

Spare tire

Jack

Removing the spare tire (1)

(2)

www.ToyotaiGuide.com

(3)

This iGuide is not intended as a substitute for the Owner’s Manual located in the vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of the vehicle’s capabilities and limitations. Important Cautions, to help you avoid injuries, and Notices, to help you avoid equipment damage or malfunction, can also be found in the Owner’s Manual.

(1) Remove the luggage floor cover. (2) Remove the tool tray. (3) Loosen the center fastener that secures the spare tire. Refer to the Owner’s Manual for tire changing and jack positioning procedures.

21

2009 Corolla Quick Reference Guide

OVERVIEW

FEATURES/OPERATIONS

Engine maintenance Fuel tank door release and cap Hood release Indicator symbols Instrument cluster Instrument panel Keyless entry1

Air Conditioning/Heating Audio Auto lock functions2
Automatic Transmission Auxiliary storage Clock Cruise control Cup holders Door locks-Power Light control-Instrument panel Lights & turn signals Moonroof Multi-information display Parking brake Power outlets Seat adjustments-Front Seat adjustments-Rear Seats-Head restraints Telephone controls (Bluetooth®) Tilt and telescopic steering wheel Windows-Power Windshield wipers & washers

2-3

12-13

14

18
16
15
18
17
18
11
17
15
14
10
16
17
10
10

SAFETY AND EMERGENCY FEATURES

Child comfort guide Doors-Child safety locks Seat belts Seat belts-Shoulder belt adjustment Spare tire & tools Tire Pressure Warning System Trunk-Internal release

19
20
19
19
21
20
20

1 Visit your Toyota dealer for information on customizing this feature. 2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.

OVERVIEW

Instrument panel

Steering wheel controls

Steering wheel audio controls1,2
Voice command button1
Telephone controls1
Engine switch (mechanical key)1
Cruise control1
VSC/TRAC OFF switch1
Power rearview mirror control Auxiliary storage Headlight, turn signal and front fog light1 controls Wiper and washer controls Emergency flasher button Audio system2
Air Conditioning controls Outside rearview mirror1/Rear window defogger button

O

Air Conditioning system

Front passenger seat belt reminder light “AIR BAG ON” and “AIR BAG OFF” indicator Engine immobilizer indicator AUX adapter Tire Pressure Warning System reset Tilt and telescopic steering control Hood lock release lever

1 If equipped 2 Vehicles with navigation system: for details, refer to the “Navigation System Owner’s Manual.”

OVERVIEW

Instrument cluster

Optitron type meters

Non-optitron type meters

Service indicator and reminder Tachometer Speedometer Fuel gauge Trip meter reset/Instrument panel light control Odometer and two trip meters Automatic Transmission shift range display (if equipped) Multi-information display Display button Engine coolant temperature

Indicator symbols For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.

Brake system warning1
Driver seat belt reminder (alarm will sound if speed is over 12 mph) Front passenger seat belt reminder (alarm will sound if speed is over 12 mph) Charging system warning1

“AIR BAG ON” and “AIR BAG OFF” indicator1

Electric power steering warning1

Malfunction/Check Engine indicator1

Low fuel level warning

Open door warning

SRS Airbag warning1

Low Tire Pressure Warning1

Headlight low/high beam indicator

Turn signal indicator

Fog light indicator

Slip indicator1

Cruise control indicator

Anti-lock Brake System warning1

“VSC OFF” indicator1

Low engine oil pressure warning1

Engine oil replacement reminder1

1 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction. Have vehicle inspected by your Toyota dealer.

OVERVIEW

Keyless entry (if equipped) Locking operation

Unlocking operation

Trunk lid operation

Push

Push ONCE: Driver door

TWICE: All doors

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety. Panic button

Push and hold

Push and hold

Fuel tank door release and cap

Turn

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate.

Pull

Store

Hood release

Pull

Pull up latch and raise hood

Engine maintenance 4 cylinder (2AZ-FE) engine

4 cylinder (2ZR-FE) engine

Engine coolant reservoir Engine oil filler cap Engine oil level dipstick Windshield washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Owner’s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”

FEATURES/OPERATIONS

Automatic Transmission (if equipped) Standard type

Multi-mode type

Park* Reverse

Neutral

Drive

Third gear

Second gear

First gear

Park*

Reverse

Neutral

Drive

“S” mode

* The ignition switch must be ON, and the brake pedal depressed to shift

from “Park.” “S” (Sequential) mode Shift the shift lever to “S” position from “D” position.

“S”

“D”

Floor shift type:

+: Upshift (push and release) -: Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Parking brake

Set

Release

Pull

(2) Push

(1) Pull slightly

(3) Lower

Auto lock functions (if equipped) Automatic door locks can be programmed to operate in two different modes, or turned OFF. -Doors lock when shifting from “Park.” -Doors lock when the vehicle speed is approximately 12 mph or higher. -Doors unlock when shifting into “Park.” -Doors unlock when the driver’s door is opened within 10 seconds after setting the engine switch or “ENGINE START STOP” switch OFF. Refer to the Owner’s Manual for more details.

Seat adjustments-Front Manual seat

Position Height crank (driver side only) Seatback angle

Seat adjustments-Rear

Pull

Fold down

FEATURES/OPERATIONS

Seats-Head restraints Front

Rear

Lock release button

Lock release button

Windshield wipers & washers

Adjust interval*

Single wipe

Interval wipe Slow Fast

Pull to wash and wipe

* Intermittent windshield wiper interval adjustment Rotate up to

decrease interval, down to increase interval (if equipped).

Windows-Power (if equipped) Driver side

Window lock switch

Up

Down

Automatic operation (driver side only) Push the switch completely down and release to fully open. To stop window midway, lightly push the switch in the opposite direction. Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

10

Lights & turn signals Headlights

Headlights Parking lights

High beam

Low beam

High beam flasher

Daytime Running Light system (DRL) Headlights turn on automatically upon starting engine. The brightness of the headlights will automatically change depending on the darkness of the surroundings.

Front fog lights (if equipped)

Turn

Front fog lights come on only when the headlights are on low beam. Turn signals

Right turn

Lane change

Lane change

Left turn

11

FEATURES/OPERATIONS

Audio

Type 1 functions

Eject CD

Preset buttons - functions in other modes indicated above number

Push to turn ON/OFF

Seek station/ CD track select

Station/CD track scan

Mode

Type 2 other functions

Load CD(s)

Push and turn to adjust tone & balance

Push to skip up/down folder and radio category type

View CD text

CD PLAYER To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection. CD changer (Type 2) -To load one disc Push “LOAD” and insert one disc. -To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one disc. Shutter will close and then re-open for next disc. To select a file (MP3/WMA only) Turn “TUNE.FILE.”

12

RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold selection. AUX audio jack

By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system.

Steering wheel switches (if equipped)

Volume control

”

v v “ -In radio mode Push to select a preset station; push and hold to seek the next strong station. -In CD mode Push to skip up or down to next/previous track. “MODE” Push to turn audio ON and to select an audio mode. Push and hold to turn the audio system “OFF.”

13

FEATURES/OPERATIONS

Air Conditioning/Heating

Airflow vent In “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce window fogging. Fan speed Temperature Air Conditioning ON/OFF Use for quick cooling. MAX A/C changes air intake to recirculate. It is not possible to change intake to fresh, or to turn A/C OFF in this mode. Outside rearview mirror/Rear window defogger Fresh or recirculated cabin air

Power outlets Front console (if equipped)

Center console

Designed for 12V car accessories. The engine switch must be in the “ACC” or “ON” position.

14

Cruise control (if equipped) Turning system ON/OFF

Functions

Increase speed

Resume2

System ON/OFF

Decrease speed

1 The set speed may also be cancelled by depressing the brake pedal. 2 The set speed may be resumed once vehicle speed exceeds 25 mph.

Cancel1

Multi-information display

Display button

Push the display button to change information in the following: (1) Clock (2) Outside temperature (3) Current gas mileage (4) Average gas mileage* (5) Miles left on remaining fuel (6) Average vehicle speed from engine start* (7) Running time from engine start*

* Push and hold display button to reset.

15

FEATURES/OPERATIONS

Telephone controls (Bluetooth®) (if equipped) Vehicles with moonroof

Vehicles without moonroof

Steering wheel telephone switches

Volume control

Start call

End call

Voice command button

Bluetooth® technology allows you to place or receive calls without taking your hands from the steering wheel or using a cable to connect the compatible telephone and the system. Refer to the Owner’s Manual for more details. Clock

(1) Push and hold the display button to set the clock. (2) While flashing, press button repeatedly to adjust minutes. (3) Wait five seconds to adjust the hour. (4) Wait another five seconds for process to complete.

16

Moonroof (if equipped) Sliding operation

Recommended driving position to minimize wind noise.

Tilting operation

Open

Close

Tilt

Close

Tilt and telescopic steering wheel

Angle

Length

Hold wheel, push lever down, set angle and length, then return lever.

Lock release lever

Note: Do not attempt to adjust while the vehicle is in motion.

Door locks-Power(if equipped)

Unlock

Lock

17

FEATURES/OPERATIONS

Light control-Instrument panel

Brightness control

Cup holders Front

Rear

Type B Pull

Type C

Pull

Auxiliary storage Instrument panel Type A

Pull

Overhead console

Push

18

SAFETY AND EMERGENCY FEATURES

Seat belts

Take up slack

Too high

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner's Manual.

Seat belts-Shoulder belt adjustment

Push up, or squeeze lock release to lower

Child comfort guide

Rear seat outside position guides provide added comfort for children who have outgrown child restraints.

19

Tire Pressure Warning System

System reset initialization 1. Push and hold “ SET” button

until the indicator blinks three times.

2. Wait a few minutes to allow

initialization to complete.

If tire pressure becomes critically low on any of the tires, indicator comes on. Pushing “ SET” button should not turn off the light. Correctly adjusting tire inflation will turn off the light after a few minutes. After replacing/rotating tire or wheels, the system must be initialized. Refer to the Owner’s Manual for more details. Trunk-Internal release

Pull up

Doors-Child safety locks Rear door

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

20

Abbreviation list Abbreviation/Acronym list

ABBREVIATIONS MEANING

A/C ABS ACC ALR CRS ECU EDR ELR EPS GAWR GVWR

I/M LED MMT M + S MTBE OBD SRS TIN TPMS TRAC VIN VSC

Air Conditioning Anti-lock Brake System Accessory Automatic Locking Retractor Child Restraint System Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electric Power Steering Gross Axle Weight Rating Gross Vehicle Weight Rating Emission inspection and maintenance Light Emitting Diode Methylcyclopentadienyl Manganese Tricarbonyl Mud and Snow Methyl Tertiary Butyl Ether On Board Diagnostics Supplemental Restraint System Tire Identification Number Tire Pressure Warning System Traction Control Vehicle Identification Number Vehicle Stability Control

456

TABLE OF CONTENTS

Index

1 Before driving

1-1. Key information.................. 20
Keys ..................................... 20

1-2. Opening, closing and

locking the doors and trunk .................................. 22
Smart key system................. 22
Wireless remote control ....... 34
Doors.................................... 38
Trunk .................................... 43

1-3. Adjustable components

(seats, mirrors, steering wheel)................. 46
Front seats ........................... 46
Rear seats............................ 49
Head restraints..................... 51
Seat belts ............................. 53
Steering wheel ..................... 61
Anti-glare inside rear view mirror.................................. 62
Outside rear view mirrors ..... 64

1-4. Opening and closing the

windows............................ 66
Power windows .................... 66
Moon roof ............................. 68

1-5. Refueling............................. 71
Opening the fuel tank cap .... 71

1-6. Theft deterrent system....... 75

Engine immobilizer system ................................ 75
Theft prevention labels (for U.S.A.) ......................... 77

1-7. Safety information .............. 78
Correct driving posture ......... 78
SRS airbags ......................... 80
Front passenger occupant classification system........... 92
Child restraint systems ......... 97
Installing child restraints ..... 101

2 When driving

2-1. Driving procedures........... 112
Driving the vehicle .............. 112
Engine (ignition) switch (vehicles with smart key system) ...................... 122
Engine (ignition) switch (vehicles without smart key system) ...................... 126
Automatic transmission ...... 130
Manual transmission........... 135
Turn signal lever ................. 136
Parking brake ..................... 137

2-2.

Instrument cluster ............ 138
Gauges and meters ............ 138
Indicators and warning lights ................................. 142
Multi-information display..... 146

2-3. Operating the lights and

wipers .............................. 150
Headlight switch.................. 150
Fog light switch ................... 152
Windshield wipers and washer .............................. 153

2-4. Using other driving

systems ........................... 155
Cruise control...................... 155
Driving assist systems ........ 158

2-5. Driving information........... 162
Cargo and luggage ............. 162
Vehicle load limits ............... 165
Winter driving tips ............... 166
Trailer towing ...................... 170
Dinghy towing (automatic transmission) .................... 178
Dinghy towing (manual transmission) ...... 179

3 Interior features

3-1. Using the air

conditioning system and defogger ................... 184
Automatic air conditioning system .......... 184
Manual air conditioning system .......... 190
Rear window and outside rear view mirror defoggers.......................... 197

3-2. Using the audio system... 198
Audio system types ............ 198
Using the radio ................... 201
Using the CD player ........... 207
Playing MP3 and WMA discs ....................... 214
Optimal use of the audio system.............................. 222
Using the AUX adapter....... 224
Using the steering wheel audio switches.................. 225

3-3. Using the hands-free

phone system (for cellular phone)......... 228
Hands-free phone system (for cellular phone) features ............................ 228
Using the hands-free phone system (for cellular phone) ........... 231
Making a phone call ........... 240
Setting a cellular phone...... 244
Security and system setup ................................ 249
Using the phone book ........ 253

3-4. Using the interior lights... 260
Interior lights list ................. 260
• Interior light ...................... 262
• Personal lights.................. 262
• Personal/interior lights...... 263

TABLE OF CONTENTS

Index

3-5. Using the storage

features ........................... 264
List of storage features....... 264
• Glove box......................... 265
• Console box ..................... 265
• Cup holders...................... 267
• Auxiliary boxes................. 269
• Bottle holders ................... 271

3-6. Other interior features ..... 272
Sun visors .......................... 272
Vanity mirrors ..................... 273
Grocery bag hook............... 274
Ashtrays ............................. 275
Cigarette lighter.................. 276
Power outlet ....................... 277
Seat heaters....................... 279
Armrest............................... 281
Floor mat ............................ 282
Trunk features .................... 283
Compass ............................ 284

4 Maintenance and care

4-1. Maintenance and care ...... 290

Cleaning and protecting the vehicle exterior ........... 290
Cleaning and protecting the vehicle interior ............ 292

4-2. Maintenance...................... 295

Maintenance requirements .................... 295
General maintenance ......... 297
Emission inspection and maintenance (I/M) programs .......................... 300

4-3. Do-it-yourself

maintenance ................... 301
Do-it-yourself service precautions....................... 301
Hood ................................... 305
Positioning a floor jack........ 307
Engine compartment .......... 310
Tires.................................... 326
Tire inflation pressure ......... 335
Wheels................................ 339
Air conditioning filter ........... 341
Key battery ......................... 343
Checking and replacing fuses................................. 347
Light bulbs .......................... 357

5 When trouble arises

6 Vehicle specifications

5-1. Essential information ....... 368

6-1. Specifications................... 416

If your vehicle needs to be towed ........................... 368
If you think something is wrong ............................ 373
Fuel pump shut off system ...... 374
Event data recorder ............ 375

5-2. Steps to take in an

emergency....................... 377
If a warning light turns on or a warning buzzer sounds... .......................... 377
If you have a flat tire............ 388
If the engine will not start .... 399
If the shift lever cannot be shifted from P (automatic transmission) .................... 401
If you lose your keys ........... 402
If the electronic key does not operate properly (vehicles with smart key system)....................... 403
If the battery is discharged ........................ 405
If your vehicle overheats..... 411
If the vehicle becomes stuck ................................. 414

Maintenance data (fuel, oil level, etc.) ........... 416
Fuel information.................. 428
Tire information .................. 431

6-2. Customization................... 443
Customizable features........ 443

6-3.

Initialization....................... 447
Items to initialize................. 447

7 For owners

Reporting safety defects for U.S. owners ................ 450
Seat belt instructions for Canadian owners (in French)........................ 451

Index

Abbreviation list........................ 456

Alphabetical index .................... 457

What to do if... .......................... 465

For your information

Main Owner’s Manual

Please note that this manual covers all models and all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available on the market. You should know that these parts are not covered by Toyota warranty and that Toyota is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle may affect electronic systems such as the multi-port fuel injection system/sequen- tial multi-port fuel injection system, cruise control system, anti-lock brake system, SRS airbag system or seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instruc- tions regarding installation.

14

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlor- ate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbags, seat belt pretensioners, and wireless remote con- trol batteries.

15

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that will hurt or kill you, your occupants or others. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

n General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, or other features of the vehicle. In addi- tion, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

16

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause death or injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Safety symbol

Throughout this manual, you will also see the symbol of a circle with a slash through it. This means “Do not”, “Do not do this”, or “Do not let this happen”.

17

18

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

2 When driving

Driving, stopping and safe-driving information.

3 Interior fea-

tures

Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

6 Vehicle

specifications

Detailed vehicle information.

7 For owners

Reporting safety defects for U.S. owners and seat belt instructions for Canadian owners

Index

Alphabetical listing of information contained in this manual.

Pictorial index

Exterior

Headlights (low beam) P. 150

Headlights (high beam) P. 150

Windshield wipers P. 153

Hood P. 305

Front turn signal and parking lights P. 136
Moon roof ∗ P. 68

Outside rear view mirrors P. 64

Front side marker lights P. 150

Front fog lights ∗ P. 152

Fuel filler door P. 71

Doors P. 38

Trunk P. 43

Tires l Rotation l Replacement l Inflation pressure l Information

P. 326
P. 388
P. 425
P. 431

Rear turn signal lights P. 136

Stop/tail and rear side marker lights P. 150
∗: If equipped

Pictorial index

Interior

Head restraints P. 51

Seat belts P. 53

Power window switches ∗ P. 66

Cup holders P. 267

Parking brake lever P. 137

SRS driver airbag P. 80

Auxiliary boxes P. 269

SRS front passenger airbag P. 80

Armrest ∗ P. 281

Cup holders P. 267

Console box P. 265

SRS side airbags ∗ P. 80

Glove box P. 265

Grocery bag hook P. 274
Floor mat P. 282
Front seats P. 46
Shift lever P. 130, 135

A Personal lights ∗ Personal/interior lights ∗

P. 262
P. 263

Moon roof ∗ P. 68

Auxiliary boxes ∗ P. 269
Compass ∗ P. 284

Interior light P. 262

SRS curtain shield airbags ∗ P. 80
Moon roof switch ∗ P. 68

Anti-glare inside rear view mirror P. 62

Sun visors P. 272
Vanity mirrors P. 273

Inside door lock button

P. 39

Window lock switch ∗ P. 66
Door lock switch ∗

P. 38

Power window switches ∗ P. 66

∗: If equipped

Pictorial index

Instrument panel

Headlight switch Turn signal lever Fog light switch ∗

P. 150
P. 136
P. 152

Gauges and meters Multi-information display

P. 138
P. 146

Windshield wiper and washer switch P. 153

Hood lock release lever P. 305

Emergency flasher switch

Audio system Navigation system *

P. 198

Fuel filler door opener

P. 71
Trunk opener P. 43

Tilt and telescopic steering control lever

P. 61

10

Shift lock override button ∗ P. 401

Cigarette lighter ∗ Power outlet ∗ Ashtray ∗

P. 276
P. 277
P. 275

Tire pressure warning reset switch ∗ P. 327

A

Automatic air conditioning system

Rear window and outside rear view mirror defogger switch ∗/rear window defogger switch ∗ P. 197

Air conditioning system P. 184

AUX adapter P. 224

Security indicator

P. 75

Manual air conditioning system

Air conditioning system P. 190

AUX adapter P. 224

Security indicator

P. 75

Seat heater switches ∗ P. 279

Rear window and outside rear view mirror defogger switch ∗/rear window defogger switch ∗ P. 197

∗: If equipped *: Refer to “Navigation System Owner’s Manual”.

11

Pictorial index

Instrument panel

VSC/TRAC off switch ∗ P. 158

Outside rear view mirror switches P. 64

Auxiliary boxes P. 269

12

C

Talk switch ∗ P. 232

Audio remote control switches*2 ∗ P. 225

Telephone switches ∗ P. 232

Cruise control switch ∗ P. 155

Engine (ignition) switch (vehicles without smart key system) ∗ P. 126

Engine (ignition) switch (vehicles with smart key system) ∗ P. 122

∗: If equipped *2: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.

13

1-1. Key information Keys

The following keys are provided with the vehicle.

Vehicles with smart key system

Electronic keys • Operating the smart key

system (→P. 22)

• Operating

the wireless

remote control function (→P. 34)

Mechanical keys Key number plate

Vehicles without smart key system (type A)

Master keys Operating the wireless remote control function (→P. 34) Valet key Key number plate

Vehicles without smart key system (type B)

Master keys (black) Valet key (gray) Key number plate

20

1

1-1. Key information

Using the mechanical key (vehicles with smart key system)

Take out the mechanical key.

After using the mechanical key, store it in the electronic key. Carry the mechanical key together with the electronic key. If the electronic key battery is depleted or the entry function does not operate properly, you will need the mechanical key. (→P. 403)

n When required to leave a key to the vehicle with a parking attendant

Set the trunk opener cancelling system. (→P. 44) Vehicles with smart key system: Remove the mechanical key for your own use and provide the attendant with the electronic key only. Vehicles without smart key system: Carry the master key for your own use and leave the valet key only with the attendant.

n Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 402)

NOTICE

n To prevent key damage

l Do not subject the keys to strong shocks, expose them to high tempera-

tures by placing them in direct sunlight, or get them wet.

l Do not expose the keys to electromagnetic materials or attach any mate-

rial that blocks electromagnetic waves to the key surface.

l Do not disassemble the electronic key.

21

1-2. Opening, closing and locking the doors and trunk Smart key system (if equipped)

The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket. (The driver should always carry the electronic key.)

Locks and unlocks the doors (→P. 23) Unlocks the trunk (→P. 23) Starts the engine (→P. 122)

22

1-2. Opening, closing and locking the doors and trunk

Locking and unlocking the doors (front door handles only)

Press the lock button to lock the door.

Unlocking the trunk

Grip the handle to unlock the door.

Make sure to touch the sensor on the back of the handle. The door cannot be unlocked for 3 seconds after is locked.

the door

Press the button to unlock the trunk.

23

1-2. Opening, closing and locking the doors and trunk

Antenna location and effective range

n Antenna location

Antennas outside the cabin Antenna outside the trunk Antenna inside the trunk Antennas inside the cabin

24

1

1-2. Opening, closing and locking the doors and trunk

n Effective range (areas within which the electronic key is

detected)

(Only

When locking or unlocking the doors The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of either of the outside front door handles. the doors detecting the key can be operated.) When starting the engine
