2013 Toyota Corolla Owners Manual

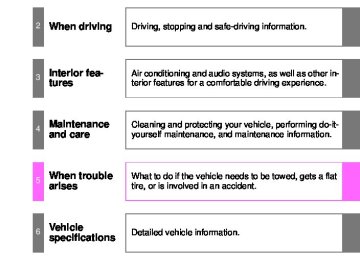

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

2 When driving

Driving, stopping and safe-driving information.

3 Interior fea-

tures

Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

6 Vehicle

specifications

Detailed vehicle information.

7 For owners

Reporting safety defects for U.S. owners, and seat belt and SRS airbag instructions for Canadian owners

Index

Alphabetical listing of information contained in this manual.

For your information

Main Owner’s Manual

Please note that this manual covers all models and all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

Noise from under vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available on the market. You should know that these parts are not covered by Toyota warranty and that Toyota is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

15

Installation of a mobile two-way radio system

The installation of a mobile two-way radio system in your vehicle could affect electronic systems such as: ●Multiport fuel injection system/sequential multiport fuel injection system ●Cruise control system ●Anti-lock brake system ●SRS airbag system ●Seat belt pretensioner system Be sure to check with your Toyota dealer for precautionary measures or spe- cial instructions regarding installation of a mobile two-way radio system.

Vehicle data recordings

Your Toyota is equipped with several sophisticated computers that will record data, such as: • Engine speed • Accelerator status • Brake status • Vehicle speed • Shift position (vehicles with an automatic transmission) The recorded data varies according to the vehicle grade level and options with which it is equipped. Furthermore, these computers do not record con- versations, sounds or pictures. ● Data usage Toyota may use the data recorded in these computers to diagnose malfunc- tions, conduct research and development, and improve quality. Toyota will not disclose the recorded data to a third party except: • With the consent of the vehicle owner or with the consent of the lessee if

•

the vehicle is leased In response to an official request by the police, a court of law or a govern- ment agency

• For use by Toyota in a lawsuit • For research purposes where the data is not tied to a specific vehicle or

vehicle owner

16

Event data recorder

This vehicle is equipped with an event data recorder (EDR). The main pur- pose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: • How various systems in your vehicle were operating; • Whether or not the driver and passenger safety belts were buckled/fas-

tened;

pedal; and,

• How far (if at all) the driver was depressing the accelerator and/or brake

• How fast the vehicle was traveling. These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ- ation occurs; no data are recorded by the EDR under normal driving condi- tions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

17

● Disclosure of the EDR data Toyota will not disclose the data recorded in an EDR to a third party except when: • An agreement from the vehicle’s owner (or the lessee for a leased vehicle)

•

is obtained In response to an official request by the police, a court of law or a govern- ment agency

• For use by Toyota in a lawsuit However, if necessary, Toyota may: • Use the data for research on vehicle safety performance • Disclose the data to a third party for research purposes without disclosing

information about the specific vehicle or vehicle owner

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbags, seat belt pretensioners, and wireless remote con- trol batteries.

18

CAUTION

■General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

■General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, or other features of the vehicle. In addi- tion, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

19

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause death or injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Symbols used in illustrations

Safety symbol The symbol of a circle with a slash through means “Do not”, “Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning, etc.) used to operate switches and other devices. Indicates the outcome of an operation (e.g. a lid opens).

20

Pictorial index

Exterior

Headlights (high beam) and daytime running lights P. 159, 161

Headlights (low beam) P. 159

Windshield wipers P. 165

Moon roof ∗ P. 73

Hood P. 351

Outside rear view mirrors P. 69

Front side marker lights P. 159

Front turn signal and parking lights P. 146, 159

Front fog lights ∗ P. 163

Fuel filler door P. 77

Doors P. 41

Trunk P. 47

Tires ●Rotation ●Replacement ●Inflation pressure ●Information

P. 371
P. 436
P. 480
P. 485

Rear turn signal lights P. 146

Stop/tail and rear side marker lights P. 159
∗: If equipped

Pictorial index

Interior

Head restraints P. 56

Seat belts P. 58

Power window switches ∗ P. 71

Cup holders P. 315

Parking brake lever P. 147

SRS driver airbag P. 86

Auxiliary boxes P. 318

SRS front passenger airbag P. 86

Cup holders P. 315

Console box P. 313

SRS side airbags P. 86

Glove box P. 313

Floor mat P. 330

Front seats P. 51

Shift lever P. 139, 145

Microphone ∗, *1 P. 284

SRS curtain shield airbags P. 86

Interior light P. 310

Personal lights ∗ P. 310
Personal/interior lights ∗ P. 311
Auxiliary boxes ∗ P. 318
Compass ∗ P. 331

Assist grips P. 329
Moon roof switch ∗ P. 73

Anti-glare inside rear view mirror P. 67

Sun visors P. 321
Vanity mirrors P. 322

Inside door lock button

P. 42

Window lock switch ∗ P. 71
Door lock switch ∗

P. 41

Power window switches ∗ P. 71

∗: If equipped *1: For vehicles with a Display Audio system, refer to “Display Audio System Owner’s Manual”.

Pictorial index

Instrument panel

Headlight switch Turn signal lever Fog light switch ∗

P. 159
P. 146
P. 163

Gauges and meters Multi-information display

P. 149
P. 156

Windshield wiper and washer switch P. 165

Hood lock release lever P. 351

Horn P. 148

Clock P. 323

Emergency flasher switch P. 416

Audio system P. 220

Fuel filler door opener

P. 77
Trunk opener P. 47

Tilt and telescopic steering control lever

P. 66

10

Shift lock override button ∗ P. 450

Cigarette lighter ∗ Power outlet ∗ Ashtray ∗ Auxiliary box ∗

P. 325
P. 326
P. 324
P. 318

Tire pressure warning reset switch ∗ P. 372

A

Automatic air conditioning system

Rear window and outside rear view mirror defogger switch ∗/rear window defogger switch ∗ P. 219

Air conditioning system P. 206

P. 274

AUX port ∗ AUX port/USB port ∗ P. 253, 262, 274

Seat heater switches ∗ P. 327

Engine immobilizer system indicator P. 81

Manual air conditioning system

Rear window and outside rear view mirror defogger switch ∗/rear window defogger switch ∗ P. 219

Air conditioning system P. 212

P. 274

AUX port ∗ AUX port/USB port ∗ P. 253, 262, 274

Seat heater switches ∗ P. 327

Engine immobilizer system indicator P. 81

∗: If equipped

11

Pictorial index

Instrument panel

VSC/TRAC off switch P. 172

Outside rear view mirror switches P. 69

Auxiliary boxes P. 318

12

C

Type A

Audio remote control switches ∗ P. 276

Talk switch ∗, *1

Telephone switch ∗, *1

Cruise control switch ∗ P. 168

Engine (ignition) switch (vehicles without smart key system) ∗ P. 135

Engine (ignition) switch (vehicles with smart key system) ∗ P. 131

∗: If equipped *1: Refer to “Display Audio System Owner’s Manual”.

13

Pictorial index

Instrument panel

Type B

Talk switch ∗, *1

Audio remote control switches P. 276

Telephone switch ∗, *1

Cruise control switch ∗ P. 168

Engine (ignition) switch P. 135

∗: If equipped *1: Refer to “Display Audio System Owner’s Manual”.

14

1-1. Key information Keys

The following keys are provided with the vehicle.

Vehicles with smart key system

Electronic keys • Operating the smart key

system (→P. 25)

• Operating

the wireless

remote control function (→P. 36)

Mechanical keys Key number plate

Vehicles without smart key system (type A)

Master keys Operating the wireless remote control function (→P. 36) Valet key Key number plate

Vehicles without smart key system (type B)

Master keys (black) Valet key (gray) Key number plate

22

1

1-1. Key information

Using the mechanical key (vehicles with smart key system)

Take out the mechanical key.

After using the mechanical key, store it in the electronic key. Carry the mechanical key together with the electronic key. If the electronic key battery is depleted or the entry function does not operate properly, you will need the mechanical key. (→P. 452)

■When required to leave a key to the vehicle with a parking attendant

Set the trunk opener cancelling system. (→P. 48) Vehicles with smart key system: Remove the mechanical key for your own use and provide the attendant with the electronic key only. Vehicles without smart key system: Carry the master key for your own use and leave the valet key only with the attendant.

■Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 451)

■When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft, make sure you do not press any buttons on the key while inside the aircraft cabin. If you are carrying the key in your bag etc, ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the key to emit radio waves that could interfere with the operation of the aircraft.

23

1-1. Key information

NOTICE

■To prevent key damage

●Do not subject the keys to strong shocks, expose them to high tempera-

tures by placing them in direct sunlight, or get them wet.

●Do not expose the keys to electromagnetic materials or attach any mate-

rial that blocks electromagnetic waves to the key surface.

●Do not disassemble the electronic key.

24

1-2. Opening, closing and locking the doors and trunk Smart key system∗

The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket. (The driver should always carry the electronic key.)

Electronic key

Electronic key

Electronic key

Locks and unlocks the doors (→P. 26) Unlocks the trunk (→P. 26) Starts the engine (→P. 131)

∗: If equipped 25

1-2. Opening, closing and locking the doors and trunk

Unlocking and locking the doors (front door handles only)

Grip the driver's door handle to unlock the door. Grip the passen- ger's door handle to unlock all the doors.*

Make sure to touch the sensor on the back of the handle. The door cannot be unlocked for 3 seconds after is locked. *: The door unlock settings can

the door

be changed. (→P. 30)

Press the lock button to lock the door.

Unlocking the trunk

Press the button to unlock the trunk.

26

1-2. Opening, closing and locking the doors and trunk

Antenna location and effective range

■ Antenna location

Antennas outside the cabin Antenna outside the trunk Antenna inside the trunk Antennas inside the cabin

27

1-2. Opening, closing and locking the doors and trunk

■ Effective range (areas within which the electronic key is

detected)

(Only

When locking or unlocking the doors The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of either of the outside front door handles. the doors detecting the key can be operated.) When starting the engine or changing “ENGINE START STOP” switch modes The system can be operated when the electronic key is inside the vehicle. When unlocking the trunk The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of the trunk release button.

28

1-2. Opening, closing and locking the doors and trunk

■Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

■Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system and wireless remote control from operating properly. (Ways of coping: →P. 452) ●When the electronic key battery is depleted ●Near a TV tower, electric power plant, gas station, radio station, large dis- play, airport or other facility that generates strong radio waves or electri- cal noise

●When carrying a portable radio, cellular phone, cordless phone or other

wireless communication devices

●When the electronic key is in contact with, or is covered by the following

metallic objects • Cards to which aluminum foil is attached • Cigarette boxes that have aluminum foil inside • Metallic wallets or bags • Coins • Hand warmers made of metal • Media such as CDs and DVDs

●When multiple electronic keys are in the vicinity ●When carrying or using the electronic key together with the following

devices that emit radio waves • Another vehicle's electronic key or a wireless key that emits radio

waves

• Personal computers or personal digital assistants (PDAs) • Digital audio players • Portable game systems

●If window tint with a metallic content or metallic objects are attached to

the rear window

29

1-2. Opening, closing and locking the doors and trunk

■Switching the door unlock function

It is possible to set which doors the entry function unlocks.

STEP 1

Turn the “ENGINE START STOP” switch OFF.

STEP 2

When hold

the

indicator on

, or

the key surface

is off, press and for approximately 5 seconds while

pressing

on the key.

The setting changes each time an operation is performed, as shown below. (When changing the setting continuously, release the buttons, wait for at least 5 seconds, and repeat step 2.)

Unlocking doors

Beep

Hold the driver's door handle to unlock only the driver's door. Hold the front passenger's door han- dle to unlock all doors. Hold either front door handle to unlock all doors.

Exterior: Beeps three times Interior: Pings once

Exterior: Beeps twice Interior: Pings once

■Battery-saving function

In the following circumstances, the entry function is disabled in order to pre- vent the vehicle and electronic key batteries from discharging. ●When the entry function has not been used for 2 weeks or more ●When the electronic key has been left within approximately 6 ft. (2 m) of

the vehicle for 10 minutes or more

The system will resume operation when... ●The vehicle is locked using the door handle lock switch. ●The vehicle is locked/unlocked using the wireless remote control func-

tion. (→P. 36)

●The vehicle is locked/unlocked using the mechanical key. (→P. 452)

30

1-2. Opening, closing and locking the doors and trunk

■Electronic key battery depletion

●The standard battery life is 1 to 2 years. ●The battery becomes depleted even if the electronic key is not used because the key always receives radio waves. If the smart key system or the wireless remote control function does not operate, or the detection area becomes smaller, the battery may be depleted. Replace the battery when necessary. (→P. 388)

●If the battery becomes low, an alarm will sound in the cabin when the

engine stops. (→P. 32)

●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of the following electrical appliances that produce a magnetic field: • TVs • Personal computers • Recharging cellular phones or cordless phones • Table lamps

■To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle. Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention may not func- tion.)

■Note for the smart key system

●Even when the electronic key is within the effective range (detection

areas), the system may not operate properly in the following cases. • The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is near the ground or in a high place, or too close to

the rear bumper center when the trunk is unlocked.

• The electronic key is on the instrument panel, package tray, floor, or in the auxiliary box of the driver's side instrument panel or glove box when the engine is started or “ENGINE START STOP” switch modes are changed.

31

1-2. Opening, closing and locking the doors and trunk

●Do not leave the electronic key on top of the instrument panel or near the door pockets when exiting the vehicle. Depending on the radio wave reception conditions, it may be detected by the antenna outside the cabin and the door will become lockable from the outside, possibly trapping the electronic key inside the vehicle.

●As long as the electronic key is within the effective range, the doors may

be locked or unlocked by anyone.

●Even if the electronic key is not inside the vehicle, it may be possible to

start the engine if the electronic key is near the window.

●The doors may unlock if a large amount of water splashes on the door handle, such as in the rain or in a car wash. (The doors will automatically be locked after approximately 60 seconds if the doors are not opened and closed.)

●Gripping the door handle when wearing a glove may not unlock the door. ●If the wireless remote control is used to lock the doors when the elec- tronic key is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)

●A sudden approach to the effective range or door handle may prevent the doors from being unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.

■When the vehicle is not driven for extended periods

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle. ■Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

■Alarms and warning indicators

A combination of exterior and interior alarms as well as warning lights are used to reduce the chance of vehicle theft and accidents resulting from erro- neous operation. ●When any warning lights come on:

Take appropriate measures according to which warning light comes on. (→P. 424)

32

1

1-2. Opening, closing and locking the doors and trunk

●When an alarm sounds:

Take appropriate measures according to the following table.

Alarm

Situation

Exterior alarm sounds once for 2 seconds

Exterior alarm sounds once for 60 seconds

Exterior alarm sounds once for 10 seconds Interior alarm sounds continu- ously

Interior alarm beeps repeatedly

Tried to lock the doors using the entry function while the electronic key is still inside the vehicle Closed the trunk while the electronic key is still inside the trunk and all doors are locked Tried to exit the vehicle while the shift lever is in P with the electronic key and lock the doors using the entry function without first turning the “ENGINE START STOP” switch OFF Tried to lock the vehicle using the entry function while a door is open Tried to open the door and exit the vehicle without shifting the shift lever to P Turned the “ENGINE START STOP” switch to ACCESSORY mode while the driver's door is open (Opened the driver's door when the “ENGINE START STOP” switch is in ACCESSORY mode.) Turned the “ENGINE START STOP” switch OFF while the driver's door is open

Correction procedure Retrieve the elec- tronic key from the vehicle and lock the doors again. Retrieve the elec- tronic key from the trunk and close the trunk lid.

Turn the “ENGINE START STOP” switch OFF and lock the doors again.

Close all of the doors and lock the doors again.

Shift the shift lever to P.

Turn the “ENGINE START STOP” switch OFF and close the driver's door.

Close the driver's door.

33

1-2. Opening, closing and locking the doors and trunk

Alarm

Situation

Interior alarm sounds once

The electronic key battery is low

Correction procedure Replace the battery. (→P. 388)

■If the smart key system does not operate properly

●Locking and unlocking the doors and trunk: Use the mechanical key.

(→P. 452)

●Starting the engine: →P. 453

■When the electronic key battery is fully depleted

→P. 388

■Customization that can be configured at Toyota dealer

It is possible to deactivate the smart key system, etc. (Customizable features →P. 497)

■Certification for the smart key system

For vehicles sold in the U.S.A.

FCC ID: NI4TMLF-2
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

This device complies with Industry Canada licence-exempt RSS stan- dard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interfer- ence, including interference that may cause undesired operation of the device.

34

1

1-2. Opening, closing and locking the doors and trunk

CAUTION

■Caution regarding interference with electronic devices

●People with implanted pacemakers or cardiac defibrillators should keep

away from the smart key system antennas. (→P. 27) The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Toyota dealer for details, such as the frequency of radio waves and timing of emitting the radio waves. Then, consult your doctor to see if you should disable the entry function.

●User of any electrical medical device other than implanted pacemakers and implanted cardiac defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medical devices.

Ask your Toyota dealer for details for disabling the entry function.

35

1-2. Opening, closing and locking the doors and trunk Wireless remote control∗

The wireless remote control can be used to lock and unlock the vehi- cle from outside the vehicle.

Vehicles with smart key system

Vehicles without smart key system

Locks all doors Unlocks doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors. Unlocks the trunk (press and hold) Sounds an alarm (press and hold)

Locks all doors Sounds an alarm (press and hold) Unlocks doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors. Unlocks the trunk (press and hold)

36

∗: If equipped

1-2. Opening, closing and locking the doors and trunk

■Operation signals

Doors: A buzzer sounds and the emergency flashers flash to indicate that

the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

Trunk: A buzzer sounds to indicate that the trunk has been unlocked.

■Door lock buzzer

If a door is not fully closed, a buzzer sounds continuously for 10 seconds if an attempt to lock the door is made. Fully close the door to stop the buzzer, and lock the vehicle once more.

■Panic mode

Vehicles with smart key system

When is pressed for longer than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, press any button on the wireless remote control.

Vehicles without smart key system

is pressed for longer When than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, press any button on the wireless remote control.

37

1-2. Opening, closing and locking the doors and trunk

■Key battery depletion

Vehicles with smart key system

→P. 31

Vehicles without smart key system

If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 389)

■Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

■When the electronic key battery is fully depleted (vehicles with smart

key system) →P. 388

■Conditions affecting operation Vehicles with smart key system

→P. 29

Vehicles without smart key system

The wireless remote control function may not operate normally in the follow- ing situations. ●Near a TV tower, radio station, electric power plant, airport or other facil-

ity that generates strong radio waves

●When carrying a portable radio, cellular phone or other wireless commu-

nication devices

●When multiple wireless keys are in the vicinity ●When the wireless key has come into contact with, or is covered by, a

metallic object

●When a wireless key (that emits radio waves) is being used nearby ●When the wireless key has been left near an electrical appliance such as

a personal computer

●When the wireless key battery is depleted ●If window tint with a metallic content or metallic objects are attached to

the rear window

38

1-2. Opening, closing and locking the doors and trunk

■Customization that can be configured at Toyota dealer

Settings (e.g. trunk unlocking function) can be changed. (Customizable features →P. 497)

■Certification for wireless remote control (vehicles with smart key sys-

tem)

For vehicles sold in the U.S.A.

FCC ID: NI4TMLF-2
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.

39

1-2. Opening, closing and locking the doors and trunk

■Certification for wireless remote control (vehicles without smart key

system ⎯ type A) FCC IDs: GQ4-29T GQ4-36R 1470A-10T 1470A-8R

IC IDs:

MADE IN USA This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

■Certification for wireless remote control (vehicles without smart key

system ⎯ type B) FCC ID: HYQ12BBY FCC ID: HYQ13BBZ NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

40

1-2. Opening, closing and locking the doors and trunk Doors

The vehicle can be locked and unlocked using the entry function, wireless remote control, key or door lock switch. ■ Entry function (vehicles with smart key system)

→P. 25

■ Wireless remote control (if equipped)

→P. 36

■ Key

Vehicles with smart key system

The doors can also be locked and unlocked with the mechanical key. (→P. 452)

Vehicles without smart key system

Locks the door Unlocks the door Vehicles with power door lock system: Turning the key locks and unlocks all doors. In the driver’s door lock, turning the key once unlocks the driver’s door. Turning the key again within 3 seconds unlocks the other doors.

Locks all doors Unlocks all doors

■ Door lock switch (if equipped)

41

1-2. Opening, closing and locking the doors and trunk

■ Inside lock button

Rear door child-protector lock

Locks the door Unlocks the door The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

The door cannot be opened from inside the vehicle when the locks are set. Unlock Lock These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

42

1-2. Opening, closing and locking the doors and trunk

Automatic door locking and unlocking systems (vehicles with power door lock system)

The following functions can be set or cancelled:

Function

Shift position linked door locking function*1
Shift position linked door unlocking func- tion*1
Speed linked door lock- ing function*2

Driver's door linked door unlocking function

Operation

Shifting the shift lever out of P locks all doors.

Shifting the shift lever to P unlocks all doors.

All doors are locked when the vehicle speed is approximately 12 mph (20 km/h) or higher.

Vehicles with smart key system

All doors are unlocked when the driver's door is opened within 10 seconds after turning the “ENGINE START STOP” switch to ACCES- SORY mode or OFF.

Vehicles without smart key system

All doors are unlocked when the driver's door is opened within 10 seconds after turning the engine switch to “ACC” or “LOCK”.

*1: Vehicles with an automatic transmission only *2: Vehicles with smart key system

43

1-2. Opening, closing and locking the doors and trunk

■ Setting and canceling the functions

To switch between set and canceled, follow the procedure below:

STEP 1

STEP 2

Vehicles with smart key system: Close all the doors and switch the “ENGINE START STOP” switch to IGNITION ON mode. (Perform step 2 within 10 seconds.) Vehicles without smart key system: Close all the doors and switch the engine switch to the “ON” position. (Perform step 2
within 10 seconds.)

Shift the shift lever to P or N, and press and hold the driver's door lock switch ( ) for approximately 5 seconds and then release.

or

to

corresponding

The shift lever and switch posi- tions the desired function to be set are shown as follows. Use the same procedure to can- cel the function.

44

1

1-2. Opening, closing and locking the doors and trunk

Function

Shift lever position

Driver’s door lock switch position

Shift position linked door lock- ing function*1
Shift position linked door unlocking function*1
Speed linked door locking func- tion*2
Driver's door linked door unlock- ing function *1: Vehicles with an automatic transmission only *2: Vehicles with smart key system When the setting or canceling operation is complete, all doors are locked and then unlocked.

■When all the doors are locked with the wireless remote control, entry

function or key The doors cannot be unlocked with the door lock switch. The door lock switch can be reset by unlocking all the doors with the wire- less remote control, entry function or key.

■The doors cannot be locked when

Vehicles with smart key system

The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle. Depending on the position of the electronic key, the key may not be detected correctly and the door may be locked. Vehicles without smart key system

The key is in the engine switch and either of the front door is open.

■Customization that can be configured at Toyota dealer

Settings (e.g. unlocking function using a key) can be changed. (Customizable features →P. 497)

45

1-2. Opening, closing and locking the doors and trunk

CAUTION

■To prevent an accident

Observe the following precautions while driving the vehicle. Failing to do so may result in a door opening and an occupant falling out, resulting in death or serious injury. ●Always use a seat belt. ●Always lock the doors. ●Ensure that all doors are properly closed. ●Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers are thrown out of the vehi- cle and it may result in serious injury or death. Be especially careful for the front doors, as the doors may be opened even if the inside lock buttons are in locked position.

●Set the rear door child protector locks when children are seated in the rear

seat.

46

1-2. Opening, closing and locking the doors and trunk Trunk

The trunk can be opened using the entry function, wireless remote control, key or trunk opener. ■ Opening the trunk from inside the vehicle

Release the trunk lid.

■ Opening the trunk from outside the vehicle Entry function (vehicles with smart key system)

→P. 25

Wireless remote control (if equipped)

→P. 36

Key (vehicles with smart key system)

The trunk can be opened using the mechanical key. (→P. 452)

Key (vehicles without smart key system)

Turn the master key clockwise to release the trunk lid.

47

1-2. Opening, closing and locking the doors and trunk

Trunk opener cancelling system

To protect luggage stored in the trunk against theft, do the following procedure.

Turn the master key (vehicles without smart key system) or mechanical key (vehicles with smart key system) counterclock- wise to lock the trunk opener fea- ture.

The trunk lid cannot be opened even with the wireless remote control or the entry function.

The trunk lid can be opened by pulling down on the glow-in-the-dark lever located on the inside of the trunk lid. The lever will continue to glow for some time after the trunk lid is closed.

■Internal trunk release lever

■Which key to the vehicle is to leave with a parking attendant after the

trunk opener cancelling system is set →P. 23

48

1-2. Opening, closing and locking the doors and trunk

CAUTION

■Caution while driving

●Before driving the vehicle, make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may open unexpectedly while driving, caus- ing an accident.

●Keep the trunk lid closed while driving.

If the trunk lid is left open, it may hit near-by objects while driving or lug- gage in the trunk may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a seri- ous health hazard. Make sure to close the trunk lid before driving.

●Never let anyone sit in the trunk. In the event of sudden braking or a colli-

sion, they are susceptible to death or serious injury.

■When children are in the vehicle Observe the following precautions. Failure to do so may result in death or serious injury. ●Do not allow children to enter the trunk.

If a child is accidentally locked in the trunk, they could overheat or suffo- cate.

●Do not allow a child to open or close the trunk lid.

Doing so may cause the trunk lid to operate unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing trunk lid.

49

1-2. Opening, closing and locking the doors and trunk

CAUTION

■Using the trunk

Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in seri- ous injury. ●Remove any heavy loads, such as snow and ice, from the trunk lid before opening it. Failure to do so may cause the trunk lid to suddenly shut again after it is opened.

●When opening or closing the trunk lid, thoroughly check to make sure the

surrounding area is safe.

●If anyone is in the vicinity, make sure they are safe and let them know that

the trunk is about to open or close.

●Use caution when opening or closing the trunk lid in windy weather as it

may move abruptly in strong wind.

●The trunk lid may suddenly shut if it is not opened fully. It is more difficult to open or close the trunk lid on an incline than on a level surface, so beware of the trunk lid unexpectedly opening or closing by itself. Make sure that the trunk lid is fully open and secure before using the trunk.

●When closing the trunk lid, take extra care to prevent your fingers etc. from being caught.

●When closing the trunk lid, make sure

to press it lightly on its outer surface.

●Do not attach any accessories other than genuine Toyota parts to the trunk lid. Such additional weight on the trunk lid may cause the lid to suddenly shut again after it is opened.

50

1-3. Adjustable components (seats, mirrors, steering wheel) Front seats

Power seat (driver's side only)

Seat position switch Seatback angle switch Seat cushion (front) angle switch Vertical height adjustment switch Lumbar support switch

51

1-3. Adjustable components (seats, mirrors, steering wheel)

Manual seat

Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever (driver’s side only)

Active head restraints

When the occupant’s back presses against the seatback during a rear-end collision, the head restraint moves slightly for- ward to help reduce the risk of whiplash on the seat occupant.

52

1-3. Adjustable components (seats, mirrors, steering wheel)

■Active head restraints

Even small forces applied to the seatback may cause the head restraint to move. Pushing up a locked head restraint forcibly may appear the head restraint inner structure. These do not indicate problems.

During rear-end collision

Inner structure

CAUTION

■Seat adjustment

●Be careful that the seat does not hit passengers or luggage. ●Do not recline the seat more than necessary when the vehicle is in motion

to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.

●Manual seat only: After adjusting the seat, make sure that the seat is

locked in position.

53

1-3. Adjustable components (seats, mirrors, steering wheel) Rear seats

■ Before folding down the rear seat

Stow the rear outside seat belt buckles and move the rear center seat belt buckle as shown.

■ Folding down rear seatbacks

Pull the seatback lever in the trunk for the seatback you wish to fold down.

54

1

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■After returning the seatback to the upright position

Observe the following precautions. Failure to do so may result in death or serious injury. ●Make sure the seatback is securely locked by pressing forward and rear-

ward on the top of the seatback.

●Check that the seat belts are not twisted or caught in the seatback.

NOTICE

■When a rear seatback is folded down

●Make sure the luggage loaded in the enlarged trunk will not damage the

webbing of the rear center seat belt.

●Do not hold the seat by the seat belt comfort guide to prevent damage to

the rear seat.

55

1-3. Adjustable components (seats, mirrors, steering wheel) Head restraints

Head restraints are provided for all seats.

Front seats

Up Pull the head restraints up. Down Push the head restraint down while pushing the lock release button.

Up Pull the head restraints up. Down Push the head restraint down while pushing the lock release button.

Pull the head restraint up while pressing the lock release button.

Lock release button

Rear seats

Lock release buttons

■Removing the head restraints

56

1-3. Adjustable components (seats, mirrors, steering wheel)

■Installing the head restraints

Align the head restraint with the installa- tion holes and push it down to the lock position. Press and hold the lock release button when lowering the head restraint.

■Adjusting the height of the head restraints

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

■Adjusting the rear center seat head restraint

Always raise the head restraint one level from the stowed position when using.

CAUTION

■Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. ●Use the head restraints designed for each respective seat. ●Adjust the head restraints to the correct position at all times. ●After adjusting the head restraints, push down on them and make sure

they are locked in position.

●Do not drive with the head restraints removed.

57

1-3. Adjustable components (seats, mirrors, steering wheel) Seat belts

Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. ■ Correct use of the seat belts

● Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoul- der.

● Position the lap belt as low

as possible over the hips.

● Adjust the position of the seatback. Sit up straight and well back in the seat. ● Do not twist the seat belt.

■ Fastening and releasing the seat belt

Fastening the belt Push the tab into the buckle until a clicking sound is heard. Releasing the belt Press the release button.

Release button

58

1

1-3. Adjustable components (seats, mirrors, steering wheel)

■ Adjusting the height of the belt (front seats)

Push the seat belt shoulder anchor down while pressing the release button. Push the seat belt shoulder anchor up. Move the height adjuster up and down as needed until you hear a click.

Seat belt comfort guide (outside rear seats)

If the shoulder belt sits close to a person's neck, use the seat belt comfort guide.

STEP 1

STEP 2

Pull out the comfort guide from the pocket.

Slide the belt past the slot of the guide.

The elastic cord must be behind the seat belt.

59

1-3. Adjustable components (seats, mirrors, steering wheel)

STEP 3

Buckle, position and release the seat belt.

Seat belt pretensioners (front seats)

The pretensioner helps the seat belt to quickly restrain the occu- pant by retracting the seat belt when the vehicle is subjected to certain types of severe frontal collision.

The pretensioner may not acti- vate in the event of a minor frontal impact, a side impact or a rear impact.

60

1-3. Adjustable components (seats, mirrors, steering wheel)

■Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.

■Automatic locking retractor (ALR)

When a passenger's shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt and then pull the belt out once more. (→P. 107)

■Pregnant women

Obtain medical advice and wear the seat belt in the proper way. (→P. 58) Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occu- pants. Extend the shoulder belt com- pletely over the shoulder and position the belt across the chest. Avoid belt contact over the rounding of the abdominal area. If the seat belt is not worn properly, not only a pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.

■People suffering illness

Obtain medical advice and wear the seat belt in the proper way.

61

1-3. Adjustable components (seats, mirrors, steering wheel)

■Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size. ●Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle's seat belt. (→P. 103) ●When the child becomes large enough to properly wear the vehicle's seat

belt, follow the instructions on P. 58 regarding seat belt usage. ■Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent colli- sions.

■Seat belt extender
