2004 Toyota Corolla Owners Manual

’04 Corolla_U (L/O 0306)

SECTION 1− 1

OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

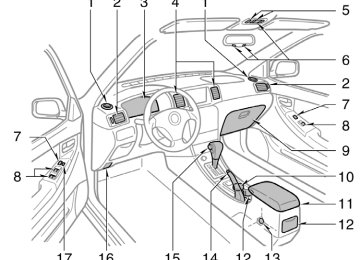

Instrument panel overview

1. Side defroster outlets 2. Side vents 3. Instrument cluster 4. Center vents 5. Electric moon roof switches 6. Personal lights 7. Power door lock switches 8. Power window switches 9. Glove box 10. Portable ashtray 11. Rear console box 12. Cup holders 13. Power outlet 14. Parking brake lever 15. Automatic transmission selector lever

or manual transmission gear shift lever

16. Hood lock release lever 17. Window lock switch

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

1. Headlight, turn signal and front fog

light switches

2. Wiper and washer switches 3. Emergency flasher switch 4. Car audio 5. Clock 6. Front passenger’s seat belt reminder

light

7. Rear window defogger switch 8. Auxiliary boxes 9. Power outlet or cigarette lighter 10. Air conditioning controls 11. Ignition switch 12. Cruise control switch 13. Tilt steering lock release lever 14. Interior/instrument panel light control

dial

15. Power rear view mirror control switches 16. Toyota vehicle intrusion protection

system indicator light

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Instrument cluster overview "Type A

1. Service reminder indicators and

indicator lights

2. Tachometer 3. Speedometer

4. Engine coolant temperature gauge 5. Fuel gauge 6. Trip meter reset knob

7. Odometer, two trip meters and outside

temperature display

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

"Type B

1. Service reminder indicators and

indicator lights

2. Tachometer 3. Speedometer

4. Engine coolant temperature gauge 5. Fuel gauge 6. Trip meter reset knob

7. Odometer, two trip meters and outside

temperature display

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Indicator symbols on the instrument panel

or

Brake system warning light∗1

Driver’s seat belt reminder light∗1

Low engine oil pressure warning light∗1

or

Anti−lock brake system warning light∗1

Front passenger’s seat belt reminder light∗1

Open door warning light∗1

Discharge warning light∗1

SRS warning light∗1

or

Malfunction indicator lamp∗1

Low windshield washer fluid level warning light ∗1,

∗3

Headlight high beam indicator light

Low fuel level warning light∗1

Turn signal indicator lights

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Overdrive−off indicator light

Cruise control indicator light∗2

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 88 in Section 1−6.

∗2: If this light flashes, see “Cruise control” on page 102 in

Section 1−7.

∗3: This symbol equipped only on vehicles sold in Canada.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

SECTION 1− 2

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Side doors Power windows Trunk lid Toyota vehicle intrusion protection system (TVIP) Hood Fuel tank cap Electric moon roof

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10
10
17
19
21
22
24
25

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Keys

Side doors—

Your vehicle is supplied with two kinds of keys. 1. Master keys—These keys work in ev-

ery lock.

2. Sub key—This key will not work in the

trunk.

leave

To protect items locked in the trunk when using valet parking, the sub key with the attendant. Since all the doors and trunk lid can be locked without a key, you should always carry a spare master key in case you accidentally lock your keys inside the ve- hicle.

10

KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.

LOCKING AND UNLOCKING WITH KEY Insert the key into the keyhole and turn it. To lock: Turn the key forward. To unlock: Turn the key backward. Vehicles with power door lock system— All lock and unlock simulta- neously with either front door. In the driv- er’s door lock, turning the key once will unlock the driver’s door and twice in suc- cession will unlock all the doors simulta- neously.

the doors

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

is

in

the

interior

light dial

When the DOOR position and all the doors are un- locked simultaneously using either the key or the wireless remote control transmitter, the interior light will come on and remain on for about 15 seconds before fading out. (For further information, see “Interior/ instrument panel light control” on page 79
in Section 1−5.)

’04 Corolla_U (L/O 0306)

LOCKING AND UNLOCKING WITH INSIDE LOCK KNOB Move the lock knob. To lock: Push the knob forward. To unlock: Pull the knob backward. The front doors can be opened by pulling the inside handle even if the lock knobs are in the locked position.

CAUTION

Do not pull the inside handle of the front doors while driving. The doors will open and an accident may occur. Toyota strongly recommends that all children be placed in the rear seat of the vehicle.

Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the ve- hicle. Vehicles with power door lock system— Doors cannot be locked when either front door is open and the key is in the igni- tion.

11

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

lock: Push the switch down on the

LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH Push the switch. To front side. To unlock: Push the switch down on the rear side. Operating the switch simultaneously locks or unlocks all the doors. If you do either of the following, no door can be unlocked with the power door lock switch. D Lock all the doors with the key or wire- less remote control transmitter when all the doors are closed.

D Open the driver’s door or front passen- ger’s door and move the inside lock knobs of both front doors to the lock position, then close the front doors.

The power door lock switch can be reset in the following ways. D Turn the ignition key to “ON”. D Unlock all the doors with the key or

wireless remote control transmitter.

D Unlock the driver’s door or front pas- lock the doors

senger’s door with knob, and then unlock all with the power door lock switch.

inside

the

Driver’s side

Passenger’s side

12

to

the

lock

lever

the “LOCK”

REAR DOOR CHILD−PROTECTORS Move position as shown on the label. This feature allows you to lock a rear door so it can be opened from the outside only, not from inside. We recommend us- ing this feature whenever small children are in the vehicle.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

—Wireless remote control

CAUTION

Before driving, be sure that the doors are closed and locked, especially when small children are in the ve- hicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the ve- hicle during an accident. It also helps prevent the doors from being opened unintentionally.

Locking operation

Unlocking operation

to

THE

AND

UNLOCKING

lock or unlock all

The wireless remote control system is designed the doors or activate the “PANIC” mode from a distance within approximately 1
m (3 ft.) of the vehicle. LOCKING DOORS To lock and unlock all the doors, push the switches of the transmitter slowly and securely. To lock: Push the “LOCK” switch. All the doors are locked simultaneously. At this time the turn signal lights will flash once. Check to see that the doors are securely locked. If any door is not securely closed, locking cannot be performed by “LOCK” switch. “UNLOCK” switch To unlock: Push once to unlock the driver’s door alone. Pushing the switch twice within 3 seconds unlocks all the doors simultaneously. Each time the “UNLOCK” switch is pushed, the turn signal lights will flash twice.

the

the

13

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

When the “UNLOCK” switch is pressed, the interior light comes on. The light re- mains on for about 15 seconds unless any door is opened and closed. (For further information, see “Interior/instrument panel light control” on page 79 in Section 1−5.) You have 30 seconds to open a door after using the wireless remote unlock feature. If a door is not opened by then, all the doors will be automatically locked again. If the “LOCK” or “UNLOCK” switch is kept pressed in, the locking or unlocking opera- tion is not repeated. Release the switch and then push again.

14

flashes

intermittently and

“PANIC” MODE Pushing the “PANIC” switch blows the horn the headlights, tail lights, turn signal lights and interior light. The “PANIC” mode is used to deter ve- hicle theft when you witness anyone at- tempting into or damage your vehicle. The alarm will last for one minute. To stop the alarm midway, push any switch on the transmitter or turn the ignition key from the “LOCK” to “ON” position. The “PANIC” mode does not work when the ignition key is in the “ON” position.

to break

REMOTE

CONTROL

WIRELESS TRANSMITTER The wireless remote control transmitter is an electronic component. Observe the fol- lowing instructions in order not to cause damage to the transmitter. D Do not leave the transmitter on places the temperature becomes high

where such as on the dashboard.

D Do not disassemble it. D Avoid knocking

it hard against other

objects or dropping it.

for

transmitters

D Avoid putting it in water. You can use up to 4 wireless remote con- the same vehicle. trol Contact your Toyota dealer for detailed information. If the wireless remote control transmitter does not actuate the doors or alarm, or operate from a normal distance: D Check for closeness to a radio trans- mitter such as a radio station or an airport which can interfere with normal operation of the transmitter.

D The battery may have been consumed. Check the battery in the transmitter. To replace the battery, see “REPLACING TRANSMITTER BATTERY”.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

If you lose your transmitter, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an acci- dent. (See “If you lose your wireless re- mote control transmitter” on page 200 in Section 4.)

MODEL/FCC ID: GQ43VT27R CAN: 1470 104 105A MADE IN U.S.A. This complies with Part 15 of the FCC rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.

REPLACING TRANSMITTER BATTERY For replacement, use a CR2032 lithium battery or equivalent.

CAUTION

Special care should be taken to pre- vent small children from swallowing the removed transmitter battery or components.

NOTICE

z When replacing the transmitter bat- tery, be careful not to lose the com- ponents.

z Replace only with

the same or equivalent type recommended by a Toyota dealer.

z Dispose of used batteries according

to the local laws.

Replace the transmitter battery by follow- ing these procedures:

1. Using a coin or equivalent, open the

transmitter case.

15

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

z Be careful not to bend the electrode of the transmitter battery insertion and that dust or oils do not adhere to the transmitter case.

z Close the transmitter case securely.

After replacing the battery, check that the transmitter operates properly. If the trans- mitter still does not operate properly, con- tact your Toyota dealer.

2. Remove the discharged transmitter bat-

3. Put a new transmitter battery with posi-

tery.

NOTICE

Do not bend the terminals.

16

tive (+) side up.

Close the transmitter case securely.

NOTICE

z Make sure

the positive side and negative side of the transmitter bat- tery are faced correctly.

z Do not replace the battery with wet hands. Water may cause unexpected rust.

z Do not touch or move any compo- nents inside of the transmitter, or it may interfere with proper opera- tion.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Power windows

Window lock switch

Automatic operation (to open only): Push the switch completely down and then release it. The window will fully open. To stop the window partway, lightly pull the switch up and then release it.

The windows can be operated with the switch on each door. The power windows work when the ignition switch is in the “ON” position. OPERATING THE DRIVER’S WINDOW Use the switch on the driver’s door. Normal operation: The window moves as long as you hold the switch. To open: Lightly push down the switch. To close: Pull up the switch.

THE

PASSENGERS’

OPERATING WINDOWS Use the switches on the passengers’ doors. The driver’s door also has switches that control the passengers’ windows. The window moves as long as you hold the switch. To open: Push down the switch. To close: Pull up the switch. If you push in the window lock switch on the driver’s door, the passengers’ windows cannot be operated.

17

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

D Never leave anyone (particularly a small child) alone in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the power window switches and get in a window. Unat- tended person (particularly a small child) can be involved in a serious accident.

trapped

CAUTION

To avoid serious personal injury, you must do the following. D Before you close the power win- dows, always make sure there is nobody around the power windows. You must also make sure the heads, hands and other parts of the bodies of all occupants are kept completely If someone’s neck, head or hands get it caught could result injury. When anyone closes the power win- dows, make sure he or she oper- ates the windows safely.

in a closing window,

in a serious

the vehicle.

inside

D When small children are in the ve- hicle, never let them use the power window switches without supervi- sion. Use the window lock switch to prevent from making unex- pected use of the switches.

them

D Be sure to remove the ignition key

when you leave your vehicle.

18

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Trunk lid—

—Lock release lever

CAUTION

Keep the trunk lid closed while driv- ing. This not only keeps the luggage from being thrown out but also pre- vents exhaust gases from entering the vehicle.

To open the trunk lid from the outside, insert the master key and turn it clock- wise. See “—Stowage precautions” on page 165
in Section 2 for precautions when loading luggage. To close the trunk lid, lower it and press down on it. After closing the trunk lid, try pulling it up to make sure it is securely closed.

To open the trunk lid from the driver’s seat, pull up on the lock release lever.

19

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

—Lock release lever cancelling system

—Internal trunk release handle

is

in

locked

If a person the trunk, he/she can pull down the phosphores- cent handle on the inside of trunk lid to open the trunk lid. The (glow−in−the−dark) handle will continue to glow for a time after the trunk lid is closed. Exposing the handle to stronger light will cause it to glow longer.

phosphorescent

After closing the trunk lid, insert the master key and turn it counterclockwise to deactivate the lock release lever. After closing the trunk lid, try pulling it up to make sure it is securely locked.

20

CAUTION

D Always lock the trunk lid and all doors, and keep away the vehicle keys out of children’s reach.

D Never leave children unattended in the vehicle. Unsupervised children may lock themselves in the vehicle or trunk and suffer serious injuries or death.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Toyota vehicle intrusion protection system (TVIP)

is a

theft deterrent system.

TVIP If someone attempts to damage or break into your vehicle, the system sounds the alarm while flashing the lights.

SETTING THE SYSTEM You can set the system as follows. 1. Remove

the key

from

the

ignition

switch.

2. Have all passengers get out of

the

vehicle.

3. Close all the doors and trunk lid secu-

rely.

the TVIP

4. Lock all the doors with the key or wire- less remote control transmitter. At this time, light comes on. The system will be set in 30 seconds. When the system is set, the indicator light will start to flash.

indicator

5. Make sure

light flashes. Then you may leave the ve- hicle.

indicator

that

the

Never leave anyone in the vehicle when you set the system because unlocking from the inside activates the alarm. Activating the alarm If the system detects a threat to the it sounds the alarm for one vehicle, minute while flashing headlights and turn signal lights. At this time, the interior light also turns on when the interior light dial is in the DOOR position. (See “Interior/instrument panel light control” on page 79 in Section 1−5.) The system detects a threat under any of the following conditions: D Either of the front doors is unlocked by means other than the key or wireless remote control transmitter. If the key is not in the ignition switch, all the doors will be automatically locked again.

D Any of the doors or trunk lid are forci-

bly opened. The alarm will activate when the trunk lid is opened with a key. Cancel the system before opening the trunk lid.

21

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

D The side windows are tapped or bro-

ken.

D The battery

terminal and then reconnected.

is disconnected

D The ignition is hotwired. After one minute, the alarm automatically stops and the indicator light starts flashing again. Reactivating the alarm Once set, until you cancel the system, the system automatically resets the alarm af- ter the alarm has stopped. The alarm will activate again under the same circumstances described in “Activat- ing the alarm”. Stopping the alarm You can stop the alarm in either of the following ways: D Unlock any of the doors with the key or wireless remote control transmitter. D Place the ignition switch in the “ON”

position.

22

’04 Corolla_U (L/O 0306)

Hood

CANCELLING THE SYSTEM You can cancel the system as described in “Stopping the alarm”. If you cancel the system by unlocking any of the doors but no door is opened within 30 seconds, all the doors lock automati- cally and the system will be set again. TESTING THE SYSTEM You can check the system operation as follows. 1. Open all the windows. 2. Set

system as described

the

in

“SETTING THE SYSTEM”.

3. Unlock the driver’s door with the inside lock knob. The system should activate and the alarm should sound.

4. Stop the alarm as described in “Stop-

ping the alarm”.

for

to 4

5. Repeat steps 2

the other doors. (For rear doors, unlock and then open the doors as described in step 3.) the system does not work properly,

If have it checked by your Toyota dealer.

To open the hood: 1. Pull the hood lock release lever. The

hood will spring up slightly.

CAUTION

Before driving, be sure that the hood is closed and securely locked. Other- wise, the hood may open unexpected- ly while driving and an accident may occur.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

2. In front of the vehicle, pull up the the

lever and

lift

auxiliary catch hood.

’04 Corolla_U (L/O 0306)

CAUTION

After inserting the support rod into the slot, make sure the rod supports the hood securely from falling down on to your head or body.

NOTICE

Be sure to return the support rod to its clip before closing the hood. Clos- ing the hood with the support rod up could cause the hood to bend.

3. Hold the hood open by inserting the

support rod into the slot.

To insert the support rod into the slot, move it straight up. If it is moved to the side or toward the inside of the vehicle, it may become detached. Before closing the hood, check to see that you have not forgotten any tools, rags, etc. and return its clip—this prevents rattles. Then lower the hood and make sure it locks into place. If necessary, press down gently on the front edge to lock it.

the support rod

to

23

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Fuel tank cap

This indicates that the fuel filler door is on the left side of your vehicle.

1. To open the fuel filler door, pull the

lever up. When refueling, turn off the engine.

CAUTION

D Do not smoke, cause sparks or al- flames when refueling.

low open The fumes are flammable.

D When opening the cap, do not re- move the cap quickly. In hot weath- er, fuel under pressure could cause injury by spraying out of the filler neck is suddenly re- moved.

the cap

if

2. To remove the fuel tank cap, turn the cap slowly counterclockwise, then pause slightly before removing it. After removing the cap, hang it on the cap hanger.

the cap clockwise

It is not unusual to hear a slight swoosh when the cap is opened. When installing, turn till you hear a click. If the cap is not tightened securely, the malfunction lamp comes on. Make sure the cap is tightened securely.

indicator

24

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Electric moon roof

The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Toyota dealer as soon as possible.

CAUTION

D Make sure the cap is tightened se- in

curely to prevent fuel spillage case of an accident.

D Use only a genuine Toyota fuel tank cap for replacement. It is designed to regulate fuel tank pressure.

Sliding operation

Tilting operation

the

To operate the moon roof, use switches beside the personal light. The moon roof works when the ignition switch is in the “ON” position. Sun shade operation— The sun shade can be opened or closed by hand. Sliding operation— To open: Push side. The sun shade will be opened together with the roof. To close: Push the switch on the front side. As a precaution when closing, the roof stops at the half closed position before fully closing. Therefore, release the switch and then push it again to close it com- pletely.

the switch on

the rear

25

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Tilting operation— To tilt up: Push the switch on the “UP” side. To lower: Push the switch on the opposite side of the “UP” side. You may stop the moon roof at any de- sired position. The roof will move while the switch is being pushed and stop when released.

CAUTION

To avoid serious personal injury, you must do the following. D While the vehicle is moving, always keep the heads, hands and other parts of the bodies of all occupants away from the roof opening. Other- wise, they could be seriously in- jured if the vehicle stops suddenly or if the vehicle is involved in an accident.

D Before you close the moon roof, always make sure there is nobody around the moon roof. You must also make sure nobody places his or her head, hands and other parts of the body in the roof opening. If someone’s neck, head or hands get caught in the closing roof, it could result injury. When anyone closes the moon roof, first make sure it is safe to do so.

in a serious

D Be sure to remove the ignition key

when you leave your vehicle.

D Never leave anyone (particularly a small child) alone in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the moon roof switches and get trapped in the roof opening. Unat- tended person (particularly a small child) can be involved in a serious accident.

D Never sit on

top of

the vehicle

around the roof opening.

26

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

SECTION 1− 3

OPERATION OF INSTRUMENTS AND CONTROLS Occupant restraint systems Seats Front seats Fold−down rear seat Head restraints Seat belts SRS driver airbag and front passenger airbag SRS side airbags Child restraint

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28
28
31
32
33
41
48
53

27

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Seats While the vehicle is being driven, all ve- hicle occupants should have the seatback upright, sit well back in the seat and prop- erly wear the seat belts provided.

CAUTION

D Do not drive the vehicle unless the occupants are properly seated. Do not allow any passengers to sit on top of a folded−down seatback, or in the luggage compartment or car- go area. Persons not properly seated and/or not properly re- strained by seat belts can be se- verely injured in the event of emer- gency braking or a collision.

D During driving, do not allow any passengers to stand up or move around between seats. Otherwise, severe the event of emergency braking or a collision.

injuries can occur

in

Front seats— —Front seat precautions Driver seat

CAUTION

The SRS driver airbag deploys with considerable force, and can cause death or serious injury especially if the driver is very close to the airbag. The National Highway Traffic Safety Administration (“NHTSA”) advises: Since the risk zone for driver airbag is the first 50—75 mm (2—3 in.) of inflation, placing yourself 250 mm (10
in.) from your driver airbag provides you with a clear margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 250
mm in.) away now, you can change your driving position in sever- al ways: D Move your seat to the rear as far as you can while still reaching the pedals comfortably.

(10

28

D Slightly recline

the back of

the seat. Although vehicle designs vary, many drivers can achieve the 250
mm (10 in.) distance, even with the driver seat all the way forward, sim- ply by reclining the back of the seat somewhat. If reclining the back of your seat makes it hard to see the road, raise yourself by using a firm, non−slippery cushion, or raise the seat if your vehicle has that feature.

D If your steering wheel is adjustable, tilt it downward. This points the air- bag toward your chest instead of your head and neck.

The seat should be adjusted as rec- ommended by NHTSA above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument panel controls.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Front passenger seat

Front seats (with SRS side airbags)

CAUTION

CAUTION

The SRS front passenger airbag also deploys with considerable force, and can cause death or serious injury es- pecially if the front passenger is very close to the airbag. The front passen- ger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits upright.

The SRS side airbags are installed in the driver and front passenger seats. Observe the following precautions. D Do not lean against the front door when the vehicle is in use, since the side airbag inflates with consid- erable speed and force. Otherwise, you may be killed or seriously in- jured.

D Do not use seat accessories which cover the area where the side air- bags inflate. Such accessories may prevent the side airbags from acti- vating correctly, causing death or serious injury.

D Do not modify or replace the seats or upholstery of the seats with side airbags. Such change may prevent the side airbag system from activat- ing correctly, disable the system or cause the side airbag system to in- flate accidentally, resulting in death or serious injury.

—Seat adjustment precautions

CAUTION

D Do not adjust the seat while the vehicle is moving as the seat may unexpectedly move and cause the driver to lose control of the vehicle. D Be careful that the seat does not

hit a passenger or luggage.

D After adjusting the seat position, re- lease the lever and try sliding the seat forward and backward to make sure it is locked in position.

D After adjusting the seatback, push your body back against the seat to make sure the seat in position.

locked

is

D Do not put objects under the seats. Otherwise, the objects may interfere with the seat−lock mechanism or unexpectedly push up the seat posi- tion adjusting lever and the seat may suddenly move, causing the driver to lose control of the vehicle.

29

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

—Adjusting front seats

D While adjusting the seat, do not put your hands under the seat or near the moving parts. Otherwise, your hands or fingers may be caught and injured.

1. SEAT POSITION ADJUSTING LEVER Hold the center of the lever and pull it up. Then slide the seat to the desired position with slight body pressure and release the lever. 2. SEAT HEIGHT ADJUSTING KNOB Turn the knob either way. ANGLE 3. SEATBACK

ADJUSTING

LEVER

lever up. lean back to the desired angle

Lean forward and pull the Then and release the lever.

30

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Fold−down rear seat

CAUTION

the driver and

To reduce the risk of sliding under the lap belt during a collision, avoid reclining the seatback any more than needed. The seat belts provide maxi- mum protection in a frontal or rear collision when the front passenger are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen. In the event of a frontal collision, the more the seat is reclined, the greater the risk of personal injury.

FOLDING DOWN REAR SEAT 1. To unlock the seatback, pull the le-

ver in the trunk.

2. Fold down the seatback. Each seatback can be folded separately. This will enlarge the trunk as far as the seatbacks. See “—Stowage precautions” on page 165 in Section 2 for precautions when loading luggage.

NOTICE

Make sure the luggage loaded in the enlarged trunk will not damage the webbing of the rear center seat belt when folded down.

the right seatback

is

31

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Head restraints

CAUTION

When returning the seatback to the upright position, observe the follow- ing precautions in order to prevent personal injury in a collision or sud- den stop: D Make sure the seatback is securely locked by pushing forward and rear- ward on the top of the seatback. Failure to do so will prevent the seat belt from operating properly.

D Make sure the seat belts are not twisted or caught in the seatback and are arranged the proper position and are ready to use.

in

Front

Rear

BEFORE RETURNING REAR SEAT Make sure the shoulder belt pass through the guide when returning the seatback up.

32

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

For your safety and comfort, adjust the head restraint before driving. To raise: Pull it up. To lower: Push it down while pressing the lock release button. The head restraint is most effective when it is close to your head. Therefore, using a cushion on the seatback is not recom- mended.

CAUTION

D Adjust the center of the head re- straint so that it is closest to the top of your ears.

D After adjusting the head restraint, make sure it is locked in position. the head re-

D Do not drive with

straints removed.

Seat belts— —Seat belt precautions Toyota strongly urges that the driver and passengers in the vehicle be properly re- strained at all times with the seat belts provided. Failure to do so could increase the chance of injury and/or the severity of injury in accidents. The seat belts provided for your vehicle are designed for people of adult size, large enough to properly wear them. Child. Use a child restraint system ap- propriate for the child until the child be- comes large enough to properly wear the vehicle’s seat belts. See “Child restraint” on page 53 in this Section for details. If a child is too large for a child restraint system, the child should sit in the rear seat and must be restrained using the vehicle’s seat belt. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat. If a child must sit in the front seat, the seat belts should be worn properly. If an accident occurs and the seat belts are not worn properly, the force of the rapid infla- tion of the airbag may cause death or serious injury to the child.

Do not allow any children to stand up or kneel on either rear or front seats. An unrestrained child could suffer serious in- jury or death during emergency braking or a collision. Also, do not let the child sit on your lap. Holding a child in your arms does not provide sufficient restraint. Pregnant woman. Toyota recommends the use of a seat belt. Ask your doctor for specific lap belt should be worn securely and as low as possible over the hips and not on the waist. Injured person. Toyota recommends the use of a seat belt. Depending on the inju- ry, first check with your doctor for specific recommendations.

recommendations. The

33

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

CAUTION

the vehicle

in their seats Persons should ride their seat belts properly wearing whenever is moving. Otherwise, they are much more likely to suffer serious bodily injury or death in the event of sudden braking or a collision. When using the seat belts, observe the following: D Use the belt for only one person at a time. Do not use a single belt for two or more people—even children. D To reduce the risk of sliding under the lap belt during a collision, avoid reclining the seatback any more than needed. The seat belts provide maximum protection in a frontal or rear collision when the driver and the front passenger are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen. In the event of a frontal collision, the more the seat is reclined, the greater the risk of personal injury.

34

’04 Corolla_U (L/O 0306)

D Be careful not to damage the belt webbing or hardware. Take care that they do not get caught or pinched in the seat or doors.

D Inspect the belt system periodically. Check for cuts, fraying, and loose parts. Damaged parts should be re- placed. Do not disassemble or modify the system.

—Fastening front and rear seat belts

Tab

Buckle

D Keep the belts clean and dry.

If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive clean- ers, or allow them to come into contact with the belt—they may se- verely weaken (See “Cleaning the interior” on page 205
in Section 5.)

the belts.

D Replace the belt assembly (includ- ing bolts) if it has been used in a severe impact. The entire assembly should be replaced even if damage is not obvious.

tab

the

into

insert

Adjust the seat as needed and sit up straight and well back in the seat. To fasten your belt, pull it out of the re- tractor and the buckle. You will hear a click when the tab locks into the buckle. The seat belt length automatically adjusts to your size and the seat position. The retractor will lock the belt during a sudden stop or on impact. It also may lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend, and you can move around freely.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

Take up slack

Too high

CAUTION

D Both high−positioned lap belts and loose−fitting belts could cause seri- ous injuries due to sliding under the lap belt during a collision or other unintended event. Keep the lap belt positioned as low on hips as possible.

D Do not place the shoulder belt un-

der your arm.

Keep as low on hips as possible

is

then

When a passenger’s shoulder belt is com- pletely extended and retracted even slightly, the belt is locked in that position and cannot be extended. This fea- ture is used to hold the child restraint system securely. (For details, see “Child restraint” on page 53 in this Section.) To free the belt again, fully retract the belt and then pull the belt out once more. If the seat belt cannot be pulled out of the retractor, firmly pull the belt and release it. You will then be able to smoothly pull the belt out of the retractor.

the

lap and

the position of

Adjust shoulder belts. Position the lap belt as low as possible on your hips—not on your waist, then ad- just it to a snug fit by pulling the shoulder portion upward through the latch plate.

CAUTION

D After inserting the tab, make sure the tab and buckle are locked and that the belt is not twisted.

D Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle.

D If the seat belt does not function normally, immediately contact your Toyota dealer. Do not use the seat until the seat belt is fixed, because it cannot protect an adult occupant or your child from injury.

35

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

CAUTION

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause serious injures in a collision.

Seat belts with an adjustable shoulder anchor— Adjust the shoulder anchor position to your size. To raise: Slide the anchor up. To lower: Push in the lock release button and slide the anchor down. After adjustment, make sure the anchor is locked in position.

36

To release the belt, press the buckle release button and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists. Then make sure it remains untwisted as it re- tracts.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

from your Toyota dealer

—Seat belt extender If your seat belts cannot be fastened se- curely because they are not long enough, a personalized seat belt extender is avail- able free of charge. Please contact your local Toyota dealer to order the proper required length for the extender. Bring the heaviest coat you ex- pect to wear for proper measurement and selection of length. Additional ordering in- formation is available at your Toyota deal- er.

CAUTION

the

When using the seat belt extender, following precautions. observe Failure to follow these instructions could reduce the effectiveness of the seat belt restraint system in case of an accident, increasing the chance of personal injury. D Remember that the extender pro- vided for you may not be safe when used on a different vehicle, for another person, or at a different seating position than the one origi- nally intended.

’04 Corolla_U (L/O 0306)

D Be sure to wear the seat belt with- out the seat belt extender if you can fasten the seat belt without the extender.

in

the extender

D If the seat belt extender has been connected to the driver’s seat belt buckle without wearing the seat belt when using the driver’s seat, the SRS driver’s air- bag system will judge that the driv- er wears the seat belt even if not wearing it. In this case, the driver’s airbag may not activate correctly, causing death or serious injury in the event of collision. Be sure to wear the seat belt with the seat belt extender.

If

installing a child

D Do not use the seat belt extender when restraint system on the front or rear passen- ger seat. installing a child re- straint system with the seat belt extender connected to the seat belt, the seat belt will not securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of collision.

37

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

—Seat belt pretensioners

CAUTION

D After inserting the tab, make sure the tab and buckle are locked and that the lap and shoulder portions of the belt and the seat belt extend- er are not twisted.

D Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle.

D If the seat belt does not function normally, immediately contact your Toyota dealer. Do not use the seat until the seat belt is fixed, because it cannot protect an adult occupant or your child from injury.

To connect the extender to the seat belt, insert the tab into the seat belt buckle so that the “PRESS” signs on the buckle release buttons of the ex- tender and the seat belt are both facing outward as shown. You will hear a click when the tab locks into the buckle. When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and extend- er itself. When not and store in the vehicle for future use.

in use, remove the extender

38

The driver and front passenger seat belt pretensioners are designed to be activated in response to a severe fron- tal impact. When the sensor detects a severe frontal impact, the front seat belts are quickly drawn back by the retractors so that the belts snugly restrain the occupants. The seat belt pretensioners are activated even with no passenger in the front seat. The seat belt pretensioners and SRS air- bags may not operate together in all colli- sions.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

When the seat belt pretensioners are acti- vated, an operating noise may be heard and a small amount of non−toxic gas may be released. This does not indicate that a fire is occurring. This gas is normally harmless. Once been activated, remain locked.

the seat belt pretensioners have the seat belt retractors

CAUTION

Do not modify, remove, strike or open the seat belt pretensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instruc- tions may prevent the seat belt pre- tensioners from activating correctly, cause sudden operation of the system or disable the system, which could result in death or serious injury. Con- sult your Toyota dealer about any re- pair and modification.

NOTICE

consulting

Do not perform any of the following changes without your Toyota dealer. Such changes can interfere with proper operation of the seat belt pretensioners in some cases. z Installation of electronic devices such as a mobile two−way radio, cassette tape player or compact disc player

z Repairs on or near the front seat

belt retractor assemblies

z Modification of the suspension sys-

tem

z Modification of the front end struc-

ture

z Attachment of a grille guard (bull bar, kangaroo bar, etc.), snowplow, winches or any other equipment to the front end

z Repairs made on or near the front fenders, front end structure or con- sole

39

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

The seat belt pretensioner system con- sists mainly of the following components and their locations are shown in the il- lustration. 1. Front airbag sensors 2. Seat belt pretensioner assemblies 3. Airbag sensor assembly 4. SRS warning light The seat belt pretensioners are controlled by the airbag sensor assembly. The airbag sensor assembly consists of a safing sen- sor and airbag sensor.

’04 Corolla_U (L/O 0306)

If any of the following conditions occurs, this indicates a malfunction of the airbags or seat belt pretensioners. Contact your Toyota dealer as soon as possible. D When the ignition key is turned to the “ON” position, the light does not come on, remains on or flashes.

D The light comes on or starts flashing

while driving.

D If any seat belt does not retract or can not be pulled out due to a malfunction or activation of the relevant seat belt pretensioner.

D The seat belt pretensioner assembly or

surrounding area has been damaged.

light system monitors

This indicator comes on when the igni- tion key is turned to the “ON” position. It goes off after about 6 seconds. This means the front seat belt pretensioners are operating properly. This warning the airbag sensor assembly, front airbag sen- sors, side airbag sensors, driver’s seat position sensor, driver’s seat belt buckle switch, seat belt pretensioner assemblies, inflators, warning light, interconnecting wir- ing and power sources. (For details, see “Service reminder indicators and warning buzzers” on page 88 in Section 1−6.)

40

In the following cases, contact your Toyota dealer as soon as possible: D The front of the vehicle (shaded in the illustration) was involved in an accident that was not severe enough to cause the seat belt pretensioners to operate. D Either seat belt pretensioner assembly scratched,

or cracked, or otherwise damaged.

surrounding area

is

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

SRS driver airbag and front passenger airbag

Your vehicle is equipped with a crash sensing and diagnostic module, which will record the use of the seat belt restraint system by the driver when the SRS front airbags are inflated.

The SRS (Supplemental Restraint Sys- tem) front airbags are designed to pro- vide further protection for the driver and front passenger in addition to the primary safety protection provided by the seat belts. In response to a severe frontal impact, the SRS front airbags work together with the seat belts to help reduce injury by inflating. The SRS front airbags help re- duce injuries mainly to the driver’s or front passenger’s head or chest caused by hit- ting the vehicle interior. The is activated even with no passenger in the front seat. Always wear your seat belt properly.

front passenger airbag

CAUTION

D The SRS front airbag system is de- signed only as a supplement to the primary protection of the driver and front passenger seat belt systems. The driver and front passenger can be killed or seriously injured by the inflating airbags if they do not wear the available seat belts properly. During sudden braking just before a collision, an unrestrained driver or front passenger can move for- ward into direct contact with or close proximity to the airbag which may then deploy during the colli- sion. To ensure maximum protection in an accident, the driver and all passengers the vehicle must wear their seat belts properly. Wear- ing a seat belt properly during an accident reduces the chances of death or serious injury or being thrown out of the vehicle. For in- structions and precautions concern- ing the seat belt system, see “Seat belts” on page 33 in this Section.

in

41

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

restraint

D Improperly seated and/or restrained infants and children can be killed or seriously injured by the deploy- ing airbags. An infant or child who is too small to use a seat belt should be properly secured using a child Toyota strongly recommends in- fants and children be placed in the rear seat of the vehicle and proper- ly restrained. The rear seat is the safest for infants and children. For instructions concerning the installa- tion of a child restraint system, see “Child restraint” on page 53 in this Section.

that all

system.

42

The SRS front airbags are designed to deploy in severe (usually frontal) colli- sions where the magnitude and duration of the forward deceleration of the ve- hicle exceeds the designed threshold level. The SRS front airbags will deploy if the severity of the impact is above the de- signed threshold level, comparable to an approximate 25 km/h (15 mph) collision when the vehicles has the impact straight into a fixed barrier that does not move or deform. However, threshold velocity will be considerably higher if the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact, or if the vehicle is involved in an underride collision in which the front of the vehicle “underrides”, or goes under, the bed of a truck, etc.). It in some collisions where the forward deceleration of the ve- hicle is very close to the designed thresh- old level, the SRS front airbags and the seat belt pretensioners may not activate together. Always wear your seat belts properly.

(e.g. a collision

is possible

that

this

Collision from the rear

Collision from the side

Vehicle rollover

The SRS front airbags are generally not designed to inflate if the vehicle is in- volved in a side or rear collision, if it rolls over, or if it is involved in a low− speed frontal collision. But, whenever a collision of any type causes sufficient forward deceleration of the vehicle, de- ployment of the SRS front airbags may occur.

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

Hitting a curb, edge of pavement or hard surface

Falling into or jumping over a deep hole

Landing hard or vehicle falling

The SRS front airbags may also deploy if a serious impact occurs to the under- side of your vehicle. Some examples are shown in the illustration.

’04 Corolla_U (L/O 0306)

fills

The front airbag sensors constantly moni- tor the forward deceleration of the vehicle. If an impact results in a forward decelera- tion beyond the designed threshold level, the system triggers the airbag inflators. At this time a chemical reaction in the infla- tors very quickly the airbags with non−toxic gas to help restrain the forward motion of the occupants. The front airbags then quickly deflate, so that there is no obstruction of the driver’s vision should it be necessary to continue driving. When the airbags inflate, they produce a loud noise and release some smoke and residue along with non−toxic gas. This does not indicate a fire. This smoke may remain inside the vehicle for some time, and may cause some minor irritation to the eyes, skin or breathing. Be sure to wash off any residue as soon as possible to prevent any potential skin irritation with soap and water. If you can safely exit from the vehicle, you should do so imme- diately.

43

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

The SRS front airbag system consists mainly of the following components, and their locations are shown in the illustra- tion. 1. Front airbag sensors 2. Airbag module for front passenger

(airbag and inflator)

3. Driver’s seat belt buckle switch 4. Driver’s seat position sensor 5. Airbag sensor assembly 6. Airbag module for driver

(airbag and inflator)

7. SRS warning light The airbag sensor assembly consists of a safing sensor and airbag sensor.
