SECTION 1− 1


OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


07 12.25


Instrument panel overview


CY11050y


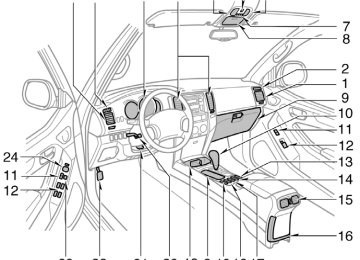

1. Side vents 2. Side defroster outlets 3. Instrument cluster 4. Center vents 5. Personal lights 6. Electric moon roof switch 7. Garage door opener 8. Auxiliary boxes 9. Glove box 10. Automatic transmission selector lever 11. Power door lock switches 12. Power window switches 13. Seat heater switches 14. Rear height control air suspension


switch


15. Rear vents 16. Trash holder 17. Toyota electronic modulated suspension


mode select switch


18. Downhill assist control switch 19. Front cup holders 20. Tilt steering lock release lever


07 12.25


21. Telescopic steering lock release lever 22. Parking brake pedal 23. Window lock switch 24. Power rear view mirror control switches


CY11048


Rear console box


1. Power outlet (12 VDC) 2. Power outlet (115 VAC) 3. AUX adapter 4. A/V input adapter


07 12.25


CY11068


1. Driving position memory switches 2. Headlight, turn signal and front fog


light switches


3. Wiper and washer switches 4. Power back window switch 5. Audio system/rear view monitor system


and navigation system including audio system (For the navigation system, see the separate “Navigation System Owner’s Manual”.)


6. Front passenger’s seat belt reminder


light


7. Engine immobilizer/theft deterrent


system indicator light


8. Front passenger occupant classification


indicator light


9. Multi−information display 10. Emergency flasher switch 11. Air conditioning controls 12. Auxiliary box 13. Back window and outside rear view


mirror defogger switch


14. Four−wheel drive control switch knob (full−time four−wheel drive models) or multi−mode control switch knob (multi−mode four−wheel drive models)


07 12.25


15. Engine switch 16. Cruise control switch 17. Hood lock release lever 18. Fuel filler door opener 19. Roll sensing of curtain shield airbags


off switch


20. “VSC OFF” switch 21. Center differential lock switch 22. Power outlet main switch 23. Instrument panel light control dial


"Steering switches


CY11065


1. Volume control switches for audio


system/hands−free system (For the hands−free system, see the separate “Navigation System Owner’s Manual”.)


2. “ƜƝ” switch 3. “MODE” switch 4. Telephone switches (See the separate “Navigation System Owner’s Manual”.)


5. Speech command switch (See the


separate “Navigation System Owner’s Manual”.)


07 12.25


Instrument cluster overview "Type A


CY11062


1. Tachometer 2. Speedometer 3. Service reminder indicators and


indicator lights


4. Fuel gauge 5. Low fuel level warning light 6. Engine coolant temperature gauge


7. Trip meter reset knob 8. Odometer and two trip meters


07 12.25


"Type B


CY11067


1. Service reminder indicators and


indicator lights


2. Tachometer


3. Speedometer 4. Fuel gauge 5. Low fuel level warning light


6. Engine coolant temperature gauge 7. Trip meter reset knob 8. Odometer and two trip meters


07 12.25


Indicator symbols on the instrument panel


Brake system warning light∗1


Open door warning light∗1


Driver’s seat belt reminder light∗1


SRS warning light∗1


Front passenger’s seat belt reminder light∗1


Automatic transmission fluid temperature warning light∗1 (four−wheel drive models)


Charging system warning light∗1


Tire pressure warning light∗1


Low engine oil pressure warning light∗1


Malfunction indicator lamp∗1


Engine oil replacement reminder light∗1 (for vehicles sold in U.S.A.)


Low windshield washer fluid level warning light∗1 (for vehicles sold in Canada)


Engine immobilizer/theft deterrent system indicator light


Roll sensing of curtain shield airbags off indicator light∗2


or


Anti−lock brake system warning light∗1


Front passenger occupant classification indicator light


07 12.25


Headlight low beam indicator light


Four−wheel drive indicator light∗3
(multi−mode four−wheel drive models)


Tail light indicator light


Slip indicator light


Headlight high beam indicator light


“AUTO LSD” indicator light


Turn signal indicator lights


Downhill assist control system indicator light (four−wheel drive models)


Front fog light indicator light


Height control indicator lights


Automatic transmission indicator lights


Height control “OFF” indicator light∗4


Low speed four−wheel drive indicator light∗3
(four−wheel drive models)


Center differential lock indicator light∗3
(four−wheel drive models)


Vehicle stability control system off indicator/warning light∗1


Cruise control indicator light∗5


07 12.25


∗1: For details, see “Service reminder indicators and warning


buzzers” on page 149 in Section 1−6.


∗2: For details, see “Roll sensing of curtain shield airbags off


switch” on page 95 in Section 1−3.


∗3: If this light flashes, see “Four−wheel drive system” on page


168 in Section 1−7.


∗4: If this light flashes, see “Rear height control air suspension”


on page 191 in Section 1−7.


∗5: If this light flashes, see “Cruise control” on page 203 in


Section 1−7.


10


07 12.25


SECTION 1− 2


OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Engine immobilizer system Wireless remote control Side doors Power windows Power back window Back door Hood Theft deterrent system Fuel tank cap Electric moon roof


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


12
14
15
22
27
30
32
34
35
37
39


11


07 12.25


Keys


To protect items locked in the glove box when using valet parking, leave the sub key with the attendant. Since the side doors can be locked with- out a key, you should always carry a spare key in case you accidentally lock your keys inside the vehicle.


CY12022


CY12049


Your vehicle is supplied with the two kinds of keys. 1. Master keys (black)—These keys work in every lock. Your Toyota dealer will need one of them to make a new key with a built−in transponder chip.


2. Sub key


(gray)—This key does not


work in the glove box.


A transponder chip for engine immobilizer system has been placed in the head of the master and sub keys. These chips are needed to enable the system to function correctly, so be careful not to lose these keys. If you make your own duplicate key, you will not be able to cancel the system or start the engine.


12


NOTICE


the


When using a key containing a trans- ponder chip, observe following precautions: z When starting the engine, do not use the key with a key ring resting on the key grip and do not press the key ring against the key grip. Otherwise the engine may not start, or may stop soon after it starts.


07 12.25


CY12023


CY12024


z Do not cover the key grip with any material that cuts off electromagnet- ic waves.


z Do not knock the key hard against


other objects.


z Do not leave the key exposed to high temperatures for a long period, such as on the dashboard and hood under direct sunlight. z Do not put the key


in water or


wash it in an ultrasonic washer.


z Do not bend the key grip.


z Do not use the key with electromag-


netic materials.


z When starting the engine, do not use the key with other transponder keys around (including keys of oth- er vehicles) and do not press other key plates against the key grip. Otherwise the engine may not start, or may stop soon after it starts. If this happens, remove the key once and then insert it again after remov- ing other transponder keys (includ- ing keys of other vehicles) from the ring or while gripping or covering them with your hand to start the engine.


13


07 12.25


Engine immobilizer system


CY12025


CY12026


CY12074


in


immobilizer system


The engine is a theft prevention system. When you in- sert the key in the engine switch, the transponder chip the key’s head transmits an electronic code to the ve- hicle. The engine will start only when the electronic code in the chip corre- sponds to the registered ID code for the vehicle. Never leave the keys inside the vehicle when you leave the vehicle.


KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.


14


indicator


light will start


The system is automatically set when the key is removed from the engine switch. The flashing to show the system is set. If any of the following indicator conditions occurs, contact your Toyota dealer. D The


light stays on except when the theft deterrent system is set- ting or activating. (See “Theft deterrent system” on page 35 in this Section.)


indicator


D The indicator light does not start flash- ing when the key is removed from the engine switch.


D The indicator light flashes inconsistent-


ly.


07 12.25


Inserting the registered key in the engine switch automatically cancels the system, which enables the engine to start. The indicator light will go off. The system is maintenance−free. For your Toyota dealer to make you a new key with built−in transponder chip, your dealer will need your key number and master key. However, there is a limit to the number of additional keys your Toyota dealer can make for you. If you make your own duplicate key, you will not be able to cancel the sys- tem or start the engine.


NOTICE


remove or disas- Do not modify, semble the engine immobilizer sys- tem. If any unauthorized changes or modifications are made, proper opera- tion of the system cannot be guaran- teed.


For vehicles sold in U.S.A.


This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.


Wireless remote control—


CY12070


CAUTION


Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.


1. “LOCK” switch 2. “UNLOCK” switch 3. Back window open switch 4. “PANIC” switch


For vehicles sold in Canada


This device complies with RSS−210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.


interference,


including


15


07 12.25


The wireless remote control system is designed to lock or unlock all the side doors and back door, open the back window or activate the “PANIC” mode from a distance within approximately 1
m (3 ft.) of the vehicle. When you operate any switch, push slowly and securely. The wireless remote control transmitter is an electronic component. Observe the fol- lowing instructions in order not to cause damage to the transmitter. D Do not leave the transmitter in places the temperature becomes high


where such as on the dashboard.


it


D Do not disassemble it. D Avoid knocking


it hard against other


objects or dropping it.


D Avoid putting it in water. You can use up to 4 wireless remote con- trol the same vehicle. Contact your Toyota dealer for detailed information.


transmitters


for


16


If the wireless remote control transmitter does not actuate the doors, back window or alarm, operate from a normal distance: D Check for closeness to a radio trans- mitter such as a radio station or an airport which can interfere with normal operation of the transmitter.


D The battery may have been consumed. Check the battery in the transmitter. To replace the battery, see “—Replacing battery” on page 20.


the possibility of


If you lose your transmitter, contact your Toyota dealer as soon as possible to avoid theft, or an accident. (See “If you lose your wireless remote control transmitter” on page 411 in Section 4.)


—Locking and unlocking doors


CY12082


Locking operation


CY12083


Unlocking operation


07 12.25


To lock and unlock all the side doors and back door, push the switches of the transmitter slowly and securely. To lock: Push the “LOCK” switch. All the side doors and back door are locked si- multaneously. At this time one beep will be heard, and the turn signal lights flash once. Check to see that all the side doors and back door are securely locked. If any of the side doors or the back door is not securely closed, locking cannot be performed by the “LOCK” switch and a beep will sound continuously for 10 sec- onds. However, if the key is in the engine switch, a beep will not sound. the side To stop doors and back door securely or push the “UNLOCK” switch. The buzzer can be disabled. For details, contact your Toyota dealer. “UNLOCK” switch To unlock: Push once to unlock the driver’s door alone. Pushing the switch twice within 3 seconds unlocks all the side doors and back door simultaneously. Each time the “UNLOCK” switch is pushed, two beeps will be heard, and the turn signal lights flash twice.


the buzzer, close all


the


light,


interior


light and


(For details,


fading out. light” on page 136,


This double switch operation to unlock all the side doors and back door can be changed to a single switch operation. For details, contact your Toyota dealer. When the “UNLOCK” switch is pressed, luggage compartment the light, engine switch running board lights (on some models) will come on and remain on for about 15 seconds see before “Interior “Luggage compartment light” on page 138, “Engine (ignition) switch light” on page 139 and “Running board in Section 1−5.) You have 30 seconds to open a door after using the wireless remote unlock feature. If a door is not opened by then, all the side doors and back door will be automati- cally locked again. The lock function can be changed. For details, con- tact your Toyota dealer. If the “LOCK” or “UNLOCK” switch is kept pressed in, the locking or unlocking opera- tion is not repeated. Release the switch and then push again.


lights” on page 140


the automatic door


timing


for


The following adjustments can be made in this system. For details, contact your Toyota dealer. D Cancelling the wireless door locking or


unlocking function


D Cancelling the flash of the turn signal


lights


D Changing the volume of beep sound


17


07 12.25


—Opening back window


—Activating panic mode


CY12084


CY12051


The “PANIC” mode does not work when the engine switch is in the “ON” position. This alarm function can be disabled. For details, contact your Toyota dealer.


To open the back window, push the back window open switch of the trans- mitter for about 1 second. The window will fully open. At this time, you can hear a beep. If the engine switch is in the “ON” posi- tion, the back window cannot be opened by the back window open switch. To open the back window with the key, see “Power back window” on page 30 in this Section. The back window opening program by wireless remote control can be changed or disabled. For details, contact your Toyota dealer.


18


flashes


intermittently and


Pushing the “PANIC” switch blows the horn the lights and turn signal headlights, tail lights, and turns on the interior and luggage compartment lights. The “PANIC” switch is used to deter ve- hicle theft when you witness anyone at- tempting into or damage your vehicle. The alarm will last for one minute. To stop alarm midway, push any of the switch on the wireless transmitter. You can also stop the alarm by turning the engine switch to “ON” position.


remote control


the “LOCK”


to break


from


07 12.25


For vehicles sold in U.S.A.


This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.


interference


NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interfer- ence by one or more of the following measures:


to radio or


D Reorient or relocate the receiving an-


tenna.


D Increase the separation between the


equipment and receiver.


D Connect the equipment into an outlet to


on a circuit different which the receiver is connected.


from


that


D Consult the dealer or an experienced


radio / TV technician for help.


FCC WARNING: Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.


19


07 12.25


For vehicles sold in Canada


Operation is subject to the following two conditions: (1) this device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.


interference,


including


20


—Replacing battery For replacement, use a CR2016 lithium battery or equivalent.


CAUTION


Special care should be taken to pre- vent small children from swallowing the removed transmitter battery or components.


NOTICE


z When replacing the transmitter bat- tery, be careful not to lose the com- ponents.


z Replace only with


the same or equivalent type recommended by a Toyota dealer.


z Dispose of used batteries according


to the local laws.


Replace the transmitter battery by follow- ing these procedures:


CY12033


1. Using a coin or equivalent, open the


transmitter case.


07 12.25


CY12088


CY12089


2. Remove the discharged transmitter bat-


3. Put in a new transmitter battery with


tery by ballpoint pen. Insert the tip of ballpoint pen at the guide groove and lift as shown in the above illustration.


NOTICE


Do not bend the terminals.


positive (+) side up.


Close the transmitter case securely.


NOTICE


z Make sure


the positive side and negative side of the transmitter bat- tery are faced correctly.


z Do not replace the battery with wet hands. Water may cause unexpected rust.


z Do not touch or move any compo- nents inside the transmitter, or it may interfere with proper operation.


z Be careful not to bend the electrode when inserting the transmitter bat- tery and that dust or oils do not adhere to the transmitter case.


z Close the transmitter case securely.


After replacing the battery, check that the transmitter operates properly. If the trans- mitter still does not operate properly, con- tact your Toyota dealer.


21


07 12.25


Side doors—


CY12001


LOCKING AND UNLOCKING WITH KEY Insert the key into the keyhole and turn it. To lock: Turn the key forward. To unlock: Turn the key backward. All the side doors and back door lock and unlock simultaneously with the driver’s door. In the driver’s door lock, turning the key once will unlock the driver’s door and twice in succession will unlock all the side doors and back door simultaneously. This double key turning operation to un- lock all the side doors and back door can be changed to a single key turning opera- tion. For details, contact your Toyota deal- er. 22


luggage compartment


When any of the side doors and back door is unlocked with a key, the interior light, light, engine switch light and running board lights (on some models) will come on and remain on for about 15 seconds before fading out. (For details, see “Interior light” on page 136, “Luggage compartment light” on page 138, light” on page 139 and “Running board lights” on page 140 in Section 1−5.)


(ignition) switch


“Engine


CY12002


LOCKING AND UNLOCKING WITH INSIDE LOCK KNOB Move the lock knob. To lock: Push the knob forward. To unlock: Pull the knob backward. The front doors can be opened by pulling the inside handles even if the lock knobs are in the locked position.


07 12.25


CAUTION


Driver’s side


Do not pull the inside handle of the front doors while driving. The doors will open and an accident may occur. Toyota strongly recommends that all children be placed in the rear seat of the vehicle.


Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the ve- hicle. The front doors cannot be locked if you leave the key in the engine switch.


CY12073


Front passenger’s side


lock: Push the switch down on the


LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH Push the switch. To front side. To unlock: Push the switch down on the rear side. Operating the switch simultaneously locks or unlocks all the side doors and back door. If you do either of the following, no side door or back door can be unlocked with the power door lock switch. D Lock all the side doors and back door with the key or wireless remote control transmitter when all the side doors and back door are closed.


D Open the driver’s door or front passen- ger’s door and move the inside lock knobs of both front doors to the lock position, then close the front doors.


23


07 12.25


The power door lock switch can be reset in the following ways. D Turn the engine switch to “ON”. D Unlock all


the side doors and back door with the key or wireless remote control transmitter.


D Unlock the driver’s door or front pas- lock senger’s door with knob, and the side doors and back door with the power door lock switch.


then unlock all


inside


the


This unlocking protection with the power door lock switch can be disabled. For de- tails, contact your Toyota dealer.


24


CY12004


CAUTION


Before driving, be sure that the doors are closed and locked, especially when small children are in the ve- hicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the ve- hicle in an accident. It also helps pre- vent the doors from being opened unintentionally.


to


the


lock


lever


the “LOCK”


REAR DOOR CHILD−PROTECTORS Move position as shown on the label. When the child−protector is locked, you cannot open the rear door by the inside door handle. We recommend using this feature whenever small children are in the vehicle.


07 12.25


—Automatic door locking and unlocking functions AUTOMATIC DOOR LOCKING You can select the following functions: D Locking linked with the shift position All doors are automatically locked when the selector lever is moved out of “P” position.


D Locking linked with vehicle speed


All doors are automatically locked when the vehicle speed goes above about 20
km/h (12 mph).


You can set or cancel the automatic door locking functions: Be sure to apply the parking brake when performing the following operations.


To select the locking linked with the shift position: 1. Close all doors and turn the engine


To select the locking linked with the vehicle speed: 1. Close all doors and turn the engine


switch to the “ON” position.


switch to the “ON” position.


2. Shift the selector lever to the “P” posi-


2. Shift the selector lever from “P” to the


tion.


“N” position.


3. Within 10 seconds of turning the en- gine switch to the “ON” position, press and hold the driver’s side power door lock switch in the lock position for 5
seconds and then release. The doors will be locked and unlocked to indicate that the function is set.


3. Within 10 seconds of turning the en- gine switch to the “ON” position, press and hold the driver’s side power door lock switch in the lock position for 5
seconds and then release. The doors will be locked and unlocked to indicate that the function is set.


To cancel the function, do the above op- eration again.


To cancel the function, do the above op- eration again.


25


07 12.25


AUTOMATIC DOOR UNLOCKING You can select the following functions: D Unlocking linked with the shift posi-


tion All doors are automatically unlocked when the selector lever is moved to “P” position.


D Unlocking


linked with


the engine


switch All doors are automatically unlocked when the driver’s door is opened within 10 seconds after the engine switch is turned to the “ACC” or “LOCK” posi- tion, or the key is removed.


You can set or cancel the automatic door unlocking functions: Be sure to apply the parking brake when performing the following operations.


26


To select the unlocking linked with the shift position: 1. Close all doors and turn the engine


To select the unlocking linked with the engine switch: 1. Close all doors and turn the engine


switch to the “ON” position.


switch to the “ON” position.


2. Shift the selector lever to the “P” posi-


2. Shift the selector lever from “P” to the


tion.


“N” position.


3. Within 10 seconds of turning the en- gine switch to the “ON” position, press and hold the driver’s side power door lock switch in the unlock position for 5 seconds and then release. The doors will be locked and unlocked to indicate that the function is set.


3. Within 10 seconds of turning the en- gine switch to the “ON” position, press and hold the driver’s side power door lock switch in the unlock position for 5 seconds and then release. The doors will be locked and unlocked to indicate that the function is set.


To cancel the function, do the above op- eration again.


To cancel the function, do the above op- eration again.


07 12.25


Power windows


OPERATING THE DRIVER’S WINDOW Use the switch on the driver’s door. Normal operation: The window moves as long as you hold the switch. To open: Lightly push down the switch. To close: Lightly pull up the switch.


CY12006


CY12005


The windows can be operated with the switch on each side door. The power windows work when the engine switch is in the “ON” position. Key off operation: If both front doors are closed, all the power windows work for 43
seconds even after the engine switch is turned off. It stops working when either front door is opened. The indicator light (“AUTO”) on the switch tells you the switch can be operated.


Automatic operation: Push the switch completely down or pull it completely up, and then release it. The window will fully open or close. To stop the window part- way, lightly move the switch in the oppo- site direction and then release it. Jam protection function: During automat- ic closing operation or key off closing op- eration, the window stops and opens half way if something gets caught between the window and window frame. If the window receives a strong impact, this function may work even if nothing is caught.


27


07 12.25


If the battery is disconnected or run down, the power window may not operate automatically and the jam protection func- tion will not function correctly after you reconnect, replace or recharge the battery. In any of these cases, you should normal- ize the power window. To normalize the power window: 1. Push down the power window switch


and lower the window halfway.


Window lock switch


CY12052


2. Pull up


the switch until


the window closes and hold the switch for a sec- ond.


that


Make sure the window opens and closes automatically. If the power window cannot be operated properly, have it checked by your Toyota dealer.


CAUTION


D Never try jamming any part of your body to activate the jam protection function intentionally, as it could re- sult in death or serious injury.


CY12085


D The


jam protection


function may not work if something gets caught just before fully closed.


the window


is


28


07 12.25


THE


PASSENGERS’


OPERATING WINDOWS Use the switch on each passenger’s door or the switches on the driver’s door that control each passenger’s win- dow. The window moves as long as you hold the switch. To open: Push down the switch. To close: Pull up the switch. If you push in the window lock switch on the driver’s door, the passengers’ windows cannot be operated.


the key still


D Never leave anyone (particularly a small child) alone in your vehicle, especially with in- serted. Otherwise, he/she could use the power window switches and get trapped in a window. Unattended person (particularly a small child) can be involved in a serious acci- dent.


CAUTION


To avoid death or serious injury, you must do the following. D Before you close the power win- dows, always make sure there is nobody around the power windows. You must also make sure the heads, hands and other parts of the bodies of all occupants are kept completely If someone’s neck, head or hands get caught it could result in death or serious in- jury. When anyone closes the power windows, make sure he or she op- erates the windows safely.


in a closing window,


the vehicle.


inside


D When small children are in the ve- hicle, never let them use the power window switches without supervi- sion. Use the window lock switch to prevent from making unex- pected use of the switches.


them


D Be sure to remove the key when


you leave your vehicle.


29


07 12.25


Power back window


CY12036


The back window can be operated with the switch on the instrument panel or the key operation in the back door key- hole. The power back window works when the engine switch is in the “ON” position. You can open the back window when the that back window wiper time, the window is closed again. If the back window is not fully closed, the back window wiper, washer and defogger will not work. (See “Back window wiper and washer” on page 141 and “Back window and outside rear view mirror defoggers” on page 142 in Section 1−5.)


is working. At the wiper stops working until


30


If the battery is disconnected or run down, the power back window may not operate automatically and the jam protec- tion function will not function correctly af- ter you reconnect, replace or recharge the battery. In any of these cases, you should normalize the power back window with the power back window switch. To normalize the power back window: 1. Push the “Ɲ” (down) switch and lower


the window halfway.


2. Push the “Ɯ” (up) switch until the win- dow closes and hold the switch for a second.


If


that


the window opens and Make sure closes automatically. the power back window cannot be operated properly, have it checked by your Toyota dealer. OPERATING FROM INSIDE The engine switch must be in the “ON” position. Normal operation: To open or close the back window, quickly push and release the “Ɲ” (down) or “Ɯ” (up) switch.


Automatic operation: To open or close the back window, push and hold the “Ɲ” (down) or “Ɯ” (up) switch. The window will fully open or close. To stop the win- dow partway, push the switch on either the “Ɲ” (down) or “Ɯ” (up) side briefly. Key off operation: If both front doors are closed, it works for 43 seconds even after the engine switch is turned off. It stops working when either front door is opened. Jam protection function: During automat- ic closing operation or key off closing op- eration, the window stops and opens half way if something gets caught between the window and window frame. If the window receives a strong impact, this function may work even if nothing is caught.


CAUTION


D Never try jamming any part of your body to activate the jam protection function intentionally, as it could re- sult in death or serious injury.


D The


jam protection


function may not work if something gets caught just before fully closed.


the window


is


07 12.25


CY12008


If you push in the window lock switch on the driver’s door, the back window cannot be operated.


CY12086


the door


is unlocked,


OPERATING FROM OUTSIDE The back window can be opened and closed with the key operation in the back door keyhole. To open: Turn the key fully counterclock- wise and hold it. After the window begins to open. To stop the window part- way, release the key. To close: Turn the key fully clockwise and hold it. After the door is locked, the window be- gins to close. To stop the window partway, release the key. This door key linked function can be dis- abled. For details, contact your Toyota dealer. Jam protection function: During closing operation, the window stops and opens half way if something gets caught between the window and window frame. If the window receives a strong impact, this function may work even if nothing is caught.


31


07 12.25


CAUTION


To avoid death or serious injury, you must do the following. D Before you close the power back window, always make sure there is nobody around the power back win- dow. You must also make sure the heads, hands and other parts of the bodies of all occupants are kept completely If someone’s neck, head or hands get caught it could result in death or serious in- jury. When anyone closes the power back window, make sure he or she operates the window safely.


in a closing window,


the vehicle.


inside


D When small children are in the ve- hicle, never let them use the power back window switch without super- vision. Use the window lock switch to prevent them from making unex- pected use of the switch.


D Be sure to remove the key when


you leave your vehicle.


32


the key still


D Never leave anyone (particularly a small child) alone in your vehicle, especially with in- serted. Otherwise, he/she could use the power back window switch and get in a window. Unat- tended person (particularly a small child) can be involved in a serious accident.


trapped


D Keep the back window closed while driving. This not only keeps the luggage from being thrown out but also prevents exhaust gases from entering the vehicle.


D Never try jamming any part of your body to activate the jam protection function intentionally, as it could re- sult in death or serious injury.


D The


jam protection


function may not work if something gets caught just before fully closed.


the window


is


remote


To open the back window with the wire- less see “—Opening back window” on page 18 in this Section.


transmitter,


control


Back door


CY12069


To open the back door, push up the back door opener. The back door can be opened when the vehicle is stopped. If the back door opener does not operate except when the battery is disconnected or run down, contact your Toyota dealer. If the battery is disconnected or run down, the back door does not open after you reconnect, replace or recharge the battery. In any of these cases, you should normalize the back door.


07 12.25


To normalize the back door, unlock it with the key, remote control transmitter or pow- er door lock switch, see “—Locking and unlocking doors” on page 16 and “Side doors” on page 22 in this Section. Make sure that the back door opens. If the back door cannot be opened properly, have it checked by your Toyota dealer. The back door can be locked or unlocked in the following ways. D All the side doors and back door lock and unlock simultaneously with the back door. Insert the key into the key- hole, turn it clockwise to lock and turn it counterclockwise to unlock.


D Operate


the power door


lock switch. (See “Side doors” on page 22 in this Section.) D Operate


remote control. (See “—Locking and unlocking doors” on page 16 in this Section.)


the wireless


D All the side doors and back door are locked and unlocked simultaneously with “Side doors” on page 22 in this Section.)


the driver’s door.


(See


If the battery terminal is disconnected and reconnected, the back door will be auto- matically locked. Be careful not to lock your keys in the vehicle.


light,


interior


light and


When all the side doors and back door are unlocked simultaneously with a key, the luggage compartment light, engine switch running board lights (on some models) will come on and remain on for about 15 seconds before fading out. (For details, see “Interi- or light” on page 136, “Luggage compart- ment light” on page 138, “Engine (ignition) switch light” on page 139 and “Running board lights” on page 140 in Section 1−5.) The back window can be opened and closed with the key operation in the back door keyhole. (For details, see “Power back window” on page 30 in this Section.)


CY12009


When closing the back door, the inside strap can be used to make the reach easier. To close the back door, lower it and press down on it. After closing the back door, try pulling it up to make sure it is secure- ly closed. Back door closer: When the back door has not been fully closed, it is automati- cally closed completely. See “—Stowage precautions” on page 365
in Section 2 for precautions when loading luggage.


33


07 12.25


CAUTION


D Keep the back window and back door closed while driving. This not only keeps the luggage from being thrown out but also prevents ex- haust gases from entering the ve- hicle.


D Careful attention is needed so as not to get your fingers trapped as the back door automatically closes when it has not been fully closed. D Never allow a child to operate the


back door.


NOTICE


z To avoid damage to the back door dampers, do not apply any force, paint or let any other foreign matter on them.


z Do not apply excessive force when the back door closer is operating. Otherwise, the back door closer may become defective.


34


Hood


CY12053


CY12087


To open the hood: 1. Pull the hood lock release lever. The


hood will spring up slightly.


CAUTION


Before driving, be sure that the hood is closed and securely locked. Other- wise, the hood may open unexpected- ly while driving and an accident may occur.


2. In front of the vehicle, pull up the the


lever and


lift


auxiliary catch hood.


Before closing the hood, check to see that you have not forgotten any tools, rags, etc. Then lower the hood and make sure it If necessary, press down gently on the front edge to lock it.


into place.


locks


07 12.25


Theft deterrent system


CY12054


CY12074


is triggered


The system sounds alarm and flashes lights when forcible entry is detected. The alarm if any of the doors or hood is forcibly unlocked or opened or the battery terminal is dis- connected and then reconnected when the vehicle is locked.


SETTING THE SYSTEM 1. Turn the engine switch to the “LOCK”


position and remove the key.


is


removed


The indicator light will start flashing when the key the engine switch. (See “Engine immobilizer system” on page 14 in this Section for details.) 2. Have all passengers get out of


from


the


vehicle.


3. Close and lock all the side doors, back


door and hood.


The indicator light will remain on when all the side doors, back door and hood are closed and locked.


The system will automatically be set after 30 seconds. When the system is set, the indicator light will start flashing again. 4. After making sure


light starts flashing, you may leave the ve- hicle.


indicator


the


Never leave anyone in the vehicle when you set the system, because unlocking from the inside will activate the system. CANCELING THE SYSTEM The system will cancel under the any of the following conditions: D Any of the side doors, back door or


hood is opened.


D Any of the side doors or the back door


is unlocked. is


D The key


switch.


inserted


into


the engine


D The battery terminal is reconnected.


35


07 12.25


WHEN THE SYSTEM IS SET Activating the system The system will sound the alarm under the following conditions: D If any of the side doors is unlocked or opened without the key or wireless re- mote control transmitter, or if the back door or hood is forcibly opened.


D If the battery terminal is disconnected


and then reconnected.


D If the ignition is hotwired. The indicator light will come on when the system is activated. If the alarm has been activated and the key is not in the engine switch, all the side doors and back door will re−lock au- tomatically. After one minute, the alarm will automati- cally stop and the indicator light will starts flashing again. Reactivating the alarm Once set, the system automatically resets the alarm after the alarm stops. The alarm will activate again under the same in circumstances “Activating the system”.


described


36


Stopping the alarm The alarm will be stopped by the following these ways: D Unlock any of the side doors or the back door with the key or wireless re- mote control transmitter.


D Turn


the engine switch


from


the


“LOCK” to “ON” position.


the


the system at


These ways cancel same time. If the battery becomes discharged due to the vehicle being unused for a long time, etc., when the battery is recharged or the alarm. If this happens, immediately unlock any of the side doors or the back door with the key or the wireless remote con- trol transmitter, and the alarm will stop.


the system will give


replaced,


TESTING THE SYSTEM 1. Open all the windows. 2. Set


the system as described above. The side doors and back door should be locked with the key or wireless re- mote control to wait until the indicator light goes off or starts flashing.


transmitter. Be sure


3. Unlock any side door from the inside. The system should activate the alarm.


for


this operation


4. Stop the alarm as described above. 5. Repeat


the other doors and hood. When the hood, also check that the system is activated when the battery terminal is disconnected and then reconnected. the system does not work properly,


If have it checked by your Toyota dealer.


testing


07 12.25


Fuel tank cap


CY12081


CY12055


CY12060


This indicates that the fuel filler door is on the left side of your vehicle.


1. To open the fuel filler door, pull the


lever. When refueling, turn off the engine.


CAUTION


D Do not smoke, cause sparks or al- flames when refueling.


low open The fumes are flammable.


2. To remove the fuel tank cap, turn the cap counterclockwise by 90 de- grees (to the pressure point 1), and then turn it an additional 30 degrees (to point 2). Pause slightly before removing it.


It is not unusual to hear a slight swoosh when the cap is opened.


D When opening the cap, do not re- move the cap quickly. In hot weath- er, fuel under pressure could cause injury by spraying out of the filler neck is suddenly re- moved.


the cap


if


37


07 12.25


CY12056


38


NOTICE


To prevent damage to the cap, apply force only in the turning direction to the cap. Do not pull or pry it.


3. The removed cap can be stored on the back side of the fuel filler door. Position the cap so that the hooks point to the left and right or up and down, and set it in the receptacle on the back side of the door. When installing the cap, turn the cap clockwise until you hear a click. When you hear the click, the cap is fully closed. If the cap is not installed securely, the malfunction lamp comes on. Make sure the cap is tightened securely. The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Toyota dealer as soon as possible.


indicator


CAUTION


D Make sure the cap is installed se- in


curely to prevent fuel spillage the event of an accident.


D Use only a genuine Toyota fuel tank cap for replacement. It is designed to regulate fuel tank pressure.


07 12.25


Electric moon roof


CY12016


Sliding operation


CY12017


Tilting operation


the


the moon roof, use


To operate switch beside the personal lights. The moon roof works when the engine switch is in the “ON” position. The sun shade can be opened or closed by hand. Sliding operation— To open: Push the switch on the “SLIDE OPEN” side. The roof will fully open automatically. To stop the roof partway, push the switch on either the “SLIDE OPEN” or “TILT UP” side quickly. When you quickly push and release the switch, the moon roof will open while the switch is being pushed and stop when released. The sun shade will be opened together with the roof. When the moon roof is opened fully, the deflector will raise to reduce the entering of the strong wind. The angle of the de- flector will be adjusted according to the vehicle speed. To close: Push the switch on the “TILT UP” side.


The roof will fully close automatically. To stop the roof partway, push the switch on either the “SLIDE OPEN” or “TILT UP” side quickly. When you quickly push and release the switch, the moon roof will close while the switch is being pushed and stop when released. Tilting operation— To tilt up: Push the switch on the “TILT UP” side. The roof will fully tilt up automatically. To stop the roof partway, push the switch on either the “SLIDE OPEN” or “TILT UP” side quickly. When you quickly push and release the switch, the moon roof will tilt up while the switch is being pushed and stop when released. To tilt down: Push “SLIDE OPEN” side. The roof will fully tilt down automatically. To stop the roof partway, push the switch on either the “SLIDE OPEN” or “TILT UP” side quickly. When you quickly push and release the switch, the moon roof will tilt down while the switch is being pushed and stop when released.


the switch on


the


39


07 12.25


Key off operation: If both front doors are closed, it works for 43 seconds even after the engine switch is turned off. It stops working when either front door is opened. Jam protection function: D If something gets caught between the moon roof and frame during slide clos- ing operation, the moon roof stops and opens half way, and the deflector stops and raises fully.


D If something gets caught between the moon tilting down operation, the moon roof stops and opens fully.


frame during


roof and


If the moon roof receives a strong impact, this function may work even if nothing is caught. If the battery is disconnected or run down, the moon roof may not operate automatically and the jam protection func- tion will not function correctly after you reconnect, replace or recharge the battery. In any of these cases, you should normal- ize the moon roof. To normalize the moon roof, push and hold the switch on the “TILT UP” side until the moon roof tilts all the way up and then tilts down a little automatically.


40


the key still


D Never leave anyone (particularly a small child) alone in your vehicle, especially with in- serted. Otherwise, he/she could use the moon roof switch and get trapped in the roof opening. Unat- tended person (particularly a small child) can be involved in a serious accident.


D Never sit on


top of


the vehicle


around the roof opening.


D Never try jamming any part of your body to activate the jam protection function intentionally, as it could re- sult in death or serious injury.


D The


jam protection


function may not work if something gets caught just before the moon roof is fully closed.


Make sure that the moon roof opens and closes automatically. If the moon roof can- not be operated properly, have it checked by your Toyota dealer.


CAUTION


To avoid death or serious injury, you must do the following. D While the vehicle is moving, always keep the heads, hands and other parts of the bodies of all occupants away from the roof opening. Other- wise, they could be killed or seri- injured if the vehicle stops ously suddenly or in- volved in an accident.


if the vehicle


is


D Before you close the moon roof, always make sure there is nobody around the moon roof. You must also make sure nobody places his or her head, hands and other parts of the body in the roof opening. If someone’s neck, head or hands get caught in the closing roof, it could result injury. When anyone closes the moon roof, first make sure it is safe to do so. D Be sure to remove the key when


in death or serious


you leave your vehicle.


07 12.25


SECTION 1− 3


OPERATION OF INSTRUMENTS AND CONTROLS Occupant restraint systems Seats Front seats Driving position memory system Rear seats Head restraints Armrest Seat heaters Seat belts SRS airbags Roll sensing of curtain shield airbags off switch Child restraint


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Loading...
x
