’06 4Runner_U (L/O 0508)

SECTION 1− 1

OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 6 8

1

’06 4Runner_U (L/O 0508)

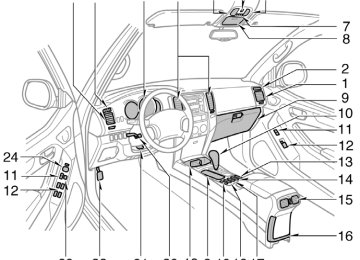

Instrument panel overview

1. Side vents 2. Side defroster outlets 3. Instrument cluster 4. Center vents 5. Personal lights 6. Electric moon roof switch 7. Garage door opener 8. Auxiliary boxes 9. Glove box 10. Automatic transmission selector lever 11. Power door lock switches 12. Power window switches 13. Seat heater switches 14. Rear height control air suspension

switch

15. Rear vents 16. Trash holder 17. Toyota electronic modulated suspension

mode select switch

18. Downhill assist control switch 19. Front cup holders 20. Tilt steering lock release lever

2

’06 4Runner_U (L/O 0508)

21. Telescopic steering lock release lever 22. Parking brake pedal 23. Window lock switch 24. Power rear view mirror control switches

Rear console box

1. Power outlet (12 VDC) 2. Power outlet (115 VAC) 3. AUX adapter 4. A/V input adapter

3

’06 4Runner_U (L/O 0508)

1. Driving position memory switches 2. Headlight, turn signal and front fog

light switches

3. Wiper and washer switches 4. Power back window switch 5. Audio system/rear view monitor system

and navigation system including audio system (For the navigation system, see the separate “Navigation System Owner’s Manual”.)

6. Front passenger’s seat belt reminder

light

7. Engine immobilizer/theft deterrent

system indicator light

8. Front passenger occupant classification

indicator light

9. Multi−information display 10. Emergency flasher switch 11. Air conditioning controls 12. Auxiliary box 13. Back window and outside rear view

mirror defogger switch

14. Four−wheel drive control switch knob (full−time four−wheel drive models) or multi−mode control switch knob (multi−mode four−wheel drive models)

4

’06 4Runner_U (L/O 0508)

"Steering switches

15. Ignition switch 16. Cruise control switch 17. Hood lock release lever 18. Fuel filler door opener 19. Roll sensing of curtain shield airbags

off switch

20. “AUTO LSD” switch 21. Center differential lock switch 22. Power outlet main switch 23. Instrument panel light control dial

1. Volume control switches for audio

system/hands−free system (For the hands−free system, see the separate “Navigation System Owner’s Manual”.)

2. “ƜƝ” switch 3. “MODE” switch 4. Telephone switches (See the separate “Navigation System Owner’s Manual”.)

5. Speech command switch (See the

separate “Navigation System Owner’s Manual”.)

5

’06 4Runner_U (L/O 0508)

Instrument cluster overview "Type A

1. Tachometer 2. Speedometer 3. Service reminder indicators and

indicator lights

4. Fuel gauge 5. Low fuel level warning light 6. Engine coolant temperature gauge

7. Trip meter reset knob 8. Odometer and two trip meters

6

’06 4Runner_U (L/O 0508)

"Type B

1. Service reminder indicators and

indicator lights

2. Tachometer

3. Speedometer 4. Fuel gauge 5. Low fuel level warning light

6. Engine coolant temperature gauge 7. Trip meter reset knob 8. Odometer and two trip meters

7

’06 4Runner_U (L/O 0508)

D Vehicle stability control system warning

light∗1

D Traction control system warning light∗1

(two−wheel drive models)

D Active traction control system warning light∗1

(four−wheel drive models)

D “AUTO LSD” system warning light∗1

(two−wheel drive models)

D Downhill assist control system warning

light∗1 (four−wheel drive models)

D Hill−start assist control system warning

light∗1

Open door warning light∗1

SRS warning light∗1

Automatic transmission fluid temperature warning light∗1 (four−wheel drive models)

Low tire pressure warning light∗1

Indicator symbols on the instrument panel

Brake system warning light∗1

Driver’s seat belt reminder light∗1

Front passenger’s seat belt reminder light∗1

Charging system warning light∗1

Low engine oil pressure warning light∗1

Malfunction indicator lamp∗1

Engine oil replacement reminder light∗1 (for vehicles sold in U.S.A.)

or

Anti−lock brake system warning light∗1

8

’06 4Runner_U (L/O 0508)

Low windshield washer fluid level warning light∗1 (for vehicles sold in Canada)

Engine immobilizer/theft deterrent system indicator light

Roll sensing of curtain shield airbags off indicator light∗2

Front passenger occupant classification indicator light

Headlight low beam indicator light

Front fog light indicator light

Automatic transmission indicator lights

Low speed four−wheel drive indicator light∗3 (four−wheel drive models) Center differential lock indicator light∗3 (four−wheel drive models)

Vehicle stability control system off indicator light (four−wheel drive models) Four−wheel drive indicator light∗3 (multi−mode four−wheel drive models)

Tail light indicator light

Slip indicator light

Headlight high beam indicator light

Turn signal indicator lights

“AUTO LSD” indicator light (two−wheel drive models)

Downhill assist control system indicator light (four−wheel drive models)

9

’06 4Runner_U (L/O 0508)

Height control indicator lights

Height control “OFF” indicator light∗4

Cruise control indicator light∗5

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 147 in Section 1−6.

∗2: For details, see “Roll sensing of curtain shield airbags off

switch” on page 95 in Section 1−3.

∗3: If this light flashes, see “Four−wheel drive system” on page

164 in Section 1−7.

∗4: If this light flashes, see “Rear height control air suspension”

on page 184 in Section 1−7.

∗5: If this light flashes, see “Cruise control” on page 195 in

Section 1−7.

10

’06 4Runner_U (L/O 0508)

SECTION 1− 2

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Engine immobilizer system Wireless remote control Side doors Power windows Power back window Back door Hood Theft deterrent system Fuel tank cap Electric moon roof

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12 14 15 22 27 30 32 34 35 37 39

11

’06 4Runner_U (L/O 0508)

Keys

To protect items locked in the glove box when using valet parking, leave the sub key with the attendant. Since the side doors can be locked with- out a key, you should always carry a spare key in case you accidentally lock your keys inside the vehicle.

Your vehicle is supplied with the two kinds of keys. 1. Master keys (black)—These keys work in every lock. Your Toyota dealer will need one of them to make a new key with a built−in transponder chip.

2. Sub key

(gray)—This key does not

work in the glove box.

A transponder chip for engine immobilizer system has been placed in the head of the master and sub keys. These chips are needed to enable the system to function correctly, so be careful not to lose these keys. If you make your own duplicate key, you will not be able to cancel the system or start the engine.

12

NOTICE

the

When using a key containing a trans- ponder chip, observe following precautions: z When starting the engine, do not use the key with a key ring resting on the key grip and do not press the key ring against the key grip. Otherwise the engine may not start, or may stop soon after it starts.

’06 4Runner_U (L/O 0508)

z Do not cover the key grip with any material that cuts off electromagnet- ic waves.

z Do not knock the key hard against

other objects.

z Do not leave the key exposed to high temperatures for a long period, such as on the dashboard and hood under direct sunlight. z Do not put the key

in water or

wash it in an ultrasonic washer.

z Do not bend the key grip.

z Do not use the key with electromag-

netic materials.

z When starting the engine, do not use the key with other transponder keys around (including keys of oth- er vehicles) and do not press other key plates against the key grip. Otherwise the engine may not start, or may stop soon after it starts. If this happens, remove the key once and then insert it again after remov- ing other transponder keys (includ- ing keys of other vehicles) from the ring or while gripping or covering them with your hand to start the engine.

13

’06 4Runner_U (L/O 0508)

Engine immobilizer system

immobilizer system

The engine is a theft prevention system. When you in- sert the key in the ignition switch, the transponder chip the key’s head transmits an electronic code to the ve- hicle. The engine will start only when the electronic code in the chip corre- sponds to the registered ID code for the vehicle.

in

KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.

14

indicator

light will start

The system is automatically set when the
