’01 4Runner_U (L/O 0008)

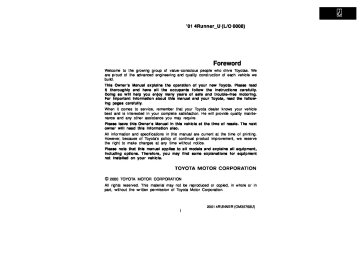

Foreword

Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and quality construction of each vehicle we build. This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For important information about this manual and your Toyota, read the follow- ing pages carefully. When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete satisfaction. He will provide quality mainte- nance and any other assistance you may require. Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also. All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of continual product improvement, we reserve the right to make changes at any time without notice. Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

© 2000 TOYOTA MOTOR CORPORATION All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota Motor Corporation.

i

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



Important information about this manual

Safety and vehicle damage warnings

Safety symbol

Throughout this manual, you will see safety and vehicle dam- age warnings. You must follow these warnings carefully to avoid possible injury or damage. The types of warnings, what they look like, and how they are used in this manual are explained as follows:

CAUTION

This is a warning against something which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk to yourself and other people.

NOTICE

This is a warning against something which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment.

the safety symbol When you see shown above, it means: “Do not...”; “Do not do this”; or “Do not let this happen”.

ii

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



Important information about your Toyota

New vehicle warranty

Your new vehicle limited warranties:

is covered by

the

following Toyota

D New vehicle warranty D Emission control systems warranty D Others further

information, please refer

Information Booklet” or

For Warranty Supplement”.

to the “Owner’s “Owner’s Manual

Your responsibility for maintenance

It is the owner’s responsibility to make sure that the specified maintenance is performed. Section 6 gives de- tails of these maintenance requirements. Also included in Section 6 is general maintenance. For scheduled maintenance information, please refer to the “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.

Accessories, spare parts and modification of your Toyota

A wide variety of non−genuine spare parts and accesso- ries for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their perfor- mance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non−genuine Toyota products. Modification with non−genuine Toyota products could affect its performance, safety or durabili- ty, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

iii

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



Spark ignition system of your

Toyota

Installation of a mobile two−way radio system

The spark ignition system in your Toyota meets all re- quirements of the Canadian Interference−Causing Equip- ment Standard.

fuel

traction control system

injection system/sequential multiport

As the installation of a mobile two−way radio system in your vehicle could affect electronic systems such as multiport fuel injection system, (two−wheel drive models)/active traction control system (four−wheel drive models), vehicle skid control system, cruise control system, anti−lock brake system, electronic throttle con- trol system, SRS airbag system and seat belt preten- sioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions re- garding installation.

iv

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



Scrapping of your Toyota

On−pavement and off−road

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and pretensioners left as they are, it may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you dis- pose of your vehicle.

driving tips

This vehicle belongs to the utility vehicle class. Utility vehicles have a significantly higher rollover rate than other types of vehicles. This vehicle will handle and maneuver differently from an ordinary passenger car be- cause it is designed for off−road use also. In addition, this vehicle has a higher ground clearance and center of gravity that of an ordinary passenger car. This vehicle design feature causes this type of vehicle to be more likely to rollover. Failure to operate this vehicle correctly may result loss of control, accidents or vehicle rollover causing death or serious injury. Be sure to read “Off−road vehicle precautions” in Section 2 and “Off−road driving precautions” in Section 3.

than

in

v

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



vi

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



SECTION 1− 1

OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 5 6

2001 4RUNNER (OM35768U)

1

’01 4Runner_U (L/O 0008)

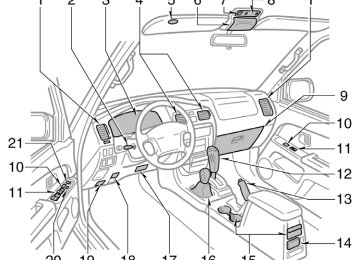

Instrument panel overview

1. Side vents 2. Tilt steering lock release lever 3. Instrument cluster 4. Center vents 5. Garage door opener 6. Garage door opener box or auxiliary

box

7. Electric moon roof switch 8. Personal lights 9. Glove box 10. Power door lock switches 11. Power window switches 12. Automatic transmission selector lever 13. Parking brake lever 14. Ashtray 15. Cup holders 16. Front drive control lever 17. Lower vent 18. Hood lock release lever 19. Fuel filler door opener 20. Window lock switch 21. Power rear view mirror control switches

(with power windows)

2

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



1. Seat heater switch (for passenger) 2. Headlight and turn signal switch, and

front fog light switch

3. Wiper and washer switches 4. Back window and rear view mirror

defoggers switch

5. Driving pattern selector button 6. Clock 7. Emergency flasher switch 8. Power back window switch 9. Theft deterrent system/Engine

immobiliser system indicator light

10. Front passenger’s seat belt reminder

light

11. Air conditioning controls 12. Car audio 13. Ashtray 14. Power outlets 15. Cigarette lighter 16. “OUT/T” (outside temperature) button 17. Ignition switch 18. Cruise control switch 19. Center differential lock switch 20. Instrument panel light control knob 21. Power rear view mirror control switch

(without power windows)

2001 4RUNNER (OM35768U)

3

’01 4Runner_U (L/O 0008)



22. Traction control off switch 23. Seat heater switch (for driver) or

Power back window lock switch

4

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



Instrument cluster overview

1. Service reminder indicators and

indicator lights

2. Engine coolant temperature gauge 3. Tachometer

4. Speedometer 5. Odometer and two trip meters 6. Fuel gauge

7. Trip meter reset knob

2001 4RUNNER (OM35768U)

5

’01 4Runner_U (L/O 0008)



Indicator symbols on the instrument panel

Brake system warning light∗1

Driver’s seat belt reminder light∗1

Vehicle skid control system and traction control system (two−wheel drive models) or active traction control system (four−wheel drive models) warning light∗1

Front passenger’s seat belt reminder light∗1

Open door warning light∗1

Discharge warning light∗1

SRS warning light∗1

Low oil pressure warning light∗1

Unengaged “Park” warning light∗1

Malfunction indicator lamp∗1

Low fuel level warning light∗1

or

Anti−lock brake system warning light∗1

Automatic transmission fluid temperature warning light∗1

Low windshield washer fluid level warning light∗1

Turn signal indicator lights

Headlight high beam indicator light

6

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



Overdrive−off indicator light

Automatic transmission indicator lights

Driving pattern (“PWR” mode) indicator light

Four−wheel drive and center differential lock indicator lights

Slip indicator light

Traction control system off indicator light∗1 (two−wheel drive models)

Vehicle skid control system off indicator light∗1 (four−wheel drive models)

Cruise control indicator light∗2

∗1: For details, see “Service reminder

indicators and warning

buzzers” in Section 1−5.

∗2: If this light flashes, see “Cruise control” in Section 1−6.

2001 4RUNNER (OM35768U)

7

’01 4Runner_U (L/O 0008)



8

2001 4RUNNER (OM35768U)

’01 4Runner_U (L/O 0008)



SECTION 1− 2

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Engine immobiliser system Side doors Power windows Power back window Back door Hood Theft deterrent system Fuel tank cap Electric moon roof

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
