’05 4Runner_U (L/O 0409)
SECTION 1− 1
OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)

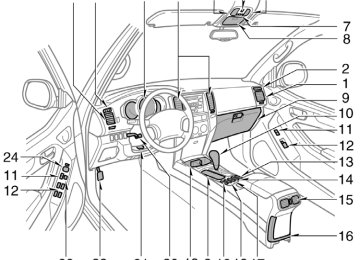

Instrument panel overview
1. Side vents 2. Side defroster outlets 3. Instrument cluster 4. Center vents 5. Personal lights 6. Electric moon roof switch 7. Garage door opener 8. Auxiliary boxes 9. Glove box 10. Automatic transmission selector lever 11. Power door lock switches 12. Power window switches 13. Seat heater switches 14. “HEIGHT CONTROL OFF” switch 15. Rear vents 16. Trash holder 17. Height select switch 18. “DAC” switch 19. Front cup holders 20. Tilt steering lock release lever
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
21. Telescopic steering lock release lever 22. Parking brake pedal 23. Window lock switch 24. Power rear view mirror control switches
Rear console box
1. Power outlet (12 VDC) 2. Power outlet (115 VAC)
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
1. Instrument panel light control dial 2. Headlight, turn signal and front fog
light switches
3. Audio remote control switches 4. Wiper and washer switches 5. Power back window switch 6. Audio system/rear view monitor system
and navigation system including audio system (For the navigation system, see the separate “Navigation System Owner’s Manual”.)
7. Front passenger’s seat belt reminder
light
8. Engine immobilizer/theft deterrent
system indicator light
9. Front passenger occupant classification
indicator light

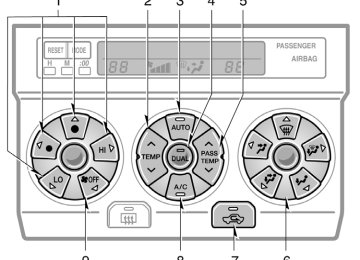

10. Multi−information display 11. Emergency flasher switch 12. Air conditioning controls 13. Auxiliary box 14. Back window and rear view mirror
defogger switch
15. Four−wheel drive control switch knob (full−time four−wheel drive models) or multi−mode control switch knob (multi−mode four−wheel drive models)
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
16. Ignition switch 17. Cruise control switch 18. Hood lock release lever 19. Fuel filler door opener 20. Roll sensing of curtain shield airbags
off switch
21. “AUTO LSD” switch 22. Center differential lock switch 23. Power outlet main switch
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Instrument cluster overview
1. Trip meter reset button 2. Tachometer 3. Service reminder indicators and
indicator lights
4. Speedometer 5. Fuel gauge 6. Low fuel level warning light
7. Engine coolant temperature gauge 8. Odometer and two trip meters 9. Odometer/two trip meter changeover
button
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
Indicator symbols on the instrument panel
Brake system warning light∗1
Driver’s seat belt reminder light∗1
Front passenger’s seat belt reminder light∗1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
Engine oil replacement reminder light∗1 (for vehicles sold in U.S.A.)
or
Anti−lock brake system warning light∗1
’05 4Runner_U (L/O 0409)
D Vehicle stability control system warning
light∗1
D Traction control system warning light∗1
(two−wheel drive models)
D Active traction control system warning light∗1
(four−wheel drive models)
D “AUTO LSD” system warning light∗1
(two−wheel drive models)
D Downhill assist control system warning
light∗1 (four−wheel drive models)
D Hill−start assist control system warning
light∗1
Open door warning light∗1
SRS warning light∗1
Automatic transmission fluid temperature warning light∗1 (four−wheel drive models)
Low tire pressure warning light∗1
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Low windshield washer fluid level warning light∗1 (for vehicles sold in Canada)
Engine immobilizer/theft deterrent system indicator light
Roll sensing of curtain shield airbags off
indicator light∗2
Front passenger occupant classification indicator light
Automatic transmission indicator lights
Low speed four−wheel drive indicator light∗3
(four−wheel drive models)
Center differential lock indicator light∗3
(four−wheel drive models)
Vehicle stability control system off indicator light
(four−wheel drive models)
Four−wheel drive indicator light∗3
(multi−mode four−wheel drive models)
Headlight low beam indicator light
Slip indicator light
Tail light indicator light
Headlight high beam indicator light
“AUTO LSD” indicator light (two−wheel drive models)
Downhill assist control system indicator light (four−wheel drive models)
Turn signal indicator lights
Height control indicator lights
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Height control “OFF” indicator light∗4
Cruise control indicator light∗5
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 145 in Section 1−6.
∗2: For details, see “Roll sensing of curtain shield airbags off
switch” on page 94 in Section 1−3.
∗3: If this light flashes, see “Four−wheel drive system” on page
162 in Section 1−7.
∗4: If this light flashes, see “Rear height control air suspension”
on page 182 in Section 1−7.
∗5: If this light flashes, see “Cruise control” on page 193 in
Section 1−7.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
10
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
SECTION 1− 2
OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Engine immobilizer system Wireless remote control Side doors Power windows Power back window Back door Hood Theft deterrent system Fuel tank cap Electric moon roof
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
14
15
22
26
29
31
33
34
35
37
11
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Keys
To protect items locked in the glove box when using valet parking, leave the sub key with the attendant. Since the side doors can be locked with- out a key, you should always carry a spare key in case you accidentally lock your keys inside the vehicle.
Your vehicle is supplied with the two kinds of keys. 1. Master keys (black)—These keys work in every lock. Your Toyota dealer will need one of them to make a new key with a built−in transponder chip.
2. Sub key
(gray)—This key does not
work in the glove box.
A transponder chip for engine immobilizer system has been placed in the head of the master and sub keys. These chips are needed to enable the system to function correctly, so be careful not to lose these keys. If you make your own duplicate key, you will not be able to cancel the system or start the engine.
12
NOTICE
the
When using a key containing a trans- ponder chip, observe following precautions: z When starting the engine, do not use the key with a key ring resting on the key grip and do not press the key ring against the key grip. Otherwise the engine may not start, or may stop soon after it starts.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
z Do not cover the key grip with any material that cuts off electromagnet- ic waves.
z Do not knock the key hard against
other objects.
z Do not leave the key exposed to high temperatures for a long period, such as on the dashboard and hood under direct sunlight. z Do not put the key
in water or
wash it in an ultrasonic washer.
z Do not bend the key grip.
z Do not use the key with electromag-
netic materials.
z When starting the engine, do not use the key with other transponder keys around (including keys of oth- er vehicles) and do not press other key plates against the key grip. Otherwise the engine may not start, or may stop soon after it starts. If this happens, remove the key once and then insert it again after remov- ing other transponder keys (includ- ing keys of other vehicles) from the ring or while gripping or covering them with your hand to start the engine.
13
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Engine immobilizer system
immobilizer system
The engine is a theft prevention system. When you in- sert the key in the ignition switch, the transponder chip the key’s head transmits an electronic code to the ve- hicle. The engine will start only when the electronic code in the chip corre- sponds to the registered ID code for the vehicle.
in
KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.
14
indicator
light will start
The system is automatically set when the key is removed from the ignition switch. The flashing to show the system is set. If any of the following indicator conditions occurs, contact your Toyota dealer. D The
light stays on except when the theft deterrent system is set- ting or activating. (See “Theft deterrent system” on page 34 in this Section.)
indicator
D The indicator light does not start flash- ing when the key is removed from the ignition switch.
D The indicator light flashes inconsistent-
ly.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Wireless remote control—
Inserting the registered key in the ignition switch automatically cancels the system, which enables the engine to start. The indicator light will go off. For your Toyota dealer to make you a new key with built−in transponder chip, your dealer will need your key number and master key. However, there is a limit to the number of additional keys your Toyota dealer can make for you. If you make your own duplicate key, you will not be able to cancel the sys- tem or start the engine.
NOTICE
remove or disas- Do not modify, immobilizer sys- semble the engine tem. If any unauthorized changes or modifications are made, proper opera- tion of the system cannot be guaran- teed.
For vehicles sold in U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.
CAUTION
Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.
1. “LOCK” switch 2. “UNLOCK” switch 3. Back window open switch 4. “PANIC” switch
For vehicles sold in Canada
This device complies with RSS−210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.
interference,
including
15
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
—Locking and unlocking doors
If the wireless remote control transmitter does not actuate the doors, back window or alarm, operate from a normal distance: D Check for closeness to a radio trans- mitter such as a radio station or an airport which can interfere with normal operation of the transmitter.
D The battery may have been consumed. Check the battery in the transmitter. To replace following “—Replacing battery” on page 20.
the battery,
see
If you lose your transmitter, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an acci- dent. (See “If you lose your wireless re- mote control transmitter” on page 349 in Section 4.)
Locking operation
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, open the back
window or activate the “PANIC” mode
from a distance within approximately 1
m (3 ft.) of the vehicle.
When you operate any switch, push
slowly and securely.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
D Do not leave the transmitter in places
the temperature becomes high
where such as on the dashboard.
it
D Do not disassemble it. D Avoid knocking
it hard against other
objects or dropping it.
D Avoid putting it in water. You can use up to 4 wireless remote con- trol the same vehicle. Contact your Toyota dealer for detailed information.
transmitters
for
16
Unlocking operation
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
To lock and unlock all the side doors and back door, push the switches of the transmitter slowly and securely. To lock: Push the “LOCK” switch. All the side doors and back door are locked si- multaneously. At this time one beep will be heard, and the turn signal lights flash once. Check to see that all the side doors and back door are securely locked. If any of the side doors or the back door is not securely closed, locking cannot be performed by the “LOCK” switch and a beep will sound continuously for 10 sec- onds. However, if the key is in the ignition switch, a beep will not sound. the side To stop doors and back door securely or push the “UNLOCK” switch. The buzzer can be disabled. For details, contact your Toyota dealer. “UNLOCK” switch To unlock: Push once to unlock the driver’s door alone. Pushing the switch twice within 3 seconds unlocks all the side doors and back door simultaneously. Each time the “UNLOCK” switch is pushed, two beeps will be heard, and the turn signal lights flash twice.
the buzzer, close all
the
light,
interior
light and
ignition switch
This double switch operation to unlock all the side doors and back door can be changed to a single switch operation. For details, contact your Toyota dealer. When the “UNLOCK” switch is pressed, luggage compartment the light, running board lights (on some models) will come on and remain on for about 15 seconds before fading out. (For details, see “Interi- or light” on page 134, “Luggage compart- ment light” on page 135, “Ignition switch light” on page 136 and “Running board lights” on page 137 in Section 1−5.) You have 30 seconds to open a door after using the wireless remote unlock feature. If a door is not opened by then, all the side doors and back door will be automati- cally locked again. The lock function can be changed. For details, con- tact your Toyota dealer. If the “LOCK” or “UNLOCK” switch is kept pressed in, the locking or unlocking opera- tion is not repeated. Release the switch and then push again.
the automatic door
timing
for
The following adjustments can be made in this system. For details, contact your Toyota dealer. D Cancelling the wireless door locking or
unlocking function
D Cancelling the flash of the turn signal
lights
D Changing the volume of beep sound
17
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
—Opening back window
—Activating panic mode
The “PANIC” mode does not work when the ignition key is in the “ON” position. This alarm function can be disabled. For details, contact your Toyota dealer.
To open the back window, push the back window open switch of the trans- mitter for about 1 second. The window will fully open. At this time, you can hear a beep. If the ignition switch is in the “ON” posi- tion, the back window cannot be opened by the back window open switch. To open the back window with the key, see “Power back window” on page 29 in this Section. The back window opening program by wireless remote control can be changed or disabled. For details, contact your Toyota dealer.
18
flashes
intermittently and
Pushing the “PANIC” switch blows the horn the lights and turn signal headlights, tail lights, and turns on the interior and luggage compartment lights. The “PANIC” switch is used to deter ve- hicle theft when you witness anyone at- tempting into or damage your vehicle. The alarm will last for one minute. To stop alarm midway, push any of the switch on the wireless transmitter. You can also stop the alarm by turning the ignition key from “LOCK” to the “ON” position.
remote control
to break
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
For vehicles sold in U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.
interference
NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interfer- ence by one or more of the following measures:
to radio or
D Reorient or relocate the receiving an-
tenna.
D Increase the separation between the
equipment and receiver.
D Connect the equipment into an outlet to
on a circuit different which the receiver is connected.
from
that
D Consult the dealer or an experienced
radio / TV technician for help.
FCC WARNING: Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.
19
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.
interference,
including
’05 4Runner_U (L/O 0409)
—Replacing battery For replacement, use a CR2016 lithium battery or equivalent.
CAUTION
Special care should be taken to pre- vent small children from swallowing the removed transmitter battery or components.
NOTICE
z When replacing the transmitter bat- tery, be careful not to lose the com- ponents.
z Replace only with
the same or equivalent type recommended by a Toyota dealer.
z Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow- ing these procedures:
1. Using a coin or equivalent, open the
transmitter case.
20
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
z Be careful not to bend the electrode when inserting the transmitter bat- tery and that dust or oils do not adhere to the transmitter case.
z Close the transmitter case securely.
After replacing the battery, check that the transmitter operates properly. If the trans- mitter still does not operate properly, con- tact your Toyota dealer.
2. Remove the discharged transmitter bat-
3. Put in a new transmitter battery with
tery by ballpoint pen. Insert the tip of ballpoint pen at the guide groove and lift as shown in the above illustration.
NOTICE
Do not bend the terminals.
positive (+) side up.
Close the transmitter case securely.
NOTICE
z Make sure
the positive side and negative side of the transmitter bat- tery are faced correctly.
z Do not replace the battery with wet hands. Water may cause unexpected rust.
z Do not touch or move any compo- nents inside the transmitter, or it may interfere with proper operation.
21
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Side doors—
When any of the side doors and back
door is unlocked with a key, the interior
light, luggage compartment light, ignition
switch light and running board lights (on
some models) will come on and remain on
for about 15 seconds before fading out.
(For details, see “Interior light” on page
134, “Luggage compartment light” on page
135, “Ignition switch light” on page 136
and “Running board lights” on page 137
in Section 1−5.)
LOCKING AND UNLOCKING WITH KEY Insert the key into the keyhole and turn it. To lock: Turn the key forward. To unlock: Turn the key backward. All the side doors and back door lock and unlock simultaneously with the driver’s door. In the driver’s door lock, turning the key once will unlock the driver’s door and twice in succession will unlock all the side doors and back door simultaneously. This double key turning operation to un- lock all the side doors and back door can be changed to a single key turning opera- tion. For details, contact your Toyota deal- er.
22
LOCKING AND UNLOCKING WITH INSIDE LOCK KNOB Move the lock knob. To lock: Push the knob forward. To unlock: Pull the knob backward. The front doors can be opened by pulling the inside handles even if the lock knobs are in the locked position.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
CAUTION
Driver’s side
Do not pull the inside handle of the front doors while driving. The doors will open and an accident may occur. Toyota strongly recommends that all children be placed in the rear seat of the vehicle.
Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the ve- hicle. The front doors cannot be locked if you leave the key in the ignition switch.
Front passenger’s side
lock: Push the switch down on the
LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH Push the switch. To front side. To unlock: Push the switch down on the rear side. Operating the switch simultaneously locks or unlocks all the side doors and back door. If you do either of the following, no side door or back door can be unlocked with the power door lock switch. D Lock all the side doors and back door with the key or wireless remote control transmitter when all the side doors and back door are closed.
D Open the driver’s door or front passen- ger’s door and move the inside lock knobs of both front doors to the lock position, then close the front doors.
23
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
The power door lock switch can be reset in the following ways. D Turn the ignition key to “ON”. D Unlock all
the side doors and back door with the key or wireless remote control transmitter.
D Unlock the driver’s door or front pas- lock the doors the power door
senger’s door with knob, and then unlock all and back door with lock switch.
inside
the
This unlocking protection with the power door lock switch can be disabled. For de- tails, contact your Toyota dealer.
24
’05 4Runner_U (L/O 0409)
CAUTION
Before driving, be sure that the doors are closed and locked, especially when small children are in the ve- hicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the ve- hicle during an accident. It also helps prevent the doors from being opened unintentionally.
to
the
lock
lever
the “LOCK”
REAR DOOR CHILD−PROTECTORS Move position as shown on the label. When the child−protector is locked, you cannot open the rear door by the inside door handle. We recommend using this feature whenever small children are in the vehicle.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
—Automatic door locking and unlocking functions You can set the door locking and unlocking functions. (a) Locking linked with the shift posi-
following automatic
tion All the side doors and back door are locked automatically when the automatic transmission selector lever is moved out of the “P” position with the engine running and all the side doors and back door are closed. This function is the default setting for new vehicles. (b) Unlocking linked with the shift posi-
tion
All the side doors and back door are un- locked automatically when the automatic transmission selector is moved to the “P” position with the ignition switch in the “ON” position. (c) Locking
linked with
the vehicle
lever
speed the side doors and back door are All locked automatically when the vehicle speed reaches 20 km/h (12 mph) or high- er. However, if any of the side doors and back door is unlocked during driving, this auto locking function will not operate until the unlocked door is opened once.
’05 4Runner_U (L/O 0409)
(d) Unlocking linked with opening the
driver’s door
All the side doors and back door are un- locked automatically when the driver’s door is opened within 10 seconds after the ignition switch is turned from “ON” to the “ACC” or “LOCK” position. SETTING THE FUNCTIONS 1. Close all the side doors and back door. 2. Turn the ignition switch to the “ON”
position.
3. Within 10 seconds after
ignition switch is turned to the “ON” position;
the
D To set function (a)
Push and hold the front of the power door lock switch for 5 seconds with the automatic transmission selector lever in the “P” position.
D To set function (b)
Push and hold the rear of the power door lock switch for 5 seconds with the automatic transmission selector lever in the “P” position.
D To set function (c)
Push and hold the front of the power door lock switch for 5 seconds with the automatic transmission selector lever in any position except “P”.
D To set function (d)
Push and hold the rear of the power door lock switch for 5 seconds with the automatic transmission selector lever in any position except “P”.
All the side doors and back door are auto- matically lock and unlock when you re- lease the power door lock switch. This indicates that the function is set. If all the side doors and back door do not lock and unlock, the time the switch was held may have been too short or too long. Perform the procedure over again starting from step 1. If you want to cancel a function, repeat the procedure. Each time you perform the procedure, is set or can- celled.
function
the
25
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Power windows
OPERATING THE DRIVER’S WINDOW Use the switch on the driver’s door. Normal operation: The window moves as long as you hold the switch. To open: Lightly push down the switch. To close: Lightly pull up the switch.
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, all the power windows work for 43
seconds even after the ignition switch is
turned off. It stops working when either
front door is opened.
The indicator light (“AUTO”) on the switch
tells you the switch can be operated.
26
Automatic operation: Push the switch completely down or pull it completely up, and then release it. The window will fully open or close. To stop the window part- way, lightly move the switch in the oppo- site direction and then release it. Jam protection function: During automat- ic closing operation or key off closing op- eration, the window stops and opens half way if something gets caught between the window and window frame. If the window receives a strong impact, this function may work even if nothing is caught.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Window lock switch
If the battery is disconnected or run down, the power window may not operate automatically and the jam protection func- tion will not function correctly after you reconnect, replace or recharge the battery. In any of these cases, you should normal- ize the power window. To normalize the power window: 1. Push down the power window switch
and lower the window halfway.
2. Pull up
the switch until
the window closes and hold the switch for a sec- ond.
that
Make sure the window opens and closes automatically. If the power window cannot be operated properly, have it checked by your Toyota dealer.
CAUTION
D Never try jamming any part of your body to activate the jam protection function intentionally. jam protection
function may not work if something gets caught just before fully closed.
the window
D The
is
27
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
THE
PASSENGERS’
OPERATING WINDOWS Use the switch on each passenger’s door or the switches on the driver’s door that control each passenger’s win- dow. The window moves as long as you hold the switch. To open: Push down the switch. To close: Pull up the switch. If you push in the window lock switch on the driver’s door, the passengers’ windows cannot be operated.
CAUTION
To avoid serious personal injury, you must do the following. D Before you close the power win- dows, always make sure there is nobody around the power windows. You must also make sure the heads, hands and other parts of the bodies of all occupants are kept completely If someone’s neck, head or hands get it caught could result injury. When anyone closes the power win- dows, make sure he or she oper- ates the windows safely.
in a closing window,
in a serious
the vehicle.
inside
D Never leave anyone (particularly a small child) alone in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the power window switches and get in a window. Unat- tended person (particularly a small child) can be involved in a serious accident.
trapped
D When small children are in the ve- hicle, never let them use the power window switches without supervi- sion. Use the window lock switch to prevent from making unex- pected use of the switches.
them
D Be sure to remove the ignition key
when you leave your vehicle.
28
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Power back window
is working. At the wiper stops working until
The back window can be operated with the switch on the instrument panel or the key operation in the back door key- hole. You can open the back window when the that back window wiper time, the window is closed again. If the back window is not fully closed, the back window wiper, washer and defogger will not work. (See “Back window wiper and washer” on page 138 and “Back win- dow and outside rear view mirror defog- gers” on page 139 in Section 1−5.)
If the battery is disconnected or run down, the power back window may not operate automatically and the jam protec- tion function will not function correctly af- ter you reconnect, replace or recharge the battery. In any of these cases, you should normalize the power back window with the power back window switch. To normalize the power back window: 1. Push the “Ɲ” (down) switch and lower
the window halfway.
2. Push the “Ɯ” (up) switch until the win- dow closes and hold the switch for a second.
If
that
the window opens and Make sure closes automatically. the power back window cannot be operated properly, have it checked by your Toyota dealer. OPERATING FROM INSIDE The ignition key must be in the “ON” posi- tion. Normal operation: To open or close the back window, quickly push and release the “Ɲ” (down) or “Ɯ” (up) switch.
Automatic operation: To open or close the back window, push and hold the “Ɲ” (down) or “Ɯ” (up) switch. The window will fully open or close. To stop the win- dow partway, push the switch on either the “Ɲ” (down) or “Ɯ” (up) side briefly. Key off operation: If both front doors are closed, it works for 43 seconds even after the ignition switch is turned off. It stops working when either front door is opened. Jam protection function: During automat- ic closing operation or key off closing op- eration, the window stops and opens half way if something gets caught between the window and window frame. If the window receives a strong impact, this function may work even if nothing is caught.
CAUTION
D Never try jamming any part of your body to activate the jam protection function intentionally. jam protection
function may not work if something gets caught just before fully closed.
the window
D The
is
29
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
the door
is unlocked,
OPERATING FROM OUTSIDE The back window can be opened and closed with the key operation in the back door keyhole. To open: Turn the key fully counterclock- wise and hold it. After the window begins to open. To stop the window part- way, release the key. To close: Turn the key fully clockwise and hold it. After the door is locked, the window be- gins to close. To stop the window partway, release the key. This door key linked function can be dis- abled. For details, contact your Toyota dealer. Jam protection function: During closing operation, the window stops and opens half way if something gets caught between the window and window frame. If the window receives a strong impact, this function may work even if nothing is caught.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
If you push in the window lock switch on the driver’s door, the back window cannot be operated.
30
’05 4Runner_U (L/O 0409)
Back door
CAUTION
To avoid serious personal injury, you must do the following. D Before you close the power back window, always make sure there is nobody around the power back win- dow. You must also make sure the heads, hands and other parts of the bodies of all occupants are kept completely If someone’s neck, head or hands get caught it injury. could result When anyone closes the power back window, make sure he or she operates the window safely.
in a closing window,
in a serious
the vehicle.
inside
D When small children are in the ve- hicle, never let them use the power back window switch without super- vision. Use the window lock switch to prevent them from making unex- pected use of the switch.
D Be sure to remove the ignition key
when you leave your vehicle.
D Never leave anyone (particularly a small child) alone in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the power back window switch and get trapped in a window. Unat- tended person (particularly a small child) can be involved in a serious accident.
D Keep the back window closed while driving. This not only keeps the luggage from being thrown out but also prevents exhaust gases from entering the vehicle.
D Never try jamming any part of your body to activate the jam protection function intentionally. jam protection
function may not work if something gets caught just before fully closed.
the window
D The
is
remote
To open the back window with the wire- less see “—Opening back window” on page 18 in this Section.
transmitter,
control
To open the back door, push up the back door opener. The back door can be opened when the vehicle is stopped. If the back door opener does not operate except when the battery is disconnected or run down, contact your Toyota dealer. If the battery is disconnected or run down, the back door does not open after you reconnect, replace or recharge the battery. In any of these cases, you should normalize the back door.
31
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
light,
interior
light and
ignition switch
When all the side doors and back door are unlocked simultaneously with a key, the luggage compartment light, running board lights (on some models) will come on and remain on for about 15 seconds before fading out. (For details, see “Interi- or light” on page 134, “Luggage compart- ment light” on page 135, “Ignition switch light” on page 136 and “Running board lights” on page 137 in Section 1−5.) The back window can be opened and closed with the key operation in the back door keyhole. (For details, see “Power back window” on page 29 in this Section.)
To normalize the back door, unlock it with the key, remote control transmitter or pow- er door lock switch, see “—Locking and unlocking doors” on page 16 and “Side doors” on page 22 in this Section. Make sure that the back door opens. If the back door cannot be opened properly, have it checked by your Toyota dealer. The back door can be locked or unlocked in the following ways. D All the side doors and back door lock and unlock simultaneously with the back door. Insert the key into the key- hole, turn it clockwise to lock and turn it counterclockwise to unlock.
D Operate
the power door
lock switch. (See “Side doors” on page 22 in this Section.) D Operate
remote control. (See “—Locking and unlocking doors” on page 16 in this Section.)
the wireless
D All the side doors and back door are locked and unlocked simultaneously with “Side doors” on page 22 in this Section.)
the driver’s door.
(See
If the battery terminal is disconnected and reconnected, the back door will be auto- matically locked. Be careful not to lock your keys in the vehicle.
32
When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
Back door closer: When the back door
has not been fully closed, it is automati-
cally closed completely.
See “—Stowage precautions” on page 303
in Section 2 for precautions when loading
luggage.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Hood
CAUTION
D Keep the back window and back door closed while driving. This not only keeps the luggage from being thrown out but also prevents ex- haust gases from entering the ve- hicle.
D Careful attention is needed so as not to get your fingers trapped as the back door automatically closes when it has not been fully closed. D Never allow a child to operate the
back door.
NOTICE
z To avoid damage to the back door dampers, do not apply any force, paint or let any other foreign matter on them.
z Do not apply excessive force when the back door closer is operating. Otherwise, the back door closer may become defective.
To open the hood: 1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood is closed and securely locked. Other- wise, the hood may open unexpected- ly while driving and an accident may occur.
2. In front of the vehicle, pull up the the
lever and
lift
auxiliary catch hood.
Before closing the hood, check to see that you have not forgotten any tools, rags, etc. Then lower the hood and make sure it If necessary, press down gently on the front edge to lock it.
into place.
locks
33
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Theft deterrent system
To deter vehicle theft, the system is designed to sound an alarm if any of the side doors, back door or hood is forcibly unlocked or opened or the bat- tery terminal is disconnected and then reconnected when the vehicle is locked. The alarm blows the horn intermittently and flashes the headlights, tail lights and turn signal lights, and turns on the interior and luggage compartment lights.
34
SETTING THE SYSTEM 1. Turn
the ignition key position and remove it.
to the “LOCK”
is
removed
The indicator light will start flashing when the key ignition switch. (See “Engine immobilizer system” on page 14 in this Section for details.) 2. Have all passengers get out of
from
the
the
vehicle.
3. Close and lock all the side doors, back
door and hood.
The indicator light will remain on when all the side doors, back door and hood are closed and locked.
The system will automatically be set after 30 seconds. When the system is set, the indicator light will start flashing again. 4. After making sure
light starts flashing, you may leave the ve- hicle.
indicator
the
Never leave anyone in the vehicle when you set the system, because unlocking from the inside will activate the system. CANCELING THE SYSTEM The system will cancel under the any of the following conditions: D Any of the side doors, back door or
hood is opened.
D Any of the side doors or the back door
is unlocked.
D The key is inserted into the ignition. D The battery terminal is reconnected. WHEN THE SYSTEM IS SET Activating the system The system will sound the alarm under the following conditions: D If any of the side doors is unlocked or opened without the key or wireless re- mote control transmitter, or if the back door or hood is forcibly opened.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Fuel tank cap
D If the battery terminal is disconnected
and then reconnected.
D If the ignition is hotwired. The indicator light will come on when the system is activated. If the alarm has been activated and the key is not in the ignition switch, all the side doors and back door will re−lock au- tomatically. After one minute, the alarm will automati- cally stop and the indicator light will starts flashing again. Reactivating the alarm Once set, the system automatically resets the alarm after the alarm stops. The alarm will activate again under the same in circumstances “Activating the system”. Stopping the alarm The alarm will be stopped by the following these ways: D Unlock any of the side doors or the back door with the key or wireless re- mote control transmitter.
described
D Turn the ignition key from the “LOCK”
to “ON” position.
These ways cancel same time.
the system at
the
replaced,
the system will give
If the battery becomes discharged due to the vehicle being unused for a long time, etc., when the battery is recharged or the alarm. If this happens, immediately unlock any of the side doors or the back door with the key or the wireless remote con- trol transmitter, and the alarm will stop. TESTING THE SYSTEM 1. Open all the windows. 2. Set
the system as described above. The side doors and back door should be locked with the key or wireless re- mote control to wait until the indicator light goes off or starts flashing.
transmitter. Be sure
3. Unlock any side door from the inside. The system should activate the alarm.
for
this operation
4. Stop the alarm as described above. 5. Repeat
the other the doors and hood. When hood, also check that the system is activated when the battery terminal is disconnected and then reconnected. the system does not work properly,
If have it checked by your Toyota dealer.
testing
This indicates that the fuel filler door is on the left side of your vehicle.
35
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
1. To open the fuel filler door, pull the
lever. When refueling, turn off the engine.
CAUTION
D Do not smoke, cause sparks or al- flames when refueling.
low open The fumes are flammable.
2. To remove the fuel tank cap, turn the cap counterclockwise by 90 de- grees (to the pressure point 1), and then turn it an additional 30 degrees (to point 2). Pause slightly before removing it.
It is not unusual to hear a slight swoosh when the cap is opened.
D When opening the cap, do not re- move the cap quickly. In hot weath- er, fuel under pressure could cause injury by spraying out of the filler neck is suddenly re- moved.
the cap
if
36
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Electric moon roof
NOTICE
To prevent damage to the cap, apply force only in the turning direction to the cap. Do not pull or pry it.
Sliding operation
3. The removed cap can be stored on the back side of the fuel filler door. Position the cap so that the hooks point to the left and right or up and down, and set it in the receptacle on the back side of the door. When installing the cap, turn the cap clockwise until you hear a click. When you hear the click, the cap is fully closed. If the cap is not installed securely, the malfunction lamp comes on. Make sure the cap is tightened securely. The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Toyota dealer as soon as possible.
indicator
CAUTION
D Make sure the cap is installed se- in
curely to prevent fuel spillage the event of an accident.
D Use only a genuine Toyota fuel tank cap for replacement. It is designed to regulate fuel tank pressure.
Tilting operation
37
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
the
the moon roof, use
To operate switch beside the personal lights. The moon roof works when the ignition switch is in the “ON” position. The sun shade can be opened or closed by hand. Sliding operation— To open: Push the switch on the “SLIDE OPEN” side. The roof will fully open automatically. To stop the roof partway, push the switch on either the “SLIDE OPEN” or “TILT UP” side quickly. When you quickly push and release the switch, the moon roof will open while the switch is being pushed and stop when released. The sun shade will be opened together with the roof. When the moon roof is opened fully, the deflector will raise to reduce the entering of the strong wind. The angle of the de- flector will be adjusted according to the vehicle speed. To close: Push the switch on the “TILT UP” side.
38
The roof will fully close automatically. To stop the roof partway, push the switch on either the “SLIDE OPEN” or “TILT UP” side quickly. When you quickly push and release the switch, the moon roof will close while the switch is being pushed and stop when released. Tilting operation— To tilt up: Push the switch on the “TILT UP” side. The roof will fully tilt up automatically. To stop the roof partway, push the switch on either the “SLIDE OPEN” or “TILT UP” side quickly. When you quickly push and release the switch, the moon roof will tilt up while the switch is being pushed and stop when released. To tilt down: Push “SLIDE OPEN” side. The roof will fully tilt down automatically. To stop the roof partway, push the switch on either the “SLIDE OPEN” or “TILT UP” side quickly. When you quickly push and release the switch, the moon roof will tilt down while the switch is being pushed and stop when released.
the switch on
the
Key off operation: If both front doors are closed, it works for 43 seconds even after the ignition switch is turned off. It stops working when either front door is opened. Jam protection function: D If something gets caught between the moon roof and frame during slide clos- ing operation, the moon roof stops and opens half way, and the deflector stops and raises fully.
D If something gets caught between the moon tilting down operation, the moon roof stops and opens fully.
frame during
roof and
If the moon roof receives a strong impact, this function may work even if nothing is caught. If the battery is disconnected or run down, the moon roof may not operate automatically and the jam protection func- tion will not function correctly after you reconnect, replace or recharge the battery. In any of these cases, you should normal- ize the moon roof. To normalize the moon roof, push and hold the switch on the “TILT UP” side until the moon roof tilts all the way up and then tilts down a little automatically.
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
D Never leave anyone (particularly a small child) alone in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the moon roof switch and get trapped in the roof opening. Unat- tended person (particularly a small child) can be involved in a serious accident.
D Never sit on
top of
the vehicle
around the roof opening.
D Never try jamming any part of your body to activate the jam protection function intentionally. jam protection
function may not work if something gets caught just before the moon roof is fully closed.
D The
Make sure that the moon roof opens and closes automatically. If the moon roof can- not be operated properly, have it checked by your Toyota dealer.
CAUTION
To avoid serious personal injury, you must do the following. D While the vehicle is moving, always keep the heads, hands and other parts of the bodies of all occupants away from the roof opening. Other- wise, they could be seriously in- jured if the vehicle stops suddenly or if the vehicle is involved in an accident.
D Before you close the moon roof, always make sure there is nobody around the moon roof. You must also make sure nobody places his or her head, hands and other parts of the body in the roof opening. If someone’s neck, head or hands get caught in the closing roof, it could result injury. When anyone closes the moon roof, first make sure it is safe to do so.
in a serious
D Be sure to remove the ignition key
when you leave your vehicle.
39
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
40
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
SECTION 1− 3
OPERATION OF INSTRUMENTS AND CONTROLS Occupant restraint systems Seats Front seats Rear seats Head restraints Armrest Seat heaters Seat belts SRS airbags Roll sensing of curtain shield airbags off switch Child restraint
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
42
42
48
60
61
62
63
73
94
95
41
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
’05 4Runner_U (L/O 0409)
Seats While the vehicle is being driven, all ve- hicle occupants should have the seatback upright, sit well back in the seat and prop- erly wear the seat belts provided.
CAUTION
D Do not drive the vehicle unless the occupants are properly seated. Do not allow any passengers to sit on top of a folded−down seatback, or in the luggage compartment or car- go area. Persons not properly seated and/or not properly re- strained by seat belts can be se- verely injured in the event of emer- gency braking or a collision.
D During driving, do not allow any passengers to stand up or move around between seats. Otherwise, severe the event of emergency braking or a collision.
injuries can occur
in
Front seats— —Front seat precautions Driver seat
CAUTION
The SRS driver airbag deploys with
considerable
force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm
in.) away now, you can
change your driving position in sever-
al ways:
D Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
(10
42
D Slightly recline
the back of
the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
