MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modification its performance, safety or durability, and may governmental regulations. In addition, damage or per- formance problems resulting from modi- fications may not be covered under NISSAN warranties.


violate


even

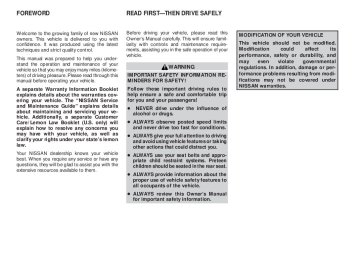

FOREWORD


READ FIRST—THEN DRIVE SAFELY


Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you under- stand the operation and maintenance of your vehicle so that you may enjoy many miles (kilome- ters) of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information Booklet explains details about the warranties cov- ering your vehicle. The “NISSAN Service and Maintenance Guide” explains details about maintaining and servicing your ve- hicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law. Your NISSAN dealership knows your vehicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them.


Before driving your vehicle, please read this Owner’s Manual carefully. This will ensure famil- iarity with controls and maintenance require- ments, assisting you in the safe operation of your vehicle.


WARNING


IMPORTANT SAFETY INFORMATION RE- MINDERS FOR SAFETY! Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers! ● NEVER drive under the influence of


alcohol or drugs.


● ALWAYS observe posted speed limits and never drive too fast for conditions. ● ALWAYS give your full attention to driving and avoid using vehicle features or taking other actions that could distract you.


● ALWAYS use your seat belts and appro- priate child restraint systems. Preteen children should be seated in the rear seat. ● ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.


● ALWAYS review this Owner’s Manual


for important safety information.


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


WHEN READING THE MANUAL


This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle. All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and with- out obligation. IMPORTANT INFORMATION ABOUT THIS MANUAL You will see various symbols in this manual. They are used in the following ways:


WARNING


This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.


CAUTION


This is used to indicate the presence of a hazard that could cause minor or moder- ate personal injury or damage to your ve- hicle. To avoid or reduce the risk, the pro- cedures must be followed carefully.


APD1005
If you see this symbol, it means “Do not do this” or “Do not let this happen.”


If you see a symbol similar to these in an illustra- tion, it means the arrow points to the front of the vehicle.


Arrows in an illustration that are similar to these indicate movement or action.


Arrows in an illustration that are similar to these call attention to an item in the illustration.


CALIFORNIA PROPOSITION 65
WARNING


WARNING


Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth de- fects or other reproductive harm. In addi- tion, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.


CALIFORNIA PERCHLORATE ADVISORY Some vehicle parts, such as lithium batter- ies, may contain perchlorate material. The following advisory is provided: “Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


BLUETOOTH威 is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Visteon and Xanavi Informatics Corporation.


XM Radio威 requires subscription, sold separately after first 90
days. Not available in Alaska, Hawaii or Guam. For more information, visit www.xmradio.com.


© 2008 NISSAN NORTH AMERICA, INC.


All rights reserved. No part of this Owner’s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan North America, Inc.


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


NISSAN CUSTOMER CARE PROGRAM


NISSAN CARES . . . Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs. However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact the NISSAN Con- sumer Affairs Department using our toll-free number: For U.S. customers 1-800-NISSAN-1
(1-800-647-7261)


The Consumer Affairs Department will ask for the following information: – Your name, address, and telephone number – Vehicle identification number (attached to the top of the instrument panel on the driver’s side)


Nissan North America, Inc. Consumer Affairs Department P.O. Box 685003
Franklin, TN 37068-5003


You can write to NISSAN with the information at: For U.S. customers


For Canadian customers


Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5


For Canadian customers


1-800-387-0122


– Date of purchase – Current odometer reading – Your NISSAN dealer’s name – Your comments or questions OR


We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


Table of Contents


Illustrated table of contents


Safety—Seats, seat belts and supplemental restraint system


Instruments and controls


Pre-driving checks and adjustments


Monitor, climate, audio, phone and voice recognition systems


Starting and driving


In case of emergency


Appearance and care


Maintenance and do-it-yourself


Technical and consumer information


Index


10


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—root 墍


0 Illustrated table of contents


Air bags, seat belts and child restraints . . . . . . . . . . . . . . 0-2
Exterior front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-3
Exterior rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-5
Passenger compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-7


Instrument panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-8
Engine compartment check locations . . . . . . . . . . . . . . . 0-10
Warning/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-12


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—root 墍

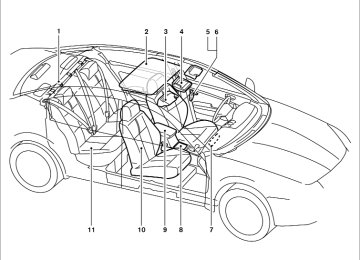

AIR BAGS, SEAT BELTS AND CHILD RESTRAINTS


1. 2. 3.


4.


5.


6. 7.


Top tether strap anchor (P. 1-25) Rear seat belts (P. 1-13) Roof-mounted curtain side-impact supplemental air bag (P. 1-42) Front seat-mounted side-impact supplemental air bag (P. 1-42) Front-seat Active Head Restraints (P. 1-11, P. 1-12) Front seat belts (P. 1-13) Supplemental front-impact air bags (P. 1-42) Seats (P. 1-2)


8. 9. Occupant classification sensor


(pattern sensor) (P. 1-50)


10. Seat belt with pretensioner (P. 1-56) 11. LATCH (Lower Anchors and Tethers for


CHildren) (P. 1-23)


See the page number indicated in paren- theses for operating details.


0-2 Illustrated table of contents


WII0100


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


EXTERIOR FRONT


Power windows (P. 2-44)


Coupe 1. 2. Windshield (P. 8-20) 3. Windshield wiper and washer switch


4. 5.


6.


(P. 2-27) Engine hood (P. 3-24) Tie down/towing hooks (if so equipped) (P. 6-12) Fog light switch (if so equipped) (P. 2-33)


7. Headlight and turn signal switch


(P. 2-29) Replacing bulbs (P. 8-27) Tire pressure (P. 8-33)


8. 9. 10. Flat tire (P. 6-2) 11. Tire chains (P. 8-41) 12. Mirrors (P. 3-29) 13. Door locks, NISSAN Intelligent Key ™


(if so equipped) , keys (P. 3-4, 3-2, 3-2)


LII0114


Illustrated table of contents 0-3


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


Power windows (P. 2-44)


Sedan 1. 2. Windshield (P. 8-20) 3. Windshield wiper and washer switch


4. 5.


6.


(P. 2-27) Engine hood (P. 3-24) Tie down/towing hooks (if so equipped) (P. 6-12) Fog light switch (if so equipped) (P. 2-33)


7. Headlight and turn signal switch


(P. 2-29) Replacing bulbs (P. 8-27) Tire pressure (P. 8-33)


8. 9. 10. Flat tire (P. 6-2) 11. Tire chains (P. 8-41) 12. Mirrors (P. 3-29) 13. Door locks, NISSAN Intelligent Key ™


(if so equipped), keys (P. 3-4, 3-2, 3-2) See the page number indicated in paren- theses for operating details.


0-4 Illustrated table of contents


LII0094


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


EXTERIOR REAR


Coupe 1. 2. 3. 4. 5. Opener operation (if so equipped)


Rear window defroster switch (P. 2-28) Interior trunk lid release (P. 3-25) Trunk lid (P. 3-24) Vehicle loading (P. 9-13)


(P. 3-24) Replacing bulbs (P. 8-27) Fuel-filler cap, fuel recommendation (P. 3-26, P. 9-3) Fuel-filler door (P. 3-26)


6. 7.


8.


WII0125


Illustrated table of contents 0-5


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


Sedan 1. 2. 3. 4. 5. Opener operation (if so equipped)


Rear window defroster switch (P. 2-28) Interior trunk lid release (P. 3-25) Trunk lid (P. 3-24) Vehicle loading (P. 9-13)


6. 7.


(P. 3-24) Replacing bulbs (P. 8-27) Fuel-filler cap, fuel recommendation (P. 3-26, P. 9-3) Fuel-filler door (P. 3-26)


8. 9. Child safety rear door lock (P. 3-6)


0-6 Illustrated table of contents


LII0095


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


PASSENGER COMPARTMENT


Interior trunk access (P. 1-9)


1. 2. Moonroof (if so equipped) (P. 2-46) 3. 4. 5. HomeLink姞 (if so equipped) (P. 2-51) 6.


Sun visors (P. 3-28) Interior lights, illuminated entry (P. 2-48)


Automatic anti-glare inside mirror (if so equipped) (P. 3-29)


Front cup holders (P. 2-40) Front console (P. 2-41)


7. Glove box (P. 2-41) 8. 9. 10. Front seat (P. 1-2) 11. Rear seat (P. 1-9) See the page number indicated in paren- theses for operating details.


WII0126


Illustrated table of contents 0-7


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


INSTRUMENT PANEL


5.


6.


Driver supplemental air bag/horn (P. 1-42, P. 2-34) Cruise control main/set switch (P. 5-19)


7. Windshield wiper/washer switch


(P. 2-27) Ignition switch (P. 5-7) Hazard warning flasher switch (P. 2-33)


8. 9. 10. Front passenger air bag status light


(P. 1-51)


11. Front passenger supplemental air bag


(P. 1-42)


12. Glove box (P. 2-41) 13. Navigation system* (if so equipped)


(P. 4-2)


14. Heater and air conditioner (manual or


automatic) (P. 4-11, P. 4-18)


15. Shift selector (P. 5-11) 16. Audio system controls (if so equipped)/


Storage (if so equipped) (P. 4-21, P.2-42)


17. Tilt/telescopic steering wheel controls


(P. 3-28)


18. Vehicle information display controls


(P. 2-17)


19. Hood release (P. 3-24)


1. 2.


Vents (P. 4-10) Headlight/fog light (if so equipped)/turn signal switch (P. 2-29)


3.


WIC1258
Steering wheel switch for audio control (if so equipped)/Bluetooth姞 hands-free phone system (if so equipped) (P. 4-44, P. 4-46, P. 4-61) 4. Meters and gauges (P. 2-3)


0-8 Illustrated table of contents


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


20. Traction Control System (TCS) OFF


switch (if so equipped) (P. 5-25) Trunk opener (P. 3-24) Vehicle Dynamic Control (VDC) OFF switch (if so equipped) (P. 2-35) Intelligent Key port (P. 5-7)


*: Refer to the separate Navigation System Own- er’s Manual. See the page number indicated in paren- theses for operating details.


Illustrated table of contents 0-9


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


ENGINE COMPARTMENT CHECK LOCATIONS


QR25DE engine 1. 2. 3.


Power steering fluid reservoir (P. 8-13) Engine oil filler cap (P. 8-9) Brake fluid reservoir/Clutch fluid reservoir (M/T model) (P. 8-14, 8-14) Air cleaner (P. 8-19) Fuse block (P. 8-22) Battery (P. 8-15) Fuse/fusible link box (P. 8-22) Engine oil dipstick (P. 8-9) Radiator cap (P. 8-8)


4. 5. 6. 7. 8. 9. 10. Drive belt location (P. 8-17) 11. Engine coolant reservoir (P. 8-8) 12. Windshield washer fluid reservoir


(P. 8-15)


See the page number indicated in paren- theses for operating details.


0-10 Illustrated table of contents


LDI0553


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


VQ35DE engine 1. 2. 3.


Power steering fluid reservoir (P. 8-13) Engine oil filler cap (P. 8-9) Brake fluid reservoir/Clutch fluid reservoir (M/T model) (P. 8-14, 8-14) Air cleaner (P. 8-19) Fuse block (P. 8-22) Battery (P. 8-15) Fuse/fusible link box (P. 8-22) Engine oil dipstick (P. 8-9) Radiator cap (P. 8-8)


4. 5. 6. 7. 8. 9. 10. Drive belt location (P. 8-17) 11. Engine coolant reservoir (P. 8-8) 12. Windshield washer fluid reservoir


(P. 8-15)


See the page number indicated in paren- theses for operating details.


LDI0552


Illustrated table of contents 0-11


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


WARNING/INDICATOR LIGHTS


Warning


light


Name


Anti-lock Braking System (ABS) warn- ing light


Page


2-11


or


or


Brake warning light


2-11


Charge warning light


Continuously Vari- able Transmission (CVT) check warn- ing light (if so equipped)


Engine oil pressure warning light


Low tire pressure warning light


2-11


2-11


2-12


2-12


0-12 Illustrated table of contents


Warning


light


Name


Page


Indicator


light


Name


Page


Master warning light


2-13


NISSAN Intelligent Key ™ warning light


Seat belt warning light and chime


Supplemental air bag warning light


Indicator


light


Name


Continuously Vari- able Transmission (CVT) position indi- cator light (if so equipped)


Front passenger air bag status light


High beam indicator light (blue)


2-13


2-13


1-57


Page


2-14


2-14


2-14


Malfunction Indica- tor Light (MIL)


Security indicator light


Slip indicator light (if so equipped)


Traction Control System off indicator light (if so equipped)


Turn signal/hazard indicator lights


Vehicle Dynamic Control off indicator light (if so equipped)


2-14


2-26


2-15


2-35


2-16


2-35


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


1 Safety—Seats, seat belts and supplemental restraint system


Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Front manual seat adjustment . . . . . . . . . . . . . . . . . . . . 1-2
Front power seat adjustment (if so equipped for driver’s seat) . . . . . . . . . . . . . . . . . . 1-4
Folding rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Head restraint adjustment . . . . . . . . . . . . . . . . . . . . . . 1-11
Front-seat Active Head Restraints . . . . . . . . . . . . . . . 1-12
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Precautions on seat belt usage. . . . . . . . . . . . . . . . . . 1-13
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
Pregnant women . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
Injured persons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
Three-point type seat belt with retractor . . . . . . . . . . 1-17
Seat belt extenders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
Seat belt maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21


Precautions on child restraints . . . . . . . . . . . . . . . . . . 1-21
LATCH (Lower Anchors and Tethers for CHildren) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Top tether strap child restraint . . . . . . . . . . . . . . . . . . 1-25
Child restraint installation using LATCH . . . . . . . . . . 1-26
Child restraint installation using the seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31
Booster seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
Precautions on booster seats . . . . . . . . . . . . . . . . . . . 1-37
Booster seat installation . . . . . . . . . . . . . . . . . . . . . . . . 1-39
Supplemental restraint system . . . . . . . . . . . . . . . . . . . . . 1-42


Precautions on supplemental restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-42
Supplemental air bag warning labels. . . . . . . . . . . . . 1-57
Supplemental air bag warning light . . . . . . . . . . . . . . 1-57


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


SEATS


WARNING


● Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.


ARS1152


● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat properly. See “Precau- tions on seat belt usage” later in this section.


● After adjustment, gently rock in the seat


to make sure it is securely locked.


● Do not leave children unattended inside the vehicle. They could unknowingly ac- tivate switches or controls. Unattended children could become involved in seri- ous accidents.


1-2 Safety—Seats, seat belts and supplemental restraint system


● The seatback should not be reclined any more than needed for comfort. Seat belts are most effective when the pas- senger sits well back and straight up in the seat. If the seatback is reclined, the risk of sliding under the lap belt and being injured is increased.


CAUTION


When adjusting the seat positions, be sure not to contact any moving parts to avoid possible injuries and/or damage.


FRONT MANUAL SEAT ADJUSTMENT


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


WRS0738


WRS0739


WRS0740


Forward and backward Pull the center of the bar up and hold it while you slide the seat forward or backward to the desired position. Release the bar to lock the seat in position.


Seat lifter (if so equipped for driver’s seat) Pull up or push down the adjusting lever to adjust the seat height until the desired position is achieved.


Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position. The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. See “Precautions on seat belt usage” later in this section. Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the transmission is in P (Park) or N (Neutral) position with the parking brake fully applied.


Safety—Seats, seat belts and supplemental restraint system 1-3


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—root 墍


Coupe


● Pull up on the upper seatback release lever to release the seatback only. Push the seat- back forward to allow for access to items behind the front seat. Push the seatback to the rear of the vehicle to return the seatback to the upright and locked position. The up- per seatback release lever does not need to be used.


WRS0841


WARNING


Before driving the vehicle, return the seat- back to an upright seating position after manually releasing it. Also, make sure the seat is locked in place. Failure to do so may cause the seat to move in a collision or sudden stop. This may result in damage to the seat or personal injury.


FRONT POWER SEAT ADJUSTMENT (if so equipped for driver’s seat) Operating tips ● The power seat motor has an auto-reset overload protection circuit. the motor stops during operation, wait 30 seconds, then reactivate the switch.


If


● Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.


1-4 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see “Precautions on seat belt usage” later in this section). Also, the seatback can be re- clined to allow occupants to rest when the ve- hicle is stopped and the transmission is in P (Park) or N (Neutral) position with the parking brake fully applied.


Sedan


WRS0751


CAUTION


● Do not operate the power recline switch when the seatback has been manually released using the upper seatback re- lease lever 䊊1 . Doing so can damage the seat.


● Do not pull on the upper seatback re- lease lever or the trim to return the seatback to a normal seating position. Doing so may damage the seat.


Forward and backward Moving the switch forward or backward will slide the seat forward or backward to the desired position. Reclining Move the recline switch backward until the de- sired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward.


Safety—Seats, seat belts and supplemental restraint system 1-5


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


WRS0842


WRS0743


WRS0843


Coupe shown, Sedan similar


Seat lifter (if so equipped for driver’s seat) Pull the lever up or push down to adjust the angle and height of the seat cushion.


Type A


Lumbar support (if so equipped for driver’s seat) The lumbar support feature provides lower back support to the driver. Push the switch (Type A) forward or backward or move the lever (Type B) up or down to adjust the seat lumbar area.


Type B


1-6 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


Operating tips: ● The seatback and track will not lock until the


seatback is returned rearward.


● The seat track will not lock until it reaches


the first position memory point.


● The seatback will return to the first locking


notch when using the seat recliner lever.


WRS0789


Entry to the rear seat from outside of the vehicle on the front passenger side (Coupe) Pull the seat recliner lever 䊊1 to the uppermost position folding the seatback forward 䊊2 , releas- ing the seat track. Slide the entire seat forward for access to the rear seat. To return the seat to a locked position: Push the upper seatback rearward until the seat- back and track are locked.


WRS0791


Entry to the rear seat from outside of the vehicle on the driver’s side using the upper seatback release lever (Coupe) The use of the upper seatback release lever 䊊1 , on the inboard side of the passenger seat, allows for the driver to: ● allow passenger entry to the rear seat from


outside of the vehicle.


● access items located behind the front pas-


senger seat.


Safety—Seats, seat belts and supplemental restraint system 1-7


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


Operating tips: ● The seatback and track will not lock until the


seatback is returned rearward.


● The seat track will not lock until it reaches


the first position memory point.


● The seatback will return to an upright seating position if the lower seatback release lever is pushed to the uppermost position.


Pull the upper seatback release lever 䊊1 to the uppermost position, folding the seatback forward 䊊2 , releasing the seat track. Slide the entire seat forward for access to the rear seat. To return the seat to a locked position: Push the upper seatback rearward until the seat- back and track are locked. Operating tips: ● The seatback and track will not lock until the


seatback is returned rearward.


● The seat track will not lock until it reaches


the first position memory point.


● The seatback will return to an upright seating position if the upper seatback release lever is pulled to the uppermost position.


WRS0790


Exiting from the rear seat on the front passenger side, using the lower seatback release lever (coupe) Press on the lower seatback release lever 䊊1
until it reaches the lowermost position. Fold the seatback forward 䊊2 , releasing the seat track. Slide the entire seat forward for access from the rear seat. To return the seat to a locked position: Push the upper seatback rearward until the seat- back and track are locked.


1-8 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


Operating tips: ● The seatback and track will not lock until the


seat back is returned rearward.


● The seat track will not lock until it reaches


the first position memory point.


● The seatback will return to an upright seating position if the upper seatback release lever is pulled to the uppermost position.


WRS0791


Exiting from the rear seat on the driver’s side, using the upper seatback release lever (coupe) Pull the upper seatback release lever 䊊1 to the uppermost position, folding the seatback forward 䊊2 , releasing the seat track. Slide the entire seat forward to exit from the rear seat. To return the seat to a locked position: Push the upper seatback rearward until the seat- back and track are locked.


WRS0794


FOLDING REAR SEAT Interior trunk access The trunk can be accessed from the passenger side of the rear seat for loading and unloading, as shown.


Safety—Seats, seat belts and supplemental restraint system 1-9


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


● Closely supervise children when they are around cars to prevent them from playing and becoming locked in the trunk where they could be seriously in- jured. Keep the car locked, with the rear seatback and trunk lid securely latched when not in use, and prevent children’s access to car keys.


1. Open the access cover on the rear parcel


shelf.


2. Push down on the button on the rear parcel


shelf.


3. Fold down the passenger’s side seatback.


WARNING


● Never allow anyone to ride in the cargo area or on the rear seat when it is in the fold-down position. Use of these areas by passengers without proper restraints could result in serious injury in an acci- dent or sudden stop.


● Properly secure all cargo with ropes or straps to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or col- lision, unsecured cargo could cause personal injury.


● When returning the seatbacks to the upright position, be certain they are completely secured in the latched posi- tion. If they are not completely secured, passengers may be injured in an acci- dent or sudden stop.


1-10 Safety—Seats, seat belts and supplemental restraint system


WRS0745
To fold down the driver’s side of the rear seat, reach through the opening and pull on the strap 䊊1 located behind the seat. The rear seats can be locked using the mechani- cal key to prevent unauthorized access. For more information on keys, refer to “Keys” in the “Pre- driving checks and adjustments” section of this manual.


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


WRS0167


LRS0746


Center armrest (if so equipped) Pull the armrest down until it is horizontal.


HEAD RESTRAINT ADJUSTMENT To raise the head restraint, pull it up. To lower, push and hold the lock knob and push the head restraint down.


WARNING


Head restraints should be adjusted prop- erly as they may provide significant pro- tection against injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat.


WRS0134
Adjust the head restraint so the center is level with the center of your ears.


Safety—Seats, seat belts and supplemental restraint system 1-11


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


● Do not attach anything to the head re- straint stalks. Doing so could impair Active Head Restraint function.


The Active Head Restraint moves forward utiliz- ing the force that the seatback receives from the occupant in a rear-end collision. The movement of the head restraint helps support the occu- pant’s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash-type injuries. Active Head Restraints are effective for collisions at low to medium speeds in which it is said that whiplash injuries occur most. Active Head Restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions. Properly adjust the Active Head Restraints as described earlier in this section.


FRONT-SEAT ACTIVE HEAD RESTRAINTS


SPA1025


WARNING


● Always adjust the head restraints prop- erly as specified in this section. Failure to do so can reduce the effectiveness of the Active Head Restraint.


● Active Head Restraints are designed to supplement other safety systems. Al- ways wear seat belts. No system can prevent all injuries in any accident.


1-12 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


SEAT BELTS


PRECAUTIONS ON SEAT BELT USAGE If you are wearing your seat belt properly ad- justed and you are sitting upright and well back in your seat with both feet on the floor, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supple- mental air bag. Most U.S. states and Canadian provinces or territories specify that seat belts be worn at all times when a vehicle is being driven.


SSS0136


Safety—Seats, seat belts and supplemental restraint system 1-13


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


WARNING


● Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be properly re- strained in the rear seat and, if appro- priate, in a child restraint.


SSS0134


SSS0016


WARNING


● The seat belt should be properly ad- justed to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an acci- dent. Serious injury or death can occur if the seat belt is not worn properly.


1-14 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


● Be sure the seat belt tongue is securely


fastened to the proper buckle.


● Do not wear the seat belt inside out or twisted. Doing so may reduce its effectiveness.


● Do not allow more than one person to


use the same seat belt.


● Never carry more people in the vehicle


than there are seat belts.


● If the seat belt warning light glows con- tinuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indicate a mal- function in the system. Have the system checked by a NISSAN dealer.


● No changes should be made to the seat belt system. For example, do not modify the seat belt, add material, or install devices that may change the seat belt routing or tension. Doing so may affect the operation of the seat belt system. Modifying or tampering with the seat belt system may result in serious per- sonal injury.


SSS0014


WARNING


● Always route the shoulder belt over your shoulder and across your chest. Never put the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder. ● Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.


● Once a seat belt pretensioner has acti- vated, it cannot be reused and must be replaced together with the retractor. See your NISSAN dealer.


● Removal and installation of preten- sioner system components should be done by a NISSAN dealer.


and


attaching


● All seat belt assemblies, including re- tractors hardware, should be inspected after any collision by a NISSAN dealer. NISSAN recom- mends that all seat belt assemblies in use during a collision be replaced un- less the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted. ● All child restraints and attaching hard- ware should be inspected after any col- lision. Always follow the restraint manufacturer’s inspection instructions and replacement recommendations. The child restraints should be replaced if they are damaged.


Safety—Seats, seat belts and supplemental restraint system 1-15


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


CHILD SAFETY Children need adults to help protect them. They need to be properly restrained.


In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child.


There are three basic types of child restraint systems: ● Rear-facing child restraint ● Front-facing child restraint ● Booster seat The proper restraint depends on the child’s size. Generally, infants up to about 1 year and less than 20 lbs (9 kg) should be placed in rear-facing child restraints. Front-facing child restraints are available for children who outgrow rear-facing child restraints and are at least 1 year old. Booster seats are used to help position a vehicle lap/shoulder belt on a child who can no longer use a front-facing child restraint.


WARNING


Infants and children need special protec- tion. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fit- ting seat belt could cause serious or fatal injury. Always use appropriate child restraints.


All U.S. states and Canadian provinces or terri- tories require the use of approved child restraints for infants and small children. See “Child Re- straints” later in this section.


Also, there are other types of child restraints available for larger children for additional protec- tion. NISSAN recommends that all pre-teens and children be restrained in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat.


This is especially important because your vehicle has a supplemental restraint sys- tem (Air bag system) for the front passen- ger. See “Supplemental restraint system” later in this section.


Infants Infants up to at least 1 year old should be placed in a rear-facing child restraint. NISSAN recom- mends that infants be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manu- facturer’s instructions for installation and use. Small children Children that are over one year old and weigh at least 20 lbs (9 kg) can be placed in a forward- facing child restraint. Refer to the manufacturer’s instructions for minimum and maximum weight and height recommendations. NISSAN recom- mends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use. Larger children Children who are too large for child restraints should be seated and restrained by the seat belts which are provided. The seat belt may not fit properly if the child is less than 4 ft 9 in (142.5
cm) tall and weighs between 40 lbs (18 kg) and


1-16 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


80 lbs (36 kg). A booster seat should be used to obtain proper seat belt fit. NISSAN recommends that a child be placed in a commercially available booster seat if the shoul- der belt in the child’s seating position fits close to the face or neck or if the lap portion of the seat belt goes across the abdomen. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle por- tion of the shoulder and the lap belt is low on the hips. A booster seat can only be used in seating positions that have a three-point type seat belt. The booster seat should fit the vehicle seat and have a label certifying that it complies with Fed- eral Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.


WARNING


Never let a child stand or kneel on any seat and do not allow a child in the cargo areas while the vehicle is moving. The child could be seriously injured or killed in an accident or sudden stop.


PREGNANT WOMEN NISSAN recommends that pregnant women use seat belts. The seat belt should be worn snug and always position the lap belt as low as possible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your ab- dominal area. Contact your doctor for specific recommendations. INJURED PERSONS NISSAN recommends that injured persons use seat belts. Check with your doctor for specific recommendations. THREE-POINT TYPE SEAT BELT WITH RETRACTOR


WARNING


● Every person who drives or rides in this vehicle should use a seat belt at all times.


● Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.


● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat belt properly.


Safety—Seats, seat belts and supplemental restraint system 1-17


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


WRS0738


Manual front seat shown


Fastening the seat belts 1. Adjust the seat. See “Seats” earlier in this


section.


LRS0594
䊊2 Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you hear and feel the latch engage.


● The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat.


● If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor.


LRS0595
䊊3 Position the lap belt portion low and snug


on the hips as shown.


䊊4 Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.


The front passenger seat and the rear seating positions three-point seat belts have two modes of operation: ● Emergency Locking Retractor (ELR) ● Automatic Locking Retractor (ALR)


1-18 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


To increase your confidence in the seat belts, check the operation as follows: ● Grasp the shoulder belt and pull forward quickly. The retractor should lock and re- strict further belt movement.


If the retractor does not lock during this check or if you have any questions about seat belt opera- tion, see a NISSAN dealer.


The Emergency Locking Retractor (ELR) mode allows the seat belt to extend and retract to allow the driver and passengers some freedom of movement in the seat. The ELR locks the seat belt when the vehicle slows down rapidly or during certain impacts. The Automatic Locking Retractor (ALR) mode (child restraint mode) locks the seat belt for child restraint installation. When the ALR mode is activated, the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully retracted. The seat belt returns to the ELR mode after the seat belt fully retracts. See “Child re- straints” later in this section for more information. The ALR mode should be used only for child restraint installation. During normal seat belt use by an occupant, the ALR mode should not be activated. If it is activated, it may cause uncomfortable seat belt ten- sion.


WARNING


When fastening the seat belts, be certain that the seatbacks are completely se- cured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.


WRS0139


Unfastening the seat belts 䊊1 To unfasten the seat belt, press the button on the buckle. The seat belt automatically re- tracts.


Checking seat belt operation Seat belt retractors are designed to lock seat belt movement by two separate methods: ● When the seat belt is pulled quickly from the


retractor.


● When the vehicle slows down rapidly.


Safety—Seats, seat belts and supplemental restraint system 1-19


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


The shoulder belt comfort assist arm can be adjusted to the position best for you. (See “Pre- cautions on seat belt usage” earlier in this sec- tion.) To adjust, move the arm up as indicated.


WARNING


● After adjustment, release the adjust- ment button and try to move the shoul- der belt anchor up and down to make sure it is securely fixed in position.


● The shoulder belt anchor height should be adjusted to the position best for you. Failure to do so may reduce the effec- tiveness of the entire restraint system and increase the chance or severity of injury in an accident.


LRS0242


Shoulder belt height adjustment (Sedan, front seats) The shoulder belt anchor height should be ad- justed to the position best for you. (See “Precau- tions on seat belt usage” earlier in this section.) To adjust, pull out the adjustment button 䊊1 and move the shoulder belt anchor to the desired position 䊊2 , so the belt passes over the center of the shoulder. The belt should be away from your face and neck, but not falling off your shoulder. Release the adjustment button to lock the shoul- der belt anchor into position.


LRS0821


Shoulder belt guide (Coupe) The shoulder arm can be adjusted to allow easier access to the shoulder belt. The arm can also be folded down to allow rear seat passengers easier access. SEAT BELT EXTENDERS If, because of body size or driving position, it is not possible to properly fit the lap/shoulder belt and fasten it, an extender is available which is compatible with the installed seat belts. The ex- tender adds approximately 8 in (200 mm) of length and may be used for either the driver or front passenger seating position. See a NISSAN dealer for assistance if an extender is required.


1-20 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


WARNING


● Only NISSAN seat belt extenders, made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts.


● Adults and children who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.


● Never use seat belt extenders to install child restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sud- den stop.


SEAT BELT MAINTENANCE ● To clean the seat belt webbing, apply a mild soap solution or any solution recom- mended for cleaning upholstery or carpet. Then wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.


● If dirt builds up in the shoulder belt guide of the seat belt anchors, the seat belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.


CHILD RESTRAINTS


● Periodically check to see that the seat belt and the metal components, such as buckles, tongues, retractors, flexible wires and anchors, work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt as- sembly should be replaced.


PRECAUTIONS ON CHILD RESTRAINTS


ARS1098


Safety—Seats, seat belts and supplemental restraint system 1-21


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


● Even with the NISSAN Advanced Air Bag System, never install a rear-facing child restraint in the front seat. An in- flating front air bag could seriously in- jure or kill your child. A rear-facing child restraint must only be used in the rear seat.


● NISSAN recommends that the child re- straint be installed in the rear seat. Ac- cording to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. If you must install a front-facing child re- straint in the front seat, see “Child re- straint installation using the seat belts” later in this section.


● Improper use or improper installation of a child restraint can increase the risk or severity of injury for both the child and other occupants of the vehicle and can lead to serious injury or death in an accident.


● Follow all of the child restraint manu- facturer’s instructions for installation and use. When purchasing a child re- straint, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle.


● If the child restraint is not anchored properly, the risk of a child being in- jured in a collision or a sudden stop greatly increases.


● Child restraint anchor points are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstances are they to be used for adult seat belts or harnesses.


● Adjustable seatbacks should be posi- tioned to fit the child restraint, but as upright as possible.


● After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the seat near the LATCH attachment or by the seat belt path. The child restraint should not move more than 1 inch (25
mm), from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the re- straint is not secure, tighten the belt as necessary, or put the restraint in an- other seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.


WRS0256


WARNING


● Infants and small children should al- ways be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint can re- sult in serious injury or death.


● Infants and small children should never be carried on your lap. It is not possible for even the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.


1-22 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


● When your child restraint is not in use, keep it secured with the LATCH system or a seat belt to prevent it from being thrown around in case of a sudden stop or accident.


CAUTION


Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the child restraint.


This vehicle is equipped with a universal child restraint lower anchor system, referred to as the LATCH (Lower Anchors and Tethers for CHil- dren) system. Some child restraints include two rigid or webbing-mounted attachments that can be connected to these lower anchors. For details, see “LATCH (Lower Anchors and Tethers for CHildren) system” later in this section.


If you do not have a LATCH compatible child restraint, the vehicle seat belts can be used. See “Child restraint installation using the seat belts” later in this section. In general, child restraints are also designed to be installed with a lap/shoulder seat belt.


Several manufacturers offer child restraints for infants and small children of various sizes. When selecting any child restraint, keep the following points in mind: ● Choose only a restraint with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.


● Check the child restraint in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.


● If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Choose a child restraint that is designed for your child’s height and weight. Always follow all recommended procedures. All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated. Canadian law requires the top tether strap on front-facing child re- straints be secured to the designated an- chor point on the vehicle.


WRS0795


LATCH system anchor locations


LATCH (Lower Anchors and Tethers for CHildren) SYSTEM Your vehicle is equipped with special anchor points that are used with LATCH (Lower Anchors and Tethers for CHildren) system compatible child restraints. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle seat belt to secure the child restraint.


Safety—Seats, seat belts and supplemental restraint system 1-23


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


The LATCH anchor points are provided to install child restraints in the rear outboard seating posi- tions only. Do not attempt to install a child re- straint in the center position using the LATCH anchors.


WRS0796


WRS0829


LATCH lower anchor location


LATCH lower anchor point locations The LATCH anchors are located at the rear of the seat cushion near the seatback. A label is at- tached to the seatback to help you locate the LATCH anchors.


WARNING


● Attach LATCH system compatible child restraints only at the locations shown. If a child restraint is not secured properly, your child could be seriously injured or killed in an accident.


(if so equipped)


● Do not secure a child restraint in the center rear seating position using the LATCH anchors. The child restraint will not be secured properly.


● Child restraint anchor points are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstances are they to be used for adult seat belts or harnesses.


1-24 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


TOP TETHER STRAP CHILD RESTRAINT If the manufacturer of your child restraint requires the use of a top tether strap, it must be secured to the anchor point.


WARNING


● Child restraint anchor points are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstances are they to be used for adult seat belts or harnesses.


● Do not allow cargo to contact the top tether strap when it is attached to the top tether anchor. Properly secure the cargo so it does not contact the top tether strap. Cargo that is not properly secured or cargo that contacts the top tether strap may damage it during a collision. Your child could be seriously injured or killed in a collision if the top tether strap is damaged.


LATCH webbing-mounted attachment


LATCH rigid-mounted attachment


LRS0661


LRS0662


Installing child restraint LATCH anchor attachments LATCH compatible child restraints include two rigid or webbing-mounted attachments that can be connected to two anchors located at certain seating positions in your vehicle. With this sys- tem, you do not have to use a vehicle seat belt to secure the child restraint. Check your child re- straint for a label stating that it is compatible with LATCH. This information may also be in the in- structions provided by the child restraint manu- facturer.


LATCH child restraints generally require the use of a top tether strap. See “Top tether strap child restraint” later in this section for installation in- structions. When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint. See “Child restraint installation using LATCH” later in this section.


Safety—Seats, seat belts and supplemental restraint system 1-25


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


4. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.


If you have any questions when installing a top tether strap child restraint on the rear seat, consult your NISSAN dealer for de- tails. CHILD RESTRAINT INSTALLATION USING LATCH


WARNING


● Attach LATCH system compatible child restraints only at the locations shown. For the LATCH lower anchor locations see “LATCH (Latch Anchors and Tethers for CHildren) system”. If a child restraint is not secured properly, your child could be seriously injured or killed in an accident.


● The LATCH anchors are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts or harnesses.


WRS0797


Top tether anchor point locations Anchor points 䊊1 are located on the rear parcel shelf. Installing top tether strap


LRS0798
First, secure the child restraint with the LATCH System (rear outboard seating positions only) or the seat belt, as applicable. 䊊1 Flip up the anchor cover from the anchor point which is located directly behind the child seat.


䊊2 Position the top tether strap over the top of


the seatback.


䊊3 Secure the tether strap to the tether anchor bracket that provides the straightest installa- tion.


1-26 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


● Inspect the lower anchors by inserting your fingers into the lower anchor area and feeling to make sure there are no obstructions over the LATCH anchors, such as seat belt webbing or seat cush- ion material. The child restraint will not be secured properly if the LATCH an- chors are obstructed.


Front-facing Follow these steps to install a front-facing child restraint using LATCH system:


LRS0824


WRS0799


(if so equipped)


1.


If the rear seat cushion has a flap 䊊1 , pull the flap down to allow access to the anchors 䊊2 . 2. Position the child restraint on the seat. Al- ways follow the child restraint manufactur- er’s instructions.


Front-facing web-mounted – step 3


3. Secure the child restraint anchor attach- ments to the LATCH lower anchors. Check to make sure the LATCH attachment is prop- erly attached to the lower anchors.


4. The back of the child restraint should be


secured against the vehicle seatback.


If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. See “Head restraints” earlier in this section.


If the head restraint is removed, store it in a secure place. Be sure to reinstall the head re- straint when the child restraint is removed.


Safety—Seats, seat belts and supplemental restraint system 1-27


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


WRS0800


LRS0671


WRS0697


Front-facing rigid-mounted – step 3


If the seating position does not have an adjust- able head restraint and it is interfering with the proper child restraint fit, try another seating posi- tion or a different child restraint.


Front-facing – step 5


Front-facing – step 7


5. For child restraints that are equipped with webbing mounted attachments, remove any additional slack from the anchor attach- ments. Press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments. If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. See “Top tether strap child restraint” in this section.


6.


7. After attaching the child restraint, test it be- fore you place the child in it. Push it from side to side while holding the seat near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child re- straints fit in all types of vehicles.


1-28 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


is loose,


8. Check to make sure the child restraint is properly secured prior to each use. If the child restraint repeat steps 4
through 7. Rear-facing Follow these steps to install a rear-facing child restraint using LATCH system:


LRS0824


WRS0801


(if so equipped)


1.


If the rear seat cushion has a flap 䊊1 , pull the flap down to allow access to the anchors 䊊2 . 2. Position the child restraint on the seat. Al- ways follow the child restraint manufactur- er’s instructions. Check to make sure the LATCH attachment is properly attached to the lower anchors.


Rear-facing web-mounted – step 3


3. Secure the child restraint anchor attach- ments to the LATCH lower anchors. Check to make sure the LATCH attachment is prop- erly attached to the lower anchors.


Safety—Seats, seat belts and supplemental restraint system 1-29


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


Rear-facing rigid-mounted – step 3


Rear-facing – step 4


Rear-facing – step 5


WRS0802


LRS0673


LRS0674


4. For child restraints that are equipped with webbing mounted attachments, remove any additional slack from the anchor attach- ments. Press downward and rearward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.


5. After attaching the child restraint, test it be- fore you place the child in it. Push it from side to side while holding the seat near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child re- straints fit in all types of vehicles.


1-30 Safety—Seats, seat belts and supplemental restraint system


墌 REVIEW COPY—2009 Altima (alt) Owners Manual—USA_English (nna) 09/08/08—debbie 墍


6. Check to make sure the child restraint is properly secured prior to each use. If the child restraint repeat steps 3
through 5.


is loose,


● NISSAN recommends that child re- straints be installed in the rear seat. However, if you must install a front- facing child restraint in the front pas- senger seat, move the passenger seat to the rearmost position. Also, be sure the front passenger air bag status light is illuminated to indicate the passenger air bag is OFF. See “Front passenger air bag and status light” later in this sec- tion for details.


● The three-point seat belt in your vehicle is equipped with an Automatic Locking Retractor (ALR) which must be used when installing a child restraint.


● Failure to use the ALR mode will result in the child restraint not being properly secured. The restraint could tip over or otherwise be unsecured and cause in- jury to the child in a sudden stop or collision.


● A child restraint with a top tether strap should not be used in the front passen- ger seat.


The instructions in this section apply to child restraint installation using the vehicle seat belts in the rear seat or the front passenger seat.


CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS


WRS0256


WARNING


Loading...
x
