1997 Nissan Altima Owners Manual

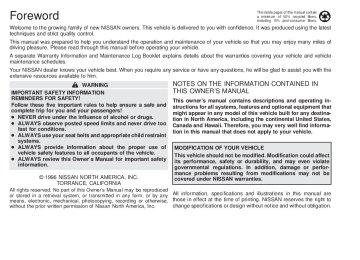

Foreword

The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.

Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you understand the operation and maintenance of your vehicle so that you may enjoy many miles of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information and Maintenance Log Booklet explains details about the warranties covering your vehicle and vehicle maintenance schedules. Your NISSAN dealer knows your vehicle best. When you require any service or have any questions, he will be glad to assist you with the extensive resources available to him.

WARNING

IMPORTANT SAFETY INFORMATION REMINDERS FOR SAFETY! Follow these five important rules to help ensure a safe and complete trip for you and your passengers! c NEVER drive under the influence of alcohol or drugs. c ALWAYS observe posted speed limits and never drive too

c ALWAYS use your seat belts and appropriate child restraint

fast for conditions.

systems.

c ALWAYS provide information about the proper use of

vehicle safety features to all occupants of the vehicle.

c ALWAYS review this Owner’s Manual for important safety

information.

© 1996 NISSAN NORTH AMERICA, INC.

TORRANCE, CALIFORNIA

NOTES ON THE INFORMATION CONTAINED IN THIS OWNER’S MANUAL This owner’s manual contains descriptions and operating in- structions for all systems, features and optional equipment that might appear in any model of this vehicle built for any destina- tion in North America, including the continental United States, Canada and Hawaii. Therefore, you may very well find informa- tion in this manual that does not apply to your vehicle.

MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or perfor- mance problems resulting from modifications may not be covered under NISSAN warranties.

All rights reserved. No part of this Owner’s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan North America, Inc.

All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and without obligation.

Welcome To The World Of NISSAN

Your new Nissan is the result of our dedication to produce the finest in safe, reliable and economi- cal transportation. Your vehicle is the product of a successful worldwide company that manufac- tures cars and trucks in over 17 countries and distributes them in 170 nations. Nissan vehicles are designed and manufactured by Nissan Motor Co., Ltd. which was founded in Tokyo, Japan in 1933, and Nissan affiliates world wide, collectively growing to become the fifth largest automaker in the world. In addition to cars and trucks, Nissan also makes textile machinery, forklift trucks, marine engines, boats and other products. Nissan has made a substantial and growing investment in North America, starting with the opening of Nissan Motor Corporation U.S.A. in 1960 and continuing with the production of some cars and trucks at one of the world’s most

AFW0001

modern manufacturing facilities, Nissan Motor Manufacturing Corporation U.S.A. in Smyrna, Tennessee, vehicle styling at Nissan Design International in San Diego, California, and engi- neering at Nissan Research and Development in Farmington Hills, Michigan.

Nissan Motor Corporation U.S.A. and its dealers indirectly employ about 60,000 Americans.

Nissan is also a substantial contributor to the Canadian economy. Nissan Canada Inc., its sup- pliers and over 170 dealers employ approxi- mately 4,500 people. These include company employees and the staffs of Nissan dealers all across Canada. In addition, many Canadians work for companies that supply Nissan and Nis- san dealers with materials and services ranging from the operation of port facilities and transpor- tation services, to the supply of lubricants, parts and accessories.

The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.

Nissan pioneered the use of electronics and computers in automobiles, and has led the indus- try in improving both performance and fuel effi- ciency through new engine designs and the use of synthetic materials to reduce vehicle weight. The company has also developed ways to build quality into its vehicles at each stage of the production process, both through extensive use of automation and — most importantly — through an awareness that people are the cen- tral element in quality control. From the time the parts arrived from our suppli- ers until you took delivery of your new Nissan, dozens of checks were made to ensure that only the best job was being done in producing and delivering your vehicle. Nissan also takes great care to ensure that when you take your Nissan to your dealer for maintenance, the service techni- cian will perform his work according to the quality standards that have been established by Nissan. Safety has also been built into your Nissan. As you know, seat belts are an integral part of the safety systems that will help protect you and your passengers in the event of a sudden stop or an accident. We urge you to use the belts every time you drive the vehicle. The Nissan story of growth and achievement reflects our major goal: to provide you, our customer, with a vehicle that is built with quality and craftsmanship — a product that we can be proud to build and you can be proud to own.

Z X

NISSAN CUSTOMER CARE PROGRAM

NISSAN CARES ... Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.

However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact the NISSAN Consumer Affairs Department using our toll-free number: For U.S. mainland customers

1-800-NISSAN-1 (1-800-647-7261)

For Hawaii customers

(808) 836-0888 (Oahu Number)

For Canada customers

1-800-387-0122

The Consumer Affairs Department will ask for the following infor- mation: — Your name, address, and telephone number — Vehicle identification number (on dashboard) — Date of purchase — Current odometer reading — Your NISSAN dealer’s name — Your comments or questions

OR You can write to NISSAN with the information on the left at: For U.S. mainland and Alaska customers

Nissan Motor Corporation U.S.A. Consumer Affairs Department P.O. Box 191
Gardena, California 90248-0191

For Hawaii customers

Nissan Motor Corporation in Hawaii 2880 Kilihau St. Honolulu, Hawaii 96819

For Canada customers Nissan Canada Inc. P.O. Box 1709, Station ‘‘B’’ Mississauga, Ontario L4Y 4H6

We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

Z X

INFORMATION ABOUT

IMPORTANT THIS MANUAL You will see various symbols in this manual. They are used in the following ways:

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moderate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.

APD0649

If you see this symbol, it means ‘‘Do not do this’’ or ‘‘Do not let this happen.’’

Z X

Z X

Contents

Instruments and controls

Pre-driving checks and adjustments

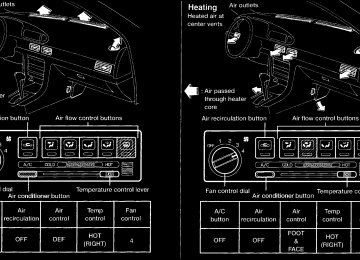

Heater, air conditioner and audio system

Starting and driving

In case of emergency

Appearance and interior care

Do-it-yourself operations

Maintenance schedule

Technical and consumer information

Index

10

1 Instruments and controls

Meters and gauges ................................................1-2
Speedometer and odometer ..................................1-3
Tachometer ............................................................1-3
Engine coolant temperature gauge and fuel gauge .....................................................................1-4
Warning/indicator lights and chimes ......................1-5
Theft warning (if so equipped) ...............................1-9
Windshield wiper and washer switch...................1-10
Rear window defogger switch..............................1-11
Headlight and turn signal switch..........................1-12
Daytime running light system (for Canada) .........1-13
Cornering light (if so equipped)............................1-13
Instrument brightness control...............................1-14
Front fog light switch (if so equipped)..................1-14

Hazard warning flasher switch.............................1-14
Cigarette lighter (accessory) and ash tray...........1-15
Cup holder............................................................1-16
Manual windows...................................................1-16
Power windows ....................................................1-17
Automatic power window switch ..........................1-17
Rear power windows............................................1-18
Sunroof (if so equipped).......................................1-18
If the sunroof does not close ...............................1-19
Clock instrument panel (if so equipped) ..............1-20
Interior light...........................................................1-20
Trunk light.............................................................1-21
Spotlight (if so equipped) .....................................1-21

Z X

METERS AND GAUGES

1-2

AIC0523

Z X

SPEEDOMETER AND ODOMETER

TACHOMETER

IC1261

AIC0076

Speedometer The speedometer indicates vehicle speed. Odometer The odometer records the total distance the vehicle has been driven. Trip odometer The trip odometer records the distance of individual trips. Before each trip, set the trip odometer to zero by pushing the reset but- ton.

The tachometer indicates engine speed in revolutions per minute (r/min).

CAUTION

When engine speed approaches the red zone, shift to a higher gear. Oper- ating the engine in the red zone may cause serious engine damage.

1-3

Z X

ENGINE COOLANT TEMPERATURE GAUGE AND FUEL GAUGE

AIC0077

Engine coolant temperature gauge The gauge indicates the engine coolant temperature. The engine coolant temperature varies with the outside air temperature and driving con- ditions.

CAUTION

If the gauge indicates engine coolant temperature over the normal range, stop the vehicle as soon as safely pos- sible. If the engine is overheated, con- tinued operation of the vehicle may seriously damage the engine. See the ‘‘In case of emergency’’ section for immediate action required.

Fuel gauge The gauge indicates the approximate fuel level in the tank. The gauge may move slightly during brak- ing, turning, acceleration, or going up or down hills. The gauge needle remains in approximately the same position even when the ignition key is turned to OFF. light comes on when the The indicator amount of fuel in the tank is getting low. Refill the fuel tank before the gauge registers Empty (E).

1-4

Z X

WARNING/INDICATOR LIGHTS AND CHIMES

or

Brake warning light

Seat belt warning light

Engine oil pressure warning light

Turn signal/hazard indicator lights

Low washer fluid warning light (Canada only)

CRUISE indicator light

High beam indicator light

Charge warning light

Door open warning light

or

or

Anti-lock brake warning light

Supplemental air bag warning light

Overdrive off indicator light

Rear window defogger indicator light

Malfunction indicator light (emission system)

Theft warning light (If so equipped)

Checking bulbs Apply the parking brake and turn the ignition key to ON without starting the engine. The following lights come on:

or

or

The following lights come on briefly and then go off: or

If any light fails to come on, it may indicate a burned-out bulb or an open circuit in the electrical system. Have the system repaired promptly.

Engine oil pressure warning light

This light warns of low engine oil pressure. If the light flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call a NISSAN dealer or other authorized repair shop. The oil pressure warning light is not designed to indicate a low oil level. Use the dipstick to check the oil level. See ‘‘Engine oil’’ in the ‘‘Do-it-yourself opera- tions’’ section.

CAUTION

Running the engine with the oil pressure warning light on could cause serious damage to the engine almost immedi- ately. Turn off the engine as soon as it is safe to do so.

Charge warning light

If this light comes on while the engine is running, it may indicate a problem with the charging system. Turn the engine off and check the generator belt. If the belt is loose,

1-5

Z X

broken, or missing, or if the light remains on, see your NISSAN dealer immediately.

CAUTION

Do not continue driving if the belt is loose, broken or missing.

Door open warning light

This light comes on when any of the doors are not closed securely while the ignition key is ON.

Seat belt warning light and chime

The light and chime remind you to fasten seat belts. The light illuminates whenever the ignition key is turned to ON, and re- mains illuminated until the driver’s seat belt is fastened. At the same time, the chime sounds for about seven seconds unless the driver’s seat belt is securely fastened. Refer to ‘‘Seat belts’’ in the ‘‘Pre-driving checks and adjustments’’ section for pre- cautions on seat belt usage.

Supplemental air bag warn- ing light

When the ignition key is in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational. If any of the following conditions occur, the supplemental air bag system needs servicing and your vehicle must be taken to your near- est authorized NISSAN dealer: 1. The supplemental air bag warning light does not come on and remain on for 7
seconds and then go off as described above.

2. The supplemental air bag warning light

flashes intermittently or remains on.

3. The supplemental air bag warning light

does not come on at all.

Unless checked and repaired, the Supple- mental Restraint System (Supplemental air bag system) may not function properly. For additional details, see ‘‘Supplemental Re- straint System’’ in the ‘‘Pre-driving checks and adjustments’’ section.

1-6

WARNING

c If the supplemental airbag warning light is on, it could mean that the supplemental airbag will not operate in an accident.

Low washer light (Canada only)

fluid warning

This light comes on when the washer fluid is at a low level. Add washer fluid as neces- sary. See the ‘‘Do-it-yourself operations’’ section.

Brake warning light functions for both the parking

or This light brake and the foot brake systems. The light comes on when the parking brake is applied, and also warns of a low brake fluid level. If the light comes on while the engine is running with the parking brake not applied, stop the vehicle and perform the following: 1. Check the brake fluid level. Add brake fluid as necessary. See ‘‘Brake and clutch fluid’’ in the ‘‘Do-it-yourself opera- tions’’ section.

Z X

2. If the brake fluid level is correct, have the warning system checked by your NIS- SAN dealer.

WARNING

c Your brake system may not be work- ing properly if the warning light is on. Driving could be dangerous. If you judge it to be safe, drive care- fully to the nearest service station for repairs. Otherwise, have your ve- hicle towed.

c Pressing the brake pedal with the engine stopped and/or low brake fluid level may increase your stop- ping distance and braking will re- quire greater pedal effort as well as greater pedal travel.

c If the brake fluid level is below the minimum mark on the brake fluid reservoir, do not drive until the brake system has been checked at a NIS- SAN dealer.

Brake pad wear warning The disc brake pads have audible wear warnings. When a brake pad requires re- placement, it makes a high pitched scraping

sound when the vehicle is in motion, whether or not is de- pressed. Have the brakes checked as soon as possible if the warning sound is heard.

the brake pedal

or

Anti-lock brake warning light (If so equipped)

If the light comes on while the engine is running, it may indicate something wrong with the anti-lock portion of the brake system. Have the system checked by your NISSAN dealer. Turn off the engine, and start it again by slowly turning the ignition key (quickly doing so may cause the ABS light to stay on when there is nothing wrong). If the light stays on, have the system checked by your NISSAN dealer. If an abnormality occurs in the system, the anti-lock function ceases but the regular braking system continues to operate. If the light comes on while you are driving, contact your NISSAN dealer for repair.

1-7

Overdrive off indicator light (Automatic transmission models only)

This light comes on when the overdrive switch is pushed to the OFF position.

Turn signal/hazard indicator lights

The appropriate light flashes when the turn signal switch is activated. Both lights flash when the hazard switch is turned on.

High beam indicator light

This light comes on when the headlight high beam is on and goes out when the low beam is selected.

Rear window defogger indi- cator light

This light comes on when the rear defogger switch is activated.

Cruise indicator light

This light comes on while the vehicle speed is controlled by the cruise control system. If the CRUISE indicator blinks, have the sys-

Z X

tem checked by your NISSAN dealer.

Theft warning light equipped)

(If so

This light is used to verify theft warning system activation. For further information, see ‘‘Theft Warning’’ later in this chapter. Key reminder chime A chime sounds if the driver side door is opened while the key is left in the ignition switch. Remove the key and take it with you when leaving the vehicle. Light reminder chime A chime sounds when the driver side door is opened if the headlight switch is turned on (ignition switch is turned OFF). Turn the light switch OFF when you leave the vehicle. or

Malfunction indi- cator light (MIL)

If the malfunction indicator light comes on steady or blinks while the engine is running, it may indicate a potential emission control problem.

The malfunction indicator light will come on in one of two ways: 1. Malfunction indicator light on steady - An emission control system malfunction has been detected. Have the vehicle in- spected by an authorized NISSAN dealer. You do not need to have your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without having the emission control system checked and repaired as necessary could lead to poor driveability, reduced fuel economy, and possible damage to the emission control system, which may affect your warranty coverage.

2. Malfunction indicator light blinking - An engine misfire has been detected which may damage the emission control sys- tem. To reduce or avoid emission control system damage: c do not drive at speeds above 45 MPH

(72 km/h).

tion.

c avoid hard acceleration or decelera-

c avoid steep uphill grades. c if possible, reduce the amount of cargo

behind hauled or towed.

The malfunction indicator light may stop blinking and come on steady. Have the vehicle inspected by an authorized NISSAN dealer. You do not need to have your ve- hicle towed to the dealer.

1-8

Some conditions may cause the malfunc- tion indicator light to come on steady or blink. For example, running the vehicle out of fuel, which causes the engine to misfire, may cause the malfunction indicator light to come on steady or blink. If you suspect that you experienced this condition, drive the vehicle to an authorized NISSAN dealer and have the vehicle in- spected. Avoid any unnecessary diagnosis during the service by informing the dealer of the condition that may have occurred.

Z X

THEFT WARNING (If so equipped)

IC0005

The theft warning system provides visual and audio alarm signals if parts of the vehicle are disturbed. How to activate the theft warning system 1. Close all windows. 2. Remove the key from the ignition switch. 3. Close and lock all doors, hood and trunk

lid. Lock all doors by pressing the button on the multi-remote controller. At this time, the hazard indicators flash twice to indicate all doors are locked.

The system can be activated even if the windows are open. 4. Confirm that the SECURITY indicator light comes on. The SECURITY light glows for about 30 seconds and then begins to flash once every three seconds. The system is now activated. If, during this 30-second time period, the door is unlocked by the key or the multi-remote controller, or the ignition key is turned to ACC or ON, the system will not activate.

If the key is turned slowly when locking the door, the system may not activate. Furthermore, if the key is turned exces- sively to the unlock position, the system may be deactivated when the key is re- moved. If the indicator light fails to glow for 30 seconds, unlock the door once and lock it again. Even when the driver and/or passengers are in the vehicle, the system will acti- vate with all doors, hood and trunk lid locked and ignition key off. Turn the ignition key to ACC or ON to turn the system off.

1-9

Theft warning system operation The theft warning system emits the follow- ing alarm: c The headlights blink and the horn sounds intermittently. In addition, the starter mo- tor does not operate.

c The alarm automatically turns off after 2
to 3 minutes. However, the alarm reacti- vates if the vehicle is tampered with again. The alarm can be shut off by unlocking a door or trunk lid with the key, or by pressing the button on the multi-remote controller. The alarm is activated by: c opening the door or trunk lid without using the key (even if the door is un- locked by releasing the door inside lock switch) or opening the trunk lid by oper- ating the opener lever.

c opening the hood. c pushing in or pulling out the key cylinder

on the door or trunk lid. How to stop the alarm The alarm stops only by unlocking a door or the trunk lid with the key, or by pressing

Z X

button on the multi-remote control- the ler. The alarm does not stop if the ignition switch is turned to ACC or ON. If the system does not operate as de- scribed above, have it checked by your NISSAN dealer.

WINDSHIELD WIPER AND WASHER SWITCH

The wipers cycle twice when the washer is activated.

CAUTION

following could damage

The washer system: c Do not operate the washer continu-

the

ously for more than 30 seconds.

c Do not operate the washer if the

reservoir tank is dry.

WARNING

In freezing temperatures the washer solution may freeze on the windshield and obscure your vision which may lead to an accident. Warm the wind- shield with the defroster before you wash the windshield.

AIC0520

Push the lever down to operate the wind- shield wipers. Pull the lever toward you to operate the washer. Intermittent operation can be adjusted from 2 to approximately 20 seconds by turning the knob (Type B only). 1-10

Z X

REAR WINDOW DEFOGGER SWITCH

NOTE: On some vehicles, the top few rows of wires on the rear window are not part of the rear window defogging system. These wires, if so equipped, make up the diversity antenna for the audio system.

IC1267

To defog the rear window glass, start the engine and push the rear window defogger switch on. The rear window defogger indi- cator light in the meter comes on in the instrument panel. Push the switch again to turn the defogger off. The rear window defogger switch automati- cally turns off in approximately 15 minutes.

CAUTION

When cleaning the inner side of the window, be careful not to scratch or damage the rear window defogger.

1-11

Z X

HEADLIGHT AND TURN SIGNAL SWITCH

Lighting position: The Turn the switch to the front clearance, side marker, tail, license plate and instrument panel lights come on. Turn the switch to the

position:

The headlights come on and all the other lights remain on. To select the high beam function, push the lever forward. The high beam lights come on and the indicator light illuminates. Pull it back to select the low beam.

1-12

AIC0505

Z X

Passing signal Pulling and releasing the lever flashes the headlight high beams on and off. Turn signal Move the lever up or down to signal the turning direction. When the turn is com- pleted, the turn signals cancel automati- cally. Lane change signal To signal a lane change, move the lever up or down to the point where the indicator light begins to flash, but the lever does not latch.

DAYTIME RUNNING LIGHT SYS- TEM (for Canada) The headlights automatically illuminate at a reduced intensity when the engine is started with the parking brake released. The day- time running lights operate with the head- light switch in the ‘‘OFF’’ position or in the ’’ position. Turn the headlight switch ‘‘ to the ‘‘ illumination when driving at night. If the parking brake is applied before the engine is started, the daytime running lights do not illuminate. The daytime running lights illuminate once the parking brake is re- leased. The daytime running lights will re- main on until the ignition switch is turned off.

’’ position for full

WARNING

When the daytime running light system is active, tail lights on your vehicle are not on. It is necessary at dusk to turn on your headlights. Failure to do so could cause an accident injuring your- self and others.

CORNERING LIGHT (If so equipped)

IC1030

The cornering light provides additional illu- mination toward the turning direction. The light on the turning direction side comes on when a turn is signaled with the headlights on.

1-13

Z X

INSTRUMENT BRIGHTNESS CONTROL

FRONT FOG LIGHT SWITCH (If so equipped)

HAZARD WARNING FLASHER SWITCH

IC1269

IC1292

IC1271

The instrument brightness control operates when the light switch is in the or

position.

Turn the control to adjust the brightness of instrument panel lights. NOTE: For vehicles with the clock located in the instrument panel, the instrument bright- ness control function has no effect on the brightness of the clock.

position.

To turn the front fog lights on, rotate the switch to the To turn them off, turn the switch to the OFF position. The low-beam headlight function must be on for the fog lights to operate. The fog lights automatically turn off whenever the high-beam headlight function is selected.

Push the switch on to warn other drivers when you must stop or park under emer- gency conditions. All turn signal lights flash.

WARNING

c When stalled or stopped on the road- way under emergency conditions, move the vehicle well off the road.

1-14

Z X

c Do not use the switch while moving on the highway unless unusual cir- cumstances force you to drive so slowly that your vehicle might be- come a hazard to other traffic.

c Turn signals do not work when the hazard warning flasher lights are on.

The flashers can be actuated with the igni- tion switch either OFF or ON. Some state laws may prohibit the use of the hazard warning flasher switch while driving.

CIGARETTE LIGHTER (ACCESSORY) AND ASH TRAY

CAUTION

The cigarette lighter socket is a power source for the cigarette lighter element only. The use of the cigarette lighter socket as a power source for any other accessory is not recommended.

WARNING

The cigarette lighter should not be used while driving in order that full attention may be given to the driving operation.

AIC0509

The cigarette lighter element is an acces- sory. A genuine NISSAN cigarette lighter or equivalent can be purchased from your lo- cal NISSAN dealer. The cigarette lighter operates when the ignition switch is in the ACC or ON position. Push the lighter in all the way. When the lighter is heated, it springs out. Return the lighter to its original position after use.

1-15

Z X

CUP HOLDER

MANUAL WINDOWS

AIC0087

To open, pull the cup holder out. To close, push the cup holder in. The cup holder and the ashtray cannot be used at the same time. Close the ashtray before using the cup holder.

WARNING

The driver should not pull out the cup holder or remove or insert cups into the cup holder while driving in order that full attention may be given to the driv- ing operation.

CAUTION

c Avoid abrupt starting and braking when the cup holder is being used to prevent spilling the drink. If the liq- uid is hot, it can scald you or your passenger.

c Use only soft cups in the cupholder. Hard objects can injure you in an accident.

The side windows can be opened or closed by turning the hand crank on each door.

AIC0648

1-16

Z X

POWER WINDOWS

WARNING

c Make sure that all passengers have their hands, etc. inside the vehicle before closing the windows. Use the window lock switch to prevent unex- pected use of the power windows.

c Do not leave children unattended in- side the vehicle. They could un- knowingly activate switches or con- trols and become trapped in a window. Unattended children could become involved in serious acci- dents.

AIC0518

AIC0517

The power windows operate only when the ignition key is in the ON position. To open a window, press down on the switch. To close a window, push up on the switch. To stop the opening or closing function at any time, simply release the switch. The driver side control panel is equipped with switches to open or close all of the windows.

AUTOMATIC POWER WINDOW SWITCH To fully open the driver side window, com- pletely press the driver side window switch down and release it; it need not be held. The window automatically opens all the way. To stop the window, push up on the switch while the window is opening.

1-17

Z X

REAR POWER WINDOWS

SUNROOF (If so equipped)

AIC0501

IC1285

AIC0522

The front passenger switch operates only the front passenger window. To open or close the window, press and hold the switch. Locking passenger windows When the power window lock switch on the driver side control panel is pushed in, only the driver side window can be opened or closed. Push it in again to cancel this func- tion.

The sunroof only operates when the ignition key is in the ON position. Sliding the sunroof To open the roof, press and hold the switch to the OPEN side. To close the roof, press and hold the switch to the CLOSE side.

1-18

Z X

Tilting the sunroof To tilt up, first close the sunroof, then push and hold the UP side of the tilt switch. To close the sunroof, push and hold the DOWN side. Sun shade Open and close the sun shade by sliding it forward or backward.

WARNING

c In an accident you could be thrown from the vehicle through an open sunroof. Always use seat belts and child restraints.

c Do not allow anyone to stand up or extend any portion of their body out of the opening while the vehicle is in motion or while the sunroof is closing.

CAUTION

c Remove water drops, snow, ice or sunroof before

sand from the opening.

c Do not place any heavy object on the

sunroof or surrounding area.

IF THE SUNROOF DOES NOT CLOSE 1. Turn the ignition key to the OFF position. in the

Be sure no objects are caught sunroof opening.

2. Remove the spotlight unit. The shaft end

of the sunroof motor will be visible.

3. Using a 5mm (0.20 in) hex wrench, turn the shaft clockwise to close the sunroof. Have the sunroof system checked and re- paired by your NISSAN dealer.

AIC0519

1-19

Z X

CLOCK — INSTRUMENT PANEL (If so equipped)

INTERIOR LIGHT

CAUTION

Leaving the interior light switch in the ON position for extended periods of time will result in a discharged battery.

AIC0500

IC1235M

The digital clock displays time when the ignition key is in the ACC or ON position. If the power supply is disconnected, the clock will not indicate the correct time. Readjust the time. Adjusting the time Push the H button to adjust the hour. Push the M button to adjust the minute. NOTE: The clock displays 12-hour time with no AM/PM indications.

The interior light operates regardless of ignition key position. The interior light has a three-position switch. c When the switch is in the OFF position, the interior light does not illuminate, re- gardless of door position.

c When the switch is in the center j illuminates

the interior

position, when a door is opened.

light

c When the switch is in the ON position, the interior light illuminates, whether any door is open or closed.

1-20

Z X

SPOTLIGHT (If so equipped)

TRUNK LIGHT

The light illuminates when the trunk lid is opened. When the trunk lid is closed, the light goes off.

IC1019

IC1278

1-21

Z X

Z X

2 Pre-driving checks and adjustments

Key .........................................................................2-2
Door locks ..............................................................2-2
Manual door lock....................................................2-2
Power door lock .....................................................2-3
Child safety rear door lock.....................................2-4
Multi-remote control system (if so equipped).........2-4
Battery replacement ...............................................2-6
Hood release..........................................................2-8
Glove box ...............................................................2-8
Trunk lid lock operation..........................................2-9
Opener cancel lever for trunk lid..........................2-10
Fuel filler lid lock operation ..................................2-10
Fuel filler cap........................................................2-11
Front seats ...........................................................2-12
Seat adjustment ...................................................2-12
Head restraints.....................................................2-14
Rear seat..............................................................2-15
Supplemental restraint system (air bag system).................................................................2-16

Supplemental air bag system...............................2-19
Warning labels......................................................2-21
Supplemental air bag warning light......................2-21
Seat belts .............................................................2-23
Precautions on seat belt usage ...........................2-23
Child safety...........................................................2-25
3-point type with retractor ....................................2-26
2-point type without retractor (center position of rear seat)..........................................................2-28
Seat belt extenders ..............................................2-30
Seat belt maintenance .........................................2-30
Child restraints for infants and small children......2-30
Top strap child restraint .......................................2-34
Tilting steering wheel ...........................................2-37
Outside mirror remote control ..............................2-37
Outside mirrors.....................................................2-37
Inside mirror .........................................................2-38
Vanity mirror.........................................................2-38

Z X

KEY

DOOR LOCKS

APD0512

PD1305

APD0520

MANUAL DOOR LOCK To lock the front doors from the outside, turn the key toward the front of the vehicle. To unlock, turn it toward the rear.

To lock a door from inside the vehicle, press the lock knob (located above the door handle) until it is flush with the door panel. To unlock, pull the lock knob to its outer position.

The master key can be used for all of the locks. A key number plate is supplied with your key. Record the key number on the key number plate and keep it in a safe place (such as your wallet), NOT IN THE CAR. NISSAN does not record key numbers so it is very important to keep track of your key number plate. A key number is only necessary when you have lost all keys and do not have one to duplicate from. If you still have a key, this key can be duplicated by your NISSAN dealer or a locksmith shop.

2-2

Z X

APD0528

APD0521

APD0527

POWER DOOR LOCK The power door lock system allows you to lock or unlock all doors simultaneously. Turning the front door key to the front of the vehicle locks all doors. Turning the front door key one time to the rear of the vehicle unlocks the correspond- ing door. From that position, returning the key to Neutral (where the key can only be removed and inserted) and turning it to the rear again within 5 seconds unlocks all doors.

To lock from the outside without a key, push the door lock button (driver side only) or the door lock knob (driver or passenger side), then close the door. When locking the door this way, be certain not to leave the key inside the vehicle. All doors automatically unlock with the key in the ignition.

WARNING

c Always have the doors locked while driving. Along with the use of seat belts, this provides greater safety in the event of an accident by helping to prevent persons from being thrown from the vehicle. This also helps keep children and others from unintentionally opening the doors, and will help keep out intruders.

c Before opening any door, always look for and avoid oncoming traffic.

2-3

Z X

c Do not leave children unattended in- side the vehicle. They could un- knowingly activate switches or con- trols. Unattended children could become involved in serious acci- dents.

PD1101

CHILD SAFETY REAR DOOR LOCK Child safety locks help prevent rear doors from being opened accidentally, especially when small children are in the vehicle. The child safety lock levers are located on the edge of the rear doors. When the lever is in the lock position, the door can be opened only from the outside.

2-4

MULTI-REMOTE CONTROL SYSTEM (if so equipped) It is possible to lock/unlock all doors, turn the interior light on and activate the panic alarm by using the remote controller from outside the vehicle. Be sure to remove the key from the vehicle before locking the doors and leaving it. The remote controller can operate at a distance of approximately 49 ft (15 m) from the vehicle. (The effective distance depends on the conditions around the vehicle.) As many as four remote controllers can be used with one vehicle. For information con- cerning the purchase and use of additional remote controllers, contact your NISSAN dealer.

CAUTION

Listed below are conditions or occur- rences which will damage the remote controller: c Do not allow the remote controller to

become wet.

Z X

c Do not drop the remote controller. c Do not strike the remote controller

sharply against another object.

c Do not place the remote controller for an extended period in an area where temperatures exceed 140°F (60°C).

Locking doors 1. Remove the ignition key. 2. Close all of the doors. 3. Push the controller.

button on the multi-remote

4. All of the doors lock. 5. The hazard indicators flash twice. c When the

doors flashes twice as a reminder that doors are already locked.

button is pushed with all the hazard indicator the

locked,

Unlocking doors 1. Push the

button on the multi- remote controller. Only the driver side door unlocks.

2. Push the

button on the multi- 2-5

APD0641

remote controller again within five sec- onds. The passenger doors unlock.

3. The interior light comes on and stays on for 30 seconds when the light switch is in the O position.

Z X

BATTERY REPLACEMENT

The interior light can be turned off without waiting 30 seconds by inserting the key into the ignition or locking the doors with the multi-remote controller or pushing the interior light button to OFF. Using the panic alarm If you are near your vehicle and feel threat- ened, you may activate the alarm to call attention as follows: 1. Push the

button on the remote con-

troller for longer than 1.5 seconds.

2. The theft warning alarm and headlights

will stay on for 30 seconds.

3. The panic alarm stops when: c it has run for 30 seconds, or c the c the

or the button is pressed, or button is pushed for longer than 1.5 seconds on the multi-remote control- ler.

Replace the battery in the multi-remote con- troller as follows: 1. Open the lid using a coin. 2. Replace the battery with a new one.

Insert the battery as illustrated above.

2-6

APD0535

Recommended battery: Sanyo CR2025
or equivalent.

3. Close the lid securely. 4. Press the

button, then the

button two or three times to check the multi- remote controller operation.

Z X

ceived including interference that may cause undesired operation of the device.

If the batteries are removed for any rea- son other than replacement, perform step 4 above. c An improperly disposed battery can hurt the environment. Always confirm local regulations for battery disposal. c The multi-remote controller is water- resistant; however, if it does get wet, immediately wipe completely dry.

c The operational range of the multi- remote controller extends to approxi- mately 49 ft (15 m) from the vehicle. This range may vary with conditions.

FCC Notice: Changes or modifications not expressly approved by the manufacturer for com- pliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference re-

2-7

Z X

HOOD RELEASE

GLOVE BOX

APD0505

PD1310

1. Pull

the hood lock release handle s1
located below the instrument panel; the hood springs up slightly.

2. Push the lever s2 at the front of the hood with your fingertips and raise the hood. 3. Insert the support rod s3 into the slot on

the underside of the hood.

4. When closing the hood, return the sup- port then slowly close the hood and make sure it locks into place.

rod to its original position,

WARNING

c Make sure the hood is completely closed and latched before driving. Failure to do so could cause the hood to fly open and result in an accident.

c If you see steam or smoke coming to

from the engine compartment, avoid injury do not open the hood.

2-8

Use the master key to lock or unlock the glove box. The glove box opens by pulling the handle. To illuminate the interior of the glove box, the headlight switch must be turned to the

or

position (If so equipped).

CAUTION

Keep glove box lid closed while driving to help prevent injury in an accident or a sudden stop.

Z X

TRUNK LID LOCK OPERATION

Opener lever operation The trunk lid opener lever is located on the outside of the driver’s seat. To open the trunk lid, pull up the opener lever. To close, lower and push the trunk lid down securely.

APD0506

PD1312

Key operation To open the trunk lid, turn the key clock- wise. To close, lower and push the trunk lid down securely.

WARNING

Do not drive with the trunk lid open. This could allow dangerous exhaust gases to be drawn into the vehicle. See ‘‘Exhaust Gas’’ in the ‘‘Starting and Driving’’ Section.

2-9

Z X

FUEL FILLER LID LOCK OPERATION

APD0111

OPENER CANCEL LEVER FOR TRUNK LID When this lever is in the cancel position, the trunk lid cannot be opened with the trunk lid opener lever. It can be opened only with the key.

Opener lever operation The fuel filler lid opener lever is located on the outside of the driver’s seat. To open the fuel filler lid, push the opener lever down. To lock, close the fuel filler lid securely.

APD0525

2-10

Z X

WARNING

c Gasoline is extremely flammable and highly explosive under certain condi- tions. You could be burned or seri- ously injured if it is misused or mis- handled. Always stop the engine and do not smoke or allow open flames or sparks vehicle when refueling.

near

the

PD1013

FUEL FILLER CAP The fuel filler cap is a screw-on ratcheting type. Tighten the cap clockwise until ratch- eting clicks are heard.

c Fuel may be under pressure. Turn the cap one-half turn, and wait for any ‘‘hissing’’ sound to stop to pre- vent fuel from spraying out and pos- sible personal injury. Then remove the cap.

c Use only a genuine NISSAN fuel filler cap as a replacement. It has a built-in safety valve needed for proper op- eration of the fuel system and emis- sion control system. An incorrect cap can result in a serious malfunc- tion and possible injury.

CAUTION

If fuel is spilled on the car body, flush it away with water to avoid paint damage.

2-11

Put the fuel filler cap on the cap holder while refueling.

PD1014

Z X

FRONT SEATS

SEAT ADJUSTMENT

WARNING

c Do not adjust the driver’s seat while driving. The seat may move sud- denly and could cause loss of con- trol of the vehicle.

c After adjustment, gently rock in the is securely

to make sure it

seat locked.

APD0532

Forward and backward Pull the lever up while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in posi- tion.

2-12

Z X

APD0531

Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback for- ward again, pull the lever and move your- body forward. The seatback moves forward.

WARNING

Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

APD0654

For most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat properly. See ‘‘Pre- cautions on Seat Belt Usage’’ later in this chapter.

2-13

Z X

protection against injury in an accident. Do not remove them. Check the adjust- ment after someone else uses the seat.

APD0526

PD1319

Lumbar support (If so equipped) The lumbar support feature provides lower back support to the driver. Move the lever up or down to adjust the seat lumbar area.

HEAD RESTRAINTS Adjust the head restraints so the top is level with the tops of your ears. To raise the head restraint, simply pull it up. To lower, push the lock knob and push the head restraint down.

WARNING

Head restraints should be adjusted properly as they may provide significant

2-14

Z X

REAR SEAT

Center armrest and tray Pull the armrest forward until it is horizontal, then release the lever (inset) and pull the tray forward. With the armrest in this posi- tion, you are able to gain access to the trunk.

PD1320

2-15

Z X

SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG SYSTEM)

This Supplemental Restraint System sec- tion contains important information concern- ing the driver and passenger supplemental air bags. The Supplemental Restraint Sys- tem Air Bag can help reduce impact force to the driver and to the front passenger in certain frontal collisions. The supplemental air bags are designed to supplement the crash protection provided by the driver and front passenger seat belts and are not a substitute for them. The seat belts should always be correctly worn and the driver and front passenger seated a suitable distance away from the steering wheel and instru- ment panel. (See ‘‘Seat belts’’ for instruc- tions and precautions on seat belt usage.) The supplemental air bags operate only when the ignition switch is in the ON or START position.

WARNING

c The supplemental air bags ordinarily will not inflate in the event of a side impact, rear impact, roll over, or lower severity frontal collision. Al- ways wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

APD0717

far away as practical from the steer- ing wheel or instrument panel. Al- ways use the seatbelts.

c Keep hands on the outside of the steering wheel. Placing them inside the steering wheel rim could in- crease the risk that they are injured when the supplemental air bag in- flates.

c The seat belts and the supplemental air bags are most effective when you are sitting back and upright in the seat. Supplemental air bags inflate If you are unre- with great force. strained, leaning forward, sitting sideways or out of position in any way, you are at greater risk of injury or death in a crash and may also receive serious or fatal injuries from the supplemental air bag if you are up against it when it inflates. Always sit back against the seatback and as

2-16

Z X

APD0656

APD0650

2-17

APD0651

Z X

WARNING

c Never let children ride unrestrained. Do not attempt to hold them in your lap or arms. Some examples of dan- gerous riding positions are shown in the previous illustrations.

c Children may be severely injured or killed when the supplemental air bag inflates if they are not properly restrained.

c Also, never install a rear-facing child restraint in the front seat. An inflat- ing supplemental air bag could seri- ously injure or kill your child. See ‘‘Child restraints for infants and small children’’ for details.

APD0652

APD0660

APD0653

APD0648

2-18

Z X

SUPPLEMENTAL AIR BAG SYSTEM

the steering wheel;

The driver supplemental air bag is located in the center of the front passenger supplemental air bag is mounted in the dashboard above the glove box. The supplemental air bag system is designed to inflate in higher severity frontal collisions, al- though it may inflate if the forces in another type of collision are similar to those of a higher severity frontal impact. It may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental air bag operation. When the supplemental air bag inflates, a fairly loud noise may be heard, followed by

APD0530

the release of smoke. This smoke is not harmful and does not indicate a fire, but care should be taken not to unintentionally inhale it, as it may cause irritation and choking. Those with a history of breathing trouble should get fresh air promptly. The supplemental air bags, along with the use of seat belts, help to cushion the impact force on the face and chest of the occupant. They can help save lives and reduce seri- ous injuries. However, an inflating supple- mental air bag may cause facial abrasions or other injuries. Supplemental air bags do not provide restraint to the lower body.

2-19

Seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or dashboard. Since the supplemental air bag inflates quickly in order to help protect the occupant, the force of the supplemental air bag inflating can increase the risk of injury if the occupant is too close to or is against the supplemental air bag module during inflation. The supplemental air bag deflates quickly after a collision. The supplemental air bags operate only when the ignition switch is in the ON or START position.

WARNING

c Do not place any objects on the steer- ing wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steer- ing wheel or instrument panel. Such objects may become dangerous pro- jectiles and cause injury if the supple- mental air bag inflates.

c Right after inflation, several supple- mental air bag system components will be hot. Do not touch them; you may severely burn yourself.

Z X

should not be modified or discon- nected. Unauthorized electrical test equipment and probing devices should not be used on the supple- mental air bag system.

c The SRS wiring harnesses are cov- ered with yellow insulation either just before the harness connectors or over the complete harness for easy identification.

When selling your vehicle, we request that you inform the buyer about the supple- mental air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.

c No unauthorized changes should be made to any components or wiring of the supplemental air bag system. This is to prevent accidental inflation of the supplemental air bag or damage to the supplemental air bag system.

c Do not make unauthorized changes to your vehicle’s electrical system, suspension system or front end structure. This could affect proper operation of the supplemental air bag system.

c Tampering with the supplemental air bag system may result in serious per- sonal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the dashboard, or by install- ing additional trim material around the supplemental air bag system.

c Work around and on the supplemen- tal air bag system should be done by an authorized NISSAN dealer. Instal- lation of electrical equipment should also be done by an authorized NIS- SAN dealer. The yellow SRS wiring

2-20

Z X

WARNING LABELS

SUPPLEMENTAL AIR BAG WARNING LIGHT

Warning labels about the supplemental air bag system are placed in the vehicle as shown in the illustration.

APD0513

APD0523

The supplemental air bag warning light, displaying AIR BAG in the instrument panel, monitors the circuits of the supplemental air bag. The circuits monitored by the supple- mental air bag light are the diagnosis sensor unit, supplemental air bag modules and all related wiring. When the ignition key is in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational.

2-21

Z X

c The supplemental air bag system should be inspected by an autho- rized NISSAN dealer if there is any damage to the front end portion of the vehicle.

an

c If you need to dispose of a supple- mental air bag or scrap the vehicle, contact authorized NISSAN dealer. Correct supplemental air bag disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal proce- dures could cause personal injury.

If any of the following conditions occur, the supplemental air bag needs servicing: 1. The supplemental air bag light does not come on and remain on for 7 seconds and then go off as described above.

2. The supplemental air bag light flashes

intermittently or remains on.

3. The supplemental air bag light does not

come on at all.

Under these conditions, the Supplemental Restraint System Air Bag may not operate properly. It must be checked and repaired. Take your vehicle to the nearest authorized NISSAN dealer.

WARNING

If the supplemental air bag warning light is on, it could mean that the air bag will not operate in an accident.

Repair and replacement procedure The supplemental air bag system is de- signed to inflate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag light remains illumi- nated after inflation has occurred. Repair

the supplemental air and replacement of bag system should be done only by an authorized NISSAN dealer. To ensure long-term functioning, the system must be inspected 10 years after the date of manufacture as noted on the certification label located on the driver side front pillar. When maintenance work is required on the vehicle, the supplemental air bag system and related parts should be pointed out to the person conducting the maintenance. The ignition key should always be in the LOCK position when working under the hood or inside the vehicle.

WARNING

c Once the supplemental air bag in- flates, the supplemental air bag module will not function again and should be replaced by an authorized NISSAN dealer. The supplemental air bag module cannot be repaired.

2-22

Z X

SEAT BELTS

PRECAUTIONS ON SEAT BELT USAGE If you are wearing your seat belt properly adjusted, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag. Some states and all Canadian provinces or territories require that seat belts be worn at all times when a vehicle is being driven.

APD0658

APD0718

WARNING

c Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be prop- erly restrained and, if appropriate, in a child restraint.

c The belt should be properly adjusted to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an acci- dent. Serious injury or death can occur if the seat belt is not worn properly.

2-23

c Always route the shoulder belt over your shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.

c Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of inter- nal injuries in an accident.

Z X

c If the seat belt warning light glows continuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indi- cate a malfunction in the system. Have the system checked by your NISSAN dealer.

c All seat belt assemblies including retractors and attaching hardware should be inspected after any colli- sion at your NISSAN dealer. NISSAN recommends that all seat belt as- semblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use dur- ing a collision should also be in- spected and replaced if either dam- age or improper operation is noted.

APD0533

c Be sure the seat belt tongue is se- curely fastened to the proper buckle. c Do not wear the belt inside out or twisted. Doing so may reduce its effectiveness.

c Do not allow more than one person

to use the same belt.

c Never carry more people in the ve-

hicle than there are seat belts.

2-24

Z X

CHILD SAFETY Children need adults to help protect them.

WARNING

Infants and children need special pro- tection. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident an improperly fitting seat belt could cause serious or fatal injury. Always use appropriate child restraints.

All U.S. states and provinces of Canada require the use of approved child restraints for infants and small children. (See ‘‘Child Restraints for Infants and Small Children’’ later in this section.) In addition, there are many types of child restraints available for larger children which should be used for maximum protection. Infant or small child NISSAN recommends that infants or small children be placed in child restraints that

that

comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint fits your vehicle and always follow the manufacturer’s instruc-
