The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.


MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or per- formance problems resulting from modifications may not be covered un- der NISSAN warranties.

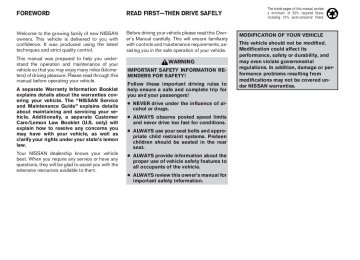

FOREWORD


READ FIRST(cid:151)THEN DRIVE SAFELY


Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you under- stand the operation and maintenance of your vehicle so that you may enjoy many miles (kilome- ters) of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information Booklet explains details about the warranties cov- ering your vehicle. The (cid:147)NISSAN Service and Maintenance Guide(cid:148) explains details about maintaining and servicing your ve- hicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state(cid:146)s lemon law. Your NISSAN dealership knows your vehicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them.


Before driving your vehicle please read this Own- er(cid:146)s Manual carefully. This will ensure familiarity with controls and maintenance requirements, as- sisting you in the safe operation of your vehicle.


WARNING


IMPORTANT SAFETY INFORMATION RE- MINDERS FOR SAFETY! Follow these important driving rules to help ensure a safe and complete trip for you and your passengers! c NEVER drive under the influence of al-


cohol or drugs.


c ALWAYS observe posted speed limits and never drive too fast for conditions. c ALWAYS use your seat belts and appro- priate child restraint systems. Preteen children should be seated in the rear seat.


c ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.


c ALWAYS review this owner(cid:146)s manual for


important safety information.


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—sysadmin X


WHEN READING THE MANUAL


This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle. All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and with- out obligation. IMPORTANT INFORMATION ABOUT THIS MANUAL You will see various symbols in this manual. They are used in the following ways:


WARNING


This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.


CAUTION


This is used to indicate the presence of a hazard that could cause minor or moder- ate personal injury or damage to your ve- hicle. To avoid or reduce the risk, the pro- cedures must be followed carefully.


The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.


CALIFORNIA PROPOSITION 65
WARNING


WARNING


Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth de- fects or other reproductive harm. In addi- tion, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.


' 2003 NISSAN NORTH AMERICA, INC.


GARDENA, CALIFORNIA


All rights reserved. No part of this Owner(cid:146)s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan North America, Inc., Gar- dena, California.


APD1005
If you see this symbol, it means (cid:147)Do not do this(cid:148) or (cid:147)Do not let this happen.(cid:148)


If you see a symbol similar to these in an illustra- tion, it means the arrow points to the front of the vehicle.


Arrows in an illustration that are similar to these indicate movement or action.


Arrows in an illustration that are similar to these call attention to an item in the illustration.


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


WELCOME TO THE WORLD OF NISSAN


NISSAN pioneered the use of electronics and com- puters in automobiles, and has led the industry in improving both performance and fuel efficiency through new engine designs and the use of syn- thetic materials to reduce vehicle weight. The com- pany has also developed ways to build quality into its vehicles at each stage of the production process, both through extensive use of automation and (cid:151) most importantly (cid:151) through an awareness that people are the central element in quality control. From the time the parts arrived from our suppliers until you took delivery of your new NISSAN, dozens of checks were made to ensure that only the best job was being done in producing and delivering your vehicle. NISSAN also takes great care to ensure that when you take your NISSAN to your dealer for maintenance, the service technician will perform his work according to the quality standards that have been established by NISSAN. Safety has also been built into your NISSAN. As you know, seat belts are an integral part of the safety systems that will help protect you and your passen- gers in the event of a sudden stop or an accident. We urge you to use the seat belts every time you drive the vehicle. The NISSAN story of growth and achievement re- flects our major goal: to provide you, our customer, with a vehicle that is built with quality and craftsman- ship (cid:151) a product that we can be proud to build and you can be proud to own.


Your new NISSAN is the result of our dedication to produce the finest in safe, reliable and economical transportation. Your vehicle is the product of a suc- cessful worldwide company that manufactures cars and trucks in over 17 countries and distributes them in 170 nations. NISSAN vehicles are designed and manufactured by Nissan Motor Co., Ltd. which was founded in Tokyo, Japan in 1933, and NISSAN affiliates world- wide, collectively growing to become the fifth largest automaker in the world. In addition to cars and trucks, NISSAN also makes forklift trucks, marine engines, boats and other diversified products. NISSAN has made a substantial and growing in- vestment in North America. NISSAN(cid:146)s commitment is over $6 billion dollars in capital investments in facilities across the continent. Some of the facilities include the Nissan Manufacturing facilities in Can- ton, Mississippi and in Smyrna, Tennessee, vehicle


WFW0002
styling design at Nissan Design America, Inc. in San Diego, California, and engineering at Nissan Tech- nical Center North America in Farmington Hills, Michigan. Additionally, NISSAN employs nearly 19,000 people throughout the United States, Canada, and Mexico. An additional 60,000 people work for the 1,250 NISSAN and INFINITI dealers across North America. NISSAN is also a substantial contributor to the Canadian economy. Nissan Canada Inc., its suppli- ers and over 150 dealers employ approximately 4,500 people. These include company employees and the staffs of NISSAN dealers all across Canada. In addition, many Canadians work for companies that supply NISSAN and NISSAN dealers with ma- terials and services ranging from the operation of port facilities and transportation services, to the supply of lubricants, parts and accessories.


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—sysadmin X


NISSAN CUSTOMER CARE PROGRAM


NISSAN CARES . . . Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.


However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or ques- tions, please contact the NISSAN Consumer Affairs Department using our toll-free number: For U.S. mainland and Alaska customers


1-800-NISSAN-1
(1-800-647-7261)


For Hawaii customers


1-808-836-0888 (Oahu Number)


For Canadian customers


1-800-387-0122


The Consumer Affairs Department will ask for the following information: (cid:150) Your name, address, and telephone number


(cid:150) Vehicle identification number (attached to the top of the instrument panel on the driver(cid:146)s side)


(cid:150) Date of purchase


(cid:150) Current odometer reading


(cid:150) Your NISSAN dealer(cid:146)s name


(cid:150) Your comments or questions


OR


You can write to NISSAN with the information at: For U.S. mainland and Alaska customers


Nissan North America, Inc. Consumer Affairs Department P.O. Box 191
Gardena, California 90248-0191


For Hawaii customers


Nissan Motor Corporation in Hawaii 2880 Kilihau St. Honolulu, Hawaii 96819


For Canadian customers


Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5


We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


Table of Contents


Seats, restraints and supplemental air bag systems


Instruments and controls


Pre-driving checks and adjustments


Heater, air conditioner and audio systems


Starting and driving


In case of emergency


Appearance and care


Maintenance and do-it-yourself


Technical and consumer information


Index


10


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—sysadmin X


1 Seats, restraints and supplemental air bag systems


Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Front manual seat adjustment . . . . . . . . . . . . . . . . . . . . 1-2
Front power seat adjustment (if so equipped for Driver(cid:146)s seat). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Folding rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Head restraint adjustment . . . . . . . . . . . . . . . . . . . . . . . 1-7
Supplemental restraint system . . . . . . . . . . . . . . . . . . . . . . 1-8


Precautions on supplemental restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Supplemental air bag warning labels. . . . . . . . . . . . . 1-20
Supplemental air bag warning light . . . . . . . . . . . . . . 1-20
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
Precautions on seat belt usage. . . . . . . . . . . . . . . . . . 1-22
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24


Pregnant women . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25
Injured persons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25
Three-point type seat belt with retractor . . . . . . . . . . 1-26
Seat belt extenders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29
Seat belt maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 1-29
Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-30
Precautions on child restraints . . . . . . . . . . . . . . . . . . 1-30
Installation on rear seat center or outboard positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-32
LATCH (lower anchors and tether for children) system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
Top tether strap child restraint . . . . . . . . . . . . . . . . . . 1-38
Installation on front passenger seat . . . . . . . . . . . . . . 1-39


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


FRONT MANUAL SEAT ADJUSTMENT


WARNING


c Do not adjust the driver(cid:146)s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of con- trol of the vehicle.


c After adjustment, gently rock in the seat


to make sure it is securely locked.


SEATS


WARNING


c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.


ARS1152


c For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat properly. See (cid:147)Precautions on Seat Belt Usage(cid:148) later in this section.


1-2 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—sysadmin X


WARNING


After adjustment, gently rock in the seat to make sure it is securely locked.


WRS0175


WRS0176


Forward and backward Pull the lever up and hold it while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in position.


Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position.


The reclining feature allows adjustment of the seatback for occupants of different sizes to help obtain proper seat belt fit (see (cid:147)Precautions on seat belt usage(cid:148) later in this section). Also, the seatback can be reclined to allow occupants to sleep when the vehicle is stopped.


Seats, restraints and supplemental air bag systems 1-3


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—sysadmin X


WRS0131


Seat lifter (if so equipped for driver(cid:146)s seat) Turn either dial to adjust the angle and height of the seat cushion to the desired position.


FRONT POWER SEAT ADJUSTMENT (if so equipped for Driver(cid:146)s seat)


WARNING


c Do not adjust the driver(cid:146)s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of con- trol of the vehicle.


WRS0163


c Do not leave children unattended inside the vehicle. They could unknowingly ac- tivate switches or controls and become trapped in a window. Unattended chil- dren could become involved in serious accidents.


Operating tips c The motor has an auto-reset overload protec- tion circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.


c Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.


1-4 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


Forward and backward Moving the switch forward or backward will slide the seat forward or backward to the desired position. Reclining Move the recline switch backward until the de- sired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward. The reclining feature allows adjustment of the seatback for occupants of different sizes to help obtain proper seat belt fit (see (cid:147)Precautions on seat belt usage(cid:148) later in this section). Also, the seatback can be reclined to allow occupants to sleep when the vehicle is stopped.


WRS0164


WRS0165


Seat lifter (if so equipped for driver(cid:146)s seat) Push the front or rear end of the switch up or down to adjust the angle and height of the seat cushion.


Lumbar support (if so equipped for driver(cid:146)s seat) The lumbar support feature provides lower back support to the driver. Move the lever up or down to adjust the seat lumbar area.


Seats, restraints and supplemental air bag systems 1-5


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


c Closely supervise children when they are around cars to prevent them from playing and becoming locked in the trunk where they could be seriously in- jured. Keep the car locked, with the rear seatback and trunk lid securely latched when not in use, and prevent children(cid:146)s access to car keys.


s1 Push down on the button on the rear parcel


shelf.


s2 Fold down the passenger side seatback.


WARNING


c Never allow anyone to ride in the cargo area or on the rear seat when it is in the fold-down position. Use of these areas by passengers without proper restraints could result in serious injury in an acci- dent or sudden stop.


c Properly secure all cargo with ropes or straps to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or col- lision, unsecured cargo could cause personal injury.


c When returning the seatbacks to the upright position, be certain they are completely secured in the latched posi- tion. If they are not completely secured, passengers may be injured in an acci- dent or sudden stop.


WRS0166


FOLDING REAR SEAT Interior trunk access The trunk can be accessed from the passenger side of the rear seat for loading and unloading, as shown. 1-6 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


LRS0225
To fold down the driver side of the rear seat, reach through the opening and pull on the strap s1
located behind the seat. The rear seats can be locked using the master key to prevent unauthorized access. The valet key cannot be used to lock or unlock the release button.


WRS0167


WRS0133


Center armrest Pull the armrest forward until it is horizontal.


HEAD RESTRAINT ADJUSTMENT To raise the head restraint, pull it up. To lower, push and hold the lock knob and push the head restraint down.


WARNING


Head restraints should be adjusted prop- erly as they may provide significant pro- tection against injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat.


Seats, restraints and supplemental air bag systems 1-7


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


WRS0134
Adjust the head restraint so the center is level with the center of your ears.


vided by the driver and front passenger seat belts and are not a substitute for them. Seat belts should always be correctly worn and the occu- pant seated a suitable distance away from the steering wheel, instrument panel and door finish- ers. (See (cid:147)Seat belts(cid:148) later in this section for instructions and precautions on seat belt usage.) The supplemental air bags operate only when the ignition switch is in the ON or START position. After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7
seconds if the system is operational.


SUPPLEMENTAL RESTRAINT SYSTEM


PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM This Supplemental Restraint System (SRS) sec- tion contains important information concerning the driver and passenger supplemental front air bags, supplemental side air bags, curtain side- impact air bags and pre-tensioner seat belts. Supplemental front impact air bag system: This system can help cushion the impact force to the head and chest of the driver and front pas- senger in certain frontal collisions. Supplemental side-impact air bag system (if so equipped): This system can help cushion the impact force to the head and the chest area of the driver and front passenger in certain side impact collisions. The supplemental side air bag is designed to inflate on the side where the vehicle is impacted. Supplemental curtain side-impact air bag system (if so equipped): This system can help cushion the impact force to the head of occu- pants in front and rear outboard seating positions in certain side impact collisions. The curtain side- impact air bags are designed to inflate on the side where the vehicle is impacted. These supplemental restraint systems are de- signed to supplement the crash protection pro-


1-8 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


c The driver and front passenger seat belt buckles are equipped with sensors that detect if the seat belts are fastened. The air bag system monitors the severity of a collision and then inflates the air bags based on belt usage. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.


c Keep hands on the outside of the steer- ing wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the supplemental front air bag inflates.


WARNING


c The supplemental front air bags ordi- narily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.


WRS0031


c The seat belts and the supplemental front air bags are most effective when you are sitting well back and upright in the seat. The front air bags inflate with great force. If you are unrestrained, leaning forward, sitting sideways or out of position in any way, you are at greater risk of injury or death in a crash. You may also receive serious or fatal injuries from the supplemental front air bag if you are up against it when it inflates. Always sit back against the seatback and as far away as practical from the steering wheel or instrument panel. Always use the seat belts.


Seats, restraints and supplemental air bag systems 1-9


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


1-10 Seats, restraints and supplemental air bag systems


ARS1133


ARS1041


WARNING


c Never let children ride unrestrained or extend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some examples of dangerous riding positions are shown in the illustrations.


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


ARS1042


ARS1043


ARS1044


Seats, restraints and supplemental air bag systems 1-11


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


ARS1045


ARS1046


SSS0101


WARNING


WARNING


c Children may be severely injured or killed when the supplemental front air bags, side air bags or curtain side- impact air bags inflate if they are not properly restrained. Pre-teens and chil- dren should be properly restrained in the rear seat, if possible.


c Never install a rear-facing child re- straint in the front seat. An inflating supplemental front air bag could seri- ously injure or kill your child. See (cid:147)Child restraints(cid:148) later in this section for details.


Supplemental side air bag and curtain side-impact air bag (if so equipped): c The supplemental side air bag and cur- tain side-impact air bag ordinarily will not inflate in the event of a frontal im- pact, rear impact, rollover or lower se- verity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.


1-12 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


WARNING


c The seat belts, the supplemental side air bags and curtain side-impact air bags are most effective when you are sitting well back and upright in the seat. The side air bag and curtain side-impact air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear out- board seats to extend their hand out of the window or lean against the door. Some examples of dangerous riding positions are shown in the previous illustrations.


SSS0188


WRS0032


WARNING


c When sitting in the rear seat, do not hold onto the seatback of the front seat. If the side air bag inflates, you may be seriously injured. Be especially careful with children, who should always be properly restrained. Some examples of dangerous riding positions are shown in the illustrations.


c Do not use seat covers on the front seatbacks. They may interfere with supplemental side air bag inflation.


Seats, restraints and supplemental air bag systems 1-13


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


SSS0159


SSS0162


1-14 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


9.


SRS curtain side-impact air bag (left) (if so equipped)


10. Seat belt buckle switches Supplemental front air bag system The driver supplemental front air bag is located in the center of the steering wheel. The passenger supplemental front air bag is mounted in the dashboard above the glove box.


These systems are designed to meet optional certification requirements under U.S. regulations. They are also permitted in Canada. The optional certification allows the front air bags to be de- signed to inflate somewhat less forcefully than previously. However, all of the information, cautions and warnings in this manual still apply and must be followed. The supplemental front air bag system is de- signed to inflate in higher severity frontal colli- sions, although it may inflate if the forces in an- other type of collision are similar to those of a higher severity frontal impact. It may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper supple- mental front air bag system operation. The supplemental air bag system has dual stage inflators for both the driver and passenger air bags. The system monitors information from the crash zone sensor, the diagnosis sensor unit and Seats, restraints and supplemental air bag systems 1-15


WRS0168


Satellite sensors Seat belt pre-tensioner retractor Diagnosis sensor unit Supplemental front air bag modules


4. 5. 6. 7. 8. Crash zone sensor


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


1.


2.


3.


SRS curtain side-impact air bag (right) (if so equipped) Supplemental side air bag modules (if so equipped) SRS curtain side-impact air bag mod- ule (if so equipped)


seat belt buckle sensors that detect if the seat belts are fastened. Inflator operation is based on the severity of a collision and whether the seat belts are being used. Only one front air bag may inflate in a crash, depending on the crash severity and whether the front occupants are belted or unbelted. This does not indicate improper perfor- mance of the system. If you have any questions about the performance of your air bag system, please contact your NISSAN dealer.


occupants. Because of this, the force of the front air bag inflating can increase the risk of injury if the occupant is too close to, or is against, the front air bag module during inflation.


The front air bags deflate quickly after a collision. The supplemental front air bags operate only when the ignition switch is in the ON or START position.


After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7
seconds if the system is operational.


When the supplemental front air bag inflates, a fairly loud noise may be heard, followed by the release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken to not inhale it, as it may cause irritation and chok- ing. Those with a history of a breathing condition should get fresh air promptly. Supplemental front air bags, along with the use of seat belts, help to cushion the impact force on the face and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body. Seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or instru- ment panel. The supplemental front air bags in- flate quickly in order to help protect the front 1-16 Seats, restraints and supplemental air bag systems


WARNING


c Do not place any objects on the steer- ing wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steering wheel or instrument panel. Such ob- jects may become dangerous projec- tiles and cause injury if the supplemen- tal front air bag inflates.


c Immediately after


inflation, several front air bag system components will be hot. Do not touch them; you may se- verely burn yourself.


c No unauthorized changes should be made to any components or wiring of the supplemental air bag system. This is to prevent accidental inflation of the supplemental air bag or damage to the supplemental air bag system.


c Do not make unauthorized changes to your vehicle(cid:146)s electrical system, sus- pension system or front end structure. This could affect proper operation of the supplemental front air bag system. c Tampering with the supplemental front air bag system may result in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the instrument panel or by installing trim material around the air bag system.


additional


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


c Maintenance on and around the supple- mental front air bag system should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. The Supple- mental Restraint System (SRS) wiring should not be modified or discon- nected. Unauthorized electrical test equipment and probing devices should not be used on the air bag system.


c A cracked windshield should be re- placed immediately by a qualified re- pair facility. A cracked windshield could affect inflation of the supplemental air bag system.


c The SRS wiring harness connectors are easy


orange


for


yellow and identification.


When selling your vehicle, we request that you inform the buyer about the supplemental front air bag system and guide the buyer to the appropri- ate sections in this Owner(cid:146)s Manual.


severity side collisions, although they may inflate if the forces in another type of collision are similar to those of a higher severity side impact. They are designed to inflate on the side where the vehicle is impacted. They may not inflate in certain side collisions.


Vehicle damage (or lack of it) is not always an indication of proper supplemental side air bag and curtain side-impact air bag operation.


When the supplemental side air bag and curtain side-impact air bag inflate, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly. Supplemental side air bags, along with the use of seat belts, help to cushion the impact force on the chest of the front occupants. Curtain side- impact air bags help to cushion the impact force to the head of occupants in the front and rear outboard seating positions. They can help save lives and reduce serious injuries. However, an inflating side air bag and curtain side-impact air bag may cause abrasions or other injuries. Supplemental side air bags and curtain side- impact air bags do not provide restraint to the lower body.


LRS0105
Supplemental side-impact air bag and curtain side-impact air bags system (if so equipped) The supplemental side-impact air bags are lo- cated in the outside of the seatback of the front seats. The supplemental curtain side-impact air bags are located in the side roof rails. These systems are designed to meet voluntary guide- lines to help reduce the risk of injury to out-of- position occupants. However, all of the infor- mation, cautions and warnings in this manual still apply and must be followed. The supplemental side air bags and curtain side- impact air bags are designed to inflate in higher


Seats, restraints and supplemental air bag systems 1-17


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


The seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the supplemental side air bag. Rear seat passengers should be seated as far away as practical from the door finishers and side roof rails. The side air bags and curtain side-impact air bag inflate quickly in order to help protect the front occupants. Because of this, the force of the side air bag and curtain side-impact air bag inflating can increase the risk of injury if the occupant is too close to, or is against, these air bag modules during inflation. The side air bag and curtain side-impact air bag will deflate quickly after the collision is over. The supplemental side air bags and curtain side-impact air bags operate only when the ignition switch is in the ON or START posi- tions.


After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7
seconds if the system is operational.


WARNING


c Do not place any objects near the seat- back of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such objects may become dangerous projectiles and cause injury if the supplemental side air bag inflates.


c Right after inflation, several side air bag and curtain side-impact air bag system components will be hot. Do not touch them; you may severely burn yourself.


c No unauthorized changes should be made to any components or wiring of the side air bag and curtain side-impact air bag system. This is to prevent acci- dental inflation of the side air bag and curtain side-impact air bag or damage to the side air bag and curtain side- impact air bag system.


c Do not make unauthorized changes to your vehicle(cid:146)s electrical system, sus- pension system or side panel. This could affect proper operation of the supplemental side air bag and curtain side-impact air bag system.


c Tampering with the supplemental side air bag system may result in serious personal injury. For example, do not change the front seats by placing mate- rial near the seatback or by installing additional trim material, such as seat covers, around the side air bag.


c Work around and on the side air bag and curtain side-impact air bag system should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. The SRS wiring harnesses* should not be modified or discon- nected. Unauthorized electrical test equipment and probing devices should not be used on the side air bag system.


* The SRS wiring harness connectors are yellow and orange for easy identification.


When selling your vehicle, we request that you inform the buyer about the supplemental side air bag and curtain side-impact air bag system and guide the buyer to the appropriate sections in this Owner(cid:146)s Manual.


1-18 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly. If any abnormality occurs in the pre-tensioner system, the supplemental air bag warning light will not come on, will flash intermit- tently or will turn on for 7 seconds and remain on after the ignition key has been turned to the ON or START position. In this case, the pre-tensioner seat belt may not function properly. They must be checked and repaired. Take your vehicle to the nearest NISSAN dealer. When selling your vehicle, we request that you inform the buyer about the pre-tensioner seat belt system and guide the buyer to the appropriate sections in this Owner(cid:146)s Manual.


Pre-tensioner seat belt system (For front seats)


WARNING


c The pre-tensioner seat belt cannot be reused after activation. It must be re- placed together with the retractor and buckle as a unit.


c If the vehicle becomes involved in a frontal collision but the pre-tensioner is not activated, be sure to have the pre- tensioner system checked and, if nec- essary, your NISSAN dealer.


replaced by


c No unauthorized changes should be made to any components or wiring of the pre-tensioner seat belt system. This is to prevent accidental activation of the pre-tensioner seat belt or damage to the pre-tensioner seat belt operation. Tampering with the pre-tensioner seat belt system may result in serious per- sonal injury.


c Work around and on the pre-tensioner system should be done by a NISSAN dealer. Installation of electrical equip- ment should also be done by a NISSAN dealer. Unauthorized electrical test equipment and probing devices should not be used on the pre-tensioner seat belt system.


c If you need to dispose of the pre- tensioner or scrap the vehicle, contact a NISSAN dealer. Correct pre-tensioner disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.


The front seat pre-tensioner seat belt system activates in conjunction with the supplemental front air bag. Working with the seat belt retractor, it helps tighten the seat belt the instant the ve- hicle becomes involved in certain types of colli- sions, thereby restraining seat occupants.


The pre-tensioner is encased with the seat belt(cid:146)s retractor. These seat belts are used the same as conventional seat belts.


When the pre-tensioner seat belt activates, smoke is released and a loud noise may be heard. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may


Seats, restraints and supplemental air bag systems 1-19


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


When the ignition key is in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational.


the following conditions occur,


If any of the supplemental front air bag, supplemental side air bag and curtain side-impact air bag (if so equipped) and pre-tensioner seat belt systems need servicing: c The supplemental air bag warning light re-


mains on after approximately 7 seconds.


c The supplemental air bag warning light


WRS0169


LRS0100


flashes intermittently.


1. 2.


SRS Air Bag Warning Labels SRS Side Air Bag Warning Labels (lo- cated on the door pillar) (if so equipped)


SUPPLEMENTAL AIR BAG WARNING LABELS Warning labels about the supplemental front air bag, supplemental side air bag and curtain side- impact air bag systems are placed in the vehicle as shown in the illustration.


SUPPLEMENTAL AIR BAG WARNING LIGHT air bag warning light, The supplemental displaying in the instrument panel, moni- tors the circuits of the supplemental front air bag, supplemental side air bag and curtain side- impact air bag (if so equipped) and pre-tensioner seat belt systems. The circuits monitored by the supplemental air bag warning light are the diag- nosis sensor unit, crash zone sensor, satellite sensors, front air bag modules, side air bag mod- ules, curtain side-impact air bag modules, pre- tensioner seat belts and all related wiring.


1-20 Seats, restraints and supplemental air bag systems


c The supplemental air bag warning light does


not come on at all.


Under these conditions, the supplemental front air bag, supplemental side air bags and curtain side-impact air bag (if so equipped) or pre- tensioner seat belt systems may not operate properly. It must be checked and repaired. Take your vehicle to the nearest NISSAN dealer.


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


WARNING


WARNING


If the supplemental air bag warning light is on, it could mean that the supplemental front air bag, supplemental side air bag, curtain side-impact air bag systems (if so equipped) and/or pre-tensioner seat belt systems will not operate in an accident.


Repair and replacement procedure The supplemental front air bags, supplemental side air bags, curtain side-impact air bags (if so equipped) and pre-tensioner seat belts are de- signed to inflate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag warning light remains illuminated after inflation has occurred. Repair and replacement of these supplemental air bag systems should be done only by a NISSAN dealer.


When maintenance work is required on the ve- hicle, the supplemental front air bags, supple- mental side air bags, curtain side-impact air bags (if so equipped), pre-tensioner seat belts and related parts should be pointed out to the person performing the maintenance. The ignition key should always be in the LOCK position when working under the hood or inside the vehicle.


c Once a supplemental front air bag, supplemental side air bag or curtain side-impact air bag has inflated, the air bag module will not function again and must be replaced. Additionally, if any of the supplemental front air bags inflate, the activated pre-tensioner seat belts must also be replaced. The air bag mod- ule and pre-tensioner seat belt system should be replaced by a NISSAN dealer. The air bag module and pre-tensioner seat belt system cannot be repaired.


c The supplemental front air bag, side air bag and curtain side-impact air bag sys- tems, and the pre-tensioner seat belt system should be inspected by a NISSAN dealer if there is any damage to the front end or side portion of the vehicle.


c If you need to dispose of the supple- mental air bag, pre-tensioner seat belt system or scrap the vehicle, contact a NISSAN dealer. Correct supplemental air bag and pre-tensioner seat belt sys- tem disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.


Seats, restraints and supplemental air bag systems 1-21


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


SEAT BELTS


SSS0136


PRECAUTIONS ON SEAT BELT USAGE If you are wearing your seat belt properly ad- justed and you are sitting upright and well back in your seat, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position in- cludes a supplemental air bag. Most U.S. states and Canadian provinces or territories specify that seat belts be worn at all times when a vehicle is being driven.


1-22 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


WARNING


c Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be properly re- strained in the rear seat and, if appro- priate, in a child restraint.


SSS0134


SSS0016


WARNING


c The seat belt should be properly ad- justed to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an acci- dent. Serious injury or death can occur if the seat belt is not worn properly.


Seats, restraints and supplemental air bag systems 1-23


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


c Be sure the seat belt tongue is securely


fastened to the proper buckle.


c Do not wear the seat belt inside out or twisted. Doing so may reduce its effectiveness.


c Do not allow more than one person to


use the same seat belt.


c Never carry more people in the vehicle


than there are seat belts.


c If the seat belt warning light glows con- tinuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indicate a mal- function in the system. Have the system checked by a NISSAN dealer.


c Once the pre-tensioner seat belt has activated, it cannot be reused and must be replaced together with the retractor. See your NISSAN dealer.


c Removal and installation of the pre- tensioner seat belt system components should be done by a NISSAN dealer.


SSS0014


WARNING


c Always route the shoulder belt over your shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder. c Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.


1-24 Seats, restraints and supplemental air bag systems


and


attaching


c All seat belt assemblies, including re- tractors hardware, should be inspected after any collision by a NISSAN dealer. NISSAN recom- mends that all seat belt assemblies in use during a collision be replaced un- less the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted. c All child restraints and attaching hard- ware should be inspected after any col- lision. Always follow the restraint manufacturer(cid:146)s inspection instructions and replacement recommendations. The child restraints should be replaced if they are damaged.


CHILD SAFETY Children need adults to help protect them. They need to be properly restrained.


The proper restraint depends on the child(cid:146)s size. Generally, infants up to about 1 year and less than 20 pounds (9 kg) should be placed in rear facing child restraints. Front facing child re- straints are available for children who outgrow rear facing child restraints.


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


WARNING


Infants and children need special protec- tion. The vehicle(cid:146)s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fit- ting seat belt could cause serious or fatal injury. Always use appropriate child restraints.


All U.S. states and Canadian provinces or terri- tories require the use of approved child restraints for infants and small children. See (cid:147)Child Re- straints(cid:148) later in this section.


In addition, there are many types of child re- straints available for larger children which should be used for maximum protection. NISSAN recommends that all pre-teens and children be restrained in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. This is especially important because your vehicle has a supplemental restraint system (Air bag system) for the front passenger. See (cid:147)Supplemental restraint system(cid:148) earlier in this section.


Infants and small children NISSAN recommends that infants and small chil- dren be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Ca- nadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your ve- hicle and always follow the manufacturer(cid:146)s in- structions for installation and use. Larger children Children who are too large for child restraints should be seated and restrained by the seat belts which are provided.


If the child(cid:146)s seating position has a shoulder belt that fits close to the face or neck, the use of a booster seat (commercially available) may help overcome this. The booster seat should raise the child so that the shoulder belt is properly posi- tioned across the top, middle portion of the shoulder and the lap belt is low on the hips. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Mo- tor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.


WARNING


Never let a child stand or kneel on any seat and do not allow a child in the cargo areas while the vehicle is moving. The child could be seriously injured or killed in an accident or sudden stop.


PREGNANT WOMEN NISSAN recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as pos- sible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations. INJURED PERSONS NISSAN recommends that injured persons use seat belts. Check with your doctor for specific recommendations.


Seats, restraints and supplemental air bag systems 1-25


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


THREE-POINT TYPE SEAT BELT WITH RETRACTOR


WARNING


c Every person who drives or rides in this vehicle should use a seat belt at all times.


c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.


c For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat belt properly.


WRS0174


Fastening the seat belts s1 Adjust the seat. See (cid:147)Seats(cid:148) earlier in this


section.


WRS0137
s2 Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you hear and feel the latch engage.


The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat.


1-26 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


emergency locking mode. See (cid:147)Child restraints(cid:148) later in this section for more information. The automatic locking mode should be used only for child restraint installation. During normal seat belt use by a passen- ger, the locking mode should not be acti- vated. If it is activated it may cause uncom- fortable seat belt tension.


WARNING


When fastening the seat belts, be certain that the seatbacks are completely se- cured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.


WRS0138
s3 Position the lap belt portion low and snug


on the hips as shown.


s4 Pull the shoulder belt portion toward the retractor to take up extra slack. Make sure the shoulder belt is routed over your shoul- der and is snug across your chest.


The front passenger seat belt and the rear three- point seat belts have a cinching mechanism for child restraint installation. It is referred to as the automatic locking mode. When automatic locking mode is activated the seat belt cannot be withdrawn again until the seat belt tongue is detached from the buckle and fully retracted. Once retracted, the seat belt is in the


WRS0139


Unfastening the seat belts s1 To unfasten the seat belt, press the button on the buckle. The seat belt automatically re- tracts.


Checking seat belt operation Seat belt retractors are designed to lock seat belt movement by two separate methods: c When the seat belt is pulled quickly from the


retractor.


c When the vehicle slows down rapidly. To increase your confidence in the seat belts, check the operation as follows.


Seats, restraints and supplemental air bag systems 1-27


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


c Grasp the shoulder belt and pull forward quickly. The retractor should lock and re- strict further belt movement.


If the retractor does not lock during this check or if you have any questions about seat belt opera- tion, see a NISSAN dealer.


WRS0170


WRS0171


Center of rear seat Selecting correct set of seat belts: The center seat belt buckle is identified by the CENTER mark. The center seat belt tongue can be fastened only into the center seat belt buckle.


Shoulder belt height adjustment (For front seats) The shoulder belt anchor height should be ad- justed to the position best for you. (See (cid:147)Precau- tions on seat belt usage(cid:148) earlier in this section.) The belt should be away from your face and neck, but not falling off your shoulder. Release the adjustment button to lock the shoulder belt an- chor into position.


To adjust the shoulder belt anchor height: s1 Push in the adjustment button.


1-28 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


c Periodically check to see that the seat belt and the metal components, such as buckles, tongues, retractors, flexible wires and anchors, work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt as- sembly should be replaced.


s2 Move the shoulder belt anchor to the desired position so the belt passes over the center of the shoulder.


WARNING


c After adjustment, release the adjust- ment button and try to move the shoul- der belt anchor up and down to make sure it is securely fixed in position.


c The shoulder belt anchor height should be adjusted to the position best for you. Failure to do so may reduce the effec- tiveness of the entire restraint system and increase the chance or severity of injury in an accident.


SEAT BELT EXTENDERS If, because of body size or driving position, it is not possible to properly fit the lap-shoulder belt and fasten it, an extender is available which is compatible with the installed seat belts. The ex- tender adds approximately 8 inches (200 mm) of length and may be used for either the driver or front passenger seating position. See a NISSAN dealer for assistance if an extender is required.


WARNING


c Only NISSAN seat belt extenders, made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts.


c Adults and children who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.


c Never use seat belt extenders to install child restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sud- den stop.


SEAT BELT MAINTENANCE c To clean the seat belt webbing, apply a mild soap solution or any solution recom- mended for cleaning upholstery or carpet. Then wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.


c If dirt builds up in the shoulder belt guide of the seat belt anchors, the seat belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.


Seats, restraints and supplemental air bag systems 1-29


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


CHILD RESTRAINTS


c Never install a rear-facing child re- straint in the front seat. An inflating supplemental front air bag could seri- ously injure or kill your child. A rear- facing child restraint must only be used in the rear seat.


c NISSAN recommends that the child re- straint be installed in the rear seat. Ac- cording to accident statistics, children are safer when properly restrained in the rear seat than in the front seat.


c An improperly installed child restraint could lead to serious injury or death in an accident.


In general, child restraints are designed to be installed with the lap portion of a three-point type seat belt. In addition, this vehicle is equipped with a universal child restraint lower anchor system, referred to as the LATCH (Lower Anchors and Tether for Children) system. Some child re- straints include two rigid or webbing-mounted attachments that can be connected to these lower anchors. For details, see the (cid:147)LATCH (Lower Anchors and Tether for Children) system(cid:148) later in this section. Child restraints for infants and small children of various sizes are offered by several manufactur- ers. When selecting any child restraint, keep the following points in mind:


ARS1098


WRS0256


PRECAUTIONS ON CHILD RESTRAINTS


WARNING


c Infants and small children should al- ways be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint can re- sult in serious injury or death.


WARNING


c Infants and small children should never be carried on your lap. It is not possible for even the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.


1-30 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


c Choose only a restraint with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.


c Check the child restraint in your vehicle to be sure it is compatible with the vehicle(cid:146)s seat and seat belt system.


c If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Always follow all recommended procedures.


All U.S. states and provinces of Canada require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being oper- ated.


WARNING


c Improper use of a child restraint can increase the risk or severity of injury for both the child and other occupants of the vehicle.


c Follow all of the child restraint manu- facturer(cid:146)s instructions for installation and use. When purchasing a child re- straint, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle.


c If the child restraint is not anchored properly, the risk of a child being in- jured in a collision or a sudden stop greatly increases.


c Adjustable seatbacks should be posi- tioned to fit the child restraint, but as upright as possible.


c After attaching the child restraint, test it before you place the child in it. Tilt it from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. The child restraint should not move more than 1 inch. If the restraint is not secure, tighten the belt as necessary, or put the restraint in an- other seat and test it again.


c For a front-facing child restraint, check to make sure the shoulder belt does not go in front of the child(cid:146)s face or neck. If it does, put the shoulder belt behind the child restraint. If you must install a front facing child restraint in the front seat, see (cid:147)Installation on front passenger seat(cid:148) later in this section.


c When your child restraint is not in use, keep it secured with a seat belt to pre- vent it from being thrown around in case of a sudden stop or accident.


CAUTION


Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the child restraint.


Seats, restraints and supplemental air bag systems 1-31


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


INSTALLATION ON REAR SEAT CENTER OR OUTBOARD POSITIONS


WARNING


c The three-point seat belt in your vehicle is equipped with an automatic locking mode retractor which must be used when installing a child restraint.


c Failure to use the retractor(cid:146)s locking mode will result in the child restraint not being properly secured. The re- straint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision.


Front Facing (outboard) (cid:151) step 1


Front Facing (center) (cid:151) step 1


WRS0248


WRS0249


Front facing When you install a child restraint in the rear seat, follow these steps: 1. Position the child restraint on the seat. It can be placed in a front facing direction, de- pending on the size of the child. Always follow the restraint manufacturer(cid:146)s instruc- tions.


1-32 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


Front Facing (cid:151) step 2


Front Facing (cid:151) step 3


Front Facing (cid:151) step 4


WRS0250


WRS0251


WRS0146


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer(cid:146)s instructions for belt routing.


3. Pull on the shoulder belt until all of the belt is fully extended. At this time, the seat belt retractor is in the automatic locking mode (child restraint mode). It reverts back to emergency locking mode when the seat belt is fully retracted.


4. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.


Seats, restraints and supplemental air bag systems 1-33


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


After the child restraint is removed and the seat belt is fully retracted, the automatic locking mode (child restraint mode) is canceled.


WRS0252


Front Facing (cid:151) step 5


5. Before placing the child in the child restraint, use force to tilt the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 inch.


6. Check that the retractor is in the automatic locking mode by trying to pull more seat belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the retractor is in the automatic locking mode.


7. Check to make sure that the child restraint is properly secured prior to each use. If the belt is not locked, repeat steps 3 through 6.


1-34 Seats, restraints and supplemental air bag systems


WRS0261


Rear Facing (outboard) (cid:151) step 1


Rear facing When you install a child restraint in the rear seat, follow these steps: 1. Position the child restraint on the seat. The direction of the child restraint depends on the type of the child restraint and the size of the child. Always follow the restraint manu- facturer(cid:146)s instructions.


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


Rear Facing (center) (cid:151) step 1


Rear Facing (cid:151) step 2


Rear Facing (cid:151) step 3


WRS0262


WRS0150


WRS0260


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer(cid:146)s instructions for belt routing.


3. Pull on the shoulder belt until all of the belt is fully extended. At this time, the seat belt retractor is in the automatic locking mode (child restraint mode). It reverts to emer- gency locking mode when the seat belt is fully retracted.


Seats, restraints and supplemental air bag systems 1-35


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


7. Check to make sure that the child restraint is properly secured prior to each use. If the belt is not locked, repeat steps 3 through 6.


After the child restraint is removed and the seat belt fully retracted, the automatic locking mode (child restraint mode) is canceled.


Rear Facing (cid:151) step 4


Rear Facing (cid:151) step 5


WRS0253


WRS0254


4. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.


5. Before placing the child in the child restraint, use force to tilt the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 inch.


6. Check that the retractor is in the automatic locking mode by trying to pull more seat belt out of the retractor. If you cannot pull any more seat belt webbing out of the retractor, the retractor is in the automatic locking mode.


1-36 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


WRS0172


LATCH (lower anchors and tether for children) SYSTEM


WARNING


c Attach LATCH system compatible child restraints only at the locations shown. If a child restraint is not secured properly, your child could be seriously injured or killed in an accident.


c Do not secure a child restraint in the center rear seating position using the LATCH system anchors. The child re- straint will not be secured properly.


c The LATCH system anchors are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstance are they to be used for adult seat belts or harnesses.


Some child restraints include two rigid or webbing-mounted attachments that can be con- nected to two anchors located at certain seating positions in your vehicle. This system is known as the LATCH (Lower Anchors and Tether for Chil- dren) system. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle seat belt to secure the child restraint. Your vehicle is equipped with special anchor points that are used with LATCH system compatible child re- straints. Check your child restraint for a label stating that it is compatible with the LATCH sys- tem. This information may also be in the child restraint owner(cid:146)s manual. If you have such a child restraint, refer to the illustration for the seating positions equipped with LATCH system anchors which can be used to secure the child restraint.


The LATCH system anchors are located at the rear of the seat cushion near the seatback. A label is attached to the seatback to help you locate the LATCH system anchors.


LATCH child restraints generally require the use of a top tether strap. See (cid:147)Top tether strap child restraint(cid:148) later in this section for installation in- structions.


When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint.


When you install a LATCH system compatible child restraint to the lower anchor attachments, follow these steps:


WARNING


Inspect the lower anchors by inserting your fingers into the lower anchor area and feeling to make sure there are no obstructions over the LATCH system an- chors, such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the LATCH sys- tem anchors are obstructed.


insert


1. To install the LATCH system compatible child restraint, the child restraint LATCH system anchor attachments into the anchor points on the seat. If the child re- straint is equipped with a top tether, see (cid:147)Top tether strap child restraint(cid:148) later in this section for installation instructions.


Seats, restraints and supplemental air bag systems 1-37


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


WARNING


Child restraint anchor points are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts or harnesses. Anchor point locations Anchor points are located on the rear parcel shelf finisher. If you have any questions when installing a top strap child restraint on the rear seat, consult your NISSAN dealer for details.


2. After attaching the child restraint and before placing the child in it, use force to tilt the child restraint from side to side and tug it forward to make sure that the child restraint is securely held in place. It should not move more than 1 inch.


3. Check to make sure that the child restraint is


properly secured prior to each use.


WRS0173


TOP TETHER STRAP CHILD RESTRAINT If your child restraint has a top tether strap, it must be secured to the provided anchor point. First, secure the child restraint with the rear seat belt.


Flip up the anchor cover from the anchor point which is located directly behind the child seat.


Secure the top tether strap to the anchor bracket which provides the straightest installation of the tether strap. Tighten the strap according to the manufacturer(cid:146)s instructions to remove any slack.


1-38 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


c Failure to use the retractor(cid:146)s locking mode will result in the child restraint not being properly secured. The re- straint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision.


WRS0256


WRS0255


INSTALLATION ON FRONT PASSENGER SEAT


WARNING


c Never install a rear-facing child re- straint in the front passenger seat. Supplemental front air bags inflate with great force. A rear-facing child restraint could be struck by the supplemental front air bag in a crash and could seri- ously injure or kill your child.


c NISSAN recommends that child re- straints be installed in the rear seat. However, if you must install a forward- facing child restraint in the front pas- senger seat, move the passenger seat to the rearmost position.


c A child restraint with a top tether strap should not be used in the front passen- ger seat.


c The three-point seat belt in your vehicle is equipped with an automatic locking mode retractor which must be used when installing a child restraint.


Seats, restraints and supplemental air bag systems 1-39


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


Front Facing (cid:151) step 1


Front Facing (cid:151) step 2


Front Facing (cid:151) step 3


WRS0258


WRS0159


WRS0160


If you must install a child restraint in the front seat, follow these steps: 1. Position the child restraint on the front pas- senger seat. It should be placed in a front-facing direction only. Move the seat to the rearmost position. Always follow the child restraint manufacturer(cid:146)s in- structions. Child restraints for infants must be used in the rear-facing direc- tion and therefore must not be used in the front seat.


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer(cid:146)s instructions for belt routing.


3. Pull on the shoulder belt until all of the belt is fully extended. At this time, the seat belt retractor is in the automatic locking mode (child restraint mode). It reverts to emer- gency locking mode when the seat belt is fully retracted.


1-40 Seats, restraints and supplemental air bag systems


Z REVIEW COPY:—2003 Altima (l30) Owners Manual (owners)—USA English (nna) 04/21/03—debbie X


7. Check to make sure the child restraint is properly secured prior to each use. If the seat belt locked, repeat steps 3
through 6.


is not


After the child restraint is removed and the seat belt is fully retracted, the automatic locking mode (child restraint mode) is canceled.


Front Facing (cid:151) step 4


Front Facing (cid:151) step 5


WRS0161


WRS0257


4. Allow the seat belt to retract slightly. Pull up on the shoulder belt to remove any slack in the belt.


5. Before placing the child in the child restraint, use force to tilt the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 inch.


6. Check that the retractor is in the automatic locking mode by trying to pull more seat belt

Loading...
x
