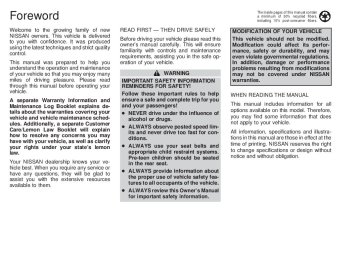

Foreword


Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you understand the operation and maintenance of your vehicle so that you may enjoy many miles of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information and Maintenance Log Booklet explains de- tails about the warranties covering your vehicle and vehicle maintenance sched- ules. Additionally, a separate Customer Care/Lemon Law Booklet will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law. Your NISSAN dealership knows your ve- hicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them.


READ FIRST — THEN DRIVE SAFELY Before driving your vehicle please read this owner’s manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe op- eration of your vehicle.


WARNING


IMPORTANT SAFETY INFORMATION REMINDERS FOR SAFETY! Follow these important rules to help ensure a safe and complete trip for you and your passengers! c NEVER drive under the influence of


alcohol or drugs.


c ALWAYS observe posted speed lim- its and never drive too fast for con- ditions.


c ALWAYS use your seat belts and appropriate child restraint systems. Pre-teen children should be seated in the rear seat.


c ALWAYS provide information about the proper use of vehicle safety fea- tures to all occupants of the vehicle. c ALWAYS review this Owner’s Manual


for important safety information.


The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.


MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modification could affect its perfor- mance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modifications may not be covered under NISSAN warranties.


WHEN READING THE MANUAL This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle. All information, specifications and illustra- tions in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and without obligation.


Z X


INFORMATION ABOUT


IMPORTANT THIS MANUAL You will see various symbols in this manual. They are used in the following ways:


WARNING


This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.


CAUTION


This is used to indicate the presence of a hazard that could cause minor or moderate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.


APD1005


If you see this symbol, it means ‘‘Do not do this’’ or ‘‘Do not let this happen.’’


The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.


© 1998 NISSAN NORTH AMERICA, INC.


GARDENA, CALIFORNIA


All rights reserved. No part of this Owner’s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photo- copying, recording or otherwise, without the prior written permission of Nissan North America, Inc., Gardena, California.


Z X


Welcome To The World Of NISSAN


Your new NISSAN is the result of our dedication to produce the finest in safe, reliable and eco- nomical transportation. Your vehicle is the prod- uct of a successful worldwide company that manufactures cars and trucks in over 17 coun- tries and distributes them in 170 nations. NISSAN vehicles are designed and manufac- tured by Nissan Motor Co., Ltd. which was founded in Tokyo, Japan in 1933, and NISSAN affiliates world wide, collectively growing to be- come the fifth largest automaker in the world. In addition to cars and trucks, NISSAN also makes textile machinery, forklift trucks, marine engines, boats and other products. NISSAN has made a substantial and growing investment in North America, starting with the opening of Nissan Motor Corporation U.S.A. in 1960 and continuing with the production of some cars and trucks at one of the world’s most


AFW0001


modern manufacturing facilities, Nissan Motor Manufacturing Corporation U.S.A. in Smyrna, Tennessee, vehicle styling at Nissan Design International in San Diego, California, and engi- neering at Nissan Research and Development in Farmington Hills, Michigan.


NISSAN and its dealers indirectly employ about 60,000 Americans.


NISSAN is also a substantial contributor to the Canadian economy. Nissan Canada Inc., its sup- pliers and over 150 dealers employ approxi- mately 4,500 people. These include company employees and the staffs of NISSAN dealers all across Canada. In addition, many Canadians work for companies that supply NISSAN and NISSAN dealers with materials and services ranging from the operation of port facilities and transportation services, to the supply of lubri- cants, parts and accessories.


NISSAN pioneered the use of electronics and computers in automobiles, and has led the indus- try in improving both performance and fuel effi- ciency through new engine designs and the use of synthetic materials to reduce vehicle weight. The company has also developed ways to build quality into its vehicles at each stage of the production process, both through extensive use of automation and — most importantly — through an awareness that people are the cen- tral element in quality control. From the time the parts arrived from our suppli- ers until you took delivery of your new NISSAN, dozens of checks were made to ensure that only the best job was being done in producing and delivering your vehicle. NISSAN also takes great care to ensure that when you take your NISSAN to your dealer for maintenance, the service techni- cian will perform his work according to the quality standards that have been established by Nissan. Safety has also been built into your NISSAN. As you know, seat belts are an integral part of the safety systems that will help protect you and your passengers in the event of a sudden stop or an accident. We urge you to use the seat belts every time you drive the vehicle. The NISSAN story of growth and achievement reflects our major goal: to provide you, our customer, with a vehicle that is built with quality and craftsmanship — a product that we can be proud to build and you can be proud to own.


Z X


NISSAN CUSTOMER CARE PROGRAM


NISSAN CARES ... Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.


However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please con- tact the NISSAN Consumer Affairs Depart- ment using our toll-free number: For U.S. mainland customers


1-800-NISSAN-1
(1-800-647-7261)


For Hawaii customers


(808) 836-0888 (Oahu Number)


For Canada customers


1-800-387-0122


The Consumer Affairs Department will ask for the following information: — Your name, address, and telephone


number


— Vehicle identification number (on dash-


board)


— Date of purchase — Current odometer reading — Your NISSAN dealer’s name — Your comments or questions OR You can write to NISSAN with the informa-


tion on the left at: For U.S. mainland and Alaska customers


Nissan North America, Inc. Consumer Affairs Department P.O. Box 191
Gardena, California 90248-0191


For Hawaii customers


Nissan Motor Corporation in Hawaii 2880 Kilihau St. Honolulu, Hawaii 96819


For Canada customers Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5


We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.


Z X


Z X


Table of Contents


Seats, restraints and supplemental air bag systems


Instruments and controls


Pre-driving checks and adjustments


Heater, air conditioner and audio systems


Starting and driving


In case of emergency


Appearance and care


Do-it-yourself


Maintenance


Technical and consumer information


Index


10


11


Z X


1 Seats, restraints and supplemental air bag systems


Front seats .............................................................1-2
Seat adjustment .....................................................1-3
Head restraints.......................................................1-6
Rear seat................................................................1-7
Supplemental restraint system (air bag system)...................................................................1-9
Supplemental air bag system...............................1-12
Warning labels......................................................1-14
Supplemental air bag warning light......................1-14
Seat belts .............................................................1-16
Precautions on seat belt usage ...........................1-16


Child safety...........................................................1-18
Pregnant women ..................................................1-18
Injured persons ....................................................1-18
Three-point type with retractor.............................1-19
Two-point type without retractor (rear center lap belt).................................................................1-22
Seat belt extenders ..............................................1-24
Seat belt maintenance .........................................1-24
Child restraints .....................................................1-24
Top strap child restraint .......................................1-33


Z X


FRONT SEATS


ARS1131


c For most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat properly. See ‘‘Precautions on Seat Belt Usage’’ later in this chapter.


WARNING


c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an acci- dent you could be thrown into it and receive neck or other serious inju- ries. You could also slide under the lap belt and receive serious internal injuries.


1-2 Seats, restraints and supplemental air bag systems


Z X


SEAT ADJUSTMENT Manual


WARNING


c Do not adjust the driver’s seat while driving. The seat may move sud- denly and could cause loss of con- trol of the vehicle.


c After adjustment, gently rock in the is securely


to make sure it


seat locked.


ARS1222


ARS1223


Forward and backward Pull the lever up while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in posi- tion.


Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback for- ward again, pull the lever and move your- body forward. The seatback moves forward.


Seats, restraints and supplemental air bag systems 1-3


Z X


Reclining Move the recline switch backward until the desired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward.


Power (if so equipped)


WARNING


c Do not adjust the driver’s seat while driving in order that full attention may be given to the driving operation.


c Do not leave children unattended in- side the vehicle. They could unknow- ingly activate switches or controls. Unattended children could become involved in serious accidents.


ARS1019


Operating Tips c The motor has an auto-reset overload protection circuit. If the motor stops dur- ing operation, wait 30 seconds, then re- activate the switch.


c Do not operate the power support seat for a long period of time when the engine is off. This will discharge the battery.


Forward and backward adjustment Moving the switch forward or backward will slide the seat forward or backward to the desired position.


1-4 Seats, restraints and supplemental air bag systems


Z X


ARS1018


ARS1035


Seat lifter Push the front or rear end of the switch up or down to adjust the angle and height of the seat cushion.


Lumbar support (If so equipped) The lumbar support feature provides lower back support to the driver. Move the lever up or down to adjust the seat lumbar area.


Seats, restraints and supplemental air bag systems 1-5


Z X


PD1319


ARS1130


Adjust the head restraints so the top is level with the tops of your ears.


HEAD RESTRAINTS To raise the head restraint, pull it up. To lower, push the lock knob and push the head restraint down.


WARNING


Head restraints should be adjusted properly as they may provide significant protection against injury in an accident. Do not remove them. Check the adjust- ment after someone else uses the seat.


1-6 Seats, restraints and supplemental air bag systems


Z X


REAR SEAT


c Closely supervise children when they are around cars to prevent them from playing and becoming locked in the trunk where they could be seriously injured. Keep the car locked, with the rear seat back se- curely latched, when not in use, and prevent children’s access to car keys.


Interior trunk access (if so equipped) The trunk can be accessed from the rear seat for loading and unloading, as shown.


WARNING


c Never allow anyone to ride in the luggage area or on the rear seat when it is in the fold-down position. Use of these areas by passengers without proper restraints could re- sult in serious injury in an accident or sudden stop.


PD1177M


c Properly secure all cargo to help prevent it from sliding or shifting. Do not place cargo higher than the seat- backs. In a sudden stop or collision, unsecured cargo could cause per- sonal injury.


c When returning seatbacks to the up- right position, be certain they are completely secured in the latched position. If they are not completely secured in the latched position, pas- sengers may be injured in an acci- dent or sudden stop.


Seats, restraints and supplemental air bag systems 1-7


Z X


ARS1020


Center armrest (if so equipped) Pull the armrest forward until it is horizontal.


1-8 Seats, restraints and supplemental air bag systems


Z X


SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG SYSTEM)


This Supplemental Restraint System section contains important information concerning the driver and passenger supplemental air bags. The Supplemental Restraint System Air Bag can help reduce impact force to the driver and to the front passenger in certain frontal collisions. The supplemental air bags are designed to supplement the crash pro- tection provided by the driver and front pas- senger seat belts and are not a substitute for them. The seat belts should always be correctly worn and the driver and front pas- senger seated a suitable distance away from the steering wheel and instrument panel. (See ‘‘Seat belts’’ for instructions and precau- tions on seat belt usage later in this section.) The supplemental air bags operate only when the ignition switch is in the ON or START position.


WARNING


c The supplemental air bags ordinarily will not inflate in the event of a side impact, rear impact, roll over, or lower severity frontal collision. Al- ways wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.


ARS1132


away as practical from the steering wheel or instrument panel. Always use the seatbelts.


c Keep hands on the outside of the steering wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the supplemental air bag inflates.


force.


c The seat belts and the supplemental air bags are most effective when you are sitting back and upright in the seat. Supplemental air bags inflate If you are unre- with great strained, leaning forward, sitting sideways or out of position in any way, you are at greater risk of injury or death in a crash and may also receive serious or fatal injuries from the supplemental air bag if you are up against it when it inflates. Always sit back against the seatback and as far


Seats, restraints and supplemental air bag systems 1-9


Z X


ARS1133


ARS1041


1-10 Seats, restraints and supplemental air bag systems


ARS1042


Z X


WARNING


c Never let children ride unrestrained. Do not attempt to hold them in your lap or arms. Some examples of dan- gerous riding positions are shown in the previous illustrations.


c Children may be severely injured or killed when the supplemental air bag inflates if they are not properly re- strained.


c Never install a rear-facing child re- straint in the front seat. An inflating supplemental air bag could seri- ously injure or kill your child. See ‘‘Child Restraints’’ later in this sec- tion for details.


ARS1043


ARS1045


ARS1044


ARS1046


Seats, restraints and supplemental air bag systems 1-11


Z X


SUPPLEMENTAL AIR BAG SYSTEM


APD0530


The driver supplemental air bag is located in the center of the steering wheel. The front passenger supplemental air bag is mounted in the dashboard above the glove box. These systems are designed to meet op- tional certification requirements under U.S. regulations. They are also permitted in Canada. The optional certification allows air bags to be designed to inflate somewhat less forcefully than previously. However, all of the information, cautions and warn- ings in this manual still apply and must be followed. The supplemental air bag system is de- 1-12 Seats, restraints and supplemental air bag systems


signed to inflate in higher severity frontal collisions, although it may inflate if the forces in another type of collision are similar to those of a higher severity frontal impact. It may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental air bag system operation. When the supplemental air bag inflates, a fairly loud noise may be heard, followed by the release of smoke. This smoke is not harmful and does not indicate a fire, but care should be taken not to unintentionally inhale it, as it may cause irritation and


choking. Those with a history of breathing trouble should get fresh air promptly. The supplemental air bags, along with the use of seat belts, help to cushion the impact force on the face and chest of the occupant. They can help save lives and reduce seri- ous injuries. However, an inflating supple- mental air bag may cause facial abrasions or other injuries. Supplemental air bags do not provide restraint to the lower body. Seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or instrument panel. Since the supplemental air bags inflate quickly in order to help protect the front occupants, the force of the supple- mental air bag inflating can increase the risk of injury if the occupant is too close to or is against the supplemental air bag module during inflation. The supplemental air bags deflate quickly after a collision. The supplemental air bags operate only when the ignition switch is in the ON or START position.


Z X


When selling your vehicle, we request that you inform the buyer about the supple- mental air bag system and guide the buyer to the appropriate sections in this owner’s manual.


WARNING


c Do not place any objects on the steer- ing wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steer- ing wheel or instrument panel. Such objects may become dangerous pro- jectiles and cause injury if the supple- mental air bag inflates.


c Right after inflation, several supple- mental air bag system components will be hot. Do not touch them; you may severely burn yourself.


c No unauthorized changes should be made to any components or wiring of the supplemental air bag system. This is to prevent accidental inflation of the supplemental air bag or damage to the supplemental air bag system.


c Do not make unauthorized changes to your vehicle’s electrical system, suspension system or front end structure. This could affect proper operation of the supplemental air bag system.


c Tampering with the supplemental air bag system may result in serious per- sonal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the dashboard, or by install- ing additional trim material around the supplemental air bag system.


c Work around and on the supplemen- tal air bag system should be done by an authorized NISSAN dealer. Instal- lation of electrical equipment should also be done by an authorized NIS- SAN dealer. The yellow SRS wiring should not be modified or discon- nected. Unauthorized electrical test equipment and probing devices should not be used on the supple- mental air bag system.


c The SRS wiring harnesses are cov- ered with yellow insulation either just before the harness connectors or over the complete harness for easy identification.


Seats, restraints and supplemental air bag systems 1-13


Z X


WARNING LABELS


SUPPLEMENTAL AIR BAG WARNING LIGHT


Warning labels about the supplemental air bag system are placed in the vehicle as shown in the illustration.


1-14 Seats, restraints and supplemental air bag systems


APD0513


APD0523


The supplemental air bag warning light, displaying in the instrument panel, monitors the circuits of the supplemental air bag system. The circuits monitored by the supplemental air bag warning light are the diagnosis sensor unit, supplemental air bag modules and all related wiring. When the ignition key is in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational.


Z X


If any of the following conditions occur, the supplemental air bag needs servicing: 1. The supplemental air bag warning light does not come on and remain on for 7
seconds and then go off as described.


2. The supplemental air bag warning light


flashes intermittently or remains on.


3. The supplemental air bag warning light


does not come on at all.


Under these conditions, the supplemental restraint system air bag may not operate properly. It must be checked and repaired. Take your vehicle to the nearest authorized NISSAN dealer.


WARNING


is on,


If the supplemental air bag warning light the supplemental air bag system will not operate in an accident.


it could mean that


Repair and replacement procedure The supplemental air bag modules are de- signed to inflate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag light remains illumi-


c The supplemental air bag system should be inspected by an autho- rized NISSAN dealer if there is any damage to the front end portion of the vehicle.


an


c If you need to dispose of a supple- mental air bag or scrap the vehicle, contact authorized NISSAN dealer. Correct supplemental air bag disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal proce- dures could cause personal injury.


nated after inflation has occurred. Repair and replacement of the supplemental air bag system should be done only by an authorized NISSAN dealer. To ensure long-term functioning, the supplemental air bag system must be inspected 10 years after the date of manufacture as noted on the certifica- tion label located on the driver side front pillar. When maintenance work is required on the vehicle, the supplemental air bag system and related parts should be pointed out to the person conducting the maintenance. The ignition key should always be in the LOCK position when working under the hood or inside the vehicle.


WARNING


c Once the supplemental air bag in- flates, the supplemental air bag module will not function again and should be replaced by an authorized NISSAN dealer. The supplemental air bag module cannot be repaired.


Seats, restraints and supplemental air bag systems 1-15


Z X


SEAT BELTS


ARS1134


ARS1049


WARNING


PRECAUTIONS ON SEAT BELT USAGE If you are wearing your seat belt properly adjusted, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag. Most U.S. states and all Canadian prov- inces and territories, require that seat belts be worn at all times when a vehicle is being driven. 1-16 Seats, restraints and supplemental air bag systems


c Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be prop- erly restrained and, if appropriate, in a child restraint.


c The belt should be properly adjusted to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an acci- dent. Serious injury or death can occur if the seat belt is not worn properly.


c Always route the shoulder belt over your shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.


c Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of inter- nal injuries in an accident.


Z X


c All seat belt assemblies including retractors and attaching hardware should be inspected after any colli- sion by an authorized NISSAN dealer. NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col- lision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either dam- age or improper operation is noted.


ARS1047


ARS1050


c Be sure the seat belt tongue is se- curely fastened to the proper buckle. c Do not wear the belt inside out or twisted. Doing so may reduce its effectiveness.


c Do not allow more than one person


to use the same belt.


c Never carry more people in the ve-


hicle than there are seat belts.


c If the seat belt warning light glows continuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indi- cate a malfunction in the system. Have the system checked by an au- thorized NISSAN dealer.


Seats, restraints and supplemental air bag systems 1-17


Z X


CHILD SAFETY Children need adults to help protect them. They need to be properly restrained. The proper restraint depends on the child’s size. Generally, infants up to about 1 year and less than 20 pounds, (9 kg) should be placed in rear facing child restraints. Forward facing child restraints are available for chil- dren who outgrow rear facing child restraints.


WARNING


Infants and children need special pro- tection. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improp- erly fitting seat belt could cause seri- ous or fatal injury. Always use appro- priate child restraints.


NISSAN recommends that all preteens and children be restrained in the rear seat if possible. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. This is especially important because your ve- hicle has a supplemental restraint system (Air bag system) for the front passenger. See ‘‘Supplemental restraint system’’ ear- lier in this section. Infants and small children NISSAN recommends that infants and small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint fits your vehicle and always follow the manufacturer’s instruc- tions for installation and use. Larger children Children who are too large for child re- straints should be seated and restrained by the seat belts which are provided. If the child’s seating position has a shoulder belt that fits close to the face or neck, the use of a booster seat (commercially avail- able) may help overcome this. The booster seat should raise the child so that the shoul-


that


All U.S. states and Canadian provinces or territories require the use of approved child restraints for infants and small children. See ‘‘Child Restraints’’ later in this section. In addition, there are many types of child restraints available for larger children which should be used for maximum protection. 1-18 Seats, restraints and supplemental air bag systems


der belt is properly positioned across the top, middle portion of the shoulder and the lap belt is low on the hips. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Mo- tor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.


WARNING


Never let a child stand or kneel on any seat and do not allow a child in the cargo areas while the vehicle is mov- ing. The child could be seriously in- jured or killed in an accident.


PREGNANT WOMEN NISSAN recommends that pregnant women use seat belts. Contact your doctor for spe- cific recommendations. The lap belt should be worn snug and positioned as low as possible around the hips, not the waist. INJURED PERSONS NISSAN recommends that injured persons use seat belts. Check with your doctor for specific recommendations.


Z X


ARS1051


ARS1053


ARS1052


THREE-POINT TYPE WITH RETRACTOR


WARNING


c Every person who drives or rides in this vehicle should use a seat belt at all times.


c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident you could be thrown into it and re- ceive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries. c For most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat belt properly.


Fastening the seat belt 1. Adjust the seat. 2. Slowly pull the seat belt out of the retrac- tor and insert the tongue into the buckle until it clicks.


The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat.


Seats, restraints and supplemental air bag systems 1-19


Z X


tracted, the seat belt is in the emergency locking mode. See ‘‘Child Restraints’’ later in this section for more information. The automatic locking mode should be used only for child restraint installation. During normal seat belt use by a passen- ger, the locking mode should not be activated. If it is activated it may cause uncomfortable seat belt tension.


ARS1077


3. Position the lap belt portion low and


snug on the hips as shown.


4. Pull the shoulder belt portion toward the


retractor to take up extra slack.


The front passenger side seat belt and rear three-point seat belts have a cinching mechanism for child restraint installation. It is referred to as the automatic locking mode. When automatic locking mode is activated the seat belt cannot be withdrawn further until the seat belt tongue is detached from the buckle and fully retracted. Once re- 1-20 Seats, restraints and supplemental air bag systems


ARS1054


Unfastening the seat belts To unfasten the seat belt, press the button on the buckle. The seat belt automatically retracts.


Z X


WARNING


c After adjustment, release the adjust- ment button and try to move the shoulder belt anchor up and down to make sure it is securely fixed in position.


c The shoulder belt anchor height should be adjusted to the position best for you. Failure to do so may reduce the effectiveness of the en- tire restraint system and increase the chance or severity of injury in an accident.


Checking seat belt operation (Three-point type seat belt with re- tractor) Seat belt retractors are designed to lock seat belt movement using two separate methods: 1) When the seat belt is pulled quickly from


the retractor.


2) When the vehicle slows down rapidly. To increase your confidence in the seat belts, check their operation as follows. c Grasp the shoulder belt and pull quickly forward. The retractor should lock and restrict further belt movement. the retractor does not


If lock during this check or if you have any questions about belt operation, see an authorized NISSAN dealer.


APD1013


Shoulder belt height adjustment (For front seats) The shoulder belt anchor height should be adjusted to the position best for you. (See ‘‘Precautions on seat belt usage’’ earlier in this section.) To adjust, pull out the adjust- ment button and move the shoulder belt anchor to the desired position, so the belt passes over the center of the shoulder. The belt should be away from your face and neck, but not falling off of your shoulder. Release the adjustment button to lock the shoulder belt anchor into position.


Seats, restraints and supplemental air bag systems 1-21


Z X


APD0104


ARS1055


ARS1115


TWO-POINT TYPE WITHOUT RETRACTOR (rear center lap belt) Selecting the correct set of seat belts The center seat belt buckle and tongue are identified by the word CENTER. The center seat belt tongue can be fastened only into the center seat belt buckle.


Fastening the seat belts 1. Insert the tongue into the buckle until it clicks. Both the tongue and the buckle are marked CENTER.


2. Tighten the belt by pulling the free end of the belt away from the tongue, then pull the belt clip to take up the slack.


1-22 Seats, restraints and supplemental air bag systems


Z X


ARS1076


ARS1057


ARS1058


3. Position the lap belt low and snug on


the hips as illustrated.


4. Loosen the belt by holding the tongue at a right angle to the belt, then pull on the belt.


Unfastening the belt To unfasten the seat belt, press the button on the buckle.


Seats, restraints and supplemental air bag systems 1-23


Z X


is not possible to properly fit


SEAT BELT EXTENDERS If, because of body size or driving position, it the lap- shoulder belt and fasten it, an extender is available which is compatible with the in- stalled seat belts. The extender adds ap- proximately 8 inches (200 mm) of length and may be used for either the driver or front passenger seating position. See your NIS- SAN dealer for assistance if an extender is required.


WARNING


c Only NISSAN seat belt extenders, made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts.


c Persons who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.


SEAT BELT MAINTENANCE c To clean the seat belt webbings, apply a mild soap solution or any solution rec- ommended for cleaning upholstery or carpet. Then wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.


c If dirt builds up on the shoulder belt guide of the seat belt anchors, the seat belts may retract slowly. Wipe the shoul- der belt guide with a clean, dry cloth.


c Periodically check to see that the seat belt and the metal components, such as buckles, tongues, retractors, flexible wires and anchors, work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt assembly should be re- placed.


1-24 Seats, restraints and supplemental air bag systems


CHILD RESTRAINTS


WARNING


c Infants and small children should always be placed in an appropriate child restraint while riding in the ve- hicle. Failure to use a child restraint can result in serious injury or death. c Infants and small children should never be carried on your lap. It is not possible for even the strongest adult to resist the forces of a severe acci- dent. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.


c Never install a rear-facing child re- straint in the front seat. An inflating supplemental air bag could seri- ously injure or kill your child. A rear- facing child restraint must only be used in the rear seat.


c Nissan recommends that the child restraint be installed in the rear seat. According to accident statistics, children are safer when properly re- strained in the rear seat than in the front seat.


Z X


c An improperly installed child re- straint could lead to serious injury or death in an accident.


c In general, child restraints are de- signed to be installed with a lap belt or the lap portion of a three-point type seat belt.


Child restraints for infants and children of various sizes are offered by several manu- facturers. When selecting any child restraint, keep the following points in mind: 1) Choose only a restraint with a label cer- tifying that it complies with Federal Motor Vehicle Safety Standard 213 or Cana- dian Motor Vehicle Safety Standard 213. 2) Check the child restraint in your vehicle to be sure it is compatible with the vehi- cle’s seat and seat belt system. Choose a child restraint that meets the guidelines of the Society of Automotive Engineers recommended practice J1819 for child restraint installation.


3) If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjust- ments to be sure the child restraint is compatible with your child. Always follow all recommended procedures.


All U.S. states and provinces of Canada require that infants and small children be restrained in approved child restraints at all times while the vehicle is being operated.


WARNING


c Improper use of a child restraint can result in increased injuries for both the infant or child and other occu- pants in the vehicle.


c Follow all of the child restraint manu- facturer’s instructions for installa- tion and use. When purchasing a child restraint, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle.


c If the child restraint is not anchored properly, the risk of a child being injured in a collision or a sudden stop greatly increases.


c Adjustable seatbacks should be po- sitioned to fit the child restraint, but as upright as possible.


c After attaching the child restraint, test it before you place the child in it. Tilt it from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the belt as necessary, or put the restraint in another seat and test it again.


c For a front-facing child restraint, if the seat position where it is installed has a three-point type lap/shoulder belt, check to make sure the shoul- der belt does not go in front of the child’s face or neck. If it does, put the shoulder belt behind the child restraint. If you must install a front- facing child restraint in the front seat, see ‘‘Installation on front pas- senger seat’’ later in this section for details.


c When your child restraint is not in use, keep it secured with a seat belt to prevent it from being thrown around in case of a sudden stop or accident.


Seats, restraints and supplemental air bag systems 1-25


Z X


CAUTION


c Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the child restraint.


ARS1059


ARS1060


Front facing installation on rear seat Center lap belt When you install a child restraint in a rear center seat, follow these steps: 1. Position the child restraint on the seat as illustrated. Always follow the restraint manufacturer’s instructions.


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer’s instructions for belt routing.


1-26 Seats, restraints and supplemental air bag systems


Z X


ARS1061


ARS1062


ARS1063


3. Remove all slack in the lap belt for a very tight fit by pulling forcefully on the lap belt adjustment.


4. Before placing the child in the child re- straint, use force to tilt the child restraint from side to side, and tug it forward to make sure it is securely held in place.


5. If it is not secure, try to tighten the belt again, or put the restraint in another seat. 6. Check to make sure the child restraint is


properly secured prior to each use.


Rear facing installation on rear seat Center lap belt When you install a child restraint in a rear center seat, follow these steps: 1. Position the child restraint on the seat as illustrated. Always follow the restraint manufacturer’s instructions.


Seats, restraints and supplemental air bag systems 1-27


Z X


ARS1064


ARS1065


ARS1066


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer’s instructions for belt routing.


3. Remove all slack in the lap belt for a very tight fit by pulling forcefully on the lap belt adjustment.


4. Before placing the child in the child re- straint, use force to tilt the child restraint from side to side, and tug it forward to make sure it is securely held in place.


5. If it is not secure, try to tighten the belt again, or put the restraint in another seat. 6. Check to make sure the child restraint is


properly secured prior to each use.


1-28 Seats, restraints and supplemental air bag systems


Z X


Front facing installation on rear out- board seating positions


WARNING


c The three-point seat belt in your ve- hicle is equipped with an automatic locking mode retractor which must be used when installing a child re- straint.


c Failure to do so will result in the child restraint not being properly se- cured. It could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision.


ARS1032


ARS1068


When you install a child restraint in a rear outboard seat, follow these steps: 1. Position the child restraint on the seat. Always follow the restraint manufactur- er’s instructions.


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer’s instructions for seat belt rout- ing.


Seats, restraints and supplemental air bag systems 1-29


Z X


ARS1031


ARS1078


ARS1067


3. Pull on the shoulder belt until all of the belt is fully extended. At this time, the belt retractor is in the automatic locking mode (child restraint mode). It reverts back to emergency locking mode when the belt is fully retracted.


4. Allow the belt to retract. Pull up on the


belt to remove any slack in the belt.


1-30 Seats, restraints and supplemental air bag systems


5. Before placing the child in the child re- straint, use force to tilt the child restraint from side to side, and tug it forward to make sure it is securely held in place.


6. Check that the retractor is in the automatic locking mode by trying to pull more belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the belt is in the automatic locking mode.


7. Check to make sure the child restraint is properly secured prior to each use. If the belt is not locked, repeat steps 3 through 6. After the child restraint is removed and the


Z X


seat belt is fully retracted, the automatic locking mode (child restraint mode) is can- celed. Rear facing installation on rear out- board seating positions


WARNING


c The three-point seat belt in your ve- hicle is equipped with an automatic locking mode retractor which must be used when installing a child re- straint.


c Failure to do so will result in the child restraint not being properly se- cured. It could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision.


ARS1069


ARS1070


When you install a child restraint in a rear outboard seat, follow these steps: 1. Position the child restraint on the seat. Always follow the restraint manufactur- er’s instructions.


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer’s instructions for seat belt rout- ing.


Seats, restraints and supplemental air bag systems 1-31


Z X


ARS1033


ARS1071


ARS1072


3. Pull on the shoulder belt until all of the belt is fully extended. At this time, the belt retractor is in the automatic locking mode (child restraint mode). It reverts back to emergency locking mode when the belt is fully retracted.


4. Allow the belt to retract. Pull up on the


belt to remove any slack in the belt.


1-32 Seats, restraints and supplemental air bag systems


5. Before placing the child in the child re- straint, use force to tilt the child restraint from side to side, and tug it forward to make sure it is securely held in place.


6. Check that the retractor is in the automatic locking mode by trying to pull more belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the belt is in the automatic locking mode.


7. Check to make sure the child restraint is properly secured prior to each use. If the belt is not locked, repeat steps 3 through 6. After the child restraint is removed and the


Z X


seat belt is fully retracted, the automatic locking mode (child restraint mode) is can- celed.


the anchor bracket, a metric bolt of dimensions listed below must be used:


the


Bolt diameter: 8.0 mm Bolt length: at least 1.18 in (30 mm) Thread pitch: 1.25 mm


Secure the top strap to the attaching bolt which provides the straightest installation of the top strap.


WARNING


Child restraint anchor points are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstances are they to be used for adult seat belts or harnesses.


ARS1015


TOP STRAP CHILD RESTRAINT If your child restraint has a top strap, it must be secured to the provided anchor point. Anchor bracket hardware must be installed. The top strap anchor bracket hardware is available through an authorized NISSAN dealer. U.S. Part #88894-89900
Canadian Part #88894-89902
Secure the child restraint with the center lap belt or the lap portion of an outboard Three- point belt and latch the top strap hook onto the appropriate anchor bracket. To install


Seats, restraints and supplemental air bag systems 1-33


Z X


material. There are pre-cut circles at each anchor point location that should break away from the shelf support mate- rial when pressure is applied to them. Remove the bolt after you feel the pre-cut circle separate from the shelf support material.


2. Cut a small slit through the parcel shelf fabric at the anchor point location. Reach through the fabric with a tool such as a pair of needle-nose pliers and remove the pre-cut circle in the parcel shelf sup- port material.


3. Install the bolt through the top strap hook


and into the anchor point nut.


4. Be sure to follow all of the instructions that accompany the top strap attaching hardware.


ARS1014


Anchor point locations Anchor points are located under the rear parcel shelf finisher. To use attaching hardware for child re- straints with top straps, follow these instruc- tions carefully: 1. Open the trunk and find the anchor point nuts on the underside of the rear parcel shelf. Thread a bolt (8.0 mm diameter, 1.25 pitch) up through the nut behind the seating position where the child restraint will be installed and use it to break through the rear parcel shelf support


1-34 Seats, restraints and supplemental air bag systems


Z X


c Failure to use the retractor’s locking mode will result in the child restraint not being properly secured. The seat could tip over or otherwise be unse- cured and cause injury to the child in a sudden stop or collision.


Installation on front passenger seat


WARNING


c Never install a rear-facing child re- straint in the front passenger seat. Supplemental air bags inflate with great force. A rear-facing child re- straint could be struck by the supple- mental air bag in a crash and could seriously injure or kill your child.


c NISSAN recommends that child re- straints be installed in the rear seat.


ARS1135


if you must


install a However, forward-facing child restraint in the front passenger seat, move the pas- senger seat to the rear most position. c A child restraint with a top strap should not be used in the front pas- senger seat.


c The three-point seat belt in your ve- hicle is equipped with an automatic locking mode retractor which must be used when installing a child re- straint.


Seats, restraints and supplemental air bag systems 1-35


Z X


ARS1036


ARS1073


ARS1034


If you must install a child restraint in the front seat, follow these steps: 1. Position the child restraint on the front passenger seat. It should be placed in a forward-facing direction only. Move the seat to the rear most position. Always follow the child restraint manufacturer’s instructions. Child restraints for infants must be used in the rear-facing direc- tion and therefore must not be used in the front seat.


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer’s instructions for belt routing.


3. Pull on the shoulder belt until all of the belt is fully extended. At this time, the belt retractor is in the automatic locking mode (child restraint mode). It reverts back to emergency locking mode when the belt is fully retracted.


1-36 Seats, restraints and supplemental air bag systems


Z X


After the child restraint is removed and the seat belt is fully retracted, the automatic locking mode (child restraint mode) is can- celed.


ARS1074


ARS1079


4. Allow the seat belt to retract. Pull up on the seat belt to remove any slack in the belt.


5. Before placing the child in the child re- straint, use force to tilt the child restraint from side to side, and tug it forward to make sure it is securely held in place.


6. Check that the retractor is in the auto- matic locking mode by trying to pull more seat belt out of the retractor. If you can- not pull any more seat belt webbing out of the retractor, the seat belt is in the automatic locking mode.


7. Check to make sure the child restraint is properly secured prior to each use. If the lap belt locked, repeat steps 3
through 6.


is not


Seats, restraints and supplemental air bag systems 1-37


Z X


MEMO


1-38 Seats, restraints and supplemental air bag systems


Z X


2 Instruments and controls


Meters and gauges ................................................2-2
Speedometer and odometer ..................................2-3
Tachometer ............................................................2-3
Engine coolant temperature gauge and fuel gauge .....................................................................2-4
Warning/indicator lights and chimes ......................2-5
Theft warning (if so equipped) ...............................2-9
Windshield wiper and washer switch...................2-11
Rear window defogger switch..............................2-11
Headlight and turn signal switch..........................2-12
Daytime running light system (Canada only).......2-13
Instrument brightness control...............................2-13
Front fog light switch (if so equipped)..................2-14


Hazard warning flasher switch.............................2-14
Cigarette lighter (accessory) and ash tray...........2-15
Cup holder............................................................2-16
Power windows ....................................................2-17
Automatic power window switch ..........................2-17
Passenger power windows ..................................2-18
Sunroof (if so equipped).......................................2-18
If the sunroof does not close ...............................2-19
Storage compartment for garage door transmitter (if so equipped) ..................................2-20
Interior light...........................................................2-21
Map light (if so equipped) ....................................2-22
Trunk light.............................................................2-22


Z X


METERS AND GAUGES


2-2 Instruments and controls


AIC1072


Z X


SPEEDOMETER AND ODOMETER


TACHOMETER


IC1261


AIC0076


Speedometer The speedometer indicates vehicle speed. Odometer The odometer records the total distance the vehicle has been driven. Trip odometer The trip odometer records the distance of individual trips. Before each trip, set the trip odometer to zero by pushing the reset but- ton.


The tachometer indicates engine speed in revolutions per minute (r/min).


CAUTION


When engine speed approaches the red zone, shift to a higher gear. Oper- ating the engine in the red zone may cause serious engine damage.


Instruments and controls 2-3


Z X


ENGINE COOLANT TEMPERATURE GAUGE AND FUEL GAUGE


CAUTION


CAUTION


c If the vehicle is driven with the fuel level very low, the malfunction indi- cator light may come on. Refuel as soon as possible. After driving for a while, the light should remain off. If the light remains on, have the ve- hicle inspected by an authorized NISSAN dealer.


c For additional information, see the ‘‘Malfunction indicator light (MIL)’’ later in this section.


c If the gauge indicates engine coolant temperature over the normal range, stop the vehicle as soon as safely possible. If the engine is overheated, continued operation of the vehicle may seriously damage the engine. See the ‘‘In case of emergency’’ sec- tion for immediate action required.


Fuel gauge The gauge indicates the approximate fuel level in the tank. The gauge may move slightly during brak- ing, turning, acceleration, or going up or down hills. The gauge needle remains in approximately the same position even when the ignition key is turned to OFF. The warning indicator light comes on when the amount of fuel in the tank is getting low. Refill the fuel tank before the gauge registers E (Empty).


AIC0077


Engine coolant temperature gauge The gauge indicates the engine coolant temperature. The engine coolant temperature varies with the outside air temperature and driving con- ditions.


2-4 Instruments and controls


Z X


WARNING/INDICATOR LIGHTS AND CHIMES


or


Brake warning light


Seat belt warning light


Engine oil pressure warning light


Turn signal/hazard indicator lights


Low washer fluid warning light (Canada only)


CRUISE indicator light


High beam indicator light


or


Anti-lock brake warning light


Supplemental air bag warning light


Charge warning light


Overdrive off indicator light


Door open warning light


Malfunction indicator light (emission system)


Checking bulbs Apply the parking brake and turn the ignition key to ON without starting the engine. The following lights come on:


or


If the driver side seat belt is fastened the light will not come on. The following


lights come on briefly and then go off:


or


If any light fails to come on, it may indicate a burned-out bulb or an open circuit in the electrical system. Have the


system repaired promptly.


Engine oil pressure warning light


This light warns of low engine oil pressure. If the light flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call an autho- rized NISSAN dealer. The oil pressure warning light is not designed to indicate a low oil level. Use the dipstick to check the oil level. See ‘‘Engine oil’’ in the ‘‘Do-it-yourself’’ section.


CAUTION


Running the engine with the oil pressure warning light on could cause serious damage to the engine almost immedi- ately. Turn off the engine as soon as it is safe to do so.


Charge warning light


If this light comes on while the engine is running, it may indicate a problem with the charging system. Turn the engine off and check the generator belt. If the belt is loose,


Instruments and controls 2-5


Z X


broken, or missing, or if the light remains on, see an authorized NISSAN dealer immedi- ately.


CAUTION


Do not continue driving if the belt is loose, broken or missing.


Door open warning light


This light comes on when any of the doors are not closed securely while the ignition key is ON.


Seat belt warning light and chime


The light and chime remind you to fasten seat belts. The light illuminates whenever the ignition key is turned to ON, and re- mains illuminated until the driver’s seat belt is fastened. At the same time, the chime sounds for about seven seconds unless the driver seat belt is securely fastened. in the ‘‘Seats, re- Refer to ‘‘Seat belts’’ straints and supplemental air bag systems’’ section for precautions on seat belt usage.


2-6 Instruments and controls


Supplemental air bag warning light


When the ignition key is in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational. If any of the following conditions occur, the supplemental air bag system needs servicing and your vehicle must be taken to an autho- rized NISSAN dealer: 1. The supplemental air bag warning light does not come on and remain on for 7
seconds and then go off as described above.


2. The supplemental air bag warning light


flashes intermittently or remains on.


3. The supplemental air bag warning light


does not come on at all.


Unless checked and repaired, the supple- mental restraint system (air bag system) may not function properly. For additional details, see ‘‘Supplemental restraint system’’ in the ‘‘Seats, restraints and supplemental air bag systems’’ section.


WARNING


is on,


If the supplemental air bag warning light the supplemental air bag will not operate in an accident.


it could mean that


Low washer light (Canada only)


fluid warning


This light comes on when the washer fluid is at a low level. Add washer fluid as neces- sary. See the ‘‘Do-it-yourself’’ section.


or


Brake warning light


functions for both the parking


This light brake and the foot brake systems. When the ignition key is in the ON position, the light comes on when the parking brake is applied, and also warns of a low brake fluid level. If the light comes on while the engine is running with the parking brake not applied, stop the vehicle and perform the following: 1. Check the brake fluid level. Add brake fluid as necessary. See ‘‘Brake and clutch fluid’’ in the ‘‘Do-it-yourself’’ section of this owner’s manual.


Z X


2. If the brake fluid level is correct, have the brake system checked by an authorized NISSAN dealer.


WARNING


c Your brake system may not be work- ing properly if the warning light is on. Driving could be dangerous. If you judge it to be safe, drive carefully to the nearest service station for repairs. Otherwise, have your vehicle towed. c Pressing the brake pedal with the engine stopped and/or low brake fluid level may increase your stop- ping distance and braking will re- quire greater pedal effort as well as greater pedal travel.


c If the brake fluid level is below the minimum mark on the brake fluid reservoir, do not drive until the brake system has been checked at a NIS- SAN dealer.


Brake pad wear warning The disc brake pads have audible wear warnings. When a brake pad requires re- placement, it makes a high pitched scraping sound when the vehicle is in motion, whether or not the brake pedal is depressed.


Have the brakes checked as soon as pos- sible if the warning sound is heard.


or


Anti-lock brake warning light (if so equipped)


If the light comes on while the engine is running, it may indicate something is wrong with the anti-lock portion of the brake sys- tem. Have the system checked by an autho- rized NISSAN dealer. Turn off the engine, and start it again by slowly turning the ignition key (quickly doing so may cause the ABS light to stay on when there is nothing wrong). If the light stays on, have the system checked by an authorized NISSAN dealer. If an abnormality occurs in the system, the anti-lock function ceases, but the regular braking system continues to operate. If the light comes on while you are driving, contact an authorized NISSAN dealer for repair.


Overdrive off indicator light (Automatic transmission models only)


This light comes on when the overdrive switch is pushed to the OFF position.


Turn signal/hazard indicator lights


The appropriate light flashes when the turn signal switch is activated. Both lights flash when the hazard switch is turned on.


High beam indicator light


This light comes on when the headlight high beam is on and goes out when the low beam is selected. The high beam indicator light also comes on when the passing signal is activated.


Cruise indicator light


This light comes on while the vehicle speed is controlled by the cruise control system. If the CRUISE indicator blinks, have the sys- tem checked by an authorized NISSAN dealer.


Instruments and controls 2-7


Z X


the driver’s door


Key reminder chime A chime sounds if is opened while the key is left in the ignition switch. Remove the key and take it with you when leaving the vehicle. Light reminder chime A chime sounds when the driver’s door is opened if the headlight switch is turned on (ignition switch is turned OFF). Turn the headlight switch OFF when leaving the vehicle.


Malfunction indicator (MIL)


light


If the malfunction indicator light comes on steady or blinks while the engine is running, it may indicate a potential emission control problem. The malfunction indicator light may also come on steady or blink if the fuel filler cap has not been closed tightly or if the fuel tank is nearly empty. Check to make sure the fuel cap is secure and that you have at least three gallons of fuel in the fuel tank. After driving for a while, the light should remain off if no other potential emission control system problem exists. 2-8 Instruments and controls


Operation The malfunction indicator light will come on in one of two ways: c Malfunction indicator light on steady - An emission control system malfunction has been detected. Have the vehicle in- spected by an authorized NISSAN dealer. You do not need to have your vehicle towed to the dealer.


CAUTION


Continued vehicle operation without having the emission control system checked and repaired as necessary could lead to poor driveability, reduced fuel economy, and possible damage to the emission control system.


c Malfunction indicator light blinking - An engine misfire has been detected which may damage the emission control sys- tem. To reduce or avoid emission control system damage: a) do not drive at speeds above 45 MPH


(72 km/h).


tion.


b) avoid hard acceleration or decelera-


c) avoid steep uphill grades. d) if possible,


reduce the amount of


cargo being hauled or towed.


The malfunction indicator light may stop blinking and come on steady. Have the vehicle inspected by an authorized NISSAN dealer. You do not need to have your ve- hicle towed to the dealer.


Z X

Loading...
x
