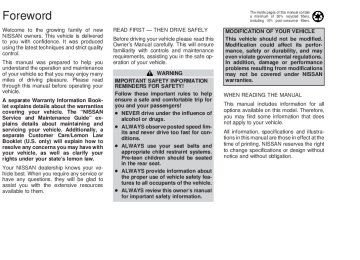

Foreword


Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you understand the operation and maintenance of your vehicle so that you may enjoy many miles of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information Book- let explains details about the warranties covering your vehicle. The “NISSAN Service and Maintenance Guide” ex- plains details about maintaining and servicing your vehicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law. Your NISSAN dealership knows your ve- hicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them.


READ FIRST — THEN DRIVE SAFELY Before driving your vehicle please read this Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe op- eration of your vehicle.


WARNING


IMPORTANT SAFETY INFORMATION REMINDERS FOR SAFETY! Follow these important rules to help ensure a safe and comfortable trip for you and your passengers! c NEVER drive under the influence of


alcohol or drugs.


c ALWAYS observe posted speed lim- its and never drive too fast for con- ditions.


c ALWAYS use your seat belts and appropriate child restraint systems. Pre-teen children should be seated in the rear seat.


c ALWAYS provide information about the proper use of vehicle safety fea- tures to all occupants of the vehicle. c ALWAYS review this owner’s manual


for important safety information.


The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.


MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modification could affect its perfor- mance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modifications may not be covered under NISSAN warranties.


WHEN READING THE MANUAL This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle. All information, specifications and illustra- tions in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and without obligation.


Z X


INFORMATION ABOUT


IMPORTANT THIS MANUAL You will see various symbols in this manual. They are used in the following ways:


WARNING


This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.


CAUTION


This is used to indicate the presence of a hazard that could cause minor or moderate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.


APD1005


If you see this symbol, it means ‘‘Do not do this’’ or ‘‘Do not let this happen.’’


The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.


CALIFORNIA PROPOSITION 65
WARNING


WARNING


Engine Exhaust, some of its constitu- ents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.


© 2002 NISSAN NORTH AMERICA, INC.


GARDENA, CALIFORNIA


All rights reserved. No part of this Owner’s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photo- copying, recording or otherwise, without the prior written permission of Nissan North America, Inc., Gardena, California.


Z X


Welcome To The World Of NISSAN


Your new NISSAN is the result of our dedication to produce the finest in safe, reliable and eco- nomical transportation. Your vehicle is the prod- uct of a successful worldwide company that manufactures cars and trucks in over 17 coun- tries and distributes them in 170 nations. NISSAN vehicles are designed and manufac- tured by Nissan Motor Co., Ltd. which was founded in Tokyo, Japan in 1933, and NISSAN affiliates world wide, collectively growing to be- come the fifth largest automaker in the world. In addition to cars and trucks, NISSAN also makes diversified forklift trucks, marine engines, boats and other products. NISSAN has made a substantial and growing investment in North America. NISSAN’s commit- ment is nearly $4 billion dollars in capital invest- ments in facilities across the continent. Some of the facilities include the Nissan Manufacturing


WFW0002


facility in Smyrna, Tennessee, vehicle styling design at Nissan Design International in San Diego, California, and engineering at Nissan Technical Center North America in Farmington Hills, Michigan. Additionally, NISSAN employs nearly 18,000 people throughout the United States, Canada, and Mexico. An additional 71,000 people work for the 1,500 NISSAN and INFINITI dealers across North America.


NISSAN is also a substantial contributor to the Canadian economy. Nissan Canada Inc., its sup- pliers and over 140 dealers employ approxi- mately 4,500 people. These include company employees and the staffs of NISSAN dealers all across Canada. In addition, many Canadians work for companies that supply NISSAN and NISSAN dealers with materials and services ranging from the operation of port facilities and transportation services, to the supply of lubri- cants, parts and accessories.


NISSAN pioneered the use of electronics and computers in automobiles, and has led the indus- try in improving both performance and fuel effi- ciency through new engine designs and the use of synthetic materials to reduce vehicle weight. The company has also developed ways to build quality into its vehicles at each stage of the production process, both through extensive use of automation and — most importantly — through an awareness that people are the cen- tral element in quality control. From the time the parts arrived from our suppli- ers until you took delivery of your new NISSAN, dozens of checks were made to ensure that only the best job was being done in producing and delivering your vehicle. NISSAN also takes great care to ensure that when you take your NISSAN to your dealer for maintenance, the service techni- cian will perform his work according to the quality standards that have been established by Nissan. Safety has also been built into your NISSAN. As you know, seat belts are an integral part of the safety systems that will help protect you and your passengers in the event of a sudden stop or an accident. We urge you to use the seat belts every time you drive the vehicle. The NISSAN story of growth and achievement reflects our major goal: to provide you, our customer, with a vehicle that is built with quality and craftsmanship — a product that we can be proud to build and you can be proud to own.


Z X


NISSAN CUSTOMER CARE PROGRAM


NISSAN CARES ... Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.


However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please con- tact the NISSAN Consumer Affairs Depart- ment using our toll-free number: For U.S. mainland and Alaska customers


1-800-NISSAN-1
(1-800-647-7261)


For Hawaii customers


(808) 836-0888 (Oahu Number)


For CANADIAN customers


1-800-387-0122


The Consumer Affairs Department will ask for the following information: — Your name, address, and telephone


number


— Vehicle identification number (on dash-


board)


— Date of purchase — Current odometer reading — Your NISSAN dealer’s name — Your comments or questions OR You can write to NISSAN with the informa-


tion on the left at: For U.S. mainland and Alaska customers


Nissan North America Inc. Consumer Affairs Department P.O. Box 191
Gardena, California 90248-0191


For Hawaii customers


Nissan Motor Corporation in Hawaii 2880 Kilihau St. Honolulu, Hawaii 96819


For Canadian customers


Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5


We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.


Z X


Z X


Table of Contents


Seats, restraints and supplemental air bag systems


Instruments and controls


Pre-driving checks and adjustments


Heater, air conditioner and audio systems


Starting and driving


In case of emergency


Appearance and care


Maintenance and do-it-yourself


Technical and consumer information


Index


10


Z X


1 Seats, restraints and supplemental air bag systems


Seats ......................................................................1-2
Front manual seat adjustment...........................1-3
Front power seat adjustment (driver’s seat) (if so equipped) ........................................1-4
Folding rear seat ...............................................1-6
Head restraint adjustment .................................1-7
Supplemental restraint system...............................1-8


Precautions on supplemental restraint system ...............................................................1-8
Supplemental air bag warning labels..............1-19
Supplemental air bag warning light.................1-19
Seat belts .............................................................1-21
Precautions on seat belt usage ......................1-21
Child safety......................................................1-23


Pregnant women .............................................1-24
Injured persons................................................1-24
Three-point type seat belt with retractor .........1-24
Seat belt extenders .........................................1-28
Seat belt maintenance ....................................1-28
Child restraints .....................................................1-28
Precautions on child restraints........................1-28
Installation on rear seat center or outboard positions ...........................................1-30


LATCH (Lower anchors and tether for children) system ...................................................1-35
Top tether strap child restraint ........................1-37
Installation on front passenger seat................1-38


Z X


SEATS


ARS1131


c For most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat properly. See ‘‘Precautions on Seat Belt Usage’’ later in this section.


WARNING


c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an acci- dent you could be thrown into it and receive neck or other serious inju- ries. You could also slide under the lap belt and receive serious internal injuries.


1-2 Seats, restraints and supplemental air bag systems


Z X


FRONT MANUAL SEAT ADJUSTMENT


WARNING


c Do not adjust the driver’s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of control of the vehicle.


c After adjustment, gently rock in the is securely


to make sure it


seat locked.


Forward and backward Pull the lever up while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in posi- tion.


Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback for- ward again, pull the lever and move your- body forward.


WRS0001


Seats, restraints and supplemental air bag systems 1-3


Z X


SPA0099A


LRS0016


(Driver’s seat)


lifter Seat equipped) Turn either dial the angle and height of the seat cushion to the desired position.


to adjust


(if so


FRONT POWER SEAT ADJUSTMENT (Driver’s seat) (if so equipped)


WARNING


c Do not adjust the driver’s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of control of the vehicle.


c Do not leave children unattended in- side the vehicle. They could un- knowingly activate switches or con- trols. Unattended children could become involved in serious acci- dents.


Operating Tips c The motor has an auto-reset overload protection circuit. If the motor stops dur- ing operation, wait 30 seconds, then re- activate the switch.


1-4 Seats, restraints and supplemental air bag systems


Z X


c Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.


Forward and backward Moving the switch forward or backward will slide the seat forward or backward to the desired position. Reclining Move the recline switch backward until the desired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward.


LRS0017


ARS1035


Seat lifter (if so equipped for driver’s seat) Push the front or rear end of the switch up or down to adjust the angle and height of the seat cushion.


Lumbar support (if so equipped for driver’s seat) The lumbar support feature provides lower back support to the driver. Move the lever up or down to adjust the seat lumbar area.


Seats, restraints and supplemental air bag systems 1-5


Z X


sengers may be injured in an acci- dent or sudden stop.


c Closely supervise children when they are around cars to prevent them from playing and becoming locked in the trunk where they could be seriously injured. Keep the car locked, with the rear seat back se- curely latched, when not in use, and prevent children’s access to car keys.


To fold down the driver side of the rear seat, reach through the opening and pull on the strap located behind the seat. The rear seats can be locked using the master key to prevent unauthorized access. The valet key cannot be used to lock or unlock the release button.


WARNING


c Never allow anyone to ride in the luggage area or on the rear seat when it is in the fold-down position. Use of these areas by passengers without proper restraints could re- sult in serious injury in an accident or sudden stop.


c Properly secure all cargo to help prevent it from sliding or shifting. Do not place cargo higher than the seat- backs. In a sudden stop or collision, unsecured cargo could cause per- sonal injury.


LRS0102


FOLDING REAR SEAT Interior trunk access The trunk can be accessed from the pas- senger side of the rear seat for loading and unloading, as shown. 1-6 Seats, restraints and supplemental air bag systems


c When returning seatbacks to the up- right position, be certain they are completely secured in the latched position. If they are not completely secured in the latched position, pas-


Z X


LRS0103


PD1319


WRS0096


Center armrest Pull the armrest forward until it is horizontal.


HEAD RESTRAINT ADJUSTMENT To raise the head restraint, pull it up. To lower, push and hold the lock knob and push the head restraint down.


WARNING


Head restraints should be adjusted properly as they may provide signifi- cant protection against injury in an ac- cident. Do not remove them. Check the adjustment after someone else uses the seat.


Adjust the head restraints so the center is level with the center of your ears.


Seats, restraints and supplemental air bag systems 1-7


Z X


SUPPLEMENTAL RESTRAINT SYSTEM


where the vehicle is impacted. These supplemental restraint systems are designed to supplement the crash protec- tion provided by the driver and front passen- ger seat belts and are not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable distance away from the steering wheel, in- strument panel and door finishers. (See ‘‘Seat belts’’ later in this section for instruc- tions and precautions on seat belt usage.) After turning the ignition key to the ON position, the supplemental air bag warn- ing light illuminates. The supplemental air bag warning light will turn off after about 7 seconds if the systems are op- erational.


PRECAUTIONS ON SUPPLE- MENTAL RESTRAINT SYSTEM This Supplemental Restraint System (SRS) section contains important information con- cerning the driver and passenger front im- pact supplemental air bags, front seat side- impact supplemental air bags, curtain air bags and front seat pre-tensioner seat belts. Front impact supplemental air bag sys- tem: This system can help cushion the impact force to the face and chest of the driver and front passenger in certain frontal collisions. Side-impact supplemental air bag sys- tem: This system can help cushion the impact force to the chest area of the driver and front passenger in certain side impact collisions. The front side-impact supplemental air bags are designed to in- flate on the side where the vehicle is im- pacted. Side impact supplemental curtain air bag system: This system can help cushion the impact force to the head of occupants in front and rear outboard seating positions in certain side impact collisions. The curtain air bags are designed to inflate on the side 1-8 Seats, restraints and supplemental air bag systems


seat


Z X


c The driver and front passenger seat belt buckles are equipped with sen- sors that detect if the seat belts are fastened. The air bag system monitors the severity of a collision and then inflates the air bags based on belt usage. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.


c Keep hands on the outside of the steering wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the supplemental front air bag inflates.


WARNING


c The supplemental front air bags or- dinarily will not inflate in the event of a side impact, rear impact, roll over, or lower severity frontal collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.


c The seat belts and the supplemental front air bags are most effective when you are sitting well back and upright in the seat. Front air bags inflate


ARS1132


force.


If you are unre- with great strained, leaning forward, sitting side- ways or out of position in any way, you are at greater risk of injury or death in a crash. You may also re- ceive serious or fatal injuries from the supplemental front air bag if you are up against it when it inflates. Always sit back against the seatback and as far away as practical from the steering wheel or instrument panel. Always use the seat belts.


Seats, restraints and supplemental air bag systems 1-9


Z X


ARS1133


ARS1041


1-10 Seats, restraints and supplemental air bag systems


ARS1042


Z X


ARS1043


ARS1045


WARNING


c Never let children ride unrestrained or extend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some ex- amples of dangerous riding posi- tions are shown in the previous illus- trations.


c Children may be severely injured or killed when the supplemental front air bag or supplemental side air bag inflates if they are not properly re- strained.


c Also, never install a rear facing child restraint in the front seat. An inflat- ing supplemental front air bag could seriously injure or kill your child. See ‘‘Child restraints’’ later in this section for details.


ARS1044


ARS1046


Seats, restraints and supplemental air bag systems 1-11


Z X


SSS0101


SSS0140


WARNING


Supplemental side air bag and curtain air bag: c The supplemental side air bag and curtain air bag ordinarily will not inflate in the event of a frontal im- pact, rear impact, rollover or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.


c The seat belts and the supplemental side air bags and curtain air bags are most effective when you are sitting well back and upright in the seat. The side air bag and curtain air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboard seats to extend their hand out of the window or lean against the door. Some examples of


1-12 Seats, restraints and supplemental air bag systems


riding positions


dangerous are shown in the previous illustrations. When sitting in the rear seat, do not hold onto the seatback of the front seat. If the supplemental side air bag inflates, you may be seriously in- jured. Be especially careful with chil- dren, who should always be properly restrained.


c Do not use seat covers on the front seatbacks. They may interfere with supplemental side air bag inflation.


Z X


SSS0159


SSS0162


Seats, restraints and supplemental air bag systems 1-13


Z X


tion, cautions and warnings in this manual still apply and must be followed. The front air bags are designed to inflate in higher severity frontal collisions, although they may inflate if the forces in another type of collision are similar to those of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental air bag operation. The supplemental air bag system has dual stage inflators for both the driver and pas- senger air bags. The system monitors infor- mation from the crash zone sensor, the diagnosis sensor unit and seat belt buckle sensors that detect the seat belts are fastened. Inflator operation is based on the severity of a collision and whether the seat belts are being used. When the supplemental front air bag in- flates, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly. Supplemental front air bags, along with the


if


Z X


Supplemental front air bag system The driver supplemental air bag is located in the center of the front passenger supplemental air bag is mounted in the dashboard above the glove box. These


the steering wheel;


systems are designed to meet optional certi- fication requirements under U.S. regulations. They are also permitted in Canada. The op- tional certification allows front air bags to be designed to inflate somewhat less forcefully than previously. However, all of the informa-


1-14 Seats, restraints and supplemental air bag systems


LRS0104


use of seat belts, help to cushion the impact force on the face and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflat- ing front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body. The seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or dash board. The supplemental front air bags inflate quickly in order to help protect the front occupants. Because of this, the force of the front air bag inflating can increase the risk of injury if the occupant is too close to or is against the air bag module during inflation.The air bag will deflate quickly after the collision is over. After turning the ignition key to the ON position, the supplemental air bag warn- ing light illuminates. The air bag warning light will turn off after about 7 seconds if the system is operational.


WARNING


c Do not place any objects on the steer- ing wheel pad or on the instrument panel. Also, do not place any objects


between any occupant and the steer- ing wheel or instrument panel. Such objects may become dangerous pro- jectiles and cause injury if the supple- mental front air bag inflates.


c Right after inflation, several air bag system components will be hot. Do not touch them; you may severely burn yourself.


c No unauthorized changes should be made to any components or wiring of the supplemental front air bag sys- tem. This is to prevent accidental in- flation of the air bag or damage to the air bag system.


c Do not make unauthorized changes to your vehicle’s electrical system, suspension system or front end structure. This could affect proper operation of the supplemental front air bag system.


c Tampering with the supplemental front air bag system may result in serious personal injury. For example, do not change the steering wheel and the in- strument panel assembly by placing material over the steering wheel pad


and above the instrument panel, or by installing additional trim material around the air bag system.


electrical


c Work around and on the supplemental front air bag system should be done by an authorized NISSAN retailer. In- stallation of equipment should also be done by an authorized NISSAN retailer. The yellow and or- ange Supplemental Restrain System (SRS) wiring and connectors should not be modified or disconnected. Un- authorized electrical test equipment and probing devices should not be used on the air bag system.


c A cracked windshield should be re- placed immediately by a qualified repair facility. A cracked windshield could affect inflation of the supple- mental air bag system.


c The SRS wiring harness connectors are yellow and orange for easy identification.


When selling your vehicle, we request that you inform the buyer about the supple- mental front air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.


Seats, restraints and supplemental air bag systems 1-15


Z X


they may inflate if the forces in another type of collision are similar to those of a higher severity side impact. They are designed to inflate on the side where the vehicle is impacted. They may not inflate in certain side collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental side air bag operation. When the supplemental side air bag and curtain air bag inflate, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly. Supplemental side air bags, along with the use of seat belts, help to cushion the impact force on the chest of the front occupants. Curtain air bags help to cushion the impact force to the head of occupants in the front and rear outboard seating positions. They can help save lives and reduce serious injuries. However, an inflating side air bag and curtain air bag may cause abrasions or other injuries. Supplemental side air bags and curtain air bags do not provide restraint to the lower body.


LRS0105


Supplemental side air bag and cur- tain air bag system (if so equipped) The supplemental side air bags are located in the outside of the seatback of the front seats. The supplemental curtain air bags are located in the roof side rails. These systems are designed to meet voluntary guidelines to help reduce the risk of injury to out-of-position occupants. However, all of the information, cautions and warnings in this manual still apply and must be followed. The supplemental side air bags and curtain air bags are designed to inflate in higher severity side collisions, although 1-16 Seats, restraints and supplemental air bag systems


The seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the side air bag. Rear seat passengers should be seated as far away as practical from the door finishers and side roof rails. The side air bags and curtain air bag inflate quickly in order to help protect the front occupants. Because of this, the force of the side air bag and curtain air bag inflating can increase the risk of injury if the occupant is too close to, or is against, these air bag modules during inflation. The side air bag and curtain air bag will deflate quickly after the collision is over. After turning the ignition key to the ON position, the supplemental air bag warn- ing light illuminates. The air bag warning light will turn off after about 7 seconds if the system is operational.


WARNING


c Do not place any objects near the seatback of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such ob- jects may become dangerous pro- jectiles and cause injury if the side air bag inflates.


Z X


c Right after inflation, several side air bag and curtain air bag system com- ponents will be hot. Do not touch them; you may severely burn your- self.


c No unauthorized changes should be made to any components or wiring of this side air bag and curtain air bag system. This is to prevent acci- dental inflation of the side air bag and curtain air bag or damage to the side air bag and curtain air bag sys- tem.


c Do not make unauthorized changes to your vehicle’s electrical system, suspension system or side panel. This could affect proper operation of the supplemental side air bag and curtain air bag system.


c Tampering with the supplemental system may result in serious per- sonal injury. For example, do not change the front seat by placing ma- terial near the seatback or by install- ing additional trim material, such as seat covers, around the side air bag.


c Work around and on the side air bag and curtain air bag system should be done by an authorized NISSAN re- tailer. Installation of electrical equip- ment should also be done by an authorized NISSAN retailer. The SRS wiring harnesses* should not be modified or disconnected. Unautho- rized electrical test equipment and probing devices should not be used on the side air bag system.


* The SRS wiring harness connectors are yellow and orange for easy identi- fication.


When selling your vehicle, we request that you inform the buyer about the side air bag and curtain air bag system and guide the buyer to the appropriate sections in this Owner’s Manual. Pre-tensioner seat belt system (For front seats)


WARNING


c The pre-tensioner seat belt cannot be reused after activation. It must be


replaced together with the retractor as a unit.


collision


c If the vehicle becomes involved in a frontal pre- tensioner is not activated, be sure to have system checked and, if necessary, replaced by your NISSAN retailer.


pre-tensioner


but


the


the


c No unauthorized changes should be made to any components or wiring of the pre-tensioner seat belt sys- tem. This is to prevent accidental activation of the pre-tensioner seat belt or damage to the pre-tensioner seat belt operation. Tampering with the pre-tensioner seat belt system may result in serious personal in- jury.


c Work around and on the pre- tensioner system should be done by an authorized NISSAN retailer. In- stallation of electrical equipment should also be done by an autho- rized NISSAN retailer. Unauthorized electrical test equipment and prob- ing devices should not be used on


Seats, restraints and supplemental air bag systems 1-17


Z X


If any abnormality occurs in the pre- tensioner system, the supplemental air bag will not come on, will warning light flash intermittently or will turn on for 7
seconds and remain on after the ignition key has been turned to the ON or START posi- tion. In this case, the pre-tensioner seat belt may not function properly. They must be checked and repaired. Take your vehicle to the nearest authorized NISSAN Retailer. When selling your vehicle, we request that you inform the buyer about the pre- tensioner seat belt system and guide the buyer to the appropriate sections in this Owner’s Manual.


the pre-tensioner seat belt system.


c If you need to dispose of the pre- tensioner or scrap the vehicle, con- tact an authorized NISSAN retailer. Correct pre-tensioner disposal pro- cedures are set forth in the appropri- ate NISSAN Service Manual. Incor- rect disposal procedures could cause personal injury.


The front seat pre-tensioner seat belt sys- tem activates in conjunction with the supple- mental front air bag. Working with the seat belt retractor, it helps tighten the seat belt the instant the vehicle becomes involved in certain types of collisions, thereby restrain- ing seat occupants. The pre-tensioner is encased with the seat belt’s retractor. These seat belts are used the same as conventional seat belts. When the pre-tensioner seat belt activates, smoke is released and a loud noise may be heard. The smoke is not harmful, but care should be taken not to inhale it as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly. 1-18 Seats, restraints and supplemental air bag systems


Z X


SUPPLEMENTAL AIR BAG WARNING LABELS Warning labels about the supplemental front air bag, supplemental side air bag and curtain air bag systems are placed in the vehicle as shown in the illustration.


WRS0124


LRS0100


SUPPLEMENTAL AIR BAG WARNING LIGHT The supplemental air bag warning light, dis- playing in the instrument panel, moni- tors the circuits of the supplemental front air bag, supplemental side air bag and curtain air bag (if so equipped) and pre-tensioner seat belt systems. The circuits monitored by the supplemental air bag warning light are the diagnosis sensor unit, satellite sensors, front air bag modules, side air bag modules, curtain air bag modules, pre-tensioner seat belts and all related wiring.


Seats, restraints and supplemental air bag systems 1-19


Z X


WARNING


WARNING


When the ignition key is in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational. If any of the following conditions occur, the supplemental front air bag, supplemental side air bag and curtain air bag (if so equipped) and pre-tensioner seat belt sys- tems need servicing: c The supplemental air bag warning light remains on after approximately 7 sec- onds.


c The supplemental air bag warning light


flashes intermittently.


c The supplemental air bag warning light


does not come on at all.


Under these conditions, the supplemental front air bag, supplemental side air bags and curtain air bag (if so equipped) or pre-tensioner seat belt systems may not operate properly. It must be checked and repaired. Take your vehicle to the nearest authorized NISSAN dealer.


is on,


it could mean that


If the supplemental air bag warning light the supplemental front air bag, supplemen- tal side air bag, curtain air bag systems (if so equipped) and/or pre-tensioner seat belt systems will not operate in an accident.


Repair and replacement procedure The supplemental front air bags, supple- mental side air bags, curtain air bags and pretensioner seat belts are designed to in- flate on a one-time-only basis. As a re- minder, unless it is damaged, the supple- mental air bag light remains illuminated after inflation has occurred. Repair and re- placement of these supplemental air bag systems should be done only by an autho- rized NISSAN dealer. When maintenance work is required on the vehicle, front air bags, supplemental side air bags, pre-tensioner seat belts and related parts should be pointed out to the person conducting the maintenance. The ignition key should al- ways be in the LOCK position when working under the hood or inside the vehicle.


the supplemental


1-20 Seats, restraints and supplemental air bag systems


seat


c Once the supplemental front air bag, supplemental side air bag or curtain air bag has inflated, the air bag mod- ule will not function again and must be replaced. Additionally, if any of the supplemental air bags inflate, the pre-tensioner seat belts must also be replaced. The air bag module and pre-tensioner system should be replaced by an authorized NISSAN dealer. The air bag module and pre-tensioner seat belt system cannot be repaired. c The supplemental


front air bag, supplemental side air bag and cur- tain air bag systems should be in- spected by an authorized NISSAN dealer if there is any damage to the front end or side portion of the ve- hicle.


belt


c If you need to dispose of a supple- mental air bag, pre-tensioner seat belt system or scrap the vehicle, contact authorized NISSAN dealer. Correct supplemental air bag and pre-tensioner seat belt system


an


Z X


SEAT BELTS


disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal proce- dures could cause personal injury.


PRECAUTIONS ON SEAT BELT USAGE If you are wearing your seat belt properly adjusted, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag. Most U.S. states and all Canadian prov- inces and territories, require that seat belts be worn at all times when a vehicle is being driven.


ARS1134


WARNING


c Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be prop- erly restrained and, if appropriate, in a child restraint.


c The belt should be properly adjusted to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an acci- dent. Serious injury or death can occur if the seat belt is not worn properly.


Seats, restraints and supplemental air bag systems 1-21


Z X


ARS1049


ARS1047


ARS1050


c Always route the shoulder belt over your shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.


c Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of inter- nal injuries in an accident.


c Be sure the seat belt tongue is se- curely fastened to the proper buckle. c Do not wear the belt inside out or twisted. Doing so may reduce its effectiveness.


c Do not allow more than one person


to use the same belt.


c Never carry more people in the ve-


hicle than there are seat belts.


c Once the pre-tensioner seat belt has activated, it cannot be reused and must be replaced together with the retractor. See your NISSAN dealer.


c Removal and installation of the pre- tensioner seat belt system compo- nents should be done by an autho- rized NISSAN dealer.


c All seat belt assemblies including retractors and attaching hardware should be inspected after any colli- sion by an authorized NISSAN dealer. NISSAN recommends that all


1-22 Seats, restraints and supplemental air bag systems


Z X


seat belt assemblies in use during a collision be replaced unless the col- lision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.


c All child restraints and attaching hardware should be inspected after any collision. Always follow the re- straint manufacturer’s inspection in- structions and replacement recom- mendations. The child restraints should be replaced if they are dam- aged.


CHILD SAFETY Children need adults to help protect them. They need to be properly re- strained. The proper restraint depends on the child’s size. Generally, infants up to about 1 year and less than 20 pounds, (9 kg) should be placed in rear facing child restraints. Forward facing child restraints are available for chil- dren who outgrow rear facing child restraints.


WARNING


Infants and children need special pro- tection. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improp- erly fitting seat belt could cause seri- ous or fatal injury. Always use appro- priate child restraints.


All U.S. states and Canadian provinces or territories require the use of approved child restraints for infants and small children. See ‘‘Child Restraints’’ later in this section. In addition, there are many types of child restraints available for larger children which should be used for maximum protection. NISSAN recommends that all pre-teens and children be restrained in the rear seat if possible. According to accident statistics, children are safer when prop- erly restrained in the rear seat than in the front seat. This is especially important because your vehicle has a supplemen- tal restraint system (Air bag system) for the front passenger. See ‘‘Supplemental restraint system’’ earlier in this section.


that


Infants and small children NISSAN recommends that infants and small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint fits your vehicle and always follow the manufacturer’s instruc- tions for installation and use. Larger children Children who are too large for child re- straints should be seated and restrained by the seat belts which are provided. If the child’s seating position has a shoulder belt that fits close to the face or neck, the use of a booster seat (commercially avail- able) may help overcome this. The booster seat should raise the child so that the shoul- der belt is properly positioned across the top, middle portion of the shoulder and the lap belt is low on the hips. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Mo- tor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.


Seats, restraints and supplemental air bag systems 1-23


Z X


WARNING


Never let a child stand or kneel on any seat and do not allow a child in the cargo areas while the vehicle is mov- ing. The child could be seriously in- jured or killed in an accident.


PREGNANT WOMEN NISSAN recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as possible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific rec- ommendations. INJURED PERSONS NISSAN recommends that injured persons use seat belts. Check with your doctor for specific recommendations.


ARS1051


WRS0029


THREE-POINT TYPE SEAT BELT WITH RETRACTOR


WARNING


c Every person who drives or rides in this vehicle should use a seat belt at all times.


c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an acci- dent you could be thrown into it and receive neck or other serious inju- ries. You could also slide under the lap belt and receive serious internal injuries.


1-24 Seats, restraints and supplemental air bag systems


Z X


c For most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat properly. See “Precautions on seat belt usage” earlier in this section.


ARS1052


ARS1162


Fastening the seat belts 1. Adjust the seat. 2. Slowly pull the seat belt out of the retrac- tor and insert the tongue into the buckle until you hear and feel the latch engage. The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat.


3. Position the lap belt portion low and


snug on the hips as shown.


4. Pull the shoulder belt portion toward the


retractor to take up extra slack.


The front passenger seat belt and the rear three-point seat belts have a cinching mechanism for child restraint installation. It is referred to as the automatic locking mode. When automatic locking mode is activated the seat belt cannot be withdrawn further until the seat belt tongue is detached from the buckle and fully retracted. Once re- Seats, restraints and supplemental air bag systems 1-25


Z X


tracted, the seat belt is in the emergency locking mode. See ‘‘Child Restraints’’ later in this section for more information. The automatic locking mode should be used only for child restraint installation. During normal seat belt use by a passen- ger, the locking mode should not be activated. If it is activated it may cause uncomfortable seat belt tension.


Checking seat belt operation Seat belt retractors are designed to lock seat belt movement using two separate methods: 1) When the seat belt is pulled quickly from


the retractor.


2) When the vehicle slows down rapidly. To increase your confidence in the seat belts, check their operation as follows. c Grasp the shoulder belt and pull quickly forward. The retractor should lock and restrict further belt movement. the retractor does not


lock during this If check or if you have any questions about belt operation, see an authorized NISSAN dealer.


ARS1054


Unfastening the seat belts To unfasten the seat belt, press the button on the buckle. The seat belt automatically retracts.


1-26 Seats, restraints and supplemental air bag systems


Z X


LRS0107


Shoulder belt height adjustment (For front seats) The shoulder belt anchor height should be adjusted to the position best for you. (See ‘‘Precautions on seat belt usage’’ earlier in this section.) To adjust, push the adjustment button and move the shoulder belt anchor to the desired position, so the belt passes over the center of the shoulder. The belt should be away from your face and neck, but not falling off of your shoulder. Release the adjustment button to lock the shoulder belt anchor into position.


WARNING


c After adjustment, release the adjust- ment button and try to move the shoulder belt anchor up and down to make sure it is securely fixed in position.


c The shoulder belt anchor height should be adjusted to the position best for you. Failure to do so may reduce the effectiveness of the en- tire restraint system and increase the chance or severity of injury in an accident.


LRS0106


Center of rear seat Selecting correct set of seat belts: The center seat belt buckle is identified by the CENTER mark. The center seat belt tongue can be fastened only into the center seat belt buckle.


Seats, restraints and supplemental air bag systems 1-27


Z X


SEAT BELT MAINTENANCE c To clean the seat belt webbings, apply a mild soap solution or any solution rec- ommended for cleaning upholstery or carpet. Then wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.


c If dirt builds up on the shoulder belt guide of the seat belt anchors, the seat belts may retract slowly. Wipe the shoul- der belt guide with a clean, dry cloth.


c Periodically check to see that the seat belt and the metal components, such as buckles, tongues, retractors, flexible wires and anchors, work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt assembly should be re- placed.


SEAT BELT EXTENDERS If, because of body size or driving position, it is not possible to properly fit the lap-shoulder belt and fasten it, an extender is available which is compatible with the installed seat belts. The extender adds approximately 8
inches (200 mm) of length and may be used for either the driver or front passenger seat- ing position. See your NISSAN dealer for assistance if an extender is required.


WARNING


c Only NISSAN seat belt extenders, made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts.


c Adults and children who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal in- jury in the event of an accident. Never use seat belt extenders to in- stall child restraints. If the child re- straint is not secured properly, the child could be seriously injured in a collision or a sudden stop.


1-28 Seats, restraints and supplemental air bag systems


CHILD RESTRAINTS


ARS1098


PRECAUTIONS ON CHILD RESTRAINTS


WARNING


c Infants and small children should always be placed in an appropriate child restraint while riding in the ve- hicle. Failure to use a child restraint can result in serious injury or death. c Infants and small children should never be carried on your lap. It is not possible for even the strongest adult to resist the forces of a severe


Z X


accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.


c Never install a rear-facing child re- straint in the front seat. An inflating supplemental front air bag could se- riously injure or kill your child. A rear-facing child restraint must only be used in the rear seat.


c NISSAN recommends that the child restraint be installed in the rear seat. According to accident statistics, children are safer when properly re- strained in the rear seat than in the front seat.


c An improperly installed child re- straint could lead to serious injury or death in an accident.


In general, child restraints are designed to be installed with a lap belt or the lap portion of a three-point type seat belt. In addition, this vehicle is equipped with a universal child restraint lower anchor system, referred to as the LATCH (Lower Anchors and


Tether for Children) system. Some child restraints include two rigid or webbing- mounted attachments that can be con- nected to these lower anchors. For details, see the ‘‘LATCH (Lower Anchors and Tether for Children) system’’ later in this section. Child restraints for infants and children of various sizes are offered by several manu- facturers. When selecting any child re- straint, keep the following points in mind: 1) Choose only a restraint with a label cer- tifying that it complies with Federal Motor Vehicle Safety Standard 213 or Cana- dian Motor Vehicle Safety Standard 213. 2) Check the child restraint in your vehicle to be sure it is compatible with the vehi- cle’s seat and seat belt system.


3) If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjust- ments to be sure the child restraint is compatible with your child. Always follow all recommended procedures.


All U.S. states and provinces of Canada require that infants and small children be restrained in approved child restraints at


times while the vehicle is being


all operated.


WARNING


c Improper use of a child restraint can result in increased injuries for both the infant or child and other occu- pants in the vehicle.


c Follow all of the child restraint manu- facturer’s instructions for installa- tion and use. When purchasing a child restraint, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle.


c If the child restraint is not anchored properly, the risk of a child being injured in a collision or a sudden stop greatly increases.


c Adjustable seatbacks should be po- sitioned to fit the child restraint, but as upright as possible.


c After attaching the child restraint, test it before you place the child in it. Tilt it from side to side. Try to tug it


Seats, restraints and supplemental air bag systems 1-29


Z X


CAUTION


Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the child restraint.


INSTALLATION ON REAR SEAT CENTER OR OUTBOARD POSI- TIONS


WARNING


c The three-point belt in your vehicle is equipped with a locking mode re- tractor which must be used when installing a child restraint.


c Failure to use the retractor’s locking mode will result in the child restraint not being properly secured. The re- straint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision.


forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the belt as necessary, or put the re- straint in another seat and test it again.


c For a front-facing child restraint,


if the seat position where it is installed has a three-point type lap/shoulder belt, check to make sure the shoulder belt does not go in front of the child’s face or neck. If it does, put the shoul- der belt behind the child restraint. If you must install a front-facing child restraint in the front seat, see ‘‘Instal- lation on front passenger seat’’ later in this section for details.


c When your child restraint is not in use, keep it secured with a seat belt to prevent from being thrown around in case of a sudden stop or accident.


it


1-30 Seats, restraints and supplemental air bag systems


Z X


WRS0007


WRS0008


SSS0043


Front facing When you install a child restraint in the rear seat, follow these steps: 1. Position the child restraint on the seat. It can be placed in a front facing direction, depending on the size of the child. Al- ways follow the restraint manufacturer’s instructions.


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer’s instructions for belt routing.


Seats, restraints and supplemental air bag systems 1-31


Z X


SSS0107


SSS0062


SSS0108


3. Pull on the shoulder belt until all of the belt is fully extended. At this time, the seat belt retractor is in the automatic locking mode (child restraint mode). It reverts back to emergency locking mode when the seat belt is fully retracted.


4. Allow the seat belt to retract. Pull up on the seat belt to remove any slack in the belt.


1-32 Seats, restraints and supplemental air bag systems


5. Before placing the child in the child re- straint, use force to tilt the child restraint from side to side, and tug it forward to make sure that is securely held in place.


it


6. Check that the retractor is in the auto- matic locking mode by trying to pull more seat belt out of the retractor. If you can- not pull any more belt webbing out of the retractor, the seat belt is in the automatic locking mode.


7. Check to make sure that the child re- straint is properly secured prior to each


Z X


use. If the belt is not locked, repeat steps three through six.


After the child restraint is removed and the seat belt is allowed to wind back into the retractor, the automatic locking mode (child restraint mode) is canceled.


SSS0155


WRS0009


Rear facing When you install a child restraint in the rear seat, follow these steps: 1. Position the child restraint on the seat. The direction of the child restraint de- pends on the type of the child restraint and the size of the child. Always follow the restraint manufacturer’s instructions.


Seats, restraints and supplemental air bag systems 1-33


Z X


SSS0046


WRS0010


SSS0109


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer’s instructions for belt routing.


3. Pull on the shoulder belt until all of the belt is fully extended. At this time, the seat belt retractor is in the automatic locking mode (child restraint mode). It reverts to emergency locking mode when the seat belt is fully retracted.


4. Allow the seat belt to retract. Pull up on the seat belt to remove any slack in the belt.


1-34 Seats, restraints and supplemental air bag systems


Z X


LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM


use. If the belt is not locked, repeat steps three through six.


After the child restraint is removed and the seat belt is allowed to wind back into the retractor, the automatic locking mode (child restraint mode) is canceled; the seat belt only locks during a sudden stop or impact.


SSS0110


5. Before placing the child in the child re- straint, use force to tilt the child restraint from side to side, and tug it forward to make sure that is securely held in place.


it


6. Check that the retractor is in the auto- matic locking mode by trying to pull more seat belt out of the retractor. If you can- not pull any more seat belt webbing out of the retractor, the seat belt is in the automatic locking mode.


7. Check to make sure that the child re- straint is properly secured prior to each


LRS0117


WARNING


c Attach LATCH system compatible child restraints only at the locations shown. If a child restraint is not se- cured properly, your child could be seriously injured or killed in an acci- dent.


c Do not secure a child restraint in the center rear seating position using the LATCH system anchors. The child restraint will not be secured properly.


Seats, restraints and supplemental air bag systems 1-35


Z X


c The LATCH system anchors are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstance are they to be used for adult seat belts or harnesses.


The LATCH system anchors are located at the rear of the seat cushion near the seat- back. A label is attached to the seat back to help you locate the LATCH system anchors. LATCH child restraints generally require the use of a top tether strap. See ‘‘Top Tether Strap Child Restraint’’ later in this section for installation instructions. When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint. When you install a LATCH system compat- ible child restraint to the lower anchor at- tachments in the rear seat, follow these steps:


WARNING


Inspect the lower anchors by inserting your fingers into the lower anchor area and feeling to make sure there are no obstructions over the LATCH system anchors, such as seat belt webbing or seat cushion material. The child re- straint will not be secured properly if the LATCH system anchors are ob- structed.


Some child restraints include two rigid or webbing-mounted attachments that can be connected to two anchors located at certain seating positions in your vehicle. This sys- tem is known as the LATCH (Lower An- chors and Tether for Children) system. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle seat belt to secure the child re- straint. Your vehicle is equipped with spe- cial anchor points that are used with LATCH system compatible child restraints. Check your child restraint for a label stating that it is compatible with the LATCH system. This information may also be in the child restraint owner’s manual. If you have such a child restraint, refer to the illustration for the rear seating positions equipped with LATCH system anchors which can be used to se- cure the child restraint. 1-36 Seats, restraints and supplemental air bag systems


1. To install the LATCH system compatible child restraint, insert the child restraint LATCH system anchor attachments into the anchor points on the rear seat. If the child restraint is equipped with a top tether, see ‘‘Top Tether Strap Child Re- straint’’ later in this section for installation instructions.


2. After attaching the child restraint and before placing the child in it, use force to tilt the child restraint from side to side and tug it forward to make sure that the child restraint is securely held in place.


3. Check to make sure that the child re- straint is properly secured prior to each use.


Z X


WARNING


Child restraint anchor points are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstances are they to be used for adult seat belts or harnesses.


Anchor point locations Anchor points are located on the rear parcel shelf finisher. If you have any questions when install- ing a top strap child restraint on the rear seat, consult your NISSAN dealer for details.


LRS0108


TOP TETHER STRAP CHILD RE- STRAINT If your child restraint has a top tether strap, it must be secured to the provided anchor point. First, secure the child restraint with the rear seat belt. Flip up the anchor cover from the anchor point which is located directly behind the child seat. Secure the top tether strap to the anchor bracket. Tighten the strap to remove any slack according to the manufacturer instruc- tions for the child restraint.


Seats, restraints and supplemental air bag systems 1-37


Z X


c The three-point seat belt in your ve- hicle is equipped with a locking mode retractor which must be used when installing a child restraint.


c Failure to use the retractor’s locking mode will result in the child restraint not being properly secured. The re- straint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision.


INSTALLATION ON FRONT PAS- SENGER SEAT


WARNING


c Never install a rear-facing child re- straint in the front passenger seat. Supplemental front air bags inflate with great force. A rear-facing child restraint could be struck by the supplemental front air bag in a crash and could seriously injure or kill your child.


ARS1135


if you must


c NISSAN recommends that child re- straints be installed in the rear seat. However, install a forward-facing child restraint in the front passenger seat, move the pas- senger seat to the rear most posi- tion.


c A child restraint with a top tether strap should not be used in the front passenger seat.


1-38 Seats, restraints and supplemental air bag systems


Z X


WRS0019


ARS1073


ARS1034


If you must install a child restraint in the front seat, follow these steps: 1. Position the child restraint on the front passenger seat. It should be placed in a forward-facing direction only. Move the seat to the rear most position. Always follow the child restraint manufacturer’s instructions. Child restraints for infants must be used in the rear-facing direc- tion and therefore must not be used in the front seat.


2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer’s instructions for belt routing.


3. Pull on the shoulder belt until all of the belt is fully extended. At this time, the seat belt retractor is in the automatic locking mode (child restraint mode). It reverts back to emergency locking mode when the seat belt is fully retracted.


Seats, restraints and supplemental air bag systems 1-39


Z X


After the child restraint is removed and the seat belt is fully retracted, the automatic locking mode (child restraint mode) is can- celed.


ARS1074


ARS1079


4. Allow the seat belt to retract. Pull up on the seat belt to remove any slack in the belt.


5. Before placing the child in the child re- straint, use force to tilt the child restraint from side to side, and tug it forward to make sure it is securely held in place.


6. Check that the retractor is in the auto- matic locking mode by trying to pull more seat belt out of the retractor. If you can- not pull any more belt webbing out of the retractor, the seat belt is in the automatic locking mode.


7. Check to make sure the child restraint is properly secured prior to each use. If the lap belt locked, repeat steps 3
through 6.


is not


1-40 Seats, restraints and supplemental air bag systems


Z X


MEMO


Seats, restraints and supplemental air bag systems 1-41


Z X


2 Instruments and controls


Instrument panel ....................................................2-2
Meters and gauges ................................................2-3
Speedometer and odometer .............................2-3
Trip computer ....................................................2-3
Tachometer........................................................2-6
Engine coolant temperature gauge...................2-6
Fuel gauge ........................................................2-7


Warning/indicator lights and audible reminders................................................................2-8
Checking bulbs..................................................2-8
Warning lights....................................................2-8
Indicator lights .................................................2-11
Audible reminders............................................2-12
Security systems ..................................................2-13


Nissan vehicle immobilizer system (NVIS)..............................................................2-13
Vehicle security system (if so equipped) ........2-14
Windshield wiper and washer switch...................2-17
Switch operation..............................................2-17
Rear window defogger switch..............................2-17
Headlight and turn signal switch..........................2-18
Xenon headlights.............................................2-18


Headlight switch ..............................................2-19
Autolamp system (if so equipped)...................2-20
Turn signal switch............................................2-21
Fog light switch (if so equipped)..........................2-21
Hazard warning flasher switch.............................2-23
Horn......................................................................2-23
Heated seats (if so equipped)..............................2-24
Traction control system (TCS) cancel switch (if so equipped) ....................................................2-25
Power outlet .......................................................2-25
Storage.................................................................2-26
Seatback pockets (if so equipped)..................2-26
Seatback side pockets (if so equipped)..........2-26
Sunglasses case .............................................2-26
Cup holders .....................................................2-27
Glove box ........................................................2-28
Console box ....................................................2-28
Covered storage box.......................................2-29

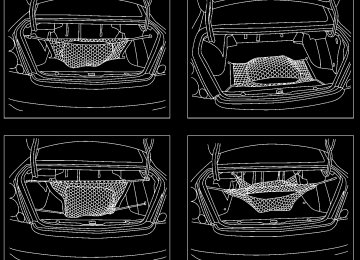

Cargo net (if so equipped) ..............................2-30
Windows...............................................................2-31
Power windows................................................2-31
Sunroof (if so equipped).......................................2-33


Z X


Interior light...........................................................2-34
Map lights.............................................................2-34
Trunk light.............................................................2-35
HomeLinkT universal transceiver (if so equipped) .............................................................2-35
Programming HomeLinkT................................2-36
Programming HomeLinkT for Canadian customers ........................................................2-36


Operating the HomeLinkT universal transceiver .......................................................2-37
Programming trouble-diagnosis.......................2-37
Clearing the programmed information.............2-37
Rolling code programming ..............................2-37
Reprogramming a single HomeLinkT button...............................................................2-38
If your vehicle is stolen....................................2-38


Z X


INSTRUMENT PANEL


2-2 Instruments and controls


1. Headlight and turn signal switch 2. Meters and gauges 3. Windshield wiper/washer switch 4. Center ventilator 5. Audio system 6. Front passenger supplemental air bag 7. Glove box 8. Heater and air conditioner 9. Hazard warning flasher switch 10. Power point

Loading...
x
