2012 Ford Mustang Owners Manual

Download PDF Manual

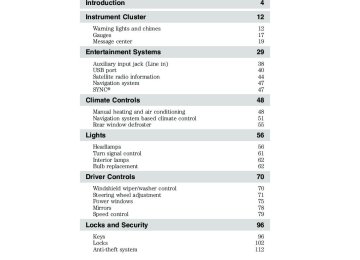

Table of Contents 12 12 17 19 29 38 40 44 47 47 48 48 51 55 56 56 61 62 62 70 70 71 75 78 79 96 96 102 112 Introduction Instrument Cluster Warning lights and chimes Gauges Message center Entertainment Systems Auxiliary input jack (Line in) USB port Satellite radio information Navigation system SYNC威 Climate Controls Manual heating and air conditioning Navigation system based climate control Rear window defroster Lights Headlamps Turn signal control Interior lamps Bulb replacement Driver Controls Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Locks and Security Keys Locks Anti-theft system 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) 118 118 129 132 143 155 175 175 177 190 195 202 205 206 206 212 213 221 226 228 232 232 233 234 234 242 247 256 257 260 262 269 269 Table of Contents Seating and Safety Restraints Seating Personal Safety System™ Safety belt system Airbags Child restraints Tires, Wheels and Loading Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing Driving Starting Brakes AdvanceTrac威 Transmission operation Reverse sensing system Rear-view camera system Roadside Emergencies Getting roadside assistance Hazard flasher control Fuel pump shut-off Fuses and relays Changing tires Temporary mobility kit Wheel lug nut torque Jump starting Wrecker towing Customer Assistance Reporting safety defects (U.S. only) Reporting safety defects (Canada only) 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Table of Contents Cleaning Maintenance and Specifications Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories Ford Extended Service Plan Scheduled Maintenance Normal scheduled maintenance and log Index 270 278 280 283 287 289 295 309 312 313 316 320 323 327 333 345 The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted. © Ford Motor Company 2011 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Introduction CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle. WARNING: Fuel pump shut-off: In the event of an accident this feature will automatically cut off the fuel supply to the engine. It can also be activated through sudden vibration (e.g. collision when parking). To restart your vehicle, refer to Fuel pump shut-off in the Roadside Emergencies chapter. SAFETY AND ENVIRONMENT PROTECTION Warning symbols in this guide How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed. 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Introduction Warning symbols on your vehicle When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim. Information in this respect is highlighted in this guide with the tree symbol. CALIFORNIA PROPOSITION 65 WARNING WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, safety belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate. BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Introduction Drive your new vehicle at least 100 miles (160 km) before performing extended wide open throttle maneuvers and at least 1,000 miles (1,600 km) before towing a trailer or before performance/competition conditions. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage. SPECIAL NOTICES New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide. Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls. WARNING: Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury. WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag. DATA RECORDING Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Introduction your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information. buckled/fastened; Event Data Recording This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: • How various systems in your vehicle were operating; • Whether or not the driver and passenger safety belts were • How far (if at all) the driver was depressing the accelerator • How fast the vehicle was travelling; and • Where the driver was positioning the steering wheel. This data can help provide a better understanding of the circumstances in which crashes and injuries occur. Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. and/or the brake pedal; and 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Introduction To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC威 supplement for more information. Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information. 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Introduction CELL PHONE USE The use of mobile communications equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios. WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws. EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings. 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Airbag - Front Airbag - Side Child Seat Tether Anchor Child Seat Lower Anchor Brake System Anti-Lock Brake System Parking Brake System Brake Fluid - Non-Petroleum Based Parking Aid System Stability Control System Speed Control Master Lighting Switch Hazard Warning Flasher Fog Lamps-Front Fuse Compartment Fuel Pump Reset Windshield Wash/Wipe Windshield Defrost/Demist Rear Window Defrost/Demist 10 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Introduction Vehicle Symbol Glossary Power Windows Front/Rear Child Safety Door Lock/Unlock Power Window Lockout Interior Luggage Compartment Release Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, or Sparks Battery Acid Explosive Gas Fan Warning Power Steering Fluid Maintain Correct Fluid Level MAX MIN Service Engine Soon Engine Air Filter Passenger Compartment Air Filter Jack Check Fuel Cap Low Tire Pressure Warning 11 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster WARNING LIGHTS AND CHIMES Base V6 engine instrument cluster (standard measure shown, metric similar) OFF Optional V6 and GT instrument cluster (standard measure shown, metric similar) OFF Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. 12 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the on-board diagnostics system (OBD-II) has detected a malfunction. Refer to On-board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and contact your authorized dealer as soon as possible. WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, contact your authorized dealer as soon as possible. Illumination after releasing the parking brake indicates low brake fluid level. Contact your authorized dealer as soon as possible. BRAKE 13 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Contact your authorized dealer as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury. ABS Anti-lock brake system (if equipped): If the ABS light stays illuminated or continues to flash, a malfunction has been detected. Contact your authorized dealer as soon as possible. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, contact your authorized dealer as soon as possible. A chime will sound if there is a malfunction in the indicator light. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature. Charging system: Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component. Engine oil pressure (if equipped): Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. 14 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster Engine coolant temperature: Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter. WARNING: Never remove the coolant reservoir cap while the engine is running or hot. Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on, contact your authorized dealer as soon as possible. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter. AdvanceTrac威/traction control active: Flashes when the system is active. If the light remains on a malfunction has been detected; contact your authorized dealer as soon as possible. Refer to the Driving chapter for more information. AdvanceTrac威/traction control off light: Illuminates when the system has been disabled (by the driver or as a result of a system failure). Refer to the Driving chapter for more information. Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty. Refer to Fuel gauge in this chapter. OFF 15 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster Speed control: Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged. Door ajar: Illuminates when the ignition is in the on position and any of the doors or the hood/trunk are not completely closed. Anti-theft system: Flashes when the SecuriLock威 passive anti-theft system has been activated. Electronic throttle control: Illuminates when the engine has defaulted to a “limp-home” operation. Contact your authorized dealer as soon as possible. Grade assist (if equipped): Illuminates when the overdrive function of the transmission has been turned off and the grade assist function has been turned on, refer to the Driving chapter. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on. Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. 16 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster GAUGES Base V6 engine instrument cluster (standard measure shown, metric similar) 17 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster Optional V6 and GT instrument cluster (standard measure shown, metric similar) Refer to Message center in this chapter to select preset colors or user definable colors (MyColor威) for the nighttime gauge backlighting. 1. Speedometer: Indicates the current vehicle speed. 2. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The fuel icon and arrow indicates which side of the vehicle the fuel filler door is located. 3. Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between H and C). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool. 4. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. 18 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster 5. Engine oil pressure gauge (optional V6 and GT cluster only): Indicates engine oil pressure. The needle should stay in the normal operating range (between L and H). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your authorized dealer. Battery voltage gauge (optional V6 and GT cluster only): 6. Indicates the battery voltage when the ignition is in the on position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked as soon as possible. Odometer and trip odometer: The odometer is displayed in the message center and registers the distance of individual journeys. For trip odometer, refer to Message center in this chapter. MESSAGE CENTER Your vehicle’s message center allows you to configure/personalize certain vehicle options to suit your needs. The message center is also capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime. The message center display is located in the instrument cluster. Info Press INFO repeatedly to cycle through the following features: TRIP A/B Registers the distance of individual journeys. Press and release INFO until the A or B trip appears in the display (this represents the trip mode). Press and hold RESET for two seconds to reset. Refer to UNITS later in this section to switch the display from Metric to English. 19 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster MYKEY MILES (km) For more information, refer to MyKey威 in the Locks and Security chapter. MILES (km) TO E This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel. LOW FUEL LEVEL will display when you have approximately 50 miles (80 km) to empty. Press RESET to clear this warning message. It will return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles (0 km) miles to empty. Distance to empty is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is re-initialized to a factory default value if the battery is disconnected. AVG MPG (L/100 km) Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km. If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons: • Your vehicle was not perfectly level during fill-up • Differences in the automatic shut-off points on the fuel pumps at • Variations in top-off procedure from one fill-up to another • Rounding of the displayed values to the nearest 0.1 gallon (liter) To determine your average highway fuel economy, do the following: 1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average. 2. Record the highway fuel economy for future reference. It is important to press the RESET button (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings. For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter. 20 service stations 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster MPG (L/km) This displays instantaneous fuel economy as a bar graph ranging from ↓ poor economy to ↑ excellent economy. Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows ↓, one or no bars illuminated. Instantaneous fuel economy cannot be reset. TIMER Timer displays the trip elapsed drive time. To operate, do the following: 1. Press and release RESET in order to start the timer. 2. Press and release RESET to pause the timer. 3. Press and hold RESET until the timer resets. Blank Screen The message center display will be blank after cycling through all of the Info menu items. System check and vehicle feature customization *Press the SETUP button repeatedly to cycle the message center through the following features: *Note: Not all personalization items will appear unless your vehicle is so equipped. RESET FOR SYSTEM CHECK When this message appears, press the RESET button and the message center will begin to cycle through the following systems and provide a status of the item if needed. 1. XXX% OIL LIFE 2. CHARGING SYSTEM 3. DOORS STATUS 4. TRUNK STATUS 5. BRAKE SYSTEM 6. FUEL LEVEL 21 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster 7. MYKEY DISTANCE (if MyKey威 is programmed) 8. MYKEY(S) PROGRAMMED 9. ADMIN KEYS PROGRAMMED Note: Some systems show a message only if a condition is present. OIL LIFE This displays the remaining oil life. An oil change is required whenever indicated by the message center and according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS. To reset the oil monitoring system to 100% after each oil change perform the following: 1. Press and release SETUP to display “OIL LIFE XXX% HOLD RESET = NEW”. 2. Press and hold RESET for two seconds and release to reset the oil life to 100%. STEERING FEEL This feature allows three modes of steering feel. Press RESET to cycle through the settings of: • STANDARD– Provides a balance between a comfort and sport feel. • SPORT– Slightly higher effort required for steering with more road • COMFORT– Slightly less effort required for steering with less road force felt through the steering wheel. See note below. force felt through the steering wheel. Note: When AdvanceTrac威 sport mode is on or when AdvanceTrac威 and traction control are off, the steering feel will be locked in sport mode. The display will show STEERING FEEL LOCKED and the steering feel will not be selectable. See AdvanceTrac威 stability enhancement system and Steering in the Driving chapter for more information. HALO LIGHT Turns the halo lighting around the gauges on or off. Press and hold RESET to turn the feature on or off. AMBIENT LIGHT Turns the ambient lighting on or off. Ambient lighting provides accent lighting in various locations such as footwell areas, cup holders and the center console bin. The parking lamps/headlamps must be on to use ambient lighting. 22 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster Press and hold RESET to turn the feature on or off. AMBIENT DIM Use this to adjust the brightness of the ambient lighting. Press RESET to choose the various settings. GAUGE COLOR, AMBIENT COLOR, HALO COLOR GAUGE COLOR: The instrument cluster gauges are backlit with white backlighting when the headlamps are off. When the headlamps are on, you can select one of the preset colors for the nighttime gauge backlighting or create up to three custom colors using the MyColor威 feature. Note: A gauge in a warning condition will be lit red when the headlamps are on. AMBIENT COLOR: You can select one of the preset colors for ambient lighting or create up to three custom colors using the MyColor威 feature. HALO COLOR: You can select one of the preset colors for halo lighting or create up to three custom colors using the MyColor威 feature. Note: Headlamps or parking lamps must be on to set up colors. To choose colors for the gauges, halo color or ambient lighting do the following: 1. Press SETUP to reach the GAUGE COLOR, AMBIENT COLOR, or HALO COLOR menu. 2. Press RESET to scroll through the following color options: •ICE BLUE •WHITE •GREEN •PURPLE •BLUE •ORANGE •RED •MYCOLOR 1, 2, 3 (See HOLD RESET TO SET MY COLOR 1, 2, 3 following, to save personalized color combinations) HOLD RESET TO SET MYCOLOR 1, 2, 3 (Saving your own colors) Apart from the preset colors, you can create your own color by adjusting the levels of the three primary colors (red, green, and blue) through the MyColor威 feature to achieve any of 125 different combinations. You can save up to three custom colors in MyColor威. 23 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster To enter the MyColor威 adjust mode, do the following (vehicle must be stationary): 1. Press and hold RESET for three seconds at the MyColor 1, 2 or 3 menu option to reach the MyColor威 adjust mode. 2. Press SETUP to scroll through the R (red), G (green), B (blue) and Exit options. 3. Press RESET to blend in more of the color being adjusted. 4. To save and exit, hold RESET for three seconds when prompted. Pressing RESET for less than three seconds will cycle back through the colors. UNITS Displays the current units English or Metric. Press RESET to change from English to Metric. AUTOLAMP (SEC) This feature keeps your headlights on for up to three minutes after the ignition is switched off. Press RESET to select the new Autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds. AUTOLOCK This feature automatically locks all vehicle doors when the vehicle is shifted into any gear and driven. For more information refer to Autolock in the Locks and Security chapter. Press RESET to turn autolock on or off. AUTOUNLOCK This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off. Press RESET to turn autounlock on or off. REAR PARK AID This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected. Press RESET to turn it off or on. 24 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster CREATE MYKEY / MYKEY SETUP/ CLEAR MYKEY For more information refer to MyKey威 in the Locks and Security chapter. LANGUAGE = ENGLISH / SPANISH / FRENCH Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, or French. Waiting four seconds or pressing the RESET button cycles the message center through each of the language choices. Press and hold RESET for two seconds to set the language choice. System warnings System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems. In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for several seconds. The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message. Warning messages that have been reset are divided into three categories: • They will not disappear until a condition is changed. • They will reappear on the display 10 minutes from the reset. • They will not reappear until an ignition off/on cycle has been completed. This acts as a reminder that these warning conditions still exist within the vehicle. CHECK BRAKE SYSTEM — Displayed when the brake system needs servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. DRIVER DOOR AJAR — Displayed when the driver’s door is not completely closed. PASSENGER DOOR AJAR — Displayed when the passenger side door is not completely closed. FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition. 25 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel威 “no cap” fuel system in the Maintenance and Specifications chapter. CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, contact your authorized dealer as soon as possible. CHECK PARK AID (if equipped) — Displayed when the transmission is in R (Reverse) and the reverse sensing system (park aid) is disabled. Refer to Rear park aid in this section to enable. BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter. LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle has low tire pressure. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. TIRE PRESSURE MONITOR FAULT — Displayed when the tire pressure monitoring system is malfunctioning. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. POWER STEERING ASSIST FAULT — The power steering system has disabled power steering assist due to a system error; service is required. SERVICE POWER STEERING — The power steering system has detected a condition that requires service. SERVICE POWER STEERING NOW — The power steering system has detected a condition that requires service immediately. 26 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster SERVICE ADVANCETRAC — Displayed when the AdvanceTrac威 system has detected a condition that requires service. ENGINE OIL CHANGE SOON — Displayed when the engine oil life remaining is 10% or less. OIL CHANGE REQUIRED — Displayed when the oil life left reaches 0%. TO STOP ALARM START VEHICLE — Displayed when the perimeter alarm system is armed and the vehicle is entered using the key on the driver’s side door. In order to prevent the perimeter alarm system from triggering, the ignition must be turned to start or on before the 12 second chime expires. See Perimeter alarm system in the Locks and Security chapter. SECURITY EVENT OCCURRED (if equipped) — Displayed when the active anti-theft system (if equipped) was activated since the prior ignition cycle. MYKEY ACTIVE DRIVE SAFELY — Displayed at startup when MyKey威 is in use. Refer to MyKey威 in the Locks and Security chapter for more information. KEY COULD NOT PROGRAM — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey威 in the Locks and Security chapter for more information. VEHICLE SPEED 80 MPH MAX — Displayed when a MyKey威 is in use and the Admin has enabled the MyKey speed limit and the vehicle speed is 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information. SPEED LIMITED TO 80 MPH — Displayed when starting the vehicle and MyKey威 is in use and the MyKey speed limit is on. Refer to MyKey威 in the Locks and Security chapter for more information. CHECK SPEED DRIVE SAFELY — Displayed when a MyKey威 is in use and the optional setting is on and the vehicle exceeds a preselected speed. Refer to MyKey威 in the Locks and Security chapter for more information. VEHICLE NEAR TOP SPEED — Displayed when a MyKey威 is in use and the MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information. 27 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Instrument Cluster TOP SPEED MYKEY SETTING — Displayed when a MyKey威 is in use and the MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information. BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey威 is in use and Belt-Minder威 is activated. Refer to MyKey威 in the Locks and Security chapter for more information. ADVTRAC ON MYKEY SETTING — Displayed when a MyKey威 is in use when trying to disable the AdvanceTrac威 system and the optional setting is on. Refer to MyKey威 in the Locks and Security chapter for more information. TRACKEY ACTIVE TRACK USE ONLY (Boss威 302 only) — Displayed when a trackey is in use. Refer to the Boss威 302 supplement for more information. TRACKEY IDLE ENABLED (Boss威 302 only) — Displayed when a trackey is in use. Refer to the Boss威 302 supplement for more information. 1→4 SHIFT FOR FUEL ECONOMY — Displayed on manual transmission vehicles when the vehicle determines that shifting directly to 4th gear from 1st gear will improve fuel economy. Refer to Manual transmission operation in the Driving chapter for more information. 28 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems AUDIO SYSTEMS AM/FM Single CD/MP3 satellite-compatible sound system WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving, encourage the use of voice-operated systems when possible and that you become aware of applicable state and local laws that may affect use of electronic devices while driving. Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the radio and other electrical accessories may be used for up to 10 minutes after the ignition is turned off or until either front door is opened. Setting the clock To set the time, press CLOCK. The display will read SET TIME. Use the memory preset numbers (0–9) to enter in the desired time–hours and minutes and press OK. The clock will then begin from that time. Note: If your vehicle is equipped with a navigation system, refer to Setting the clock in your Navigation supplement. 29 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems AM/FM radio / VOL (Power/Volume): Press to turn the radio on/off. Turn the knob to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a nominal listening level when the ignition switch is turned back on. AM/FM: Press repeatedly to select AM/FM1/FM2 frequency band. TUNE: Turn the knob to go up/down the frequency band in individual increments. DIRECT: Press DIRECT and then select the desired radio frequency (i.e. 93.9) using the memory preset numbers (0–9). SEEK: Press to access the previous/next strong radio station. SEEK SCAN: Press for a brief sampling of all strong radio stations. MEMORY PRESETS (0–9): When tuned to any station, press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and FM2. Saving presets automatically: Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. To activate the autoset feature: Press MENU repeatedly until AUTO PRESET ON/OFF appears in the display. Use AUTO PRESET to ON, and either wait five seconds for the search to 30 to turn SEEK 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems SEEK initiate or press OK to immediately initiate the search. If you press another control within those five seconds, the search will not initiate. The 10 strongest stations will be filled and the station stored in preset 1 will begin playing. If there are fewer than 10 strong stations, the system will store the last one in the remaining presets. Note: In order to re-run the autoset features, you must first select AUTO PRESET OFF and press OK. Then, select AUTO PRESET ON and press OK. RDS radio Available only in FM mode. This feature allows you to search RDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc. To activate: Press MENU repeatedly until RDS (ON/OFF) appears in the to switch RDS ON and OFF. When RDS is display. Use OFF, you will not be able to search for RDS equipped stations or view the station name or type. CAT (Category) / FOLD (Folder): This feature allows you to select from various music categories. To change RDS categories: Press MENU repeatedly until RDS ON/OFF appears in the display. Use ON/OFF. Press CAT. PRESS UP OR DOWN TO CHANGE RDS CATEGORY will appear in the display. Press through all possible categories. When the desired category appears in the display, press selection or press SCAN for a brief sampling of all stations playing that category of music. CD/MP3 player CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display. to find the next station playing that to toggle RDS between to scroll SEEK SEEK SEEK 31 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems LOAD: This control is not operational. To load a CD, simply insert the disc, label side up, into the CD slot. Play/Pause: Press to play/pause a track when playing a CD. EJECT: Press to eject the CD. SEEK: Press to access the previous/next track. SEEK SEEK to access the previous/next CAT (Category) / FOLD (Folder): In MP3 mode only– Press CAT/FOLD and then press folder. SCAN: Press for a brief sampling of all tracks on the current disc or MP3 folder. DIRECT: In CD mode– Press DIRECT. The display will read DIRECT TRACK MODE SELECT TRACK. Enter the desired track number using the memory preset buttons (0–9). The system will then begin playing that track. In MP3 folder mode– Press DIRECT and the memory preset buttons (0–9) of the desired folder. The system will advance to that specific folder. TEXT: In MP3 mode only– Press TEXT repeatedly to view Album (AL), Folder (FL), Song (SO) and Artist (AR) in the display, if available. 32 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems SEEK SEEK SEEK to switch between ON/OFF. to view the additional display text. In TEXT MODE: Sometimes the display requires additional text to be displayed. When the < / > indicator is active, press TEXT and then press COMPRESSION: Press MENU repeatedly until COMPRESSION ON/OFF appears in the display. Use When COMPRESSION is ON, the system will bring the soft and loud CD passages together for a more consistent listening level. SHUFFLE: Press MENU repeatedly until SHUFFLE ON/OFF appears in to switch between ON/OFF. If you wish to the display. Use engage shuffle mode right away, press play. Otherwise, random play will begin when the current track is finished playing. The system will only shuffle the disc currently playing. Satellite radio (if equipped) Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability. SIRIUS: Press repeatedly to access satellite radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2 and SAT3 modes. TUNE: Turn to go to the next / previous available SIRIUS威 satellite station. to begin random SEEK DIRECT: Press DIRECT then enter the desired channel (i.e. 002) using the memory preset buttons (0–9). If you only enter one digit, press OK and the system will go to that satellite channel. If you enter three digits, the system will automatically go to that channel, if available. You may cancel your entry by pressing DIRECT. If an invalid station number is entered, INVALID CHANNEL will appear in the display and the system will continue playing the current station. 33 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems SEEK SEEK SEEK to seek to fast seek through the to seek to the previous/next channel in the selected SEEK: Press to the previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press category. Press and hold previous/next channels. SCAN: Press SCAN for a brief sampling of all available SIRIUS威 satellite channels. If a specific category is selected, (Jazz, Rock, News, etc.) press SCAN for a brief sampling of all available SIRIUS威 satellite channels within the selected category. MEMORY PRESETS (0–9): There are 30 available presets, 10 each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a memory preset number (0–9) until sound returns. TEXT: Press and release to display the artist and song title. While in TEXT MODE, press again to scroll through the Artist (AR), Song (SO), Channel (CH) and Category (CA). In TEXT MODE: Sometimes the display requires additional text to be displayed. When the < / > indicator is active, press TEXT and then press CAT (Category) / FOLD (Folder): Press to switch between turning the most recently selected satellite radio category on or off. The category icon (CAT) will illuminate in the display when a specific category is selected (the icon will not illuminate during CATEGORY ALL). If no category has ever been selected, NO CATEGORY SELECTED will display. Note: Separate categories can be set for SAT1, SAT2 or SAT3. Refer to Satellite radio menu for further information on selecting a satellite radio category. to view the additional display text. SEEK 34 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems SATELLITE RADIO MENU: Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu. Press following options: • CATEGORY MENU- Press OK to enter category mode. SEEK to cycle through the SEEK to scroll through the list of available SIRIUS威 Press channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, to search for that specific category of channels press only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS威 categories and channels. Press OK to close and return to the main menu. SEEK • SONG SEEK MENU- Press OK to enter song seek menu. to scroll through the following options: SEEK Press a. SAVE THIS SONG?: Press OK to save the currently playing song’s title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the to cycle through the saved titles. saved titles and press When the song title appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display. b. DELETE A SONG?: Press OK to delete a song from the system’s to cycle through the saved songs. When memory. Press the song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to delete the currently listed song, press RETURN or CANCEL. Note: If there are no songs presently saved, the display will read NO SONGS. to select either SEEK SEEK SEEK 35 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems c. DELETE ALL SONGS?: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS. d. DISABLE ALERTS/ENABLE ALERTS?: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off. e. RETURN: Press OK when RETURN is displayed to exit back to the satellite radio menu. • CHANNEL LOCKOUT MENU- Press OK to enter the Channel SEEK to scroll through the following Lockout menu. Press the options: a. LOCK/UNLOCK THIS CHANNEL: Press OK when LOCK/UNLOCK THIS CHANNEL is displayed and the display will read ENTER PIN. Enter your four-digit PIN number (initial PIN is 1234) and the system will lock/unlock the channel and CHANNEL LOCKED or UNLOCKED will be displayed. Note: you must be tuned to the specific channel you want to lock/unlock when using this feature. b. CHANGE PIN: Press OK when CHANGE PIN is displayed. The display will read ENTER OLD PIN. Enter your current (old) PIN number and when the system accepts your entry it will display ENTER NEW PIN. Enter your new four-digit PIN and the system will save the new PIN and PIN SAVED will display. c. UNLOCK ALL CHANNELS: Press OK when UNLOCK ALL CHANNELS is displayed and the display will read ENTER PIN. Enter your four-digit PIN and the system will unlock all channels and the display will read CHANNEL UNLOCKED. 36 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems d. RESET PIN: Press OK when RESET PIN is displayed. The display will read ARE YOUR SURE. Press OK again to automatically reset the PIN to its initial password setting (1234). PIN RESET TO DEFAULT PIN will be displayed. e. RETURN: Press OK when RETURN is displayed and the system will exit back to the satellite radio menu. to turn Shaker to adjust the level of treble, or turn SEEK SEEK SEEK to adjust the level of bass or turn the Sound adjustments Press SOUND repeatedly to cycle through the following features: • Shaker mode (if equipped): Press mode on/off. • BASS: Press TUNE knob. • TREBLE: Press the TUNE knob. • BALANCE: Press • FADE: Press • SPEED COMPENSATED VOLUME: With this feature on, radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise. The default setting is off.. to adjust between SPEED OFF and levels 1–7. Use Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting. (L) and right (R) speakers or turn the TUNE knob. and front (F) speakers or turn the TUNE knob. • ALL SEATS (Occupancy Mode, if equipped): Press SEEK to select and optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. SEEK SEEK SEEK to adjust the audio between the left to adjust the audio between the back (B) • DSP MODE (if equipped): Press SEEK to choose between STEREO SURROUND mode and STEREO mode. 37 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems Extra features AUX: Press repeatedly to cycle through LINE (auxiliary audio mode) and SYNC威 (if equipped). For auxiliary jack location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter. If your vehicle is equipped with SYNC威, please refer to the SYNC威 information included with your vehicle for further information. Play/Pause: Press this control to play or pause the current CD. OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. For further information, refer to the SYNC威 information included with your vehicle. PHONE: If your vehicle is equipped with SYNC威, press to access SYNC PHONE features. For further information, please refer to the SYNC威 information included with your vehicle. If your vehicle is not equipped with SYNC威, the display will read NO PHONE. Auxiliary input jack (Line in) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving, encourage the use of voice-operated systems when possible and that you become aware of applicable state and local laws that may affect use of electronic devices while driving. 38 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems Your vehicle is equipped with an auxiliary input jack (AIJ) located in the center console. The auxiliary input jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary input jack section in the Audio features chapter of your Navigation System supplement. Required equipment: 1. Any portable music player designed to be used with headphones 2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end To play your portable music player using the auxiliary input jack: 1. Begin with the vehicle parked and the radio turned off. 2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off. 3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle. 4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level. 5. Turn the portable music player on and adjust the volume to 1/2 the volume. 6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player although it may be low. 39 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems 7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls. Troubleshooting: 1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control. 2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume. 3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player. 4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player. 5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion. USB port (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving, encourage the use of voice-operated systems when possible and that you become aware of applicable state and local laws that may affect use of electronic devices while driving. 40 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems LINE IN Your vehicle may be equipped with a USB port inside your center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC威 supplement or Navigation System supplement. GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed. weaker the signal and the weaker the reception. 41 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems CD/CD player care Do: • Handle discs by their edges only. (Never touch the playing surface). • Inspect discs before playing. • Clean only with an approved CD cleaner. • Wipe discs from the center out. of time. Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached. 42 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician. MP3 track and folder structure Your MP3 system recognizes MP3 individual tracks and folder structure as follows: • There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section. • MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present. • MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255. • Creating discs with only one level of folders will help with navigation through the disc files. 43 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems Sample MP3 structure If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in-vehicle system. .mp3 .mp3 .mp3 .mp3 .mp3 .mp3 .mp3 .doc .ppt .xls In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder. Satellite radio information (if equipped) Satellite radio channels: SIRIUS威 broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS威 satellite radio channels, visit www.sirius.com in the United States, www.siriuscanada.ca in Canada, or call SIRIUS威 at 1–888–539–7474. Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna Obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and any material as far away from the antenna as possible. 44 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems • Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute. Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference. SIRIUS威 satellite radio service: SIRIUS威 satellite radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS威 service. Vehicles that are equipped with a factory installed SIRIUS威 satellite radio system include: • Hardware and limited subscription term, which begins on the date of sale or lease of the vehicle. For information on extended subscription terms, the online media player and other SIRIUS威 features, please contact SIRIUS威 at 1–888–539–7474. Note: SIRIUS威 reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes. Satellite Radio Electronic Serial Number (ESN): This 12-digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS威. While in satellite radio mode, you can view this number on the radio display by pressing SIRIUS and the preset 1 control simultaneously. 45 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems Radio Display Condition ACQUIRING SAT FAULT Radio requires more than two seconds to produce audio for the selected channel. Internal module or system failure present. Action Required No action required. This message should disappear shortly. If this message does not clear within a short period of time, or with an ignition key cycle, your receiver may have a fault. See your authorized dealer for service. INVALID CHNL Channel no longer available. This previously available channel is no longer available. Tune to another channel. If the channel was one of your presets, you may choose another channel for that preset button. Contact SIRIUS威 at 1–888–539–7474 to subscribe to the channel, or tune to another channel. Artist information not available at this time on this channel. The system is working properly. Song title information not available at this time on this channel. The system is working properly. Category information not available at this time on this channel. The system is working properly. UNSUBSCRIBED Subscription not available for this channel. NO TEXT Artist information not available. NO TEXT Song title information not available. NO TEXT Category information not available. 46 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Entertainment Systems Radio Display Condition NO SIGNAL Loss of signal from the SIRIUS威 satellite or SIRIUS威 tower to the vehicle antenna. UPDATING CALL SIRIUS威 1–888–539–7474 Update of channel programming in progress. Satellite service has been deactivated by SIRIUS威 satellite radio. Action Required You are in a location that is blocking the SIRIUS威 signal (i.e., tunnel, under an overpass, dense foliage, etc). The system is working properly. When you move into an open area, the signal should return. No action required. The process could take up to three minutes. Call SIRIUS威 at 1–888–539–7474 to re-activate or resolve subscription issues. NAVIGATION SYSTEM (IF EQUIPPED) Your vehicle may be equipped with a navigation system. Refer to the Navigation System supplement for further information. SYNC姞 (IF EQUIPPED) Your vehicle may be equipped with SYNC威, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC威 supplement or to the SYNC威 section in the Navigation System supplement (if equipped). 47 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Climate Controls MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) Defrost: Distributes outside air through the windshield defroster Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter. 1. vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection. 2. R Rear defroster: Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this chapter for more information. 3. settings to choose: • Multifunction control: Press repeatedly to cycle through the : Distributes air through the windshield defroster vents, de-mister and de-mister vents. vents and floor vents. The system will automatically provide outside air to reduce window fogging. : Distributes air through the floor vents. : Distributes air through the instrument panel vents. : Distributes air through the instrument panel vents, floor vents, • • • 4. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (floor/defrost). 48 (defrost) and 2012 05+ Mustang (197) Owners Guide, 3rd Printing USA (fus) Climate Controls (panel) or (defrost). When the ignition switch is Recirculated air: Press to activate/deactivate air recirculation in 5. the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air (panel/floor). distribution selection is either 6. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more
