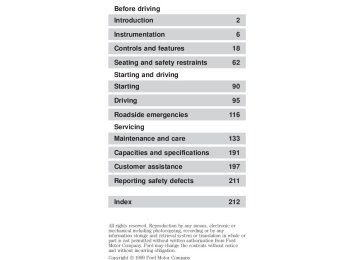

Contents
Before driving Introduction
Instrumentation
Controls and features
Seating and safety restraints
Starting and driving Starting
Driving
Roadside emergencies
Servicing Maintenance and care
Capacities and specifications
Customer assistance
Reporting safety defects
Index
18
62
90
95
116
133
191
197
211
212
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 1999 Ford Motor Company
Introduction
The following warning may be required by California law: CALIFORNIA Proposition 65 Warning
Engine exhaust, some if its constituents, and certain vehicle components contain or emit
chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm.
ICONS Indicates a safety alert. Read the following section on Warnings.
Indicates vehicle information related to recycling and other environmental concerns will follow. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment. Indicates a message regarding child safety restraints. Refer to Seating and safety restraints for more information. Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.
Introduction
WARNINGS Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.
BREAKING-IN YOUR VEHICLE There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is necessary to give the moving parts a chance to break in.
INFORMATION ABOUT THIS GUIDE The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.
SPECIAL NOTICES
Notice to owners of Cobra vehicles Before you drive your vehicle, be sure to read the “SVT Cobra Owner’s Guide Supplement.” This book contains important operation and maintenance information.
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety Belt
Air Bag-Front
Air Bag-Side
Child Seat
Child Seat Installation Warning
Brake System
Brake Fluid - Non-Petroleum Based
Master Lighting Switch
Child Seat Tether Anchorage
Anti-Lock Brake System
Traction Control
Hazard Warning Flasher
Fog Lamps-Front
Fuse Compartment
Windshield Wash/Wipe
Rear Window Defrost/Demist
Power Window Lockout
Interior Luggage Compartment Release Symbol
Fuel Pump Reset
Windshield Defrost/Demist
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Introduction
Vehicle Symbol Glossary
Panic Alarm
Engine Oil
Engine Coolant
Do Not Open When Hot
Avoid Smoking, Flames, or Sparks
Engine Coolant Temperature
Battery
Battery Acid
Explosive Gas
Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
MAX MIN
Emission System
Engine Air Filter
Passenger Compartment Air Filter
Jack
Instrumentation
Driver air bag (pg. 75)
Instrument cluster (pg. 8)
Headlamp control (pg. 18)
60
40
20
30
20
10
60 70
50
80 100 120
40
80
90
160
180
MPH
km/h
FUEL DOOR
RPMX1000
SELECT/RESET
0 0 0 0 0 00
REAR DEF
AIR BAG
THEFT
SERVICE ENGINE SOON
LOW FUEL
O/D OFF
BRAKE
HI LO
OFF
ON
OFF
RSM
SET ACC
COAST
Speed controls (pg. 42)
Rear defroster* (pg. 19)
Turn signal and wiper/washer control (pg. 40)
* if equipped
Instrumentation
Climate control system (pg. 20)
LO
HI
OFF FLOOR MIX
VENT
NORM
A/C MAX A/C
FM1
ST
AUTOMATIC
DNR CrO2
REW FF
PLAY EJCT PROG
POWER
AUDIO
AM/FM
VOLUME
AUTO PRESET
CLOCK
SCAN TUNE SEEK
Electronic sound system (pg. 23)
Overdrive off switch (pg. 104)
Instrumentation
WARNING LIGHTS AND CHIMES Base instrument cluster
60
40
20
30
20
10
60 70
50
80 100 120
40
80
140
90
100
110
160
180
120
MPH
km/h
FUEL DOOR
RPMX1000
SELECT/RESET
0 0 0 0 0 00
AIR BAG
THEFT
SERVICE ENGINE SOON
LOW FUEL
O/D OFF
ABS
BRAKE
Optional instrument cluster
60
80
50
60
40
40
30
20
10
90
80
70
100120 140
160
100
110
180
200
120
130
140
220
240
150
20
MPH
FUEL DOOR
km/h
RPMX1000
SELECT/RESET
0 0 0 0 0 00
AIR BAG
THEFT
SERVICE ENGINE SOON
LOW FUEL
O/D OFF
ABS
BRAKE
Turn signal Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously or flash faster, check for a burned-out turn signal bulb. Refer to Exterior bulbs in the Maintenance and care chapter.
High beams Illuminates when the high beam headlamps are turned on.
Safety belt Momentarily illuminates when the ignition is turned to the ON
Instrumentation
position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.
Charging system Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.
Air bag readiness Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.
AIR BAG
Anti-theft system Refer to SecuriLocky passive anti-theft system in the Controls and features chapter.
THEFT
SERVICE ENGINE SOON
Service engine soon Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle. The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position
Instrumentation
to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing. WhatyoushoulddoiftheServiceEngineSoon lightilluminates Light turns on solid: This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your Service Engine Soon light to illuminate. Examples are: 1. The vehicle has run out of fuel. (The engine may misfire or run poorly.) 2. Poor fuel quality or water in the fuel. 3. The fuel cap may not have been properly installed and securely tightened. These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Service Engine Soon light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required. If the Service Engine Soon light remains on, have your vehicle serviced at the first available opportunity. Light is blinking: Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.
