2005 Ford Mustang Owners Manual

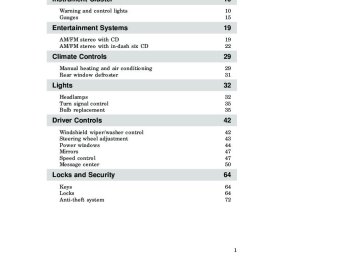

Table of Contents

10

10
15
19

19
22
29

29
31
32

32
35
35
42

42
43
44
47
47
50
64

64
64
72

Introduction

Instrument Cluster

Warning and control lights Gauges

Entertainment Systems

AM/FM stereo with CD AM/FM stereo with in-dash six CD

Climate Controls

Manual heating and air conditioning Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Message center

Locks and Security

Keys Locks Anti-theft system

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

77

77
82
96
105
119

119
124
129
139
145
147
148

148
153
155
156
164

164
165
165
166
172
177
178

186
187

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

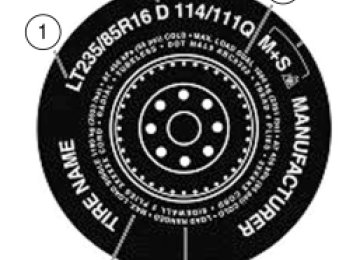

Tire Information Changing tires Lug Nut Torque Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Traction control Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only)

Cleaning

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Maintenance and Specifications

Engine compartment Engine oil Battery Engine Coolant Fuel information Part numbers Refill capacities Lubricant specifications

Accessories

Index

Table of Contents

194

196
198
203
205
211
225
226
228
235

238

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2005 Ford Motor Company

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

brake pedal;

Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Powertrain Malfunction

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES Base instrument cluster

Optional instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

10

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Service Engine Soon: The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap (if equipped): Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Brake system warning light: To confirm the brake system warning light is functional, it will BRAKE momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer.

11

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

ABS

Anti-lock brake system (if equipped): If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure (if equipped): Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant temperature: Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

Never remove the coolant reservoir cap while the engine is running or hot.

12

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Traction Control娂 active (if equipped): Flashes when the Traction Control娂 is active. If the light remains on a malfunction has been detected; have the system serviced immediately, refer to the Driving chapter for more information. Overdrive off (automatic transmission): Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light flashes steadily or does not illuminate, have the transmission serviced soon, or damage may occur. Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter). Speed control (if equipped): Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.

O/D OFF

Door/Trunk ajar (if equipped): Illuminates when the ignition is in the ON position and any door or trunk is open. Anti-theft system: Flashes when the Securilock娂 Passive Anti-theft System has been activated.

Electronic throttle control (if equipped): Illuminates when the engine has defaulted to a ’limp-home’ operation. Report the fault to a dealer at the earliest opportunity.

13

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Daytime running lamps (DRL) (if equipped): Illuminates when the Daytime running lamps are on. Also is an indication that the tail lamps, license plate lamps, side marker lamps and parking lamps are switched OFF.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system

does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

14

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

GAUGES Base instrument cluster gauges

Instrument Cluster

Optional instrument cluster gauges

Refer to Message Center (if equipped) in the Driver Controls chapter to select one of six preset colors or one user definable color (MyColor) for the nighttime gauge backlighting.

15

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Speedometer: Indicates the current vehicle speed. • Base instrument cluster

• Optional instrument cluster

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle. • Base instrument cluster

16

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

• Optional instrument cluster Refer to Message Center in the Driver Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. • Base instrument cluster Press and release the RESET button on the cluster to toggle between odometer and trip odometer display. To reset, press and hold for less than 2 seconds. • Optional instrument cluster Press and release the message center INFO button until TRIP mode appears in the display. Press the RESET button to reset.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. • Base instrument cluster

• Optional instrument cluster

17

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Battery voltage gauge (if equipped): Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked by your authorized dealer as soon as possible. Engine oil pressure gauge (if equipped): Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct (and gauge reads no/low oil pressure....), shut down the engine immediately and contact your dealer for service or by a qualified technician. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

18

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

AM/FM STEREO/ SINGLE CD SOUND SYSTEM (IF EQUIPPED)

Entertainment Systems

Tuner: Press to

1. manually go up or down the radio frequency. Also use in menu mode to select various settings. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 3. Menu: Press to toggle through the following modes:

Bass: Press to adjust the bass setting. Use

Treble: Press to adjust the treble setting. Use

SEEK

SEEK

Balance: Press to adjust the audio between the left and right speakers. Use

SEEK

Fade: Press to adjust the audio between the front and rear speakers. Use

SEEK

19

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to adjust the

Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. SEEK Press MENU to access and use volume setting. The level will appear in the display. Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use MENU again to disengage clock mode. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. You can then access the stations by pressing the memory presets. To disengage, press MENU to access and press

to manually increase/decrease Press

to turn the feature off.

to set or turn on/off.

SEEK

SEEK

4. Aux: If no auxiliary sources are available, NO AUX AUDIO will be displayed. 5. Seek: Press to access the next strong radio station or the next track on the compact disc. 6. Text: This control is not operational.

7. Shuffle: Press to play tracks in random order.

8. Comp (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level. 9. Repeat: Press to repeat the current CD track.

20

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

10. Fast forward: Press to manually advance in a CD track.

11. Rewind: Press to manually reverse in a CD track.

12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 13. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop. 14. Seek: Press to access the next strong radio station or the previous track on the compact disc. 15. AM/FM: Press to select AM/FM frequency band.

16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 18. CD eject: Press to eject a CD.

19. CD slot: Insert a CD label side up.

21

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SHAKER 500 — AUDIOPHILE IN-DASH SIX CD/MP3 SOUND SYSTEM (IF EQUIPPED)

SHAKER 1000 — AUDIOPHILE IN-DASH SIX CD/MP3 SOUND SYSTEM (IF EQUIPPED)

22

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Your vehicle may be equipped with the SHAKER 1000威 audio system. This system is equipped with a rack of amplifiers and subwoofers in the trunk of the vehicle. The SHAKER 1000威 audio system is capable of producing very high sound pressure levels. For your listening comfort and protection, it is not recommended to listen to the SHAKER 1000威 audio system at high volume levels for extended periods of time. Tune/Disc selector: 1. Press to manually go up or down the radio frequency or to select a desired disc. Also use in menu mode to select various settings. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 3. Menu: Press to toggle through the following modes:

or

SEEK

to toggle SHAKER mode

SHAKER: Select to engage SHAKER 1000 mode. SHAKER 1000 mode enhances acoustic sound for all seating locations and increases the signal to the trunk mounted speakers and amplifiers for enhanced bass performance. Use on/off. Track/Folder Mode: Available only on MP3 discs in CD mode. In Track will scroll through all tracks on the disc. SEEK Mode, pressing In Folder mode, pressing SEEK will scroll only through tracks within the selected folder. Compression: Available only in CD mode, brings soft and loud CD passages together for a more consistent listening level. Repeat: Available only in CD mode. Press to repeat the current CD track. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1

to set or turn on/off.

, SEEK

23

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. You can then access the stations by pressing the memory presets. To disengage, press MENU to access and press

to turn the feature off.

SEEK

Bass: Press to adjust the bass setting. Use

Treble: Press to adjust the treble setting. Use

SEEK

SEEK

Balance: Press to adjust the audio between the left and right speakers. Use

, SEEK

Fade: Press to adjust the audio between the front and rear speakers. Use

, SEEK

SEEK

select and optimize

Occupancy mode:: Use sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU to access and use SEEK volume setting. The level will appear in the display. Setting the clock: Press until SELECT HOUR or SELECT MINS is displayed. Press to adjust the hours/minutes.

to adjust the

SEEK

RDS: Available only in FM mode. This feature allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz/RB, Religious, Rock, Soft, Top 40. RDS must be activated to access Find and Show functions. To activate, press and hold MENU until RDS (ON/OFF) appears in the display. Press MENU repeatedly to scroll through Find, Show and RDS. Use will not be able to access Find and Show functions. Find: Allows you to search RDS-equipped stations for the desired music category. Use SEEK Show: Allows you to display the name of the radio station or program type. Use

to find the desired program type, then use

to toggle RDS ON/OFF. When RDS is Off, you

or SCAN to begin the search.

to show type, name or none.

SEEK

SEEK

24

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

4. Aux: If no auxiliary sources are available, NO AUX AUDIO will be displayed. 5. Seek: Press to access the next strong station or track. Also use in menu mode to select various settings. 6. Text: In CD mode, this feature reads and displays track song title, artist name and album title. 7. Shuffle: Press to play the tracks in random order.

8. FOLDER: Press to access next folder on MP3 discs, if folders are available. 9. FOLDER: press to access the previous folder on MP3 discs, if folders are available. 10. Fast forward: Press to manually advance in a CD track.

11. Rewind: Press to manually reverse in a CD track.

12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 13. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop. 14. Seek: Press to access the previous strong station or track.

15. AM/FM: Press to select AM/FM frequency band.

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

25

Entertainment Systems

16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 18. LOAD: Press to begin the CD load sequence. When the radio prompts to select a slot, use the presets to select the desired slot to load the CD. If the selected slot already contains a CD, the display will read SLOT FULL. Press and hold to autoload up to 6 CDs. Load CDs one at a time when the radio prompts to load a CD. 19. CD eject: Press to begin the CD eject sequence When the radio prompts to select a CD, use the presets to select the desired CD to eject. Press and hold to auto eject all CDs present in the system. If there is no CD present, the display will read NO CD. 20. CD slot: Insert one CD at a time, label side up, when the system prompts to load a CD.

(system default) and MP3 folder mode.

MP3 TRACK AND FOLDER STRUCTURE Your MP3 system recognizes MP3 individual tracks and a folder structure as follows: • There are two different modes for MP3 disc playback: MP3 track mode • MP3 track mode ignores any folder structure present on the MP3 disc. The player sequentially numbers each MP3 track on the disc (denoted by the .mp3 file extension) from T001 to T255. • MP3 folder mode represents a folder structure consisting of one level of folders. The CD player sequentially numbers all MP3 tracks on the disc (denoted by the .mp3 extension) and all folders containing MP3 files,

26

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

from 01–01 to 99–99. The first two digits denote the folder number and the last two digits denote the track number within that folder. • Creating discs with only one level of folders will help with navigation

through the disc files.

ACCESSORY DELAY With accessory delay, the window switches and radio may be used for up to ten minutes after the ignition switch is turned to the OFF position or until any door or trunk is opened.

RADIO FREQUENCIES AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1600, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz

weaker the signal and the weaker the reception.

RADIO RECEPTION FACTORS There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CD PLAYER CARE Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion.

27

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

AUDIO SYSTEM WARRANTY AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

28

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM 1. Temperature selection: Controls the temperature of the airflow in the vehicle. 2. Mode selections: Controls the location of the airflow in the vehicle. See the following for a brief description of each selection.

MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.

: Distributes air through the

instrument panel vents.

: Distributes air through the instrument panel vents and the floor

vents. O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes air through the floor vents. : Distributes air through the windshield defroster vents and floor

vents.

: Distributes air through the windshield defroster vents. Can be

: Press to activate/deactivate air

used to clear the windshield of fog and thin ice. 3. Rear defroster (R ): Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this section for more information. 4. Recirculation control recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired exterior odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other mode selection except Recirculation may turn off automatically in all airflow selections except MAX A/C. 5. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance. Engages automatically in MAX A/C,

(floor/defrost).

(defrost) and

(defrost).

29

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

6. Fan speed adjustment: Controls the volume of air circulated in the vehicle.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the

the air flow selector in the

(defrost) position.

airflow selector in the O (OFF) position or with recirculated air engaged.

airflow to the back seats.

• Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.”

the windshield.

For maximum cooling performance in MAX A/C mode: 1. Move temperature control to the coolest setting. 2. Set the fan to the highest speed initially, then adjust to maintain comfort. For maximum cooling performance in panel or panel/floor modes: 1. Move temperature control to the coolest setting. 2. Select A/C and recirculated air ( ) to provide colder airflow. 3. Set the fan to the highest speed initially, then adjust to maintain comfort. To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Adjust the temperature control to maintain comfort. 4. Set the fan speed to the highest setting. 5. Direct the outer instrument panel vents towards the side windows. 6. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

30

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

REAR WINDOW DEFROSTER (R Ensure that the ignition is in the 3 (ON) position. Press the control to clear the rear window of thin ice and fog. The LED will illuminate. The rear window defroster turns off automatically after 10 minutes, or when the ignition is turned to the 1 (OFF/LOCK) position. To manually turn off the defroster before 10 minutes have passed, push the control again. Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

CABIN AIR FILTER Your vehicle is equipped with a cabin air filter, which is located just in front of the windshield under the cowl grille on the passenger side of the vehicle. The particulate air filtration system is designed to reduce the concentration of airborne particles such as dust, spores and pollen in the air being supplied to the interior of the vehicle. The particulate filtration system gives the following benefits to customers: • Improves the customer’s driving comfort by reducing particle • Improves the interior compartment cleanliness • Protects the climate control components from particle deposits For more information regarding the interval at which you should replace the cabin air filter, refer to your Scheduled Maintenance Guide. For more cabin air filter information, or to replace the filter, see your authorized dealer.

concentration

31

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

P

Lights

HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

or

Foglamp control (if equipped) The foglamps can be turned on when the headlamp control is in position and the the high beams are not on. Pull the headlamp control towards you to turn on the foglamps. The indicator light under the foglamp symbol will illuminate.

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. When activated, the DRL telltale is illuminated. To activate: • the ignition must be in the ON position, • the headlamp control is in the OFF or parking lamp position and • the parking brake must be disengaged.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system

does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

32

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

High beams Pull the lever towards you, to the second detent, to activate. Pull the lever towards you again to deactivate.

Flash to pass Pull toward you, to the first detent, to activate and release to deactivate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation. Move the control to the full upright position, past detent, to turn on the interior lamps.

AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by your authorized dealer.

33

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

ground

Headlamp vertical aim adjustment 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height from the center of your headlamp to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). The center of the lamp is marked by a 3.0 mm circle on the headlamp lens. 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. 4. On the wall or screen you will observe a flat zone of high intensity light located at the top of the beam pattern. 5. If the top edge of the high intensity light zone is not at the horizontal reference line, the headlamp will need to be adjusted. 6. Locate the vertical adjuster on each headlamp, then use a 7 mm Allen wrench or a Phillips screwdriver to adjust the headlamp up or down. 7. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE. 8. Close the hood and turn off the lamps.

34

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

The flash rate of the turn signal will speed up considerably if the Lighting Control Module detects a left or right turn lamp bulb (front or rear) is burned out.

INTERIOR LAMPS

Map lamps Press the controls on either side of the lamp to turn the light on.

BULB REPLACEMENT

Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Interior bulbs Check the operation of all bulbs frequently.

Replacing exterior bulbs Check the operation of all the bulbs frequently.

35

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time. Function Headlamp Park lamp, turn lamp, side marker (front) Sidemarker (front)

Trade Number

H13

3157 or 3157K W5W or W5WL 9145 or H11 (if

equipped)

Fog lamp

3057K or 4057K W5W or W5WL

Tail lamp, brakelamp, turn lamp Sidemarker (rear) High-mount brakelamp Backup lamp License plate lamp Overhead console/map lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.

921
921
168
W5W

Replacing headlamp bulbs To remove the headlamp bulb: 1. Make sure headlamp switch is in the OFF position, then open the hood. 2. Disconnect the electrical connector from the bulb by depressing the retainer clip and pulling rearward. 3. Remove the bulb by rotating it counterclockwise and pulling it straight out.

36

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Install the new bulb in reverse order. Replacing front parking lamp/turn signal bulbs 1. Make sure the headlamp control is in the OFF position and open the hood. 2. Locate the lamp assembly from underneath the vehicle and rotate the bulb socket counterclockwise and remove from lamp assembly. 3. Pull the bulb straight out from the socket. Install the new bulb in reverse order. Replacing front parking lamp/turn signal bulbs 1. Make sure the headlamp control is in the OFF position and open the hood. 2. Locate the lamp assembly from underneath the vehicle and rotate the bulb socket counterclockwise and remove from lamp assembly. 3. Pull the bulb straight out from the socket. Install the new bulb in reverse order.

37

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing foglamp bulbs 1. Make sure the headlamp control is in the OFF position and open the hood. 2. Remove the sight shield by loosening the six fasteners with a flat head screwdriver. 3. Remove the two underhood bolts attaching the bumper cover next to the grill and then pull the cover/grille/foglamp assembly forward to access the foglamp bulbs. 4. Disconnect the electrical connector from the bulb by pulling it straight off. 5. Rotate the bulb counterclockwise and remove from the lamp assembly. Install the new bulb in reverse order. Replacing tail lamp/brake/rear turn signal lamp bulbs The tail lamp, the brake lamp and the turn signal lamp bulbs are located in the tail lamp assembly. Follow the same steps to replace either bulb. 1. Make sure headlamp switch is in OFF position, then open the trunk. 2. Carefully remove fasteners around the lamp area and then remove the interior trunk trim. 3. Disconnect the electrical grommet by pulling it straight off of the lamp assembly. 4. Remove three nut and washer assemblies and the lamp assembly from the vehicle. 5. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

38

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

6. Pull the bulb straight from the socket. Install the new bulb in reverse order.

Lights

Replacing backup bulbs The backup lamp is located in the tail lamp assembly. Follow the same steps to replace either bulb. 1. Make sure headlamp switch is in OFF position, then open the trunk. 2. Carefully remove fasteners around the lamp area, then remove the interior trunk trim. 3. Disconnect the electrical connector by pulling it straight off of the lamp assembly. 4. Remove the three nut and washer assemblies and the lamp assembly from the vehicle. 5. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly. 6. Pull the bulb straight from the socket. Install the new bulb in reverse order.

39

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing rear sidemarker lamp bulbs 1. Make sure the headlamp switch is in the OFF position and locate the sidemarker on the rear bumper fascia. 2. Install a flathead screwdriver between the rear of the sidemarker lens and the bumper fascia. 3. Push the screwdriver to the front of the vehicle and then slide it towards you to pop out the lens cover. 4. Carefully pull the bulb straight out of socket. Install the new bulb in reverse order. Replacing high-mount brake lamp bulbs 1. Make sure the headlamp switch is in the OFF position and then open the trunk. 2. Inside trunk, pull the trim panel straight off of the underside of the trunk lid. 3. Locate the lighting assembly and push the release tab to access the bulb socket.

4. Carefully pull the bulb straight out of socket. Install the new bulb in reverse order.

40

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

41

Replacing license plate lamp bulbs 1. Make sure the headlamp switch is in the OFF position, then remove the two screws and the license plate lamp assembly. 2. Remove bulb socket by turning counterclockwise. 3. Carefully pull the bulb out from the socket. Install new bulb(s) in reverse order.

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

MULTI-FUNCTION LEVER Windshield wiper: For intermittent operation, move control up one position. Adjust the rotary control to the desired speed setting.

For normal or low speed wiper operation, move control up two positions from OFF. For high speed wiper operation, move control up three positions from OFF.

Windshield washer: Pull the end of the stalk towards you: • briefly: causes a single swipe of the wipers without washer fluid. • a quick pull and hold: the wipers

will swipe three times with washer fluid.

• a long pull and hold: the wipers and washer fluid will be activated for

up to ten seconds.

42

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Changing the wiper blades 1. Pull the wiper arm away from the vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm. 2. Attach the new wiper to the wiper arm and press it into place until a click is heard. Replace wiper blades at least once per year for optimum performance. Poor wiper quality can be improved by cleaning the wiper blades and the windshield, refer to Windows and wiper blades in the Cleaning chapter. To prolong the life of the wiper blades, it is highly recommended to scrape off the ice on the windshield before turning on the wipers. The layer of ice has many sharp edges and can damage the micro edge of the wiper rubber element.

TILT STEERING WHEEL (IF EQUIPPED) To adjust the steering wheel: 1. Push the lever down to unlock the steering column. While the lever is in the down position, tilt the steering column to its desired orientation. 2. While holding the steering column, pull the lever up to its original position to lock the steering column.

Never adjust the steering wheel when the vehicle is

moving.

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

43

Driver Controls

AUXILIARY POWER POINT (12VDC) Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty. The power point is an additional power source for electrical accessories. The power points are located on the instrument panel and inside the center console storage bin. Do not use the power point for operating the cigarette lighter element (if equipped). To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12
VDC/180W. To prevent the battery from being discharged, do not use the power point longer than necessary when the engine is not running. Always keep the power point caps closed when not being used. Cigarette/Cigar lighter (if equipped) Do not plug optional electrical accessories into the cigarette lighter socket. Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used. Improper use of the lighter can cause damage not covered by your warranty.

POWER WINDOWS

Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure

themselves.

44

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in

the proximity of the window openings.

Press and pull the switches to open and close windows. • Push down (to the first detent) • Pull up (to the first detent) and

and hold the switch to open.

hold the switch to close.

AUTO

AUTO

Express down (One Touch Down, Front windows only) Allows the driver and passenger’s window to open fully without holding the control down. Push the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation. Express Up (One Touch Up, Front windows only) Allows the driver and passenger’s window to close fully without holding the control up. Pull the switch completely up to the second detent and release quickly. The window will close fully. Momentarily press the switch to any position to stop the window operation Accessory delay With accessory delay, the window switches and radio may be used for up to ten minutes after the ignition switch is turned to the OFF position or until any door or trunk is opened. Bounce Back (Front windows only) When an obstacle has been detected in the window opening as the window is moving upward, the window will automatically move down and stop at a prescribed position.

45

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Bounce Back Override (Front windows only) To override Bounce Back, within 2 seconds after reaching Bounce Back position, if the switch is moved from the Neutral to the Express Up position the window will travel up with no bounce back protection. If the switch is released before the window reaches fully closed position, the window will stop. For example: Bounce Back Override can be used to overcome the resistance of ice on the window or seals. Restoring the Express up functionality (Front windows only) Under low battery power conditions, Express Up only functionality may be lost. To reset this function after restoring full battery power, pull the switch to the Express Up position, hold the switch until the glass reaches the stall position and continue to hold for 2 seconds. Push the window switch DOWN and operate the window to the full down position. Express UP will now be functional. Perform Express UP re-calibration with door closed only. Calibrating with door open will cause the window to continuously bounce back. Short drop glass (Front windows only) In order to improve door efforts and sealing, your vehicle is equipped with short drop glass. This feature lowers the glass when either door is opened. The glass returns to its closed position when the door is closed. Proper operation of the short drop glass requires that the windows be calibrated. Though your windows will have been calibrated before your vehicle is delivered to you, it is possible for the windows to lose calibration. If a window loses its calibration, your short drop feature will lower the window, but will not raise it again when the door is closed. To re-calibrate the window, pull the switch up to raise the window until it completes its travel and hold the switch up for 2
seconds. Another possible effect of lost calibration is that the feature may not lower the window. To re-calibrate the window in this case, lower the window until it completes its travel and hold the switch down for 2
seconds. Immediately after releasing the window down switch, pull the switch up to raise the window until it completes its travel and hold the switch up for 2 seconds. Perform Short drop re-calibration with doors closed only. Re-Calibrating with doors open will cause the window to continuously bounce back. Rear Power Windows (Convertible Only) The rear quarter windows are operated by a single window switch located at the Driver door window controls. Press and pull the window switch to open and close the windows.

46

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

• Push down and hold the switch to open. • Pull up and hold the switch to close. POWER SIDE VIEW MIRRORS (IF EQUIPPED) To adjust your mirrors: 1. Rotate the control clockwise to adjust the right mirror and rotate the control counterclockwise to adjust the left mirror. 2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to lock mirrors in place. SPEED CONTROL (IF EQUIPPED) With speed control set, you can maintain a speed of 30 mph (48 km/h) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 30 mph (48 km/h).

Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

ON

OFF

Setting speed control The controls for using your speed control are located on the steering wheel for your convenience. 1. Press the ON control and release it. 2. Accelerate to the desired speed. 3. Press the SET + control and release it. 4. Take your foot off the accelerator pedal. 5. The indicator light Note: • Vehicle speed may vary momentarily when driving up and down a • If the vehicle speed increases above the set speed on a downhill, you

on the instrument cluster will turn on.

steep hill.

RES

SET

may want to apply the brakes to reduce the speed.

47

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls • If the vehicle speed decreases more than 10 mph (16 km/h) below • If the vehicle speed decreases to 30 mph (48 km/h) or less, your

your set speed on an uphill, your speed control will disengage.

speed control will disengage

Disengaging speed control To disengage the speed control: • Depress the brake pedal or clutch pedal (if equipped) Disengaging the speed control will not erase previous set speed.

RES

Resuming a set speed Press the RES (resume) control and release it. This will automatically return the vehicle to the previously set speed. The RES control will not work if the vehicle speed is not faster than 30 mph (48 km/h). Increasing speed while using speed control There are three ways to set a higher speed: • Press and hold the SET + control until you get to the desired speed, then release the control.

RES

Each tap will increase the set speed by 1 mph (1.6 km/h).

• Press and release the SET + control to operate the Tap-Up function. • Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed press and release the SET + control.

Reducing speed while using speed control There are three ways to reduce a set speed: • Press and hold the SET - control until you get to the desired speed, then release the control.

RES

• Press and release the SET - control to operate the Tap-Down function.

Each tap will decrease the set speed by 1 mph (1.6 km/h).

SET

SET

SET

48

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

• Depress the brake pedal until the desired vehicle speed is reached, press the SET + control.

RES

SET

Driver Controls

control.

Turning off speed control There are two ways to turn off the speed control: • Press the speed control OFF • Turn OFF the ignition. Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased. CENTER CONSOLE Your vehicle is equipped with a variety of console features. These include: • Dual cupholders • Auxiliary power point (in bin) • Coin holder slots (in bin)

OFF

ON

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to

avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

49

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

MESSAGE CENTER (IF EQUIPPED) With the ignition in the ON position, the message center, located on your instrument cluster, displays important vehicle information through a constant monitor of vehicle systems. You may select display features on the message center for a display of status preceded by a brief indicator chime. The system will also notify you of potential vehicle problems with a display of system warnings followed by a long indicator chime. Note: Refer to the SETUP menu in this section to select the Single or Dual mode display in your message center.

Selectable features

Reset Press this control to select and reset functions shown in the INFO menu and SETUP menu.

Setup menu Press this control for the following displays: • System Check • Display Color • Units (English/Metric) • Display Mode • Language

50

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

System check Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for two seconds. Pressing the RESET control cycles the message center through each of the systems being monitored. The sequence of the system check report and how it appears in the message center is as follows: 1. OIL PRESSURE 2. ENGINE COOLANT TEMPERATURE 3. CHARGING SYSTEM 4. DRIVER DOOR 5. PASSENGER DOOR 6. TRUNK 7. BRAKE SYSTEM 8. ETC SYSTEM 9. SECURITY SYSTEM (if equipped) 10. TRAC CONTROL (if equipped) 11. FUEL CAP 12. FUEL LEVEL 13. MILES TO EMPTY Display color The instrument cluster gauges are backlit with white backlighting when the headlamps are off. When the headlamps are on, the user can select one of six preset colors or one user definable color (MyColor娂) for the nighttime gauge backlighting. Headlamps must be on to set up the nighttime display color. Note: A gauge in a warning condition will be lit red when the headlamps are on.

51

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Blue White Red Adjust (to define MyColor)

1. Press SETUP to get to the DISPLAY COLOR set up menu. 2. Pressing RESET will scroll through the following selectable colors: Green Purple Orange MyColor Adjusting MyColor娂: MyColor娂 is a user defined backlighting color. The backlighting colors are achieved through the blending of light from Red, Green, and Blue LEDs. Apart from the 6 preset colors, drivers can create their own color by adjusting the levels of the three primary colors through the MyColor娂 feature to achieve any of 125 different combinations. The vehicle must be stationary to enter the MyColor娂 adjust mode. To enter the MyColor娂 adjust mode, hold RESET for 3 seconds at the Adjust menu, or press SETUP to scroll though the display colors again. When in the MyColor娂 adjust mode, pressing RESET will step through the Red, Green, Blue and Exit options. Pressing SETUP will increment the proportion of the color being adjusted. Try many combinations and record your favorites. To Exit MyColor娂 adjust hold RESET for 3
seconds when prompted. Pressing RESET for less than 3 seconds will cycle back through the color components. Units (English/Metric) 1. Select this function from the SETUP menu for the current units to be displayed. 2. Press the RESET control to change from English to Metric.

Display Mode 1. Select this function from the SETUP menu to select the Display Mode. 2. Single Mode will display only the selected function. Dual Mode will display the selected function and the odometer.

52

2005 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Language 1. Select this function from the SETUP menu for the current language to be displayed.

2. Pressing the RESET control cycles the message center through each of the language choices.

3. Press and hold the RESET control to set the language choice.

Info menu This control displays the following control displays: • Odometer • Trip odometer • Distance to Empty • Average Fuel Economy • Instantaneous Fuel Economy • Fuel Used • Trip Elapsed Drive Time • Average Speed • Blank Display Odometer/Trip odometer Refer to Gauges in the Instrument Cluster chapter. Distance to empty (DTE) Selecting this function from the INFO menu estimates approximately how far you can drive with the fuel remaining in your tank under normal
