2008 Ford Mustang Owners Manual

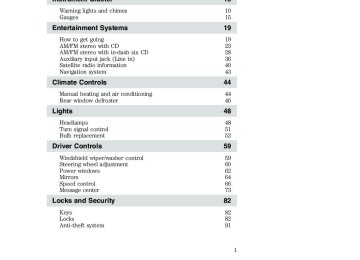

Table of Contents

10

10
15
19

19
23
28
36
40
43
44

44
46
48

48
51
52
59

59
60
62
64
66
73
82

82
82
91

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

How to get going AM/FM stereo with CD AM/FM stereo with in-dash six CD Auxiliary input jack (Line in) Satellite radio information Navigation system Climate Controls

Manual heating and air conditioning Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Message center

Locks and Security

Keys Locks Anti-theft system

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

97

97
103
118
129
144

144
146
159
164
170
172
173

173
178
180
183
190

190
191
192
192
199
205
212
213
218
220

226
227
228

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Traction Control™ Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Temporary mobility kit Lug nut torque Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only) Reporting safety defects (Canada only)

Cleaning

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Maintenance and Specifications

Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories

Index

236

238
241
246
248
254
269
271
272
275
278

280

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2007 Ford Motor Company

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate. CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage. SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Airbag supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to

follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel.

brake pedal;

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Export unique (Non–United States/Canada) vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings.

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Child Seat Lower Anchor

Brake System

Anti-Lock Brake System

Parking Brake System

Brake Fluid - Non-Petroleum Based

Parking Aid System

Stability Control System

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Service Engine Soon

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES Base instrument cluster

Optional instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

10

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Service Engine Soon: The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Service engine soon⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Service engine soon⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap (if equipped): Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Brake system warning light: To confirm the brake system warning light is functional, it will BRAKE momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

11

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

ABS

Anti-lock brake system (if equipped): If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when the ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature. Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure (if equipped): Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter.

12

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Engine coolant temperature: Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

Never remove the coolant reservoir cap while the engine is running or hot.

Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains ON at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to ON, the light will illuminate for 3 seconds to ensure the bulb is working. If the light does not turn ON, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter. Traction Control™ active: Flashes when the Traction Control™ is active. If the light remains on a malfunction has been detected; have the system serviced immediately, refer to the Driving chapter for more information. Overdrive off (automatic transmission): Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light does not illuminate, have the transmission serviced soon, or damage may occur. Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

O/D OFF

13

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Speed control (if equipped): Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.

Door/Trunk ajar (if equipped): Illuminates when the ignition is in the ON position and any door or trunk is open. Anti-theft system: Flashes when the SecuriLock™ Passive Anti-theft System has been activated.

Electronic throttle control: Illuminates when the engine has defaulted to a ⬙limp-home⬙ operation. Report the fault to a dealer at the earliest opportunity. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Daytime running lamps (DRL) (if equipped): Illuminates when the Daytime running lamps are on. Also is an indication that the tail lamps, license plate lamps, side marker lamps and parking lamps are switched OFF.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system

does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

14

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

GAUGES Base instrument cluster gauges

Optional instrument cluster gauges

15

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Refer to Message center (if equipped) in the Driver Controls chapter to select one of six preset colors or one user definable color (MyColor) for the nighttime gauge backlighting. Speedometer: Indicates the current vehicle speed. • Base instrument cluster

• Optional instrument cluster

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle. • Base instrument cluster

16

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

• Optional instrument cluster Refer to Message center in the Driver Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. • Base instrument cluster Press and release the RESET button on the cluster to toggle between odometer and trip odometer display. To reset, press and hold for less than 2 seconds. • Optional instrument cluster Press and release the message center INFO button until TRIP mode appears in the display. Press the RESET button to reset.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. • Base instrument cluster

• Optional instrument cluster

17

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Battery voltage gauge (if equipped): Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked by your authorized dealer as soon as possible. Engine oil pressure gauge (if equipped): Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct (and gauge reads no/low oil pressure....), shut down the engine immediately and contact your authorized dealer for service. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

18

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS Quick start — How to get going

Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Listening to the radio 1. If the audio system is off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2. Press AM/FM repeatedly to choose between AM/FM1/FM2
frequency bands. 3. Press up/down the frequency band.

to manually go

SEEK

to search

Press down/up the chosen frequency band for the next strongest station. To disengage SEEK mode, press

4. Once you are tuned to the desired station, press and hold a memory preset (1–6) to save the station. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six stations in each frequency band — six in AM, six in FM1 and six in FM2. To access your saved stations, press the corresponding memory preset. The memory preset # and the station frequency will appear on the display.

19

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to

SEEK, SEEK

Listening to satellite radio (if equipped) 1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2. Press AUX repeatedly to cycle through auxiliary audio sources. Select SAT1, SAT2 or SAT3 to listen to satellite radio. 3. Press access the previous or next satellite channel. You may also seek by music category. For further information, refer to CATEGORY listing under the MENU control on your specific audio system. 4. Once you are tuned to the desired channel, press and hold a memory preset (1–6) to save the channel. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six channels in each — six in SAT1, six in SAT2, and six in SAT3. To access your saved channels, press the corresponding memory preset. The memory preset # and the channel name will appear on the display. Listening to a CD/MP3 (if equipped) 1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2. Press CD to enter CD mode. If a disc is already loaded into the system, CD play will begin where it ended last.

20

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

For a single CD system, if a disc is not already loaded, insert only one, label side up into the CD slot. LOADING CD and READING DISC will appear in the display. The first track on the disc will begin playing. For an in-dash six CD system, if a disc is not already loaded, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within 5 seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to 6 discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the last loaded disc will begin to play. Note: An MP3 disc with folders will show F001 (folder #) T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 track and folder structure later in this chapter for further information. 3. In CD/MP3 mode, you can access the following features: to Press access the previous/next tracks.

SEEK, SEEK

Press and hold REW to manually reverse in a CD/MP3 track.

Press and hold FF to manually advance in a CD/MP3 track.

While in folder mode, press FOLDER to access the previous folder on MP3 discs, if available. While in folder mode, press to access the next FOLDER folder on MP3 discs, if available.

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

21

Entertainment Systems

Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display. Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder. (play/pause) when a Press CD/MP3 is playing to pause the disc. CD PAUSE will appear in the display. Press again to resume play. 4. For a single CD system, press The display will read CD EJECT. For an in-dash six CD system, press correct slot number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to 6 discs, press and hold begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs.

to eject the current disc.

and then select the

until the system

22

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

AM/FM stereo / single CD/MP3 sound system (if equipped)

Entertainment Systems

Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Tuner: Press to

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and convertible top (if equipped) may be used for up to ten minutes after the ignition switch is turned to the OFF position or until any door or trunk is opened. 1. manually go up or down the radio frequency. Also use in menu mode to select various settings. (Phone): Pressing 2. (Phone) results in “NO PHONE” message showing in display.

23

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

3. Menu: Press to cycle through the following modes:

BASS: Press Press OK to close and return to the main menu.

SEEK, SEEK

to adjust the bass setting.

TREBLE: Press setting. Press OK to close and return to the main menu.

SEEK, SEEK

to adjust the treble

BALANCE: Press between the left and right speakers. Press OK to close and return to the main menu.

to adjust the audio

SEEK, SEEK

to adjust

SEEK, SEEK

SEEK, SEEK

to adjust the audio between

FADE: Press the front and rear speakers. Press OK to close and return to the main menu. SSV (Speed sensitive volume): Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU to access and use the volume setting. The level will appear in the display. Press OK to close and return to the main menu. RBDS: Available only in FM mode. This feature allows you to search RBDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc. To activate, press MENU repeatedly until RBDS (ON/OFF) appears in to toggle RBDS ON/OFF. When RBDS is OFF, the display. Use you will not be able to search for RBDS equipped stations or view the station name or type. To search for specific RBDS music categories: When the desired category appears in the display, press then press and release or press and hold SCAN to begin the search. To view the station name or type: When the desired category appears in the display, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYZ, etc.).

to find the desired type,

24

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK, SEEK

SEEK, SEEK

to set or turn

Setting the clock: Press MENU until SELECT HOUR or SELECT to manually increase/decrease. Press MINUTE is displayed. Use MENU again to disengage clock mode. Press OK to close and return to the main menu. AUTOSET: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU to access. Use on/off. When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. You can then access the stations by pressing the memory presets. To disengage, press MENU to to turn the feature off. access and press Press OK to close and return to the main menu. TRACK/FOLDER mode: Available only on MP3 discs in CD mode. In track mode, press the disc In folder mode, press within the selected folder. Press available). Press OK to close and return to the main menu. COMPRESS (Compression): Available only in CD/MP3 mode. Press to MENU until COMPRESS ON/OFF appears in the display. Use toggle ON/OFF. When COMPRESS is ON, the system will bring the soft and loud CD passages together for a more consistent listening level. Press OK to close and return to the main menu. 4. AUX: Press to access LINE IN (Auxiliary audio mode). To return to radio mode, press AM/FM. For further information on Auxiliary audio mode, refer to Auxiliary Input Jack later in this chapter. 5. Seek: Press to access the previous ( station or CD track.

to access the previous/next folder (if

to scroll through tracks

FOLDER, FOLDER

SEEK, SEEK

SEEK, SEEK

) or next (

) strong

to scroll through all tracks on

25

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

OK(Play/Pause): This

6. control is operational in CD/MP3
mode. When a CD/MP3 is playing, press to pause or resume play. The CD status will display in the radio display. OK: Use in various menu options. 7. SHUFFLE: Press to play tracks in random order.

to access next

: In folder mode,

8. FOLDER press FOLDER folder on MP3 discs, if available. FOLDER: In folder mode, 9. press FOLDER to access the previous folder on MP3 discs, if available. 10. FF (Fast forward): Press to manually advance in a CD track.

11. REW (Rewind): Press to manually reverse in a CD track.

12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 13. TEXT/SCAN: In radio and CD mode, press and hold to hear a brief sampling of radio stations or CD tracks. Press again to stop. In CD mode, press and release to display track title, artist name, and disc title (if available). In Text mode, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK additional display text. When the “<” indicator is active, press to view the previous display text.

to view the SEEK

26

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

14. AM/FM: Press to select AM/FM frequency band.

15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 16. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 17. CD eject: Press to eject a CD.

18. CD slot: Insert a CD label side up.

27

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SHAKER 500 — Audiophile In-Dash Six CD/MP3 Sound System (if equipped)

28

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SHAKER 1000 — Audiophile In-dash Six CD/MP3 Sound System (if equipped)

29

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Tune/Disc selector:

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and convertible top (if equipped) may be used for up to ten minutes after the ignition switch is turned to the OFF position or until either door or the trunk is opened. Your vehicle may be equipped with the SHAKER 1000威 audio system. This system is equipped with a rack of amplifiers and subwoofers in the trunk of the vehicle. The SHAKER 1000威 audio system is capable of producing very high sound pressure levels. For your listening comfort and protection, it is not recommended to listen to the SHAKER 1000威 audio system at high volume levels for extended periods of time. 1. Press and release to manually advance up/down the radio frequency or to select a desired disc. Press and hold for a fast advance through radio frequencies or all loaded discs. Also use in menu mode to select various settings. In satellite radio mode, press radio channels. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 2. (Phone) results in “NO PHONE” message showing in display. 3. MENU: Press repeatedly to cycle through the following modes:

to scroll through the satellite

(Phone): Pressing

30

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu. Press • CATEGORY: Press OK to enter category mode. Press

to cycle through the following options:

to

scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.

• SAVE SONG: Press OK to save the currently playing song in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 songs. If you attempt to save a song when the system is full, the display will read REPLACE SONG? Press OK to access the saved songs and press songs. When the song appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display. • DELETE SONG: Press OK to delete a song from the system’s

to cycle through the saved

to cycle through the saved songs. When the memory. Press song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to delete the currently listed song, press RETURN or CANCEL. Note: If there are no songs presently saved, the display will read NO SONGS.

to select either

• DELETE ALL SONGS: Press OK to delete all songs from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.

31

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems • ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

to adjust the hours/minutes.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Press SHAKER (Available with the SHAKER 1000 only): Select to engage SHAKER 1000 mode. SHAKER 1000 mode enhances acoustic sound for all seating locations and increases the signal to the trunk mounted speakers and amplifiers for enhanced bass performance. Use toggle SHAKER mode on/off. Track/Folder Mode: Available only on MP3 discs in CD mode. In Track Mode, pressing will scroll through all tracks on the disc. SEEK In Folder mode, pressing will scroll only through tracks SEEK within the selected folder. COMPRESSION: Available only in CD mode, brings soft and loud CD passages together for a more consistent listening level. AUTOSET: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. You can then access the stations by pressing the memory presets. To disengage, press MENU to access and press

to turn the feature off.

to set or turn on/off.

to

BASS: Press MENU to access the bass setting. Use

to adjust.

TREB (Treble): Press MENU to reach the treble setting. Use adjust. BAL (Balance): Press MENU to reach the balance setting. Use to adjust the audio between the left (L) and right (R) speakers. FADE: Press MENU to reach the fade setting. Use audio between the back (B) and front (F) speakers.

to

to adjust the

32

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

select and optimize sound for ALL

OCCUPANCY mode: Use SEATS, DRIVERS SEAT, REAR SEATS or CONVERTIBLE (if equipped). SPEEDVOL (Speed sensitive volume): Press MENU to reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise. Use

to adjust.

The default setting is off; increasing your vehicle speed will not change the volume level. Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3; SPEED OFF turns the feature off and level 7
is the maximum setting. RBDS: Available only in FM mode. This feature allows you to search RBDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc. To activate, press MENU repeatedly until RBDS (ON/OFF) appears in to toggle RBDS ON/OFF. When RBDS is OFF, the display. Use you will not be able to search for RBDS equipped stations or view the station name or type. To search for specific RBDS music categories: When the desired category appears in the display, press then press and release or press and hold SCAN to begin the search. To view the station name or type: When the desired category appears in the display, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYZ, etc.). 4. AUX: Press to cycle through toggle between SAT1, SAT2 and SAT3 (Satellite Radio mode, if equipped) and LINE IN (Auxiliary audio mode). To return to radio mode, press AM/FM. For more information on Auxiliary audio mode, refer to Auxiliary Input Jack later in this chapter. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

to find the desired type,

33

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

5. SEEK: In radio and CD/MP3
mode, press to access the previous ) strong station or track.

) or next (

In satellite radio mode (if equipped), press to the previous/next channel. If a specific category is selected, (Jazz, to seek to the Rock, News, etc.), press previous/next channel in the selected category. Press and hold

SEEK, SEEK

SEEK

to seek

SEEK, SEEK

to fast seek through the previous /next channels.

SEEK

to view the

SEEK, SEEK

to select a category.

OK (Play/Pause): This

In TEXT MODE, press previous/additional display text. In CATEGORY MODE, press Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 6. control is operational in CD/MP3
mode. When a CD/MP3 is playing, press to pause or resume play. The CD status will display in the radio display. OK: This control is not operational. 7. SHUFFLE: Press to play the tracks in random order.

8. FOLDER: Press to access next folder on MP3 discs, if folders are available. 9. FOLDER: Press to access the previous folder on MP3 discs, if folders are available. 10. Fast forward: Press to manually advance in a CD/MP3
track. 11. Rewind: Press to manually reverse in a CD/MP3 track.

34

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

12. Memory presets: To set a station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and PRESET SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2. In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 13. TEXT/SCAN: In radio and CD/MP3 mode, press and hold to hear a brief sampling of radio stations or CD tracks. Press again to stop. In CD/MP3 mode, press and release to display track title, artist name, and disc title and file name (if available). In satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK additional display text. When the “>” indicator is active, press to view the previous display text. In satellite radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. 14. AM/FM: Press to select AM/FM1/FM2 frequency band.

to view the SEEK

15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

35

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

16. CD: Press to enter CD/MP3
mode. If a CD/MP3 is already loaded into the system, CD play will begin where it ended last. 17. LOAD: Press to begin the CD load sequence. When the radio prompts to select a slot, use the presets to select the desired slot to load the CD. If the selected slot already contains a CD, the display will read SLOT FULL. Press and hold to autoload up to 6 CDs. Load CDs one at a time when the radio prompts to load a CD. 18. CD eject: Press to begin the CD eject sequence. When the radio prompts to select a CD, use the presets to select the desired CD to eject. Press and hold to auto eject all CDs present in the system. If there is no CD present, the display will read NO CD. 19. CD slot: Insert one CD/MP3 at a time, label side up, when the system prompts to load a CD.

Auxiliary input jack (Line in) Your vehicle is equipped with an Auxiliary Input Jack (AIJ). The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. Required equipment: 1. Any portable music player designed to be used with headphones 2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end

36

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

To play your portable music player using the auxiliary input jack: 1. Begin with the vehicle parked and the radio turned off. 2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off. 3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle. 4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level. 5. Turn the portable music player on and adjust the volume to 1/2 the volume. 6. Press AUX on the vehicle radio repeatedly until LINE IN appears in the display. You should hear audio from your portable music player although it may be low. 7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls. Troubleshooting: 1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control. 2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume. 3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player. 4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.

37

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1600, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from a station, the weaker • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

the signal and the weaker the reception.

CD player care: Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

38

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service: Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician. MP3 track and folder structure Your MP3 system recognizes MP3 individual tracks and folder structure as follows: • There are two different modes for MP3 disc playback: MP3 track mode • MP3 track mode ignores any folder structure present on the MP3 disc. The player sequentially numbers each MP3 track on the disc (denoted by the .mp3 file extension) from T001 to a maximum of T255. (The maximum will vary depending on the amount of data.) • MP3 folder mode represents a folder structure consisting of one level of folders. The CD player sequentially numbers all MP3 tracks on the disc (denoted by the .mp3 extension) and all folders containing MP3
files, from 01–01 to 99–99. The first two digits denote the folder number and the last two digits denote the track number within that folder. • Creating discs with only one level of folders will help with navigation

(system default) and MP3 folder mode.

through the disc files.

39

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Sample MP3 structure If you are burning your own MP3
discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.

.mp3 .mp3

.mp3

.mp3

.mp3

.mp3 .mp3

.doc .ppt .xls

In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.

Satellite radio information (if equipped) Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474. Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna Obstructions: For optimal reception performance, keep the

antenna clear of snow and ice build-up and keep luggage and any material as far away from the antenna as possible.

40

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway

overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference. SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include: • Hardware and limited subscription term, which begins on the date of • Online media player providing access to all 65 SIRIUS music channels

sale or lease of the vehicle.

over the internet (U.S. customers only).

For information on extended subscription terms, contact SIRIUS at 1–888–539–7474. Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes. Satellite Radio Electronic Serial Number (ESN): This 12-digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously.

41

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Radio Display

Condition

ACQUIRING

SAT FAULT

Radio requires more than two seconds to produce audio for the

selected channel. Internal module or

system failure

present.

Action Required No action required. This message should

disappear shortly.

If this message does

not clear within a short period of time, or with an ignition key cycle, your receiver may have

a fault. See your

authorized dealer for

service.

INVALID CHNL

Channel no longer

This previously

available.

UNSUBSCRIBED

Subscription not available for this

channel.

available channel is no longer available. Tune to another channel. If the channel was one of your presets, you may choose another channel for that preset button.

Contact SIRIUS at 1–888–539–7474 to

subscribe to the

channel, or tune to another channel.

NO TEXT

Artist information not

available.

Artist information not available at this time on

this channel. The system is working

properly.

42

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Radio Display

Condition

NO TEXT

Song title information

not available.

NO TEXT

Category information

not available.

Action Required

Song title information not available at this time on this channel. The system is working

properly.

Category information not available at this time on this channel. The system is working

properly.

NO SIGNAL

Loss of signal from

the SIRIUS satellite or SIRIUS tower to the

vehicle antenna.

You are in a location that is blocking the SIRIUS signal (i.e., tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When you move into an open area, the signal should

return.

UPDATING

CALL SIRIUS 1–888–539–7474

Update of channel programming in

No action required. The process could take up

progress.

Satellite service has been deactivated by

SIRIUS Satellite

Radio.

to three minutes.

Call SIRIUS at

1–888–539–7474 to re-activate or resolve subscription issues.

Navigation system (if equipped) Your vehicle may be equipped with a Navigation System. Refer to the Navigation supplement for further information. Note: Before loading the MAP DVD, ensure that the vehicle is in N (Neutral), with the parking brake applied and your hands are off the gearshift lever.

43

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM 1. Temperature selection: Controls the temperature of the airflow in the vehicle. 2. Mode selections: Controls the location of the airflow in the vehicle. See the following for a brief description of each selection.

MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.

: Distributes air through the

instrument panel vents.

: Distributes air through the instrument panel vents and the floor

vents. O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes air through the floor vents.

: Distributes air through the

windshield defroster vents and floor vents.

: Distributes air through the

Recirculation control:

windshield defroster vents. Can be used to clear the windshield of fog and thin ice. 3. Press to activate/deactivate air recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired exterior odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other mode selection except Recirculation may turn off automatically in all airflow selections except MAX A/C.

(defrost).

44

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

Driver heated seat: Press to activate or deactivate the driver

Passenger heated seat: Press to activate or deactivate the 4. passenger side heated seat. The passenger heated seat will turn off automatically after 10 minutes of use. 5. R Rear defroster: Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this section for more information. 6. side heated seat. The driver heated seat will turn off automatically after 10 minutes of use. 7. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance. Engages automatically in MAX A/C, 8. Fan speed adjustment: Controls the volume of air circulated in the vehicle.

(floor/defrost).

(defrost) and

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the

the air flow selector in the

(defrost) position.

airflow selector in the O (OFF) position or with recirculated air engaged.

airflow to the back seats.

• Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.”

the windshield.

For maximum cooling performance in MAX A/C mode: 1. Move temperature control to the coolest setting. 2. Set the fan to the highest speed initially, then adjust to maintain comfort.

45

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

For maximum cooling performance in panel or panel/floor modes: 1. Move temperature control to the coolest setting. ) to provide colder airflow. 2. Select A/C and recirculated air ( 3. Set the fan to the highest speed initially, then adjust to maintain comfort. To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Adjust the temperature control to maintain comfort. 4. Set the fan speed to the highest setting. 5. Direct the outer instrument panel vents towards the side windows. 6. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER (R Ensure that the ignition is in the 3 (ON) position. Press the control to clear the rear window of thin ice and fog. The LED will illuminate. The rear window defroster turns off automatically after 15 minutes, or when the ignition is turned to the 1 (OFF/LOCK) position. To manually turn off the defroster before 15 minutes have passed, push the control again. Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

46

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

CABIN AIR FILTER Your vehicle is equipped with a cabin air filter, which is located just in front of the windshield under the cowl grille on the passenger side of the vehicle. The particulate air filtration system is designed to reduce the concentration of airborne particles such as dust, spores and pollen in the air being supplied to the interior of the vehicle. The particulate filtration system gives the following benefits to customers: • Improves the customer’s driving comfort by reducing particle • Improves the interior compartment cleanliness • Protects the climate control components from particle deposits For more information regarding the interval at which you should replace the cabin air filter, refer to your scheduled maintenance information. For additional cabin air filter information, or to replace the filter, see an authorized dealer.

concentration

47

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Fog lamp control (if equipped) The fog lamps can be turned on when the ignition is in the ON position, the headlamp control is in the high beams are not on. Pull the headlamp control towards you to turn on the fog lamps. The indicator light under the fog lamp symbol will illuminate.

position and the

or

High beams Pull the lever towards you, to the second detent, to activate. Pull the lever towards you again to deactivate. Note: Vehicles equipped with HID headlamps will hear an audible click when activating this feature.

48

2008 05+ Mustang (197) Owners Guide (post-2002-fmt) USA (fus)

Lights

Flash to pass Pull toward you, to the first detent, to activate and release to deactivate. Note: Vehicles equipped with HID headlamps will hear an audible click
