2006 Ford Expedition Owners Manual

Download PDF Manual

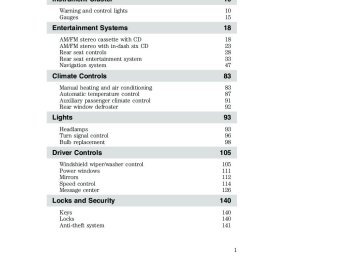

Table of Contents 10 10 15 18 18 23 28 33 47 83 83 87 91 92 93 93 96 98 105 105 111 112 114 126 140 140 140 141 Introduction Instrument Cluster Warning and control lights Gauges Entertainment Systems AM/FM stereo cassette with CD AM/FM stereo with in-dash six CD Rear seat controls Rear seat entertainment system Navigation system Climate Controls Manual heating and air conditioning Automatic temperature control Auxiliary passenger climate control Rear window defroster Lights Headlamps Turn signal control Bulb replacement Driver Controls Windshield wiper/washer control Power windows Mirrors Speed control Message center Locks and Security Keys Locks Anti-theft system 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) 153 153 169 182 189 204 206 208 221 227 234 240 242 242 246 252 255 272 272 274 274 276 285 293 293 299 301 307 308 Table of Contents Seating and Safety Restraints Seating Safety restraints Airbags Child restraints Tires, Wheels and Loading Tire Information Tire Inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing Driving Starting Brakes Air suspension Transmission operation Roadside Emergencies Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug Nut Torque Jump starting Wrecker towing Customer Assistance Reporting safety defects (U.S. only) Cleaning 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Maintenance and Specifications Engine compartment Engine oil Battery Engine Coolant Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications Accessories Index Table of Contents 316 318 321 324 326 332 346 348 349 352 359 361 All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 2005 Ford Motor Company 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Introduction CALIFORNIA Proposition 65 Warning WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle. Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter. SAFETY AND ENVIRONMENT PROTECTION Warning symbols in this guide How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed. 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Introduction Warning symbols on your vehicle When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. Additionally, during the first 500 miles (800 km) that you tow a trailer, do not drive over 70 mph (112 km/h) and do not make starts at full throttle. This style of driving will help the engine and other parts of your vehicle break in at the heavier loads. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage. SPECIAL NOTICES New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide. Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls. 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Introduction Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury. Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag. Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package. brake pedal; 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Introduction Notice to owners of pickup trucks and utility type vehicles Utility vehicles have a significantly higher rollover rate than other types of vehicles. Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off road in the Driving chapter. Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios. A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment. Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings. 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Airbag - Front Airbag - Side Child Seat Child Seat Installation Warning Child Seat Tether Anchor Anti-Lock Brake System Child Seat Lower Anchor Brake System Brake Fluid - Non-Petroleum Based Powertrain Malfunction Speed Control Master Lighting Switch Hazard Warning Flasher Fog Lamps-Front Fuse Compartment Fuel Pump Reset Windshield Wash/Wipe Windshield Defrost/Demist Rear Window Defrost/Demist 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Introduction Vehicle Symbol Glossary Power Windows Front/Rear Child Safety Door Lock/Unlock Power Window Lockout Interior Luggage Compartment Release Symbol Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, or Sparks Battery Acid Explosive Gas Fan Warning Power Steering Fluid Maintain Correct Fluid Level MAX MIN Emission System Engine Air Filter Passenger Compartment Air Filter Jack Check Fuel Cap Low Tire Pressure Warning 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Instrument Cluster WARNING LIGHTS AND CHIMES Standard instrument cluster Optional instrument cluster Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid 10 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Instrument Cluster heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer. Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire. Electronic throttle control (if equipped): Illuminates when the engine has defaulted to a ’limp-home’ operation. Report the fault to a dealer at the earliest opportunity. On vehicles equipped with a message center, “ENGINE FAILSAFE MODE” or “CHECK ELECTRONIC THROTTLE CONTROL” will be displayed, refer to Message Center in the Driver Controls chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer. BRAKE Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. ABS 11 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Instrument Cluster Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt. Charging system: Illuminates when the battery is not charging properly. is high. CHECK GAGE Check gage: Illuminates when any of the following conditions has occurred: • The engine coolant temperature • The engine oil pressure is low. Low tire pressure warning (if equipped with the Tire Pressure Monitoring System): Illuminates when your tire pressure is low. If the light remains ON at start up or while driving, the tire pressure should be checked. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to ON, the light will illuminate for 3 seconds to ensure the bulb is working. If the light does not turn ON or begins to flash, have the system inspected by your authorized dealer. For more information on this system, refer to Understanding Your Tire Pressure Monitoring System in the Tires, Wheels and Loading chapter. Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter). 12 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Instrument Cluster Check fuel cap (if equipped): Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Low washer fluid (if equipped): Illuminates when the windshield washer fluid is low. Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated. O/D OFF O/D off: Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light does not illuminate, have the transmission serviced soon, or damage may occur. AdvanceTrac威(if equipped): Illuminates when the AdvanceTrac威 with RSC system is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. Four wheel drive low (if equipped): Illuminates when four-wheel drive low is engaged. If the light fails to illuminate when the ignition is turned ON, or remains on, have the system serviced immediately by your authorized dealer. 4x4 LOW 13 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Instrument Cluster 4x4 HIGH Four wheel drive high (if equipped): Illuminates when four-wheel drive is engaged. If the light fails to illuminate when the ignition is turned ON, or remains on, have the system serviced immediately by your authorized dealer. Door ajar (if equipped): Illuminates when the ignition is in the ON position and any door, liftgate or the liftgate glass is open. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on. Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Door ajar warning chime: Sounds when any door, liftgate or the liftgate glass is opened (or not fully closed). 14 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) GAUGES Instrument Cluster Speedometer: Indicates the current vehicle speed. Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool. Never remove the coolant reservoir cap while the engine is running or hot. 15 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Instrument Cluster Odometer: Registers the total miles (kilometers) of the vehicle. • With Mini Message Center • With Full Message Center Refer to Message Center in the Driver Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. • With Mini Message Center Press the SELECT/RESET control once to switch from the odometer to the trip odometer. Press the control again to select Trip 1 and Trip 2 features. To reset the trip, press and hold the control again until the trip reading is 0.0 miles. • With Full Message Center Press and release the message center INFO button until TRIP mode appears in the display. Press the control again to select Trip 1 and Trip 2 features. Press the RESET button to reset. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. 16 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Instrument Cluster Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked by your authorized dealer as soon as possible. Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your authorized dealer. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. The FUEL icon and arrow indicates which side of the vehicle the fuel door is located. 17 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems AUDIO SYSTEMS Premium Satellite Compatible AM/FM Stereo/Cassette/Single CD/MP3 radio (if equipped) 1. EJ (Eject): Press to stop and eject a tape. 2. EJ (Eject): Press to stop and eject a CD. 3. BASS: Allows you to increase or decrease the audio system’s bass output. Press BASS then press or TEXT/SEL to decrease increase TREB (Treble): Allows you to increase or decrease the audio system’s treble output. Press TREB then press TEXT/SEL to or increase decrease the bass levels. the treble levels. 18 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) . or right 4. BAL (Balance): Allows you to shift speaker sound between the right and left speakers. Press BAL then press TEXT/SEL to shift sound to the left FADE: Allows you to shift speaker sound between the front and rear speakers. Press FADE then press TEXT/SEL to shift the sound to the rear 5. SHUF (Shuffle): Press to play CD/MP3 tracks in random order. Press again to deactivate random play. RPT (Repeat): Press to repeat the current CD/MP3 track. or the front Entertainment Systems SHUF RPT SHUF RPT 6. Memory preset stations: To set a memory preset station, tune the radio to the desired station, then press and hold the memory preset control until the sound returns. 7. TEXT/SEL: Select: Use to adjust bass, treble, balance and fade levels. TEXT: TEXT is available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your authorized dealer. Detailed Satellite instructions are included with the dealer installed kit. TEXT is also available with ID3 tags on MP3 files. Dealer installed satellite kit only available in the continental United States. 8. Folder: Press to reverse ( advance ( ) MP3 folders. ) or 9. REW (Rewind): Works in tape and CD modes. In tape mode, radio play continues until rewind is stopped (by pressing REW again) or the beginning of the tape is reached. In CD mode, REW control reverses the CD within the current track. 19 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems FF (Fast Forward): Works in tape and CD modes. In the tape mode, tape direction automatically reverses when the end of the tape is reached. Fast forward is stopped by pressing FF again. In CD mode, FF advances the CD within the current track. 10. AUX: Press to toggle between the current playing media and DVD (if equipped). SCAN: Press for a brief sampling of radio stations, tape selections or CD tracks. Press again to deactivate scan mode. 11. Phone/MUTE: Press to mute the playing media. Press again to return to the playing media. 12. MENU: Press to access the following options: • AUTOSET: Press MENU until AUTOSET is displayed. Press TEXT/SEL to turn this function on or off. AUTOSET allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. • Speed sensitive volume (if equipped): Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. To engage the speed sensitive volume feature, press MENU until speed VOL X appears in the display. Press TEXT/SEL to increase ( compensation levels. The selected level will appear in the display. • Setting the clock: Press MENU until SELECT HOUR or SELECT ). ) or decrease ( • Compression: In CD/MP3 modes, select to bring loud and soft MINS is displayed. Press SEL to increase ( ) decrease ( ) volume passages together for a more consistent listening level. 20 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems • Folder/Track mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within the selected folder are accessible) or TRACK (all tracks on the disc are accessible). ) or next ( 13. TUNE/CAT: In radio mode, press to manually advance up/down the frequency band. In satellite radio mode, press CAT for a listing of available music categories. CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your authorized dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com 14. SEEK: Works in radio, tape and CD modes. Press to access the previous ( listenable radio station, tape selection or CD track. 15. BAND: Press to toggle between AM/FM1/FM2 frequency bands. Press while in tape or CD mode to return to radio mode. CD: Press CD to enter CD mode and to play a CD already in the system. 16. Power/volume: Press to turn the system on/off. Turn to raise/lower the volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. Audio power can also be turned on by pressing BAND or the TAPE or CD controls. 21 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems 17. TAPE: Press to begin tape play. Press to switch tape side (1 to 2) or (2 to 1). 18. CD slot: Insert the disc with the playing side down and printed side up. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. 19. Tape door: Insert the tape facing the right. The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby威 Laboratories Licensing Corporation. 22 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Audiophile/Premium Satellite Compatible AM/FM Stereo In-Dash Six CD/MP3 Radio (if equipped) for previous/next 1. SEEK: Press and release SEEK strong station or track. 2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll all of the text in the current field before changing to the next field. (TEXT must be pressed within 3 seconds of the previous button press to proceed to the next/last text display.) TEXT is available when equipped with Satellite radio or with ID3 tags on MP3 files. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your authorized dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. 23 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems 3. AUX: Press to toggle between the current playing media and DVD (if equipped). 4. MUTE: Press to MUTE playing media; press again to return to playing media 5. EJ: Press to eject a CD. Press EJ and a memory preset to eject a specific disc. Press and hold to eject all loaded discs. 6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output. to decrease/increase to decrease/increase to shift sound to the 7. Select: Use with Bass, Treble, Balance and Fade controls to adjust levels, set the clock and other menu functions. 8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers. Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press and hold MENU to access RDS on/off, Traffic announcement mode, Program type mode and use SEL to toggle functions ON/OFF. The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. 24 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Traffic (if equipped): Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data).Traffic information is not available in most U.S. markets. FIND Program type (if equipped): Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Show TYPE (if equipped): Displays the station’s call letters and format. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed. Occupancy mode (if equipped): Press SEL to select ALL, DRIVER or REAR SEAT occupancy mode. Folder/Track Mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on the disc are accessible). Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press again to disengage. Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU until SPEED VOL X appears in the display. Then press SEL to increase ( appear in the display. Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase ( ) or decrease ) the hours/minutes. Press MENU again to disengage clock mode. ) the volume setting. The level will ) or decrease ( 25 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems 10. REPEAT: Press to repeat the current CD/MP3 track. 11. SHUFFLE: Press play the CD/MP3 tracks on the current disc in random order. 12. FOLDER the next MP3 directory. : Press to access 13. FOLDER the previous MP3 directory : Press to access 14. FF(Fast forward): In CD mode, press until desired selection is reached. 15. REW(Rewind): In CD mode, press until desired selection is reached. 16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your authorized dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. 17. BAND: Press to toggle between AM/FM1/FM2 frequency band. 18. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels. 26 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems 20. Load: Press to load a CD. Press and hold to load up to six discs. 21. CD: Press to enter CD mode. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. 22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop. 23. Disc/Tune: Press to or manually tune down/up the radio frequency band, or to listen to the previous/next CD. CAT: CAT is only available when equipped with Satellite Radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your authorized dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com 27 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Rear seat radio controls (if equipped) If your vehicle is equipped with a front row console, then it is also equipped with rear seat radio controls. - VOLUME + MODE SEEK MEMORY If your vehicle is equipped with the Vehicle Navigation Radio, then it may also be equipped with rear seat radio controls. This feature allows front and middle seat passengers to listen to different media sources (radio, cassette, CD or DVD) simultaneously. (However, the front and middle-seat passengers cannot listen to two different radio stations at the same time.) When the rear seat controls are activated, rear seat passengers can use the controls to change the playing media for all passengers (Single Play mode). In this mode, all speakers will play audio from the same media source for all passengers to hear. To activate the rear seat radio controls: • Press the memory preset controls 3 and 5 at the same time. A headphone icon in the radio display, indicating the rear seat radio controls are active. • Press memory preset controls 3 and 5 a second time to deactivate the will illuminate rear seat controls. The headphone icon display. will turn off in the radio If there is a discrepancy between the rear seat controls and the front audio controls (such as both trying to listen to the same playing media), the front audio system will receive the desired selection. 28 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems - VOLUME + MODE SEEK MEMORY To activate Dual Play mode (rear seat passengers listen to a different playing media than the front seat passengers): • Press the speaker/headphone • Press the MODE control to change audio sources (for headphone mode only) control. • Use the SEEK, VOLUME and • Dual Play mode may also be activated by pressing memory presets 2 and 4 simultaneously on the front audio controls. MEMORY/MEM controls to make adjustments to the playing media. The rear speakers mute and rear seat passengers have audio (for their selected media) available through their headphones. To adjust the volume The volume control allows the rear seat passengers to adjust the volume level of the audio system. Press the + control to increase volume. Press the - control to decrease volume. - VOLUME + MODE SEEK MEMORY From the rear seat controls, volume control can be set no higher than the current radio setting unless the speakers are turned off. 29 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Turning the rear speakers on and off Press the headphone/speaker control to turn the rear speakers on (Single Play mode) or off (Dual Play mode). - VOLUME + MODE SEEK MEMORY jack. Press the Using headphones/Dual Play mode Plug a 3.5 mm headphone (not included) into the speaker on/off control to operate the headphones. DUAL PLAY illuminates in the radio display and the fade control is disabled, signaling that Dual Play has been activated. The rear speakers will cut out once the speaker on/off control is pressed. The front speaker will remain playing for the front passengers. Press the control again to deactivate the headphones. SINGLE PLAY illuminates in the radio display and the fade control is enabled, signaling that Dual Play mode has been deactivated. To enable Dual Play, the rear seat controls must be active and Mode select Push the MODE control to toggle between AM, FM1, FM2, tape (if equipped), CD, CD changer (if equipped) or DVD (if equipped). If in Dual Play mode, SHARED illuminates in the radio display when the front and rear modes are set to the same media. illuminated in the radio display. - VOLUME + MEMORY MODE SEEK 30 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems - VOLUME + MODE SEEK MEMORY - VOLUME + MODE SEEK MEMORY Memory preset control Push the MEMORY/MEM control successively to allow rear seat passengers to scroll through the 6 memory presets in AM, FM1 or FM2. Push the MEMORY/MEM control in CD mode (if equipped) to advance to the next disc. Seek function • In radio mode, press to find the next listenable station down the frequency band. • In radio mode, press to find the next listenable station up the frequency band. • In tape mode (if equipped), use the SEEK function to access the next selection. or previous • In CD mode (if equipped), use the SEEK function to access the next or previous selection. Parental control Press the memory preset controls 3 and 5 simultaneously on the front audio controls to disable the rear seat controls. They will remain disabled until the front seat passengers “enable” them again by simultaneously pressing the 3 and 5 preset controls. The settings of the front seat controls will always override those of the rear seat controls. 31 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from a station, the weaker • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed. the signal and the weaker the reception. Cassette/player care: Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after cold to reach a moderate temperature before playing. and turning the hub. 10–12 hours of play to maintain good sound/operation. Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being played. CD/CD player care: Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner and wipe from the center out. Don’t: 32 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) of time. Entertainment Systems • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service: Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician. Whenever a warning is received, the radio volume will be lowered to a volume that will allow the tones to be heard. The radio volume will return to the previous level after the warning goes away. REAR SEAT ENTERTAINMENT DVD SYSTEM (IF EQUIPPED) Your vehicle may be equipped with a Family Entertainment DVD System which allows you to play commercial DVDs, CDs and also most CD R/W, DVD R/W, VCD, and MP3 media. You can also plug in and play auxiliary media devices such as video game systems and MP3 players. Please review this material to become familiar with the Family Entertainment System (FES) features and safety information. 33 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems DVD player controls on the DVD, or to go up in cursor mode. 1. MAIN control • NEXT — Press to access the next track on the CD, the next chapter • PREV — Press to access the previous track on the CD, the previous • REV — Press to reverse in CD and DVD play modes or to move the • FWD —Press to advance in CD and DVD play modes or to move the chapter on the DVD, or to go down in cursor mode. cursor left in the menu active mode. cursor right in the menu active mode. 2. PLAY/PAUSE control Press to playback or pause the DVD. 3. DIM control Adjust to increase (+) or decrease (-) the amount of brightness on the screen. 4. ENTER control Press to select the function pointed to within the active menu. May also be used by some user interactive discs during movie play. 5. MENU control Press to bring up the disc menu. 6. AUX control Press to switch DVD player from play mode to auxiliary mode. 34 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems 7. Auxiliary jacks Input jacks for standard video/audio media device. 8. STOP/EJECT control Press once to stop DVD play. Press again to eject the DVD. 9. DISPLAY (DISP) control Press to enable on screen display of player menu and user display adjustments. DVD control features Menu control Press the MENU control to enter into MENU mode. This allows you to move and choose within the DVD generated menu structure. Once in MENU mode: • Press the NEXT control to move the cursor one position upward • Press the PREV control to move the cursor one position downward • Press the REV control to move the cursor left one position 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) REV NEXT PREV FWD REV NEXT PREV FWD REV NEXT PREV FWD 35 Entertainment Systems • Press the FWD control to move the cursor right one position REV NEXT PREV FWD REV FWD NEXT PREV Next/Previous control The NEXT (up) and PREV (down) controls allow you to access the next or previous track on a CD or chapter on a DVD. When pressed, the playing audio will mute momentarily while the next chapter is accessed. Press and hold to advance or reverse multiple tracks or chapters. REV/FWD control Press the REV/FWD control during playback mode to reverse or advance at a normal speed. Press the REV/FWD control again to disengage the reverse/advance action and return to normal playback mode Enter control The ENTER control allows you to select items when in MENU mode. Press the ENTER control to select the desired highlighted item. CD play mode Press NEXT during CD play to advance to the next track. If you press NEXT during the last track, the system will wrap around to the first track and begin play. ENTER PREV PREV NEXT NEXT FWD FWD REV REV Slow play mode To enter slow play mode, press the PLAY/PAUSE control. Once the system is in pause mode, press the 36 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems DISP FWD or REV control for slow motion playback. Three different speeds are available depending on how long the control is held. Press the control once for slow motion playback. Press the control again to disengage slow motion playback. Press the PLAY/PAUSE control to return to normal playback mode. User menu mode To adjust the display setting, press DISP once and the current display setting will appear on the screen along with the current media status. Pressing DISP again will toggle the display setting through the next available display settings. (Available screen selections are 4x3, ZOOM, and 16x9.) The setting will disappear after approximately three seconds, but the title bar and audio setting will remain on the screen until DISP is pressed again. The DVD player will read the disc type and configure the display accordingly. Some movies have a wide screen movie format to fit a normal 4x3 screen. In this case, the movie will have black bars on the top and bottom or left and right of the image on the screen. When shown on the screen, it may appear as a small screen within the wide screen. It may be desirable to view this type of movie in ZOOM mode. To enter ZOOM mode, press DISP once for the current display setting and press DISP again within three seconds to change the display setting to the desired display setting. 37 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Remote control FWD SEEK REV VOL DISP MNU ENT MODE MEMORY 1. REWIND control Press to reverse the direction of the DVD movie. 2. FAST FORWARD control Press to advance the direction of the DVD movie. 3. PLAY/STOP control Press to play or stop the DVD movie. 4. SEEK control Press to reverse or advance the chapter of the DVD or the track of the CD. 5. DISPLAY (DISP) control Press to enable on screen display of player menu and user display adjustments. Once the display is on, use SEEK to choose the desired screen setting. 6. ENTER (ENT) MEMORY control In DVD playback mode, press the control to select a designated item in menu mode. In stop mode, press the control to select the next radio memory preset. 38 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems 7. MNU/MODE control In DVD playback mode, press to access the disc menu. In stop mode, press to change to a different playing media (e.g. AM, FM, CD . . . ) 8. VOLUME control Press to increase (+) or decrease (-) volume level. Battery replacement Batteries are supplied with the remote control unit. Since all batteries have a limited shelf life, replace them when the unit fails to control the DVD player. There is a LED indicator light on the remote control that will illuminate when any control is pressed. Slide the battery cover off as shown on the remote control to access the batteries. The remote control unit uses two AAA batteries. Parental control To enable or disable your Rear Seat Entertainment DVD System, simultaneously press the memory preset controls 3 and 5 on the radio face. For further information about the Rear Seat Controls, refer to Rear Seat Controls section in this chapter. 39 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Wireless headphones Your system is equipped with 2 sets of wireless headphones. (Two AAA batteries are needed to operate the headphones.) Batteries are included. To install the batteries, lightly press down on the top of the left earpiece and slide the cover off. When replacing the batteries, use two new batteries (alkaline recommended) and install them with the correct (+) and (-) orientation. N O Note: Additional 1.9-2.3mhz infrared wireless headphones may be purchased by contacting your local dealer or retailer. Wireless headphone operation To operate the headphones: • Press the ON/OFF button on the left-hand earpiece. The LED light on the right-hand earpiece will illuminate. Press again to turn off. • Adjust the headphones to comfortably fit your head. • Adjust the volume control to a comfortable listening level. O N O F Note: The volume level of the wireless headphones can only be controlled by the thumbwheel. Neither the remote control nor the rear seat controls will affect the volume output of the wireless headphones. 40 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems When not using the headphones, shut them off to preserve battery power. The headphones will automatically turn off after five minutes if they have not received an infrared audio signal from the overhead pod. Ensure that the line of sight between the headphone and infrared transmitter (mounted on the DVD housing) is not obstructed. Liquid Crystal Display (LCD) flip-down screen VOL The screen rotates down to view and into the housing to store when not in use. Be sure the screen is latched into the housing when being stored. 1. 7.0” (diagonal) active matrix liquid crystal display (LCD) screen. 2. Screen housing. 3. Dimmer switch. Press +/- to increase/decrease the brightness of the screen. 41 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Playback and format • The DVD player of your Rear Seat Entertainment DVD System can only be used in the “playback” mode. (The DVD player does not offer a record feature.) • The system plays commercial CDs, DVDs and also plays most CD R/W, DVD R/W, VCD and MP3 media. 255 files. Discs containing more than 255 files will not play. Saving MP3 files • Your Family Entertainment System supports discs containing up to • Always save MP3 files with the .mp3 extension. The player recognizes an MP3 file by the .mp3 extension, so MP3 files saved with different extensions will not be played. Never save a non-MP3 file with the .mp3 extension as the file will not play properly. • The player supports multi session discs. However, be sure to import the previous session of the disc before you add new files. If you do not import the previous session, only the last session will be played. • When burning a disc, ensure that you close/finalize the disc before playback, or the disc may not play properly or an error message may appear. • Some CD-RW discs may operate inconsistently and may cause an error message to appear. We recommend burning MP3 files onto CD-R discs. Rear Seat Entertainment DVD System protection circuits High temperature sensor circuit • Excessively high temperatures may cause damage to the DVD player. • When the temperature of the DVD player becomes too hot, the high temperature sensor circuit stops machine operation. DVD/CD HOT will illuminate in the radio display. • The DVD player will remain inactive until it cools to a normal operating temperature. Length of time to cool will vary depending on conditions. it will run the battery down. General operating tips • When the engine is not running, use the system sparingly. Otherwise, • When the ignition is turned to OFF, the Rear Seat Entertainment DVD System is also turned OFF. When the ignition is turned ON, the system will begin playback from the last selected media source when the play control is pressed. 42 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems • To disable the DVD player, simultaneously press the 3 and 5 memory presets on the radio face. To enable the DVD player again, press the 3 and 5 presets simultaneously. • The DVD player is only capable of reading the bottom side of a disc. When inserting a single sided disc, the label should be up. For a multi-sided disc, the desired play side should be down when the disc is inserted into the player. • The DVD player is capable of playback of DVDs, DVDR/RW, CDs, • DVDs are formatted by regions. This DVD system can only play region CDR/RW and MP3s. 1 DVDs (DVDs manufactured for U.S. and Canada). This unit is designed to play commercially pressed 4.75 in (12 cm) audio compact discs and DVDs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford DVD/CD players. Irregular shaped discs, discs with a scratch protection film attached, and discs with homemade paper (adhesive) labels should not be inserted into the player. The label may peel and cause the disc to become jammed. It is recommended that homemade discs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage discs. Please contact your dealer for further information. Inserting a CD/DVD Partially insert the CD/DVD into the slot and the system will fully pull in the disc. Inserting the disc too far could cause the disc to jam in the system. Inserting a CD/DVD into the DVD player automatically turns the power ON and playback should begin. The counter is automatically reset to 0:00:00. Removing a CD/DVD 1. Press the STOP/EJECT control to stop playback. 2. Press the STOP/EJECT control again to eject the CD/DVD. If the CD/DVD is not removed within the allotted time, the system will pull the CD/DVD back into the system for safety purposes. If the CD/DVD will not eject from the system, press and hold the EJECT control for approximately 2 seconds. The disc should eject whether the vehicle ignition is ON or OFF. 43 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Playing an auxiliary device 1. Connect the video line from your video device to the YELLOW auxiliary input jack. 2. Connect the left and right audio lines to the WHITE and RED auxiliary input jacks respectively. 3. Press the MODE control until DVD/CD AUX (no disc in player) or DVD/CD play (disc in player) illuminates in the radio display. If a disc is in the system, playback should begin. To enable the aux inputs, press the STOP control or press the AUX control on the DVD player. On-screen indicators Each time a control is pressed, the operational status of the DVD player is shown on the screen. The following are some possible indicators: 1. DVD/ CD STATUS (PLAY/FWD/REV/PAUSE) 2. CD track number / DVD title 3. DVD chapter number 4. MEDIA COUNTER — displays current viewing time of desired media. (HOURS:MINUTES:SECONDS) 5. Viewing angle (of picture) - Adjustable with cursor controls and ENTER control. 6. Subtitles (specific language type - English, Spanish or French, dependent on disc capability and ON/OFF selection.) 7. AUDIO OUTPUT (not changeable) 8. AUDIO VERSION — (01 ENG., etc.) 44 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems 9. DISPLAY SETTING (4x3, Zoom, 16x9) 10. STATUS ICON (FWD, x4, x8, x32, REV, x4, x8, x32, etc.) Safety information Read all of the safety and operating instructions before operating the system and retain for future reference. Do not attempt to service, repair or modify the Rear Seat Entertainment DVD System. See your Ford or Lincoln Mercury dealer. Do not insert foreign objects into the DVD compartment. The front glass on the liquid crystal display (LCD) flip-down screen may break when hit with a hard surface. If the glass breaks, do not touch the liquid crystalline material. In case of contact with skin, wash immediately with soap and water. Do not expose the liquid crystal display (LCD) flip-down screen to direct sunlight or intensive ultraviolet rays for extensive periods of time. Ultraviolet rays deteriorate the liquid crystal. Be sure to review user manuals for video games and video game equipment when used as auxiliary inputs for your Rear Seat Entertainment DVD System. Do not operate video games or video equipment if the power cords and/or cables are broken, split or damaged. Carefully place cords and/or cables where they will not be stepped on or interfere with the operation of seats and/or compartments. Disconnect video games and video equipment power cords and/or cables when not in use. Avoid touching auxiliary input jacks with your fingers. Do not blow on them or allow them to get wet or dirty. Do not clean any part of the DVD player with benzene, paint thinner or any other solvent. Whenever a warning is received, the radio volume will be lowered to a volume that will allow the tones to be heard. The radio volume will return to the previous level after the warning goes away. 45 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Federal Communication Commission (FCC) Compliance Changes or modifications not approved by Ford Motor Company could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help. Care and service of the DVD player Environmental extremes DVD players that are subjected to harsh environmental conditions may be damaged or perform at less than maximum capability. To avoid these outcomes, whenever possible avoid exposing your DVD player to: • extremely hot or cold temperatures. • direct sunlight. • high humidity. • a dusty environment. • locations where strong magnetic fields are generated. Temperature extremes When the vehicle is parked under direct sunlight or in an extremely cold place for a long period of time, wait until the cabin temperature of the vehicle is at normal temperature before operating the system. Humidity and moisture condensation Moisture in the air will condense in the DVD player under extremely humid conditions or when moving from a cold place to a warm one. If moisture condensation occurs, do not insert a CD or DVD into the player. If one is already in the player, remove it. Turn the DVD player ON to dry the moisture before inserting a DVD. This could take an hour or more. 46 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Cleaning the liquid crystal display (LCD) flip-down screen Clean the display screen by applying a small amount of water or any ammonia-based household glass cleaner directly to a soft cloth. Rub the screen gently until the dust, dirt or fingerprints are removed. Do not spray the screen directly with water or glass cleaning solvents. Overspray from these fluids could drip down into the internal electronics of the screen and cause damage. Do not apply excessive pressure while cleaning the screen. Foreign substances Exercise care to prevent dirt and foreign objects from entering the DVD player compartment. If liquid is accidentally spilled onto the system, immediately turn the system OFF and consult a qualified service technician. Cleaning CDs and DVDs Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion. Cleaning the DVD player exterior Clean the exterior of the DVD player with a damp cloth. Do not use CD cleaning kits or CDs intended to clean the interior of your DVD player. Use of these products may damage your system. VEHICLE NAVIGATION RADIO (VNR IF EQUIPPED) Your vehicle may be equipped with a Vehicle Navigation Radio (VNR) which allows you to listen to the radio, play CDs and also navigate the vehicle using navigation CDs. Your Vehicle Navigation Radio is equipped with many different features and controls. The labeled controls on the front face of the system (which are called out below) are known as hard keys. The five blank controls located under the MENU control are called soft keys. These controls are labeled on the screen and can change functionality depending on which screen is activated in the display. The hard keys will be explained further below and the soft keys will be described as needed. Safety information Please read and follow all stated safety precautions. Failure to do so may increase your risk of collision and personal injury. 47 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Ford Motor Company shall not be liable for any damages of any type arising from failure to follow these guidelines. Do not attempt to service, repair or modify the system. See your Ford or Lincoln Mercury dealer. The driver must not attempt to operate any detailed operation of the navigation system while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road and park in a safe place before performing detailed operations. A safety screen will be displayed each time the navigation system is turned on as a reminder. Ensure that you are familiar with the system’s features and functionality, including the following: updating. • Do not turn the ignition key or start the engine while the software is • Do not apply pressure to the display screen. • The navigation system is not a substitute for your personal judgement. • Route suggestions should not supersede local traffic regulations or • Do not follow route suggestions if they direct you to perform an safe driving practices. unsafe or illegal maneuver, would place you in an unsafe situation, or would route you into an area that you consider unsafe. • Drivers should not rely on screen displays while their vehicle is in motion. Let the voice guide you. If viewing is necessary, pull off the road to a safe location. • Do not use the navigation system to locate emergency services. • For road safety reasons, the driver should program the system only when the vehicle is stationary. Certain functions will therefore not operate while the vehicle is in motion. • The navigation CD does not reflect road detours, closures or construction, road characteristics such as rough road surface, slope or grade, weight or height restrictions, traffic congestion, weather or similar conditions. 48 2006 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems • To use the system as effectively and safely as possible, obtain up-to-date navigation CD’s whenever they become available. • Set the volume level so that you can hear directions clearly. • Do not disassemble or modify the system as this may lead to damage and void your warranty. If a problem occurs, stop using the system immediately and contact your Ford or Lincoln Mercury dealer. System overview 13 14 15 16 H E R E M E N U 12 11 10 PUSH ON A M / F M H O M E N A V B A C K M A P S E E K
