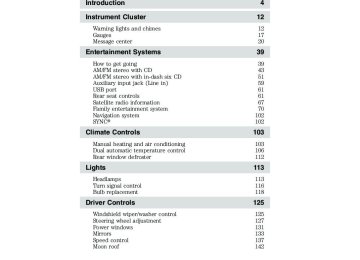

Table of Contents


12


12
17
20
39


39
43
51
59
61
61
67
70
102
102
103


103
106
112
113


113
116
118
125


125
127
131
133
137
142


Introduction


Instrument Cluster


Warning lights and chimes Gauges Message center


Entertainment Systems


How to get going AM/FM stereo with CD AM/FM stereo with in-dash six CD Auxiliary input jack (Line in) USB port Rear seat controls Satellite radio information Family entertainment system Navigation system SYNC威


Climate Controls


Manual heating and air conditioning Dual automatic temperature control Rear window defroster


Lights


Headlamps Turn signal control Bulb replacement Driver Controls


Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Moon roof


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


161


161
167
179
185


185
206
219
229
248


250
253
265
270
277
284
285


285
291
294
300
305
308
311
324


324
325
326
327
335
343
345
351


Table of Contents


Locks and Security


Keys Locks Anti-theft system


Seating and Safety Restraints


Seating Safety restraints Airbags Child restraints


Tires, Wheels and Loading


Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing


Driving


Starting Brakes AdvanceTrac威 Air suspension Transmission operation Reverse sensing system Rear-view camera system Roadside Emergencies


Getting roadside assistance Hazard flasher control Fuel pump shut-off switch Fuses and relays Changing tires Wheel lug nut torque Jump starting Wrecker towing


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Table of Contents


Customer Assistance


Reporting safety defects (U.S. only) Reporting safety defects (Canada only)


Cleaning


Maintenance and Specifications


Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories


Ford Extended Service Plan


Index


353


359
359
360


369


371
374
377
379
385
400
403
404
407
411


413


416


All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.


Copyright © 2010 Ford Motor Company


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Introduction


CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.


WARNING: Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel


supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.


SAFETY AND ENVIRONMENT PROTECTION


Warning symbols in this guide


How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Introduction


Warning symbols on your vehicle


When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.


Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. CALIFORNIA Proposition 65 Warning


WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to


the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.


PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.


BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Introduction


Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.


SPECIAL NOTICES


New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.


Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.


WARNING: Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.


WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.


Notice to owners of pickup trucks and utility type vehicles


WARNING: Utility vehicles have a significantly higher rollover rate than other types of vehicles.


Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.


Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package.


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Introduction


DATA RECORDING


Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.


Event Data Recording This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: • How various systems in your vehicle were operating; • Whether or not the driver and passenger seatbelts were • How far (if at all) the driver was depressing the accelerator • How fast the vehicle was travelling; and • Where the driver was positioning the steering wheel. This data can help provide a better understanding of the circumstances in which crashes and injuries occur. Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see


and/or the brake pedal; and


buckled/fastened;


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Introduction


limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911
Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911
operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC威 supplement for more information. Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only) the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”) only to help provide you with the directions, traffic reports, or business searches your request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Introduction


CELL PHONE USE The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.


WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you


use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.


EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings.


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Introduction


These are some of the symbols you may see on your vehicle.


Vehicle Symbol Glossary


Safety Alert


See Owner’s Guide


Fasten Safety Belt


Airbag - Front


Airbag - Side


Child Seat Tether Anchor


Child Seat Lower Anchor


Brake System


Anti-Lock Brake System


Parking Brake System


Brake Fluid - Non-Petroleum Based


Parking Aid System


Stability Control System


Speed Control


Master Lighting Switch


Hazard Warning Flasher


Fog Lamps-Front


Fuse Compartment


Fuel Pump Reset


Windshield Wash/Wipe


Windshield Defrost/Demist


Rear Window Defrost/Demist


10


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Introduction


Vehicle Symbol Glossary


Power Windows Front/Rear


Child Safety Door Lock/Unlock


Power Window Lockout


Interior Luggage Compartment Release


Panic Alarm


Engine Oil


Engine Coolant


Engine Coolant Temperature


Do Not Open When Hot


Battery


Avoid Smoking, Flames, or Sparks


Battery Acid


Explosive Gas


Fan Warning


Power Steering Fluid


Maintain Correct Fluid Level


MAX MIN


Service Engine Soon


Engine Air Filter


Passenger Compartment Air Filter


Jack


Check Fuel Cap


Low Tire Pressure Warning


11


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


WARNING LIGHTS AND CHIMES


Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Note: Some warning lights are reconfigurable telltale (RTT) indicator lights and will illuminate in the message center. These lights function the same as the other warning lights.


Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications 12


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.


WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel


system, interior floor coverings or other vehicle components, possibly causing a fire.


Powertrain malfunction/reduced power (RTT) (if equipped): Displays when the vehicle has defaulted to a “limp-home” operation. Report the fault to a dealer at the earliest opportunity. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.


BRAKE


WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking


performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.


Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.


ABS


13


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will sound when there is a malfunction in the indicator light. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature. Charging system (RTT): Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component. Security/anti-theft system: Flashes when the SecuriLock威 passive anti-theft system has been activated.


Engine oil pressure (RTT): Displays when the oil pressure falls below the normal range. Refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant temperature (RTT): Displays when the engine coolant temperature is high. Stop the vehicle as soon as safely possible, switch off the engine and let it cool. Refer to Engine coolant in the Maintenance and Specifications chapter.


WARNING: Never remove the coolant reservoir cap while the engine is running or hot.


14


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


Low tire pressure warning (if equipped): Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on or begins to flash, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter. Low fuel (RTT) (if equipped): Displays when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).


Low washer fluid (RTT) (if equipped): Displays when the windshield washer fluid is low.


Transmission Tow/Haul Feature (RTT): Displays when the Tow/Haul feature has been activated. Refer to the Driving chapter for transmission function and operation. If the light flashes steadily, have the system serviced immediately, damage to the transmission could occur. AdvanceTrac威 (if equipped): Displays when the AdvanceTrac威 with RSC威 system is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.


15


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


4x2


4x4
LOW


4X2 (RTT) (if equipped): Displays momentarily when two-wheel drive high is selected. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer. Four-wheel drive low (RTT) (if equipped): Displays when four-wheel drive low is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer. Four-wheel drive (RTT) (if equipped): Displays when four-wheel drive is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer. Four-wheel drive auto (RTT) (if equipped): Displays when four-wheel drive automatic mode is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer. Door ajar (RTT) (if equipped): Displays when the ignition is in the on position and any door, liftgate or the liftgate glass is open.


4x4
AUTO


4x4


Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.


Key-in-ignition warning chime (if equipped): Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened. 16


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Parking brake on warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). Turn signal chime: Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 1.5 miles (2.4 km). Message center activation chime: Sounds when some warning messages appear in the message center display for the first time. Reverse warning chime (if equipped): Sounds when the vehicle is in R (Reverse). Refer to the Driving chapter for more information.


GAUGES


Speedometer: Indicates the current vehicle speed.


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


17


Instrument Cluster


Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.


WARNING: Never remove the coolant reservoir cap while the engine is running or hot.


Odometer: Registers the total miles (kilometers) of the vehicle. • With standard message center


• With optional message center Refer to Message center in this chapter for information on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. • With standard message center Press the SELECT/RESET stem once to switch from the odometer to the trip odometer. Press the stem again to select trip A and trip B features. To reset the trip, press and hold the stem until it resets. • With optional message center: see TRIP A/B under Message center in this chapter.


18


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.


Battery voltage gauge: Indicates the battery voltage when the ignition is in the on position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked by your authorized dealer as soon as possible. Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked by your authorized dealer. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. The fuel icon and arrow indicates which side of the vehicle the fuel door is located.


19


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


STANDARD MESSAGE CENTER (IF EQUIPPED) Your vehicle’s message center is capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime. The message center display is located in the instrument cluster.


Selectable features (information menu) Press and release the SELECT/RESET stem to scroll and reset the following functions. Reset the function by a single press of the SELECT/RESET stem for more than two seconds. TRIP Registers the distance of individual journeys. Press and release the SELECT/RESET stem on the cluster to toggle between odometer and trip odometer display. To reset, press and hold for less than two seconds. MYKEY MILES (km) (if programmed) For more information, refer to MyKey™ in the Locks and Security chapter. MILES (km) TO E This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel. LOW FUEL LEVEL will display when you have approximately 50 miles (80 km), to empty. Press RESET to clear this warning message. It will return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles (0 km) miles to empty. Distance to empty is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is re-initialized to a factory default value if the battery is disconnected. AVG MPG (L/100km) Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km.


20


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


service stations


If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons: • Your vehicle was not perfectly level during fill-up • Differences in the automatic shut-off points on the fuel pumps at • Variations in top-off procedure from one fill-up to another • Rounding of the displayed values to the nearest 0.1 gallon (liter) To determine your average highway fuel economy, do the following: 1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average. 2. Record the highway fuel economy for future reference. It is important to press the SELECT/RESET stem (press and hold for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings. XX°F / XX°C The outside air temperature is shown together with the compass heading in the bottom row of the message center display. Refer to Units in this section for information on selecting °F or °C. COMPASS DISPLAY (if equipped) The compass heading is displayed as one of N, NE, E, SE, S, SW, W and NW in the message center display. The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy. Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass calibration adjustment. Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is up to four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone adjustment. Compass zone adjustment


21


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


15


14
13
12


23


7 8 9 1011


1. Determine which magnetic zone you are in for your geographic location by referring to the zone map. 2. Press and release the SELECT/RESET stem to scroll through the information menu until the message center displays HOLD RESET FOR SETUP MENU. 3. Press and hold the SELECT/RESET stem until the message center displays HOLD RESET FOR SYSTEM CHECK. Do not hold the stem down at this point as you do not want to enter the system check. Instead, quickly release the stem and repeatedly press it again to scroll through the setup menu until the message center displays COMPASS ZONE XX. 4. Press and hold the SELECT/RESET stem for approximately two seconds to enter the compass zone adjustment mode. 5. Press and release the SELECT/RESET stem until the desired zone number appears. 6. Release the SELECT/RESET stem and allow the setup timer to expire to exit the procedure. Compass calibration adjustment NOTE: For optimum calibration, drive to an open, level location away from large metallic objects or structures. Switch off all non-essential electrical accessories (heated rear window, heater, A/C, map lamps, wiper, etc.) and make sure all the doors are closed. 1. Start the vehicle. 2. Press and release the SELECT/RESET stem to scroll through the information menu until the message center displays HOLD RESET FOR SETUP MENU. 3. Press and hold the SELECT/RESET stem for approximately two seconds until the message center displays HOLD RESET FOR SYSTEM CHECK. Do not hold the stem down at this point as you do not want to enter the system check. Instead, quickly release the stem and repeatedly press it again to scroll through the setup menu until the message center displays COMPASS ZONE XX. 4. Press and hold the SELECT/RESET stem for approximately two seconds until the message center enters the compass zone adjustment mode. 22


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


5. Press and hold the SELECT/RESET stem until the message center displays CIRCLE SLOWLY TO CALIBRATE. This step may require up to five circles to complete the calibration. NOTE: If the SELECT/RESET stem is pressed during the calibration or three minutes has elapsed since the beginning of the calibration without driving the vehicle, the message center reverts back to normal operation and the CAL will display until a successful calibration is carried out. 6. Slowly drive the vehicle in a circle less than 3 mph (5 km/h ) until the CIRCLE SLOWLY TO CALIBRATE message changes to CALIBRATION COMPLETED. Setup menu (vehicle customization and vehicle system check) HOLD RESET FOR SETUP MENU Press and hold the SELECT/RESET stem to get into the setup menu sequence for the following displays: Note: When returning to the SETUP menu and a non-English language has been selected, HOLD RESET FOR ENGLISH will be displayed to change back to English. Press and hold the SELECT/RESET stem to change back to English. HOLD RESET FOR SYSTEM CHECK Press and hold the SELECT/RESET stem to start the system check when HOLD RESET FOR SYSTEM CHECK is displayed in the message center. For each of the monitored systems, the message center will indicate either an ok message or a warning message for two seconds. Pressing the SELECT/RESET stem cycles the message center through each of the systems being monitored. Note: Some systems show a message only if a condition is present. 1. OIL LIFE 2. CHARGING SYSTEM 3. WASHER FLUID LEVEL 4. DOOR/LIFTGATE/GLASS AJAR 5. BRAKE SYSTEM 6. TIRE PRESSURE 7. FUEL LEVEL (will only display if 50 miles or less to empty) 8. MYKEY DISTANCE (if programmed) 9. MYKEY(S) PROGRAMMED 10. ADMIN KEYS PROGRAMMED


23


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


OIL LIFE This displays the remaining oil life. An oil change is required whenever indicated by the message center and according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS. To reset the oil monitoring system to 100% after each oil change perform the following: 1. Press and release SETUP to display “OIL LIFE XXX% HOLD RESET = NEW”. 2. Press and hold RESET for two seconds and release to reset the oil life to 100%. Note: To change oil life 100% value to another value, proceed to Step 3. 3. Once “OIL LIFE SET TO XXX%” is displayed, release and press RESET to change the Oil Life Start Value. Each release and press will reduce the value by 10%. UNITS ENG / METRIC Displays the current units English or Metric. Press and hold the SELECT/RESET stem to change from English to Metric. Press the SELECT/RESET stem for the next SETUP MENU item or wait for more than four seconds to return to the INFO MENU. AUTOLAMP This feature keeps your headlights on for up to three minutes after the ignition is switched off. Press the RESET control to select the new Autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds. AUTOLOCK This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion. Press the RESET control to turn autolock on or off. AUTOUNLOCK This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off. Press the RESET control to turn autounlock on or off.


24


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


TRAILER SWAY (if equipped) This feature uses the electronic stability control to mitigate trailer sway, Press the RESET control to turn trailer sway on or off. CREATE MYKEY / MYKEY SETUP / CLEAR MYKEY For more information refer to MyKey™ in the Locks and Security chapter. LANGUAGE = ENGLISH / SPANISH / FRENCH Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, or French. Note: When entering the SETUP MENU and a non-English language has been selected, “PRESS RESET FOR ENGLISH” will be displayed to change back to English. Press and hold the SELECT/RESET stem to select a new language. Selectable languages are English, Spanish and French Press and hold the RESET button for two seconds to set the language choice. Press the SELECT/RESET stem for the next SETUP MENU item or wait for more than four seconds to return to the INFO MENU. System warnings System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems. In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds. The message center will display the last selected feature if there are no more warning messages. Types of messages and warnings: • Some messages will appear briefly to inform you of something you • Some messages will appear once and then again when the vehicle is • Some messages will reappear after clearing or being reset if a problem • Some messages can be acknowledged and reset by pressing the


or condition is still present and needs your attention.


may need to take action on or be informed of.


restarted.


SELECT/RESET stem. This allows you to use the full message center functionality by clearing the message.


25


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


DOOR AJAR — Displayed when a door is not completely closed. LIFTGATE / GLASS AJAR — Displayed when the liftgate or the liftgate glass is not completely closed. CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage when the engine is running. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, have the electrical system checked as soon as possible. PARK BRAKE ENGAGED — Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible. CHECK BRAKE SYSTEM — Displayed when the braking system is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in the Maintenance and Specifications chapter. LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. TIRE PRESSURE MONITOR FAULT — Displayed when the Tire Pressure Monitoring System is malfunctioning. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to Understanding your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. 4X4 SHIFT IN PROGRESS (if equipped) — Displayed when the 4X4
system is making a shift. For further information, refer to Control Trac威 four-wheel drive (4x4) operation in the Driving chapter. FOR 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 4X4 LOW is selected while the vehicle is moving. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. 26


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. TO EXIT 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. TO EXIT 4X4 LOW SHIFT TO N (if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. SHIFT DELAYED PULL FORWARD (if equipped) — May display when shifting to or from 4X4 LOW. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. TRAILER SWAY REDUCE SPEED(if equipped) — Displayed when the trailer sway control has detected trailer sway. For more information, refer to the Driving chapter for more information. BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter. XXX MILES TO E FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition. WASHER FLUID LEVEL LOW — Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and Specifications chapter. ENGINE OIL CHANGE SOON — Displayed when the engine oil life remaining is 10% or less. OIL CHANGE REQUIRED — Displayed when the oil life left reaches 0%. MYKEY ACTIVE DRIVE SAFELY — Displayed at startup when MyKey™ is in use. Refer to MyKey™ in the Locks and Security chapter for more information. KEY COULD NOT PROGRAM — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey™ in the Locks and Security chapter for more information.


27


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


VEHICLE SPEED 80 MPH MAX — Displayed when a MyKey™ is in use and the Admin has enabled the MyKey speed limit and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information. SPEED LIMITED TO 80 MPH — Displayed when starting the vehicle and MyKey™ is in use and the MyKey speed limit is on. Refer to MyKey™ in the Locks and Security chapter for more information. CHECK SPEED DRIVE SAFELY — Displayed when a MyKey™ is in use and the optional setting is on and the vehicle exceeds a preselected speed. Refer to MyKey™ in the Locks and Security chapter for more information. VEHICLE NEAR TOP SPEED — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information. TOP SPEED MYKEY SETTING — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information. BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey™ is in use and Belt-Minder威 is activated. Refer to MyKey™ in the Locks and Security chapter for more information. ADVTRAC ON MYKEY SETTING — Displayed when a MyKey™ is in use when trying to disable the AdvanceTrac威 system and the optional setting is on. Refer to MyKey™ in the Locks and Security chapter for more information. SERVICE ADVANCETRAC — Displayed when the AdvanceTrac威 system has detected a condition that requires service. Contact your authorized dealer as soon as possible.


OPTIONAL MESSAGE CENTER (IF EQUIPPED) Your vehicle’s message center is capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime.


28


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


The message center display is located in the instrument cluster.


Info Press the INFO button repeatedly to cycle through the following features:


TRIP A/B Registers the distance of individual journeys. Press and release INFO button until the A or B trip appears in the display (this represents the trip mode). Press and hold the RESET button to reset. Refer to UNITS later in this section to switch the display from Metric to English. MYKEY MILES (km) (if programmed) For more information, refer to MyKey™ in the Locks and Security chapter. MILES (km) TO E This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel. LOW FUEL LEVEL will display when you have approximately 50 miles (80 km), to empty. Press RESET to clear this warning message. It will return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles (0 km) miles to empty. Distance to empty is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is re-initialized to a factory default value if the battery is disconnected. AVG MPG (L/100km) Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km.


29


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


service stations


If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons: • Your vehicle was not perfectly level during fill-up • Differences in the automatic shut-off points on the fuel pumps at • Variations in top-off procedure from one fill-up to another • Rounding of the displayed values to the nearest 0.1 gallon (liter) To determine your average highway fuel economy, do the following: 1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average. 2. Record the highway fuel economy for future reference. It is important to press the RESET button (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings. For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter.


MPG (L/km) This displays instantaneous fuel economy as a bar graph ranging from ↓ poor economy to ↑ excellent economy. Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows ↓, one or no bars illuminated. Instantaneous fuel economy cannot be reset. TIMER Timer displays the trip elapsed drive time. To operate, do the following: 1. Press and release RESET in order to start the timer. 2. Press and release RESET to pause the timer. 3. Press and hold RESET until the timer resets.


30


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


System check and vehicle feature customization Press the SETUP button repeatedly to cycle the message center through the following features:


RESET FOR SYSTEM CHECK When this message appears, press the RESET button and the message center will begin to cycle through the following systems and provide a status of the item if needed. Note: Some systems show a message only if a condition is present. 1. OIL LIFE 2. CHARGING SYSTEM 3. WASHER FLUID LEVEL 4. DOOR STATUS 5. LIFTGATE/GLASS 6. BRAKE SYSTEM 7. TIRE PRESSURE 8. AIR SUSPENSION SYSTEM (if equipped) 9. FUEL LEVEL 10. MYKEY MILES (if programmed) 11. MYKEY(S) PROGRAMMED 12. ADMIN KEYS PROGRAMMED OIL LIFE This displays the remaining oil life. An oil change is required whenever indicated by the message center and according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS. To reset the oil monitoring system to 100% after each oil change perform the following: 1. Press and release SETUP to display “OIL LIFE XXX% HOLD RESET = NEW”. 2. Press and hold RESET for two seconds and release to reset the oil life to 100%.


31


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


Note: To change oil life 100% value to another value, proceed to Step 3. 3. Once “OIL LIFE SET TO XXX%” is displayed, release and press RESET to change the Oil Life Start Value. Each release and press will reduce the value by 10%. UNITS Displays the current units English or Metric. Press the RESET button to change from English to Metric. AUTOLAMP (SEC) This feature keeps your headlights on for up to three minutes after the ignition is switched off. Press the RESET button to select the new Autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds. AUTOLOCK This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion. Press the RESET button to turn autolock on or off. AUTOUNLOCK This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off. Press the RESET button to turn autounlock on or off. RUNNING BOARDS (if equipped) This feature automatically deploys the side running boards for easy entry/exit from the vehicle or for cleaning. Press the RESET button to select the running boards setting as follows: •AUTO: the running boards will automatically deploy when a door is opened and automatically retract when the door is closed, • OUT: the running boards will remain deployed regardless of the doors being open/closed. This setting can be used when washing the vehicle, or accessing the roof rack. The running boards will stow and enter AUTO mode when the vehicle speed exceeds 5 mph (8 km/h), • OFF: the running boards will remain in regardless of the doors being open/closed. POWER LIFTGATE (if equipped) This feature allows users to open/close the rear liftgate at the touch of a button. Press the RESET button to turn the power liftgate on or off. If disabled, the outside release handle and the rear cargo area control button are off. The instrument panel button will continue to function the liftgate in power mode. 32


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


EASY ENTRY (if equipped) This feature automatically moves the driver’s seat backwards for easy exit/entry from the vehicle. Press the RESET button to turn the easy entry/exit seat on or off. AIR SUSPENSION (if equipped) Before disabling the air suspension, make sure the liftgate and liftgate glass are in the closed position. With the vehicle in P (Park), press RESET to turn the air suspension off or on. PARK AID (if equipped) This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected. To disable/enable park aid, press RESET when reaching this menu from the setup sequence or put the vehicle in R (Reverse) and press RESET. TRAILER SWAY (if equipped) This feature uses the electronic stability control to mitigate trailer sway, Press the RESET button to turn trailer sway on or off. CREATE MYKEY / MYKEY SETUP / CLEAR MYKEY For more information refer to MyKey™ in the Locks and Security chapter. COMPASS The compass heading is displayed as one of N, NE, E, SE, S, SW, W and NW in the message center display. The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy. Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone/calibration adjustment.


33


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


15


14
13
12


23


7 8 9 1011


Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Do the following to set the proper zone: Compass zone/calibration adjustment 1. Determine your magnetic zone by referring to the zone map. 2. Start the engine. 3. Press SETUP to reach the reset for zone setting screen. 4. Press and hold RESET until the message center display prompts you to reset the current zone setting. Press RESET. 5. Press and release RESET until the message center display changes to show the current zone setting (XX). 6. Press and release the RESET button repeatedly until the correct zone setting for your geographic location is displayed on the message center. The range of zone values are from 1 to 15 and “wraps” back to 1. 7. To exit the zone setting mode, and to “lock in” your change: • press and release SETUP or, • press INFO to exit or, • wait four seconds and the zone will be “locked in”. Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut. 8. Press RESET to start the compass calibration function. 9. Slowly drive the vehicle in a circle (less than 3 mph [5 km/h]) until the CIRCLE SLOWLY TO CALIBRATE display changes to CALIBRATION COMPLETED. It will take up to five circles to complete calibration. 10. The compass is now calibrated. Note: If the RESET button is pressed or three minutes has expired, the display will go back to the INFO menu and will show CAL instead of the compass heading until the compass is calibrated. 34


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


ENGLISH / FRENCH / SPANISH RESET FOR NEW Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, or French. Press RESET to cycle through each of the language choices. Press and hold RESET for two seconds to set the language choice. System warnings System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems. In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds. The message center will display the last selected feature if there are no more warning messages. Types of messages and warnings: • Some messages will appear briefly to inform you of something you • Some messages will appear once and then again when the vehicle is • Some messages will reappear after clearing or being reset if a problem • Some messages can be acknowledged and reset by pressing RESET.


or condition is still present and needs your attention.


may need to take action on or be informed of.


restarted.


This allows you to use the full message center functionality by clearing the message.


DRIVER DOOR AJAR — Displayed when the driver door is not completely closed. PASSENGER DOOR AJAR — Displayed when the passenger door is not completely closed. REAR LEFT DOOR AJAR — Displayed when the rear left door is not completely closed. REAR RIGHT DOOR AJAR — Displayed when the rear right door is not completely closed. LIFTGATE / GLASS AJAR — Displayed when the liftgate or liftgate glass is not completely closed.


35


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage when the engine is running. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, contact your authorized dealer as soon as possible. CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in the Maintenance and Specifications chapter. TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. TIRE PRESSURE MONITOR FAULT — Displayed when the Tire Pressure Monitoring System is malfunctioning. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. AIR SUSPENSION OFF (if equipped) — Displayed when the air suspension is off. For more information, refer to Air suspension system in the Driving chapter. BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter. WASHER FLUID LEVEL LOW — Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and Specifications chapter. ENGINE OIL CHANGE SOON — Displayed when the engine oil life remaining is 10% or less. OIL CHANGE REQUIRED — Displayed when the oil life left reaches 0%.


36


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


CHECK AIR SUSPENSION (if equipped) — Displayed when the air suspension system is not operating properly. If this message is displayed while driving, pull off the road as soon as safely possible. For more information, refer to Air suspension system in the Driving chapter. CHECK PARK AID (if equipped) — Displayed when the transmission is in R (Reverse). Refer to Reverse sensing system in the Driving chapter. CHECK BRAKE SYSTEM — Displayed when the braking system is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. XXX MILES TO E FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition. PARK BRAKE ENGAGED — Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible. TRAILER SWAY REDUCE SPEED (if equipped) — Displayed when the trailer sway control has detected trailer sway. For more information, refer to the Driving chapter for more information. 4X4 SHIFT IN PROGRESS (if equipped) — Displayed when the 4X4
system is making a shift. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. FOR 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 4X4 LOW is selected while the vehicle is moving. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. TO EXIT 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. TO EXIT 4X4 LOW SHIFT TO N (if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter.


37


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Instrument Cluster


SHIFT DELAYED PULL FORWARD (if equipped) — May display when shifting to or from 4X4 LOW. For more information, refer to Control Trac威 four-wheel drive (4X4) operation in the Driving chapter. MYKEY ACTIVE DRIVE SAFELY — Displayed at startup when MyKey™ is in use. Refer to MyKey™ in the Locks and Security chapter for more information. KEY COULD NOT PROGRAM — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey™ in the Locks and Security chapter for more information. VEHICLE SPEED 80 MPH MAX — Displayed when a MyKey™ is in use and the Admin has enabled the MyKey speed limit and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information. SPEED LIMITED TO 80 MPH — Displayed when starting the vehicle and MyKey™ is in use and the MyKey speed limit is on. Refer to MyKey™ in the Locks and Security chapter for more information. CHECK SPEED DRIVE SAFELY — Displayed when a MyKey™ is in use and the optional setting is on and the vehicle exceeds a preselected speed. Refer to MyKey™ in the Locks and Security chapter for more information. VEHICLE NEAR TOP SPEED — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information. TOP SPEED MYKEY SETTING — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information. BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey™ is in use and Belt-Minder威 is activated. Refer to MyKey™ in the Locks and Security chapter for more information. ADVTRAC ON MYKEY SETTING — Displayed when a MyKey™ is in use when trying to disable the AdvanceTrac威 system and the optional setting is on. Refer to MyKey™ in the Locks and Security chapter for more information. SERVICE ADVANCETRAC — Displayed when the AdvanceTrac威 system has detected a condition that requires service. Contact your authorized dealer as soon as possible. 38


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Entertainment Systems


AUDIO SYSTEMS Note: If your volume is muted and MYKEY VOLUME LIMITED is displayed, refer to MyKey™ in the Locks and Security chapter for more information.


Quick start — How to get going


WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that


drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.


Listening to the radio 1. If the audio system is off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2. Press AM/FM repeatedly to choose between AM/FM1/FM2
frequency bands. 3. Press up/down the frequency band.


to manually go


SEEK


to search


Press down/up the chosen frequency band for the next strongest station. To disengage SEEK mode, press


39


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Entertainment Systems


4. Once you are tuned to the desired station, press and hold a memory preset (1–6) to save the station. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six stations in each frequency band — six in AM, six in FM1 and six in FM2. To access your saved stations, press the corresponding memory preset. The memory preset # and the station frequency will appear on the display. Listening to satellite radio (if equipped) 1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2. Press AUX repeatedly to cycle through auxiliary audio sources. Select SAT1, SAT2 or SAT3 to listen to satellite radio. 3. Press access the previous or next satellite channel. You may also seek by music category. For further information, refer to CATEGORY listing under the MENU control on your specific audio system. 4. Once you are tuned to the desired channel, press and hold a memory preset (1–6) to save the channel. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six channels in each — six in SAT1, six in SAT2, and six in SAT3. To access your saved channels, press the corresponding memory preset. The memory preset # and the channel name will appear on the display.


SEEK, SEEK


to


40


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Entertainment Systems


Listening to a CD/MP3 (if equipped) 1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2. Press CD to enter CD mode. If a disc is already loaded into the system, CD play will begin where it ended last. For a single CD system, if a disc is not already loaded, insert only one, label side up into the CD slot. LOADING CD and READING DISC will appear in the display. The first track on the disc will begin playing. For an in-dash six CD system, if a disc is not already loaded, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to six discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the last loaded disc will begin to play. Note: An MP3 disc with folders will show F001 (folder #) T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 track and folder structure later in this chapter for further information. 3. In CD/MP3 mode, you can access the following features: to Press access the previous/next tracks.


SEEK, SEEK


41


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Entertainment Systems


Press and hold REW to manually reverse in a CD/MP3 track.


Press and hold FF to manually advance in a CD/MP3 track.


While in folder mode, press FOLDER to access the previous folder on MP3 discs, if available. While in folder mode, press to access the next FOLDER folder on MP3 discs, if available. Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display. Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder. (play/pause) when a Press CD/MP3 is playing to pause the disc. CD PAUSE will appear in the display. Press again to resume play. 4. For a single CD system, press The display will read CD EJECT. For an in-dash six CD system, press correct slot number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to six discs, press and hold begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs. 42


to eject the current disc.


and then select the


until the system


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Entertainment Systems


AM/FM single CD/MP3 satellite compatible sound system (if equipped)


WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that


drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.


(Tuner):


Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened. 1. In radio mode, press to manually go up frequency. Press and hold for a fast advance through radio frequencies. In menu mode, use to select various settings. In satellite radio mode (if equipped), press through the SIRIUS channels.


the radio


or down


to scroll


43


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Entertainment Systems


(Phone): Press to access


Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability. 2. SYNC威 phone features if your vehicle is equipped with SYNC威. Refer to the SYNC威 supplement for more information. If your vehicle is not equipped with SYNC威, the display will read NO PHONE. 3. MENU: Press repeatedly to access the following settings:


SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu. Press • CATEGORY: Press OK to enter category mode. Press


to cycle through the following options:


to


scroll through the list of available SIRIUS威 channel categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS威 categories and channels. Press OK to close and return to the main menu.


• SAVE SONG: Press OK to save the currently playing song in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 songs. If you attempt to save a song when the system is full, the display will read REPLACE SONG? Press OK to access the saved songs and press songs. When the song appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display.


to cycle through the saved


44


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


• DELETE SONG: Press OK to delete a song from the system’s


Entertainment Systems


to cycle through the saved songs. When the memory. Press song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to delete the currently listed song, press RETURN or CANCEL. Note: If there are no songs presently saved, the display will read NO SONGS.


to select either


• DELETE ALL SONGS: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS. • ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.


Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS to adjust hours/minutes. Press OK to close and is displayed. Use return to the main menu. AUTOSET: In radio mode, press MENU until the display reads AUTOSET. Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Use OK to close and return to the main menu. When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.


to turn on/off. Press


SEEK, SEEK


45


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Entertainment Systems


SEEK


RBDS: Available only in FM mode. This feature allows you to display text transmitted by RBDS-equipped stations and to search for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc. To activate, press MENU repeatedly until RBDS (ON/OFF) appears in the display. Use to toggle RBDS ON/OFF. (When RBDS is OFF, you will not be able to search for RBDS equipped stations or view the station name or type.) To search for specific RBDS music categories: When the desired category appears in the display, press then press and release begin the search. To view the station name or type: With RBDS ON, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYZ, etc.).


to find the desired type, or press and hold SCAN to


SEEK, SEEK


SEEK,


to adjust. Press OK to close and return to the main menu.


BASS: Press MENU to reach the bass setting. Use SEEK TREB (Treble): Press MENU to reach the treble setting. Use return to the main menu. BAL (Balance): Press MENU to reach the balance setting. Use (L) and right (R) speakers. Press OK to close and return to the main menu.


to adjust. Press OK to close and


SEEK, SEEK


SEEK, SEEK


to adjust the audio between the left


SEEK,


to adjust the audio between the back (B) and front (F)


FADE: Press MENU to reach the fade setting. Use SEEK speakers. Press OK to close and return to the main menu. SPEEDVOL (Speed sensitive volume): Press MENU to reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise. Use return to the main menu. The default setting is off; increasing your vehicle speed will not change the volume level. 46


to adjust. Press OK to close and


SEEK, SEEK


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Entertainment Systems


SEEK, SEEK


SEEK, SEEK


SEEK, SEEK


FOLDER, FOLDER


will scroll only through


to access the previous/next folder (if


Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3; SPEED OFF turns the feature off and level 7
is the maximum setting. Track/Folder mode: Available only on MP3 discs in CD mode. In Track mode, pressing will scroll through all tracks on the disc In Folder mode, pressing tracks within the selected folder. Press available). Press OK to close and return to the main menu. COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display. Use to toggle ON/OFF. When COMPRESS is ON, the system will bring the soft and loud CD passages together for a more consistent listening level. Press OK to close and return to the main menu. SINGLE PLAY / DUAL PLAY: If Single Play is ON, press Dual Play. For further information on Single Play/Dual Play, refer to Rear seat controls later in this chapter. FES (FULL/LOCKED): Your vehicle is equipped with a Family Entertainment DVD system. For further information on the DVD system, refer to Family Entertainment DVD system later in this section. 4. AUX: Press repeatedly to cycle through FES/DVD (if equipped) LINE IN (Auxiliary audio) , SAT1, SAT2, SAT3 (satellite radio modes, if equipped) and SYNC威. For location and further information on the auxiliary audio mode, refer to Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS威 subscription. Check with your authorized dealer for availability. 5. SEEK: In radio mode, to access the press previous/next strong station. In CD/MP3 mode, press to access the previous/next CD/MP3 track.


for


47


2010 Expedition (exd) Owners Guide, 3rd Printing USA (fus)


Entertainment Systems


to select a category


to


to view the


to fast seek


SEEK, SEEK


SEEK, SEEK


SEEK, SEEK


SEEK, SEEK


SEEK, SEEK


OK(Play/Pause): This


to seek to the previous/next channel in the


In satellite radio mode (if equipped), press seek to the previous/next channel. In CATEGORY MODE, press (Jazz, Rock, News, etc.). Once the desired category is in the display, press selected category. Press and hold through the previous /next channels. In TEXT MODE, press previous/additional display text. Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability. 6. control is operational in CD and DVD mode (if equipped). When a CD or DVD is playing in the FES system, press this control to play or pause the current CD/DVD. The CD/DVD status will display in the radio display. OK: Use in various menu selections. If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family Entertainment DVD system later in this chapter. 7. SHUFFLE: In CD/MP3 mode, press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display. Note: In CD/MP3 mode, press SHUFFLE to play the tracks in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder. 8. FOLDER

Loading...
x
