2000 Ford Expedition Owners Manual

Before driving

Introduction

Instrumentation

Controls and features

Seating and safety restraints

Starting and driving

Starting

Driving

Roadside emergencies

Servicing

Maintenance and care

Capacities and specifications

Customer assistance

Reporting safety defects

Index

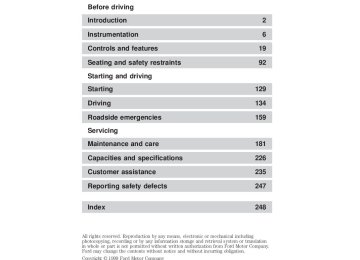

Contents

19

92

129

134

159

181

226

235

247

248

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 1999 Ford Motor Company

Introduction

The following warning may be required by California law: CALIFORNIA Proposition 65 Warning

Engine exhaust, some if its constituents, and certain vehicle components contain or emit chemicals known to the State of

California to cause cancer, or birth defects or other reproductive harm.

ICONS Indicates a safety alert. Read the following section on Warnings.

Indicates vehicle information related to recycling and other environmental concerns will follow. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment. Indicates a message regarding child safety restraints. Refer to Seating and safety restraints for more information.

Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.

WARNINGS Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.

Introduction

BREAKING-IN YOUR VEHICLE There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is necessary to give the moving parts a chance to break in.

INFORMATION ABOUT THIS GUIDE The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.

SPECIAL NOTICES

Using your vehicle as a snowplow

Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident. Be sure to read Driving off road in the Driving chapter as well as the “Four Wheeling” supplement included with 4WD and utility type vehicles.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchorage

Brake System

Anti-Lock Brake System

Brake Fluid - Non-Petroleum Based

Traction Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Rear Window Defrost/Demist

Power Window Lockout

Windshield Defrost/Demist

Power Windows Front/Rear

Introduction

Vehicle Symbol Glossary

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Instrumentation

Instrument panel dimmer switch

(pg. 20)

Instrument cluster

(pg. 8)

Driver air bag

(pg. 114)

Headlamp

control (pg. 19)

DOOR AJAR

THEFT

80

60

00

40

20

MPH

20

40

60

km/h

RPMX1000

SELECT/RESET

P RN D 2

BRAKE

CRUISE

FUEL DOOR

ON

OFF

RES

SET

ACCEL

COAST

PEDALS

Power adjustable

foot pedals

(pg. 79)

Hood release

(pg. 182)

Speed control

(pg. 63)

Rear window

defroster control

(pg. 21)

Parking brake release

(pg. 136)

Turn signal and

wiper/washer control

(pg. 67)

Instrumentation

Electronic sound system

(pg. 25)

Gearshift (includes overdrive button)

(pg. 142)

VOL PUSH ON

BASS

TREB

SEL

BAL

FADE

CD

TAPE

EJ

RDS

MUTE

SEEK

TUNE

SCAN

AUTO

AM

FM

REW

FF

SIDE 1.2

COMP

SHUFF

A4WD

4H

4L

LO

HI

PANEL

OFF

PANEL & FLOOR

A/C

MAX A/C

FLOOR

FLR & DEF

DEF

COOL

WARM

4WD control *

(pg. 145)

Climate control system

(pg. 51)

Auxiliary power point

(pg. 24)

Instrumentation

WARNING LIGHTS AND CHIMES

DOOR AJAR

THEFT

80

60

00

40

20

MPH

20

40

60

km/h

RPMX1000

SELECT/RESET

P RN D 2

BRAKE

CRUISE

4X4

LOW RANGE

CK SUSP

LOW FUEL

SERVICE ENGINE SOON

FUEL DOOR

Low fuel Illuminates as an early reminder of a low fuel condition indicated on the fuel gauge (refer to Fuel Gauge in this chapter for more information). When refueling, after the light comes on, the amount of fuel that is added will be less than the advertised capacity since there is fuel still in the tank. The ignition must be in the ON position for this lamp to illuminate. The lamp will also illuminate for several seconds after the ignition is turned to the ON position regardless of the fuel level to ensure your bulb is working.

LOW FUEL

SERVICE ENGINE SOON

Service engine soon Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle. The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

Instrumentation

WhatyoushoulddoiftheServiceEngineSoonlightilluminates Light turns on solid: This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your Service Engine Soon light to illuminate. Examples are: 1. The vehicle has run out of fuel. (The engine may misfire or run poorly.) 2. Poor fuel quality or water in the fuel. 3. The fuel cap may not have been properly installed and securely tightened. These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Service Engine Soon light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required. If the Service Engine Soon light remains on, have your vehicle serviced at the first available opportunity. Light is blinking: Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Air bag readiness Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Instrumentation

Safety belt Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Brake system warning Momentarily illuminates when the ignition is turned to the ON position. Also illuminates if the parking brake is engaged. If the brake warning lamp does not illuminate at these times, seek service immediately. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately.

BRAKE

Anti-lock brake system (ABS) Momentarily illuminates when the ignition is turned to the ON position. If the light remains on, continues to flash or fails to illuminate, have the system serviced immediately. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with the parking brake released.

ABS

Turn signal Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously or flash faster, check for a burned-out turn signal bulb. Refer to Exterior bulbs in the Maintenance and care chapter.

10

Instrumentation

High beams Illuminates when the high beam headlamps are turned on.

SecuriLockY anti-theft system This light indicates the anti-theft alarm system is armed. Momentarily illuminates when the ignition is turned to ON/START. If the light fails to illuminate, continues to flash or remains on, have the system serviced. Refer to SecuriLocky passive anti-theft system in the Controls and features chapter.

THEFT

Charging system Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.

very high

Oil pressure/Engine coolant This light will come on when the key is in the ON position and the: † engine coolant temperature is † engine oil pressure is low The light serves as a notice that a system needs your attention and to check the engine coolant temperature gauge and the engine oil pressure gauge. Refer to Engine coolant temperature gauge and Engine oil pressure gauge in this chapter for more information.

11

Instrumentation

Four wheel drive low (if equipped) Momentarily illuminates when the ignition is turned to the START position. Illuminates when four-wheel drive low is engaged. If the light continues to flash have the system serviced.

LOW RANGE

Four wheel drive indicator (if equipped) Momentarily illuminates when the ignition is turned to the ON position. Illuminates when 4x4 range is engaged. If the light continues to flash have the system serviced.

4x4

Check air suspension Illuminates momentarily when the ignition is turned to the ON position and the engine is OFF. The light also illuminates when the air suspension system requires servicing. For information on the air suspension system, refer to the Driving chapter.

SUSP

CK

Low washer fluid Illuminates when the ignition is turned to the START position and when the windshield washer fluid is low.

Door ajar Illuminates when the ignition is in the ON or START position and any door is open.

Speed control †Standard analog instrument cluster

12

DOOR AJAR

CRUISE

Instrumentation

This light comes on when either the COAST/SET or RES/ACCEL controls are pressed. It turns off when the cruise cancel control is pressed, the brake is applied or the ignition is turned to the OFF position. †Optional electronic instrument CRUISE cluster The “CRUISE” light comes on when the ON control is pressed. The “SET” light comes on when either the COAST/SET or RES/ACCEL controls are pressed. The “SET” light turns off when the cruise cancel control is pressed or the brake is applied. Both the “CRUISE” and “SET” lights turn off when the OFF control is pressed or the ignition is turned to the OFF position.

Safety belt warning chime Sounds to remind you to fasten your safety belts. For information on the safety belt warning chime, refer to the Seating and safety restraints chapter.

Supplemental restraint system (SRS) warning chime For information on the SRS warning chime, refer to the Seating and safety restraints chapter.

Key-in-ignition warning chime Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.

Headlamps on warning chime Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.

13

Instrumentation

GAUGES

DOOR AJAR

THEFT

80

60

00

40

20

MPH

20

40

60

km/h

RPMX1000

SELECT/RESET

P RN D 2

BRAKE

CRUISE

4X4

LOW RANGE

CK SUSP

LOW FUEL

SERVICE ENGINE SOON

FUEL DOOR

Fuel gauge Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion. The ignition should be in the OFF position while the vehicle is being refueled. When the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel. A minimum of 22.2 L (six gallons) must be added or removed from the fuel tank in order for the gauge to instantaneously update. If less than six gallons is the change, the gauge will take between five to twenty minutes to update.

FUEL DOOR

Speedometer Indicates the current vehicle speed.

14

80

60

00

40

20

MPH

20

40

60

km/h

Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter.

Instrumentation

Never remove the coolant reservoir cap while the engine is running or hot.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the oil pressure/engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and care chapter.

Odometer Registers the total kilometers (miles) of the vehicle.

Trip odometer Registers the kilometers (miles) of individual journeys. Press and release the reset button until a “T” appears in the display (this represents the trip mode). Press and hold the button for three seconds to reset.

P RN D 2

15

Instrumentation

Tachometer Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Battery voltage gauge This shows the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated), have the vehicle’s electrical system checked as soon as possible.

RPMX1000

Engine oil pressure gauge This shows the engine oil pressure in the system. Sufficient pressure exists as long as the needle remains in the normal range (the area between the “L” and “H”). If the gauge indicates low pressure, stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level. Add oil if needed (refer to Engine oil in the Maintenance and care chapter). If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

16

Instrumentation

TRIP COMPUTER The trip computer tells you about the condition of your vehicle through a constant monitor of vehicle systems. You may select display features on the trip computer for a display of status. The appearance of your vehicle’s trip computer may differ depending on your vehicle’s option package, but the functions are the same. The trip computer only works when the ignition is in the ON position. Trip computer features follow:

Selectable features

English/metric display Press this control to change the trip computer display from metric to English units. Press again to change from English to metric units.

MODE

E/M

RESET

MILES TO EMPTY

MODE

Modecontrol Each press of the MODE control will display a different feature as follows: Fuel range. This displays the approximate number of kilometers (miles) left to drive before the fuel tank is empty. The indicated distance to empty may be inaccurate: † with sustained, drastic changes in fuel economy (such as trailer towing), but will eventually recover. † if the vehicle is started while parked on an incline. † if less than 27 liters (6 gallons) of fuel is added to the fuel tank.

MILES TO EMPTY

RESET

E/M

17

Instrumentation

The fuel range function will flash for 5 seconds when you have approximately the following distance you can drive before the fuel tank is empty: † 80 km (50 miles) † 40 km (25 miles) † 16 km (10 miles) Average fuel economy. The display will indicate the vehicle’s average fuel economy in liters/100 km (or miles/gallon) since last reset. † To reset the average fuel

economy:

1. Press the MODE control repeatedly until AVG F/ECON is displayed (no other display is resettable). 2. Press the E/M and MODE controls simultaneously.

MODE

E/M

RESET

MILES TO EMPTY

Compass display. Refer to Electronic compass in the Controls and features chapter for more information. Off. In this mode the display will go blank indicating the system is off.

18

Controls and features

HEADLAMP CONTROL Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.

High beams Push forward to activate. Pull toward you to deactivate.

Flash to pass Pull toward you to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: † the ignition must be in the ON position and † the headlamp control is in the OFF or Parking lamps position.

19

Controls and features

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Light (DRL) System

does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

Foglamp control (if equipped) The headlamp control also operates the foglamps. The foglamps can be turned on only when the headlamp position and control is in the the high beams are not turned on. Pull headlamp control towards you to turn foglamps on. The foglamp indicator light will illuminate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlamp and parklamp operation. † Rotate up to brighten. † Rotate down to dim. † Rotate to full up position (past

detent) to turn on interior lamps.

AUTOLAMP CONTROL The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. The autolamp system also keeps the lights on for approximately 20
seconds after the ignition switch is turned to OFF. † To turn autolamps on, rotate the

control counterclockwise.

20

Controls and features

† To turn autolamps off, rotate the control clockwise to OFF. † Foglamps are not controlled by the autolamps. In order to turn on the

foglamps, you must turn the lamp switch to the pull toward you for fog.

position and

POWER ADJUSTABLE FOOT PEDALS Press and hold the rocker control to adjust accelerator and brake pedal. † press the left side of the control to adjust the pedals toward you † press the right side of the control to adjust the pedals away from you

PEDALS

The adjustment allows for approximately 76mm (3 inches) of maximum travel.

Never adjust the accelerator and brake pedal with feet on pedals or while the vehicle is moving.

REAR WINDOW DEFROSTER The rear defroster control is located on the instrument panel. Press the rear defroster control to clear the rear window of thin ice and fog. † A small LED will illuminate when

the rear defroster is activated.

The ignition must be in the ON position to operate the rear window defroster. The defroster turns off automatically after 10 minutes or when the ignition is turned to the OFF position. To manually turn off the defroster before 10 minutes have passed, push the control again.

21

Controls and features

4WD CONTROL (IF EQUIPPED) This control operates the 4WD. Refer to the Driving chapter for more information.

4H

A4WD

4L

REVERSE SENSING SYSTEM (IF EQUIPPED) The reverse sensing system (RSS) sounds a tone to warn the driver of obstacles near the rear bumper when the reverse gear is selected.

To help avoid personal injury, please read and understand the limitations on the reverse sensing system described below.

Reverse sensing is only an assist for some (generally large and fixed) objects when moving in reverse on a flat surface at “parking speeds” of approximately 6 km/h (4 mph) or less. The weather may also affect the function of RSS. RSS may have reduced performance, or be activated in inclement weather. It is the driver’s responsibility for ensuring that their path is clear when operating the vehicle.

To help avoid personal injury, always use caution when in reverse and when using the reverse sensing system.

This system is not designed to prevent contact with small or moving objects. The system is designed to provide a warning to

assist the driver in detecting large stationary objects to avoid damaging the vehicle. The system may not detect smaller objects, particularly those close to the ground.

The RSS will assist the driver in detecting certain objects while the vehicle slowly moves in reverse at speeds less than 6 km/h (4 mph). The RSS is not effective at speeds greater than 6 km/h (4 mph) and may not detect certain angular or moving objects.

22

Controls and features

The reverse sensing system detects obstacles within approximately 1.8
meters (5.9 ft.) of the rear bumper with a decreased coverage area at the outer corners of the bumper, (refer to the figures for approximate zone coverage areas). As you move closer to the obstacle, the rate of the tone increases. When the distance to the obstacle is less than 25.0 cm (10 in.), the tone will sound continuously. If the system detects a stationary or receding object further than 25.0 cm (10 in.) from the side of the vehicle, the tone will sound for only three seconds. Once the system detects an object approaching, the tone will sound again.

OFF

A reverse sensing control allows the driver to enable and disable the RSS when the ignition is ON. The reverse sensing control indicator momentarily illuminates when the ignition is turned ON. The OFF indicator remains illuminated when the system is disabled. The system defaults to ON every time the reverse gear is selected. Press the control to disable or enable the system. The indicator will remain illuminated to indicate a failure of the reverse sensing system. Always keep the sensors (located on the rear bumper/fascia) free from dirt, snow and ice (do not clean the sensors with sharp objects). These elements may cause the system to operate inaccurately. If the vehicle sustains damage to the rear bumper/fascia, leaving it misaligned or bent, the sensing zone may be altered causing inaccurate measurement of obstacles.

23

Controls and features

AUXILIARY POWER POINT The auxiliary power point is located on the instrument panel. Do not plug optional electrical accessories into the cigarette lighter. Use the power point.

A second auxiliary power point is located on the left rear side of the console (behind the driver seat). The power point is accessible from the rear seats.

24

Controls and features

USING YOUR AUDIO SYSTEM

Premium AM/FM Stereo/Cassette (CD Changer Compatible)

VOL PUSH ON

BASS

TREB

SEL

BAL

FADE

CD

TAPE

EJ

RDS

MUTE

SEEK

TUNE

SCAN

AUTO

AM

FM

REW

FF

SIDE 1.2

COMP

SHUFF

PremiumAM/FMStereo/Cassette(CDChangerCompatible)

VOL PUSH ON

BASS

TREB

SEL

BAL

FADE

CD

TAPE

EJ

RDS

DSP

MUTE

SEEK

TUNE

SCAN

AUTO

AM

FM

REW

FF

SIDE 1.2

COMP

SHUFF

25

Controls and features

Volume/powercontrol Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

VOL PUSH ON

VOL PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. Speedsensitivevolume(ifequipped) With this feature, radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. The recommended level for speed sensitive volume is from level 1
through level 3. Level 0 turns the speed sensitive volume off and level 7
is the maximum setting. With the radio on, press and hold the volume control for five seconds, until the display reads SPEED VOL #, then press:

VOL PUSH ON

26

Controls and features

† †

to increase volume

compensation

to decrease or shut off the

volume compensation

AM/FMselect The AM/FM select control works in radio, tape and CD modes (if equipped).

(cid:83)(cid:69)(cid:76)

AM

FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectintapemode Press this control to stop tape play and begin radio play. AM/FMselectinCDmode Press this control to stop CD play and begin radio play. Tuneadjust The tune control works in radio or CD mode (if equipped). Tuneadjustinradiomode † Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

TUNE

† Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

TuneadjustforCDchanger † Press

to select the previous

disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

TUNE

27

SEEK

SEEK

Controls and features † Press

to select the next disc in the CD changer. Hold the control

to fast-forward through the remaining discs.

Seekfunction The seek function control works in radio, tape or CD mode (if equipped). Seekfunctioninradiomode † Press

to find the next listenable station up the frequency band.

to find the next listenable station down the frequency band.

† Press Seekfunctionintapemode † Press

to listen to the previous selection on the tape or return to the beginning of the current selection.

† Press SeekfunctionforCDchanger † Press

to seek to the previous

track of the current disc. If a selection has been playing for three seconds or more and you press that selection from the beginning.

to listen to the next selection on the tape.

SEEK

, the CD changer will replay

† Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scanfunction The scan function works in radio, tape or CD mode (if equipped).

SCAN

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

28

Controls and features

Scanfunctionintapemode Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again. ScanfunctioninCDmode Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again. Radiostationmemorypreset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

REW

FF

SIDE 1.2

COMP

SHUFF

Autosetmemorypreset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations. Startingautosetmemorypreset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing.

AUTO

29

Controls and features

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. To deactivate autoset and return to your audio system’s manually set memory stations, press the control again. Bassadjust The bass adjust control allows you to increase or decrease the audio system’s bass output. Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

BASS

TREB

SEL

Trebleadjust The treble adjust control allows you to increase or decrease the audio system’s treble output. Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

Speakerbalanceadjust Speaker sound distribution can be adjusted between the right and left speakers. Press the BAL control. Use the SEL control to adjust the sound between the speakers.

Speakerfadeadjust Speaker sound can be adjusted between the front and rear speakers. Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers.

30

BASS

TREB

BAL

FADE

BAL

FADE

SEL

SEL

SEL

Controls and features

Tape/CDselect † To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

TAPE

CD

† To begin CD play (if equipped with CD changer), ensure that the CDs are loaded. Press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

TAPE

CD

Rewind The rewind control works in tape and CD modes. † In tape mode, radio play will

continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

Fastforward The fast forward control works in tape and CD modes (if equipped). † In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

† In CD mode, pressing the REW control for less than three seconds

results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

REW

FF

† In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Tapedirectionselect Press SIDE 1–2 to play the alternate side of a tape.

SIDE 1-2

31

Controls and features

Ejectfunction Press the control to stop and eject a tape.

EJ

control to activate

DolbyT noisereduction Dolbyt noise reduction operates only in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback. Press the (and deactivate) Dolbyt noise reduction. The Dolbyt noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolbyt and the double-D symbol are trademarks of Dolbyt Labratories Licensing Corporation. Compressionfeature Compression adjust brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust. The effect of the feature varies with the music content. Shufflefeature The shuffle feature operates in CD mode and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks are played. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again. Radiodatasystem(RDS)feature This feature allows your audio system to receive station

SHUFF

COMP

RDS

DSP

32

Controls and features

identification or program type from RDS-equipped FM radio stations. The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend FM radio broadcasters to use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Press the RDS control. Use the SEL control to select ON or OFF to enable or disable the feature. With the RDS activated, press the SEL control to scroll through the following selections:

(cid:83)(cid:69)(cid:76)

Traffic † Press the RDS control until

TRAFFIC is displayed.

† Use the SEL control to select ON or OFF. With the feature on, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

RDS

DSP

(cid:83)(cid:69)(cid:76)

Traffic information is not available in most U.S. markets. Programtype † Press the RDS control until the FIND program type is displayed.

RDS

DSP

† Use the SEL control to select the

program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

† Classic † Country

(cid:83)(cid:69)(cid:76)

33

Controls and features † Info † Jazz † Oldies † R & B † Religious † Rock † Soft † Top 40
Show † With RDS activated, press the

RDS control until SHOW is displayed.

† Use the SEL control to select TYPE (the display shows the program type), NAME (the display shows the call letters of the station) or NONE.

Mutemode Press the control to mute the playing media. Press the control again to return to the playing media.

RDS

DSP

(cid:83)(cid:69)(cid:76)

MUTE

Digitalsignalprocessing(ifequipped) The digital signal processing (DSP) feature allows you to change the signal mode to suit your listening tastes. These effects will change the sound quality and may need to be adjusted based upon the program material to suit your listening needs. Press the control to turn the feature on or off.

RDS

DSP

34

Controls and features

(cid:83)(cid:69)(cid:76)

clearly reflected sounds.

Use the SEL control to select the desired signal mode (the selected mode will appear in the display). The following signal modes can be selected: † JAZZ CLUB—jazz club with † HALL—rectangular concert hall capacity of about 2 000
† CHURCH—church with a high vault. † STADIUM—outdoor stadium with a capacity of about 30 000. † NEWS—“voice-only” type of sound with a limited audio band. Press the DSP control until one of the following appears: † ALL SEATS † DRIVER SEAT † REAR SEATS Use the SELECT control to change the equalization to the desired mode.

RDS

DSP

(cid:83)(cid:69)(cid:76)

Settingtheclockwithradiodatasystem(RDS)feature Press the RDS control until SELECT HOUR or SELECT MINS is displayed.

RDS

DSP

Use the SEL control to manually set the time. † Press † Press

hours/minutes.

to decrease

to increase

hours/minutes.

(cid:83)(cid:69)(cid:76)

35

Controls and features

Premium AM/FM Stereo/Single CD Radio

VOL PUSH ON

CD

BASS

TREB

BAL

FADE

SEL

EJ

MUTE

SCAN

SEEK

TUNE

AUTO

RDS

AM

FM

REW

FF

COMP

SHUFF

Volume/powercontrol Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

VOL PUSH ON

VOL PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. Speedsensitivevolume(ifequipped) With this feature, radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise.

36

Controls and features

The recommended level for speed sensitive volume is from level 1
through level 3. Level 0 turns the speed sensitive volume off and level 7
is the maximum setting. With the radio on, press and hold the volume control for five seconds, then press:

† †

to increase volume

compensation

to decrease or shut off the

volume compensation

AM/FMselect The AM/FM select control works in radio, tape and CD changer modes (if equipped).

VOL PUSH ON

(cid:83)(cid:69)(cid:76)

AM

FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectinCDorCDchangermode(ifequipped) Press this control to stop CD play and begin radio play. Tuneadjust The tune control works in radio or CD changer mode (if equipped). Tuneadjustinradiomode † Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

TUNE

† Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

37

Controls and features

TuneadjustforCDchanger † Press

to select the previous

disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.

TUNE

to select the next disc in the CD changer. Hold the control

to fast-forward through the remaining discs.

† Press

Seekfunction The seek function control works in radio, CD and CD changer mode (if equipped). Seekfunctioninradiomode † Press

to find the next listenable station down the frequency band.

to find the next listenable station up the frequency band.

† Press SeekfunctionforCDorCDchanger(ifequipped) † Press

to seek to the previous

SEEK

SEEK

track of the current disc. If a selection has been playing for three seconds or more and you press that selection from the beginning.

, the CD changer will replay

† Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scanfunction The scan function works in radio, CD and CD changer mode (if equipped).

SCAN

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

38

Controls and features

ScanfunctioninCDmode Press the SCAN control to hear a short sampling of all selections on the CD (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.). To stop on a particular selection, press the control again. Radiostationmemorypreset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

REW

FF

COMP

SHUFF

Autosetmemorypreset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations. Startingautosetmemorypreset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

AUTO

39

Controls and features

Bassadjust The bass adjust control allows you to increase or decrease the audio system’s bass output.

Trebleadjust The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speakerbalanceadjust Speaker sound distribution can be adjusted between the right and left speakers.

Speakerfadeadjust Speaker sound can be adjusted between the front and rear speakers.

BASS

TREB

BASS

TREB

BAL

FADE

BAL

FADE

SEL

SEL

SEL

SEL

CDselect To begin CD play (if CD[s] are loaded), press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. Press the CD control again to toggle between CD and CD changer mode (if equipped).

40

Controls and features

Rewind The rewind control works in CD mode. † In CD mode, pressing the REW control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

REW

Fastforward The fast forward control works in CD mode. † In CD mode, pressing the control

FF

for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Ejectfunction Press the control to stop and eject a CD.

EJ

control to activate

DolbyT noisereduction Dolbyt noise reduction operates only in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback. Press the (and deactivate) Dolbyt noise reduction. Dolbyt noise reduction is manufactured under license from Dolbyt Laboratories Licensing Corporation. “Dolbyt” and the double-D symbol are trademarks of Dolbyt Laboratories Licensing Corporation. Compressionfeature(ifequipped) Compression adjust brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust.

COMP

41

Controls and features

SHUFF

Shufflefeature(ifequipped) The shuffle feature operates in CD changer mode and plays all tracks on the current disc in random order. The shuffle feature continues to the next disc after all tracks are played. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again. Radiodatasystem(RDS)feature This feature allows your audio system to receive station identification or program type from RDS-equipped FM radio station. The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend FM radio broadcasters to use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Press and hold the control for five seconds to turn the feature on or off. Press the control to scroll through the following sections: Traffic † Press the RDS control until

RDS

TRAFFIC is displayed.

† Use the SEL control to select ON or OFF. With the feature on, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

Programtype † Press the RDS control until FIND

program type is displayed.

42

RDS

(cid:83)(cid:69)(cid:76)

RDS

† Use the SEL control to select the

program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

† Classic † Country † Info † Jazz † Oldies † R & B † Religious † Rock † Soft
