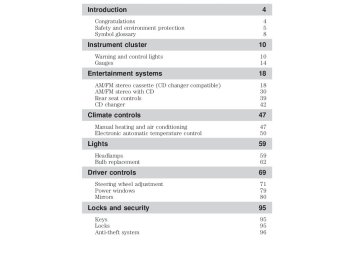

Table of contents

Introduction

Congratulations Safety and environment protection Symbol glossary

Instrument cluster

Warning and control lights Gauges

Entertainment systems

AM/FM stereo cassette (CD changer compatible) AM/FM stereo with CD Rear seat controls CD changer

Climate controls

Manual heating and air conditioning Electronic automatic temperature control

Lights

Headlamps Bulb replacement

Driver controls

Steering wheel adjustment Power windows Mirrors

Locks and security

Keys Locks Anti-theft system

10

10
14
18

18
30
39
42
47

47
50
59

59
62
69

71
79
80
95

95
95
96

Table of contents

Seating and safety restraints

Seating Safety restraints Air bags Child restraints

Driving

Starting Brakes Transmission operation Vehicle loading Trailer towing Recreational towing

Roadside emergencies

Hazard flasher switch Fuses and relays Changing tires Jump starting Wrecker towing

Customer assistance

The dispute settlement board Utilizing the mediation/arbitration Getting assistance outside the U.S. and Canada Ordering additional owner’s literature Reporting safety defects (U.S. only)

Cleaning

Cleaning your vehicle Underbody preservation

108

108
120
132
140
150

150
154
161
177
180
185
186

187
189
196
202
207
208

211
214
214
215
217
218

218
223

Maintenance and specifications

Hood Engine compartment Engine oil Battery Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications Engine data Vehicle dimensions

Accessories

Index

Table of contents

225

226
227
228
231
240
254
259
260
263
265
266
269

273

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2001 Ford Motor Company

Introduction

The following warning may be required by California law: CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: In the United States: www.ford.com In Canada: www.ford.ca In Australia: www.ford.com.au In Mexico: www.ford.com.mx Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply

to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Introduction

Fuel pump shut-off switch In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE There are no particular guidelines for breaking-in your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.

Introduction

SPECIAL NOTICES

Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions For your safety, your vehicle is fitted with sophisticated electronic controls.

By operating other electronic equipment (e.g. mobile telephone without exterior aerial) electromagnetic fields can occur which

can cause malfunctions of the vehicle electronics. Therefore you should observe the instructions of the equipment manufacturers.

Please read the section Air bag in the Seating and safety restraints chapter. Failure to follow the specific warnings and

instructions could result in personal injury.

Rear facing child or baby seats should NEVER be used in front of a passenger side air bag.

Introduction

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchorage

Brake System

Anti-Lock Brake System

Brake Fluid - Non-Petroleum Based

Traction Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Rear Window Defrost/Demist

Power Window Lockout

Windshield Defrost/Demist

Power Windows Front/Rear

Introduction

Vehicle Symbol Glossary

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Low tire warning

Instrument cluster

WARNING LIGHTS AND CHIMES

DOOR AJAR

THEFT

80

60

00

40

20

MPH

20

40

60

km/h

RPMX1000

SELECT/RESET

P RN D 2

BRAKE

CRUISE

4X4

LOW RANGE

CK SUSP

LOW FUEL

SERVICE ENGINE SOON

FUEL DOOR

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately.

SERVICE ENGINE SOON

Service engine soon Illuminates briefly to ensure the system is functional. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing. Light turns on solid: Temporary malfunctions may cause the light to illuminate. Examples are: 1. The vehicle has run out of fuel. 2. Poor fuel quality or water in the fuel. 3. The fuel cap may not have been properly installed and securely tightened. These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

10

Instrument cluster

If the light remains on, have your vehicle serviced at the first available opportunity. Light is blinking: Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning Illuminates if the parking brake is engaged. Also momentarily illuminates at start up to ensure the circuit is functional. If the brake warning lamp does not illuminate at these times, or illuminates after releasing the parking brake, seek service immediately. Refer to Brakes in the Driving chapter for more information.

BRAKE

Anti-lock brake system (ABS) Momentarily illuminates at start up to ensure the circuit is functional. If the light does not illuminate, remains on or continues to flash, the ABS needs to be serviced (refer to Brakes in the Driving chapter for more information). With the ABS light on, the ABS is disabled and normal braking is still functional.

ABS

Safety belt Illuminates to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

11

Instrument cluster

Air bag readiness Illuminates to confirm that the air bags (front or side) are operational. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Charging system Illuminates when the battery is not charging properly.

Check air suspension Illuminates momentarily when the ignition is turned to the ON position and the engine is OFF. The light also illuminates when the air suspension switch is turned OFF or the air suspension system requires servicing. For information on the air suspension system, refer to the Driving chapter.

SUSP

CK

LOW FUEL

Low fuel Illuminates when the fuel level in the fuel tank is at, or near, empty (refer to Fuel gauge in this chapter for more information).

Low washer fluid Illuminates when the windshield washer fluid is low.

Speed control Illuminates when the speed control is activated.

12

Instrument cluster

Oil pressure/Engine coolant Illuminates when the engine coolant temperature is above the normal range or the engine oil pressure is below normal range. Check the engine oil and coolant level refer to Adding engine oil and Adding coolant in the Maintenance and specifications chapter.

Turn signals Illuminates when the turn signals or the hazard lights are turned on. If the lights stay on continuously or flash faster, check for a burned-out bulb.

High beams Illuminates when the high beam headlamps are turned on.

Door ajar Illuminates when any door is open (or not fully closed).

DOOR AJAR

SecuriLock姟 anti-theft system Illuminates when the anti-theft alarm system is armed. If the light fails to illuminate, continues to flash or remains on, have the system serviced. Refer to SecuriLock娂 passive anti-theft system in the Locks and Security chapter.

THEFT

13

Instrument cluster

Four wheel drive low (if equipped) Illuminates when four-wheel drive low is is engaged. If the light continues to flash have the system serviced.

Four wheel drive indicator (if equipped) Illuminates when the four-wheel drive is engaged. If the light continues to flash have the system serviced.

Safety belt warning chime Sounds to remind you to fasten your safety belts.

LOW RANGE

4x4

BeltMinder chime Sounds intermittently to remind you to fasten your safety belts.

Supplemental restraint system (SRS) warning chime Sounds when a malfunction in the supplemental restraint system (front or side airbags) has been detected. Have the supplemental restraint system inspected immediately.

Headlamps on warning chime Sounds when the headlamps or parking lamps are on, the key is removed from the ignition and the driver’s door is opened.

Key-in-ignition warning chime Sounds when the key is left in the ignition and the driver’s door is opened.

GAUGES

LOW FUEL

SERVICE ENGINE SOON

FUEL DOOR

14

DOOR AJAR

THEFT

80

60

00

40

20

MPH

20

40

60

km/h

RPMX1000

SELECT/RESET

P RN D 2

BRAKE

CRUISE

4X4

LOW RANGE

CK SUSP

Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and specifications chapter.

Instrument cluster

Never remove the coolant reservoir cap while the engine is running or hot. Steam and scalding liquid from a hot cooling

system can burn you badly.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the oil pressure/engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and specifications chapter.

Engine oil pressure gauge Indicates engine oil pressure. At normal operating temperature, the needle will be in the normal range (the area between the “L” and “H”); if the needle goes below the normal range, stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level. Add oil if needed (refer to Engine oil in the Maintenance and specifications chapter). If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

15

Instrument cluster

Battery voltage gauge Indicates battery voltage. If the pointer moves and stays outside the normal operating range (as indicated by the arrows), have the vehicle’s electrical system checked as soon as possible.

Fuel gauge Displays approximately how much fuel is in the fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade. When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel. A minimum of 22.2 L (six gallons) must be added or removed from the fuel tank in order for the gauge to instantaneously update. If less than six gallons is the change, the gauge will take between five to twenty minutes to update.

FUEL DOOR

Speedometer Indicates the current vehicle speed.

80

60

00

40

20

MPH

20

40

60

km/h

16

Instrument cluster

Odometer Registers the total kilometers (miles) of the vehicle.

Trip odometer Registers the kilometers (miles) of individual journeys. Press and release the reset button until a “T” appears in the display (this represents the trip mode). Press and hold the button for three seconds to reset.

Tachometer Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

P RN D 2

RPMX1000

17

Entertainment systems

PREMIUM AM/FM STEREO/CASSETTE (CD CHANGER COMPATIBLE)

VOL PUSH ON

BASS

TREB

SEL

BAL

FADE

CD

TAPE

EJ

RDS

MUTE

SEEK

TUNE

SCAN

AUTO

AM

FM

REW

FF

SIDE 1.2

COMP

SHUFF

AUDIOPHILE AM/FM STEREO/CASSETTE (CD CHANGER COMPATIBLE)

VOL PUSH ON

BASS

TREB

SEL

BAL

FADE

CD

TAPE

EJ

RDS

DSP

MUTE

SEEK

TUNE

SCAN

AUTO

AM

FM

REW

FF

SIDE 1.2

COMP

SHUFF

18

Entertainment systems

Your audio system is equipped with selective lighting, a unique lighting strategy. This lighting feature is operable when the headlamps are illuminated. During the operation of any selected mode, lighting for the individual function controls will either illuminate or turn off. Those controls which have a function for the specific mode of operation selected will be lit, while the controls which have no function for that mode will be turned off.

Volume/power control Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

VOL PUSH ON

VOL PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. Speedsensitivevolume(ifequipped) With this feature, radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. The recommended level for speed sensitive volume is from level 1
through level 3. Level 0 turns the speed sensitive volume off and level 7
is the maximum setting. With the radio on, press and hold the volume control for five seconds, until the display reads SPEED VOL, then press:

VOL PUSH ON

19

(cid:83)(cid:69)(cid:76)

BASS

TREB

BASS

TREB

BAL

FADE

SEL

SEL

SEL

Entertainment systems

• •

to increase volume

compensation

to decrease or shut off the

volume compensation

Bass adjust The bass adjust control allows you to increase or decrease the audio system’s bass output. Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

Treble adjust The treble adjust control allows you to increase or decrease the audio system’s treble output. Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers. Press the BAL control. Use the SEL control to adjust the sound between the speakers.

20

Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers. Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers.

Entertainment systems

BAL

FADE

SEL

Seek function The seek function control works in radio, tape or CD mode (if equipped). Seekfunctioninradiomode • Press

to find the next listenable station up the frequency band.

SEEK

SEEK

to find the next listenable station down the frequency band.

• Press Seekfunctionintapemode • Press

to listen to the previous selection on the tape or return to the beginning of the current selection.

• Press SeekfunctionforCDchanger • Press

to seek to the previous

track of the current disc. If a selection has been playing for three seconds or more and you press that selection from the beginning.

• Press

SEEK

, the CD changer will replay

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

to listen to the next selection on the tape.

21

Entertainment systems

Scan function The scan function works in radio, tape or CD mode (if equipped).

SCAN

Scanfunctioninradiomode Press the SCAN control to activate scan mode and to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to disengage scan mode. Scanfunctionintapemode Press the SCAN control to hear a short sampling of all selections on the tape. The tape will scan in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape. To stop on a particular selection, press the SCAN control again. ScanfunctioninCDmode Press the SCAN control to hear a short sampling of all selections on the CD. The CD will scan in a forward direction, wrapping back to the first track at the end of the CD. To stop on a particular selection, press the control again.

AM/FM select The AM/FM select control works in radio, tape and CD modes (if equipped).

AM

FM

AM/FMselectinradiomode The AM/FM control allows you to select AM or FM frequency bands. Press the control to toggle between AM, FM1 or FM2 memory preset stations. AM/FMselectintapemode Press this control to stop tape play and begin radio play.

22

Entertainment systems

AM/FMselectinCDmode Press this control to stop CD play and begin radio play.

Radio station memory preset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

REW

FF

SIDE 1.2

COMP

SHUFF

Autoset memory preset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations. Startingautosetmemorypreset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. To deactivate autoset and return to your audio system’s manually set memory stations, press the control again.

AUTO

23

Entertainment systems

Setting the clock with radio data system (RDS) feature Press the RDS control until SELECT HOUR or SELECT MINS is displayed.

RDS

DSP

Use the SEL control to manually set the time. • Press • Press

hours/minutes.

to decrease

to increase

hours/minutes.

(cid:83)(cid:69)(cid:76)

Tune adjust The tune control works in radio or CD mode (if equipped). Tuneadjustinradiomode • Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

TUNE

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

TuneadjustforCDchanger • Press

to select the previous

disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

TUNE

to select the next disc in the CD changer. Hold the control

to fast-forward through the remaining discs.

• Press

24

Entertainment systems

Tape/CD select • To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

TAPE

CD

• To begin CD play (if equipped with CD changer), ensure that the CDs are loaded. Press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

TAPE

CD

Rewind The rewind control works in tape and CD modes. • In tape mode, radio play will

continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached. • In CD mode, pressing the REW control for less than three seconds

results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

Fast forward The fast forward control works in tape and CD modes (if equipped). • In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

REW

FF

25

Entertainment systems

Tape direction select Press SIDE 1–2 to play the alternate side of a tape.

Eject function Press the control to stop and eject a tape.

SIDE 1-2

EJ

Dolby姞 noise reduction Dolby威 noise reduction operates only in tape mode. Dolby威 noise reduction reduces the amount of hiss and static during tape playback. Press the reduction. The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby威 Labratories Licensing Corporation.

control to activate (and deactivate) Dolby威 noise

Compression feature Compression adjust brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust. The effect of the feature varies with the music content.

COMP

26

Entertainment systems

Shuffle feature The shuffle feature operates in CD mode and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks are played. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

SHUFF

Mute mode Press the control to mute the playing media. Press the control again to return to the playing media.

MUTE

Radio data system (RDS) feature This feature allows your audio system to receive station identification or program type from RDS-equipped FM radio stations. The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend FM radio broadcasters to use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Press the RDS control until RDS ON or RDS OFF appears in the display.

RDS

Use the SEL control to enable (ON) or disable (OFF) the feature. With the RDS activated, press the SEL control to scroll through the following selections:

Traffic • Press the RDS control until

TRAFFIC is displayed.

(cid:83)(cid:69)(cid:76)

RDS

27

Entertainment systems • Use the SEL control to select ON or OFF. With the feature on, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

(cid:83)(cid:69)(cid:76)

Traffic information is not available in most U.S. markets. Programtype • Press the RDS control until the FIND program type is displayed. • Use the SEL control to select the

RDS

program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic • Country • Info • Jazz • Oldies • R & B • Religious • Rock • Soft • Top 40
Show • With RDS activated, press the

RDS control until SHOW is displayed.

28

(cid:83)(cid:69)(cid:76)

RDS

Entertainment systems

• Use the SEL control to select TYPE (the display shows the program type), NAME (the display shows the call letters of the station) or NONE.

(cid:83)(cid:69)(cid:76)

DSP

RDS

Digital signal processing (if equipped) The digital signal processing (DSP) feature allows you to change the signal mode to suit your listening tastes. These effects will change the sound quality and may need to be adjusted based upon the program material to suit your listening needs. Press the control to turn the feature on or off. Use the SEL control to select the desired signal mode (the selected mode will appear in the display). The following signal modes can be selected: • JAZZ CLUB—jazz club with • HALL—rectangular concert hall capacity of about 2 000
• CHURCH—church with a high vault. • STADIUM—outdoor stadium with a capacity of about 30 000. • NEWS—“voice-only” type of sound with a limited audio band. Press the DSP control until one of the following appears: • ALL SEATS • DRIVER SEAT • REAR SEATS

clearly reflected sounds.

RDS

DSP

(cid:83)(cid:69)(cid:76)

29

Entertainment systems

Use the SELECT control to change the equalization to the desired mode.

PREMIUM AM/FM STEREO/SINGLE CD RADIO

VOL PUSH ON

CD

(cid:83)(cid:69)(cid:76)

BASS

TREB

BAL

FADE

SEL

EJ

MUTE

SCAN

SEEK

TUNE

AUTO

RDS

AM

FM

REW

FF

COMP

SHUFF

Your audio system is equipped with selective lighting, a unique lighting strategy. This lighting feature is operable when the headlamps are illuminated. During the operation of any selected mode, lighting for the individual function controls will either illuminate or turn off. Those controls which have a function for the specific mode of operation selected will be lit, while the controls which have no function for that mode will be turned off.

30

Entertainment systems

Volume/power control Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

VOL PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. Speedsensitivevolume(ifequipped) With this feature, radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. The recommended level for speed sensitive volume is from level 1
through level 3. Level 0 turns the speed sensitive volume off and level 7
is the maximum setting. With the radio on, press and hold the volume control for five seconds, then press:

31

Entertainment systems

• •

to increase volume

compensation

to decrease or shut off the

volume compensation

Bass adjust The bass adjust control allows you to increase or decrease the audio system’s bass output.

Treble adjust The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers.

Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers.

32

(cid:83)(cid:69)(cid:76)

BASS

TREB

BASS

TREB

BAL

FADE

BAL

FADE

SEL

SEL

SEL

SEL

Entertainment systems

Seek function The seek function control works in radio, CD and CD changer mode (if equipped). Seekfunctioninradiomode • Press

to find the next listenable station down the frequency band.

to find the next listenable station up the frequency band.

• Press SeekfunctionforCDorCDchanger(ifequipped) • Press

to seek to the previous

SEEK

SEEK

, the CD changer will replay

track of the current disc. If a selection has been playing for three seconds or more and you press that selection from the beginning.

• Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scan function The scan function works in radio, CD and CD changer mode (if equipped).

SCAN

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode. ScanfunctioninCDmode Press the SCAN control to hear a short sampling of all selections on the CD (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.). To stop on a particular selection, press the control again.

33

Entertainment systems

AM/FM select The AM/FM select control works in radio, tape and CD changer modes (if equipped).

AM

FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectinCDorCDchangermode(ifequipped) Press this control to stop CD play and begin radio play.

Radio station memory preset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

REW

FF

COMP

SHUFF

Autoset memory preset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

34

Entertainment systems

Startingautosetmemorypreset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

AUTO

Setting the clock Press the RDS control until SELECT HOUR or SELECT MINS is displayed.

Use the SEL control to manually set the time. • Press • Press

to decrease hours/

to increase hours/

minutes.

minutes.

RDS

(cid:83)(cid:69)(cid:76)

Tune adjust The tune control works in radio or CD changer mode (if equipped). Tuneadjustinradiomode • Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

TUNE

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

35

Entertainment systems

TuneadjustforCDchanger • Press

to select the previous

disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.

TUNE

to select the next disc in the CD changer. Hold the control

to fast-forward through the remaining discs.

• Press

CD select To begin CD play (if CD[s] are loaded), press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. Press the CD control again to toggle between CD and CD changer mode (if equipped). Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

Rewind The rewind control works in CD mode. • In CD mode, pressing the REW

Fast forward The fast forward control works in CD mode. • In CD mode, pressing the control

REW

FF

for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Eject function Press the control to stop and eject a CD.

EJ

36

Entertainment systems

Compression feature (if equipped) Compression adjust brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust.

COMP

Shuffle feature (if equipped) The shuffle feature operates in CD changer mode and plays all tracks on the current disc in random order. The shuffle feature continues to the next disc after all tracks are played. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

SHUFF

Mute mode Press the control to mute the playing media. Press the control again to return to the playing media.

MUTE

Radio data system (RDS) feature This feature allows your audio system to receive station identification or program type from RDS-equipped FM radio station. The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend FM radio broadcasters to use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Press the RDS control until RDS ON or RDS OFF appear in the display. Use the SEL control to enable (ON) or disable (OFF) the feature. Once activated, you can choose from the following items:

RDS

37

RDS

(cid:83)(cid:69)(cid:76)

RDS

(cid:83)(cid:69)(cid:76)

Entertainment systems

Traffic • Press the RDS control until

TRAFFIC is displayed.

• Use the SEL control to select ON or OFF. With the feature on, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

Programtype • Press the RDS control until FIND

program type is displayed.

• Use the SEL control to select the

program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic • Country • Info • Jazz • Oldies • R & B • Religious • Rock • Soft • Top 40

38

Entertainment systems

Show • With RDS activated, press the

RDS control until SHOW is displayed.

• Use the SEL control to select

TYPE, NAME or NONE.

RDS

(cid:83)(cid:69)(cid:76)

REAR SEAT CONTROLS (IF EQUIPPED) The Personal Audio System, allows front and middle seat passengers to listen to different media sources (radio, cassette or CD) simultaneously. However, the front and middle-seat passengers cannot listen to two different radio stations at the same time.

- VOLUME +

MODE

SEEK

MEMORY

REW

FF

SIDE 1.2

COMP

SHUFF

will appear in the display.

To turn on the rear seat controls, press the memory preset controls 3
and 5 at the same time. The Pressing 3 and 5 at the same time again will turn the rear seat controls off. If there is a discrepancy between the rear seat and the front audio controls, (such as both trying to listen to the same playing media), the front audio system will receive the desired selection.

39

Entertainment systems

To activate the Personal Audio System, press the speaker/headphone control. Press the MODE control to change audio sources (for headphone mode only). Use the SEEK, VOLUME and MEMORY controls to make adjustments to the playing media.

ADJUSTING THE VOLUME Press the + control to increase volume. Press the - control to decrease volume.

- VOLUME +

MODE

SEEK

MEMORY

- VOLUME +

MODE

SEEK

MEMORY

From the rear seat controls, volume control can be set no higher than the current radio setting unless the speakers are turned off. Refer to Turning the rear speakers on and off.

TURNING THE REAR SPEAKERS ON AND OFF Press to turn the rear speakers on or off.

- VOLUME +

MODE

SEEK

MEMORY

40

Entertainment systems

jack. Press the

USING HEADPHONES/PERSONAL AUDIO SYSTEM Plug a 3.5 mm headphone (not included) into the speaker on/off control to operate the headphones. DUAL PLAY illuminates in the radio display and the fade control is disabled. The rear speakers will cut out once the speaker on/off control is pressed. The front speaker will remain playing for the front passengers. Press the control again to deactivate the headphones (Personal Audio System). SINGLE PLAY illuminates in the radio display and the fade control is enabled. For the Personal Audio System to be enabled, the rear seat controls must be active and

illuminated in the radio display.

MODE SELECT Push the MODE control to toggle between AM, FM1, FM2, tape, CD or CD changer (if equipped). If in the Personal Audio System mode, SHARED illuminates in the radio display when the front and rear modes are set to the same media.

MEMORY PRESET CONTROL Push the MEMORY control successively to allow rear seat passengers to scroll through the 6
memory presets in AM, FM1 or FM2. Push the MEMORY control in CD changer mode (if equipped) to advance to the next disc.

- VOLUME +

MODE

SEEK

MEMORY

- VOLUME +

MODE

SEEK

MEMORY

41

Entertainment systems

SEEK FUNCTION • In radio mode, press to find the next listenable station down the frequency band. • In radio mode, press

to find the next listenable station up the frequency band.

• In tape mode, use the SEEK function to access the next previous

selection.

• In CD mode (if equipped), use

or

the SEEK function to access the next

- VOLUME +

MODE

SEEK

MEMORY

or previous

selection.

CD CHANGER (IF EQUIPPED) Your CD changer is located in the center console. Slide the door to access the CD changer magazine.

Press

to eject the magazine.

42

Entertainment systems

1. Pull the lever to remove a CD tray from the magazine.

2. Insert one disc into each CD tray of the magazine (up to 6 discs). Ensure that the label side is facing up. If you pull too hard on the disc holder, the disc holder may come completely out of the magazine. If this happens, reinsert the disc holder back into the magazine.

3. Insert each CD tray, with the disc loaded, all the way into the CD magazine.

4. Insert the CD magazine into the changer.

43

Entertainment systems

5. Slide the door to the left to close.

Use only compact discs containing this mark.

The magazine does not need to be full for the changer to operate. Radio power must be turned on to play the CDs in the changer. The magazine may be stored in the glove compartment when not being used. The CD magazine may be inserted or ejected with the radio power off. Keep the CD changer door closed. Coins and foreign objects will damage the CD player and void your audio system warranty. Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

TROUBLESHOOTING THE CD CHANGER (IF EQUIPPED)

The laser beam used in the compact disc player is harmful to the eyes. Do not attempt to disassemble the case.

If sound skips: • You may be traveling on a rough road, playing badly scratched discs or

the disc may be dirty. Skipping will not scratch the discs or damage the player.

If your changer does not work, it may be that: • A disc is already loaded where you want to insert a disc. • The disc is inserted with the label surface downward. • The disc is dusty or defective. • A disc with format and dimensions not within industry standards is

inserted.

44

Entertainment systems

CLEANING COMPACT DISCS Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

CD AND CD CHANGER CARE • Handle discs by their edges only. Never touch the playing surface. • Do not expose discs to direct sunlight or heat sources for extended • Do not insert more than one disc into each slot of the CD changer

periods of time.

magazine.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

CLEANING CASSETTE PLAYER (IF EQUIPPED) Clean the tape player head with a cassette cleaning cartridge after 10 to 12 hours of play in order to maintain the best sound and operation.

CASSETTE AND CASSETTE PLAYER CARE • Use only cassettes that are 90 minutes long or less. • Do not expose tapes to direct sunlight, high humidity, extreme heat or

extreme cold. Allow tapes that may have been exposed to extreme temperatures to reach a moderate temperature before playing. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Do not leave tapes in the cassette player for a long time when not

and turning the hub.

being played.

45

Entertainment systems

RADIO FREQUENCY INFORMATION The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are: AM 530, 540–1600, 1610 kHz FM 87.7, 87.9–107.7, 107.9 MHz Not all frequencies are used in a given area.

RADIO RECEPTION FACTORS Three factors can affect radio reception: • Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

AUDIO SYSTEM WARRANTIES AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or a qualified technician.
