Before driving
Introduction
Instrumentation
Controls and features
Seating and safety restraints
Starting and driving
Starting
Driving
Roadside emergencies
Servicing
Maintenance and care
Capacities and specifications
Reporting safety defects
Index

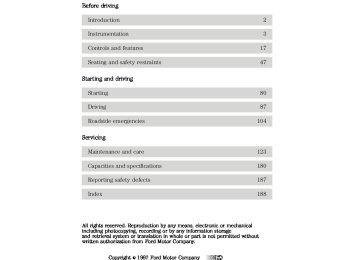

Contents
17
47
80
87
104
123
180
187
188
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company.
Copyright r 1997 Ford Motor Company
Elemental Chlorine Free
Introduction
ICONS Indicates a warning. Read the following section on Warnings for a full explanation.
Indicates vehicle information related to recycling and other environmental concerns will follow. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment.
WARNINGS Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.
BREAKING-IN YOUR VEHICLE There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is necessary to give the moving parts a chance to break in. If possible, you should avoid full use of the brakes for the first 1 600 km (1 000 miles).
INFORMATION ABOUT THIS GUIDE The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.
Instrumentation
Instrumentation
Foglamp control *
(pg. 28)
Instrument cluster
(pg. 6)
Headlamp/turn signal control
(pg. 26)
MIRROR
50
80
40
60
70
100
120
80
90
140
30
60
0 0 0 1 1 3
160
100
4 5
RPMx1000
THEFT
1 2/
FUEL FILL
LOW FUEL
Power side view
mirrors (pg. 17)
Speed control
(pg. 28)
Instrument panel dimmer switch
(pg. 17)
Driver side air
bag
(pg. 58)
Windshield wiper/washer
control (pg. 34)
I N
M I S T O F F
SEEK TRACK
TUNE DISCS
AM FM
SCAN
VOL PUSH ON
Instrumentation
Passenger side air bag
(pg. 58)
TAPE CD
EJ
PREMIUM SOUND
REW
FF
DOLBY B NR
SIDE 1-2
LO
HI
COMP
SHUF
OFF
A/C
MAX A/C
Climate controls
(pg. 18)
BASS
TREB
BAL
FADE
R.DEF
Electronic sound system; refer to
Audio Guide
(pg. 18)
Instrumentation
WARNING LIGHTS AND CHIMES
Base instrument cluster
1 2/
FUEL FILL
SERVICE ENGINE SOON
LOW FUEL
ABS
BRAKE
50 60 70
80
100
120
0 0 0 0 0
40
30
60
40
20
10 200 0 0
MPH km/h
80
140
90
100160
110
180
120
200
–
CHECK
COOLANT
THEFT
Sport instrument cluster
1 2/
FUEL FILL
SERVICE ENGINE SOON
LOW FUEL
ABS
BRAKE
50 60 70
80
100
120
0 0 0 0 0
40
30
60
40
20
10 200 0 0
MPH km/h
80
140
90
100160
110
180
120
200
4 5
RPMx1000
–
CHECK
COOLANT
THEFT
ZX2 coupe instrument cluster
Instrumentation
1 2/
FUEL FILL
50
80
40
60
70
100
120
80
140
90
30
60
0 0 0 0 0
160
100
20
40
10 20
MPH
0 0 0
km/h
180
110
120
LOW FUEL
CHECK
COOLANT
SERVICE ENGINE SOON
BRAKE
–
ABS
Low fuel Illuminates when the fuel tank has approximately eight liters (two gallons) remaining. The lamp will also illuminate when the ignition key is turned to ON and the engine is off.
Service engine soon Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). This OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle. The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON
4 5
RPMx1000
THEFT
LOW FUEL
SERVICE ENGINE SOON
Instrumentation
position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing. Whatyoushoulddoifthe ServiceEngineSoonlight illuminates Light turns on solid: This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your Service Engine Soon light to illuminate. Examples are: 1. The vehicle has run out of fuel. (The engine may misfire or run poorly.) 2. Poor fuel quality or water in the fuel. 3. The fuel cap may not have been properly installed and securely tightened. These temporary malfunctions can be corrected by filling the fuel tank with good quality fuel and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Service Engine Soon light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No
additional vehicle service is required. If the Service Engine Soon light remains on, have your vehicle serviced at the first available opportunity. Light is blinking: Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.
Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
Air bag readiness Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.
Safety belt Momentarily illuminates when the ignition is turned ON to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.
Instrumentation
Instrumentation
Brake system warning Momentarily illuminates when the ignition is turned ON and the engine is off. Also illuminates when the parking brake is engaged. Illumination after releasing the parking brake indicates low brake fluid level.
Anti-lock brake system (ABS) (If equipped) Momentarily illuminates when the ignition is turned on and the engine is off. If the light remains on or continues to flash, the ABS needs to be serviced.
Turn signal Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously or flash faster, check for a burned-out turn signal bulb. Refer to Exterior bulbs in the Maintenance and care chapter.
High beams Illuminates when the high beam headlamps are turned on.
Anti-theft system (if equipped) Refer to Anti-theft system in the Controls and features chapter.
10
BRAKE
ABS
THEFT
Charging system Momentarily illuminates when the ignition is turned ON and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.
Engine oil pressure Illuminates when the oil pressure falls below the normal range. Switch off the engine immediately. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and Care chapter. This lamp also illuminates when the ignition is turned to ON and the engine is off.
Check coolant Illuminates when the coolant level in the coolant reservoir is low and more needs to be added. This lamp will also illuminate when the ignition is turned to ON and the engine is off. For more information on adding engine coolant, refer to Engine coolant in the Maintenance and care chapter.
Liftgate ajar (if equipped) Illuminates when the ignition is in the ON position and the liftgate is open.
Safety belt warning chime Chimes to remind you to fasten your safety belts.
Instrumentation
CHECK
COOLANT
11
Instrumentation
For information on the safety belt warning chime, refer to the Seating and safety restraints chapter.
Supplemental restraint system (SRS) warning chime For information on the SRS warning chime, refer to the Seating and safety restraints chapter.
Key-in-ignition warning chime Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and either front door is opened.
Headlamps on warning chime Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and either front door is opened.
12
Instrumentation
GAUGES
Base instrument cluster gauges
1 2/
FUEL FILL
SERVICE ENGINE SOON
ABS
BRAKE
50 60 70
80
100
120
0 0 0 0 0
40
30
60
40
20
10 200 0 0
MPH km/h
80
140
90
100160
110
180
120
200
–
CHECK
COOLANT
THEFT
Sport instrument cluster gauges
1 2/
FUEL FILL
SERVICE ENGINE SOON
LOW FUEL
ABS
BRAKE
50 60 70
80
100
120
0 0 0 0 0
40
30
60
40
20
10 200 0 0
MPH km/h
80
140
90
100160
110
180
120
200
4 5
RPMx1000
–
CHECK
COOLANT
THEFT
ZX2 coupe instrument cluster gauges
1 2/
FUEL FILL
50
80
40
60
70
100
120
80
140
90
30
60
0 0 0 0 0
160
100
20
40
10 20
MPH
0 0 0
km/h
180
110
120
LOW FUEL
CHECK
COOLANT
SERVICE ENGINE SOON
BRAKE
–
ABS
4 5
RPMx1000
THEFT
13
1 2/
FUEL FILL
Instrumentation
Fuel gauge Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion. The ignition should be in the OFF position while the vehicle is being refueled. When the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.
Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle, switch off the ignition and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter.
Never remove the coolant recovery cap while the
engine is running or hot.
This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level or mixture, the gauge indication will not be accurate.
14
Speedometer Indicates the current vehicle speed.
Odometer Registers the total kilometers (miles) of the vehicle.
Trip odometer Registers the kilometers (miles) of individual journeys. To reset, depress the control.
Instrumentation
50
80
40
60
70
100
120
80
140
90
30
60
0 0 0 0 0
160
100
20
40
10 20
MPH
0 0 0
km/h
180
110
120
50
80
40
60
70
100
120
80
140
90
30
60
0 0 0 0 0 0
160
100
20
40
10 20
MPH
0 0 0
km/h
180
110
120
50
80
40
60
70
100
120
80
140
90
30
60
0 0 0 0 0 0
160
100
20
40
10 20
MPH
0 0 0 0
km/h
180
110
120
15
Instrumentation
Tachometer (if equipped) Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer in the red zone may damage the engine.
4 5
RPMx1000
THEFT
16
PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel. • Rotate left to brighten. • Rotate right to dim.
POWER SIDE VIEW MIRRORS To adjust your mirrors: 1. Select L to adjust the left mirror or R to adjust the right mirror.
2. Move the control in the direction you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place. The ignition key must be in ACC or ON to adjust the power side view mirrors.
Controls and features
MIRRORS L R
MIRRORS L R
17
Controls and features
AUDIO SYSTEM Refer to the “Audio Guide” for instructions on how to operate the audio system.
CLIMATE CONTROL SYSTEM
Heater only system (if equipped)
LO
OFF
HI
18
Controls and features
Fanspeedcontrol Controls the volume of air circulated in the vehicle.
Temperaturecontrolknob Controls the temperature of the airflow inside the vehicle. On heater-only systems, the air cannot be cooled below the outside temperature. Modeselectorcontrol Controls the direction of the airflow to the inside of the vehicle.
LO
HI
OFF
(Vent)-Distributes outside
air through the instrument panel registers. • OFF-Outside air is shut out and •
the fan will not operate.
(Panel and
floor)-Distributes outside air through the instrument panel registers and the floor ducts.
•
•
•
•
(Floor)-Allows for maximum
heating. Distributes outside air through the floor ducts.
(Floor and
defrost)-Distributes outside air through the floor ducts and the windshield defroster ducts. -Distributes outside air
through the windshield defroster
19
Controls and features
ducts. It can be used to clear ice or fog from the windshield.
Operatingtips • In humid weather, select
before driving. This will
help to prevent your windshield from fogging. After a few minutes, select any desired position. • To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position.
• Don’t put objects under the front seat that will interfere with the airflow to the back seats. • Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield under the hood).
• When placing objects on top of your instrument panel, be careful to not place them over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.
20
Controls and features
Manual heating and air conditioning system (if equipped)
LO
OFF
HI
A/C
MAX A/C
Fanspeedcontrol Controls the volume of air circulated in the vehicle.
Temperaturecontrolknob Controls the temperature of the airflow inside the vehicle.
LO
HI
Modeselectorcontrol Controls the direction of the airflow to the inside of the vehicle.
OFF
A/C
MAX A/C
The air conditioning compressor will operate in all modes except
and
. However, the air
conditioning will only function if the outside temperature is about 10°C (50°F) or above. Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and
21
Controls and features
even after you have stopped the vehicle. Under normal conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct. • MAX A/C-Uses recirculated air to cool the vehicle. MAX A/C is noisier than A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle. • A/C-Uses outside air to cool the vehicle. It is quieter than MAX A/C but not as economical. Airflow will be from the instrument panel registers.
(Vent)-Distributes outside
air through the instrument panel registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode. • OFF-Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.
•
(Panel and
floor)-Distributes outside air
•
22
•
•
through the instrument panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.
(Floor)-Allows for maximum
heating by distributing outside air through the floor ducts. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.
(Floor and
defrost)-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers. If the temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to prevent fogging.
Controls and features
23
•
Controls and features
-Distributes outside air
through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to prevent fogging.
Operatingtips • In humid weather, select
before driving. This will prevent your windshield from fogging. After a few minutes, select any desired position. • To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position.
• Don’t put objects under the front seat that will interfere with the airflow to the back seats. • Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield under the hood).
• If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle.
24
Then operate your air conditioner as you would normally.
• When placing objects on top of your instrument panel, be careful to not place them over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.
REAR WINDOW DEFROSTER Clears the rear window of thin ice and fog. To operate: 1. Turn the ignition to the ON position. 2. Press and release the control once to turn on. The light will be lit while the rear window defroster is on. 3. Press and release the control again to turn off. The defroster will automatically turn off after fifteen minutes.
Controls and features
R.DEF
25
3
ON II
CC
OFF
Controls and features
POSITIONS OF THE IGNITION 1. LOCK, locks the steering wheel, gearshift lever (automatic transaxle only) and allows key removal. On vehicles with a manual transaxle push the key in while turning to lock. 2. ACCESSORY, allows the electrical accessories such as the radio to operate while the engine is not running. 3. ON, all electrical circuits operational. Warning lights illuminated. Key position when driving. 4. START, cranks the engine. Release the key as soon as the engine starts.
HEADLAMP CONTROL Rotate the headlamp control clockwise to the first position to turn on the parking lamps only. Rotate to the second position to also turn on the headlamps.
Daytime running lamps (DRL) (if equipped) Turns the highbeam headlamps on with a reduced output. To activate: • the engine must be running • the gearshift must not be in P • the headlamp control is in the OFF or Parking lamps position.
(Park)
26
The Daytime Running Light (DRL) system will
not illuminate the tail lamps and parking lamps. Turn on your headlamps at dusk. Failure to do so may result in a collision.
High beams Push forward to activate.
Flash to pass Pull toward you to activate and release to deactivate.
TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right
turn signal.
turn signal.
Controls and features
OFF
OFF
OFF
27
OFF
OFF
O N
O F F
Controls and features
FOGLAMPS (IF EQUIPPED) Rotate forward to activate.
SPEED CONTROL (IF EQUIPPED)
To turn speed control on • Press ON. Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h (30 mph).
Do not use the speed control in heavy traffic or
on roads that are winding, slippery, or unpaved.
Do not shift the gearshift lever into N (Neutral) with
the speed control on.
28
To turn speed control off • Press OFF or • Turn off the vehicle ignition.
Once speed control is switched off, the previously programmed set speed will be erased.
To set a speed • Press SET ACC/SET ACCEL. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).
If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal. Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.
Controls and features
O N
O F F
RSM
SET ACC
CST
29
Controls and features
If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RES/RSM/RESUME will re-engage it.
Do not use the speed control in heavy traffic or
on roads that are winding, slippery, or unpaved.
To set a higher set speed • Press and hold SET ACC/SET ACCEL. Release the control when the desired vehicle speed is reached or • Press and release SET ACC/SET ACCEL. Each press will increase the set speed by 1.6 km/h (1
mph) or• Accelerate with your accelerator
pedal, then press and release SET ACC/SET ACCEL.
You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.
30
RSM
SET ACC
CST
To set a lower set speed • Press and hold CST/COAST. Release the control when the desired speed is reached or • Press and release CST/COAST. Each press will decrease the set speed by 1.6 km/h (1 mph) or
• Depress the brake pedal. When the desired vehicle speed is reached, press SET ACC/SET ACCEL.
Controls and features
RSM
SET ACC
CST
RSM
SET ACC
CST
31
Controls and features
To disengage speed control • Depress the brake pedal or
• Depress the clutch pedal (if
equipped)
Disengaging the speed control will not erase the previously programmed set speed.
Pressing OFF will erase the previously programmed set speed.
32
O N
O F F
To return to a previously set speed • Press RES/RSM/RESUME. For RES/RSM/RESUME to operate, the vehicle speed must be faster than 48 km/h (30 mph).
TILT STEERING (IF EQUIPPED) Pull the tilt steering control down to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then push the control back up to lock the steering wheel in position.
Never adjust the steering wheel when the vehicle is
moving.
HAZARD FLASHER For information on the hazard flasher control, refer to Hazard lights control in the Roadside emergencies chapter.
Controls and features
RSM
SET ACC
CST
33
Controls and features
WINDSHIELD WIPER AND WASHER • For intermittent wiping, move the control down one position and rotate the wiper switch to the desired position.
• For low speed wiping, move the • For high speed wiping, move the
control down two positions.
control down three positions.
control up one position.
• For mist wiping, move the • To spray the washer fluid, pull the wiper control toward you.
34
MIST OFF INT
MIST OFF INT
INT
INT
PULL
PULL
MIST OFF INT
INT
PULL
Controls and features
MIST OFF INT
ON OFF
INT
PULL
Rear window wiper/washer controls (if equipped) For rear wiper operation, rotate the rear wiper and washer control to the desired position. • To turn rear wipers on, rotate the rear wiper/washer control upward to the ON position. • To turn rear wipers off, rotate the rear wiper/washer control downward to the OFF position.
For rear washer fluid operation, rotate the rear wiper/washer control to the desired position. • To turn rear washers on, rotate the rear wiper/washer control position for upward to the your desired length of washer time. • To turn rear washers on briefly (for quick cleaning), rotate the wiper/washer control downward position and release. to the
roof to the vent position.
MOON ROOF (IF EQUIPPED) • Press OPEN to raise the moon • Press OPEN again to fully open • Press the opposite end of the
the moon roof.
toggle control to close the moon roof from either position.
Sliding shade The moon roof has a sliding shade that you can open or close when the moon roof is closed.
OPEN
35
Controls and features
INTERIOR LAMPS
Dome lamp (if equipped) The dome lamp is located overhead between the driver and passenger seats. The dome lamp will stay on if the control is moved to the ON position. When the control is moved to the DOOR position, the lamp will only come on if a door is opened. If the control is moved to the OFF position, the lamp will not come on at all.
Map lamps (if equipped) The map lamps and controls are located on the dome lamp. Press the controls on either side of the dome lamp to activate the map lamps. If equipped with a moon roof, the map lamps are located on the moon roof control panel. Press the control next to the map lamp to illuminate the lamp.
36
OFF DOOR ON
OPEN
POWER WINDOWS (IF EQUIPPED) Press and hold the rocker switches to open and close windows. • Press the top portion of the
rocker switch to close.
Controls and features
37
Controls and features • Press the bottom portion of the
rocker switch to open.
Express down To make the driver window open fully without holding the window control, press the driver window control completely down and release quickly. Depress again to stop window operation.
POSITIVE RETENTION FLOOR MAT Position the floor mat so that the eyelet is over the pointed end of the retention post and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure.
38
FUEL PUMP SHUT-OFF SWITCH Refer to the Roadside emergencies chapter for instructions on how to operate the fuel pump shut-off switch.
CARGO COVER (IF EQUIPPED) Your vehicle may be equipped with a cargo area shade that covers the luggage compartment of your vehicle. To install the shade: 1. Fasten the cover into the mounting brackets (make sure the cover is right side up). 2. Pull the end of the shade toward you and hook the sides into the notches in the rear trim panels.
To prevent the possibility of injuries, the fasteners
for the cargo area cover must be properly attached to the mounting clips on the rear trim panels.
Do not place any objects on the cargo area cover.
They may obstruct your vision or strike occupants of the vehicle in the case of a sudden stop or collision.
REMOTE ENTRY SYSTEM Your vehicle may have an all-door remote entry system or a driver’s door only remote entry system.
Controls and features
39
Controls and features
without a key.
The all-door remote entry system allows you to: • lock or unlock all vehicle doors • arm and disarm the anti-theft system. (For more information on the anti-theft system, refer to Anti-theft system in this chapter.)
• open the trunk. • activate the panic alarm. The driver’s door only entry system allows you to: • lock the driver’s door and • unlock the driver’s door only • activate the panic alarm. • open the trunk or unlock liftgate
liftgate (wagons)
without a key.
(wagons).
The remote entry features only operate with the ignition in the OFF position.
Unlocking the doors Press this control to unlock the driver’s door. The interior lamps will illuminate. With the all-door remote entry system, press the control a second time within five seconds to unlock all doors (on wagons, this will not unlock the liftgate).
40
Controls and features
Locking the doors Press this control to lock all doors (and liftgate on wagons). On vehicles equipped with the driver’s door only remote entry system, only the driver’s door will lock. To confirm doors are closed and locked, press the lock control a second time within five seconds. The door(s) will lock again, the horn will chirp once and the lamps will flash. If any of the doors are open or ajar, the horn will make two quick chirps, reminding you to properly close the doors. This process will also arm your anti-theft system (if equipped). For more information on arming the anti-theft system, refer to Anti-theft system in this chapter.
Opening the trunk Press the control once to open the trunk. On wagons, pressing the control will unlock (but not open) the liftgate. Be certain the trunk is closed before driving your vehicle. The trunk may appear closed, but it may not be latched. Failure to do so may cause objects to fall out of the trunk or block rear view vision.
41
Controls and features
Sounding a panic alarm Press this control to activate the alarm. To deactivate the alarm, press the control again or turn the ignition to ACC or ON. This device complies with part 15
of the FCC rules and with RS-210
of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Replacing the batteries The transmitter is powered by two coin type three-volt lithium batteries. Typical operating range will allow you to be up to 10
meters (33 feet) away from your vehicle. A decrease in operating
