Introduction


Instrument Cluster


Warning and control lights Gauges


Entertainment Systems


AM/FM stereo cassette AM/FM stereo with CD


Climate Controls


Heater only Manual heating and air conditioning


Lights


Headlamps Turn signal control Bulb replacement Driver Controls


Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control


Locks and Security


Keys Locks Anti-theft system

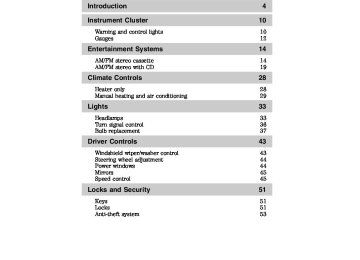

Table of Contents


10


10
12
14


14
19
28


28
29
33


33
36
37
43


43
44
44
45
45
51


51
51
53


58


58
60
69
73
84


84
88
91
99
100
103


103
104
104
105
110
114
119
120


129
130


Table of Contents


Seating and Safety Restraints


Seating Safety restraints Air bags Child restraints


Driving


Starting Brakes Transmission operation Vehicle loading Trailer towing


Roadside Emergencies


Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Jump starting Wrecker towing


Customer Assistance


Reporting safety defects (U.S. only)


Cleaning


Maintenance and Specifications


Engine compartment Engine oil Battery Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications


Accessories


Index


Table of Contents


136


140
141
144
151
165
169
170
171
176


179


All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.


Copyright © 2002 Ford Motor Company


Introduction


CALIFORNIA Proposition 65 Warning


WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to


the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.


CONGRATULATIONS Congratulations on acquiring your new Ford Motor Company product. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Mexico: www.ford.com.mx • In Australia: www.ford.com.au Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.


Introduction


Fuel pump shut-off switch In the event of an accident the safety switch will automatically cut off the fuel supply to the


engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.


SAFETY AND ENVIRONMENT PROTECTION


Warning symbols in this guide


How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.


Warning symbols on your vehicle


When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.


Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.


Introduction


BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,600 km (1,000 miles) of new vehicle operation. Vary your speed to allow parts to adjust themselves to other parts. Drive your new vehicle at least 800 km (500 miles) before towing a trailer. Do not add friction modifier compounds or special break-in oils during the first few thousand kilometers (miles) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and care chapter for more information on oil usage.


SPECIAL NOTICES


Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.


Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.


Please read the section Air bag in the Seating and safety restraints chapter. Failure to follow the specific warnings and


instructions could result in personal injury.


Front seat mounted rear facing child or infant seats should NEVER be used in front of a passenger side air bag unless the


air bag can be and is turned OFF.


Introduction


Data Recording Computers in your vehicle are capable of recording detailed data potentially including but not limited to information such as: • the use of restraint systems including seat belts by the driver and • information about the performance of various systems and modules in • information related to engine, throttle, steering, brake or other system


the vehicle, and


passengers,


status.


Any of this information could potentially including information regarding how the driver operates the vehicle potentially including but not limited to information regarding vehicle speed, brake or accelerator application or steering input. This information may be stored during regular operation or in a crash or near crash event. This stored information may be read out and used by: • Ford Motor Company. • service and repair facilities. • law enforcement or government agencies. • others who may assert a right or obtain your consent to know such


information.


Introduction


These are some of the symbols you may see on your vehicle.


Vehicle Symbol Glossary


Safety Alert


See Owner’s Guide


Fasten Safety Belt


Air Bag-Front


Air Bag-Side


Child Seat


Child Seat Installation Warning


Child Seat Tether Anchor


Anti-Lock Brake System


Child Seat Lower Anchor


Brake System


Brake Fluid - Non-Petroleum Based


Traction Control


AdvanceTrac


Master Lighting Switch


Hazard Warning Flasher


Fog Lamps-Front


Fuse Compartment


Fuel Pump Reset


Windshield Wash/Wipe


Windshield Defrost/Demist


Rear Window Defrost/Demist


Introduction


Vehicle Symbol Glossary


Power Windows Front/Rear


Child Safety Door Lock/Unlock


Power Window Lockout


Interior Luggage Compartment Release Symbol


Panic Alarm


Engine Oil


Engine Coolant


Engine Coolant Temperature


Do Not Open When Hot


Battery


Avoid Smoking, Flames, or Sparks


Battery Acid


Explosive Gas


Fan Warning


Power Steering Fluid


Maintain Correct Fluid Level


MAX MIN


Emission System


Engine Air Filter


Passenger Compartment Air Filter


Jack


Check fuel cap


Low tire warning


Instrument Cluster


WARNING LIGHTS AND CHIMES


50


80


40


60


70


100


120


80


140


90


30


60


0 0 0 0 0


160


100


20


40


10 20


MPH


0 0 0


km/h


180


110


120


4 5


RPMx1000


THEFT


1 2/


FUEL FILL


LOW FUEL


CHECK FUEL CAP


SERVICE ENGINE SOON


BRAKE



ABS


SERVICE ENGINE SOON


Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately. Service engine soon: If this light illuminates while driving, it is a possible indication that one of the engine’s emission control systems has failed. Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon light to come on. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.


BRAKE


CHECK FUEL CAP


10


Instrument Cluster


Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may


occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.


ABS


Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated. Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.


Charging system: Illuminates when the battery is not charging properly.


Engine oil pressure: Illuminates when the oil pressure falls below the normal range. Refer to Engine oil in the Maintenance and Specifications chapter. Low fuel: Illuminates when the fuel level in the fuel tank is at, or near empty (refer to Fuel gauge in this chapter).


LOW FUEL


Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.


11


Instrument Cluster


High beams: Illuminates when the high beam headlamps are turned on.


Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened. GAUGES


1 2/


FUEL FILL


50


80


40


60


70


100


120


80


140


90


30


60


0 0 0 0 0


160


100


20


40


10 20


MPH


0 0 0


km/h


180


110


120


4 5


RPMx1000


THEFT


LOW FUEL


CHECK FUEL CAP


SERVICE ENGINE SOON


BRAKE



ABS


Speedometer: Indicates the current vehicle speed.


Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.


12


Instrument Cluster


Never remove the coolant reservoir cap while the engine is running or hot.


Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position).


Odometer: Registers the total kilometers (miles) of the vehicle.


Trip odometer: Registers the kilometers (miles) of individual journeys.


Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.


13


Entertainment Systems


AM/FM STEREO/CASSETTE


SEEK


TUNE


AM FM


SCAN


VOL PUSH ON


EJ


SIDE 1-2


LO


HI


TAPE


REW


FF


DOLBY B NR


BASS


TREB


BAL


FADE


OFF


R.DEF


A/C


MAX A/C


Volume/power control Press the control to turn the audio system on or off.


Turn control to raise or lower volume.


VOL PUSH ON


VOL PUSH ON


If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. If you wish to maintain your preset volume level, turn the audio system off with the power control before switching off the ignition.


14


Entertainment Systems


• Speaker sound can be adjusted between the front and rear speakers. • Press the FADE control. Toggle between the + and — control to


Bass/treble adjust • The bass adjust control allows you to increase or decrease the audio system’s bass output. • The treble adjust control allows you to increase or decrease the audio system’s treble output. Speaker balance/fade adjust • Speaker sound distribution can be


adjusted between the right and left speakers. • Press the BAL control. Toggle


between the + and — control to adjust the speaker sound.


adjust the speaker sound.


Seek function The seek function control works in radio or tape mode.


Seek function in radio mode • Press • Press Seek function in tape mode • Press • Press Scan function The scan function works in radio or tape mode.


to find the next listenable station down the frequency band. to find the next listenable station up the frequency band.


to listen to the previous selection on the tape. to listen to the next selection on the tape.


Scan function in radio mode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.


15


Entertainment Systems


Scan function in tape mode Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.


AM/FM select The AM/FM select control works in radio modes.


AM/FM select in radio mode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1
or FM2 memory preset stations.


AM FM


AM FM


AM/FM select in tape mode Press this control to stop tape play and begin radio play.


Radio station memory preset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).


Setting memory preset stations 1. Select the frequency band with the AM/FM select control.


AM FM


2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.


SIDE 1-2


16


Entertainment Systems


12:


:01


Setting the clock To set the hour, press the hour (H) control and press : • (+) to increase hour and • (−) to decrease hour


To set the minute, press the minute (M) control and press: • (+) to increase minutes and • (−) to decrease minutes.


Tune adjust The tune control works in radio mode.


Tune adjust in radio mode • Press the


to move to the next


frequency down the band (whether or not a listenable station is located there). Hold the


to move through the frequencies quickly.


• Press the


to move to the next frequency up the band (whether or


not a listenable station is located there). Hold movement.


for quick


17


Entertainment Systems


Inserting a tape Push only slightly when inserting a cassette tape (with the open edge to the right). A cassette deck loading mechanism pulls the tape in the rest of the way. You can switch from radio to tape play by inserting a tape into the cassette deck.


EJ


DOLBY B NR


REW


FF


Tape play select Insert a tape to begin tape play. Push only slightly when inserting a cassette tape (with the open edge to the right). A cassette deck loading mechanism pulls the tape in the rest of the way.


Rewind The rewind control works in tape mode. • In tape mode, radio play will


continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.


Fast forward The fast forward control works in tape mode. • In the tape mode, tape direction


will automatically reverse when the end of the tape is reached.


Tape side select Press this control to play the alternate side of a tape.


Eject function Press the control to stop and eject a tape.


EJ


18


Entertainment Systems


Dolby姞 noise reduction Dolby威 noise reduction operates only in tape mode. Dolby威 noise reduction reduces the amount of hiss and static during tape playback. Press the Dolby威 noise reduction manufactured under license from Dolby威 Laboratories Licensing Corporation. “Dolby威” and the double-D symbol are registered trademarks of Dolby威 Laboratories Licensing Corporation.


control to activate (and deactivate) Dolby威 noise reduction.


AM/FM RADIO WITH COMPACT DISC PLAYER


CLOCK


POWER-VOL PUSH


AM FM


CD


AUDIO


DISC


RDM


RPT


SCAN AUTO


DISC IN


TUNE SEEK TRACK


Volume/power control Ensure that the ignition switch is in the ACC or ON position. Press the control to turn the audio system on. Turn the control to raise or lower the volume. Press the control again to turn the audio system off. NOTE: To prevent the battery from being discharged, do not leave the audio system on for a long period when the engine is not running.


POWER-VOL PUSH


AM/FM select The AM/FM control works in radio mode.


AM FM


19


Entertainment Systems


AM/FM select in radio mode This control allows you to select AM or FM frequency bands. Press the control to toggle between AM, FM1 or FM2 memory preset stations. The selected mode will be indicated in the display. If FM stereo is enabled, ST will be illuminated in the display. NOTE: If the FM broadcast signal becomes weak, reception automatically changes from STEREO to MONO for reduced noise, and the ST indicator will go out.


Tune adjust The tune control works in radio mode. Tune adjust in radio mode • Press to move up the


• Press


frequency band in individual increments.


to move down the frequency band in individual increments.


Seek function The seek function control works in radio mode. Seek function in radio mode Press and momentarily hold the SEEK control. A beep will sound indicating you have entered seek mode. • Press


to find the next


TUNE SEEK TRACK


TUNE SEEK TRACK


listenable station up the frequency band.


• Press to find the next listenable station down the frequency band. NOTE: If you continue to press and hold the control, the frequency will continue changing without stopping. Release the control after the beep sounds.


Tracking feature The tracking feature works in CD mode.


20


Tracking feature in CD mode • Press


to advance to the next


selection. Press and hold the control to fast forward through the current selection.


• Press


to reverse to the


Entertainment Systems


TUNE SEEK TRACK


previous selection. Press and hold the control to rewind through the current selection.


Scan function The scan function works in radio mode.


SCAN


Scan function in radio mode Press the SCAN control to hear a sampling of strong stations on the frequency band. Each station will play for approximately 5 seconds. Press the SCAN control again to remain on a station and disable this mode.


CD select • To begin CD play (if CD is loaded), press the CD control, or • Insert the compact disc, label side


CD


up into the CD slot (if no CD is loaded). The auto loading mechanism will pull in the CD. There will be a short lapse before play begins. • The first track of the disc will begin playing. The DISC IN control will • The track number will appear in the display. To disable CD mode, press the power/volume control.


illuminate.


21


Entertainment Systems


Treble adjust The treble adjust control allows you to increase or decrease the audio system’s treble output.


POWER-VOL PUSH


AUDIO


Press the AUDIO control until TREB is illuminated in the display. Turn the volume control to adjust to the desired level of treble. NOTE: The volume can be adjusted without pressing the AUDIO function control.


Bass adjust The bass adjust control allows you to increase or decrease the audio system’s bass output.


POWER-VOL PUSH


AUDIO


Press the AUDIO control until BASS is illuminated in the display. Turn the volume control to adjust to the desired level of bass.


Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers.


POWER-VOL PUSH


AUDIO


Press the AUDIO control until FADE is illuminated in the display. Turn the volume control to adjust the speaker output.


22


Entertainment Systems


Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers.


POWER-VOL PUSH


AUDIO


Press the AUDIO control until BAL is illuminated in the display. Turn the volume control to adjust the speakers. NOTE: Approximately 5 seconds after selecting any AUDIO mode (treble, bass, fade, balance or volume), the system will automatically default to the volume function. To reset these modes, press and momentarily hold the AUDIO control. The unit will beep and CL will appear in the display.


Radio station memory preset The radio is equipped with five station memory preset controls. These controls can be used to select up to five preset AM stations and ten FM stations (five in FM1 and five in FM2). Setting memory preset stations 1. Select the frequency band with the AM/FM control. 2. Select the desired station. 3. Press and momentarily hold the desired preset control until a beep is heard. The preset control number will illuminate in the display. This indicates the station is held in memory on the control you selected. Repeat this procedure to store other stations in memory. Auto memory tuning Auto memory tuning allows you to set strong radio stations without losing your original manually set preset stations. This is especially useful when you are in an area where the local stations are not known.


23


Entertainment Systems


Starting auto memory tuning 1. Select a frequency using the AM/FM control. 2. Press and momentarily hold the AUTO M (auto memory) control. 3. The audio system will select the five strongest stations on the frequency band. When the stations are filled, the station stored in memory preset control 1 will start playing. Press the AUTO M control to recall stations in the auto memory. One station will be selected each time you press the AUTO M control and the auto memory number will be displayed. NOTE: If the power supply is interrupted (the fuse blows or the battery is disconnected), the preset channels will be canceled.


AUTO


Random play The random play feature works in CD mode and plays the selections on the current CD in random order. Random play in CD mode Press the RDM control during play. RDM will illuminate in the display. The next selection will be randomly selected. To disengage random play, press the RDM control again.


RDM


Repeat play The repeat play feature works in CD mode and repeats the current CD selection. Repeat play in CD mode Press the RPT control during play. RPT will illuminate in the display. The current selection will be repeated. To disengage repeat play, press the RPT control again.


RPT


24


Entertainment Systems


Eject function Press the control to stop and eject a CD.


ACC or ON position.


Setting the clock • Ensure that the ignition is in the • Press and momentarily hold the CLOCK control until a beep is heard. The current time will flash in the display.


CLOCK


TUNE SEEK TRACK


• Press the • Press the • Press the CLOCK control again when the desired time is set to


to increase the hours. to increase the minutes.


activate the clock.


or


is pressed), and the CLOCK control is


NOTE: If the power supply to the unit is interrupted (if the fuse blows or the vehicle’s battery is disconnected), the clock will need to be reset. NOTE: If the time is not adjusted while the clock’s current time is flashing (if neither pressed a second time, the minutes will be set to 00. If the current time setting is within the first half of the hour (01–29), the hour setting will automatically reverse one hour. For example, if the original setting is 3:24, the time will change to 3:00. If the clock’s current time setting is within the latter part of the hour (from 30 to 59 minutes), the hour setting will automatically advance one hour. For example, if the original setting is 3:45, the time will change to 4:00. Changing the display mode Press the CLOCK control to alternate the display between time and audio. NOTE: If audio operation is selected while the time mode is on, the selected audio mode will be displayed for 10 seconds, then the display will revert to the time mode.


CLOCK


25


Entertainment Systems


RADIO FREQUENCIES AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz


weaker the signal and the weaker the reception.


RADIO RECEPTION FACTORS There are three factors that can effect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.


CASSETTE/PLAYER CARE Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after


cold to reach a moderate temperature before playing.


and turning the hub.


10–12 hours of play to maintain good sound/operation.


Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being


played.


26


Entertainment Systems


CD/CD PLAYER CARE Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner


and wipe from the center out.


of time.


Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion. CD units are designed to play commercially pressed 12 cm (4.75
in) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.


AUDIO SYSTEM WARRANTY AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.


27


Climate Controls


HEATER ONLY SYSTEM (IF EQUIPPED)


LO


OFF


HI


Fan speed control Controls the volume of air circulated in the vehicle.


Temperature control knob Controls the temperature of the airflow inside the vehicle. On heater-only systems, the air cannot be cooled below the outside temperature.


Mode selector control Controls the direction of the airflow to the inside of the vehicle.


LO


HI


OFF


registers.


• (Panel) – Distributes outside air through the instrument panel • OFF – Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.


(Panel and floor) – Distributes outside air through the


instrument panel registers and the floor ducts.


(Floor) – Distributes outside air through the floor ducts. (Floor and defrost) – Distributes outside air through the floor


ducts and the windshield defroster ducts.


(Defrost) – Distributes outside air through the windshield


defroster ducts. It can be used to clear ice or fog from the windshield.



• •



28


Climate Controls


Operating tips • In humid weather, place the climate control system in Defrost (


before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, select any desired position. • To reduce humidity buildup inside the vehicle, do not drive with the • Under normal weather conditions, your vehicle’s climate control


climate control system in the OFF position.


system should be left in any position other than OFF position when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.


• Under snowy or dirty weather conditions, your vehicle’s climate control system should be left in the OFF position when the vehicle is parked. This allows the climate control system to be free from contamination of outside pollutants.


the airflow to the rear seats (if equipped).


of the windshield and underneath the hood).


• Do not place objects under the front seat which may interfere with • Remove any snow, ice, or leaves from the air intake area (at the base • Do not place objects over the defroster outlets. These objects may block airflow and reduce your visibility through the windshield. Avoid placing small objects on top of the instrument panel. These objects can fall into the defroster outlets and block airflow, in addition to, damaging your climate control system.


Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.


MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)


LO


OFF


HI


A/C


MAX A/C


Fan speed control Controls the volume of air circulated in the vehicle.


LO


HI


29


Climate Controls


Temperature control knob Controls the temperature of the airflow inside the vehicle.


Mode Selector Control Controls the direction of the airflow to the inside of the vehicle.


OFF


A/C


MAX A/C


. However, the air conditioning will only function if the outside


The air conditioning compressor can operate in all modes except and temperature is about 6°C (43°F) or higher. Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle. • MAX A/C – Uses recirculated air to cool the vehicle. MAX A/C is noisier


than A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle. • A/C – Uses outside air to cool the vehicle. It is quieter than MAX A/C but •


not as economical. Airflow will be from the instrument panel registers.


(Panel) – Distributes outside air through the instrument panel


registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode. • OFF – Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.


(Panel and floor) – Distributes outside air through the


instrument panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.



30


Climate Controls





(Floor) – Distributes outside air through the floor ducts.


However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.


(Floor and defrost) – Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defroster ducts. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.


(Defrost) – Distributes outside air through the windshield


defroster ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.


Operating tips • In humid weather conditions, place the climate control system in


Defrost mode before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, operate the climate control system as desired.


• To reduce humidity buildup inside the vehicle in cold weather


conditions, don’t drive with the climate control system in the OFF or MAX A/C position.


• To reduce humidity buildup inside the vehicle in warm weather


conditions, don’t drive with the climate control system in the OFF position.


• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than the MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct. • Under snowy or dirty weather conditions, your vehicle’s climate control system should be left in the OFF position when the vehicle is parked. This allows the climate control system to be free from contamination of outside pollutants.


• If your vehicle has been parked with the windows closed during warm weather conditions, the air conditioner will perform more efficiently in cooling the vehicle if driven for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Once the vehicle has been “aired out”, operate the climate control system as desired.


31


airflow to the rear seats.


Climate Controls • Do not put objects under the front seat which may interfere with the • Remove any snow, ice or leaves from the air intake area (at the • Do not place objects over the defroster outlets. These objects can block airflow and reduce visibility through your windshield. Avoid placing small objects on top of the instrument panel. These objects may fall down into the defroster outlets and block airflow, in addition to, damaging the climate control system.


bottom of the windshield and underneath the hood).


To aid in side window defogging/demisting in cold weather conditions: 1. Select the position that distributes air through the Panel and Floor. 2. Set the temperature control to full heat. 3. Set the fan speed to full fan. 4. Direct the outer panel vents towards the side windows. 5. To increase airflow to the outer panel vents, close the central panel vents.


Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.


REAR WINDOW DEFROSTER Clears the rear window of thin ice and fog. To operate: 1. Turn the ignition to the ON position. 2. Press and release the control once to turn on. The light will be lit while the rear window defroster is on. 3. Press and release the control again to turn off. The defroster will automatically turn off after 15 minutes.


R.DEF


32


HEADLAMP CONTROL


Turns the lamps off.


Turns on the parking


lamps, instrument panel lamps, license plate lamps and tail lamps.


Turns the headlamps on.


Foglamp control (if equipped) Rotate forward to activate.


High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.


Lights


OFF


OFF


OFF


OFF


33


Lights


Flash to pass Pull toward you slightly to activate and release to deactivate.


OFF


PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlamp and parklamp operation. • Rotate up to brighten. • Rotate down to dim.


The dome lamp will not illuminate if the control switch is in the OFF position.


AIMING THE HEADLAMPS Your vehicle is equipped with a Vehicle Headlamp Aim Device (VHAD) on each headlamp. Each headlamp may be properly aimed in the vertical (up/down) and the horizontal (left/right) directions using your VHAD system. The headlamps on your vehicle are properly aimed at the assembly plant. A bubble (vertical indicator) that is not centered between the two red lines does not necessarily indicate out-of-aim headlamps. If your vehicle is not positioned on a level surface, the slope will be included in the vertical indication. Therefore, vertical and horizontal headlamp adjustment should be performed only when the beam direction appears to be incorrect. You will need one 4 mm wrench or socket to make the adjustments.


34


If the vehicle has been in an accident, the vehicle’s front structure should be properly aligned before aiming the headlamps.


Lights


Horizontal aim adjustment 1. Park the vehicle on a level surface. 2. With the hood open, locate the horizontal indicator and the adjusting screw. They are located below the viewing window at the rear of the headlamp assembly.


3. The “L” and “R” under the viewing window on the top of the headlamp refer to the directional change (left or right) of the horizontal aim. 4. Use a 4 mm wrench or socket to turn the horizontal adjusting screw until the forward edge of the knurled portion of the screw is aligned with the “0” reference mark (as shown) on the plastic slider when viewed directly from above.


35


Lights


Vertical aim adjustment 1. Park the vehicle on a level surface. 2. With the hood open, locate the bubble level and the vertical adjustment screw. The adjustment screw is located on the outboard side of the headlamp below the headlamp upper attachment.


DN


UP


3. The “UP” and “DN” on the bubble indicate the directional change (up or down) of the vertical aim. 4. Use a 4 mm wrench or socket to turn the vertical adjusting screw clockwise or counterclockwise until the bubble is centered between the lines.


DN


UP


Repeat the above process to the other headlamp, if necessary.


TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn


turn signal.


signal.


OFF


36


INTERIOR LAMPS


Lights


Dome lamp and map lamps (if equipped) The dome lamp is located overhead between the driver and passenger seats. The dome lamp will stay on if the control is moved to the ON position. When the control is moved to the DOOR position, the lamp will only come on if a door is opened. If the control is moved to the OFF position, the lamp will not come on at all. The map lamps and controls are located on the dome lamp. Press the controls on either side of each map lamp to activate the lamps. Map lamps (if equipped) The map lamps and controls are located on the dome lamp. Press the controls on either side of the dome lamp to activate the map lamps. If equipped with a moon roof, the map lamps are located on the moon roof control panel. Press the control next to the map lamp to illuminate the lamp.


OFF DOOR ON


OPEN


BULBS


Replacing exterior bulbs Check the operation of all the bulbs frequently. Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness, light pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.


37


Lights


Function Front park/turn lamps Foglamps (if equipped) Headlamps-aero high and low beam Rear license plate lamps High-mount brake lamp Backup lamps Brake lamps Interior overhead lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer


Trade Number 3157K 881
9007
168
921
3156K 3157K 12V/10W


INTERIOR BULBS


Dome lamp 1. Remove the lamp lens by applying pressure to both tabs at the top of the lamp and pulling lens downward. 2. Pull out the burned-out bulb and install a new one. 3. Install the lamp lens by applying pressure to both sides of the lamp lens and popping the lamp lens up on the assembly.


OFF DOOR ON


Map lamps For bulb replacement, see a qualified service technician or your dealer.


Replacing headlamp bulbs 1. Make sure the headlamp switch is in the OFF position.. 2. Open the hood and disconnect the headlamp wiring socket from the in-line connector. This will make it easier to change the bulb.


38


3. Remove the protective dust shield from the housing by turning the dust shield counterclockwise (when viewed from the rear).


Lights


4. Disconnect the electrical connector from the bulb by pulling rearward. 5. Remove the bulb retaining ring by rotating it counterclockwise.


6. Without turning, remove the old bulb from the lamp assembly by pulling it straight back out of the lamp assembly and replace.


Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.


7. Install the new bulb in lamp assembly by pushing straight in with the bulb’s plastic base facing upward. Turn the bulb slightly to align the grooves in the plastic base with the tabs in the lamp assembly. 8. Install the bulb retaining ring over the plastic base and lock the ring by rotating it clockwise until it snaps into place. 9. Connect the electrical connector into the plastic base until it “snaps.” 10. Install the protective dust shield and lock the shield by rotating it clockwise until it locks into position. 11. Connect the headlamp wiring socket to the in-line connector.


39


Lights


12. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again. Replacing front parking lamp/turn signal bulbs 1. Make sure the headlamp switch is in the OFF position. 2. Open the hood and disconnect the headlamp wiring socket from the in-line connector. This will make it easier to change the bulb. 3. Remove the protective dust shield from the housing by turning the dust shield counterclockwise (when viewed from the rear). 4. Disconnect the electrical connector from the bulb by pulling rearward.


Replacing foglamp bulbs 1. Make sure the headlamp switch is in the OFF position and then remove the bulb socket from the foglamp by turning counterclockwise. 2. Disconnect the electrical connector from the foglamp bulb. 3. Connect the electrical connector to the new foglamp bulb. 4. Install the bulb socket in the foglamp turning clockwise.


40


Lights


Replacing high-mount brakelamp bulbs To remove the brakelamp bulb: 1. Push the center of the push pins in to release tension. 2. Pull the push pins out of the cover and slide the cover away from the package tray. 3. Remove the bulb by rotating it counterclockwise and pulling it out of the lamp assembly. 4. Carefully pull out the bulb straight out of the socket and push in new bulb. To install the brakelamp bulb: 1. Install the bulb into the lamp assembly and rotate clockwise. 2. Install the push pins in the cover far enough that the pins protrude outside of the cover about 6 mm (1/4 inch). 3. Install the cover and secure with the push pins. Tail lamp/turn signal/backup lamp bulbs The tail/turn signal lamp and backup lamp bulbs are located in the same portion of the tail lamp assembly, one just below the other. Follow the same steps to replace either bulb. 1. Make sure the headlamp switch is in the OFF position and then open trunk to expose the tail lamp assembly screws. Remove the two screws from the front of the lamp. 2. The tail lamp has hidden fasteners which can be disengaged by hitting the lamp, with the side of your hand, toward the side of the vehicle. 3. Pull lamp assembly away from vehicle for access to bulbs.


41


Lights


4. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly. 5. Pull the bulb from the socket and push in the new bulb. 6. Install the bulb socket into the lamp by rotating it clockwise. 7. Position the tail lamp on the vehicle and gently tap the lens to engage the clips. Install the screws. License plate lamps To change the license plate bulbs: 1. Remove two screws and the license plate lamp assembly from the rear bumper. 2. Carefully pull the bulb out from the lamp assembly and push in the new bulb. 3. Install the lamp assembly on rear bumper with two screws.


42


MULTI-FUNCTION LEVER Windshield wiper: • For intermittent wiping, move the


control down one position and rotate the wiper switch to the desired position. • For low speed wiping, move the • For high speed wiping, move the


control down two positions.


control down three positions.


Windshield washer: • For mist wiping, move the control • To spray the washer fluid, pull the wiper control toward you.


up one position.


Driver Controls


MIST OFF INT


MIST OFF INT


INT


INT


PULL


PULL


43


Driver Controls


Changing the wiper blades 1. Pull the wiper arm away from the vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm. 2. Attach the new wiper to the wiper arm and press it into place until a click is heard. 3. Replace wiper blades every 6
months for optimum performance.


TILT STEERING (IF EQUIPPED) Pull the tilt steering control down to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then push the control back up to lock the steering wheel in position.


Never adjust the steering wheel when the vehicle is


moving.


POWER WINDOWS (IF EQUIPPED)


When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in the proximity of the window openings.


44


Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.


Driver Controls


One touch down Allows the driver’s window to open fully without holding the control down. Press completely down on the bottom part of the rocker switch and release quickly. Press again to stop.


POWER SIDE VIEW MIRRORS (IF EQUIPPED) To adjust your mirrors 1. Select L to adjust the left mirror or R to adjust the right mirror. 2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to disable the adjust function.


SPEED CONTROL (IF EQUIPPED) With speed control set, you can maintain a speed of 48 km/h (30 mph) or more without keeping your foot on the pedal. Speed control does not work at speeds below 48 km/h (30 mph).


Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.


45


Driver Controls


Setting speed control The controls for using your speed control are located on the steering wheel for your convenience. 1. Press the ON control and release it. 2. Accelerate to the desired speed.


3. Press the SET ACC control and release it. 4. Take your foot off the accelerator pedal.


O N


O F F


RSM


SET ACC


CST


steep hill.


Note: • Vehicle speed may vary momentarily when driving up and down a • If the vehicle speed increases above the set speed on a downhill, you • If the vehicle speed decreases more than 16 km/h (10 mph) below


may want to apply the brakes to reduce the speed.


your set speed on an uphill, your speed control will disengage.


46


Resuming a set speed Press the RSM (resume) control and release it. This will automatically return the vehicle to the previously set speed. The RSM control will not work if the vehicle speed is not faster than 48 km/h (30 mph).


Driver Controls


RSM


SET ACC


CST


RSM


SET ACC


CST


Increasing speed while using speed control There are two ways to set a higher speed: • Press and hold the SET ACC control until you get to the desired speed, then release the control. You can also use the SET ACCEL control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1.6 km/h (1 mph).


• Use the accelerator pedal to get to the desired speed. When the


vehicle reaches that speed press and release the SET ACC control.


Reducing speed while using speed control There are two ways to reduce a set speed: • Press and hold the CST control until you get to the desired speed, then release the control. You can also use the CST control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1.6
km/h (1 mph).


RSM


SET ACC


CST


47


Driver Controls • Depress the brake pedal until the desired vehicle speed is reached, press the SET ACC control.


RSM


SET ACC


CST


Turning off speed control There are two ways to turn off the speed control: • Depress the brake pedal or the clutch pedal (if equipped). This will • Press the speed control OFF


not erase your vehicles previously set speed.


control.


Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.


MOON ROOF (IF EQUIPPED) • Press and hold OPEN to raise the moon roof to the vent position. • Press OPEN again to fully open • Press the opposite end of the


the moon roof.


toggle control to close the moon roof from either position.


O N


O F F


OPEN


Sliding shade The moon roof has a sliding shade that you can open or close when the moon roof is closed.


48


Driver Controls


CELL PHONE USE The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in vehicle communications systems, telematics devices and portable two-way radios.


A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to


Loading...
x
