’01 HIGHLANDER_U (L/O 0106)

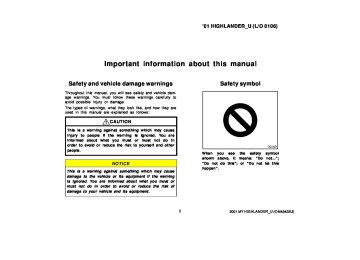

Important information about this manual

Safety and vehicle damage warnings

Safety symbol

Throughout this manual, you will see safety and vehicle dam- age warnings. You must follow these warnings carefully to avoid possible injury or damage. The types of warnings, what they look like, and how they are used in this manual are explained as follows:

CAUTION

This is a warning against something which may cause is ignored. You are injury to people if the warning informed about what you must or must not do in order to avoid or reduce the risk to yourself and other people.

NOTICE

This is a warning against something which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment.

the safety symbol When you see shown above, it means: “Do not...”; “Do not do this”; or “Do not let this happen”.

ii

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

Important information about your Toyota

New vehicle warranty

Your new vehicle limited warranties:

is covered by

the

following Toyota

D New vehicle warranty D Emission control systems warranty D Others further

information, please refer

For the “Owner’s Warranty Information Booklet” or “Owner’s Manual Sup- plement”.

to

Your responsibility for maintenance

It is the owner’s responsibility to make sure that the specified maintenance is performed. Section 6 gives de- tails of these maintenance requirements. Also included in Section 6 is general maintenance. For scheduled maintenance information, please refer to the “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.

Accessories, spare parts and modification of your Toyota

A wide variety of non−genuine spare parts and accesso- ries for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their perfor- mance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non−genuine Toyota products. Modification with non−genuine Toyota products could affect its performance, safety or durabili- ty, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

iii

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

Spark ignition system of your

Scrapping of your Toyota

Toyota

The spark ignition system in your Toyota meets all re- quirements of the Canadian Interference−Causing Equip- ment Standard.

Installation of a mobile two−way radio system

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by the quali- fied service shop or by your Toyota dealer before you dispose of your vehicle.

fuel

injection system/sequential multiport

As the installation of a mobile two−way radio system in your vehicle could affect electronic systems such as multiport fuel injection system, cruise control system, anti−lock brake system, traction control system, vehicle skid control sys- tem, SRS airbag system and seat belt pretensioner sys- tem, be sure to check with your Toyota dealer for pre- cautionary measures or special regarding installation.

instructions

iv

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

On−pavement and off−road

driving tips

than

This vehicle belongs to the utility vehicle class. Utility vehicles have a significantly higher rollover rate than other types of vehicles. This vehicle will handle and maneuver differently from an ordinary passenger car be- cause it is designed for off−road use also. In addition, this vehicle has a higher ground clearance and center of gravity that of an ordinary passenger car. This vehicle design feature causes this type of vehicle to be more likely to rollover. Failure to operate this vehicle correctly may result loss of control, accidents or vehicle rollover causing death or serious injury. Be sure to read “Off−road vehicle precautions” on page 178 in Section 2 and “Off−road driving precautions” on page 196 in Section 3.

in

v

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

vi

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

SECTION 1− 1

OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 7 8

2001 MY HIGHLANDER_U (OM48432U)

1

’01 HIGHLANDER_U (L/O 0106)

Instrument panel overview

1. Side defroster outlets 2. Instrument cluster 3. Garage door opener 4. Center vents 5. Electric moon roof switch and personal

light

6. Auxiliary box 7. Side vents 8. Power door lock switches 9. Power window switches 10. Glove box 11. Auxiliary box or ashtray 12. Automatic transmission selector lever 13. Hood lock release lever 14. Parking brake pedal 15. Window lock switch

2

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

"Vehicles with manual air conditioning controls

1. Headlight, turn signal and front fog

light switches

2. Instrument panel light control knob 3. Wiper and washer switches 4. Emergency flasher switch 5. Clock 6. Front passenger’s seat belt reminder

light

7. Rear window defogger switch 8. Air conditioning controls 9. Car audio 10. Power outlet 11. Snow mode button 12. Seat heater switches 13. Cigarette lighter 14. Ignition switch 15. Cruise control switch 16. Tilt steering lock release lever 17. Traction control system off switch

(two−wheel drive models)

18. Outside rear view mirror defogger and

windshield wiper deicer switch

2001 MY HIGHLANDER_U (OM48432U)

3

’01 HIGHLANDER_U (L/O 0106)

19. Theft deterrent system/Engine

immobiliser system indicator light

20. Power rear view mirror control switches

4

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

"Vehicles with automatic air conditioning controls

1. Headlight, turn signal and front fog

light switches

2. Instrument panel light control knob 3. Wiper and washer switches 4. Emergency flasher switch 5. Clock 6. Front passenger’s seat belt reminder

light

7. Air conditioning controls and

multi−information display

8. Rear window defogger switch 9. Car audio 10. Power outlet 11. Snow mode button 12. Seat heater switches 13. Cigarette lighter 14. Ignition switch 15. Cruise control switch 16. Tilt steering lock release lever 17. Traction control system off switch

(two−wheel drive models)

18. Outside rear view mirror defogger and

windshield wiper deicer switches

2001 MY HIGHLANDER_U (OM48432U)

5

’01 HIGHLANDER_U (L/O 0106)

19. Theft deterrent system/Engine

immobiliser system indicator light

20. Power rear view mirror control switches

6

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

Instrument cluster overview

1. Tachometer 2. Service reminder indicators and

indicator lights

3. Speedometer

4. Fuel gauge 5. Low fuel level warning light 6. Engine coolant temperature gauge

7. Trip meter reset knob 8. Odometer and two trip meters 9. Instrument panel light control knob

2001 MY HIGHLANDER_U (OM48432U)

7

’01 HIGHLANDER_U (L/O 0106)

Indicator symbols on the instrument panel

or

Brake system warning light∗1

or

Anti−lock brake system warning light∗1

Driver’s seat belt reminder light∗1

Open door warning light∗1

Front passenger’s seat belt reminder light∗1

Automatic transmission fluid temperature warning light∗1

Discharge warning light∗1

SRS warning light∗1

Low engine oil pressure warning light∗1

Vehicle skid control system warning light∗1

or

Malfunction indicator lamp∗1

Traction control system off light∗1

indicator/warning

Low windshield washer fluid level warning light∗1

8

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

Headlight high beam indicator light

Turn signal indicator lights

Automatic transmission indicator lights

Overdrive−off indicator light

Snow mode indicator light

Slip indicator light

Cruise control indicator light∗2

∗1: For details, see “Service reminder indicators and warning

∗2:

buzzers” on page 102 in Section 1−5. If this light flashes, see “Cruise control” on page 122 in Section 1−6.

2001 MY HIGHLANDER_U (OM48432U)

9

’01 HIGHLANDER_U (L/O 0106)

10

2001 MY HIGHLANDER_U (OM48432U)

’01 HIGHLANDER_U (L/O 0106)

SECTION 1− 2

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Engine immobiliser system Side doors Power windows Back door Hood Theft deterrent system Fuel tank cap Electric moon roof

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12 15 16 24 26 28 29 31 32

2001 MY HIGHLANDER_U (OM48432U)

11

’01 HIGHLANDER_U (L/O 0106)

Keys (without engine immobiliser system)

Keys (with engine immobiliser system)

Your vehicle is supplied with two kinds of keys. 1. Master key—This key works in every

lock.

2. Sub key—This key will not work in the
