2006 Ford F 150 Owners Manual

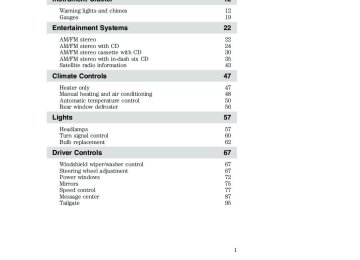

Table of Contents

12

12
19
22

22
24
30
35
43
47

47
48
50
56
57

57
60
62
67

67
67
72
75
77
87
95

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

AM/FM stereo AM/FM stereo with CD AM/FM stereo cassette with CD AM/FM stereo with in-dash six CD Satellite radio information

Climate Controls

Heater only Manual heating and air conditioning Automatic temperature control Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Message center Tailgate

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

98

98
98
109
113

113
119
138
147
164

166
169
180
186
198
200

200
204
207
209
233

233
235
235
236
243
249
250
255
256

262

Table of Contents

Locks and Security

Keys Locks Anti-theft system

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire information Tire inflation Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Traction Control™ Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug nut torque Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only)

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Cleaning

Maintenance and Specifications

Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications Engine data Accessories

Index

Table of Contents

263

273

275
279
283
285
291
309
311
312
315
318
325

327

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2006 Ford Motor Company

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. Additionally, during the first 500 miles (800 km) that you tow a trailer, do not drive over 70 mph (112 km/h) and do not make starts at full throttle. This style of driving will help the engine and other parts of your vehicle break in at the heavier loads. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

brake pedal;

Using your vehicle with a snowplow For more information and guidelines for using your vehicle with a snowplow, refer to the Driving chapter.

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off road in the Driving chapter. Notice to owners of the 2006 F150
Note: Your vehicle is equipped with high performance tires. When first driving the vehicle after it has been parked for a period of time, you may experience a temporary ride disturbance. This is a characteristic of the tires and should be no reason for concern. The condition should correct itself within 5-15 miles of driving. If the disturbance persists, have the tires serviced by an authorized dealer.

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to

avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Powertrain Malfunction

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

10

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

11

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES Base instrument cluster

Base with Tachometer instrument cluster

12

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Family carrier instrument cluster

Instrument Cluster

Mid instrument cluster

13

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Luxury instrument cluster

Harley-Davidson instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

14

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Electronic throttle control (if equipped): Illuminates when the engine has defaulted to a ’limp-home’ operation. Report the fault to a dealer at the earliest opportunity. On vehicles equipped with a message center, “ENGINE FAILSAFE MODE” will be displayed, refer to Message Center in the Driver Controls chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. Base with and without Tachometer instrument cluster

BRAKE

15

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Mid and Luxury instrument cluster If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

BRAKE

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer.

ABS

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A BeltMinder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and safety restraints chapter to activate/deactivate the BeltMinder威 chime feature. Charging system: Illuminates when the battery is not charging properly.

16

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Door ajar: Illuminates when the ignition is in the ON position and any door is open.

O/D OFF

Overdrive off (if equipped): Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light flashes steadily or does not illuminate, have the transmission serviced soon, or damage may occur. Traction Control娂 (if equipped): Illuminates when the Traction Control娂 is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. Four wheel drive low (if equipped): Illuminates when four-wheel drive low is engaged.

4x4
LOW

Four wheel drive high (if equipped): Illuminates when four-wheel drive high is engaged.

Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

4x4 HI

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

17

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

MINI MESSAGE CENTER WARNING DISPLAYS (IF EQUIPPED) Door ajar: Displays when the ignition is in the ON position and any door is open.

Low fuel: Displays when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

is high.

Check fuel cap: Displays when the fuel cap may not be properly installed. Continued driving with this display on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Check gauge: Displays when any of the following conditions has occurred: • The engine coolant temperature • The engine oil pressure is low. • The fuel gauge is at or near empty. Trans Fault: Displays when a transmission problem has been detected and shifting may be restricted. If the light remains on, have the system serviced immediately by your authorized dealer. Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

18

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

GAUGES

Instrument Cluster

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

19

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Odometer: Registers the total miles (kilometers) of the vehicle. • With Mini Message Center

• With Full Message Center Refer to Message Center in the Drivers Controls chapter on how to switch the display from Metric to English.

Trip odometer: Registers the miles (kilometers) of individual journeys. • With Mini Message Center Press and release the button on top of the cluster to toggle between odometer and trip odometer display. • With Full Message Center Press and release the message center INFO button until TRIP mode appears in the display. Press the RESET button to reset.

Tachometer (if equipped): Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

20

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked by your authorized dealer as soon as possible. Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your authorized dealer. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The arrow next to the fuel pump icon indicates which side of the vehicle the fuel filler door is located. For more information, refer to Filling the tank in the Maintenance and Specifications chapter.

21

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS AM/FM Stereo System (if equipped)

Accessory delay: Your vehicle is equipped with accessory delay which allows you to operate the window switches and the audio for up to ten minutes after the ignition has been turned off or until either front door is opened. Tune: Press to manually 1. go up or down the radio frequency. Also use in menu mode to select various settings.

2. AUDIO: Press to access select various settings.

Treble: Press to adjust the treble setting. Use

SEEK

Bass: Press to adjust the bass setting. Use Balance: Press to adjust the audio between the left and right speakers. Use

SEEK

SEEK

22

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Fade: Press to adjust the audio between the front and rear speakers. Use

SEEK

Setting the clock: Press until HR or Mn is displayed. Press

to adjust the hours/minutes.

SEEK

3. SEEK: Press to access the next/previous strong station.

4. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 5. AM/FM: Press to select AM/FM frequency band.

6. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 7. CLK (Clock): Press CLK to toggle between displaying the radio frequency and the clock setting. To set the clock: Press and hold CLK until the hours begin to flash. Press manually increase/decrease the hours. to Press CLK again to set the minutes using manually increase/decrease the minutes. Allow 10 seconds to pass to confirm that time set. Not available on some models.

SEEK

SEEK

to

23

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AM/FM Stereo Single CD/Satellite Compatible Sound System (if equipped)

AM/FM Stereo Single CD with MP3/Satellite Compatible Sound System (late availability — if equipped)

24

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to enter TEXT

Tune: In radio mode, ) or ) the radio frequency.

1. press to manually go up ( down ( In menu mode, use to select various settings. In Satellite Radio mode (if equipped), press MODE and scroll through the current song title, artist, channel category and Sirius Long Channel Name. (Not available on some models.) In TEXT MODE, sometimes the display text requires additional text to be displayed. When the ⬙>⬙ indicator is active press SEEK to view the additional display text. When the ⬙<⬙ indicator is active press SEEK to view to the previous display text. In CATEGORY MODE, press available Sirius channel Categories (Pop, Rock, News, etc.). Refer to Catetory Mode under Menu for further information. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 3. MENU: Press to toggle through the following modes:

to scroll through the list of

to scroll through the list of available

CATEGORY (Satellite Radio if equipped): Press MENU until the currently active category appears in the display (CATEGORY MODE). In CATEGORY MODE, press or Sirius channel Categories (Pop, Rock, News, etc.) Press SCAN to select the category. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). To select a different category, press MENU until the category appears in the display. Press CATEGORY ALL to seek all available Sirius categories and channels. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. TREB (Treble): Press MENU until TREBLE appears in the display. Use

to select a different category. You may also select

to adjust the treble levels.

SEEK

SEEK

25

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK

to adjust the bass levels.

to adjust the audio between the left and

to adjust the audio between the front and rear speakers.

BASS: Press MENU until BASS appears in the display. Use SEEK BAL (Balance): Press MENU until BAL appears in the display. Use right speakers. FADE: Press MENU until FADE appears in the display. Use SEEK COMPRESS (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level. Track/Folder Mode: Available only on MP3 discs in CD mode. In Track Mode, pressing will scroll through all tracks on the disc. SEEK In Folder mode, pressing will scroll only through tracks SEEK within the selected folder. SPEEDVOL (Speed sensitive volume): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU until SPEEDVOL appears in the display. Use is 1–3. Level 0 turns the Speed Sensitive Volume off and level 7 is the maximum setting. AUTOSET: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. CLOCK (Setting the clock): Press MENU until SELECT HOUR or SELECT MINS is displayed. Use the hours/minutes. 4. AUX: Press repeatedly to cycle through FES/DVD (if equipped), and SAT1, SAT2 and SAT3 modes (Satellite Radio if equipped). If no auxiliary sources are available, NO AUX AUDIO will be displayed. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription.

to adjust the levels. The recommended level

to turn on/off.

SEEK, SEEK

to adjust

SEEK

SEEK

26

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to access the previous/next

5. SEEK: In radio mode, press strong station. In CD mode, press access the previous/next CD track.

to

SEEK

SEEK

to seek to the

to seek to the previous/next channel in to fast seek through

In Satellite Radio mode (if equipped), press previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press the selected category. Press and hold the previous /next channels. In TEXT MODE, press display text. In CATEGORY MODE, press Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. 6. TEXT: This control is not operational.

to view the previous/additional

to select a category.

SEEK

SEEK

SEEK

Play/Pause: This control is operational in CD mode. When a CD is playing, press to pause or play the current CD. The CD status will display in the radio display. 7. SHUFFLE: Press to play tracks in random order on the current CD.

8. COMP (Compression): Press in CD mode to bring soft and loud CD passages together for a more consistent listening level. FOLDER: Press to access next folder on MP3 discs, if folders are available. 9. REPEAT: Press to repeat the current CD track.

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

27

Entertainment Systems

FOLDER: press to access the previous folder on MP3 discs, if folders are available. 10. FF (Fast forward): Press to manually advance in a CD track.

11. REW (Rewind): Press to manually reverse in a CD track.

12. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset control until sound returns. You may store up to six stations in each frequency band for a total of 18. In Satellite Radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. 13. SCAN: In radio mode, press for a brief sampling of radio stations. Press again to stop. In CD mode, press for a brief sampling of CD tracks. Press again to stop. In Satellite radio mode (if equipped), press to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. TEXT/SCAN: In radio and CD/MP3
mode, press and hold for a brief sampling of radio stations or CD tracks. Press again to stop. In CD/MP3 mode, press and release to display track title, artist name, and disc title and file name (if available).

28

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

In Satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK additional display text. When the “>” indicator is active, press to view the previous display text. In Satellite Radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. Satellite radio is available only in the continental United States with a valid SIRIUS subscription. 14. AM/FM: Press to select AM/FM1/FM2 frequency band.

to view the SEEK

15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 16. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 17. CD eject: Press to eject a CD.

18. CD slot: Insert a CD label side up.

29

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AM/FM Single CD/Cassette/Satellite Compatible Sound System (if equipped)

Tune: In radio mode, ) or ) the radio frequency.

1. press to manually go up ( down ( In menu mode, use to select various settings.

to enter TEXT

In Satellite Radio mode (if equipped), press MODE and scroll through the current song title, artist, channel category and Sirius Long Channel Name . In TEXT MODE, sometimes the display text requires additional text to be displayed. When the ⬙>⬙ indicator is active press SEEK to view the additional display text. When the ⬙<⬙ indicator is active press SEEK to view to the previous display text. In CATEGORY MODE, press available Sirius channel Categories (Pop, Rock, News, etc.). Refer to Catetory Mode under Menu for further information.Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription.

to scroll through the list of

30

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to access the previous/next

2. SEEK: In radio mode, press strong station. In CD mode, press access the previous/next CD track.

to

SEEK

SEEK

SEEK

SEEK

to seek to the

to seek to the previous/next channel in to fast seek through

In Satellite Radio mode (if equipped), press previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press the selected category. Press and hold the previous /next channels. In TEXT MODE, press display text. In CATEGORY MODE, press Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. 3. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 4. MENU: Press to toggle through the following modes:

to view the previous/additional

to select a category.

SEEK

to scroll through the list of available

CATEGORY (Satellite Radio if equipped): Press MENU until the currently active category appears in the display (CATEGORY MODE). In CATEGORY MODE, press or Sirius channel Categories (Pop, Rock, News, etc.) Press SCAN to select the category. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). To select a different category, press MENU until the category appears in the display. Press CATEGORY ALL to seek all available Sirius categories and channels. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. TREB (Treble): Press MENU until TREBLE appears in the display. Use

to select a different category. You may also select

to adjust the treble levels.

SEEK

SEEK

31

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to adjust the bass levels.

BASS: Press MENU until BASS appears in the display. Use SEEK BAL (Balance): Press MENU until BAL appears in the display. Use right speakers.

to adjust the audio between the left and

SEEK

SEEK

SEEK

to turn on/off.

to adjust the levels. The recommended level

to adjust the audio between the front and rear speakers.

FADE: Press MENU until FADE appears in the display. Use SEEK SPEEDVOL (Speed sensitive volume): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU until SPEEDVOL appears in the display. Use is 1–3. Level 0 turns the Speed Sensitive Volume off and level 7 is the maximum setting. AUTOSET: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. CLOCK (Setting the clock): Press until SELECT HOUR or SELECT MINS is displayed. Use hours/minutes. 5. AUX: Press to toggle between FES/DVD and AUX. If no auxiliary sources are available, NO AUX AUDIO will be displayed. If equipped with Satellite Radio, press AUX to cycle through SAT1, SAT2
and SAT3 modes. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. 6. Tape eject: Press to eject a tape.

SEEK, SEEK

to adjust the

32

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

7. TEXT: This control currently not supported.

8. SHUFFLE: Press to play CD tracks in random order on the selected CD. 9. COMP (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level. 10. REPEAT: Press to repeat the current CD track.

11. FF (Fast forward): Press to manually advance in a tape or CD track. 12. REW (Rewind): Press to manually reverse in a tape or CD track. 13. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset control until sound returns. You may store up to six stations in each frequency band for a total of 18. In Satellite Radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. 14. Cassette door: Insert a tape, facing to the right. 15. Tape direction: Press to change which side of the tape is playing. 16. AM/FM: Press to select AM/FM1/FM2 frequency band.

33

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

17. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 18. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 19. CD eject: Press to eject a CD.

20. CD slot: Insert a CD label side up.

21. SCAN: In radio mode, press for a brief sampling of radio stations. Press again to stop. In CD mode, press for a brief sampling of CD tracks. Press again to stop. In Satellite radio mode (if equipped), press to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription.

34

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Premium/Audiophile In-Dash Six CD/MP3/Satellite Compatible Sound System (if equipped)

Premium/Audiophile In-Dash Six CD/MP3/Satellite Compatible Sound System (late availability — if equipped)

35

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

) the radio

) or down (

to enter TEXT

Tune/Disc selector: In 1. radio mode, press to manually go up frequency. In menu mode, use to select various settings. In CD mode, press to select the desired disc. In Satellite Radio mode (if equipped), press MODE and scroll through the current song title, artist, channel category and SIRIUS Long Channel Name. (Not available on some models.) In TEXT MODE, occasionally, the display text requires additional text to be displayed. When the ⬙>⬙ indicator is active press the SEEK > to view the additional display text. When the ⬙<⬙ indicator is active press the < SEEK to view to the previous display text. In CATEGORY MODE, press available Sirius channel Categories (Pop, Rock, News, etc.). Refer to Catetory Mode under Menu for further information. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 3. MENU: Press to toggle through the following modes:

to scroll through the list of

to scroll through the list of available

CATEGORY (Satellite Radio if equipped): Press MENU until the currently active category appears in the display (CATEGORY MODE). In CATEGORY MODE, press or Sirius channel Categories (Pop, Rock, News, etc.) Press SCAN to select the category. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). To select a different category, press MENU until the category appears in the display. Press CATEGORY ALL to seek all available Sirius categories and channels. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. TREB (Treble): Press MENU until TREBLE appears in the display. Use

to select a different category. You may also select

to adjust the treble levels.

SEEK

SEEK

36

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to adjust the bass levels.

BASS: Press MENU until BASS appears in the display. Use SEEK BAL (Balance): Press MENU until the balance display appears. Use right speakers.

to adjust the audio between the left and

SEEK

SEEK

to optimize sound for

to adjust the levels. The recommended level

to adjust the audio between the back and front speakers.

FADE: Press MENU until the fade display appears. Use SEEK SPEEDVOL (Speed sensitive volume): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU until SPEEDVOL appears in the display. Use is 1–3. OFF turns the Speed Sensitive Volume off and level 7 is the maximum setting. Occupancy mode: (Available on Audiophile radios only): Press MENU SEEK repeatedly to access. Press ALL SEATS, DRIVERS SEAT or REAR SEATS. CLOCK (Setting the clock): Press until SELECT HOUR or SELECT MINS is displayed. Press hours/minutes. Track/Folder Mode: Available only on MP3 discs in CD mode. In Track SEEK will scroll through all tracks on the disc. Mode, pressing will scroll only through tracks SEEK In Folder mode, pressing within the selected folder. Compression: Available only in CD mode, compression brings soft and loud CD passages together for a more consistent listening level. Repeat (Not available on some models.): In CD mode, press to repeat the current CD track. RDS (Available on Audiophile radios only): RDS is available in FM mode, and allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz/RB, Religious, Rock, Soft, Top 40. RDS must be activated to access Find and Show functions.

to adjust the

SEEK

37

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK

To activate, press and hold MENU until RDS (ON/OFF) appears in the to toggle RDS ON/OFF. When RDS is display. Use on, press MENU repeatedly to scroll through Find, Show and RDS. When RDS is Off, you will not be able to access Find and Show functions. Find: RDS must be activated to access the Find function. Find allows you to search RDS-equipped stations for the desired music category. Use SCAN to begin the search. Show: RDS must be activated to access the Show function. Show allows you to display the name of the radio station or program type. Use

to find the desired program type, then use

to show type, name or none.

SEEK

SEEK

or

SEEK

RBDS (Radio Broadcast Data System) (Available on Audiophile audios only): RBDS is available in FM mode, and allows you to search RBDS-equipped stations for a certain category of music format: Classic, Country, Info., Jazz/RB, Religious, Rock, Soft, Top 40. RBDS must be activated to access Find and Show functions. (Not available on some models.) To activate: Press MENU until RBDS (ON/OFF) appears in the display. to toggle RBDS ON/OFF. When RBDS is ON, Use press MENU to get to the category display. When RBDS is OFF, you will not be able to access the Find function. Find: RBDS must be activated to access the Find function. Find allows you to search RBDS-equipped stations for the desired music category. Use begin the search. Show: RBDS must be activated to access the Show function. Show allows you to display the name of the radio station or program type. Use TEXT/SCAN to show type, name or none. 4. AUX: Press repeatedly to cycle through FES/DVD (if equipped), SAT1, SAT2 and SAT3 modes (Satellite Radio if equipped). If no auxiliary sources are available, NO AUX AUDIO will be displayed. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription.

to find the desired program type, then use

SEEK

to

38

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

to access the previous/next

5. SEEK: In radio mode, press strong station. In CD mode, press access the previous/next CD track.

to

SEEK

SEEK

SEEK

SEEK

SEEK

to seek to the

to view the previous/additional

to seek to the previous/next channel in to fast seek through

In Satellite Radio mode (if equipped), press previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press the selected category. Press and hold the previous /next channels. In TEXT MODE, press display text. In CATEGORY MODE, press Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. 6. TEXT: In CD mode, this feature reads and displays track song title, artist name and album title. Play/Pause: This control is operational in CD mode. When a CD is playing, press to pause or play the current CD. The CD status will display in the radio display. 7. SHUFFLE: Press to play the tracks in random order.

to select a category.

8. FOLDER: Press to access next folder on MP3 discs, if folders are available. 9. FOLDER: press to access the previous folder on MP3 discs, if folders are available. 10. FF (Fast forward): Press to manually advance in a CD track.

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

39

Entertainment Systems

11. REW (Rewind): Press to manually reverse in a CD track.

12. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset control until sound returns. You may store up to six stations in each frequency band for a total of 18. In Satellite Radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. 13. SCAN: In radio mode, press for a brief sampling of radio stations. Press again to stop. In CD mode, press for a brief sampling of CD tracks. Press again to stop. In Satellite radio mode (if equipped), press to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop. Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. TEXT/SCAN: In radio and CD/MP3
mode, press and hold to hear a brief sampling of radio stations or CD tracks. Press again to stop. In CD/MP3 mode, press and release to display track title, artist name, and disc title and file name (if available). In Satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK additional display text. When the “>” indicator is active, press to view the previous display text. In Satellite Radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop.

to view the SEEK

40

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Satellite radio is available only in the continental United States with a valid SIRIUS subscription. 14. AM/FM: Press to select AM/FM1/FM2 frequency band.

15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 16. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 17. LOAD: Press to load a CD. Press LOAD and a memory preset to load to a specific slot. Press and hold to autoload up to six CDs.

18. CD eject: Press to eject a CD. Press and hold to auto eject all CDs present in the system. If there is no CD present, the display will read NO CD. 19. CD slot: Insert a CD label side up.

GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz

41

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

the signal and the weaker the reception.

Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from a station, the weaker • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

Cassette/player care: Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after

cold to reach a moderate temperature before playing.

and turning the hub.

10–12 hours of play to maintain good sound/operation.

Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being

played.

CD/CD player care: Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion.

of time.

42

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service: Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

Satellite radio information (if equipped) Satellite radio channels: Satellite radio frequencies are established by the Federal Communications Commission (FCC). SIRIUS Satellite Radio broadcasts within a frequency range of 2320.0 MHz-2332.5 MHz. This frequency range is sub-divided into over 120 channels of music, news, sports, weather and traffic programming. For a complete set of SIRIUS Satellite Radio channels, visit www.sirius.com or call SIRIUS at 1–888–539–7474. For a quick reference of the SIRIUS Satellite Radio channel guide, refer to the Sirius Welcome Kit. Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna Obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway

overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

43

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

sale or lease of the vehicle.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference. SIRIUS satellite radio service: SIRIUS Satellite Radio is a continental U.S. based satellite radio service that broadcasts over 120 channels of music, sports, news and entertainment coast-to-coast. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include: • Hardware and limited subscription term, which begins on the date of • SIRIUS online media player access: providing access to all 100% commercial-free music channels over the internet. Call SIRIUS at 1–888–539–7474 to obtain login instructions and your password. For information on extended subscription terms, contact SIRIUS at 1–888–539–7474. Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes. Satellite Radio Electronic Serial Number (ESN): This 12 digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously.

44

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Radio Display

Condition

ACQUIRING

SAT FAULT

Radio requires more than two seconds to produce audio for the

selected channel. Internal module or

system failure

present.

Action Required No action required. This message should

disappear shortly.

If this message does

not clear within a short period of time, or with an ignition key cycle, your receiver may have

a fault. See your

authorized dealer for

service.

INVALID CHNL

Channel no longer

This previously

available.

UNSUBSCRIBED

Subscription not available for this

channel.

available channel is no longer available. Tune to another channel. If the channel was one of your presets, you may choose another channel for that preset button.

Contact SIRIUS at 1–888–539–7474 to

subscribe to the

channel, or tune to another channel.

NO TEXT

Artist information not

available.

Artist information not available at this time on

this channel. The system is working

properly.

45

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Radio Display

Condition

NO TEXT

Song title information

not available.

NO TEXT

Category information

not available.

Action Required

Song title information not available at this time on this channel. The system is working

properly.

Category information not available at this time on this channel. The system is working

properly.

NO SIGNAL

Loss of signal from

the SIRIUS satellite or SIRIUS tower to the

vehicle antenna.

You are in a location that is blocking the SIRIUS signal (i.e., tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When you move into an open area, the signal should

return.

UPDATING

CALL SIRIUS 1–888–539–7474

Update of channel programming in

No action required. The process should take no

progress.

Satellite service has been deactivated by

SIRIUS Satellite

Radio.

longer than one

minute.

Call SIRIUS at

1–888–539–7474 to re-activate or resolve subscription issues.

Family Entertainment System (if equipped) Your vehicle may be equipped with a Family Entertainment System (FES). Refer to the DVD Supplement Guide for further information on your system.

46

2006 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. : Distributes outside air through the instrument panel vents. : Distributes outside air through the instrument panel vents and the

floor vents.

(OFF): Outside air is shut out and the climate system is turned off. : Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents and demister vents. Can be used to clear the windshield of fog and thin ice.

position.

flow to the back seats.

the air flow selector in the

Operating tips • To reduce fog build up on the windshield during humid weather, place • Do not put objects under the front seats that will interfere with the air • To reduce humidity build-up inside the vehicle, do not drive in • Under normal weather conditions, do not leave the airflow selector (OFF). This allows the vehicle to breathe using the outside air • Remove any snow, ice or leaves from the air intake area at the base of

(OFF) position.

in inlets.

the

the windshield.

To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort.

47

2006 F-150 (f12) Owners Guide (post-2002-fmt)
