2009 Ford F 150 Owners Manual

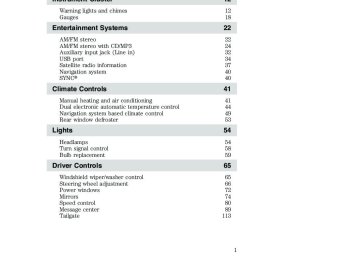

Table of Contents

12

12
18
22

22
24
32
34
37
40
40
41

41
44
49
53
54

54
58
59
65

65
66
72
74
80
89
113

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

AM/FM stereo AM/FM stereo with CD/MP3
Auxiliary input jack (Line in) USB port Satellite radio information Navigation system SYNC威

Climate Controls

Manual heating and air conditioning Dual electronic automatic temperature control Navigation system based climate control Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Message center Tailgate

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

126

126
126
139
143

143
161
180
193
216

218
220
233
244
250
257
263
265

265
272
274
281
292
294
308
312

312
313
314
322
330
331
337

Table of Contents

Locks and Security

Keys Locks Anti-theft system

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Trailer brake controller-integrated Recreational towing

Driving

Starting Brakes AdvanceTrac威 Transmission operation Reverse sensing system Reverse camera Snowplowing

Roadside Emergencies

Getting roadside assistance Hazard flasher control Fuses and relays Changing tires Wheel lug nut torque Jump starting Wrecker towing

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Table of Contents

Customer Assistance

Reporting safety defects (U.S. only) Reporting safety defects (Canada only)

Cleaning

Maintenance and Specifications

Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories

Index

339

345
345
346

355

357
360
363
365
371
389
392
393
397
401

403

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2009 Ford Motor Company

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Introduction

CONGRATULATIONS Congratulations on acquiring your new Ford Motor Company product. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Mexico: www.ford.com.mx • In Australia: www.ford.com.au Additional owner information is given in separate publications. This vehicle’s Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this vehicle’s Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Introduction

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Introduction

buckled;

and/or the brake pedal;

Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were • how far (if at all) the driver was depressing the accelerator • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Please note that once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of electronically or verbally disclosing to 911 operators the vehicle location, and/or other details about the vehicle or crash to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the feature. See your SYNC威 supplement for more information.

Using your vehicle with a snowplow For more information and guidelines for using your vehicle with a snowplow, refer to the Driving chapter.

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Introduction

Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Notice to owners of pickup trucks and utility type vehicles

WARNING: Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Notice to owners of the F150
Note: Your vehicle is equipped with high performance tires. When first driving the vehicle after it has been parked for a period of time, you may experience a temporary ride disturbance. This is a characteristic of the tires and should be no reason for concern. The condition should correct itself within 5-15 miles (8-25 km) of driving. If the disturbance persists, have the tires serviced by an authorized dealer.

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Introduction

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Export unique (Non–United States/Canada) vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings.

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Child Seat Lower Anchor

Brake System

Anti-Lock Brake System

Parking Brake System

Brake Fluid - Non-Petroleum Based

Parking Aid System

Stability Control System

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

10

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Service Engine Soon

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

11

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES Standard instrument cluster

Platinum instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the

12

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Instrument Cluster

bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Note: Some warning lights are reconfigurable telltale (RTT) indicator lights and will illuminate in the message center display below the speedometer. These lights function the same as the other warning lights.

Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel

system, interior floor coverings or other vehicle components, possibly causing a fire.

Electronic throttle control (RTT) (if equipped): Displays when the engine has defaulted to a “limp-home” operation. Report the fault to a dealer at the earliest opportunity.

13

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Instrument Cluster

On vehicles equipped with a message center, “ENGINE FAILSAFE MODE” will be displayed, refer to Message center in the Driver Controls chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

BRAKE

WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking

performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

ABS

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will sound if there is a malfunction in the indicator light.

14

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Instrument Cluster

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature. Charging system (RTT): Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component. Engine oil pressure (RTT): Displays when the oil pressure falls below the normal range. Refer to Engine oil in the Maintenance and Specifications chapter. Door ajar (RTT): Displays when the ignition is in the on position and any door is open.

Engine coolant temperature (RTT): Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

15

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Instrument Cluster

O/D OFF

Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter. Overdrive off (if equipped): Illuminates when the overdrive function of the transmission has been turned off; refer to the Driving chapter. If the light does not illuminate, have the transmission serviced soon, or damage may occur. Transmission Tow/Haul Feature (six speed transmission only): Displays when the Tow/Haul feature has been activated. Refer to the Driving chapter for transmission function and operation. If the light flashes steadily, have the system serviced immediately, damage to the transmission could occur. AdvanceTrac威/Traction Control™ (RTT) (if equipped): Displays when the AdvanceTrac威/Traction Control™ is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. 4X2 (RTT) (if equipped): Displays when two-wheel drive high is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer.

4x2

16

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Instrument Cluster

4x4
LOW

Four wheel drive low (RTT) (if equipped): Displays when four-wheel drive low is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer. Four wheel drive high (RTT) (if equipped): Displays when four-wheel drive high is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer. Electronic locking differential (RTT) (if equipped): Displays when using the electronic locking differential.

4x4
HIGH

Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Anti-theft system: Flashes when the SecuriLock™ Passive Anti-theft System has been activated.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

17

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Instrument Cluster

GAUGES Standard instrument cluster

Platinum instrument cluster

18

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Speedometer: Indicates the current vehicle speed.

Instrument Cluster

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle. Refer to Message center in the Driver Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. • With standard message center Press the SELECT/RESET stem once to switch from the odometer to the trip odometer. Press the stem again to select Trip A and Trip B features. To reset the trip, press and hold the stem until it resets.

19

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Instrument Cluster

Tachometer (if equipped): Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked by your authorized dealer. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The arrow next to the fuel pump icon indicates which side of the vehicle the fuel filler inlet is located. For more information, refer to Filling the tank in the Maintenance and Specifications chapter. Transmission fluid temperature gauge: If the gauge is in the: Normal area (normal) - the transmission fluid is within the normal operating temperature (between “H” and “C”).

20

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Instrument Cluster

Yellow area (warning) — the transmission fluid is higher than normal operating temperature. This can be caused by special operation conditions (i.e. snowplowing, towing or off road use). Refer to Special Operating Conditions in the scheduled maintenance information for instructions. Operating the transmission for extended periods of time with the gauge in the yellow area may cause internal transmission damage. Altering the severity of the driving conditions is recommended to lower the transmission temperature into the normal range. Red area (over temperature) — the transmission fluid is overheating. Stop the vehicle to allow the temperature to return to normal range.

If the gauge is operating in the Yellow or Red area, stop the vehicle and verify the airflow is not restricted such as snow or debris blocking airflow through the grill. If the gauge continues to show high temperatures, see your authorized dealer.

21

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM stereo system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Accessory delay: Your vehicle is equipped with accessory delay which allows you to operate the radio and other electrical accessories for up to ten minutes after the ignition has been turned off or until either front door is opened.

to

: Press

1. manually go up or down the radio frequency. Press and hold for a fast advance through radio frequencies. Also use in AUDIO mode to gain access to various settings.

22

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

2. AUDIO: Press AUDIO repeatedly to gain access to the following settings:

BAL (Balance): Press AUDIO to reach the balance setting. Use right (R) speakers.

SEEK

to adjust the audio between the left (L) and

FAD (Fade): Press AUDIO to reach the fade feature. Use SEEK speakers.

to adjust the audio between the front (F) and back (B)

TREB (Treble): Press to adjust the treble setting. Use SEEK

to adjust.

BASS (Bass): Press to adjust the bass setting. Use SEEK

to adjust.

to

SEEK

3. SEEK: Press access the previous/next strong station. 4. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. You can save up to 18 stations, six in AM, six in FM1 and FM2. 5. AM/FM: Press AM/FM to select AM/FM1/FM2 frequency band.

6. ON/OFF/Volume: Press VOL-PUSH to turn ON/OFF. Turn VOL-PUSH to increase/decrease volume.

7. CLK (Clock): Press CLK to toggle between displaying the radio frequency and the clock setting.

23

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

Setting the clock: Press and hold CLK until the hours begin to flash. to manually increase/decrease the hours. Press

SEEK

to Press CLK again to set the minutes using manually increase/decrease the minutes. Allow 10 seconds to pass to confirm that the time has been set.

SEEK

AM/FM in-dash CD/MP3 satellite compatible sound system

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the radio and other electrical accessories may be used for up to ten minutes after the ignition is turned off or until either front door is opened.

24

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

Note: Your vehicle is equipped with a unique audio system. If your display shows six small circles in the display, your audio system is a CD6
system (six disc changer). If not, your system is a single CD system. Setting the clock To set the time, press CLOCK. The display will read SET TIME. Use the memory preset numbers (0–9) to enter in the desired time–hours and minutes. The clock will then begin from that time. AM/FM Radio

/ VOL (Power/Volume): Press

to turn the radio on/off. Turn the knob to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a nominal listening level when the ignition switch is turned back on. AM/FM: Press repeatedly to select AM/FM1/FM2 frequency band. TUNE: Turn the knob to go up/down the frequency band in individual increments.

SEEK

to access the previous/next strong radio

DIRECT: Press DIRECT and then manually enter the desired radio station (i.e. 93.9) using the memory preset numbers (0–9). SEEK: Press station. SCAN: Press for a brief sampling of all strong radio stations. 0–9 (MEMORY PRESETS): When tuned to any station, press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 30
stations, 10 in AM, 10 in FM1 and FM2. Saving presets automatically: Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2.

25

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

SEEK

SEEK

To activate the autoset feature: Press MENU repeatedly until AUTO PRESET ON/OFF appears in the display. Use to toggle AUTO PRESET to ON, and either wait five seconds for the search to initiate or press OK to immediately initiate the search. If you press another control within those five seconds, the search will not initiate. The 10 strongest stations will be filled and the station stored in preset 1
will begin playing. If there are fewer than 10 strong stations, the system will store the last one in the remaining presets. RDBS Radio Available only in FM mode. This feature allows you to search RDBS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc. To activate: Press MENU repeatedly until RDBS (ON/OFF) appears in the display. Use to toggle RDBS ON/OFF. When RDBS is off, you will not be able to search for RDBS equipped stations or view the station name or type. CAT/FOLD (Category/Folder): This feature allows you to select from various music categories. To change RDBS categories: Press MENU repeatedly until RDBS to toggle RDBS ON/OFF appears in the display. Use between ON/OFF. Press CAT. PRESS UP OR DOWN TO CHANGE RDBS CATEGORY will appear in the display. Press category appears in the display, press station playing that selection or press SCAN for a brief sampling of all stations playing that category of music. CD/MP3 Player CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display. LOAD: For a single CD system– This control is not operational. To load a CD, simply insert the disc, label side up, into the CD slot. For a CD6 system– Press LOAD. When the display reads SELECT SLOT, choose the desired slot number using memory presets 1–6. When the display reads LOAD CD #, load the desired disc, label side up. If you

to scroll through all possible categories. When the desired

to find the next

SEEK

SEEK

26

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to six discs– Press and hold LOAD until the display reads AUTOLOAD #. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the disc in preset #1 will begin to play. Press the number preset buttons (1–6) to choose the disc you want to play.

Play/Pause: Press to

play/pause a track when playing a CD.

(Eject):

SEEK

to eject the CD.

. The system will eject

and select the desired CD slot by pressing

to access the previous/next track.

For a single CD system– press For a CD6 system– press the corresponding memory preset number. The display will read EJECTING #. When the system has ejected the CD, the display will read REMOVE CD #. Remove the CD. If you do not remove the CD, the system will reload the disc. To auto eject all loaded discs– Press and hold all discs and prompt you when to remove them. SEEK: Press CAT (Category) / FOLD (Folder): In MP3 mode only– Press CAT/FOLD and then press access the previous/next folder. SCAN: Press for a brief sampling of all tracks on the current disc or MP3 folder. DIRECT: In CD mode– Press DIRECT. The display will read DIRECT TRACK MODE SELECT TRACK. Enter the desired track number using the memory preset buttons (0–9). The system will then begin playing that track. In MP3 folder mode– Press DIRECT and the memory preset buttons (0–9) of the desired folder. The system will advance to that specific folder.

SEEK

to

27

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

SEEK

SEEK

SEEK

SEEK

to begin random

to toggle between ON/OFF.

to view the additional display text.

TEXT: In MP3 mode only– Press TEXT repeatedly to view Album (AL), Folder (FL), Song (SO) and Artist (AR) in the display, if available. In TEXT MODE: Sometimes the display requires additional text to be displayed. When the < / > indicator is active, press TEXT and then press COMPRESSION: Press MENU repeatedly until COMPRESSION ON/OFF appears in the display. Use When COMPRESSION is ON, the system will bring the soft and loud CD passages together for a more consistent listening level. SHUFFLE: Press MENU repeatedly until SHUFFLE ON/OFF appears in the display. Use to toggle between ON/OFF. If you wish to engage shuffle mode right away, press play. Otherwise, random play will begin when the current track is finished playing. The system will only shuffle the disc currently playing. Satellite Radio (if equipped) Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. SIRIUS: Press repeatedly to access satellite radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2 and SAT3 modes. TUNE: Turn to go to the next / previous available SIRIUS satellite station. DIRECT: Press DIRECT then enter the desired channel (i.e. 002) using the memory preset buttons (0–9). If you only enter one digit, press OK and the system will go to that satellite channel. If you enter three digits, the system will automatically go to that channel, if available. You may cancel your entry by pressing DIRECT. If an invalid station number is entered, INVALID CHANNEL will appear in the display and the system will continue playing the current station. SEEK: Press specific category is selected, (Jazz, Rock, News, etc.), press category. Press and hold previous/next channels. SCAN: Press SCAN for a brief sampling of all available SIRIUS satellite channels. If a specific category is selected, (Jazz, Rock, News, etc.) press SCAN for a brief sampling of all available SIRIUS satellite channels within the selected category.

to seek to the previous/next channel in the selected

to seek to the previous/next channel. If a

to fast seek through the

SEEK

SEEK

SEEK

28

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

SEEK

to view the additional display text.

MEMORY PRESETS (0–9): There are 30 available presets, 10 each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a memory preset number (0–9) until sound returns. TEXT: Press and release to display the artist and song title. While in TEXT MODE, press again to scroll through the Artist (AR), Song (SO), Channel (CH) and Category (CA). In TEXT MODE: Sometimes the display requires additional text to be displayed. When the < / > indicator is active, press TEXT and then press CAT (Category) / FOLD (Folder): Press to toggle between turning the most recently selected satellite radio category on or off. The category icon (CAT) will illuminate in the display when a specific category is selected (the icon will not illuminate during CATEGORY ALL). If no category has ever been selected, NO CATEGORY SELECTED will display. Note: Separate categories can be set for SAT1, SAT2 or SAT3. Refer to Satellite radio menu for further information on selecting a satellite radio category. SATELLITE RADIO MENU: Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu. Press • CATEGORY- Press OK to enter category mode. Press

to cycle through the following options:

to scroll

through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu. • SONG SEEK MENU- Press OK to enter song seek menu.

SEEK

to search for

to scroll through the following options:

Press a. SAVE THIS SONG: Press OK to save the currently playing song’s title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20

29

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

titles, the display will read REPLACE SONG? Press OK to access the to cycle through the saved titles. When saved titles and press the song title appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display. b. DELETE A SONG: Press OK to delete a song from the system’s to cycle through the saved songs. When the memory. Press song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to delete the currently listed song, press RETURN or CANCEL. c. DELETE ALL SONGS: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. d. DISABLE ALERTS/ENABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

to select either

• CHANNEL LOCKOUT MENU- Press OK to enter the Channel to scroll through the following

Lockout menu. Press the options: a. LOCK/UNLOCK THIS CHANNEL: Press OK when LOCK/UNLOCK THIS CHANNEL is displayed and the display will read ENTER PIN. Enter your four-digit PIN number (initial PIN is 1234) and the system will lock/unlock the channel and CHANNEL LOCKED or UNLOCKED will be displayed. Note: you must be tuned to the specific channel you want to lock/unlock when using this feature. b. CHANGE PIN: Press OK when CHANGE PIN is displayed. The display will read ENTER OLD PIN. Enter your current (old) PIN number and when the system accepts your entry it will display ENTER NEW PIN. Enter your new four-digit PIN and the system will save the new PIN and PIN SAVED will display.

30

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

c. UNLOCK ALL CHANNELS: Press OK when UNLOCK ALL CHANNELS is displayed and the display will read ENTER PIN. Enter your four-digit PIN and the system will unlock all channels and the display will read CHANNEL UNLOCKED. d. RESET PIN: Press OK when RESET PIN is displayed. The display will read ARE YOUR SURE. Press OK again to automatically reset the PIN number to its initial password setting (1234). PIN RESET TO DEFAULT PIN will be displayed. e. RETURN: Press OK when RETURN is displayed and the system will exit back to the satellite radio menu.

Sound Adjustments Press SOUND repeatedly to cycle through the following features: BASS: Press

to adjust the level of bass.

SEEK

TREBLE: Press

SEEK

to adjust the level of treble.

SEEK

to adjust the audio between the left

to adjust the audio between the back (B)

to adjust between SPEED OFF and levels 1–7:

BALANCE: Press SEEK (L) and right (R) speakers. FADE: Press SEEK and front (F) speakers. SPEED COMPENSATED VOLUME: With this feature on, radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise. The default setting is off. Use Increasing the level from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3; SPEED OFF turns the feature off and level 7
is the maximum setting. Extra Features AUX: Press repeatedly to cycle through LINE IN (auxiliary audio mode), and SYNC (if equipped). For location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter. If your vehicle is equipped with SYNC, please refer to supplemental information on SYNC.

31

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. For further information, refer to supplemental information on SYNC.

(Phone): If your vehicle is equipped with SYNC, press to access

SYNC PHONE features. For further information, please refer to supplemental information on SYNC. If your vehicle is not equipped with SYNC, the display may read NO PHONE. Audio system–Navigation system based (if equipped) If your vehicle is equipped with the navigation system, it will have an integrated navigation/audio system. See the Navigation system supplement for operating instructions on using this audio system. Auxiliary input jack (Line in — if equipped)

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary input jack section in the Audio features chapter of your Navigation system supplement. Required equipment: 1. Any portable music player designed to be used with headphones 2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end

32

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

To play your portable music player using the auxiliary input jack: 1. Begin with the vehicle parked and the radio turned off. 2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off. 3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle. 4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level. 5. Turn the portable music player on and adjust the volume to 1/2 the volume. 6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player although it may be low. 7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls. Troubleshooting: 1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control. 2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume. 3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player. 4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player. 5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure

33

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

USB port (if equipped)

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Your vehicle may be equipped with a USB port located on the instrument panel. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC supplement or Navigation system supplement.

GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

weaker the signal and the weaker the reception.

34

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

CD/CD player care Do: • Handle discs by their edges only.

(Never touch the playing surface).

• Inspect discs before playing. • Clean only with an approved CD

cleaner.

• Wipe discs from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached.

35

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician. MP3 track and folder structure Your MP3 system recognizes MP3 individual tracks and folder structure as follows: • There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section. • MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present.

• MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255. • Creating discs with only one level of folders will help with navigation

through the disc files.

36

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Sample MP3 structure If you are burning your own MP3
discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.

Entertainment Systems

.mp3 .mp3

.mp3

.mp3

.mp3

.mp3 .mp3

.doc .ppt .xls

In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder. Satellite radio information (if equipped) Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474. Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

37

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems • Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway

overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference. SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include: • Hardware and limited subscription term, which begins on the date of • Use of online media player providing access to all SIRIUS music channels over the internet using any computer connected to the internet (U.S. customers only).

sale or lease of the vehicle.

For information on extended subscription terms, contact SIRIUS at 1–888–539–7474. Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes. Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously.

38

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

Radio Display

Condition

Action Required

ACQUIRING

SAT FAULT

Radio requires more than two seconds to produce audio for

the selected

channel.

Internal module or

system failure

present.

No action required. This message should disappear

shortly.

If this message does not clear within a short period of time, or with an ignition

key cycle, your receiver

may have a fault. See your

authorized dealer for

service.

INVALID CHNL

Channel no longer

This previously available

available.

UNSUBSCRIBED

NO TEXT

NO TEXT

Subscription not available for this

channel.

Artist information

not available.

Song title

information not

available.

channel is no longer

available. Tune to another channel. If the channel was

one of your presets, you

may choose another

channel for that preset

button.

Contact SIRIUS at 1–888–539–7474 to

subscribe to the channel or

tune to another channel.

Artist information not available at this time on

this channel. The system is

working properly.

Song title information not available at this time on

this channel. The system is

working properly.

39

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Entertainment Systems

Radio Display

NO TEXT

NO SIGNAL

Condition Category

information not

available.

Loss of signal from the SIRIUS satellite or SIRIUS tower to the vehicle antenna.

UPDATING

CALL SIRIUS 1–888–539–7474

Update of channel programming in

progress.

Satellite service has been deactivated by

SIRIUS Satellite

Radio.

Action Required

Category information not available at this time on

this channel. The system is

working properly.

You are in a location that is blocking the SIRIUS signal

(i.e., tunnel, under an overpass, dense foliage,

etc). The system is working properly. When you move

into an open area, the signal should return.

No action required. The process may take up to

three minutes. Call SIRIUS at

1–888–539–7474 to re-activate or resolve subscription issues.

NAVIGATION SYSTEM (IF EQUIPPED) Your vehicle may be equipped with a navigation system. Refer to the Navigation system supplement for further information.

SYNC姞 (IF EQUIPPED) Your vehicle may be equipped with SYNC威, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC威 supplement or to the SYNC威 section in the Navigation system supplement (if equipped).

40

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

SINGLE ZONE CLIMATE CONTROL

Climate Controls

Defrost: Distributes outside air through the windshield defroster

1. vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection. 2. A. R Rear defroster (if equipped): Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this chapter for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both. 2. B. This feature will remove ice and snow from the side view mirrors. 3. settings to choose: •

Multifunction control: Press repeatedly to toggle through the

Heated mirrors (if equipped): Press to activate/deactivate.

: Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the instrument panel vents. : Distributes air through the instrument panel vents, floor vents,

rear seat floor vents and de-mister vents.

: Distributes air through the floor vents and rear seat floor vents.

• •

•

41

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Climate Controls

(defrost) and

(defrost). When the ignition switch is

Recirculated air: Press to activate/deactivate air recirculation in

4. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (floor/defrost). 5. the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is either 6. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation. 7. Temperature control: Controls the temperature of the airflow in the vehicle. 8. the vehicle. 9. When the system is off, outside air is prevented from entering the vehicle.

Fan speed adjustment: Controls the volume of air circulated in

Power: Press to activate/deactivate the climate control system.

(panel/floor).

(panel) or

Operating tips • To reduce fog build up on the windshield during humid weather, place

(floor/defrost) the air flow selector in the position. Temperature and/or fan speed can also be increased to improve clearing.

(defrost) or

system off or with recirculated air engaged.

• To reduce humidity build up inside the vehicle: do not drive with the • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of

airflow to the back seats.

the windshield.

42

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Climate Controls • To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.” • If you are driving during extreme high ambient temperatures and

idling for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, adjust the blower fan speed to the lowest setting and put the vehicle’s transmission into the P (Park) position to continue to receive cool air from your A/C system.

• For maximum cooling performance (Max A/C): Max A/C mode: • Move the temperature control to the coolest setting. • Set the fan to the highest speed initially, then adjust to maintain

comfort.

). Use recirculated air with A/C

comfort.

) modes:

) and panel/floor (

to provide colder airflow.

Panel ( • Move the temperature control to the coolest setting. • Select A/C and recirculated air ( • Set the fan to the highest speed initially, then adjust to maintain • To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Adjust the temperature control to maintain comfort. 4. Set the fan speed to the highest setting. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

43

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Climate Controls

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED SEATS (IF EQUIPPED)

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Driver Controls chapter. 1.

+ Fan speed control: Press to increase the fan speed.

Defrost: Distributes outside air through the windshield defroster

2. vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection. 3. airflow is directed. To return to full automatic control, press AUTO. When choosing to control airflow manually, press repeatedly to toggle through the settings to choose: •

Manual override control: Allows you to manually select where

: Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the instrument panel vents. : Distributes air through the instrument panel vents, floor vents,

rear seat floor vents and de-mister vents.

: Distributes air through the floor vents and rear seat floor vents.

• •

•

44

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Climate Controls

(defrost) and

Recirculated air: Press to activate/deactivate air recirculation in

4. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (floor/defrost). 5. AUTO: Press to engage automatic temperature control. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. 6. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation. 7. PASS TEMP: Press to activate separate passenger temperature control and turn the dial to increase/decrease the airflow temperature for the passenger in the front of the vehicle. 8. the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is either 9. heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information. 10. seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information. 11. climate control system. When the system is off, outside air is prevented from entering the vehicle. Turn to increase/decrease the air temperature on the driver side of the vehicle. The control also adjusts the passenger side temperature when PASS TEMP is disengaged. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The driver side temperature setting will appear in the upper left corner of the display.

Passenger heated seat control: Press to control the passenger

Driver heated seat control: Press to control the driver heated

Power/Driver temperature: Press to activate/deactivate the

(defrost). When the ignition switch is

(panel/floor).

(panel) or

45

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Climate Controls

– Front fan speed control: Press to decrease the fan speed. 12. 13. A. R Rear defroster (if equipped): Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this chapter for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both. 13. B. This feature will remove ice and snow from the side view mirrors.

Heated mirrors (if equipped): Press to activate/deactivate.

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED AND COOLED SEATS (IF EQUIPPED)

+ Fan speed control: Press to increase the fan speed.

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Driver Controls chapter. 1. 2. vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

Defrost: Distributes outside air through the windshield defroster

46

2009 F-150 (f12) Owners Guide (own2002), 3rd Printing USA (fus)

Climate Controls

• •

Manual override control: Allows you to manually select where

3. airflow is directed. To return to full automatic control, press AUTO. When choosing to control airflow manually, press repeatedly to toggle through the settings to choose: •

: Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the instrument panel vents. : Distributes air through the instrument panel vents, floor vents,

rear seat floor vents and de-mister vents.

(defrost) and

: Distributes air through the floor vents and rear seat floor vents.

• 4. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (floor/defrost). 5. AUTO: Press to engage automatic temperature control. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. 6. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation. 7. the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except turned off and back on, the climate system will return to the recirculated
