2011 Ford F 150 Owners Manual

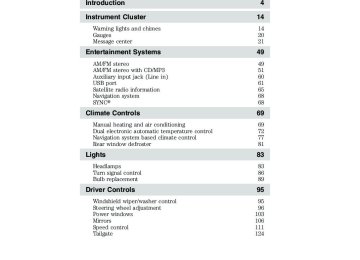

Table of Contents

14

14
20
21
49

49
51
60
61
65
68
68
69

69
72
77
81
83

83
86
89
95

95
96
103
106
111
124

Introduction

Instrument Cluster

Warning lights and chimes Gauges Message center

Entertainment Systems

AM/FM stereo AM/FM stereo with CD/MP3
Auxiliary input jack (Line in) USB port Satellite radio information Navigation system SYNC威

Climate Controls

Manual heating and air conditioning Dual electronic automatic temperature control Navigation system based climate control Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Tailgate

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

137

137
145
158
162

162
178
194
209
232

234
237
249
256
264
270
276
278

278
284
286
299
304
306
327

327
328
328
329
339
347
348
352

Table of Contents

Locks and Security

Keys Locks Anti-theft system

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Trailer brake controller-integrated Recreational towing

Driving

Starting Brakes AdvanceTrac威 Transmission operation Reverse sensing system Rear-view camera system Roadside Emergencies

Getting roadside assistance Hazard flasher control Fuel pump shut-off Fuses and relays Changing tires Wheel lug nut torque Jump starting Wrecker towing

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Table of Contents

Customer Assistance

Reporting safety defects (U.S. only) Reporting safety defects (Canada only)

Cleaning

Maintenance and Specifications

Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories

Ford Extended Service Plan

Scheduled Maintenance

Normal scheduled maintenance and log

Index

354

361
361
362

373

375
380
383
386
393
408
414
415
419
424

427

431

437
458

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2011 Ford Motor Company

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

WARNING: Fuel pump shut-off: In the event of an accident this feature will automatically cut off the fuel supply to the

engine. It can also be activated through sudden vibration (e.g. collision when parking). To restart your vehicle, refer to Fuel pump shut-off in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package.

Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package.

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

Notice to owners of pickup trucks and utility type vehicles

WARNING: Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

NOTICE TO OWNERS ABOUT HIGH PERFORMANCE TIRES Note: Your vehicle is equipped with high performance tires. When first driving the vehicle after it has been parked for a period of time, you may experience a temporary ride disturbance. This is a characteristic of the tires and should be no reason for concern. The condition should correct itself within 5-15 miles (8-25 km) of driving. If the disturbance persists, have the tires serviced by an authorized dealer.

DATA RECORDING

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

buckled/fastened;

and/or the brake pedal; and

Event Data Recording This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: • How various systems in your vehicle were operating; • Whether or not the driver and passenger seatbelts were • How far (if at all) the driver was depressing the accelerator • How fast the vehicle was travelling; and • Where the driver was positioning the steering wheel. This data can help provide a better understanding of the circumstances in which crashes and injuries occur. Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911
Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911
operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC威 supplement for more information. Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only) the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”) only to help provide you with the directions, traffic reports, or business searches your request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

CELL PHONE USE The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you

use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

10

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings.

11

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Child Seat Lower Anchor

Brake System

Anti-Lock Brake System

Parking Brake System

Brake Fluid - Non-Petroleum Based

Parking Aid System

Stability Control System

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

12

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Service Engine Soon

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

13

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES Base instrument cluster shown in standard measure; metric similar. Uplevel clusters similar.

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Base message center Note: Some warning lights are reconfigurable telltale (RTT) indicator lights and will illuminate in the message center. These lights function the same as the other warning lights.

14

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Uplevel message center Note: Some warning lights are reconfigurable telltale (RTT) indicator lights and will illuminate in the message center. These lights function the same as the other warning lights. The first three positions will only display one warning telltale at a time; the last three positions can cycle between different warning telltales.

Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the on-board diagnostics system (OBD-II) has detected a malfunction. Refer to On-board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel

system, interior floor coverings or other vehicle components, possibly causing a fire.

15

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Powertrain malfunction/Reduced power/Electronic throttle control (RTT): Displays when the engine has defaulted to a “limp-home” operation or when a transmission problem has been detected and shifting may be restricted. If the light remains on, have the system serviced immediately by your authorized dealer. Check 4X4 (RTT) (if equipped): Displays with the message CHECK 4X4 when a four-wheel drive fault is present. Refer to Message center in this chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

BRAKE

WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking

performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. 16

ABS

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will sound if there is a malfunction in the indicator light. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature. Charging system (RTT): Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component. Engine oil pressure (RTT): Displays when the oil pressure falls below the normal range. Refer to Engine oil in the Maintenance and Specifications chapter. Door ajar (RTT): Displays when the ignition is in the on position and any door is not completely closed.

Engine coolant temperature (RTT): Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

17

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter. Transmission Tow/Haul Feature (RTT and static) (if equipped)): Displays when the Tow/Haul feature has been activated. Refer to the Driving chapter for transmission function and operation. If the light flashes steadily, have the system serviced immediately, damage to the transmission could occur. AdvanceTrac威/Traction control (if equipped): Displays when the AdvanceTrac威/Traction control is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. AdvanceTrac威/Traction control off light (if equipped): Illuminates when AdvanceTrac威/Traction control has been disabled by the driver. Refer to the Driving chapter for more information. 4X2 (RTT) (if equipped): Displays momentarily when two-wheel drive high is selected. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer.

4x2

OFF

18

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

4x4
LOW

Four-wheel drive low (RTT) (if equipped): Displays when four-wheel drive low is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer. Four-wheel drive high (RTT) (if equipped): Displays when four-wheel drive high is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer. All-wheel drive (RTT) (if equipped): Displays when using the AWD system.

4x4
HIGH

AWD

Electronic locking differential (RTT) (if equipped): Displays when using the electronic locking differential.

Speed control (if equipped): The speed control system indicator light changes color to indicate what mode the system is in: • On (amber light): Illuminates

when the speed control system is turned on. Turns off when the speed control system is engaged or turned off. • Engaged (green light): Illuminates when the speed control system is

engaged. Turns off when the speed control system is disengaged.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

19

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

GAUGES Standard measure base cluster with automatic transmission shown; metric similar and uplevel clusters similar.

1. Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between L and H). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your authorized dealer. 2. Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between H and C). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool. 20

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

3. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The fuel icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. 4. Transmission fluid temperature gauge: If the gauge is in the: Normal area The transmission fluid is within the normal operating temperature (between H and C). Yellow area The transmission fluid is higher than normal operating temperature. This can be caused by special operation conditions (i.e. snowplowing, towing or off-road use). Refer to Special operating conditions in the scheduled maintenance information for instructions. Operating the transmission for extended periods of time with the gauge in the yellow area may cause internal transmission damage. Altering the severity of the driving conditions is recommended to lower the transmission temperature into the normal range. Red area The transmission fluid is overheating. Stop the vehicle to allow the temperature to return to normal range. If the gauge is operating in the yellow or red area, stop the vehicle and verify the airflow is not restricted such as snow or debris blocking airflow through the grill. If the gauge continues to show high temperatures, see your authorized dealer. 5. Speedometer: Indicates the current vehicle speed. 6. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. Odometer and trip odometer: The odometer is displayed on the lower line in the message center and registers the total accumulated distance the vehicle has traveled. For trip odometer, refer to Base message center or Uplevel message center in this chapter.

BASE MESSAGE CENTER Your vehicle’s message center is capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime.

21

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

The message center display is located in the instrument cluster.

Info (information menu) Press the INFO button repeatedly to cycle through the following features:

SET

INFO

CNCL RSM

ON OFF

SETUP

INFO

RESET

RESET

SETUP

TRIP A/B Registers the distance of individual journeys. Press and release INFO button until the A or B trip appears in the display (this represents the trip mode). Press the RESET button to reset. Refer to UNITS later in this section to switch the display from metric to English. MYKEY MILES (km) (if programmed) For more information, refer to MyKey威 in the Locks and Security chapter. MILES (km) TO E This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel. Distance to empty is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is re-initialized to a factory default value if the battery is disconnected. AVG MPG (L/100km) Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km.

22

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

service stations

If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons: • Your vehicle was not perfectly level during fill-up • Differences in the automatic shut-off points on the fuel pumps at • Variations in top-off procedure from one fill-up to another • Rounding of the displayed values to the nearest 0.1 gallon (liter) To determine your average highway fuel economy, do the following: 1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average. 2. Record the highway fuel economy for future reference. It is important to press the RESET button (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings. For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter.

MPG (L/km) This displays instantaneous fuel economy as a bar graph ranging from ↓ poor economy to ↑ excellent economy. Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows ↓, one or no bars illuminated. Instantaneous fuel economy cannot be reset. TIMER Timer displays the trip elapsed drive time. To operate, do the following: 1. Press and release RESET in order to start the timer. 2. Press and release RESET to pause the timer. 3. Press and hold RESET until the timer resets. TBC GAIN (if equipped) Displays the level of trailer brake gain or if the trailer is not connected.

23

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

System check and vehicle feature customization Press the SETUP button repeatedly to cycle the message center through the following features:

SET

CNCL RSM

ON OFF

INFO

SETUP

RESET FOR SYSTEM CHECK When this message appears, press the RESET button and the message center will begin to cycle through the following systems and provide a status of the item if needed.

INFO

RESET

RESET

SETUP

SET

INFO

CNCL RSM

ON OFF

SETUP

INFO

RESET

RESET

SETUP

Note: Some systems show a message only if a condition is present. 1. XXX% OIL LIFE 2. DOOR STATUS 3. BRAKE SYSTEM 4. FUEL LEVEL LOW 5. TBC GAIN = XX.X NO TRAILER (if equipped and no trailer connected) 6. TBC GAIN = XX.X OUTPUT = ////// (if equipped and trailer connected) 7. MYKEY DISTANCE (if programmed) 8. MYKEY(S) PROGRAMMED 9. ADMIN KEYS PROGRAMMED

24

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

OIL LIFE This displays the remaining oil life. An oil change is required whenever indicated by the message center and according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS. To reset the oil monitoring system to 100% after each oil change, perform the following: 1. Press and release the SETUP button to display “OIL LIFE XXX% HOLD RESET = NEW”. 2. Press and hold the RESET button for two seconds and release to reset the oil life to 100%. Note: To change oil life 100% value (if equipped with this feature) to another value, proceed to Step 3. 3. Once “OIL LIFE SET TO XXX%” is displayed, release and press the RESET button to change the Oil Life Start Value. Each release and press will reduce the value by 10%. UNITS Displays the current units in English or Metric. Press the RESET button to change from English to Metric. AUTOLAMP (SEC) This feature keeps your headlights on for up to three minutes after the ignition is switched off. Press the RESET button to select the new autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds. AUTOLOCK This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion. Press the RESET button to turn autolock on or off. AUTOUNLOCK This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off. Press the RESET button to turn autounlock on or off. COURTESY WIPE This feature allows for an extra swipe of the wipers after a wipe/wash cycle.

25

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Press the RESET button to turn it on or off. EASY ENTRY This feature automatically moves the driver’s seat backwards for easy exit/entry from the vehicle. Press the RESET button to turn the easy entry/exit seat on or off. REAR PARK AID (if equipped) This feature sounds a tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected. Press the RESET button to turn the rear park aid on or off. TRAILER SWAY (if equipped) This feature uses the electronic stability control to mitigate trailer sway, Press the RESET button to turn trailer sway on or off. CREATE MYKEY / MYKEY SETUP / CLEAR MYKEY For more information refer to MyKey威 in the Locks and Security chapter. RESET FOR REMOTE START (if equipped) Press RESET to choose: • Remote start on or off • Duration: 5, 10, 15 minutes • Remote start climate on or off • Remote start quiet on or off LANGUAGE = ENGLISH / SPANISH / FRENCH Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, or French. Waiting four seconds or pressing the RESET button cycles the message center through each of the language choices. Press the RESET button to set the language choice. System warnings System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems. In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds. 26

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

may need to take action on or be informed of.

The message center will display the last selected feature if there are no more warning messages. Types of messages and warnings: • Some messages will appear briefly to inform you of something you • Some messages will appear once and then again when the vehicle is • Some messages will reappear after clearing or being reset if a problem • Some messages can be acknowledged and reset by pressing RESET.

or condition is still present and needs your attention.

restarted.

This allows you to use the full message center functionality by clearing the message.

DRIVER DOOR AJAR — Displayed when the driver door is not completely closed. PASSENGER DOOR AJAR — Displayed when the passenger door is not completely closed. REAR LEFT DOOR AJAR — Displayed when the rear left door is not completely closed. REAR RIGHT DOOR AJAR — Displayed when the rear right door is not completely closed. FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition. PARK BRAKE ENGAGED — Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible. CHECK BRAKE SYSTEM — Displayed when a fault has been detected by the ABS module. CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, contact your authorized dealer as soon as possible.

27

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

TURN POWER OFF TO SAVE BATT (if equipped) — Displayed when the battery management system determines that: • the battery is at a low state of charge or, • the ignition has been in accessory position or on position with the

engine off for approximately 45 minutes.

Turn the ignition off as soon as possible to protect the battery. This message will clear once the vehicle has been started and the battery state of charge has recovered. Turning off unnecessary electrical loads while driving will allow faster battery state-of-charge recovery. See Battery management system in the Maintenance and Specifications chapter for more information. LOW BATTERY LESS FEATURES (if equipped) — Displayed when the battery management system detects an extended low-voltage condition. Various vehicle features will be disabled to help preserve the battery. Turn off as many of the electrical loads as soon as possible to improve system voltage. If the system voltage has recovered, the disabled features will operate again as normal. CHECK REAR PARK AID (if equipped) — Displayed when the transmission is in R (Reverse). Refer to Reverse sensing system in the Driving chapter. TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel威 “no cap” fuel system in the Maintenance and Specifications chapter. SERVICE ADVANCETRAC — Displayed when the AdvanceTrac威 system has detected a condition that requires service. Contact your authorized dealer as soon as possible. ADVANCETRAC OFF (if equipped) — Displayed when the AdvanceTrac威 system has been disabled by the driver. ADVANCETRAC ON (if equipped) — Displayed when the AdvanceTrac威 system has been enabled by the driver. 28

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

TRACTION CONTROL OFF (if equipped) — Displayed when the traction control has been disabled by the driver. Refer to the Driving chapter for more information. TRACTION CONTROL ON (if equipped) — Displayed when the traction control has been enabled by the driver. Refer to the Driving chapter for more information. CHECK 4X4 (if equipped) — Displayed when a 4X4 system fault is present. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. TIRE PRESSURE MONITOR FAULT — Displayed when the tire pressure monitoring system (TPMS) is malfunctioning. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter. OIL CHANGE REQUIRED — Displayed when an oil change is required. XX%ENGINE OIL CHANGE SOON—Displayed when an oil change will soon be required and shows the percentage of oil life left. TRAILER BRAKE MODULE FAULT (if equipped)— Displayed and accompanied by a single chime, in response to faults sensed by the TBC. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information. WIRING FAULT ON TRAILER (if equipped) — Displayed if there are certain faults in the vehicle wiring and trailer wiring/brake system. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information. TRAILER SWAY REDUCE SPEED (if equipped) — Displayed when the trailer sway control has detected trailer sway. For more information, refer to the Driving chapter for more information. 4X4 SHIFT IN PROGRESS — Displayed when the 4X4 system is making a shift. For further information, refer to Four-wheel drive (4WD) operation in the Driving chapter. FOR 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 4X4 LOW is selected while the vehicle is moving. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.

29

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

TO EXIT 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. TO EXIT 4X4 LOW SHIFT TO N (if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. SHIFT DELAYED PULL FORWARD (if equipped) — May display when shifting to or from 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. TRAIN LEFT FRONT TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. TRAIN RIGHT FRONT TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. TRAIN RIGHT REAR TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. TRAIN LEFT REAR TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. TIRES NOT TRAINED – REPEAT (if equipped) — Displayed when an error occurs while training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. TRAINING COMPLETE (if equipped) — Displayed when training of the TPMS system is complete. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. MYKEY ACTIVE DRIVE SAFELY — Displayed at startup when MyKey威 is in use. Refer to MyKey威 in the Locks and Security chapter for more information. KEY COULD NOT PROGRAM — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey威 in the Locks and Security chapter for more information. VEHICLE SPEED 80 MPH MAX — Displayed when a MyKey威 is in use and the Admin has enabled the MyKey speed limit and the vehicle 30

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

speed is 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information. SPEED LIMITED TO 80 MPH — Displayed when starting the vehicle and MyKey威 is in use and the MyKey speed limit is on. Refer to MyKey威 in the Locks and Security chapter for more information. CHECK SPEED DRIVE SAFELY — Displayed when a MyKey威 is in use and the optional setting is on and the vehicle exceeds a preselected speed. Refer to MyKey威 in the Locks and Security chapter for more information. VEHICLE NEAR TOP SPEED — Displayed when a MyKey威 is in use and the MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information. TOP SPEED MYKEY SETTING — Displayed when a MyKey威 is in use and the MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information. BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey威 is in use and Belt-Minder威 is activated. Refer to MyKey威 in the Locks and Security chapter for more information. ADVTRAC ON MYKEY SETTING — Displayed when a MyKey威 is in use when trying to disable the AdvanceTrac威 system and the optional setting is on. Refer to MyKey威 in the Locks and Security chapter for more information. TO STOP ALARM START VEHICLE — Displayed when the perimeter alarm system is armed and the vehicle is entered using the key on the driver’s side door. In order to prevent the perimeter alarm system from triggering, the ignition must be turned to start or on before the 12 second chime expires. See Perimeter alarm system in the Locks and security chapter. SECURITY SYSTEM FAULT — Displayed when the security system has detected a fault. See your authorized dealer for service. INTKEY COULD NOT PROGRAM — Displayed when an attempt is made to program a fifth integrated key to the remote keyless entry system. For more information on integrated key, refer to the Locks and Security chapter. KEY COULD NOT PROGRAM — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey威 in the Locks and Security chapter for more information.

31

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

SLOW VEHICLE TO XX MPH FOR ELD (if equipped) — Displayed when the vehicle speed requirement for the electronic locking differential mode has not been met. CHECK LOCKING DIFFERENTIAL (if equipped) — Displayed when an electronic locking differential (ELD) system fault is present. For more information, refer to Electronic locking differential (ELD) in the Driving chapter. HILL DESCENT CONTROL FAULT (if equipped) — Displayed when a hill descent system fault is present. HILL CNTRL OFF SYSTEM COOLING (if equipped) — Displayed when a hill descent system fault is present. FOR OFF ROAD SLOW TO 5 MPH (if equipped) — Displayed when the vehicle speed requirement for off-road mode entry has not been met. OFF ROAD MODE ENABLED (if equipped) — Displayed when off-road mode becomes active. EXITING OFF ROAD MODE (if equipped) — Displayed when off-road mode becomes inactive. HILL DESCENT CONTROL ACTIVE (if equipped) — Displayed when hill descent control mode becomes active. HILL DESCENT CONTROL OFF (if equipped) — Displayed when hill descent control mode becomes inactive. FOR HILL CNTRL 20 MPH OR LESS (if equipped) — Displayed when the vehicle speed requirement for hill control mode entry has not been met. DRIVER RESUME CONTROL (if equipped) — Displayed when the hill control and off-road mode require the driver to resume control. FOR HILL CNTRL SELECT GEAR (if equipped) — Displayed when the driver is requested to select a transmission gear to enable operation of the hill mode and off-road mode. COAST DOWN MODE (if equipped) — Displayed when vehicle enters coast down mode.

UPLEVEL MESSAGE CENTER (IF EQUIPPED) Your vehicle’s message center is capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with informational messages and/or warnings. The message center is also used to program/configure the different features of your vehicle. 32

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

The message center display is located in the instrument cluster. Use the steering wheel mounted buttons to navigate through the message center. Press the up/down buttons to move up/down through the message center choices.

Press the left/right buttons to move left/right through the message center choices.

Press the OK button to select highlighted options and confirm choices/messages.

Main menu From the main menu screen you can choose the following: • Gauge Mode • Trip A/B • Fuel Economy • Truck Apps (if equipped) • Settings • Information

33

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Scroll up/down to highlight one of the options, then press the right arrow key or OK to enter into that menu option. Gauge Mode Gauge Detail: In this mode, the following options are available in different graphical formats: • Trans Temp • Blank screen Trip A/B In this mode, Trip A or B registers the following: • Trip time — shows the elapsed trip time. This timer will stop when • Trip distance — shows the accumulated trip distance. • Fuel used — shows the amount of fuel used for a given trip. • Average MPG (L/100km) — shows the average distance traveled per • Odometer — shows the vehicle’s total accumulated distance. This

the vehicle is turned off and will restart when the vehicle is restarted.

unit of fuel used for a given trip.

value cannot be reset.

Press the right arrow key to reach Trip B. Press the left arrow to go back to Trip A. Press OK to pause the Trip A or B screen/press again to un-pause. Press and hold OK to reset the currently displayed trip information. Fuel Economy In this mode, fuel economy information is displayed as follows: • Instant MPG (L/100km) — shows instantaneous fuel usage. • Miles (kilometers) to empty — shows the approximate distance the • Average MPG (L/100km) — shows the average fuel usage based on time. See Fuel Hist. following to change the time interval. Press and hold OK to reset this value.

vehicle can travel before running out of fuel.

34

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

service stations.

If you calculate your average fuel economy by dividing miles traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons: • Your vehicle was not perfectly level during fill-up. • Differences in the automatic shut-off points on the fuel pumps at • Variations in top-off procedure from one fill-up to another. • Rounding of the displayed values to the nearest 0.1 gallon (liter). To determine your average highway fuel economy, do the following: 1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average. 2. Record the highway fuel economy for future reference. It is important to press RESET in order to reset the function after setting the speed control to get accurate highway fuel economy readings. For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter. Fuel Hist.: Press the right arrow key (when in the Fuel Econ. menu) to reach Fuel Hist. Fuel history shows fuel usage (AVG MPG or L/100km) as a bar graph based on time. The duration time can be changed as follows: Duration– Press the right arrow key (when in the Fuel Hist. menu) to reach the following duration choices. • 5 Minutes • 10 Minutes • 30 Minutes • Last 5 Resets Use the up/down arrows keys to highlight one of the choices; press and hold OK to set your choice. The graph is updated each minute with the fuel economy that was achieved during the prior 5, 10, 30 minutes or last 5 resets of driving.

35

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Truck Apps (if equipped) In this mode, off-road and trailer towing application options are available.

*Off Road

Pitch and bank angle (in degrees): Displays the pitch angle (front to rear) and bank angle (side to side) of the road surface. Steering angle (in degrees): Displays the steering angle of the front wheels after the vehicle has been driven for a period of time. Differential lock/unlock: Displays the state (locked or unlocked) of the electronic locking differential. Torque flow: Displays the torque flow to the front and rear driveline and operating mode of the transfer case: 4X2, 4X4 High, 4X4 Low, AWD. AdvanceTrac威 sport mode, hill descent control, off-road mode: Displays which modes are active. * If equipped—your vehicle may be equipped with some or all of these options. When “Press OK for info” is displayed, pressing OK will give you information on the following options if equipped (Note: Information is only available when traveling less than 3 mph [5 km/h]): • 4X4 System • AdvanceTrac威 • AWD (All-Wheel Drive) • ELD (Electronic Locking Differential) • HDC (Hill Descent Control) • Off-Road Mode *Trailer: Press the right arrow key (when in the Off-Road menu) to reach the Trailer menu. The following information is displayed • Active trailer name or default trailer • Accumulated trailer distance • Trailer gain and output • Trailer disconnected (Disregard this status if your vehicle is not

equipped with a factory installed trailer brake controller. This message may appear when an aftermarket TBC is used even when the trailer is connected.)

36

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

When “Press OK for options” is displayed, pressing OK will open the trailer options menus:

Instrument Cluster

Change Active Trailer

Connection Checklist (if equipped)

Delete Trailer

Information Screen

Trailer

When this is highlighted, press the right arrow key to change the currently selected trailer. Use the up and down arrows to select a trailer and press the OK button to choose the highlighted trailer. Adding a new trailer– Use the up/down arrows to highlight “New Trailer” from the Change Active Trailer menu and press the right arrow key to enter the New Trailer input screen. Use the up/down arrow keys to choose alpha, numeric and symbol characters and then press the right arrow to move the character space over. Continue adding characters as needed. Press the left arrow to go back and change a previously selected character. When finished with the new trailer name, press OK to accept the new trailer name. Press the right arrow button when this is highlighted to show the trailer connection types: Conventional, Fifth Wheel and Gooseneck. Use the up/down arrows to highlight one of these choices and press OK to display the connection checklist. Follow the on-screen instructions to go through the connections list. Press the right arrow button when this is highlighted to show currently stored trailers. Use the up/down arrows to highlight the trailer you want to delete and press OK to delete. Follow the on-screen prompts to exit or confirm delete. Press the right arrow button when this is highlighted to display information on the following vehicle features: Tow Haul mode, Trailer Brake Controller.

37

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Rename Trailer

Reset Trailer Mileage / Kilometers (if equipped)

Trailer

Press the right arrow button when this is highlighted to display saved or default trailers. Use the up/down buttons to highlight a trailer and press OK to select it. Use the up/down arrow buttons to change the characters as needed. When done, press OK to accept the change. Press the right arrow button when this is highlighted to display accumulated distance on a given trailer within the list of trailer(s). Use the up/down buttons to select a trailer, then press and hold OK to reset the trailer mileage (kilometers).

* If equipped—your vehicle may be equipped with some or all of these options. Settings In this mode, you can configure different driver setting choices (if equipped). Press the right arrow key (when in the Settings menu) to reach the Driver Assist menu:

Driver Assist

On/Off On/Off Fixed/Off Off, Level 1–3

On/Off Camera Delay Visual Park Aid Guidelines Zoom Levels (This will only be shown when Reverse (R) is selected. Electric or Elect. Over Hydraulic

On/Off

Rear Park Aid Rear Video Camera

Trailer Brake Mode Trailer Sway Control

38

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Vehicle Off or XXX seconds Normal History Used

Towing History Used

On/Off On/Off One Stage or Two Stage

On/Off Autolock, Autounlock Unlocking Standard: with standard set, pressing the up/down arrows from a lower level menu will escape to the main menu. Memory On: with memory on set, pressing the up/down arrows will navigate to the previous lower level menu. Set to XXX% (Press and hold OK to set).

Auto/Off/Out

Autolamp Delay DTE Calculation (distance to empty) Easy Entry/Exit Locks

Menu Control

Oil Life Reset Pwr Running Boards

Auto/Off

Front Defrost Rear Defrost Driver Seat Passenger Seat Heater-A/C

Auto/ Last Setting 5, 10 or 15 minutes, Off On/Off On/Off On/Off

39

Remote Start

Climate Control

Wipers

Duration Quiet Start Courtesy Wipe Rain Sensing wipers

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

MyKey

Hold OK to create MyKey Always on or Selectable 80 MPH (120 km/h) or Off 45, 55 or 65 MPH (75, 90 or 105 km/h), Off

Create MyKey *AdvanceTrac *MAX Speed *Speed Warning *Volume Limiter On/Off *Clear MyKeys *Only displays if MyKey is programmed.

Hold OK to Clear MyKeys

Language

English, Español, Français

Units

English or Metric

Units

System Reset

Hold OK to Reset System to Factory Default

Information In this mode, you can view different vehicle system information and perform a system check. When “Press OK for info” is displayed, pressing OK will give you information on the currently selected/displayed options. Information is only available when traveling less than 3 mph (5 km/h).

MyKey

Admin Keys (Number of admin keys) MyKeys (Number of MyKeys programmed) MyKey Miles (km) (Distance traveled using a programmed MyKey)

System Check

Oil Life Doors Brakes Trailer Brake Ctrl. Park Aid Fuel Level (distance to empty) 40

Gain and Output (when trailer is connected) No trailer (when no trailer is connected) Check Rear Park Aid

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

Some items will only display during a system check if a problem has been detected. If an issue exists on one of the monitored systems, the message center will display the number of warnings that need immediate attention in red and the number of informational warnings will be listed in amber. Use the up/down arrow buttons to scroll through the list; press the right arrow button to display specific information on the highlighted warning. Transmission indicator display The transmission gear indicator displays in the right side of the message center when using the SelectShift Automatic™ transmission feature. This display will not be shown in all screen modes. For example: when programming certain vehicle features or in certain information menus. System warnings and status messages System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems. In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds. The message center will display the last selected feature if there are no more warning messages. Types of messages and warnings: • Some messages will appear briefly to inform you of something you • Some messages will appear once and then again when the vehicle is • Some messages will reappear after clearing or being reset if a problem • Some messages can be acknowledged and reset by pressing OK. This allows you to use the full message center functionality by clearing the message.

or condition is still present and needs your attention.

may need to take action on or be informed of.

restarted.

DOOR AJAR — Displayed when the door is not completely closed. DRIVER DOOR AJAR — Displayed when the driver door is not completely closed. LEFT REAR DOOR AJAR — Displayed when the rear left door is not completely closed. PASSENGER DOOR AJAR — Displayed when the passenger door is not completely closed.

41

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

RIGHT REAR DOOR AJAR — Displayed when the rear right door is not completely closed. CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel威 “no cap” fuel system in the Maintenance and Specifications chapter. FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition. CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, contact your authorized dealer as soon as possible. TURN POWER OFF TO SAVE BATTERY (if equipped) — Displayed when the battery management system determines that: • the battery is at a low state of charge or, • the ignition has been in accessory position or on position with the

engine off for approximately 45 minutes.

Turn the ignition off as soon as possible to protect the battery. This message will clear once the vehicle has been started and the battery state of charge has recovered. Turning off unnecessary electrical loads while driving will allow faster battery state-of-charge recovery. See Battery management system in the Maintenance and Specifications chapter for more information. LOW BATTERY FEATURES TEMPORARILY TURNED OFF (if equipped) — Displayed when the battery management system detects an extended low-voltage condition. Various vehicle features will be disabled to help preserve the battery. Turn off as many of the electrical loads as soon as possible to improve system voltage. If the system voltage has recovered, the disabled features will operate again as normal. BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter. CHECK BRAKE SYSTEM — Displayed when the brake system needs servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

42

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

PARK BRAKE ENGAGED — Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible. ADVANCETRAC OFF (if equipped) — Displayed when the AdvanceTrac威 system has been disabled by th e driver. ADVANCETRAC ON (if equipped) — Displayed when the AdvanceTrac威 system has been enabled by the driver. SERVICE ADVANCETRAC (if equipped) — Displayed when the AdvanceTrac威 system has detected a condition that requires service. Contact your authorized dealer as soon as possible. POWER REDUCED TO LOWER ENGINE TEMP — Displayed when the engine temperature gauge needle moves to H. You may notice reduced engine power. Refer to Engine coolant in the Maintenance and Specifications chapter for more information. ENGINE OIL CHANGE SOON — Displayed when the engine oil life remaining is 5% to 1%. OIL CHANGE REQUIRED — Displayed when the oil life left reaches 0%. LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. TIRE PRESSURE MONITOR FAULT — Displayed when the tire pressure monitoring system is malfunctioning. If the warning stays on or continues to come on, have the system inspected by your authorized dealer. TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to Understanding your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. TIRES NOT TRAINED - REPEAT — Displayed when an error occurs while training the TPMS. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. TRAIN LEFT FRONT TIRE — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.

43

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

TRAIN LEFT REAR TIRE — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. TRAIN RIGHT FRONT TIRE — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. TRAIN RIGHT REAR TIRE — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. TRAINING COMPLETE — Displayed when training of the TPMS system is complete. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information. POWER STEERING ASSIST FAULT — The power steering system has disabled power steering assist due to a system error; service is required. SERVICE POWER STEERING — The power steering system has detected a condition that requires service. SERVICE POWER STEERING NOW — The power steering system has detected a condition that requires service immediately. BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey威 is in use and Belt-Minder威 is activated. Refer to MyKey威 in the Locks and Security chapter for more information. TRACTION CONTROL OFF (if equipped) — Displayed when the traction control has been disabled by the driver. Refer to the Driving chapter for more information. TRACTION CONTROL ON (if equipped) — Displayed when the traction control has been enabled by the driver. Refer to the Driving chapter for more information. CHECK 4X4 (if equipped) — Displayed when a 4X4 system fault is present. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. 4X4 SHIFT IN PROGRESS (if equipped) — Displayed when the 4X4
system is making a shift. For further information, refer to Four-wheel drive (4WD) operation in the Driving chapter. FOR 4X4 LOW APPLY BRAKE (if equipped) — Displayed when trying to select 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. 44

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

FOR 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 4X4 LOW is selected while the vehicle is moving. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. TO EXIT 4X4 LOW APPLY BRAKE (if equipped) — Displayed when 2WD is selected from 4X4 LOW mode. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. TO EXIT 4X4 LOW SHIFT TO N (if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. TO EXIT 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. SHIFT DELAYED PULL FORWARD (if equipped) — May display when shifting to or from 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter. CHECK LOCKING DIFFERENTIAL (if equipped) — Displayed when an electronic locking differential (ELD) system fault is present. For more information, refer to Electronic locking differential (ELD) in the Driving chapter. CHECK SPEED DRIVE SAFELY — Displayed when a MyKey威 is in use and the optional setting is on and the vehicle exceeds a preselected speed. Refer to MyKey威 in the Locks and Security chapter for more information. COULD NOT PROGRAM INTEGRATED KEY — Displayed when an attempt is made to program a fifth integrated key to the remote keyless entry system. For more information on integrated key, refer to the Locks and Security chapter. ESC ALWAYS ON - MYKEY SETTING — Displayed when a MyKey威 is in use and the ESC cannot be deactivated. Refer to MyKey威 in the Locks and Security chapter for more information. MYKEY ACTIVE DRIVE SAFELY — Displayed when a MyKey威 is in use. Refer to MyKey威 in the Locks and Security chapter for more information. MYKEY COULD NOT PROGRAM — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey威 in the Locks and Security chapter for more information. SECURITY SYSTEM FAULT (if equipped) — Displayed when the security system has detected a fault. See your authorized dealer for service.

45

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

SPEED LIMITED TO 130 KM/H — Displayed when starting the vehicle and MyKey威 is in use and the MyKey speed limit is on. Refer to MyKey威 in the Locks and Security chapter for more information. SPEED LIMITED TO 80 MPH — Displayed when starting the vehicle and MyKey威 is in use and the MyKey speed limit is on. Refer to MyKey威 in the Locks and Security chapter for more information. VEHICLE AT TOP SPEED - MYKEY SETTING — Displayed when a MyKey威 is in use and the MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information. VEHICLE NEAR TOP SPEED — Displayed when a MyKey威 is in use and the MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information. CHECK REAR PARK AID (if equipped) — Displayed when the transmission is in R (Reverse) and the park aid is disabled. REAR PARK AID OFF (if equipped) — Displayed when the rear park aid is disabled by the driver. REAR PARK AID ON (if equipped) — Displayed when the rear park aid is enabled. TO STOP ALARM, START VEHICLE (if equipped) — Displayed when the perimeter alarm system is armed and the vehicle is entered using the key on the driver’s side door. In order to prevent the perimeter alarm system from triggering, the ignition must be turned to start or on before the 12 second chime expires. See Perimeter alarm system in the Locks and security chapter. TRAILER BRAKE GAIN: XX.X [OUTPUT] (if equipped) — Displays the current gain setting for the trailer brake. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information. TRAILER BRAKE GAIN: XX.X NO TRAILER (if equipped) — Displays the current gain setting for the trailer brake when a trailer is not connected. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information. TRAILER BRAKE MODULE FAULT (if equipped) — Displayed and accompanied by a single chime, in response to faults sensed by the TBC. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information.

46

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

TRAILER CONNECTED (if equipped) — Displayed when a correct trailer connection (a trailer with electric trailer brakes) is sensed during a given ignition cycle. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information. TRAILER DISCONNECTED (if equipped) — Displayed when a trailer connection becomes disconnected, either intentionally or unintentionally, and has been sensed during a given ignition cycle. Disregard this status if your vehicle is not equipped with a factory installed trailer brake controller. This message may appear when an aftermarket TBC is used even when the trailer is connected. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information. TRAILER SWAY REDUCE SPEED (if equipped) — Displayed when the trailer sway control has detected trailer sway. For more information, refer to the Driving chapter for more information. WIRING FAULT ON TRAILER (if equipped) — Displayed if there are certain faults in the vehicle wiring and trailer wiring/brake system. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information. FOR OFF ROAD SLOW TO 5 MPH (if equipped)— Displayed when the vehicle speed requirement for off-road mode entry has not been met. OFF ROAD MODE ENABLED (if equipped)— Displayed when off-road mode becomes active. EXITING OFF ROAD MODE (if equipped)— Displayed when off-road mode becomes inactive. HILL DESCENT CONTROL ACTIVE (if equipped)— Displayed when hill descent control mode becomes active. HILL DESCENT CONTROL OFF (if equipped)— Displayed when hill descent control mode becomes inactive. DRIVER RESUME CONTROL (if equipped)— Displayed when the hill control and off-road mode require the driver to resume control. COAST DOWN MODE (if equipped)— Displayed when vehicle enters coast down mode. FOR HILL DESCENT REDUCE SPEED (if equipped) — Displayed when the vehicle speed requirement for off-road mode entry has not been met. FOR HILL DESCENT SELECT GEAR (if equipped) — Displayed when the driver is able to select a transmission gear for hill descent mode.

47

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Instrument Cluster

HILL DESCENT - DRIVER RESUME CONTROL (if equipped) — Displayed when hill descent control mode is deactivated and the driver must resume control. HILL DESCENT CONTROL FAULT (if equipped) — Displayed when a hill descent system fault is present. HILL DESCENT CONTROL OFF SYSTEM COOLING (if equipped) — Displayed when the hill descent system is cooling due to overuse. HILL DESCENT CONTROL READY (if equipped) — Displayed when the hill descent control switch is turned on. REDUCE ACCELERATOR TO PREVENT WHEEL SLIP (if equipped) — Displayed when the vehicle senses that torque to the drive wheels has overcome the available traction. CAMERA MALFUNCTION (if equipped) — Displayed when the front camera is not operating properly.

48

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM stereo system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving, encourage the use of voice-operated systems when possible and that you become aware of applicable state and local laws that may affect use of electronic devices while driving.

Accessory delay: Your vehicle is equipped with accessory delay which allows you to operate the radio and other electrical accessories for up to ten minutes after the ignition has been turned off or until either front door is opened.

to

: Press

1. manually go up or down the radio frequency. Press and hold for a fast advance through radio frequencies. Also use in AUDIO mode to gain access to various settings.

49

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Entertainment Systems

2. AUDIO: Press AUDIO repeatedly to gain access to the following settings: • BAL (Balance): Press AUDIO to reach the balance setting.

to adjust the audio between the left (L)

SEEK Use and right (R) speakers.

SEEK Use and back (B) speakers.

• FAD (Fade): Press AUDIO to reach the fade feature.

to adjust the audio between the front (F)

• TREB (Treble): Press to adjust the treble setting. Use

SEEK

to adjust.

• BASS (Bass): Press to adjust the bass setting. Use

SEEK

to adjust.

to

SEEK

3. SEEK: Press access the previous/next strong station. 4. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. You can save up to 18 stations, six in AM, six in FM1 and FM2. 5. AM/FM: Press AM/FM to select AM/FM1/FM2 frequency band.

6. ON/OFF/Volume: Press VOL-PUSH to turn ON/OFF. Turn VOL-PUSH to increase/decrease volume.

50

2011 F-150 (f12) Owners Guide, 3rd Printing USA (fus)

Entertainment Systems

7. CLK (Clock): Press CLK to toggle between displaying the radio frequency and the clock setting. Setting the clock: Press and hold CLK until the hours begin to flash. Press manually increase/decrease the hours. to Press CLK again to set the minutes using manually increase/decrease the minutes. Allow 10 seconds to pass to confirm that the time has been set. Note: If your vehicle is equipped with a navigation system, refer to Setting the clock in your Navigation supplement. AM/FM in-dash CD/MP3 satellite compatible sound system
