Items to initialize ...................391
Inside rear view mirror ..............53
Interior light
Switch ...................................222
Wattage.................................372
Jack
Positioning a floor jack..........255
Vehicle-equipped jack...........334
Jack handle ..............................334
K
Keys
Electronic key......................... 24
Engine switch ....................... 114
If you lose your keys............. 348
Ignition switch....................... 114
Key battery ........................... 286
Key number plate ................... 24
Keys ....................................... 24
Mechanical key....................... 24
Wireless remote control.......... 26
License plate lights
Replacing light bulbs ............ 300
Switch................................... 134
Wattage................................ 372
Light bulbs
Replacing ............................. 300
Wattage................................ 372
Lights
Emergency flashers
switch................................. 312
Fog lights switch................... 137
Hazard lights switch ............. 312
Headlights switch ................. 134
Instrument panel lights
switch................................. 134
Interior light switch................ 222
License plate lights switch.... 134
Parking lights switch............. 134
Personal lights switch........... 222
Replacing light bulbs ............ 300
Side marker lights switch...... 134
Tail lights switch ................... 134
Turn signal lights switch ....... 121
Load capacity .......................... 154
Lock steering column............. 116
Alphabetical index
Maintenance
Do-it-yourself
maintenance .......................250
Emission inspection and
maintenance (I/M)
programs.............................249
General maintenance............246
Maintenance data..................362
Maintenance requirements....244
Vehicle exterior .....................238
Vehicle interior ......................241
Maintenance data.....................245
Manual transmission
Manual transmission .............120
Oil..........................................369
Meter
Instrument panel light
control.................................129
Meters ...................................125
Mirrors
Inside rear view mirror.............53
Side mirror heaters................188
Side mirrors.............................55
Vanity mirrors........................230
MP3 disc ...................................205
Noise from under vehicle..........18
Odometer..................................128
Oil
Engine oil ..............................258
Manual transmission .............369
Warning light ..................324,326
Opener
Fuel door.................................60
Fuel filler door .........................60
Hood......................................254
Trunk.......................................33
Outside rear view mirrors
Adjusting .................................55
Defogger ...............................188
Folding ....................................56
411
Alphabetical index
Overheating, Engine................353
Seat belts
Parking brake ...........................122
Parking lights
Replacing light bulbs.............300
Switch....................................134
Wattage.................................372
Personal lights
Switch....................................222
Wattage.................................372
Portable ashtray.......................232
Power outlet .............................233
Power windows..........................58
Radiator ....................................263
Radio.........................................192
Rear seat
Folding down...........................38
Rear side marker lights
Replacing light bulbs.............300
Switch....................................134
Wattage.................................372
Rear turn signal lights
Indicator ................................121
Lever .....................................121
Replacing light bulbs.............300
Switch....................................121
Wattage.................................372
Rear window defogger ............188
Replacing
Key battery............................286
Fuses ....................................288
Light bulbs.............................300
Tires ...............................270,334
Reporting safety defects
for U.S. owners ......................394
412
Adjustment..............................45
ALR.........................................47
Automatic Locking Retractor...47
Child restraint system
installation.......................89, 93
Cleaning and maintaining .....241
ELR.........................................47
Emergency Locking
Retractor.............................. 47
How to wear your seat belt .....44
How your child should wear
the seat belt..........................48
Pregnant women, proper seat
belt use.................................47
Reminder light.......................326
Seat belt extenders.................48
Seat belt pretensioners...........46
Seats
Adjustment..............................37
Adjustment precautions ..........37
Child seats/child restraint
system installation ..........89, 93
Cleaning................................241
Folding down the rear seat .....38
Folding down the rear seat
precautions...........................40
Front seat adjustment .............37
Front seat adjustment
precautions...........................37
Head restraint .........................41
Properly sitting in the seat.......70
Service reminder
indicators ..............................130
Shift lever
Automatic transmission.........118
If the shift lever cannot be
shifted from P .....................347
Manual transmission.............120
Shift lock system .....................347
Side airbags ...............................72
Alphabetical index
Side marker lights
Switch
Replacing light bulbs ............ 300
Switch................................... 134
Wattage................................ 372
Side mirror
Adjusting................................. 55
Defogger............................... 188
Folding.................................... 56
Spare tire
Identification number............ 376
Inflation pressure.......... 276, 371
Information ........................... 376
Replacing ............................. 334
Size ...................................... 371
Storage location ................... 334
Spark plug................................ 368
Specifications.......................... 362
Speedometer ........................... 125
Steering wheel
Adjustment ............................. 52
Audio switches ..................... 218
Column lock release............. 116
Electric power steering......... 146
EPS ...................................... 146
Specification......................... 370
Warning light ........................ 324
Stop lights
Replacing light bulbs ............ 300
Wattage................................ 372
Storage features
Auxiliary box................. 223, 227
Bottle holders ............... 223, 227
Console box ................. 223, 224
Cup holders.................. 223, 225
Glove box ..................... 223, 224
Storage precautions ............... 153
Stuck
If the vehicle becomes
stuck................................... 356
Sun visors................................ 229
Cruise control........................142
Emergency flashers
switch..................................312
Engine switch........................114
Fog lights switch....................137
Ignition switch........................114
Hazard lights switch ..............312
Headlights switch ..................134
Light switch ...........................134
Power door lock switch ...........28
Power window switch..............58
Turn signal lights...................121
VSC OFF switch....................147
Window lock switch.................59
Wiper and washer .................139
Tachometer...............................125
Tail lights
Indicator ................................134
Replacing light bulbs.............300
Switch....................................134
Wattage.................................372
Theft deterrent system
Alarm.......................................66
Engine immobilizer system .....64
Theft prevention labels............69
Theft prevention labels..............69
Tire inflation pressure .............276
Tire information
Glossary................................383
Size .......................................380
Tire identification number......379
Uniform tire quality
grading................................381
413
Alphabetical index
Tires
Chains...................................155
Checking ...............................270
If you have a flat tire..............334
Identification number.............376
Inflation pressure...........276, 371
Inflation pressure sensor.......271
Information ............................376
Replacing ......................270, 334
Rotating tires.........................270
Size .......................................371
Snow tires .............................155
Spare tire...............................334
Tire pressure warning
system ........................270, 326
Warning light .........................326
Tools .........................................334
Total load capacity...................154
Towing
Dinghy towing................175, 176
Emergency towing.................313
Trailer towing.................159, 160
Trip meter .................................128
Trunk...........................................33
Trunk light
Wattage.................................372
Turn signal lights
Indicator ................................121
Lever .....................................121
Replacing light bulbs.............300
Switch....................................121
Wattage.................................372
Vanity mirrors...........................230
Vehicle identification
number ...................................363
Vehicle stability control...........146
VSC............................................146
Warning buzzers
Brake system ........................323
Seat belt reminder.................326
Warning lights
ABS.......................................324
Airbag system .......................324
Anti-lock brake system..........324
Brake system ........................323
Charging system...................324
Driver’s seat belt ...................326
Electric power steering
system ................................324
Electronic engine control
system ................................324
Engine oil replacement .........326
EPS system ..........................324
Front passenger occupant
classification system...........324
Front passenger’s seat belt...326
High engine coolant
temperature ........................324
Low brake fluid......................323
Low engine oil pressure........324
Low fuel level ........................326
Low tire inflation pressure.....326
Low washer fluid ...................326
Malfunction............................324
Open door.............................326
Seat belt................................326
Seat belt pretensioner
system ................................324
SRS.......................................324
SRS airbag system ...............324
Tire pressure.........................326
Tire pressure warning
system ................................326
VSC/TRAC............................146
414
Washer
Checking .............................. 268
Preparing and checking
before winter ...................... 155
Switch................................... 139
Warning light ........................ 326
Washing and waxing............... 238
Weight
Cargo capacity ..................... 151
Load limits ............................ 154
Weight .................................. 362
Wheels...................................... 280
Window
glasses............. 58, 188, 238, 241
Window lock switch.................. 59
Windows
Cleaning and
protecting ................... 238, 241
Power windows ...................... 58
Rear window defogger ......... 188
Washer................................. 139
Windshield wipers................... 139
Wireless remote control key
Replacing the key battery..... 286
Wireless remote control.......... 26
WMA disc................................. 205
Alphabetical index
415
What to do if... What to do if...
A tire punctures
P. 334 If you have a flat tire
The engine does not start
P. 345 If the engine will not start P. 64 Engine immobilizer system P. 349 If the vehicle battery is discharged
The shift lever cannot be moved out
P. 347 If the shift lever cannot be shifted
from P
The engine coolant temperature warning light flashes or comes on
Steam can be seen coming from under the hood
P. 353 If your vehicle overheats
The key is lost
P. 348 If you lose your keys
The battery runs out
P. 349 If the vehicle battery is discharged
The doors cannot be locked
P. 28 Doors
The horn begins to sound
P. 66 Alarm
The vehicle is stuck in mud or sand
P. 356 If the vehicle becomes stuck
416
What to do if...
The warning light or indicator light comes on
P. 323 If a warning light turns on
■ Instrument cluster
Vehicles with Optitron type meters
Vehicles without Optitron type meters
■ Center panel
417
What to do if...
■Warning lights
or
or
or
Brake system warning light
P. 323
Charging system warning light
P. 324
Low engine oil pressure
warning light
P. 324
High engine coolant tempera-
ture warning light
P. 324
Malfunction indicator lamp
P. 324
SRS warning light
P. 325
ABS warning light
P. 325
Electric power steering sys-
tem warning light
P. 325
Slip indicator*1
P. 325
Cruise control warning
light*2
P. 325
Open door warning light
P. 326
Low fuel level warning
light
P. 326
Driver’s seat belt reminder light
P. 326
Front passenger’s seat belt reminder light
P. 326
Tire pressure warning
light
P. 327
Low washer fluid warn-
ing light
P. 327
Maintenance required
reminder light
P. 328
*1: Slip indicator comes on. *2: The indicator flashes to indi-
cate a malfunction.
418
Memo
419
GAS STATION INFORMATION
Auxiliary catch lever
Hood lock release lever
Fuel filler door
P. 254
P. 254
P. 60
Trunk opener
P. 33
Fuel filler door opener
Tire inflation pressure
P. 60
P. 371
Fuel tank capacity (Reference)
Fuel type
Cold tire inflation pressure Engine oil capacity (Drain and refill -reference)
Engine oil type
11.1 gal. (42.0 L, 9.2 lmp.gal.)
Unleaded gasoline, Octane Rating 87 (Research Octane Number 91) or higher
P. 371
qt. (L, Imp.qt.)
3.9 (3.7, 3.3)
With filter
3.6 (3.4, 3.0)
Without filter
Toyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil. P. 366
Recommended oil viscosity: SAE 5W-20
420

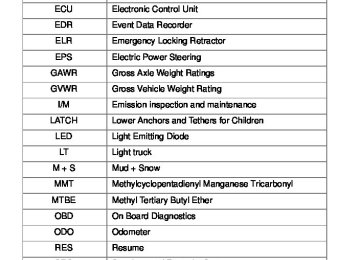

Abbreviation list Abbreviation/Acronym list
ABBREVIATIONS
MEANING
ABS ACC ALR CRS ECU EDR ELR EPS GAWR GVWR
I/M
LATCH LED LT
M + S MMT MTBE OBD ODO RES SRS TIN TPMS TRAC TWI VIN VSC
406
Anti-Lock Brake System Accessory Automatic Locking Retractor Child Restraint System Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electric Power Steering Gross Axle Weight Ratings Gross Vehicle Weight Rating Emission inspection and maintenance Lower Anchors and Tethers for Children Light Emitting Diode Light truck Mud + Snow Methylcyclopentadienyl Manganese Tricarbonyl Methyl Tertiary Butyl Ether On Board Diagnostics Odometer Resume Supplemental Restraint System Tire Identification Number Tire Pressure Warning System Traction Control Treadwear Indicators Vehicle Identification Number Vehicle Stability Control
For your information
Main Owners Manual
Please note that this manual applies to all models explains and all equip- ment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
is not responsible
these products and
A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.
for
18
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect electronic systems such as: ● Multiport fuel injection system/sequential multiport fuel injection system ● Cruise control system ● Anti-lock brake system ● SRS airbag system ● Seat belt pretensioner system Be sure to check with your Toyota dealer for precautionary measures or spe- cial instructions regarding installation of a mobile two-way radio system.
Scrapping your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbag, seat belt pretensioners, and wireless remote con- trol batteries.
19
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.
20
Symbols used throughout this manual
Cautions & Notices
CAUTION
This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.
Symbols used in illustrations
Safety symbol The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning, etc.) used to operate switches and other devices. Indicates the outcome of an operation (e.g. a lid opens).
21
22
TABLE OF CONTENTS
1 Before driving
Adjusting and operating features such as door locks, mirrors, and steering column.
2 When driving
Driving, stopping and safe-driving information.
3 Interior features
Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.
4 Maintenance
and care
Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.
5 When trouble
arises
What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.
6 Vehicle
specifications
Detailed vehicle information.
7 For owners
Reporting safety defects for U.S. owners, and seat belt and SRS airbag instructions for Canadian owners
Index
Alphabetical listing of information contained in this manual.
1-1. Key information Keys
The following keys are provided with the vehicle.
Vehicles without engine immobilizer system (type A)
Master keys (with wireless remote control function) Operating the wireless remote control function (→P. 26) Valet key Key number plate
Vehicles without engine immobilizer system (type B)
Master keys Valet key Key number plate
Vehicles with engine immobilizer system (type A)
Master keys (with wireless remote control function) Operating the wireless remote control function (→P. 26) Valet key Key number plate
24
1-1. Key information
Vehicles with engine immobilizer system (type B) Master keys Valet key Key number plate
■When required to leave a key to the vehicle with a parking attendant
Turn the luggage security system on. (→P. 34) Carry the master key for your own use and leave the valet key only with the attendant.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 348)
■When riding in an aircraft
When bringing a wireless remote control key onto an aircraft, make sure you do not press any buttons on the wireless remote control key while inside the aircraft cabin. If you are carrying a wireless remote control key in your bag etc, ensure that the buttons are not likely to be pressed accidentally. Press- ing a button may cause the wireless remote control key to emit radio waves that could interfere with the operation of the aircraft.
NOTICE
■To prevent key damage (vehicles with engine immobilizer system)
●Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
●Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
25
1-2. Opening, closing and locking the doors Wireless remote control∗
The wireless remote control can be used to lock/unlock the vehicle from outside the vehicle.
Locks all doors Sounds alarm (push and hold) Unlocks all doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.
■Operation signals
The emergency flashers flash to indicate that the doors have been locked/ unlocked. (Locked: Once; Unlocked: Twice)
■Panic mode
is pushed for longer than about When 1 second, an alarm will sound for about 60 seconds and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, push any button on the wireless remote control.
■Key battery depletion
The standard battery life is 1 to 2 years. (The battery becomes depleted even if the key is not used.) If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 286)
■Security feature
If a door is not opened within approximately 30 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.
∗: If equipped
26
1-2. Opening, closing and locking the doors
■Conditions affecting operation
The wireless remote control function may not operate normally in the follow- ing situations. ●Near a TV tower, radio station, electric power plant, airport or other facil-
ity that generates strong radio waves
●When carrying a portable radio, cellular phone or other wireless commu-
nication device
●When multiple wireless keys are in the vicinity ●When the wireless key has come into contact with, or is covered by a
metallic object
●When a wireless key (that emits radio waves) is being used nearby ●When the wireless key has been left near an electrical appliance such as
a personal computer
■Customization that can be configured at Toyota dealer
Settings (e.g. wireless remote control system) can be changed. (Customiz- able features →P. 389)
■ Certification for wireless remote control
For vehicles sold in U.S.A. FCC ID:MOZB41TG FCC ID:MOZB21RG
NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.
27
1-2. Opening, closing and locking the doors Doors
The vehicle can be locked/unlocked using the wireless remote con- trol, key or door lock switch. ■ Wireless remote control (if equipped)
→P. 26
■ Key
Vehicles with power door lock
Locks all doors Unlocks all doors Turning the key a single time in the driver’s door unlocks the driver’s door, and turning the key again unlocks the other doors.
28
1-2. Opening, closing and locking the doors
Vehicles without power door lock
Locks the door Unlocks the door
29
1-2. Opening, closing and locking the doors
■ Door lock switch (if equipped)
Driver’s door lock switch
Unlocks all doors Locks all doors
Passenger’s door lock switch
Locks all doors Unlocks all doors
■ Inside door lock button
Locks the door Unlocks the door Pulling the inside handle can open the front door even if the lock button is in the lock posi- tion.
30
1
1-2. Opening, closing and locking the doors
Locking the front doors from the outside without a key
Move the inside door lock button to the lock position. Close the door.
Vehicles with power door lock The door cannot be locked if the driver’s door is open and the key is in the engine switch.
Rear door child-protector lock
The door cannot be opened from inside the vehicle when the locks are set.
These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.
■Key reminder buzzer
A buzzer sounds if the driver’s door is opened, while the engine switch is in the ACC or LOCK position to remind you to remove the key.
■Customization that can be configured at Toyota dealer
Settings (Customizable features →P. 389)
(e.g. unlocking
function using a key) can be changed.
31
1-2. Opening, closing and locking the doors
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle. Failing to do so may result in a door opening and an occupant falling out, resulting in death or serious injury. ●Always use a seat belt. ●Always lock all doors. ●Ensure that all doors are properly closed. ●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi- cle and it may result in serious injury or death. Be especially careful for the front doors, as the doors may be opened even if the inside lock buttons are in locked position.
●Set the rear door child protector locks when children are seated in the rear
seat.
32
1-2. Opening, closing and locking the doors Trunk
The trunk can be opened using the key or trunk opener. ■ Key
Turn the master key clockwise to release the trunk lid.
■ Trunk opener
Release the trunk lid.
33
1-2. Opening, closing and locking the doors
Luggage security system
To protect luggage stored in the trunk against theft, do the following procedures.
Vehicles with split rear seats: Move the security lock levers to lock the rear seatbacks.
Turn the master key counter- clockwise to trunk opener feature.
lock
the
■Internal trunk release lever
The trunk lid can be opened by pulling up on the glow-in-the-dark lever located on the inside of trunk lid. The lever will continue to glow for some time after the trunk lid is closed.
■Which key to the vehicle is to leave with a parking attendant after the
luggage security system is set
→P. 25
34
1
1-2. Opening, closing and locking the doors
CAUTION
■Caution while driving
●Keep the trunk lid closed while driving.
If the trunk lid is left open, it may hit near-by objects while driving or lug- gage in the trunk may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a seri- ous health hazard. Make sure to close the trunk lid before driving.
●Before driving the vehicle, make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may open unexpectedly while driving, caus- ing an accident.
●Never let anyone sit in the trunk. In the event of sudden braking or a colli-
sion, they are susceptible to death or serious injury.
■When children are in the vehicle Observe the following precautions. Failure to do so may result in death or serious injury. ●Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could have heat exhaus- tion or suffocate.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to operate unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing trunk lid.
35
1-2. Opening, closing and locking the doors
CAUTION
■Using the trunk
Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in seri- ous injury. ●Remove any heavy loads, such as snow and ice, from the trunk lid before opening it. Failure to do so may cause the trunk lid to fall closed again after it is opened.
●When opening or closing the trunk lid, thoroughly check to make sure the
surrounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that
the trunk is about to open or close.
●Use caution when opening or closing the trunk lid in windy weather as it
may move abruptly in strong wind.
●The trunk lid may fall if it is not opened fully. It is more difficult to open or close the trunk lid on an incline than on a level surface, so beware of the trunk lid unexpectedly opening or closing by itself. Make sure that the trunk lid is fully open and secure before using the trunk.
●When closing the trunk lid, take extra care to prevent your fingers etc. from being caught.
●When closing the trunk lid, make sure
to press it lightly on its outer surface.
●Do not attach any accessories other than genuine Toyota parts to the trunk lid. Such additional weight on the trunk lid may cause the lid to fall closed again after it is opened.
36
1-3. Adjustable components (seats, mirrors, steering wheel) Front seats
Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever (driver’s side only)
CAUTION
■Seat adjustment
●Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.
●After adjusting the seat, make sure that the seat is locked in position.
37
1-3. Adjustable components (seats, mirrors, steering wheel) Rear seats (split rear seats only)
The seatbacks of the rear seats can be folded down.
Insert the key into the hole on the center seat belt buckle to release tab (with hooked end), and allow the belt to retract.
Remove the seat belts from the seat belt guides.
Check that the security lock levers in the unlock position.
trunk are
in
38
1-3. Adjustable components (seats, mirrors, steering wheel)
Lower each head restraints while pushing the lock release button.
■Returning rear seatbacks
Fold the seatbacks down while pulling the seatback lock release knobs.
Tilt the rear seatback up until it locks, making sure that you hold the seat belt to prevent it from getting caught between the seatback and the inner side of the vehicle.
Make sure the shoulder belt passes through the guide and the seat belt is in the position before folding down the seat when returning the seatback up.
39
1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or serious injury.
●Make sure that the seatback is securely locked in position by lightly rocking it back and forth. If the seatback is not securely locked, the red marking will be visible on the seatback lock release knob. Make sure that the red marking is not visible.
●Check that the seat belts are not twisted or caught under the seat.
40
1
1-3. Adjustable components (seats, mirrors, steering wheel) Head restraints
Head restraints are provided for all seats.
Front seats
Vertical adjustment
Up Pull the head restraints up. Down Push the head restraints down while pushing the lock release button.
Vertical adjustment
Up Pull the head restraints up. Down Push the head restraints down while pushing the lock release button.
Pull the head restraint up while pushing the lock release button.
Lock release button Rear seats
Lock release button
■Removing the head restraints
Front seats
41
1-3. Adjustable components (seats, mirrors, steering wheel)
Rear seats
Pull the head restraint up while pushing the lock release button.
■Installing the head restraints
Front seats
Rear seats
Align the head restraint with the installa- tion holes and push it down to the lock position. Press and hold the lock release button when lowering the head restraint.
Align the head restraint with the installa- tion holes and push it down to the lock position. Press and hold the lock release button when lowering the head restraint.
■Adjusting the height of the head restraints
Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.
42
1
1-3. Adjustable components (seats, mirrors, steering wheel)
■Adjusting the rear center seat head restraint
Always raise the head restraint one level from the stowed position when using.
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. ●Use the head restraints designed for each respective seat. ●Adjust the head restraints to the correct position at all times. ●After adjusting the head restraints, push down on them and make sure
they are locked in position.
●Do not drive with the head restraints removed.
43
1-3. Adjustable components (seats, mirrors, steering wheel) Seat belts
Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. ■ Correct use of the seat belts
● Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoul- der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the seatback. Sit up straight and well back in the seat. ● Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle until a clicking sound is heard.
44
1-3. Adjustable components (seats, mirrors, steering wheel)
Releasing the belt
Press the release button.
■ Adjusting the height of the belt (front seats)
Down Pull the lock release knob and slide the height adjuster down. Up Move the height adjuster up as needed until you hear a click.
Rear center seat belt
The rear center seat belt is a 3-point type restraint with 2 buckles. Both seat belt buckles must be correctly located and securely latched for proper operation.
Make sure that the buckle is securely latched for ready use of the center seat belt.
the
the
tab with
Matches hooked end Matches the tab with the con- cave end
45
1-3. Adjustable components (seats, mirrors, steering wheel)
■ Release method
The belt can be completely released when not required, such as when folding down the rear seat.
To release the hooked end tab, insert the vehicle’s key into the hole on the buckle.
Seat belt pretensioners (front seats)
The pretensioner helps the seat belt to quickly restrain the occu- pant by retracting the seat belt when the vehicle is subjected to certain types of severe frontal collision.
The pretensioner may not acti- vate in the event of a minor frontal impact, a side impact or a rear impact.
46
1-3. Adjustable components (seats, mirrors, steering wheel)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt and then pull the belt out once more. (→P. 93)
■Pregnant women
Obtain medical advice and wear the seat belt in the proper way. (→P. 44) Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occu- pants. Extend the shoulder belt com- pletely over the shoulder and position the belt across the chest. Avoid belt contact over the rounding of the abdominal area. If the seat belt is not worn properly, not only a pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
47
1-3. Adjustable components (seats, mirrors, steering wheel)
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size. ●Use a child restraint system appropriate for the child, until the child
become large enough to properly wear the vehicle’s seat belt. (→P. 89)
●When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 44 regarding seat belt usage.
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent colli- sions.
■Seat belt extender
If your seat belts cannot be fastened securely because long enough, a personalized seat belt extender is available from your Toyota dealer free of charge.
they are not
48
1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident. Failure to do so may cause death or severe injury. ■Wearing a seat belt
●Ensure that all passengers wear a seat belt. ●Always wear a seat belt properly. ●Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
●Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
●Do not recline the seat any more than necessary to achieve a proper seat- ing position. The seat belt is most effective when the occupants are sitting up straight and well back in the seats.
●Do not wear the shoulder belt under your arm. ●Always wear your seat belt low and snug across your hips.
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or other serious injuries that could result in death. If this occurs and the buckle cannot be unfastened, scissors should be used to cut the belt.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of emergency brak- ing, sudden swerving or an accident. (→P. 45)
49
1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor from detecting the passenger’s weight properly. As a result, the seat belt pretensioner for the front passenger’s seat may not activate in the event of a collision.
●If the pretensioner has activated, the SRS warning light will come on. In that case, the seat belt cannot be used again and must be replaced at your Toyota dealer.
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do not use a damaged seat belt until it is replaced. Damaged seat belt cannot protect an occupant from death or serious injury.
●Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota dealer.
●Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts. Have any necessary repairs carried out by your Toyota dealer. Inappropriate handling of the pretensioner may prevent it from operating properly resulting in death or serious injury.
■When using the rear center seat belt
Do not use the rear center seat belt with either buckle released. Fastening only one of the buckles may result in death or serious injury in case of sudden braking or a collision.
50
1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Using a seat belt extender
●Do not wear the seat belt extender, if you can fasten the seat belt without
the extender.
●Do not use the seat belt extender when installing a child restraint system, because the belt will not securely hold the child restraint system, increas- ing the risk of death or serious injury in the event of an accident.
●The personalized extender may not be safe on another vehicle, when used by another person, or at a different seating position other than the one originally intended.
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and the extender itself.
51
1-3. Adjustable components (seats, mirrors, steering wheel) Steering wheel
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and press the lever down.
Adjust to the ideal position by moving the steering wheel vertically.
After adjustment, pull the lever up the steering wheel.
to secure
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving. Doing so may cause the driver to mishandle the vehicle and an accident may occur resulting in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked. Otherwise, the steering wheel may move suddenly, possibly causing an accident and resulting in death or serious injury.
52
1-3. Adjustable components (seats, mirrors, steering wheel) Anti-glare inside rear view mirror
Glare from the headlights of vehicles behind can be reduced by using the following functions.
Normal position Anti-glare position
Adjusting the height of rear view mirror
Adjust the height of the rear view mirror by moving it up and down.
53
1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and an accident, resulting in death or serious injury.
54
1-3. Adjustable components (seats, mirrors, steering wheel) Outside rear view mirrors
Mirror angle can be adjusted using the switch or lever.
Power-adjustable type
Select a mirror to adjust. (L: left or R: right) Adjust the mirror up, down, in or out using the switch.
Manually adjustable type
Adjust the mirror up, down, in or out using the lever.
55
1-3. Adjustable components (seats, mirrors, steering wheel)
Folding back the mirrors
Push backward to fold the mir- rors.
■Mirror operating conditions (with power-adjustable type only)
The engine switch is in the ACC or ON position.
CAUTION
■When driving the vehicle
Observe the following precautions while driving. Failing to do so may result in loss of control of the vehicle and cause an acci- dent, resulting in death or serious injury. ●Do not adjust the mirrors while driving. ●Do not drive with the mirrors folded back. ●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
56
1-3. Adjustable components (seats, mirrors, steering wheel)
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to free the mirror.
57
1-4. Opening and closing the windows Power windows∗
The power windows can be opened/closed using the following switches.
Driver’s power window switches
Closing Opening One-touch opening (driver’s window only)*
*: Pressing
the switch
the opposite direction will stop win- dow travel partway.
in
Front passenger’s power window switch
Closing Opening
Rear passenger’s power window switch
Closing Opening
58
∗: If equipped
Lock switch
1-4. Opening and closing the windows
Press the switch down to lock passenger window switches.
Use this switch to prevent chil- dren from accidentally opening or closing a passenger window.
■The power windows can be operated when
The engine switch is in the ON position.
■Operating the power windows after turning the engine switch off
(driver’s window only) The power windows can be operated for approximately 45 seconds even after the engine switch is turned off. They cannot, however, be operated once either front door is opened.
CAUTION
■Closing the windows
Observe the following precautions. Failing to do so may result in death or serious injury. ●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in some instances, even death.
59
1-5. Refueling Opening the fuel tank cap
Perform the following steps to open the fuel tank cap. ■ Before refueling the vehicle
Turn the engine switch off and ensure that all the doors and win- dows are closed.
■ Opening the fuel tank cap
Open the fuel filler door.
Turn the fuel tank cap slowly to open.
60
1-5. Refueling
Hang the fuel tank cap on the back of the fuel filler door.
Closing the fuel tank cap
When replacing the fuel tank cap, turn it until a clicking sound is heard.
After releasing your hand, the cap will turn slightly to the opposite direction.
