YARIS Sedan


This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.


The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.


Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Yaris.


! A word about safe vehicle operations This Quick Reference Guide is not a full description of Yaris operations. Every Yaris owner should review the Owner’s Manual that accompanies this vehicle.


Pay special attention to the boxed information highlighted in yellow throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.


All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.


INDEX


Item


Page no.


OVERVIEW


Engine maintenance Fuel tank door release and cap Hood release Indicator symbols Instrument cluster Instrument panel Keyless entry Trunk release


FEATURES/OPERATIONS


Air Conditioning/Heating Audio Automatic Transmission Bottle holders-Rear seat Clock Cruise control Cup holders Light control-Instrument panel Lights & turn signals Parking brake Power outlet Seat adjustments-Front Seat adjustments-Rear Seats-Head restraints Tilt steering wheel Windows-Power Windshield wipers & washers


4-5
2-3


12-13


13


15
14
14
15
14
11
13
10
10
11


SAFETY AND EMERGENCY FEATURES


Door locks-Power Doors-Child safety locks Seat belts Seat belts-Shoulder belt anchor Spare tire & tools Trunk-Internal release Tire Pressure Warning System


16
16
16
17
17
17
16


OVERVIEW


Instrument panel


Headlight, turn signal and front fog* light controls Wiper and washer controls Audio system Emergency flasher switch “AIR BAG ON” and “AIR BAG OFF” indicator Front passenger seat belt reminder light Air Conditioning controls AUX adapter*


O


Rear window defogger switch* Engine switch Tilt steering lock release lever Power rearview mirror control switches* Instrument panel light control


* If equipped


OVERVIEW


Instrument cluster With tachometer


Without tachometer


Service indicator and reminder Gear shift position indicator* Tachometer Speedometer Clock Odometer and two trip meters Fuel gauge Door indicator * If equipped


Indicator symbols


Brake system warning1
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph) Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)


Charging system warning1


1 For details, refer to “If a warning light turns on or a warning


buzzer sounds...,” Section 5-2, 2008 Owner’s Manual.


2 For details, refer to “If your vehicle overheats,” Section 5-2,


2008 Owner’s Manual


Malfunction/Check Engine indicator1


Low engine oil pressure warning1


Open door warning1


Door indicator1


Airbag SRS warning1


Low windshield washer fluid level warning1


Electric power steering system warning1


Low fuel level warning1


Engine oil replacement reminder1


“AIR BAG ON” indicator


“AIR BAG OFF” indicator


Headlight low beam indicator


Headlight high beam indicator


Front fog light indicator


Turn signal indicator


High engine coolant temperature warning1


Low engine coolant temperature indicator2


Cruise control indicator3


Anti-lock Brake System warning1


Tire Pressure Warning1


3 If this light flashes, refer to “Cruise control,” Section 2-4, 2008


Owner’s Manual.


OVERVIEW


Fuel tank door release and cap


Pull up


Hang


Turn


Driver seat


NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate. Keyless entry (if equipped) Locking operation Push


Unlocking operation Push ONCE: Driver door


TWICE: All doors


NOTE: After unlocking, if a door is not opened within 30 seconds, all doors will relock for safety. Panic button Push and hold


Trunk release


Pull up


Driver seat


Hood release


Pull


Pull up latch and raise hood


Engine maintenance


Windshield washer fluid tank Engine oil filler cap Engine coolant reservoir Engine oil level dipstick


Note: Regularly scheduled maintenance, including


oil changes, will help extend the life of your vehicle and maintain performance. Please refer to the “Owner’s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”


FEATURES/OPERATIONS


Automatic Transmission (if equipped)


Park*


Reverse


Neutral


Drive


Third gear


Second gear


First gear


* The engine switch must be ON, and the brake


pedal depressed to shift from “Park.”


Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.


Tilt steering wheel


Angle


Lock release lever


Hold wheel, push lever down, set angle and return lever. Note: Do not attempt to adjust while the vehicle


is in motion.


Parking brake Set


Pull


Release


(1) Pull slightly


(2) Push


(3) Lower


Windows-Power (if equipped) Driver side


Window lock switch


Up


Down


Up Down


Window operation Automatic operation (driver side only) Push the switch completely down and release to fully open. To stop window midway, lightly pull the switch up. Window lock switch Deactivates all passenger windows. Driver’s window remains operable. Seat adjustments-Front


Position Height crank (driver side only) Seatback angle


FEATURES/OPERATIONS


Seats-Head restraints Front


Rear


Height


Lock release button


Seat adjustments-Rear (fold-down type)


(2)


(3)


(1)


(4)

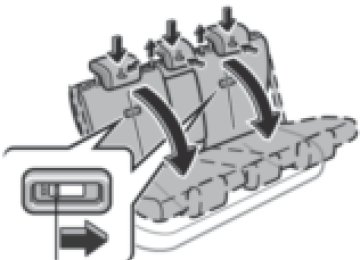

To fold down the rear seatback (1) Slide the seatback security lock to the right


unlock position from the trunk room.


(2) Lower the seat headrests. (3) Pull the lock release knob up. (4) Fold the seatback down. Refer to the Owner’s Manual for more details.


10


Lights & turn signals Headlights


Headlights Parking lights


High beam


Low beam


High beam flasher


Turn signals


Right turn


Lane change


Lane change Left turn


Front fog lights (if equipped)


Turn


Front fog lights turn on only when the headlights are on low beam. Windshield wipers & washers Single wipe


Pull to wash and wipe


Interval wipe


Slow


Fast


11


FEATURES/OPERATIONS


Audio


Type 1


Push to turn ON/OFF


Seek station/ CD track select Mode


Eject CD


Push to adjust tone & balance


Push to skip up /down folder Mode


Station/CD track scan


View CD text


Preset buttons - functions in other modes indicated above number.


Type 2


Push to turn ON/OFF


Seek station/ CD track select


Station/CD track scan


Eject CD


Push to adjust tone & balance


Push to skip up /down folder


Mode


View CD text


Preset buttons - functions in other modes indicated above number.


CD PLAYER To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection. RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again to hold selection.


12


AUX audio jack (if equipped)


By inserting a mini plug of a commercially available component into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system. Air Conditioning/Heating


Fresh or recirculated cabin air Fan speed Airflow vent In “ ” or “ ” mode, use fresh air to reduce window fogging. Air Conditioning ON/OFF Temperature Rear defogger*


* If equipped


Power outlet (if equipped)


Designed for 12V car accessories. Key must be in the “ACC” or “ON” position to be used.


13


FEATURES/OPERATIONS


Cruise control (if equipped) Turning system ON/OFF


System ON/OFF


Functions


Cancel1


Resume2/Increase speed


Set/Decrease speed


1 The set speed may also be cancelled by depressing


the brake pedal.


2 Unless vehicle speed drops below 10 mph, the set


speed may be resumed once vehicle exceeds 25 mph. Refer to the Owner’s Manual for more details.


Light control-Instrument panel


Brightness control


Clock


Clock adjust button


Refer to the Owner’s Manual for more details.


14


Cup holders Front


Rear Rear console box


Rear seat armrest*


* If equipped


Bottle holders-Rear seat


15


SAFETY AND EMERGENCY FEATURES Door locks-Power (if equipped)


Unlock


Lock


Doors-Child safety locks Rear door


Moving the lever to “LOCK” will allow the door to be opened only from the outside. Seat belts


Take up slack Too high


Keep as low on hips as possible


If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.


To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual. Tire Pressure Warning System If tire pressure becomes critically low on any of the tires (excluding the spare), indicator will illuminate. Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer. Refer to the Owner’s Manual for more details.


16


Seat belts-Shoulder belt anchor


Lock release knob


Push up


Pull the lock release knob out to lower


Spare tire & tools Tool location


Jack handle


Spare tire Tool bag Jack


Removing the spare tire


Loosen and remove the bolt. Refer to the Owner’s Manual for tire changing and jack positioning procedures.


Trunk-Internal release


Pull up


17


Customer Experience Center


1-800-331-4331


MN 00505-QRG08-YARS Printed in the USA 7/07


Abbreviation list Abbreviation/Acronym list


ABBREVIATIONS


MEANING


ABS ACC ALR CRS ECU EDR ELR EPS GAWR GVWR


I/M LED LT


M + S MMT MTBE OBD ODO RES SRS TIN TPMS TWI VIN


Anti-Lock Brake System Accessory Automatic Locking Retractor Child Restraint System Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electric Power Steering Gross Axle Weight Ratings Gross Vehicle Weight Rating Emission inspection and maintenance Light Emitting Diode Light truck Mud + Snow Methylcy clopentadienyl Manganese Tricarbonyl Methyl Tertiary Butyl Ether On Board Diagnostics Odometer Resume Supplemental Restraint System Tire Identification Number Tire Pressure Warning System Treadwear Indicators Vehicle Identification Number


360


For your information


Main Owners Manual


Please note that this manual applies to all models explains and all equip- ment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.


Accessories, spare parts and modification of your Toyota


is not responsible


these products and


A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.


for


16


Installation of a mobile two-way radio system


As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequen- tial multiport fuel injection system, cruise control system, anti-lock brake sys- tem, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.


Scrapping your Toyota


The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.


Perchlorate Material


Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbag, seat belt pretensioners, and wireless remote con- trol batteries.


17


CAUTION


n General precautions while driving


Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that will hurt or kill you, your occupants or others. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.


n General precaution regarding children’s safety


Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.


18


Symbols used throughout this manual


Cautions & Notices


CAUTION


This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.


NOTICE


This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.


Safety symbol


Throughout this manual, you will also see the symbol of a circle with a slash through it. This means “Do not”, “Do not do this”, or “Do not let this happen”.


19


20


TABLE OF CONTENTS


1 Before driving


Adjusting and operating features such as door locks, mirrors, and steering column.


2 When driving


Driving, stopping and safe-driving information.


3 Interior features


Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.


4 Maintenance


and care


Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.


5 When trouble


arises


What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.


6 Vehicle


specifications


Detailed vehicle information.


7 For owners


Reporting safety defects for U.S. owners and seat belt instructions for Canadian owners


Index


Alphabetical listing of information contained in this manual.


Pictorial index


Exterior


Windshield wipers P. 130


Hood P. 223


Outside rear view mirrors P. 50


Headlights (low and high beam) P. 127


Front side marker lights P. 127


Front turn signal / parking lights P. 115, 127


Front fog lights ∗ P. 129


Fuel filler door P. 55


Rear window defogger ∗ P. 164


Doors P. 27


Trunk P. 32


Tires l Rotation l Replacement l Inflation pressure l Information


P. 240
P. 302
P. 246
P. 338


License plate lights P. 127


Stop/tail and rear side marker lights P. 127


Rear turn signal lights P. 115


∗: If equipped


Pictorial index


Interior


Seat belts P. 41


Head restraints P. 39


Power window switches ∗ P. 53


Cup holders ∗ P. 196


SRS driver airbag P. 66


Shift lever P. 112, 114


Security indicator


P. 59, 61


SRS front passenger air- bag P. 66


Armrest ∗ P. 205


Rear seats P. 36


Floor mats P. 206


SRS side airbags ∗ P. 66


Front seats P. 35


Vanity mirrors P. 200


Sun visors P. 199


Personal lights P. 192


Interior light P. 192


Anti-glare inside rear view mirror P. 49


SRS curtain shield airbags ∗ P. 66


∗: If equipped


Pictorial index


Interior


Window lock switch ∗ P. 54


Power window switches ∗ P. 53


Inside door lock button P. 29


Door lock switch ∗ P. 29


10


Console box P. 194


Cup holder P. 196


Parking brake lever P. 116


Power outlet ∗ Cigarette lighter ∗


P. 204


P. 203


∗: If equipped


11


Pictorial index


Instrument panel


Headlight switch Turn signal lever Fog light switch ∗


P. 127
P. 115
P. 129


Windshield wipers and washer switch P. 130


Gauges and meters P. 118


Auxiliary box P. 197


Audio system P. 165


Hood opener P. 223


Bottle holder P. 197


Glove box P. 193


Shift lock override button ∗ P. 315


Fuel filler door opener


Tilt steering lock release lever P. 48


P. 55


Trunk opener P. 32


12


Emergency flasher switch


CLOCK button P. 118


ODO/TRIP button P. 118


∗: If equipped


13


Pictorial index


Instrument panel


Air conditioning system P. 158


Rear window defogger switch ∗ P. 164


AUX adapter ∗ P. 189


14


Cruise control switch ∗ P. 132


Engine switch P. 108


Cup holders P. 195


Outside rear view mirror switches ∗ P. 50


Instrument panel light control dial P. 121


∗: If equipped


15


1-1. Key information Keys


The following keys are provided with the vehicle.


Vehicles without engine immobilizer system (type A)


Master key (with wireless remote control function) Operating the wireless remote control function (→P. 24) Master key (without wire- less remote control func- tion) Valet key Key number plate


Vehicles without engine immobilizer system (type B)


Master keys Valet key Key number plate


Vehicles with engine immobilizer system (type A)


Master key (with wireless remote control function) Operating the wireless remote control function (→P. 24) Master key (without wire- less remote control func- tion) Valet key Key number plate


22


1-1. Key information


Vehicles with engine immobilizer system (type B) Master keys Valet key Key number plate


n When required to leave a key to the vehicle with a parking attendant


Turn the luggage security system on. (→P. 33) Carry the master key for your own use and leave the valet key only with the attendant.


n Key number plate


Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 316)


NOTICE


n To prevent key damage (vehicles with engine immobilizer system)


l Do not subject the keys to strong shocks, expose them to high tempera-


tures by placing them in direct sunlight, or get them wet.


l Do not expose the keys to electromagnetic materials or attach any mate-


rial that blocks electromagnetic waves to the key surface.


23


1-2. Opening, closing and locking the doors Wireless remote control (if equipped)


The wireless remote control can be used to lock/unlock the vehicle from outside the vehicle.


Locks all doors Sounds alarm (push and hold) Unlocks all doors


n 2-step unlocking function


When you push the button again within 3 seconds unlocks the other doors.


button, the driver’s door is unlocked. Pushing the


n Operation signals


The emergency flashers flash to indicate that the doors have been locked/ unlocked. (Locked: Once; Unlocked: Twice)


n Panic mode


When is pushed for longer than about one second, an alarm will sound for about 60 seconds and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, push any button on the wireless remote control.


24


1-2. Opening, closing and locking the doors


n Key battery depletion


The standard battery life is 1 to 2 years. (The battery becomes depleted even if the key is not used.) If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 255)


n Security feature


If a door is not opened within approximately 30 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.


n Conditions affecting operation


The wireless remote control function may not operate normally in the follow- ing situations. l Near a TV tower, radio station, electric power plant, airport or other facil-


ity that generates strong radio waves


l When carrying a portable radio, cellular phone or other wireless commu-


nication device


l When multiple wireless keys are in the vicinity l When the wireless key has come into contact with, or is covered by a


metallic object


n Conditions affecting operation


l When a wireless key (that emits radio waves) is being used nearby l When the wireless key has been left near an electrical appliance such as


a personal computer


n Customization that can be configured at Toyota dealer


l Settings (e.g. wireless remote control system) can be changed.


(Customizable features →P. 351)


25


1-2. Opening, closing and locking the doors


n Certification for wireless remote control


For vehicles sold in U.S.A. FCC ID:MOZB41TG FCC ID:MOZB21RG


NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.


For vehicles sold in Canada


NOTE: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.


26


1-2. Opening, closing and locking the doors Side doors


The vehicle can be locked/unlocked using the wireless remote con- trol, key or door lock switch. n Wireless remote control (if equipped)


→P. 24


n Key


Vehicles with power door lock


Locks all doors Unlocks all doors Turning the key a single time in the driver’s door unlocks the driver’s door, and turning the key again unlocks the other doors.


27


1-2. Opening, closing and locking the doors


Vehicles without power door lock


Locks the door Unlocks the door


28


1-2. Opening, closing and locking the doors


n Door lock switch (if equipped)


Driver’s door lock switch


Unlocks all doors Locks all doors


Passenger’s door lock switch


Locks all doors Unlocks all doors


n Inside door lock button


Locks the door Unlocks the door Pulling the inside handle can open the front door even if the lock button is in the lock posi- tion.


29


1-2. Opening, closing and locking the doors


Locking the front doors from the outside without a key


Move the inside door lock button to the lock position. Close the door.


Vehicles with power door lock The door cannot be locked if the driver’s door is open and the key is in the engine switch.


Rear door child-protector lock


The door cannot be opened from inside the vehicle when the locks are set.


These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.


n Key reminder buzzer


A buzzer sounds if the driver’s door is opened, while the engine switch is in the ACC or LOCK position to remind you to remove the key.


n Customization that can be configured at Toyota dealer


Settings (Customizable features →P. 351)


(e.g. unlocking


function using a key) can be changed.


30


1


1-2. Opening, closing and locking the doors


CAUTION


n To prevent an accident


Observe the following precautions while driving the vehicle. Failing to do so may result in a door opening and an occupant falling out, resulting in death or serious injury. l Always use a seat belt. l Always lock all doors. l Ensure that all doors are properly closed. l Do not pull the inside handle of the front door while driving. l Set the rear door child protector locks when children are seated in the rear


seat.


31


1-2. Opening, closing and locking the doors Trunk


The trunk can be opened using the key or trunk opener. n Key


Turn the master key clockwise to release the trunk lid.


n Trunk opener


Release the trunk lid.


32


n Internal trunk release lever


1-2. Opening, closing and locking the doors


The trunk lid can be opened by pulling up on the glow-in-the-dark lever located on the inside of trunk lid. The lever will continue to glow for some time after the trunk lid is closed.


Luggage security system


To protect luggage stored in the trunk against theft, do the following procedures.


Vehicles with split rear seats: Move the security lock levers to lock the rear seatbacks.


Turn the master key counter- clockwise to trunk opener feature.


lock


the


33


1-2. Opening, closing and locking the doors


CAUTION


n Caution while driving


Keep the trunk lid closed. This not only keeps personal belongings from being thrown out, but also pre- vents exhaust gases from entering the vehicle.


n When children are in the vehicle


Never leave children unattended in the vehicle as they may lock themselves in the vehicle or trunk, which could cause the child to overheat or suffocate, resulting in death or serious injury.


34


1-3. Adjustable components (seats, mirrors, steering wheel) Front seats


Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever (driver’s side only)


CAUTION


n Seat adjustment


l Do not recline the seat more than necessary when the vehicle is in motion


to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.


l After adjusting the seat, make sure that the seat is locked in position.


35


1-3. Adjustable components (seats, mirrors, steering wheel) Rear seats (split rear seats only)


The seatbacks of the rear seats can be folded down.


Insert the key into the hole on the center seat belt buckle to release tub (with hooked end), and allow the belt to retract.


Remove the seat belts from the seat belt guides.


Check that the security lock levers in the unlock position.


trunk are


in


36


1-3. Adjustable components (seats, mirrors, steering wheel)


Lower each head restraints while pushing the lock release button.


n Returning rear seatbacks


Fold the seatbacks down while pulling the seatback lock release knobs.


Tilt the rear seatback up until it locks, making sure that you hold the seat belt to prevent it from getting caught between the seatback and the inner side of the vehicle.


Make sure the shoulder belt passes through the guide and the seat belt is in the position before folding down the seat when returning the seatback up.


37


1-3. Adjustable components (seats, mirrors, steering wheel)


CAUTION


n After returning the seatback to the upright position


Observe the following precautions. Failure to do so may result in death or serious injury.


l Make sure


that


the seatback


is securely locked in position by lightly rocking it back and forth. If the seatback is not securely locked, the red marking will be visible on the seatback lock release knob. Make sure that the red marking is not visi- ble.


l Check that the seat belts are not twisted or caught under the seat.


38


1-3. Adjustable components (seats, mirrors, steering wheel) Head restraints


Front seats


Lock release button


Vertical adjustment Push and hold the lock release button when lowering the head restraint. Removal Pull the head restraint up while pushing the lock release but- ton.


Rear seats


Lock release button


Vertical adjustment Push and hold the lock release button when lowering the head restraint. Removal Pull the head restraint up while pushing the lock release but- ton.


39


1-3. Adjustable components (seats, mirrors, steering wheel)


n Adjusting the height of the head restraints


Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.


n Adjusting the rear seat head restraints


Always raise the head restraint one level from the stowed position when using.


CAUTION


n Head restraint precautions


Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. l Use the head restraints designed for each respective seat. l Adjust the head restraints to the correct position at all times. l Do not drive with the head restraints removed.


40


1-3. Adjustable components (seats, mirrors, steering wheel) Seat belts


Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. n Correct use of the seat belts


l Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoul- der.


l Position the lap belt as low


as possible over the hips.


l Adjust the position of the seatback. Sit up straight and well back in the seat. l Do not twist the seat belt.


n Fastening and releasing the seat belt


Fastening the belt


Push the tab into the buckle until a clicking sound is heard.


41


1-3. Adjustable components (seats, mirrors, steering wheel)


Releasing the belt


Press the release button.


n Adjusting the height of the belt (front seats)


Down Pull the lock release knob and slide the height adjuster down. Up Move the height adjuster up as needed until you hear a click.


Rear center seat belt (split rear seats only)


The rear center seat belt is a 3-point type restraint with 2 buckles. Both seat belt buckles must be correctly located and securely latched for proper operation.


Make sure that the buckle is securely latched for ready use of the center seat belt.


the


the


tab with


Matches hooked end Matches the tab with the con-

Loading...
x
