2009
Yaris Sedan
This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Yaris.
! A word about safe vehicle operations
This Quick Reference Guide is not a full description of Yaris operations. Every Yaris owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.
412738M2_r1.qxd 7/30/08 5:37 AM Page 1
INDEX
OVERVIEW
FEATURES/OPERATIONS
Engine maintenance
Fuel tank door release and cap
Hood release
Indicator symbols
Instrument cluster
Instrument panel
Keyless entry1
Trunk release
Air Conditioning/Heating Audio Automatic Transmission Bottle holders-Rear seat Clock Cruise control Cup holders Light control-Instrument panel Lights & turn signals Parking brake Power outlet Seat adjustments-Front Seat adjustments-Rear Seats-Head restraints Tilt steering wheel Windows-Power Windshield wipers & washers
4-5
2-3
12-13
13
15
14
14
15
14
11
13
10
10
10
SAFETY AND EMERGENCY FEATURES
Door locks-Power Doors-Child safety locks Seat belts Seat belts-Shoulder belt anchor Spare tire & tools Trunk-Internal release Tire Pressure Monitoring (warning) System
16
16
16
17
17
17
16
1 Visit your Toyota dealer for information on this and other customizable
options.
M2.qxd 7/28/08 3:45 PM Page 2
OVERVIEW
Instrument panel
Instrument panel light control Power rearview mirror controls* Headlight, turn signal and front fog light* controls Cruise control Engine switch Wiper and washer controls Emergency flasher button Front passenger seat belt reminder light Clock adjust button Trip meter reset button
M2.qxd 7/28/08 3:45 PM Page 3
“AIR BAG ON” and “AIR BAG OFF” indicator Audio system* Air Conditioning controls AUX adapter* Rear window defogger switch* Tilt steering lock release lever Hood release
* If equipped
M2.qxd 7/28/08 3:45 PM Page 4
OVERVIEW
Instrument cluster With optitron type meter
Without optitron type meter
Service indicator and reminder Gear shift position indicator (if equipped) Tachometer Speedometer Clock Odometer and two trip meters Fuel gauge
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.
Brake system warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Charging system warning1
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 For details, refer to “If your vehicle overheats,” Section 5-2, 2009 Owner’s Manual
M2.qxd 7/28/08 3:45 PM Page 5
Malfunction/Check Engine indicator1
Low engine oil pressure warning1
Open door warning
Airbag SRS warning1
Low windshield washer fluid level warning
Electric power steering system warning1
Low fuel level warning
Engine oil replacement reminder1
AIR BAG ON indicator
AIR BAG OFF indicator
Headlight low beam indicator
Headlight high beam indicator
Front fog light indicator
Turn signal indicator
High engine coolant temperature warning1
Low engine coolant temperature indicator2
Cruise control indicator3
Cruise control/set indicator
Anti-lock Brake System warning1
Low Tire Pressure Warning1
3 If this light flashes, refer to “Cruise control,” Section 2-4, 2009 Owner’s Manual.
M2.qxd 7/28/08 3:45 PM Page 6
OVERVIEW
Fuel tank door release and cap
Driver seat
Pull up
Hang
Turn
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “
” indicator may illuminate.
Keyless entry (if equipped) Locking operation
Unlocking operation
Push
Panic button
Trunk release
Driver seat
Push ONCE: Driver door
TWICE: All doors
NOTE: After unlocking, if a door is not opened within 30 seconds, all doors will relock for safety.
Push and hold
Pull up
M2.qxd 7/28/08 3:45 PM Page 7
Hood release
Pull
Pull up latch and raise hood
Engine maintenance
Windshield washer fluid tank Engine oil filler cap Engine oil level dipstick Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance. Please refer to the “Owner’s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”
M2.qxd 7/28/08 3:45 PM Page 8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
* The engine switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.
Tilt steering wheel
Angle
Lock release lever
Hold wheel, push lever down, set angle and return lever. Note: Do not attempt to adjust while the vehicle is in motion.
M2.qxd 7/28/08 3:45 PM Page 9
Parking brake Set
Pull
Release (2) Push
(3) Lower
(1) Pull slightly
Windows-Power (if equipped) Driver side
Window lock switch
Down
Up
Window operation Automatic down operation (driver side only) Push the switch completely down and release to fully open. To stop window at any point, lightly pull the switch up. Window lock switch Deactivates all passenger windows. Driver’s window remains operable. Seat adjustments-Front
Seat position (forward/backward) Height crank (driver side only) Seatback angle
M2.qxd 7/28/08 3:45 PM Page 10
FEATURES/OPERATIONS
Seat adjustments-Rear (fold-down type)
(2)
(1)
(3)
(4)
To fold down the rear seatback (1) Slide the seatback security lock to the right unlock position from the
trunk room.
(2) Lower the seat head restraints. (3) Pull the lock release knob up. (4) Fold the seatback down. Refer to the Owner’s Manual for more details. Seats-Head restraints Front
Rear
Lock release button
Lock release button
Windshield wipers & washers With intermittent wiper
Without intermittent wiper
Adjust interval*
Single wipe
Single wipe
Interval wipe
Slow
Fast
Pull to wash and wipe
Interval wipe Slow
Pull to wash and wipe
Fast
* Intermittent windshield wiper
interval adjustment Rotate to increase/decrease wipe frequency.
10
M2.qxd 7/28/08 3:45 PM Page 11
Lights & turn signals Headlights
Headlights
Parking lights
Low beam
High beam flasher
High beam
Turn signals
Right turn
Lane change
Lane change
Left turn
Front fog lights (if equipped)
Turn
Front fog lights turn on only when the headlights are on low beam.
11
M2.qxd 7/28/08 3:45 PM Page 12
FEATURES/OPERATIONS
Audio
Type 1
Push to turn ON/OFF
Eject CD
Push to adjust tone & balance
Seek station/ CD track select
Mode
Push to skip up /down folder Mode
Station/CD track scan
Preset buttons - functions in other modes indicated above number.
View CD text
Type 2
Push to turn ON/OFF
Seek station/ CD track select
Eject CD
Push to adjust tone & balance
Push to skip up/ down folder
Station/CD track scan
Mode
View CD text
Preset buttons - functions in other modes indicated above number.
CD PLAYER To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection. RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again to hold selection.
12
M2.qxd 7/28/08 3:45 PM Page 13
AUX audio jack (if equipped)
By inserting a mini plug of a commercially available component into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode. NOTE: An iPod®-dedicated port is standard on all S model sedans.
Air Conditioning/Heating
Fresh or recirculated cabin air Fan speed Air Conditioning ON/OFF Airflow vent In “ ” or “ Temperature selector Rear defogger (if equipped)
” mode, use fresh air to reduce window fogging.
Power outlet (if equipped)
Designed for 12V car accessories. Key must be in the “ACC” or “ON” position to be used.
13
M2.qxd 7/28/08 3:45 PM Page 14
FEATURES/OPERATIONS
Cruise control (if equipped) Turning system ON/OFF
Functions
Cancel1
Resume2/Increase speed
System ON/OFF
1 The set speed may also be cancelled by depressing the brake pedal. 2 Unless vehicle speed drops below 10 mph, the set speed may be resumed
Set/Decrease speed
once vehicle exceeds 25 mph. Refer to the Owner’s Manual for more details. Light control-Instrument panel
Brightness control
Clock
Clock adjust button
(1) Push and hold the CLOCK button to enter adjustment mode. (2) Press CLOCK button to adjust hours. (3) Wait five seconds to adjust the minutes. (4) Wait another five seconds for process to complete.
14
M2.qxd 7/28/08 3:45 PM Page 15
Cup holders Front
Rear Rear console box
Rear seat armrest (if equipped)
Bottle holders-Rear seat
15
M2.qxd 7/28/08 3:45 PM Page 16
SAFETY AND EMERGENCY FEATURES Door locks-Power (if equipped)
Lock
Unlock
Doors-Child safety locks Rear door
Moving the lever to “LOCK” will allow the door to be opened only from the outside. Seat belts

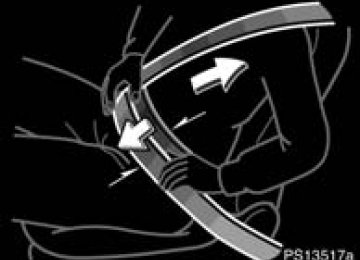

Take up slack
Too high
Keep as low on hips as possible
If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.
Tire Pressure Monitoring (warning) System If tire pressure becomes critically low on any of the tires (excluding the spare), indicator will illuminate. Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer. Refer to the Owner’s Manual for more details.
16
M1.qxd 7/28/08 3:44 PM Page 4
Seat belts-Shoulder belt anchor
Lock release knob
Pull the lock release knob out to lower
Jack handle
Spare tire
Loosen and remove the bolt. Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Spare tire & tools Tool location
Jack
Tool bag
Removing the spare tire
Trunk-Internal release
Pull up
17
M1.qxd 7/28/08 3:43 PM Page 1
MN 00505-QRG09-YARS
Printed in the USA 7/08
Abbreviation list Abbreviation/Acronym list
ABBREVIATIONS
MEANING
Anti-Lock Brake System Accessory Automatic Locking Retractor Child Restraint System Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electric Power Steering Gross Axle Weight Ratings Gross Vehicle Weight Rating Emission inspection and maintenance Lower Anchors and Tethers for Children Light Emitting Diode Light truck Mud + Snow Methylcy clopentadienyl Manganese Tricarbonyl Methyl Tertiary Butyl Ether On Board Diagnostics Odometer Resume Supplemental Restraint System Tire Identification Number Tire Pressure Warning System Treadwear Indicators Vehicle Identification Number
ABS ACC ALR CRS ECU EDR ELR EPS GAWR GVWR
I/M
LATCH LED LT
M + S MMT MTBE OBD ODO RES SRS TIN TPMS TWI VIN
362
For your information
Main Owners Manual
Please note that this manual applies to all models explains and all equip- ment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
is not responsible
these products and
A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.
for
16
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequen- tial multiport fuel injection system, cruise control system, anti-lock brake sys- tem, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.
Scrapping your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbag, seat belt pretensioners, and wireless remote con- trol batteries.
17
CAUTION
n General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that will hurt or kill you, your occupants or others. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.
n General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.
18
Symbols used throughout this manual
Cautions & Notices
CAUTION
This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.
Symbols used in illustrations
Safety symbol The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning, etc.) used to operate switches and other devices. Indicates the outcome of an operation (e.g. a lid opens).
19
20
TABLE OF CONTENTS
1 Before driving
Adjusting and operating features such as door locks, mirrors, and steering column.
2 When driving
Driving, stopping and safe-driving information.
3 Interior features
Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.
4 Maintenance
and care
Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.
5 When trouble
arises
What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.
6 Vehicle
specifications
Detailed vehicle information.
7 For owners
Reporting safety defects for U.S. owners and seat belt instructions for Canadian owners
Index
Alphabetical listing of information contained in this manual.
Pictorial index
Exterior
Windshield wipers P. 129
Hood P. 225
Outside rear view mirrors P. 49
Headlights
(low and high beam)
P. 126
Front side marker lights P. 126
Front turn signal /
parking lights P. 113, 126
Front fog lights∗ P. 128
Fuel filler door P. 54
Rear window defogger∗ P. 164
Doors P. 26
Trunk P. 31
Tires l Rotation l Replacement l Inflation pressure l Information
P. 242
P. 303
P. 248
P. 341
License plate lights P. 126
Stop/tail and rear side
marker lights P. 126
Rear turn signal lights P. 113
∗: If equipped
Pictorial index
Interior
Seat belts P. 40
Head restraints P. 38
Power window
switches∗ P. 52
Cup holders∗
P. 197
Horn P. 116
SRS driver airbag P. 65
Shift lever P. 110, 112
Security indicator
P. 58, 60
SRS front
passenger air-
bag P. 65
Armrest∗ P. 206
Rear seats P. 35
Floor mats P. 207
SRS side airbags∗ P. 65
Front seats P. 34
Vanity mirrors P. 201
Sun visors P. 200
Personal lights P. 193
Interior light P. 193
Anti-glare inside
rear view mirror P. 48
SRS curtain shield airbags∗ P. 65
∗: If equipped
Pictorial index
Interior
Window lock switch∗ P. 53
Power window
switches∗ P. 52
Inside door lock button P. 28
Door lock switch∗ P. 28
10
Console box P. 195
Cup holder P. 197
Parking brake lever P. 114
Power outlet∗ Cigarette lighter∗
P. 205
P. 204
∗: If equipped
11
Pictorial index
Instrument panel
Headlight switch Turn signal lever Fog light switch∗
P. 126
P. 113
P. 128
Windshield wipers and
washer switch P. 129
Gauges and meters P. 117
Auxiliary box
P. 198
Audio system P. 166
Hood opener
P. 225
Bottle holder
P. 198
Glove box P. 194
Shift lock override button∗ P. 316
Fuel filler door opener
Tilt steering lock release lever P. 47
P. 54
Trunk opener P. 31
12
Emergency flasher switch P. 282
CLOCK button P. 117, 202
ODO/TRIP button P. 117
∗: If equipped
13
Pictorial index
Instrument panel
Air conditioning system P. 158
AUX adapter∗ P. 190
Rear window defogger switch∗/
Rear window defogger and outside rear
view mirror defogger switch∗ P. 164
14
Cruise control switch∗ P. 132
Engine (ignition) switch P. 106
Cup holders P. 196
Outside rear view mirror
switches∗ P. 49
Instrument panel light
control dial P. 121
∗: If equipped
15
1-1. Key information Keys
The following keys are provided with the vehicle.
Vehicles without engine immobilizer system (type A)
Master keys (with wireless remote control function) Operating the wireless remote control function (→P. 24) Valet key Key number plate
Vehicles without engine immobilizer system (type B)
Master keys Valet key Key number plate
Vehicles with engine immobilizer system (type A)
Master keys (with wireless remote control function) Operating the wireless remote control function (→P. 24) Valet key Key number plate
22
1-1. Key information
Vehicles with engine immobilizer system (type B) Master keys Valet key Key number plate
n When required to leave a key to the vehicle with a parking attendant
Turn the luggage security system on. (→P. 32) Carry the master key for your own use and leave the valet key only with the attendant.
n Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 317)
NOTICE
n To prevent key damage (vehicles with engine immobilizer system)
l Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
l Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
23
1-2. Opening, closing and locking the doors Wireless remote control (if equipped)
The wireless remote control can be used to lock/unlock the vehicle from outside the vehicle.
Locks all doors Sounds alarm (push and hold) Unlocks all doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.
n Operation signals
The emergency flashers flash to indicate that the doors have been locked/ unlocked. (Locked: Once; Unlocked: Twice)
n Panic mode
is pushed for longer than about When 1 second, an alarm will sound for about 60 seconds and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, push any button on the wireless remote control.
n Key battery depletion
The standard battery life is 1 to 2 years. (The battery becomes depleted even if the key is not used.) If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 257)
n Security feature
If a door is not opened within approximately 30 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.
24
1-2. Opening, closing and locking the doors
n Conditions affecting operation
The wireless remote control function may not operate normally in the follow- ing situations. l Near a TV tower, radio station, electric power plant, airport or other facil-
ity that generates strong radio waves
l When carrying a portable radio, cellular phone or other wireless commu-
nication device
l When multiple wireless keys are in the vicinity l When the wireless key has come into contact with, or is covered by a
metallic object
l When a wireless key (that emits radio waves) is being used nearby l When the wireless key has been left near an electrical appliance such as
a personal computer
n Customization that can be configured at Toyota dealer
l Settings (e.g. wireless remote control system) can be changed.
(Customizable features →P. 354)
n Certification for wireless remote control
For vehicles sold in U.S.A. FCC ID:MOZB41TG FCC ID:MOZB21RG
NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.
25
1-2. Opening, closing and locking the doors Doors
The vehicle can be locked/unlocked using the wireless remote con- trol, key or door lock switch. n Wireless remote control (if equipped)
→P. 24
n Key
Vehicles with power door lock
Locks all doors Unlocks all doors Turning the key a single time in the driver’s door unlocks the driver’s door, and turning the key again unlocks the other doors.
26
1-2. Opening, closing and locking the doors
Vehicles without power door lock
Locks the door Unlocks the door
27
1-2. Opening, closing and locking the doors
n Door lock switch (if equipped)
Driver’s door lock switch
Unlocks all doors Locks all doors
Passenger’s door lock switch
Locks all doors Unlocks all doors
n Inside door lock button
Locks the door Unlocks the door Pulling the inside handle can open the front door even if the lock button is in the lock posi- tion.
28
1
1-2. Opening, closing and locking the doors
Locking the front doors from the outside without a key
Move the inside door lock button to the lock position. Close the door.
Vehicles with power door lock The door cannot be locked if the driver’s door is open and the key is in the engine switch.
Rear door child-protector lock
The door cannot be opened from inside the vehicle when the locks are set.
These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.
n Key reminder buzzer
A buzzer sounds if the driver’s door is opened, while the engine switch is in the ACC or LOCK position to remind you to remove the key.
n Customization that can be configured at Toyota dealer
Settings (Customizable features →P. 354)
(e.g. unlocking
function using a key) can be changed.
29
1-2. Opening, closing and locking the doors
CAUTION
n To prevent an accident
Observe the following precautions while driving the vehicle. Failing to do so may result in a door opening and an occupant falling out, resulting in death or serious injury. l Always use a seat belt. l Always lock all doors. l Ensure that all doors are properly closed. l Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi- cle and it may result in serious injury or death. Be especially careful for the front doors, the doors may be opened even if the inside lock buttons are in locked position.
l Set the rear door child protector locks when children are seated in the rear
seat.
30
1-2. Opening, closing and locking the doors Trunk
The trunk can be opened using the key or trunk opener. n Key
Turn the master key clockwise to release the trunk lid.
n Trunk opener
Release the trunk lid.
31
1-2. Opening, closing and locking the doors
n Internal trunk release lever
The trunk lid can be opened by pulling up on the glow-in-the-dark lever located on the inside of trunk lid. The lever will continue to glow for some time after the trunk lid is closed.
Luggage security system
To protect luggage stored in the trunk against theft, do the following procedures.
Vehicles with split rear seats: Move the security lock levers to lock the rear seatbacks.
Turn the master key counter- clockwise to trunk opener feature.
lock
the
32
1-2. Opening, closing and locking the doors
CAUTION
n Caution while driving
Keep the trunk lid closed. This not only keeps personal belongings from being thrown out, but also pre- vents exhaust gases from entering the vehicle.
n When children are in the vehicle
Never leave children unattended in the vehicle as they may lock themselves in the vehicle or trunk, which could cause the child to overheat or suffocate, resulting in death or serious injury.
n When using the trunk compartment
Ensure the trunk lid is fully open. If it only partially opens, it could fall down potentially causing serious injury.
33
1-3. Adjustable components (seats, mirrors, steering wheel) Front seats
Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever (driver’s side only)
CAUTION
n Seat adjustment
l Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.
l After adjusting the seat, make sure that the seat is locked in position.
34
1-3. Adjustable components (seats, mirrors, steering wheel) Rear seats (split rear seats only)
The seatbacks of the rear seats can be folded down.
Insert the key into the hole on the center seat belt buckle to release tab (with hooked end), and allow the belt to retract.
Remove the seat belts from the seat belt guides.
Check that the security lock levers in the unlock position.
trunk are
in
35
1-3. Adjustable components (seats, mirrors, steering wheel)
Lower each head restraints while pushing the lock release button.
Fold the seatbacks down while pulling the seatback lock release knobs.
n Returning rear seatbacks
Tilt the rear seatback up until it locks, making sure that you hold the seat belt to prevent it from getting caught between the seatback and the inner side of the vehicle.
Make sure the shoulder belt passes through the guide and the seat belt is in the position before folding down the seat when returning the seatback up.
36
1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
n After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or serious injury.
l Make sure
that
the seatback
is securely locked in position by lightly rocking it back and forth. If the seatback is not securely locked, the red marking will be visible on the seatback lock release knob. Make sure that the red marking is not visi- ble.
l Check that the seat belts are not twisted or caught under the seat.
37
1-3. Adjustable components (seats, mirrors, steering wheel) Head restraints
Front seats
Lock release button Rear seats
Vertical adjustment
Up Down Push the head restraints down while pushing the lock release button.
Vertical adjustment
Up Down Push the head restraints down while pushing the lock release button.
Lock release button
n Removing the head restraints
Front seats
Pull the head restraint up while pushing the lock release button.
38
1-3. Adjustable components (seats, mirrors, steering wheel)
Rear seats
Pull the head restraint up while pushing the lock release button.
n Adjusting the height of the head restraints
Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.
n Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when using.
CAUTION
n Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. l Use the head restraints designed for each respective seat. l Adjust the head restraints to the correct position at all times. l Do not drive with the head restraints removed.
39
1-3. Adjustable components (seats, mirrors, steering wheel) Seat belts
Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. n Correct use of the seat belts
l Extend the shoulder belt so that it comes fully over the shoulder, but does not
